Dell Studio One 1909 User manual

SETUP GUIDE

Model MTF
SETUP GUIDE

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of your
computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells
you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
__________________
Information in this document is subject to change without notice.
© 2009 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell , the DELL logo, and YOURS IS HERE are trademarks of Dell Inc.; Intel and Celeron are
registered trademarks and Core is a trademark of Intel Corporation in the United States and other countries; Microsoft ,
Windows , Windows Vista , and Windows Vista start button logo are either trademarks or registered trademarks of
Microsoft Corporation in the United States and/or other countries; Blu-ray Disc is a trademark of the Blu-ray Disc
Association; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and
names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
September 2009 P/N P687X Rev. A01

3
Setting Up Your Studio One. . . . . . . . . . . . . 5
Before Setting Up Your Computer . . . . . . . . .5
Connect the Network Cable (Optional) . . . . .6
Connect the Power Cable . . . . . . . . . . . . . . . .7
Set Up the Wireless Keyboard and
Mouse (Optional) . . . . . . . . . . . . . . . . . . . . . . .7
Press the Power Button . . . . . . . . . . . . . . . . .8
Windows Vista®Setup . . . . . . . . . . . . . . . . . .9
Connect to the Internet (Optional) . . . . . . . . .9
Using Your Studio One. . . . . . . . . . . . . . . . .12
Front View Features. . . . . . . . . . . . . . . . . . . .12
Left Side Features . . . . . . . . . . . . . . . . . . . . . 14
Back Panel Features . . . . . . . . . . . . . . . . . . 16
Locating the Service Tag . . . . . . . . . . . . . . .17
Using the Optical Disc Drive. . . . . . . . . . . . . 17
Using the Touch Screen (Optional) . . . . . . . 18
Software Features . . . . . . . . . . . . . . . . . . . . . 21
Solving Problems . . . . . . . . . . . . . . . . . . . . .23
Touch Screen Problems . . . . . . . . . . . . . . . . 23
Wireless Keyboard or Mouse
Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Network Problems . . . . . . . . . . . . . . . . . . . . . 25
Power Problems. . . . . . . . . . . . . . . . . . . . . . . 26
Memory Problems . . . . . . . . . . . . . . . . . . . . .27
Lockups and Software Problems . . . . . . . . .27
Using Support Tools. . . . . . . . . . . . . . . . . . .30
Dell Support Center . . . . . . . . . . . . . . . . . . . . 30
Beep Codes . . . . . . . . . . . . . . . . . . . . . . . . . . 30
System Messages . . . . . . . . . . . . . . . . . . . . .31
Contents

4
Contents
Hardware Troubleshooter. . . . . . . . . . . . . . . 32
Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . . 33
System Recovery Options . . . . . . . . . . . . . .35
System Restore . . . . . . . . . . . . . . . . . . . . . . .35
Dell Factory Image Restore . . . . . . . . . . . . . 36
Operating System Reinstallation . . . . . . . . .38
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . .40
Technical Support and Customer
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
DellConnect . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Online Services . . . . . . . . . . . . . . . . . . . . . . .41
Automated Order-Status Service . . . . . . . . .42
Returning Items for Repair Under
Warranty or for Credit . . . . . . . . . . . . . . . . . . 42
Before You Call. . . . . . . . . . . . . . . . . . . . . . . . 43
Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . . 44
Finding More Information and
Resources . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Specifications . . . . . . . . . . . . . . . . . . . . . . .48
Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Macrovision Product Notice. . . . . . . . . . . . . 53
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

5
This section provides information about setting
up your Studio One and connecting peripherals.
WARNING: Before you begin any of the
procedures in this section, read the
safety information that shipped with
your computer. For additional safety best
practices information, see the Regulatory
Compliance Homepage at www.dell.com/
regulatory_compliance.
Before Setting Up Your Computer
When positioning your computer, ensure that
you allow easy access to a power source,
controls and connections on the left side,
adequate ventilation, and a stable level surface
to place your computer.
Restricting airflow around your Studio
One may cause it to overheat. To prevent
overheating ensure that you leave a minimum
of 5.1 cm (2 inches) on all the sides. You should
never place your computer in an enclosed
space, such as a cabinet when it is powered on.
Setting Up Your Studio One

6
Setting Up Your Studio One
Connect the Network Cable
(Optional)
A network connection is not required to
complete this computer setup, but if you have
an existing network or Internet connection
that uses a cable connection (such as a home
cable modem or Ethernet jack), you can connect
it now.
Use only an Ethernet cable (RJ45 connector).
Do not plug a telephone cable (RJ11 connector)
into the network connector.
To attach your computer to a network or
broadband device, connect one end of a
network cable to either a network port or a
broadband device. Connect the other end of the
network cable to the network adapter connector
on the back panel of your computer. A click
indicates that the network cable has been
securely attached.

7
Setting Up Your Studio One

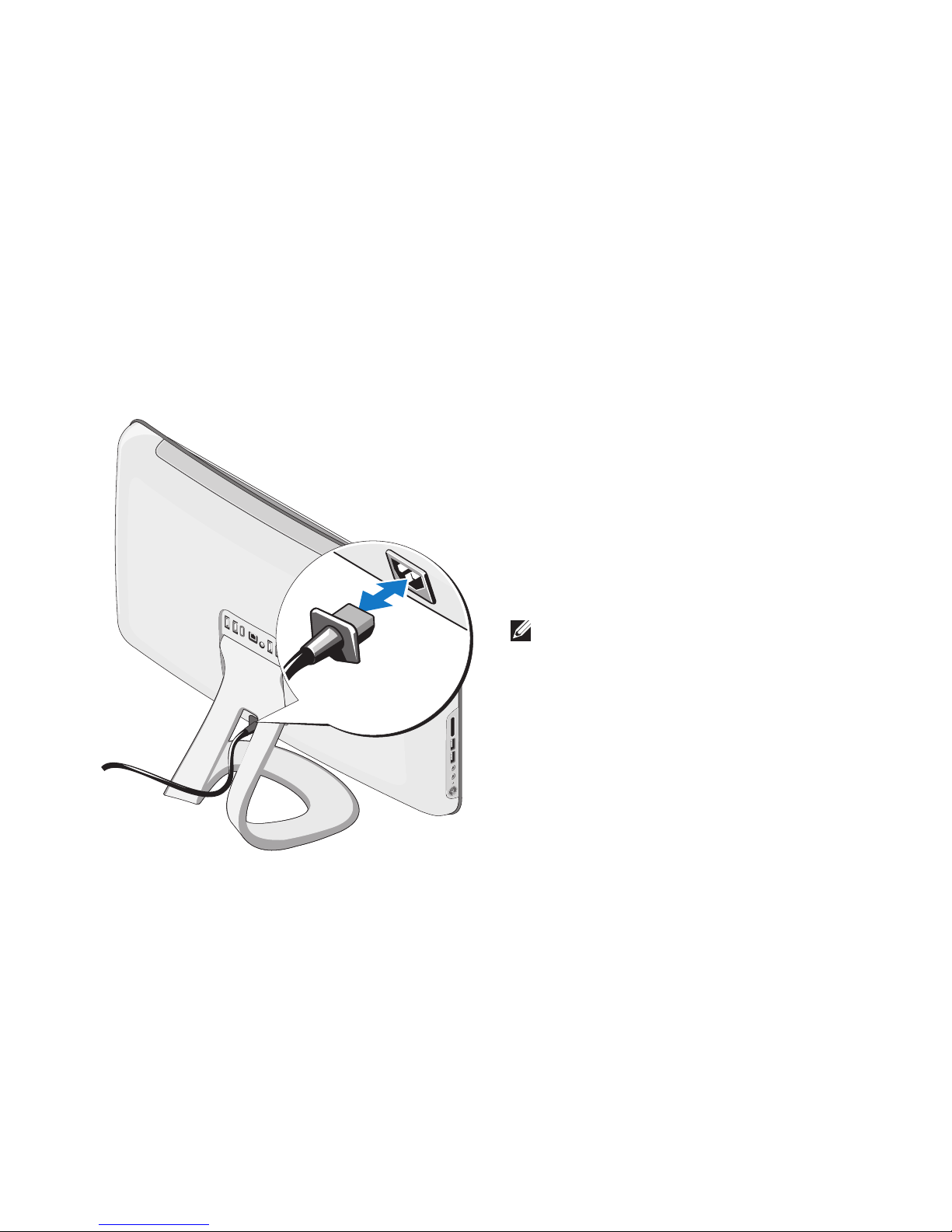

Connect the Power Cable Set Up the Wireless Keyboard and
Mouse (Optional)
Your Studio One supports a special wireless
(non-Bluetooth) keyboard and mouse which are
optimized for use with your computer.
After installing the batteries the wireless
keyboard and mouse are synced and ready
to use. If you have a problem setting up your
wireless keyboard and mouse, see “Wireless
Keyboard or Mouse Problems” on page 24.
NOTE: The wireless keyboard and mouse
have special features which may not be
available on other devices that could be
used with your computer.

8
Setting Up Your Studio One
Press the Power Button

9
Setting Up Your Studio One
Windows Vista®Setup
Your Dell computer is pre configured with
Windows Vista. To set up Windows Vista for the
first time, follow the instructions on the screen.
These steps are mandatory and may take some
time to complete. The screens will take you
through several procedures including accepting
license agreements, setting preferences, and
setting up an Internet connection.
CAUTION: Do not interrupt the operating
system’s setup process. Doing so may
render your computer unusable.
Connect to the Internet (Optional)
NOTE: ISPs and ISP offerings vary by
country.
To connect to the Internet, you need an external
modem or network connection and an Internet
service provider (ISP). Your ISP will offer one
or more of the following Internet connection
options:
DSL connections that provide high-speed•
Internet access through your existing
telephone line or cellular telephone service.
With a DSL connection, you can access the
Internet and use your telephone on the same
line simultaneously.
Cable modem connections that provide•
high-speed Internet access through your
local cable TV line.
Satellite modem connections that provide•
high-speed Internet access through a
satellite television system.

10
Setting Up Your Studio One
Dial-• up connections that provide Internet
access through a telephone line. Dial-
up connections are considerably slower
than DSL and cable (or satellite) modem
connections. Your computer does not have
an integrated modem. An optional USB
modem must be used for dial-up service with
this computer.
Wireless LAN• connections that provide
Internet access using WiFi 802.11
technology. Wireless LAN support requires
optional internal components that may or
may not be installed in your computer based
on decisions made at the time of purchase.
NOTE: If an external USB modem or
WLAN adapter is not part of your original
order you can purchase one from the Dell
website at dell.com.
Setting Up a Wired Connection
If you are using a dial-up connection, connect•
the telephone line to the external USB modem
(optional) and to the telephone wall jack
before you set up your Internet connection.
If you are using a DSL or cable/satellite•
modem connection, contact your ISP or
cellular telephone service for setup
instructions.
To complete setting up your wired internet
connection, follow the instructions in “Setting
Up Your Internet Connection” on page 11.
Setting Up a Wireless Connection
NOTE: To set up your wireless router,
see the documentation that shipped with
your router.
Before you can use your wireless Internet
connection, you need to connect to your
wireless router. To set up your connection to a
wireless router:

11
Setting Up Your Studio One
Save and close any open files, and exit any1.
open programs.
Click2. Start →Connect To.
Follow the instructions on the screen to3.
complete the setup.
Setting Up Your Internet Connection
If you do not have an ISP icon on your desktop
or if you want to set up an Internet connection
with a different ISP, perform the steps in the
following section.
NOTE: If you cannot connect to the Internet
but have successfully connected in the
past, the ISP might have a service outage.
Contact your ISP to check the service
status, or try connecting again later.
NOTE: Have your ISP information ready.
If you do not have an ISP, the Connect to
the Internet wizard can help you get one.
Save and close any open files, and exit any1.
open programs.
Click2. Start →Control Panel.
Under3. Network and Internet, click Connect
to the Internet.
The Connect to the Internet window appears.
Click either4. Broadband (PPPoE) or Dial-up,
depending on how you want to connect:
Choose• Broadband if you will use a DSL,
satellite modem, cable TV modem, or
Bluetooth®wireless technology connection.
Chose• Dial-up if you will use an optional USB
dial-up modem or ISDN.
NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.
Follow the instructions on the screen and use
the setup information provided by your ISP to
complete the setup.

12
Front View Features
7
4
5
23
1
1Air vents — Internal fans create airflow
through the vents to prevent the computer
from overheating. The fans are turned on
automatically when the computer gets hot.
Fan noise is normal and does not indicate
a problem with the fan or the computer.
WARNING: Ensure that none of the
computer air vents are blocked.
Blocking the vents will cause serious
thermal problems.
2Camera activity light (optional) —
Indicates if the camera is on or off.
Using Your Studio One
6

13
Using Your Studio One
3Camera/microphone (optional) — Built-in
camera and microphone array for video
capture, conferencing, and chat.
4Speakers (2)
5Optical drive — Plays or records only
standard-size (12 cm) CDs and DVDs. See
“Using the Optical Disc Drive” on page 17
for more information.
6Optical drive eject control — Lights
up when the computer starts up and when
a disc is in the optical drive. To eject a disc
gently touch the control.
7Computer stand — Use the stand to tilt the
display to your preferred angle. It can be
tilted up to 40°. The stand provides stability
to the computer; it is not a removable part.
WARNING: The computer stand
should remain installed at all times to
ensure maximum system stability.
NOTE: Your computer Service Tag/
Express Service Code is located on a
label under the display glass. To view
the Service Tag/Express Service Code
tilt the display by 40°. Use this code
when you access the Dell Support
website or contact technical support.

14
Using Your Studio One
Left Side Features
2
3
4
6
5
1
1Media Card Reader — Provides
a fast and convenient way to view and
share digital photos, music, videos, and
documents stored on the following digital
memory cards:
Secure digital (• SD) memory card
Multi• Media Card (MMC)
Memory• Stick
Memory Stick PRO•
xD-• Picture Card (type - M and type - H)
Hi Speed-SD•
Hi Density• -SD
2USB 2.0 connectors (2) — Connects
to USB devices, such as a mouse,
keyboard, printer, external drive, or
MP3 player.

15
Using Your Studio One
3Headphone or line-out connector —
Connects to headphones.
NOTE: To connect to a powered
speaker or sound system, use the line
out connector on the back of your
computer.
4Microphone or line-in connector —
Connects to a microphone for voice or to
an audio cable for audio.
5Hard drive activity light — Turns on
when the computer reads or writes data.
A flashing light indicates hard drive
activity.
CAUTION: To avoid loss of data,
never turn off the computer while the
hard drive activity light is flashing.
6Power button and light — Turns the
computer on or off when pressed. The
light in the center of this button indicates
the power state:
Solid amber — the computer is in sleep•
state
OR
the system board cannot start
initialization. There may be an issue
with either the system board or the
power supply.
Solid white — the computer is in•
power-on state.
Blinking amber — there is a•
power problem, a device may be
malfunctioning or incorrectly installed.

16
Using Your Studio One
Back Panel Features
4
1 32
1USB 2.0 connectors (4) — Connects
to USB devices, such as a mouse,
keyboard, printer, external drive, or MP3
player.
2Wireless sync button —
Reestablishes the connection between
your computer, mouse, and keyboard. To
use, press the sync button on the back
of your computer, then on the device that
you wish to reconnect.
NOTE: The wireless sync button is
functional only if you purchase a
wireless keyboard and mouse along
with your computer.
3Network connector and light —
Connects your computer to a network
or broadband device. The network
activity light flashes when the computer
is transmitting or receiving data. A high
volume of network traffic may make this
light appear to be in a steady “on” state.
4Line-out connector — Connects to
a powered speaker or sound system.

17
Using Your Studio One
Locating the Service Tag
1
1Service Tag
Gently tilt the display upwards to reveal the
Service Tag.
Using the Optical Disc Drive
Insert the disc, with the label facing outwards
and gently push the disc into the slot. The drive
will automatically pull the disc in and begin
reading its content. To eject a disc from the
drive, gently touch the eject control.

18
Using Your Studio One
Using the Touch Screen (Optional)
The touch screen feature on your Studio One
converts your computer into an interactive
display.
Dell Touch Zone
To launch the Dell Touch Zone software click
Start →Dell Touch Zone.
You can access the following features in the
Dell Touch Zone software:
Picture Viewer• — View, organize, and edit
pictures.
Dell Touch Cam• — Capture home videos with
the built in web-cam. You can upload videos
to YouTube when connected to the Internet.
Notes Creator• — Create typed or
handwritten reminders. These notes will
appear on the bulletin board the next time
you access Dell Touch Zone.
Drum Zone• — Play a game to the music
on your computer or play synthesized
percussion instruments.
You Paint• — Draw, paint images, and edit
photographs using this software.
Games• — Play select Windows games using
touch.
Music• — Play music, create play lists, and
browse through your music files by album,
artist, or song title.
Internet Explorer• — Browse the Internet
using multi-touch technology. Touch a link
you want to follow or download.
Help• — Use the Help feature for more
information on how to use the touch screen.
A video highlighting the features of the touch
screen launches the first time your system
starts up.
NOTE: To view the video at a later time,
access it via Help or at support.dell.com.
