Dell 7330 Operation and maintenance manual

Latitude 7330 Rugged Extreme
Setup and Specifications
Regulatory Model: P149G
Regulatory Type: P149G001
Jluly 2022
Rev. A02

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid
the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
© 2021-2022 Dell Inc. or its subsidiaries. All rights reserved. Dell Technologies, Dell, and other trademarks are trademarks of Dell Inc. or its
subsidiaries. Other trademarks may be trademarks of their respective owners.

Chapter 1: Set up your Latitude 7330 Rugged Extreme.................................................................. 5
Chapter 2: Views of Latitude 7330 Rugged Extreme...................................................................... 7
Right........................................................................................................................................................................................7
Left.......................................................................................................................................................................................... 7
Top.......................................................................................................................................................................................... 8
Front....................................................................................................................................................................................... 9
Bottom..................................................................................................................................................................................10
Back....................................................................................................................................................................................... 11
Service Tag...........................................................................................................................................................................11
Battery charge and status light .....................................................................................................................................12
Chapter 3: Specifications of Latitude 7330 Rugged Extreme........................................................13
Dimensions and weight..................................................................................................................................................... 13
Processor............................................................................................................................................................................. 13
Chipset..................................................................................................................................................................................14
Operating system............................................................................................................................................................... 14
Memory.................................................................................................................................................................................14
External ports..................................................................................................................................................................... 15
Internal slots........................................................................................................................................................................15
Ethernet............................................................................................................................................................................... 16
Wireless module..................................................................................................................................................................16
WWAN module....................................................................................................................................................................16
Audio......................................................................................................................................................................................17
Storage................................................................................................................................................................................. 17
Media-card reader............................................................................................................................................................. 18
Keyboard.............................................................................................................................................................................. 18
Camera (optional).............................................................................................................................................................. 19
Touchpad............................................................................................................................................................................. 19
Power adapter................................................................................................................................................................... 20
Battery.................................................................................................................................................................................. 21
Battery life specifications.......................................................................................................................................... 22
Display.................................................................................................................................................................................. 23
Fingerprint reader on the power button (optional)...................................................................................................23
Sensor.................................................................................................................................................................................. 24
GPU—Integrated.............................................................................................................................................................. 24
Multiple display support matrix...................................................................................................................................... 24
Hardware security............................................................................................................................................................. 24
Smart-card reader.............................................................................................................................................................25
Contacted smart-card reader...................................................................................................................................25
Contactless smart-card reader................................................................................................................................ 26
Operating and storage environment............................................................................................................................. 27
Chapter 4: Color, material, and finish ......................................................................................... 29
Contents
Contents 3

Chapter 5: Keyboard shortcuts of Latitude 7330 Rugged Extreme............................................... 30
Chapter 6: Getting help and contacting Dell................................................................................ 32
4 Contents

Set up your Latitude 7330 Rugged Extreme
About this task
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Steps

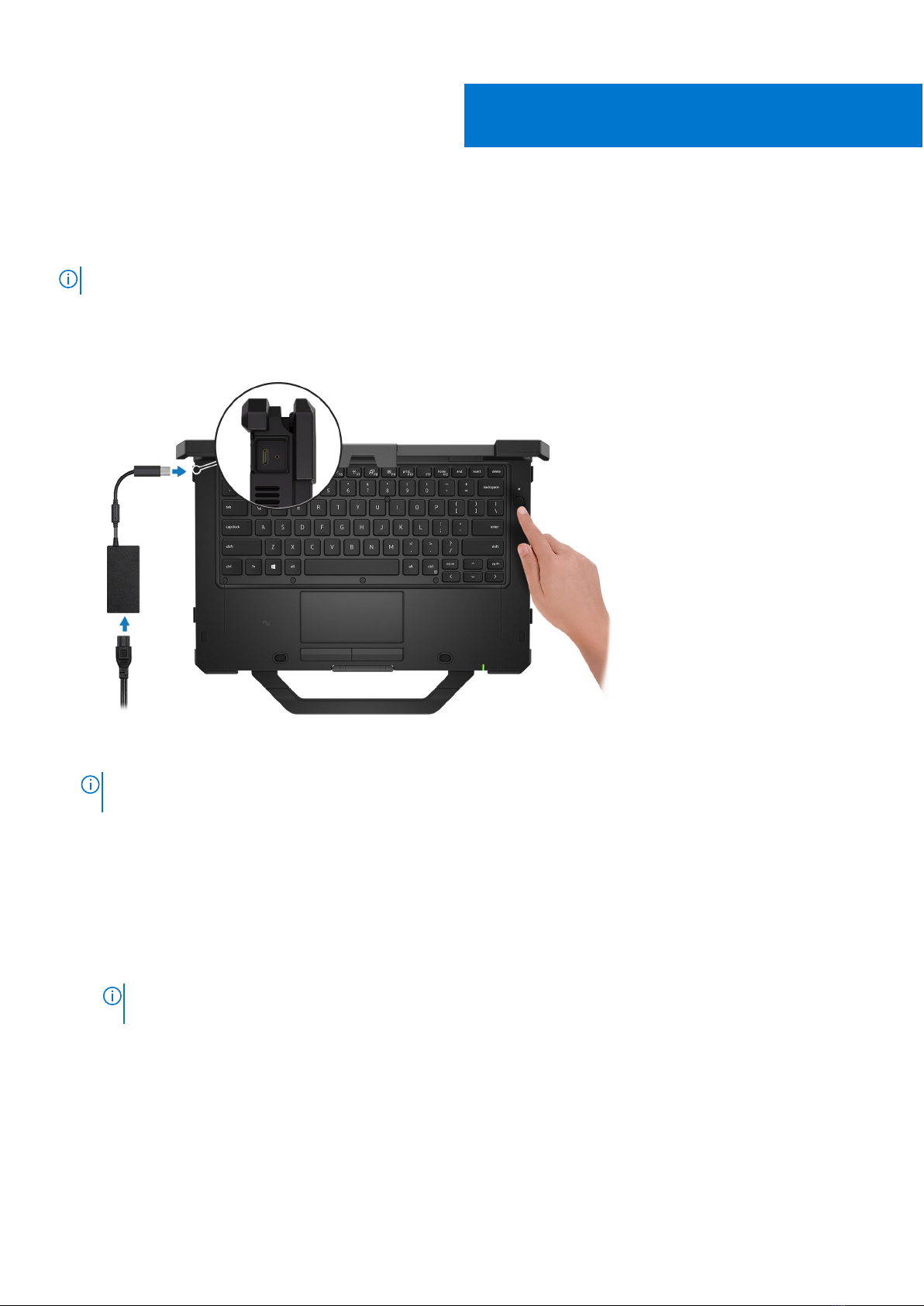

1. Connect the power adapter and press the power button.
NOTE: To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press
the power button to turn on the computer.
2. Finish operating system setup.
For Ubuntu:
Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu,
search in the Knowledge Base Resource at www.dell.com/support.
For Windows:
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
●Connect to a network for Windows updates.
NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when
prompted.
●If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an
offline account.
●On the Support and Protection screen, enter your contact details.
3. Locate and use Dell apps from the Windows Start menu—Recommended.
1
Set up your Latitude 7330 Rugged Extreme 5

Table 1. Locate Dell apps
Resources Description
Dell Product Registration
Register your computer with Dell.
Dell Help & Support
Access help and support for your computer.
SupportAssist
SupportAssist is the smart technology that keeps your computer running at its best by optimizing
settings, detecting issues, removing viruses and notifies when you need to make system
updates. SupportAssist proactively checks the health of your system's hardware and software.
When an issue is detected, the necessary system state information is sent to Dell to begin
troubleshooting. SupportAssist is preinstalled on most of the Dell devices running Windows
operating system. For more information, see SupportAssist for Home PCs User's Guide on
www.dell.com/serviceabilitytools.
NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
Dell Update
Updates your computer with critical fixes and latest device drivers as they become available. For
more information on using Dell Update, search in the Knowledge Base Resource at www.dell.com/
support.
Dell Digital Delivery
Download software applications, which are purchased but not preinstalled on your computer.
For more information on using Dell Digital Delivery, search in the Knowledge Base Resource at
www.dell.com/support.
6 Set up your Latitude 7330 Rugged Extreme

Views of Latitude 7330 Rugged Extreme
Right
1. Smart-card reader slot (optional)
2. Express card slot (optional)
3. Stylus slot
4. Nano SIM card slot
5. microSD-card slot
6. Thunderbolt 4/USB 3.2 Gen 2 Type-C port with PowerDelivery 3.0 (optional)
Left
1. Thunderbolt 4/USB 3.2 Gen 2 Type-C port with Power Delivery 3.0
2. Air vent
3. USB 3.2 Gen 1 port with PowerShare
4. USB 3.2 Gen 1 port
5. Headset (headphone and microphone combo) port
2
Views of Latitude 7330 Rugged Extreme 7

Top
1. Power status light
2. Power button with optional fingerprint reader
3. Keyboard
4. Touchpad
5. Near Field Communication (NFC)
8Views of Latitude 7330 Rugged Extreme

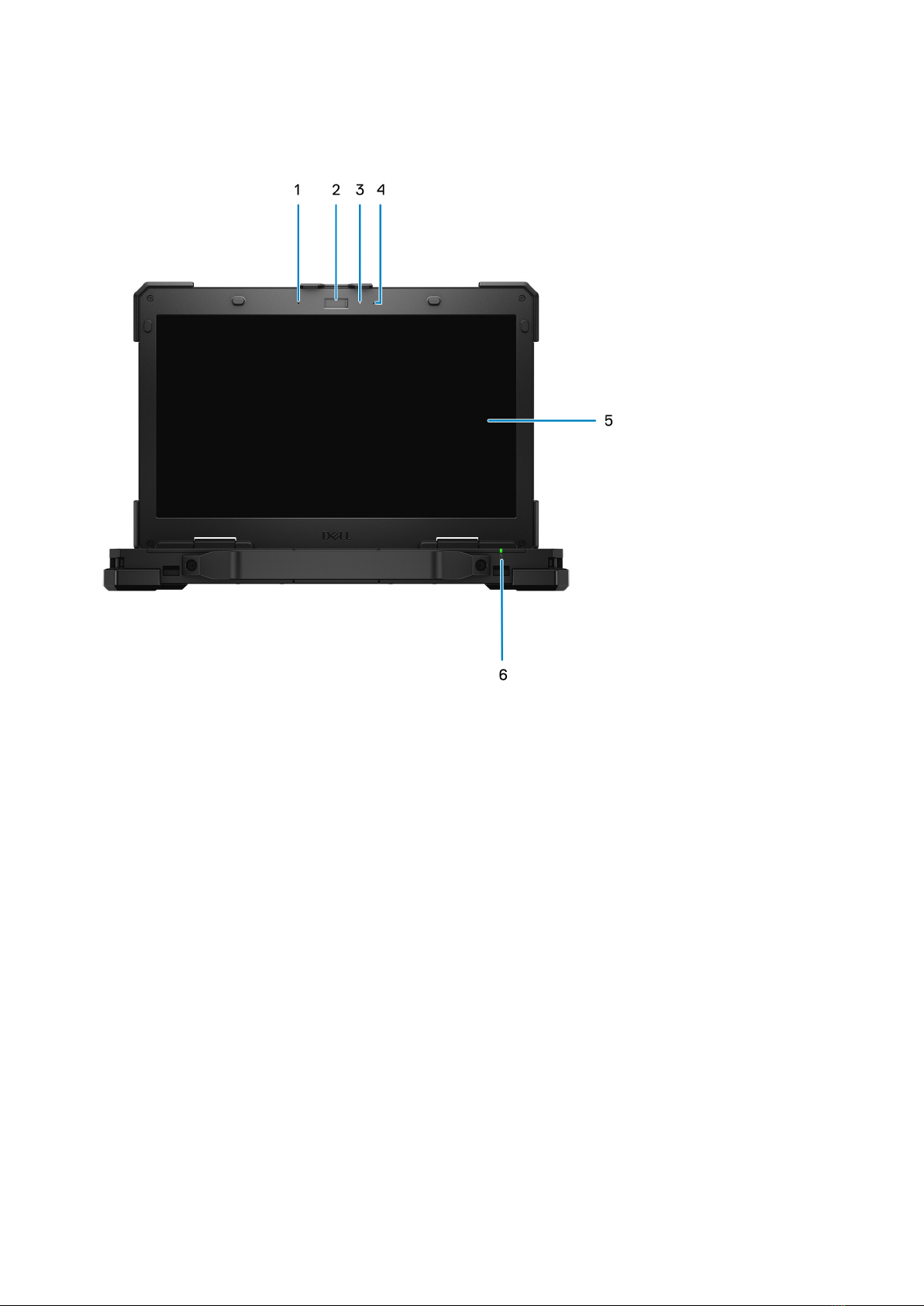

Front
1. Microphone
2. Privacy shutter
3. LED/IR lens
4. Microphone
5. Display
6. Battery-status light/Diagnostic-status light
Views of Latitude 7330 Rugged Extreme 9

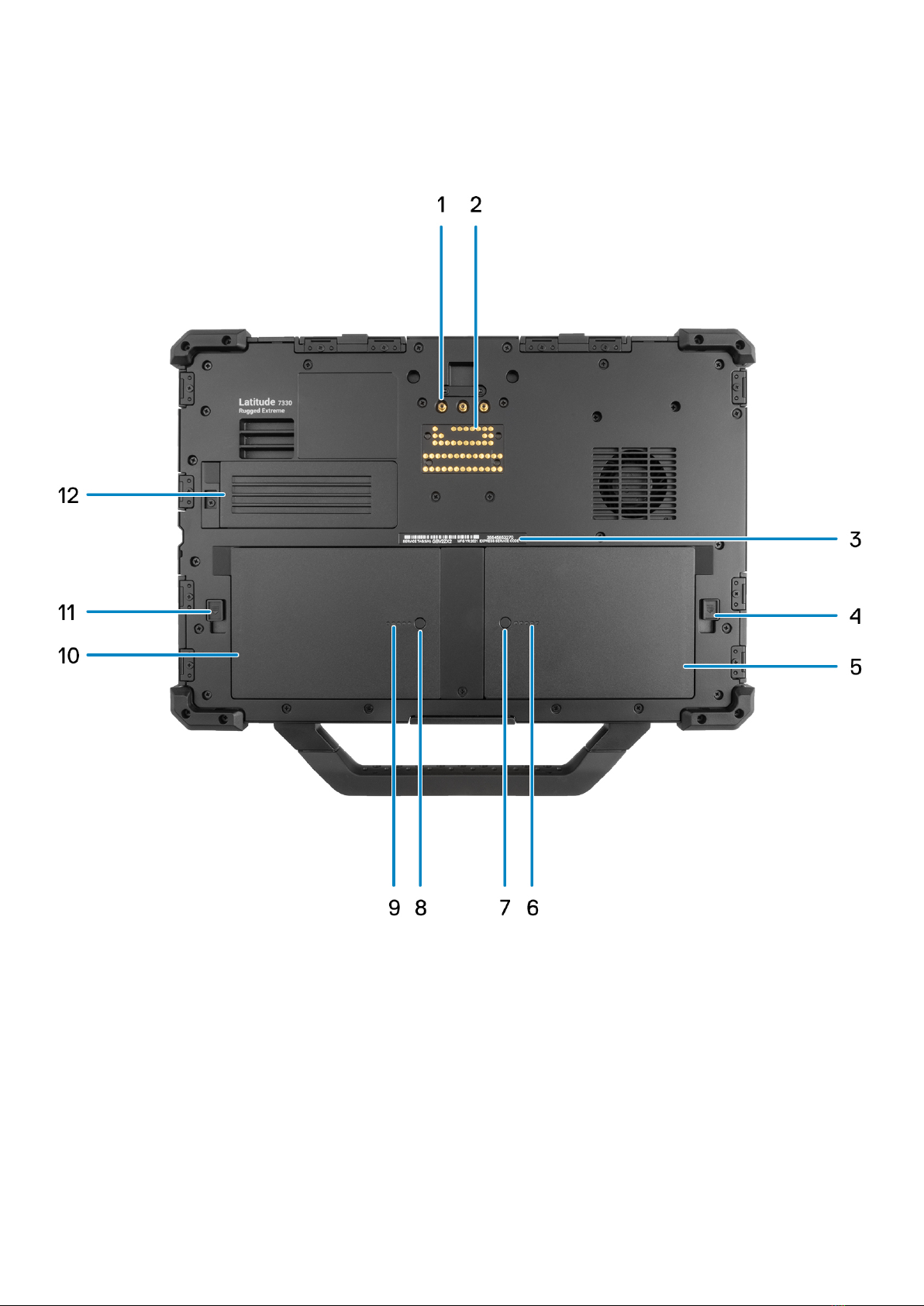

Bottom
1. Radio frequency pass-through connectors
2. Docking port
3. Service tag label
4. Battery 1 latch
5. Battery 1
6. Battery 1 LED indicator
7. Battery 1 button
8. Battery 2 button
9. Battery 2 LED indicator
10. Battery 2
11. Battery 2 latch
10 Views of Latitude 7330 Rugged Extreme

12. Solid-state drive door

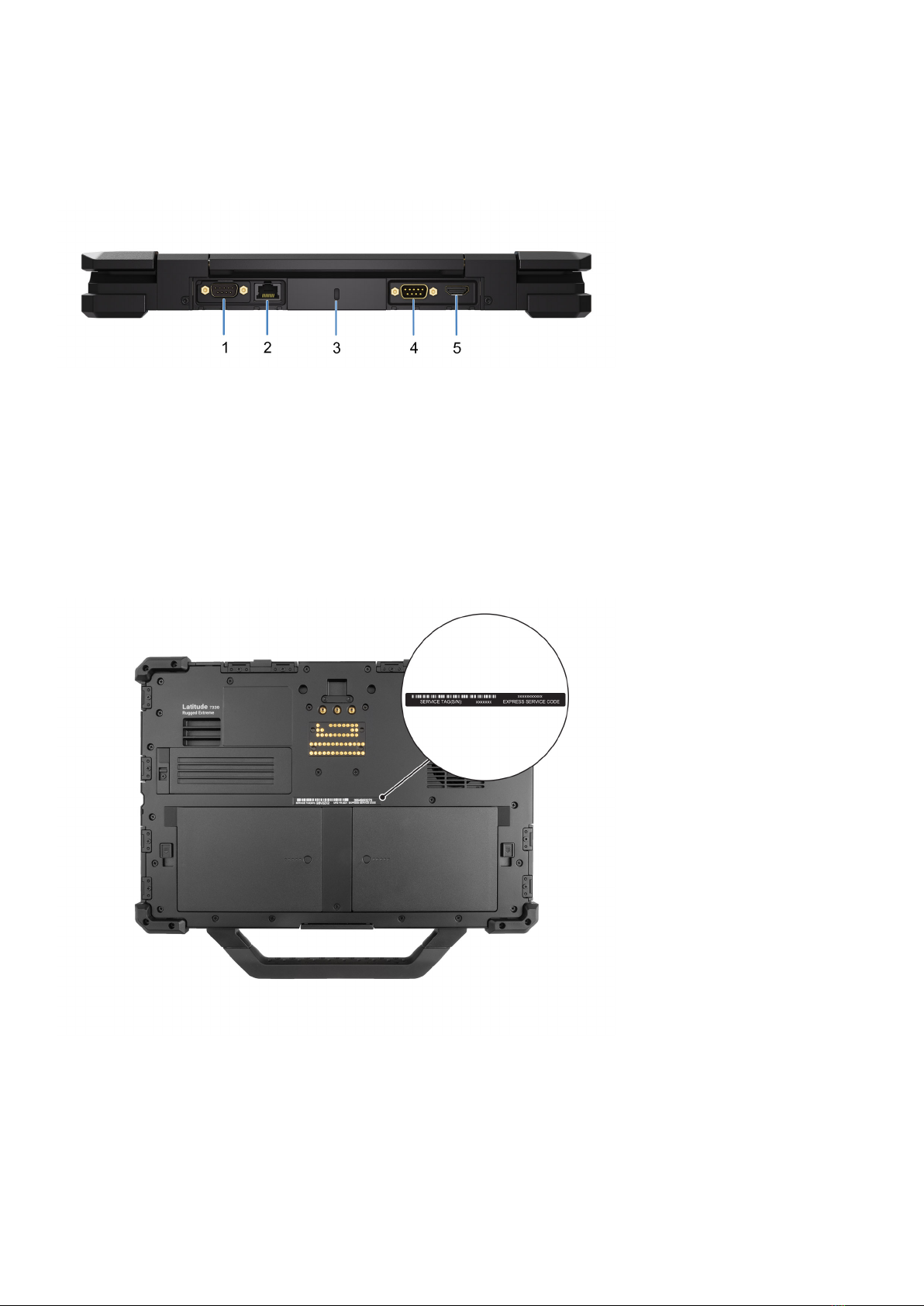

Back
1. Optional I/O bay (RJ45/USB Type-A/Native Serial/Fischer USB 3.0 9-pin/Blank)
2. RJ45 Ethernet port
3. Kensington lock slot
4. Serial RS-232 port
5. HDMI 2.0 port
Service Tag
The service tag is a unique alphanumeric identifier that allows Dell service technicians to identify the hardware components in
your computer and access warranty information.
Views of Latitude 7330 Rugged Extreme 11

Battery charge and status light
The following table lists the battery charge and status light behavior of your Latitude 7330 Rugged Extreme.
Table 2. Battery charge and status light behavior
Power Source LED Behavior System Power State Battery Charge Level
AC Adapter Off S0 - S5 Fully Charged
AC Adapter Green S0 - S5 < Fully Charged
Battery Off S0 - S5 10%<RSOC <=100%
Battery Solid Amber (590+/-3 nm) S0 <= 10%
●S0 (ON) - System is turned on.
●S4 (Hibernate) - The system consumes the least power compared to all other sleep states. The system is almost at an OFF
state, expect for a trickle power. The context data is written to hard drive.
●S5 (OFF) - The system is in a shutdown state.
12 Views of Latitude 7330 Rugged Extreme

Specifications of Latitude 7330 Rugged
Extreme
Dimensions and weight
The following table lists the height, width, depth, and weight of your Latitude 7330 Rugged Extreme.
Table 3. Dimensions and weight
Description Values
Height:
Front height 36.50 mm (1.43 in.)
Rear height 36.50 mm (1.43 in.)
Width 324.00 mm (12.75 in.)
Depth 220.00 mm (8.66 in.)
Weight (minimum) 2.32 kg (5.11 lb)
NOTE: The weight of your computer depends on the
configuration ordered and manufacturing variability.
Processor
The following table lists the details of the processors supported by your Latitude 7330 Rugged Extreme.
Table 4. Processor
Description Option one Option two Option three
Processor type 11th Generation Intel Core
i5-1135G7
11th Generation Intel Core
i5-1145G7 vPro
11th Generation Intel Core
i7-1185G7 vPro
Processor wattage 28 W 28 W 28 W
Processor core count 4 4 4
Processor thread count 8 8 8
Processor speed Up to 4.20 GHz Up to 4.40 GHz Up to 4.80 GHz
Processor cache 8 MB 8 MB 12 MB
Integrated graphics Intel Iris XeGraphics Intel Iris XeGraphics Intel Iris XeGraphics
3
Specifications of Latitude 7330 Rugged Extreme 13

Chipset
The following table lists the details of the chipset supported by your Latitude 7330 Rugged Extreme.
Table 5. Chipset
Description Values
Chipset Intel TGL UP3
Processor 11th Generation Intel Core i5/i7
DRAM bus width 64-bit
Flash EPROM 32 MB
PCIe bus Up to Gen 4 for Integrated SSD
Operating system
Your Latitude 7330 Rugged Extreme supports the following operating systems:
●Windows 11 Home, 64-bit
●Windows 11 Pro, 64-bit
●Ubuntu Linux 20.04 LTS, 64-bit
●Windows 10 Pro with Windows 11 License, 64-bit
Memory
The following table lists the memory specifications of your Latitude 7330 Rugged Extreme.
Table 6. Memory specifications
Description Values
Memory slots Integrated
NOTE: Memory not upgradeable
Memory type LPDDR4x
Memory speed 4266 MHz
Maximum memory configuration 32 GB
Minimum memory configuration 8 GB
Memory size per slot 4 GB, 8 GB, 16 GB
Memory configurations supported ●8 GB, LPDDR4x, 4266 MHz, integrated
●16 GB, LPDDR4x, 4266 MHz, integrated
●32 GB, LPDDR4x, 4266 MHz, integrated
14 Specifications of Latitude 7330 Rugged Extreme

External ports
The following table lists the external ports of your Latitude 7330 Rugged Extreme.
Table 7. External ports
Description Values
Network port One RJ45 Ethernet port
USB ports ●One USB 3.2 Gen 1 port
●One USB 3.2 Gen 1 port with PowerShare
●One Thunderbolt 4/USB 3.2 Gen 2 Type-C port with
PowerDelivery 3.0 (also functions as charging port)
●One Thunderbolt 4/USB 3.2 Gen 2 Type-C port with
PowerDelivery 3.0 (optional)
●One Optional I/O bay (RJ45/USB Type-A/Native Serial/
Fischer USB 3.0 9-pin/Blank)
Audio port Headset (headphone and microphone combo) port
Video port One HDMI 2.0 port
I/O port ●One Serial RS-232 port
●Nano SIM card slot
●Smart card reader (optional)
●Express card (optional)
Media-card reader One microSD-card slot
Power-adapter port One USB Type-C port
Security-cable slot One Kensington lock slot
Internal slots
The following table lists the internal slots of your Latitude 7330 Rugged Extreme.
Table 8. Internal slots
Description Values
M.2 ●One M.2 2230 slot for Wi-Fi and Bluetooth card
●One M.2 2230/2280 slot for solid-state drive
●One M.2 3042 slot for upsell WWAN card
NOTE: To learn more about the features of different
types of M.2 cards, search in the Knowledge Base
Resource at www.dell.com/support.
Specifications of Latitude 7330 Rugged Extreme 15

Ethernet
The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Latitude 7330 Rugged Extreme.
Table 9. Ethernet specifications
Description Values
Model number Intel i219LM
Transfer rate 10/100/1000 Mbps
Wireless module
The following table lists the Wireless Local Area Network (WLAN) modules supported on your Latitude 7330 Rugged Extreme.
Table 10. Wireless module specifications
Description Option one Option two
Model number Intel AX210 Qualcomm WCN6856-DBS
Transfer rate Up to 2400 Mbps Up to 3571 Mbps
Frequency bands supported 2.4 GHz/5 GHz/6 GHz 2.4 GHz/5 GHz/6 GHz
Wireless standards 802.11ax (Wi-Fi 6E) 802.11ax (Wi-Fi 6E)
Encryption ●64-bit and 128-bit WEP
●AES-CCMP
●TKIP
●64-bit and 128-bit WEP
●AES-CCMP
●TKIP
Bluetooth 5.2 5.2
WWAN module
The following table lists the Wireless Wide Area Network (WWAN) module that is supported on your Latitude 7330 Rugged
Extreme.
Table 11. WWAN module specifications
Description Option one Option two
Model number DW5821e, Qualcomm Snapdragon
SDX20 Global Gigabit LTE
DW5930e, Qualcomm Snapdragon
SDX55 5G
Transfer rate Up to 1.0 Gbps DL/150 Mbps UL (Cat
16)
Up to 3 Gbps DL/250 Mbps UL (3GPP
Release15 NR/LTE CAT20)
Frequency bands supported ●LTE: (1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17,
18, 19, 20, 25, 26, 28, 29, 30, 32, 38,
39, 40, 41, 42, 43, 46, 66)
●HSPA+: (1, 2, 4, 5, 6, 8, 9, 19)
●NR: (1, 2, 3, 5, 7, 8, 12, 20, 28, 38, 41,
66, 71, 77, 78, 79)
●LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17,
18, 19, 20, 25, 26, 28, 29, 30, 32, 34,
38, 39, 40, 41, 42, 46, 48, 66)
●HSPA+: (1, 2, 4, 5, 6, 8, 9, 19)
Wireless standards ●LTE FDD/TDD
●WCDMA/HSPA+
●NR FR1(Sub6) FDD/TDD
●LTE FDD/TDD
16 Specifications of Latitude 7330 Rugged Extreme

Table 11. WWAN module specifications (continued)
Description Option one Option two
●GPS/GLONASS/Beidou/Galileo ●WCDMA/HSPA+
●GPS/GLONASS/Beidou/Galileo
Encryption Not supported Not supported
Global Navigation Satellite System
(GNSS)
Supports GPS, and GLONASS
Location sensor and NMEA
Supports GPS, and GLONASS
Location sensor
NOTE: For instructions on how to find your computer's IMEI (International Mobile Station Equipment Identity) number,
see the knowledge base article 000143678 at www.dell.com/support.
Audio
The following table lists the audio specifications of your Latitude 7330 Rugged Extreme.
Table 12. Audio specifications
Description Values
Audio controller Realtek ALC3254
Stereo conversion Supported
Internal audio interface High definition audio
External audio interface Headset (headphone and microphone combo) port
Number of speakers Two
Internal-speaker amplifier Supported (audio codec integrated)
External volume controls Keyboard shortcut controls
Speaker output:
Average speaker output 2 W
Peak speaker output 2.5 W
Subwoofer output Not supported
Microphone Dual-array microphones
Storage
This section lists the storage options on your Latitude 7330 Rugged Extreme.
Your computer supports one of the following configurations:
●One M.2 2230/2280 solid-state drive (Class 35 or Class 40)
Table 13. Storage specifications
Storage type Interface type Capacity
M.2 2230 solid-state drive PCIe 3 Gen x4 NVMe, Class 35 Up to 1 TB
Specifications of Latitude 7330 Rugged Extreme 17

Table 13. Storage specifications (continued)
Storage type Interface type Capacity
M.2 2280 solid-state drive PCIe 4 Gen x4 NVMe, Class 40 Up to 2 TB
M.2 2280 solid-state drive PCIe 4 Gen x3 NVMe, Class 40, self-
encrypting drive
512 GB
Media-card reader
The following table lists the media cards supported by your Latitude 7330 Rugged Extreme.
Table 14. Media-card reader specifications
Description Values
Media-card type microSD-card
Media-cards supported ●Secure Digital (MS)
●Secure Digital High Capacity (SDHC)
●Secure Digital Extended Capacity (SDXC)
●Multi-Media Card (MMC)
NOTE: The maximum capacity supported by the media-card reader varies depending on the standard of the media card
installed in your computer.
Keyboard
The following table lists the keyboard specifications of your Latitude 7330 Rugged Extreme.
Table 15. Keyboard specifications
Description Values
Keyboard type ●Standard, non-backlit keyboard
●Standard, RGB backlit keyboard
●Rubberized Sealed RGB backlit keyboard
Keyboard layout ●QWERTY
●AZERTY
●Kanji
Number of keys ●United States and Canada: 82 keys
●United Kingdom: 83 keys
●Brazil: 84 keys
●Japan: 86 keys
Keyboard size X= 19.05 mm key pitch
Y= 19.05 mm key pitch
Keyboard shortcuts Some keys on your keyboard have two symbols on them.
These keys can be used to type alternate characters or to
perform secondary functions. To type the alternate character,
press Shift and the desired key. To perform secondary
functions, press Fn and the desired key.
18 Specifications of Latitude 7330 Rugged Extreme

Table 15. Keyboard specifications (continued)
Description Values
NOTE: You can define the primary behavior of the
function keys (F1–F12) by changing Function Key
Behavior in BIOS setup program.
Camera (optional)
The following table lists the camera specifications of your Latitude 7330 Rugged Extreme.
Table 16. Camera specifications
Description Option 1 Option 2
Number of cameras One One
Camera type HD RGB camera FHD IR camera
Camera location Front camera Front camera
Camera sensor type CMOS sensor technology CMOS sensor technology
Camera resolution:
Still image 0.92 megapixel 2.0 megapixels
Video 1280 x 720 (HD) at 30 fps 1920 x 1080 (FHD) at 30 fps
Infrared camera resolution:
Still image NA 0.23
Video NA 640 x 360
Diagonal viewing angle:
Camera 87 degrees 87.60 degrees
Infrared camera NA 87.60 degrees
Touchpad
The following table lists the touchpad specifications of your Latitude 7330 Rugged Extreme.
Table 17. Touchpad specifications
Description Values
Touchpad resolution:
Horizontal 1196
Vertical 600
Touchpad dimensions:
Horizontal 99.50 mm (3.92 in.)
Vertical 49.80 mm (1.96 in.)
Specifications of Latitude 7330 Rugged Extreme 19

Table 17. Touchpad specifications (continued)
Description Values
Touchpad gestures For more information about touchpad gestures available
on Windows, see the Microsoft knowledge base article at
support.microsoft.com.
Power adapter
The following table lists the power adapter specifications of your Latitude 7330 Rugged Extreme.
Table 18. Power adapter specifications
Description Option one Option two
Type Pecos 65 W AC adapter, USB-C 90 W AC adapter, USB-C
Power-adapter dimensions:
Height 28.00 mm (1.10 in.) 22.00 mm (0.87 in.)
Width 51.00 mm (2.01 in.) 66.00 mm (2.60 in.)
Depth 112.00 mm (4.41 in.) 130.00 mm (5.12 in.)
Input voltage 100 VAC to 240 VAC 100 VAC to 240 VAC
Input frequency 50 Hz to 60 Hz 50 Hz to 60 Hz
Input current (maximum) 1.5 A 1.8 A
Output current (continuous) ●20 V/3.25 A
●15 V/3 A
●9 V/3 A
●5 V/3 A
●20 V/4.50 A
●15 V/3 A
●9 V/3 A
●5 V/3 A
Rated output voltage ●20 VDC
●15 VDC
●9 VDC
●5 VDC
●20 VDC
●15 VDC
●9 VDC
●5 VDC
Temperature range:
Operating 0°C to 40°C (32°F to 104°F) 0°C to 40°C (32°F to 104°F)
Storage -40°C to 70°C (-40°F to 158°F) -40°C to 70°C (-40°F to 158°F)
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing
the device outside these ranges may impact the performance of specific components.
20 Specifications of Latitude 7330 Rugged Extreme
