Dell™ Inspiron™ One 2305/2310 Service Manual
Technical Overview
Before You Begin
Back Cover
Hard Drive
Optical Drive
Converter Card
Touch Screen Control Card (Optional)
Front Stand
Audio Video Board Shield
Audio Video Board
Audio Video Board Cable
Audio Video Button Board
Rear Stand Cover
Rear Stand
Middle Frame
System-Board Shield
Antenna-In Connector
Infrared Blaster Connector
Wireless Antenna
Memory Module(s)
Wireless Mini-Card(s)
Coin-Cell Battery
MXM-Assembly Fan (Optional)
MXM Assembly (Optional)
Processor Heat-Sink Fan
Processor Heat-Sink
Processor
Speakers
Speaker Cover
System Board
Internal Card With Bluetooth® Wireless Technology
Camera Module
Infrared Card
B-CAS Card (Optional)
Display
System Setup Utility
Flashing the BIOS
Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to
avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Information in this document is subject to change without notice.
© 2010 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Inspiron are trademarks of Dell Inc.; Bluetooth is a registered trademark owned by
Bluetooth SIG, Inc. and is used by Dell under license; Microsoft,Windows,and the Windows start button logo are either trademarks or registered
trademarks of Microsoft Corporation in the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
August 2010 Rev. A00
Regulatory model: W01C series Regulatory type: W01C001; W01C002

Technical Overview: Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/technica.htm[7/25/2012 10:24:36 AM]
Back to Contents Page
Technical Overview
Dell™ Inspiron™ One 2305/2310 Service Manual
Inside View of Your Inspiron One
System Board Components
WARNING: Before working inside your computer, read the safety information that shipped with your
computer. For additional safety best practices information, see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to
servicing that is not authorized by Dell™ is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by
periodically touching an unpainted metal surface (such as a connector on your computer).
Inside View of Your Inspiron One
NOTE: The appearance of the system board may vary based on your computer model.
1memory module(s) 2processor heat-sink
3MXM-assembly heat sink 4MXM-assembly fan
5converter card 6processor heat-sink fan
7touch screen control card 8optical drive
9middle frame 10 hard-drive assembly
11 system board
System Board Components

Technical Overview: Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/technica.htm[7/25/2012 10:24:36 AM]
Inspiron™ One 2305

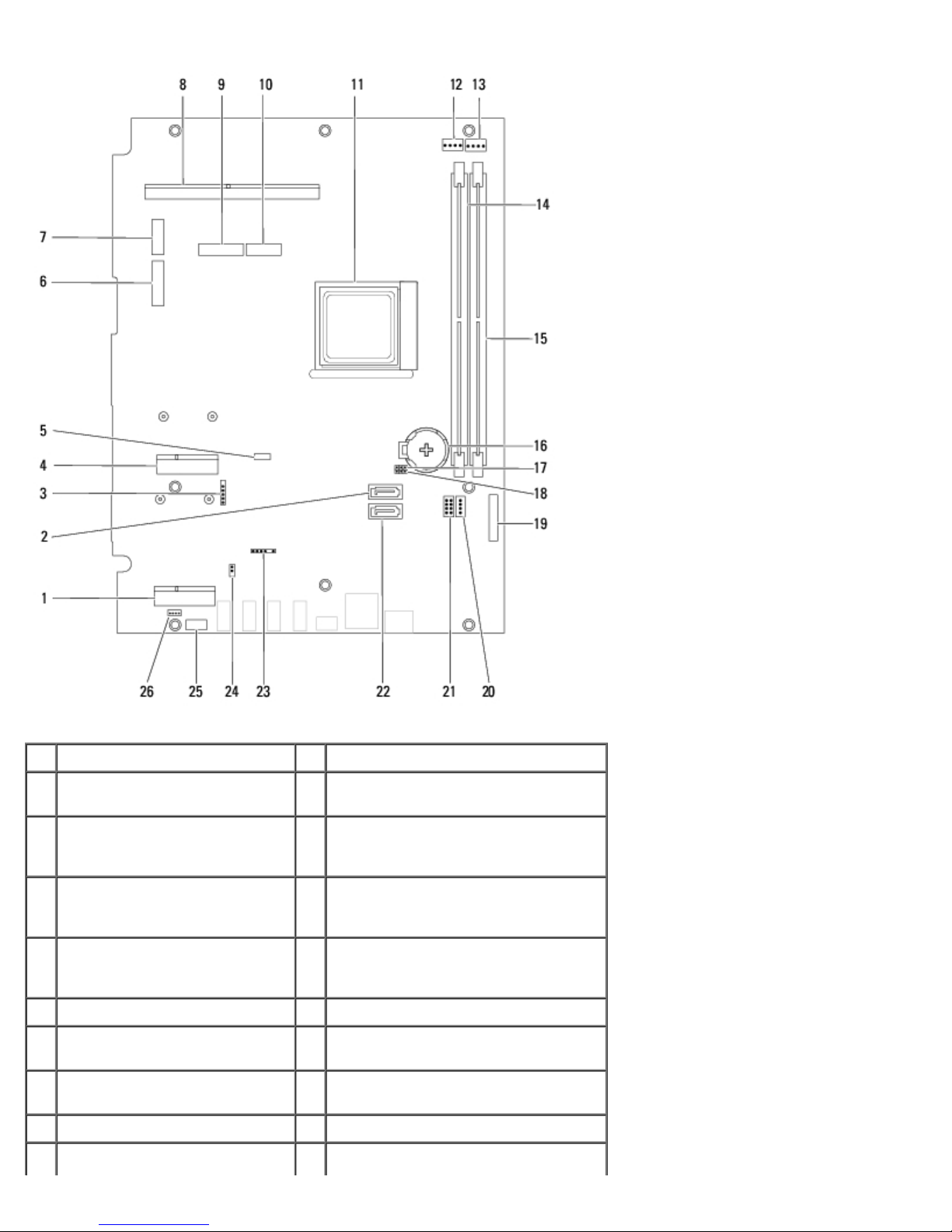

1TV tuner card slot (TV TUNER) 2SATA connector (ODD)
3touch-screen cable connector
(Touch) 4Mini-Card slot (WLAN\COMBO)
5Bluetooth cable connector (BT) 6display cable connector (when both
MXM card and audio video card are
present) (AV IN_MXM)
7display cable connector (when
only MXM card is present)
(LVDS_MXM)
8MXM-assembly connector
9display cable connector (when
only audio video card is
present) (AV IN_NB)
10 display cable connector (when both
MXM card and audio video card are
absent) (LVDS_NB)
11 processor socket 12 MXM-fan cable connector (MXM FAN)
13 processor heat-sink fan cable
connector (CPU FAN) 14 memory-module connector (CHA- DIMM)
15 memory-module connector
(CHB-DIMM) 16 battery socket (BT1)
17 password jumper (CLR_PSWD) 18 CMOS jumper (CLR_CMOS)
19 converter-card cable connector 20 optical-drive power cable connector

Technical Overview: Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/technica.htm[7/25/2012 10:24:36 AM]
(ODD PWR)
21 hard-drive power cable
connector (HDD PWR) 22 SATA connector (HDD)
23 infrared cable connector (CIR
Receiver) 24 infrared blaster cable connector (CIR Emitter)
25 camera cable connector (CN
25) 26 speaker cable connector (CN 10)
Inspiron One 2310

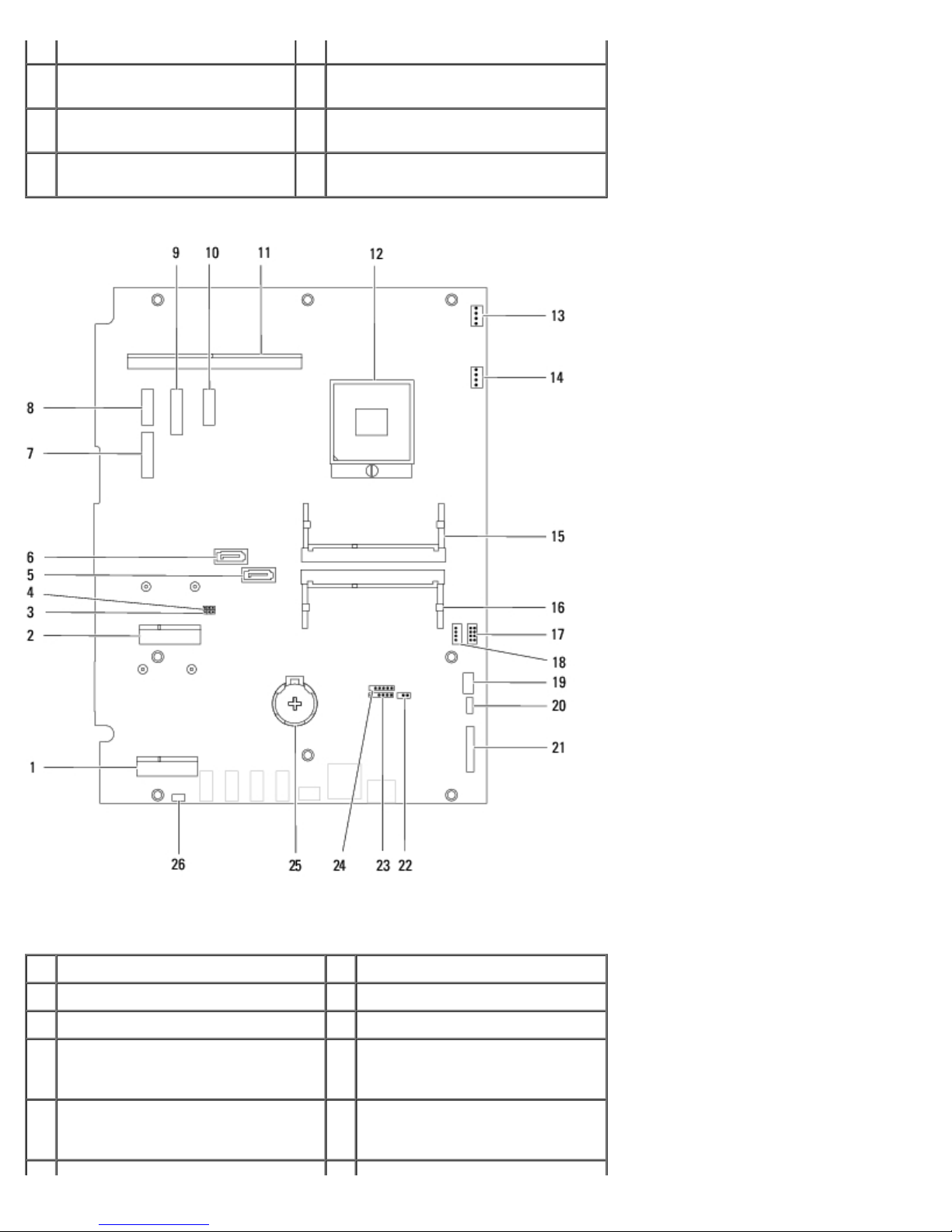

1TV tuner card slot (TV TUNER) 2Mini-Card slot (WLAN\COMBO)
3CMOS jumper (CLR_CMOS) 4password jumper (CLR_PSWD)
5SATA drive connector (SATA 1) 6SATA drive connector (SATA 0)
7display cable connector (when both
MXM card and audio video card are
present) (AVIN_MXM)
8display cable connector (when
only MXM card is present)
(LVDS_MXM)
9display cable connector (when only
audio video card is present)
(AVIN_UMA)
10 display cable connector (when
both MXM card and audio video
card are absent) (LVDS_UMA)

Technical Overview: Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/technica.htm[7/25/2012 10:24:36 AM]
11 MXM-assembly connector 12 processor socket
13 MXM-fan connector (MXM FAN) 14 processor heat-sink fan
connector (CPU FAN)
15 memory-module connector 16 memory-module connector
17 hard-drive power cable connector
(HDD PWR) 18 optical-drive power cable connector (ODD PWR)
19 camera cable connector 20 Bluetooth cable connector (BT)
21 converter-card cable connector 22 infrared blaster cable connector
23 infrared cable connector 24 touch-screen cable connector
(Touch)
25 battery socket (BT1) 26 speaker cable connector
Back to Contents Page

Before You Begin: Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/before.htm[7/25/2012 10:24:37 AM]
Back to Contents Page
Before You Begin
Dell™ Inspiron™ One 2305/2310 Service Manual
Recommended Tools
Turning Off Your Computer
Safety Instructions
This manual provides procedures for removing and installing the components in your computer. Unless otherwise noted, each
procedure assumes that the following conditions exist:
You have performed the steps in Turning Off Your Computer and Safety Instructions.
You have read the safety information that shipped with your computer.
A component can be replaced or—if purchased separately—installed by performing the removal procedure in reverse
order.
Recommended Tools
The procedures in this document may require the following tools:
Small Phillips screwdriver
Hex nut driver
Flash BIOS executable update program available at support.dell.com
Turning Off Your Computer
CAUTION: To avoid losing data, save and close all open files and exit all open programs before you turn off
your computer.
1. Save and close all open files and exit all open programs.
2. To shut down the operating system, click Start and then click Shut Down.
3. Ensure that the computer is turned off. If your computer did not automatically turn off when you shut down the
operating system, press and hold the power button until the computer turns off.
Safety Instructions
Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your own
personal safety.
WARNING: Before working inside your computer, read the safety information that shipped with your
computer. For additional safety best practices information, see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
WARNING: Disconnect all power sources before opening the enclosure to replace, remove, or install
accessories. After the installation is completed, the enclosure must be replaced and all fasteners installed

Before You Begin: Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/before.htm[7/25/2012 10:24:37 AM]
before connecting to the power source.
CAUTION: Only a certified service technician is authorized to remove the computer cover and access any of
the components inside the computer. See the safety instructions for complete information about safety
precautions, working inside your computer, and protecting against electrostatic discharge.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by
periodically touching an unpainted metal surface (such as a connector on your computer).
CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself.
Some cables have connectors with locking tabs; if you are disconnecting this type of cable, press in on the
locking tabs before you disconnect the cable. As you pull connectors apart, keep them evenly aligned to
avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are
correctly oriented and aligned.
CAUTION: To avoid damaging the computer, perform the following steps before you begin working inside
the computer.
1. Ensure that the work surface is flat and clean to prevent the computer display from being scratched.
2. Turn off your computer (see Turning Off Your Computer) and all attached devices.
CAUTION: To disconnect a network cable, first unplug the cable from your computer and then unplug the
cable from the network device.
3. Disconnect all telephone or network cables from the computer.
4. Disconnect your computer and all attached devices from their electrical outlets.
5. Disconnect all attached devices from your computer.
6. Press and hold the power button while the computer is unplugged to ground the system board.
CAUTION: Before touching anything inside your computer, ground yourself by touching an unpainted metal
surface, such as the metal at the back of the computer. While you work, periodically touch an unpainted
metal surface to dissipate static electricity, which could harm internal components.
Back to Contents Page

Back Cover: Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/back_cvr.htm[7/25/2012 10:24:38 AM]
Back to Contents Page
Back Cover
Dell™ Inspiron™ One 2305/2310 Service Manual
Removing the Back Cover
Replacing the Back Cover
WARNING: Before working inside your computer, read the safety information that shipped with your
computer. For additional safety best practices information, see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to
servicing that is not authorized by Dell™ is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by
periodically touching an unpainted metal surface (such as a connector on your computer).
CAUTION: Ensure that sufficient space exists to support the computer with the computer cover removed—
at least 30 cm (1 ft.) of desk top space.
Removing the Back Cover
1. Follow the instructions in Before You Begin.
CAUTION: Before opening your computer, ensure that you place the computer on a soft cloth or clean
surface to avoid any scratches on the display.
2. Place the computer face down on a flat surface.
3. Remove the two screws that secure the back cover to the computer.
4. Slide and lift the back cover off the computer.
5. Place the back cover in a secure location.

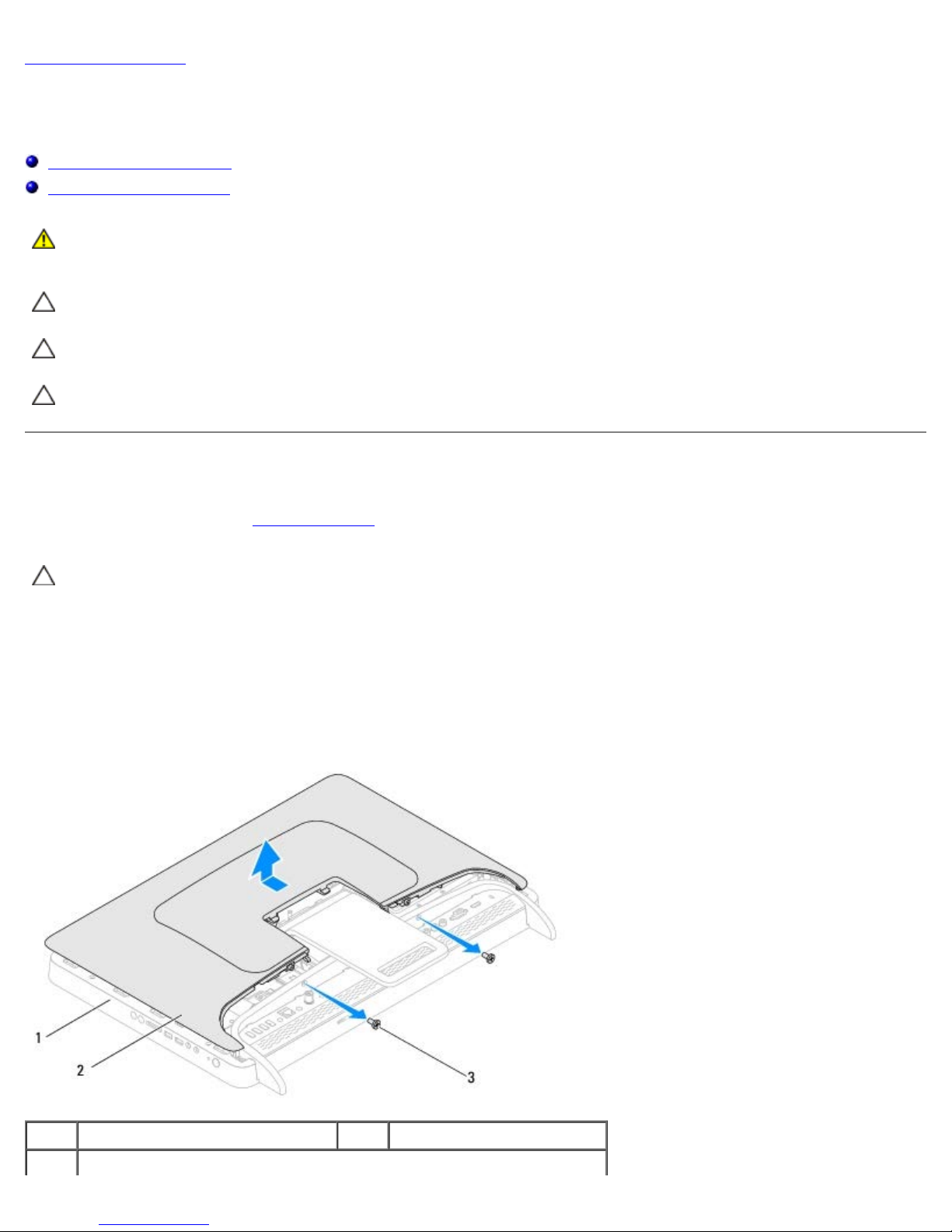

1middle frame 2back cover
3screws (2)

Back Cover: Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/back_cvr.htm[7/25/2012 10:24:38 AM]
Replacing the Back Cover
1. Follow the instructions in Before You Begin.
2. Align the tabs on the back cover with the slots on the middle frame and then slide the back cover into place.
3. Replace the two screws that secure the back cover to the computer.
4. Place the computer in an upright position.
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain
inside the computer. Failure to do so may result in damage to the computer.
5. Connect your computer and all attached devices to electrical outlets, and turn them on.
Back to Contents Page

Hard Drive: Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/hdd.htm[7/25/2012 10:24:40 AM]
Back to Contents Page
Hard Drive
Dell™ Inspiron™ One 2305/2310 Service Manual
Removing the Hard Drive
Replacing the Hard Drive
WARNING: Before working inside your computer, read the safety information that shipped with your
computer. For additional safety best practices information, see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
WARNING: If you remove the hard drive from the computer when the drive is hot, do not touch the metal
housing of the hard drive.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to
servicing that is not authorized by Dell™ is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by
periodically touching an unpainted metal surface (such as a connector on your computer).
CAUTION: To prevent data loss, turn off your computer (see Turning Off Your Computer) before removing
the hard drive. Do not remove the hard drive while the computer is On or in Sleep state.
CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.
NOTE: Dell does not guarantee compatibility or provide support for hard drives from sources other than Dell.
NOTE: If you are installing a hard drive from a source other than Dell, you need to install an operating system, drivers,
and utilities on the new hard drive.
Removing the Hard Drive
1. Follow the instructions in Before You Begin.
2. Remove the back cover (see Removing the Back Cover).
3. Loosen the two captive screws that secure the hard-drive assembly to the chassis.
4. Slide and lift the hard-drive assembly and then disconnect the power and data cables from the connectors on the hard
drive.

Hard Drive: Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/hdd.htm[7/25/2012 10:24:40 AM]
1captive screws (2) 2hard-drive assembly
5. Remove the four screws that secure the hard-drive cage to the hard drive.
6. Lift the hard-drive cage away from the hard drive.
1screws (4) 2hard-drive cage
3hard drive
Replacing the Hard Drive
1. Follow the instructions in Before You Begin.
2. Place the hard-drive cage on the hard drive, and align the screw holes on the hard-drive cage with the screw holes on
the hard drive.
3. Replace the four screws that secure the hard-drive cage to the hard drive.
4. Connect the power and data cables to the connectors on the hard drive.
5. Place the hard-drive assembly on the chassis and slide the hard-drive assembly into place.
6. Tighten the two captive screws that secure the hard-drive assembly to the chassis.

Hard Drive: Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/hdd.htm[7/25/2012 10:24:40 AM]
7. Replace the back cover (see Replacing the Back Cover).
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain
inside the computer. Failure to do so may result in damage to the computer.
8. Connect your computer and all attached devices to electrical outlets, and turn them on.
Back to Contents Page

Optical Drive: Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/odd.htm[7/25/2012 10:24:40 AM]
Back to Contents Page
Optical Drive
Dell™ Inspiron™ One 2305/2310 Service Manual
Removing the Optical Drive
Replacing the Optical Drive
WARNING: Before working inside your computer, read the safety information that shipped with your
computer. For additional safety best practices information, see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to
servicing that is not authorized by Dell™ is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by
periodically touching an unpainted metal surface (such as a connector on your computer).
Removing the Optical Drive
1. Follow the instructions in Before You Begin.
2. Remove the back cover (see Removing the Back Cover).
3. Disconnect the power and data cables from the connectors on the optical drive.
4. Remove the screw that secures the optical drive to the chassis.
5. Slide the optical drive out of the optical-drive bay.
1 screw 2 optical drive
6. Remove the two screws that secure the optical-drive bracket to the optical drive.
7. Remove the optical-drive bracket from the optical drive.
8. Pull the optical-drive bezel to detach it from the optical drive.

Optical Drive: Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/odd.htm[7/25/2012 10:24:40 AM]
1screws (2) 2optical-drive bracket
3optical-drive bezel
Replacing the Optical Drive
1. Follow the instructions in Before You Begin.
2. Align the tabs on the optical-drive bezel with the slots on the optical drive and snap the optical-drive bezel into place.
3. Align the screw holes on the optical-drive bracket with the screw holes on the optical drive.
4. Replace the two screws that secure the optical-drive bracket to the optical drive.
5. Slide the optical drive into the optical-drive bay.
6. Replace the screw that secures the optical drive to the chassis.
7. Connect the power and data cables to the connectors on the optical drive.
8. Replace the back cover (see Replacing the Back Cover).
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain
inside the computer. Failure to do so may result in damage to the computer.
9. Connect your computer and all attached devices to electrical outlets, and turn them on.
Back to Contents Page

Converter Card: Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/inverter.htm[7/25/2012 10:24:41 AM]
Back to Contents Page
Converter Card
Dell™ Inspiron™ One 2305/2310 Service Manual
Removing the Converter Card
Replacing the Converter Card
WARNING: Before working inside your computer, read the safety information that shipped with your
computer. For additional safety best practices information, see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to
servicing that is not authorized by Dell™ is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by
periodically touching an unpainted metal surface (such as a connector on your computer).

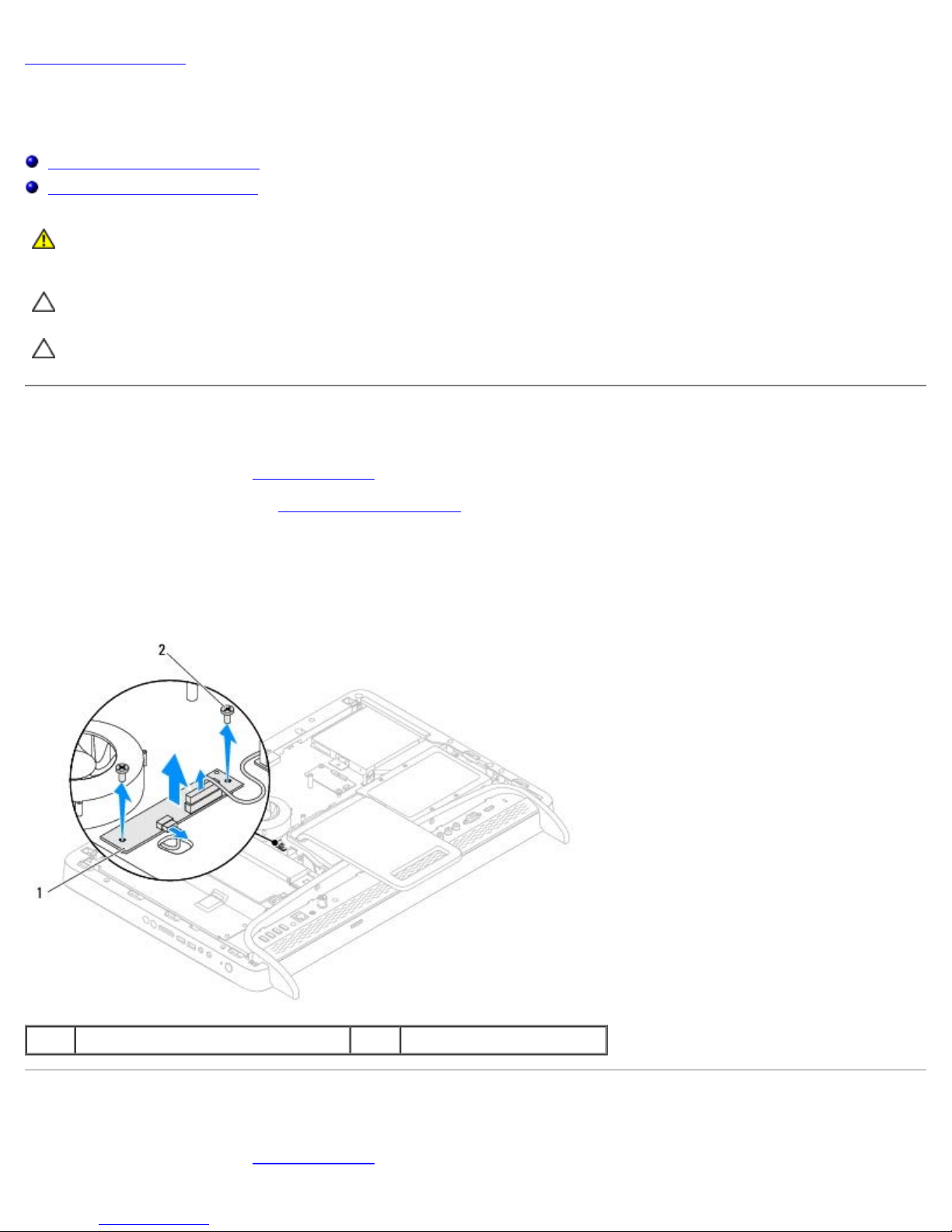

Removing the Converter Card
1. Follow the instructions in Before You Begin.
2. Remove the back cover (see Removing the Back Cover).
3. Remove the two screws that secure the converter card to the chassis
4. Disconnect the cables from the connectors on the converter card.
5. Lift the converter card away from the chassis.
1converter card 2screws (2)
Replacing the Converter Card
1. Follow the instructions in Before You Begin.

Converter Card: Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/inverter.htm[7/25/2012 10:24:41 AM]
2. Align the screw holes on the converter card with the screw holes on the chassis.
3. Connect the cables to the connectors on the converter card.
4. Replace the two screws that secure the converter card to the chassis.
5. Replace the back cover (see Replacing the Back Cover).
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain
inside the computer. Failure to do so may result in damage to the computer.
6. Connect your computer and all attached devices to electrical outlets, and turn them on.
Back to Contents Page

Touch Screen Control Card (Optional): Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/display_.htm[7/25/2012 10:24:42 AM]
Back to Contents Page
Touch Screen Control Card (Optional)
Dell™ Inspiron™ One 2305/2310 Service Manual
Removing the Touch Screen Control Card
Replacing the Touch Screen Control Card
WARNING: Before working inside your computer, read the safety information that shipped with your
computer. For additional safety best practices information, see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to
servicing that is not authorized by Dell™ is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by
periodically touching an unpainted metal surface (such as a connector on your computer).
Removing the Touch Screen Control Card
1. Follow the instructions in Before You Begin.
2. Remove the back cover (see Removing the Back Cover).
3. Remove the two screws that secure the touch screen control card to the chassis.
4. Disconnect the cables from the connectors on the touch screen control card.
5. Lift the touch screen control card away from the chassis.
1touch screen control card 2screws (2)
Replacing the Touch Screen Control Card
1. Follow the instructions in Before You Begin.

Touch Screen Control Card (Optional): Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/display_.htm[7/25/2012 10:24:42 AM]
2. Align the screw holes on the touch screen control card with the screw holes on the chassis.
3. Replace the two screws that secure the touch screen control card to the chassis.
4. Connect the cables to the connectors on the touch screen control card.
5. Replace the back cover (see Replacing the Back Cover).
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain
inside the computer. Failure to do so may result in damage to the computer.
6. Connect your computer and all attached devices to electrical outlets, and turn them on.
Back to Contents Page

Front Stand: Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/front_st.htm[7/25/2012 10:24:43 AM]
Back to Contents Page
Front Stand
Dell™ Inspiron™ One 2305/2310 Service Manual
Removing the Front Stand
Replacing the Front Stand
WARNING: Before working inside your computer, read the safety information that shipped with your
computer. For additional safety best practices information, see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to
servicing that is not authorized by Dell™ is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by
periodically touching an unpainted metal surface (such as a connector on your computer).
Removing the Front Stand
1. Follow the instructions in Before You Begin.
2. Remove the back cover (see Removing the Back Cover).
3. Remove the four screws that secure the front-stand assembly to the computer.
4. Lift the rear stand so that the front stand is accessible.
5. Lift the front-stand assembly away from the computer.

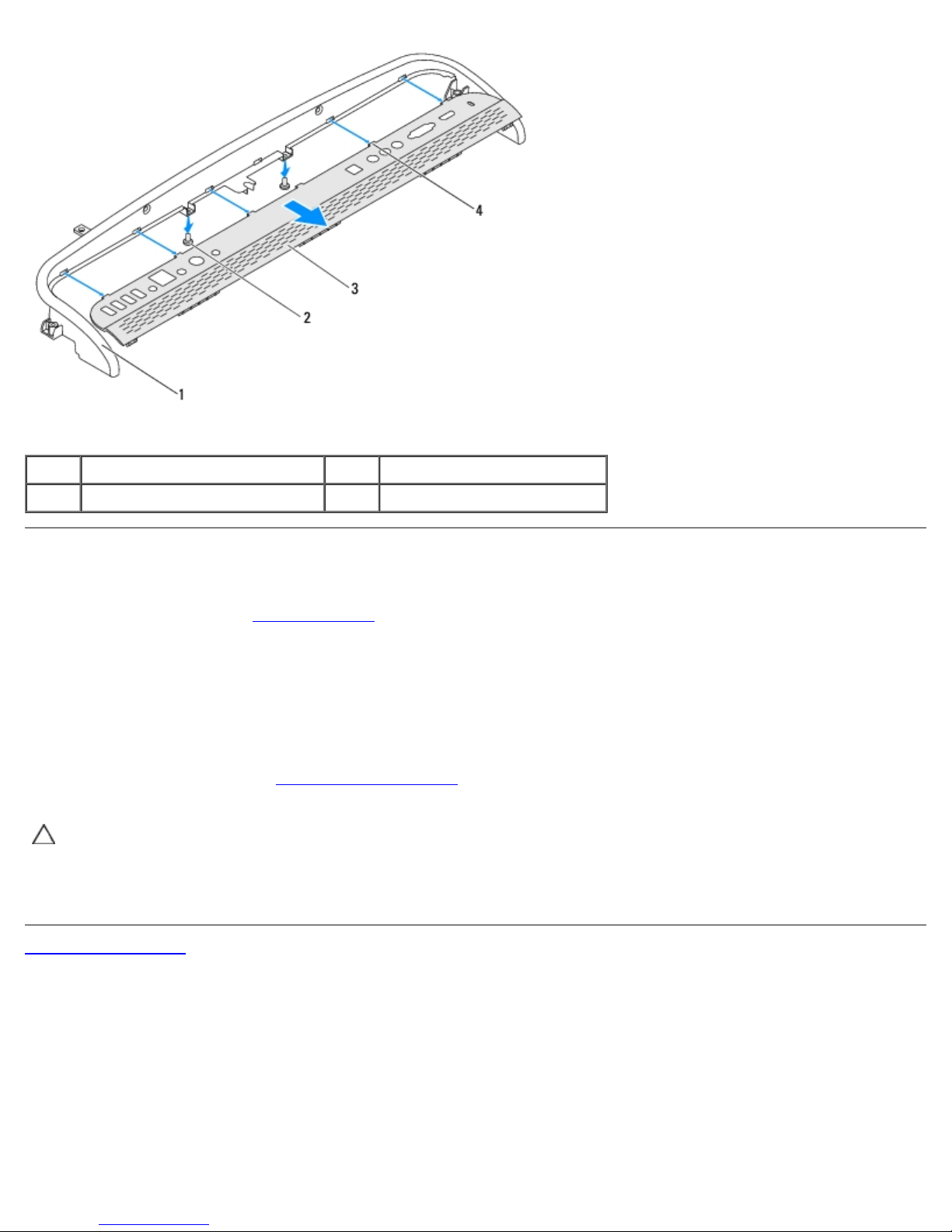

1rear stand 2screws (4)
3front-stand assembly
6. Remove the two screws that secure the I/O bracket to the front stand.
7. Release the five tabs that secure the I/O bracket to the front stand.
8. Remove the I/O bracket from the front stand.

Front Stand: Dell Inspiron One 2305/2310 Service Manual
file:///T|/htdocs/systems/InsOne2310/sr/sm/front_st.htm[7/25/2012 10:24:43 AM]
1front stand 2screws (2)
3I/O bracket 4tabs (5)
Replacing the Front Stand
1. Follow the instructions in Before You Begin.
2. Slide the five tabs on the I/O bracket into the slots on the front stand.
3. Replace the two screws that secure the I/O bracket to the front stand.
4. Align the screw holes on the front-stand assembly with the screw holes on the computer.
5. Replace the four screws that secure the front-stand assembly to the computer.
6. Replace the back cover (see Replacing the Back Cover).
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain
inside the computer. Failure to do so may result in damage to the computer.
7. Connect your computer and all attached devices to electrical outlets, and turn them on.
Back to Contents Page
