Dell C5517H User manual

Model No.: C5517H
Regulatory model: C5517Hc
User’s Guide
Dell C5517H

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use
of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if
instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury or death.
_________________________
Information in this document is subject to change without notice.
© 2016 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of
Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft and
Windows are either trademarks or registered trademarks of Microsoft. Corporation in the United
States and/or other countries, Intel is a registered trademark of Intel Corporation in the U.S. and
other countries; and ATI is a trademark of Advanced Micro Devices, Inc.
Other trademarks and trade names may be used in this document to refer to either the entities
claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in
trademarks and trade names other than its own.
2016 - 10 Rev. A01

3
Contents
About Your Monitor .............................5
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . 5
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . 6
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Identifying Parts and Controls . . . . . . . . . . . . . . . . 10
Monitor Specifications . . . . . . . . . . . . . . . . . . . . . 13
Plug and Play Capability . . . . . . . . . . . . . . . . . . . . 21
LCD Monitor Quality & Pixel Policy . . . . . . . . . . . . . 26
Maintenance Guidelines . . . . . . . . . . . . . . . . . . . 26
Setting Up the Monitor..........................27
Attaching the Monitor . . . . . . . . . . . . . . . . . . . . . 27
Connecting Your Monitor . . . . . . . . . . . . . . . . . . . 28
Removing the Monitor Stand . . . . . . . . . . . . . . . . 30
Wall Mounting (Optional) . . . . . . . . . . . . . . . . . . . 31
Operating the Monitor ..........................32
Power On the Monitor . . . . . . . . . . . . . . . . . . . . . 32
Using the Function Controls . . . . . . . . . . . . . . . . . 32
Using the On-Screen Display (OSD) Menu . . . . . . . . . 34
OSD Warning Messages . . . . . . . . . . . . . . . . . . . . 44
Setting the Maximum Resolution . . . . . . . . . . . . . . 47
Troubleshooting ...............................48
Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Built-in Diagnostics. . . . . . . . . . . . . . . . . . . . . . . 50

4 
Product-Specific Problems . . . . . . . . . . . . . . . . . . 55
Appendix ......................................56
FCC Notices (U.S. Only) and Other Regulatory Information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Contact Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Setting Up Your Monitor ........................57
Setting the display resolution to 1920 x 1080 (Maximum) 57
If you have a Dell desktop or a Dell portable computer with
Internet access . . . . . . . . . . . . . . . . . . . . . . . . . 58
If you have a non Dell desktop, portable computer, or
graphics card . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Procedures for setting up dual monitors in Windows 7,
Windows 8/Windows 8.1 or Windows 10. . . . . . . . . . 59
Dell Display Manager User’s Guide ...............74
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Using the Quick Settings Dialog . . . . . . . . . . . . . . . 74
Setting Basic Display Functions . . . . . . . . . . . . . . . 75
Assigning Preset Modes to Applications . . . . . . . . . . 77
Organizing Windows with Easy Arrange . . . . . . . . . . 78

About Your Monitor 5
About Your Monitor

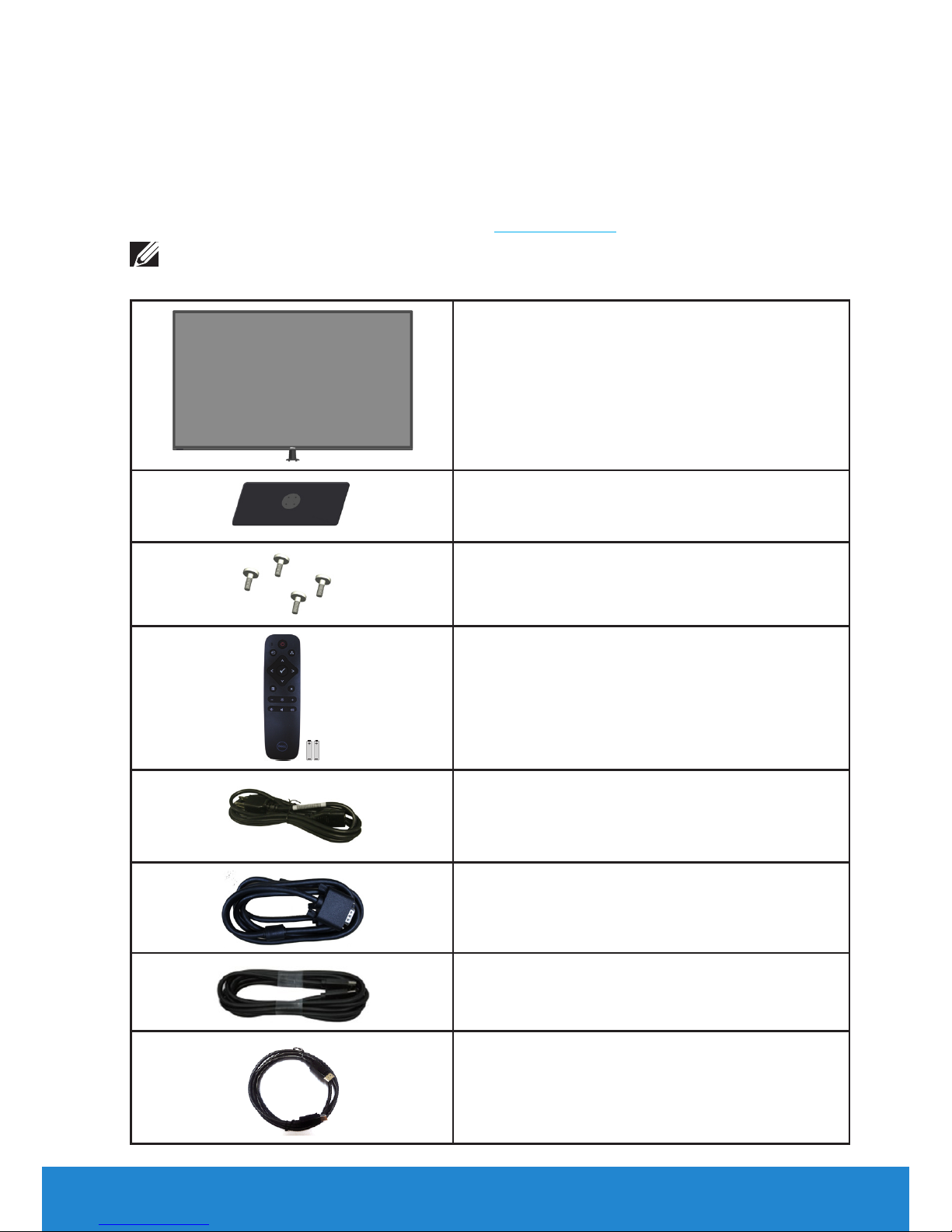

Package Contents
Your monitor ships with all the components shown below. Ensure that you
have received all the components and Contact Dell if anything is missing.
NOTE: Some items may be optional and may not ship with your monitor.
Some features or media may not be available in certain countries.
•Monitor
•Monitor Base
•Screws: M4 (12 mm) x 4
•Remote Control & Batteries (AAA x 2)
•Power Cable (varies by countries)
•VGA Cable (3 m)
•HDMI Cable (3 m)
•DP to DP Cable (3 m)

6 About Your Monitor
•USB Upstream Cable (enable the USB ports
on the monitor) (3m)
•Cable clips: 3 pcs
Drivers a nd Documen tation
P/NRPJY6 Rev. A00
P/NQ70G55C170003A
September 6102
Madein C hina
©
2
0
1
6
D
e
l
l
I
n
c
.
A
l
l
r
i
g
h
t
s
r
e
s
e
r
v
e
d
.
lleD ™rotinoMH7155C
RPJY6A00
Contents:
•Deviced rivers
•QuickS etup Guide
•User'sG uide
•DellD isplay Manager Sof tware
•Drivers and Documentation media
•Quick Setup Guide
•Safety, Environment, and Regulatory
Information (SERI)
Product Features
The Dell C5517H flat-panel display has an active matrix, Thin-Film Transistor,
Liquid Crystal Display. The monitor’s features include:
• C5517H: 1386.84 mm (54.6 inches) diagonal viewable image size,
1920 x 1080 resolution, plus full-screen support for lower resolutions.
• LED backlight.
• Removable pedestal and Video Electronics Standards Association
(VESA) 400 mm x 400 mm mounting holes for flexible mounting
solutions.
• Plug and play capability if supported by your system.
• VGA, HDMI and DP connectivity make it simple and easy to connect
with legacy and new system.
• Audio out
• On-Screen Display (OSD) adjustments for ease of set-up and screen
optimization.
• Software and documentation media which includes an information file
(INF), Image Color Matching File (ICM), and product documentation.
• Dell Display Manager Software (comes in the CD shipped with the
monitor).
• Asset Management Capability.
• Build-in Speaker (10W)x2
• RoHS compliant.
• BFR/PVC Free (Halogen-Free) monitor excluding external cables.
• Arsenic-Free glass and Mercury-Free for panel only.

About Your Monitor 7
4Left
Press to move the selection left in
OSD menu.
5Down
Press to move the selection down in
OSD menu.
6Menu
Press to turn on the OSD menu.
7Brightness -
Press to decrease the Brightness.
8Volume -
Press to decrease the Volume.
9MUTE
Press to turn the mute function on/
o.
10 Preset Modes
Display information about Preset
Modes.
11 Right
Press to move the selection right in
OSD menu.
12 OK
Confirm an entry or selection.
13 Exit
Press to exit the Menu.
14 Brightness +
Press to increase the Brightness.
15 Volume +
Press to increase the Volume.

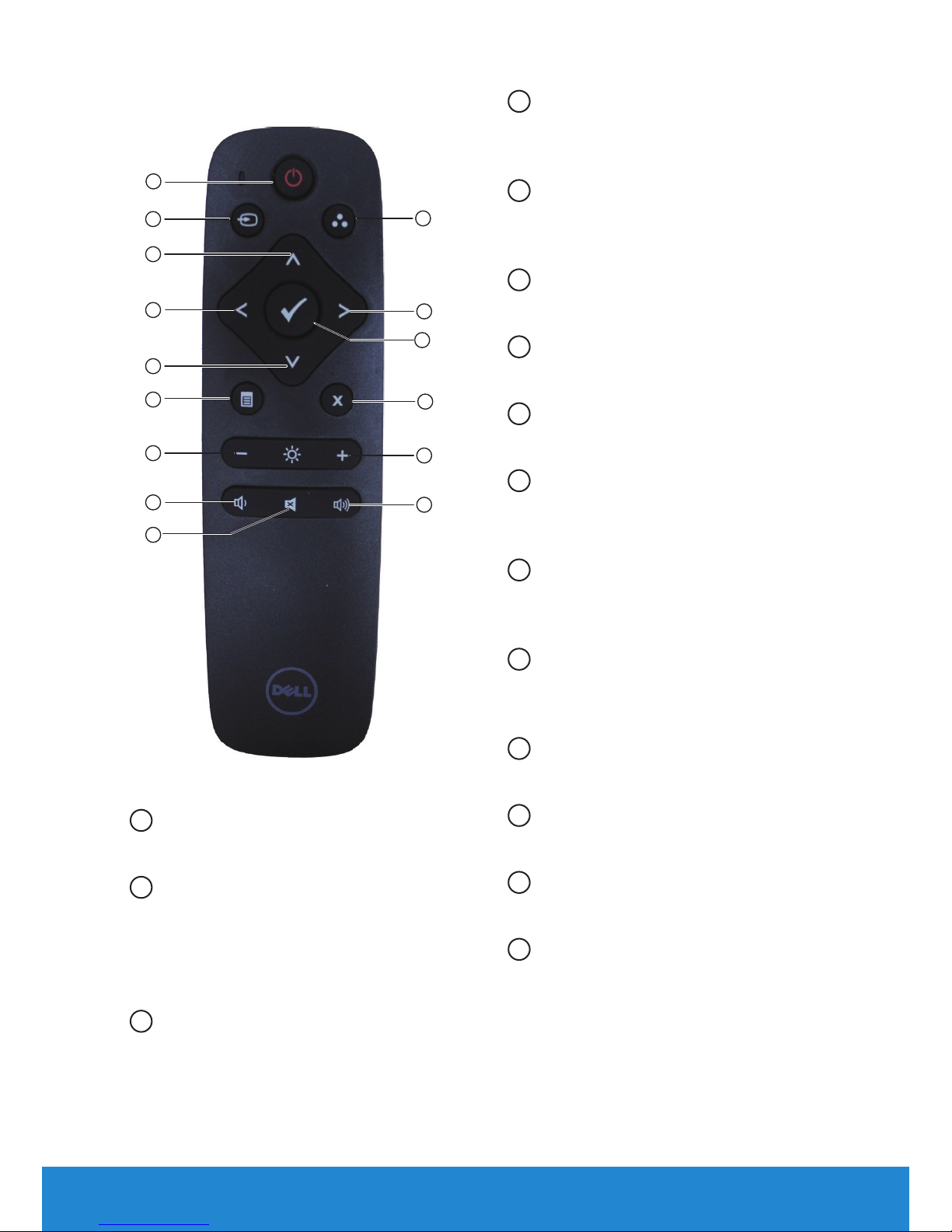

Remote Control
1
11
14
15
2
3
4
5
6
7
8
9
13
10
12
1Power On/O
Switch this monitor on or o.
2Input Source
Select input source. Press [<] or
[>] button to select from HDMI1,
HDMI2,VGA or DP. Press [√] button
to confirm and exit.
3Up
Press to move the selection up in
OSD menu.

8 About Your Monitor
Inserting the batteries in the remote control
The remote control is powered by two 1.5V AAA batteries.
To install or replace batteries:
1. Press and then slide the cover to open it.
2. Align the batteries according to the (+) and (–) indications inside the
battery compartment.
3. Replace the cover.
CAUTION:
The incorrect use of batteries can result in leaks or bursting. Be sure to
follow these instructions:
• Place “AAA” batteries matching the (+) and (–) signs on each battery to
the (+) and (–) signs of the battery compartment.
• Do not mix battery types.
• Do not combine new batteries with used ones. It causes shorter life or
leakage of batteries.
• Remove the dead batteries immediately to prevent them from liquid
leaking in the battery compartment. Don’t touch exposed battery acid,
as it can damage your skin.
NOTE: If you do not intend to use the remote control for a long period,
remove the batteries.
Handling the remote control
• Do not subject to strong shock.
• Do not allow water or other liquid to splash the remote control. If the
remote control gets wet, wipe it dry immediately.
• Avoid exposure to heat and steam.
• Other than to install the batteries, do not open the remote control.

About Your Monitor 9
Operating range of the remote control
Point the top of the remote control toward the LCD monitor’s remote
sensor during button operation.
Use the remote control within a distance of about 8 m from remote control
sensor or at a horizontal and vertical angle of within 15° within a distance of
about 5.6 m.
NOTE: The remote control may not function properly when the
remote control sensor on the display is under direct sunlight or
strong illumination, or when there is an obstacle in the path of signal
transmission.
15 15

10 About Your Monitor
Identifying Parts and Controls
Front View
1
1IR Lens (with LED indicator)
Back View
DELL
ModelNo./
Modelo/型號 / 型号 / 모델명 :C5517Hc
輸入電源/输入电源/정격입력 :
100-240V 50/60Hz 2.5A
Q40G055N-700-03A
XXXXXXXXXXX
MSIP-REM-TPF-C5517Hc
신청인/제조자:TPVElectronics(Fujian)Co., Ltd.
XXXXXX-XX
CANICES-3(B)/NMB-3(B)
Theequipmentmustbe connected to an earthed mains socket-outlet.
L'appareildoitêtrebranché sur une prise de courant munie d'une mise à la terre.
Удельная мощность рабочего режима - X.XXX Вт/см²
Потребляемая мощность изделием в режиме ожидания - X.XX Вт
Потребляемая мощность изделием в выключенном режиме - X.XX Вт
ServiceTag:1NGTQV1
ExpressSVCcode:359 576 607 7
S/N:CN-0 P2NYV-64180-46D-001T
REVA00
生产日期/ManufacturedDate: Apr.2016
中国制造
MadeinChina
IS13252(Part1)/
IEC60950-1
R-41018660
S&E
R33037
RoHS
警語:使用過度恐傷害視力。
1
2
3
4
5
DELL
ModelNo./
Modelo/型號 / 型号 / 모델명 :C5517Hc
輸入電源/输入电源/정격입력 :
100-240V 50/60Hz 2.5A
Q40G055N-700-03A
XXXXXXXXXXX
MSIP-REM-TPF-C5517Hc
신청인/제조자:TPVElectronics(Fujian)Co., Ltd.
XXXXXX-XX
CANICES-3(B)/NMB-3(B)
Theequipmentmustbe connected to an earthed mains socket-outlet.
L'appareildoitêtrebranché sur une prise de courant munie d'une mise à la terre.
Удельная мощность рабочего режима - X.XXX Вт/см²
Потребляемая мощность изделием в режиме ожидания - X.XX Вт
Потребляемая мощность изделием в выключенном режиме - X.XX Вт
ServiceTag:1NGTQV1
ExpressSVCcode:359 576 607 7
S/N:CN-0 P2NYV-64180-46D-001T
REVA00
生产日期/ManufacturedDate: Apr.2016
中国制造
MadeinChina
IS13252(Part1)/
IEC60950-1
R-41018660
S&E
R33037
RoHS
警語:使用過度恐傷害視力。
6
7

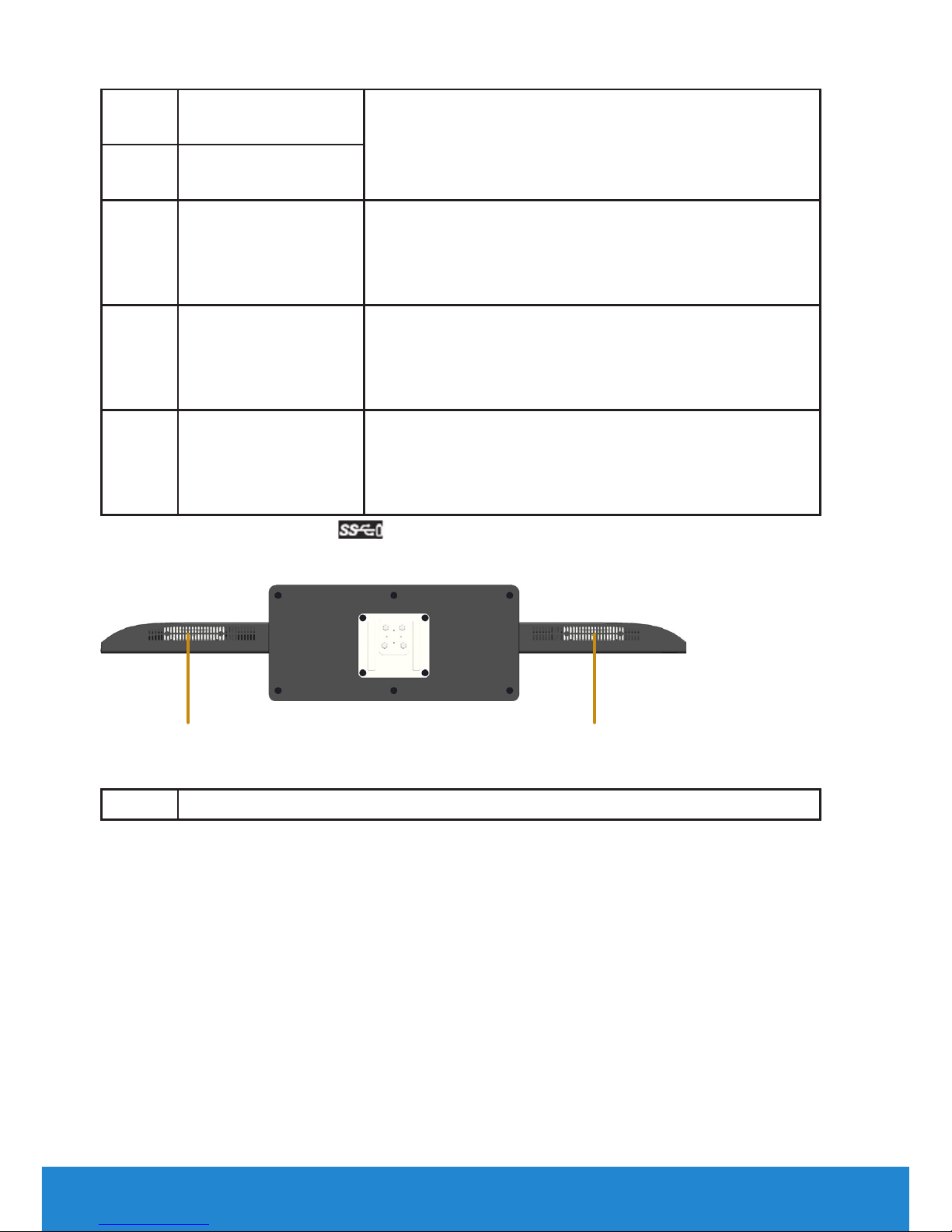

Back View with monitor stand
Label Description Use
1 VESA mounting holes (400 mm x
400 mm)
Wall mount monitor using VESA-
compatible wall mount kit (400 mm x
400 mm).
2 Regulatory label Lists the regulatory approvals.
3 AC power connector To connect the monitor power cable.
4 Function buttons (For more
information, see Operating the
Monitor)
Use the keys on the back of the
monitor to adjust the image settings.
5 Security lock slot Secures monitor with security lock.

About Your Monitor 11
6 Screw Hole For accessory mounting.
7 Cable clips position Sticking cable clips on these positions
to organize the cables.

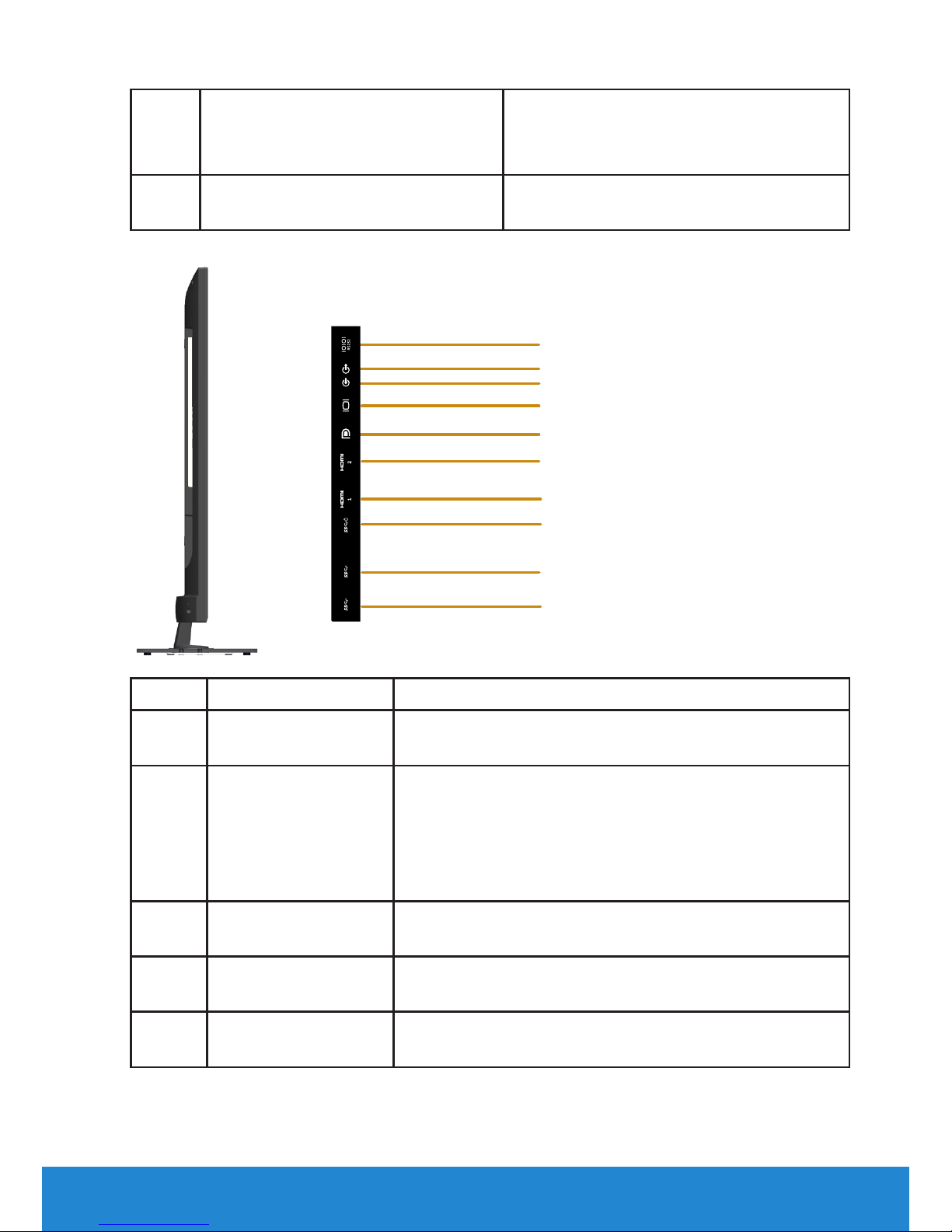

Side View
1
2
3
4
5
6
7
8
9
10
Label Description Use
1 RS232 port To connect your computer to the monitor using a
RS232 cable.
2 Audio Line Out Port Connect speakers to playback audio coming
through VGA or HDMI or DP audio channels. Only
supports 2-channel audio.
NOTE: The audio line-out port does not support
headphones.
3 Audio Line In Port Connect the audio cable (optional purchase) from
the source device to the monitor.
4 VGA port To connect your computer to the monitor using a
VGA cable.
5 DisplayPort To connect your computer to the monitor using a
DP to DP cable.

12 About Your Monitor
6 HDMI 2 port
connector To connect your computer to the monitor using
HDMI cable
7 HDMI 1 port
connector
8 USB downstream
port
Connect your USB device. You can only use this
connector after you have connected the USB cable
to the computer and USB upstream connector on
the monitor.*
9 USB downstream
port
Connect your USB device. You can only use this
connector after you have connected the USB cable
to the computer and USB upstream connector on
the monitor.
10 USB upstream port Connect the USB cable that comes with your
monitor to the computer. Once this cable is
connected, you can use the USB connectors on the
monitor.
* Supports battery charging.
Bottom View
1 1
1 Speakers

About Your Monitor 13
Monitor Specifications
The following sections give you information about the various power
management modes and pin assignments for the various connectors of
your monitor.
Power Management Modes
If you have VESA’s DPM compliance display card or software installed in your
PC, the monitor automatically reduces its power consumption when not in
use. This is referred to as Power Save Mode. If the computer detects input
from keyboard, mouse, or other input devices, the monitor automatically
resumes functioning. The following table shows the power consumption
and signaling of this automatic power saving feature:
VESA
Modes
Horizontal
Sync
Vertical
Sync Video Power Indicator
Power
Consumption
Normal
operation
Active Active Active White 170 W (Maximum)**
80 W (Typical)***
Active-o
mode
Inactive Inactive Blank Glowing
white
Less than 0.3 W
Switch o - - O Less than 0.3 W*
* Zero-power consumption in OFF mode can only be achieved by
disconnecting the main cable from the monitor.
** Maximum power consumption with max luminance and contrast.
*** Typical power consumption with OSD default setting, audio and USB
inactive.
The OSD will only function in the normal operation mode. When any button
except power button is pressed in Active-off mode, the following messages
will be displayed:
Dell C5517H
There is no signal coming from your computer. Press any key on the
keyboard or move the mouse to wake it up. If there is no display, press
the monitor button now to select the correct input source on the
On-Screen-Display menu.

14 About Your Monitor
Activate the computer and monitor to gain access to the Using the On-
Screen Display (OSD) Menu.
Pin Assignments

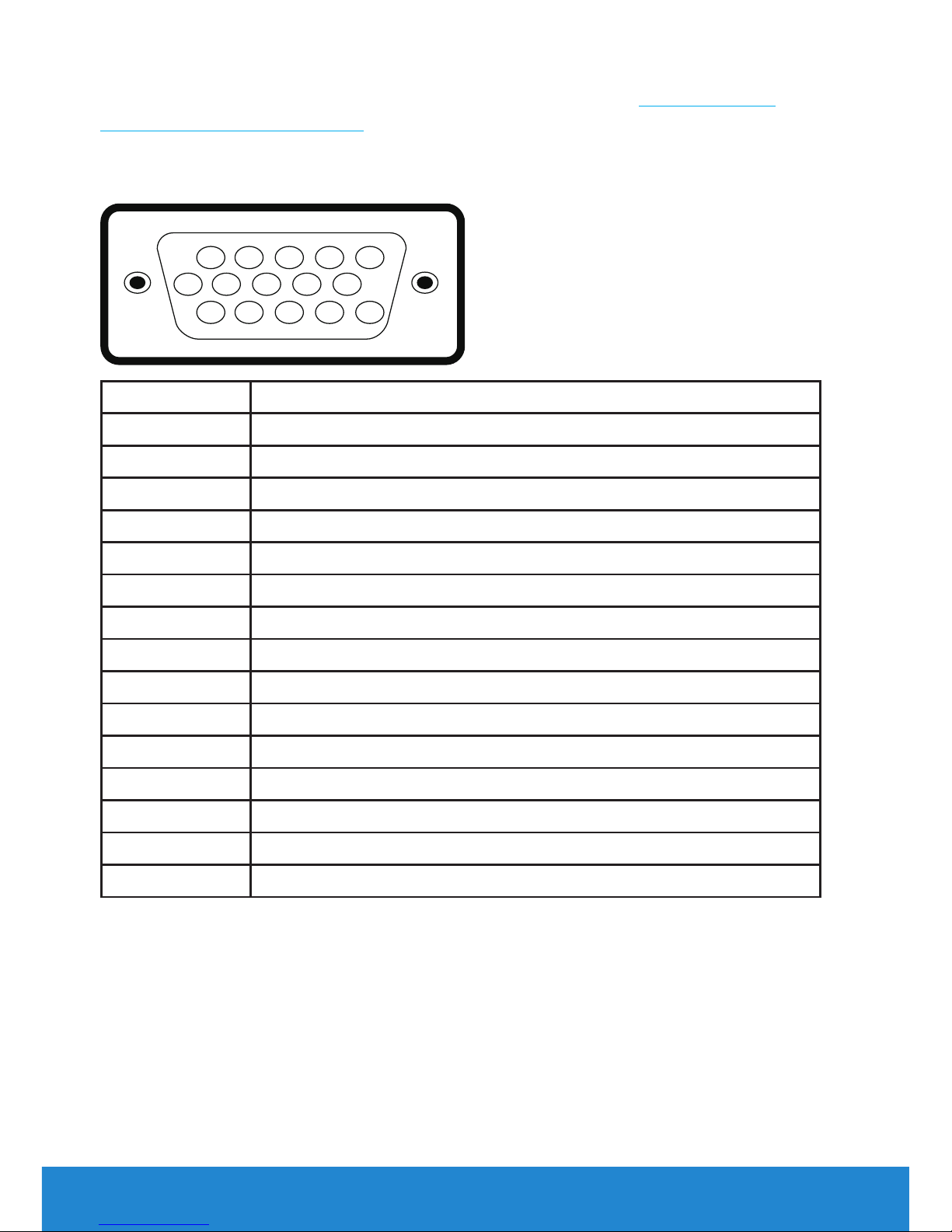

15-pin D-Sub connector
12345
6 7 8 9 10
11 12 13 14 15
Pin Number Monitor Side of the 15-pin Side Signal Cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 GND
5 Self-test
6 GND-R
7 GND-G
8 GND-B
9 DDC +5 V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock

About Your Monitor 15
19-pin HDMI connector
Pin Number Monitor Side of the 19-pin Side Signal Cable
1 TMDS Data2+
2 TMDS Data2 Shield
3 TMDS Data2-
4 TMDS Data1+
5 TMDS Data1 Shield
6 TMDS Data1-
7 TMDS Data0+
8 TMDS Data0 Shield
9 TMDS Data0-
10 TMDS Clock+
11 TMDS Clock Shield
12 TMDS Clock-
13 CEC
14 Reserved (N.C. on device)
15 SCL
16 SDA
17 DDC/CEC Ground
18 +5V Power
19 Hot Plug Detect

16 About Your Monitor
DP connector
Pin Number 20-pin Side of the Connected Signal Cable
1 ML0 (p)
2 GND
3 ML0 (n)
4 ML1 (p)
5 GND
6 ML1 (n)
7 ML2 (p)
8 GND
9 ML2 (n)
10 ML3 (p)
11 GND
12 ML3 (n)
13 GND
14 GND
15 AUX (p)
16 GND
17 AUX (n)
18 GND
19 Re-PWR
20 +3.3 V DP_PWR

About Your Monitor 17
Universal Serial Bus (USB) Interface
This section gives you information about the USB ports that are available on
the monitor.
NOTE: This monitor is Super-Speed USB 3.0 compatible.
Transfer Speed Data Rate Power Consumption*
2 Super-speed 5 Gbps 4.5 W (Max, each port)
High speed 480 Mbps 4.5 W (Max, each port)
Full speed 12 Mbps 4.5 W (Max, each port)
* Up to 2.5A on USB downstream port (port with battery icon) with
BC1.2 compliance devices or normal USB devices.
USB Upstream Connector
Pin Number 9-pin Side of the Connector
1VCC
2D-
3 D+
4 GND
5 SSTX-
6 SSTX+
7 GND
8 SSRX-
9 SSRX+

18 About Your Monitor

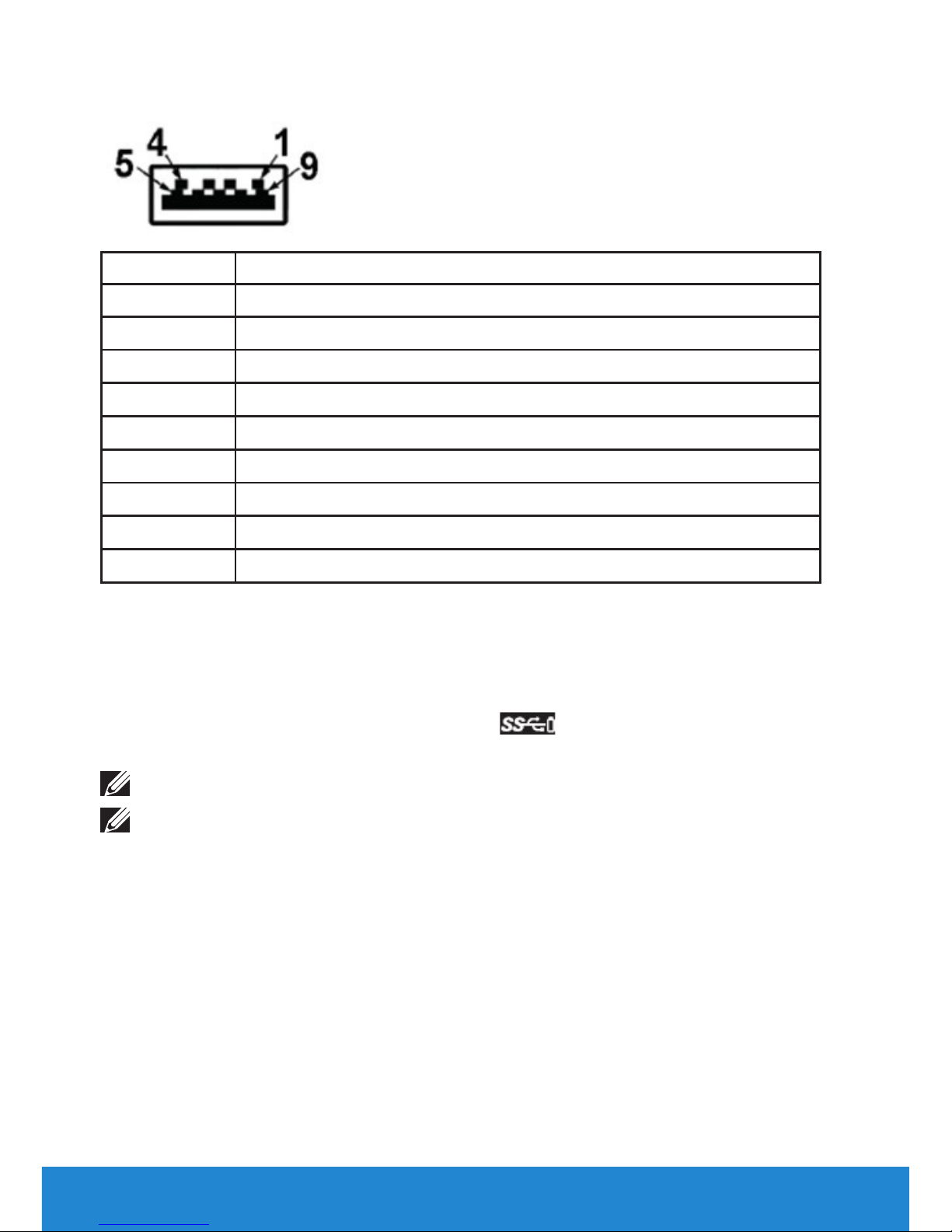

USB Downstream Connector
Pin Number 9-pin Side of the Connector
1VCC
2D-
3 D+
4 GND
5 SSTX-
6 SSTX+
7 GND
8 SSRX-
9 SSRX+
USB Ports
• 1 upstream - blue
• 3 downstream - blue
• Power Charging Port - the port with battery icon; supports
current charging capability if the device is BC1.2 compatible.
NOTE: USB 3.0 functionality requires a USB 3.0-capable computer
NOTE: The monitor’s USB interface works only when the monitor is on
or in the power save mode. If you turn off the monitor and then turn it
on, the attached peripherals may take a few seconds to resume normal
functionality.

About Your Monitor 19
RS232 connector
RS232 Monitor Pin Assignment (Facing Monitor)
RS232 Serial Communication Cable Pin Assignment (Facing Cable)
Pin Assignments
RS232 PIN DESCRIPTION RS232
1
2 TXD 2
3 RXD 3
4
5 GROUND 5
6
7 Not Used 7
8 Not Used 8
9

20 About Your Monitor
RS232 Protocol Communication Settings
Connection Settings Value
Baud Rate 9600 bps
Data Bits 8 bits
Parity None
Stop Bits 1 bit
Flow control None
