About Your Monitor
Dell™P1911FlatPanelMonitorUser'sGuide
Package Contents
Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.

Package Contents
Product Features
Identifying Parts and Controls
Monitor Specifications
Plug and Play Capability
Universal Serial Bus (USB) Interface
Maintenance Guidelines
NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not be available in certain countries.
NOTE: StandandcablesarenotincludedwhenpurchasedwithOptiPlex™USFF780/OptiPlex™SFF980 AIO Stands.
NOTE: To set up with the respective AIO stand, please refer to the respective AIO stand guide for setup instructions.
lMonitor (Black or Silver Bezel)
lStand
lPower Cable


Product Features
The Dell Professional P1911 flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:
■48.26 cm (19 inches) viewable area display (Measured diagonally) .
■1440x900 resolution, plus full-screen support for lower resolutions.
■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.
■Tilt, Swivel, Vertical Extension and rotate adjustment capabilities.
■Removable pedestal and Video Electronics Standards Association (VESA) 100 mm mounting holes for flexible mounting solutions.
■Plug and play capability if supported by your system.
■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
■Software and documentation media which includes an information file (INF), Image color Matching File (ICM), and product documentation.
■Energy Saver feature for Energy Star compliance.
■Security lock slot.
■Asset Management Capable.
■EPEAT Gold Rating.
■Halogen Reduced.
■Energy Gauge shows the energy level being consumed by the monitor in real time.
■PowerNap Software included (comes in the CD shipped with the monitor).
■DCR 50,000:1.
Identifying Parts and Controls
Front View

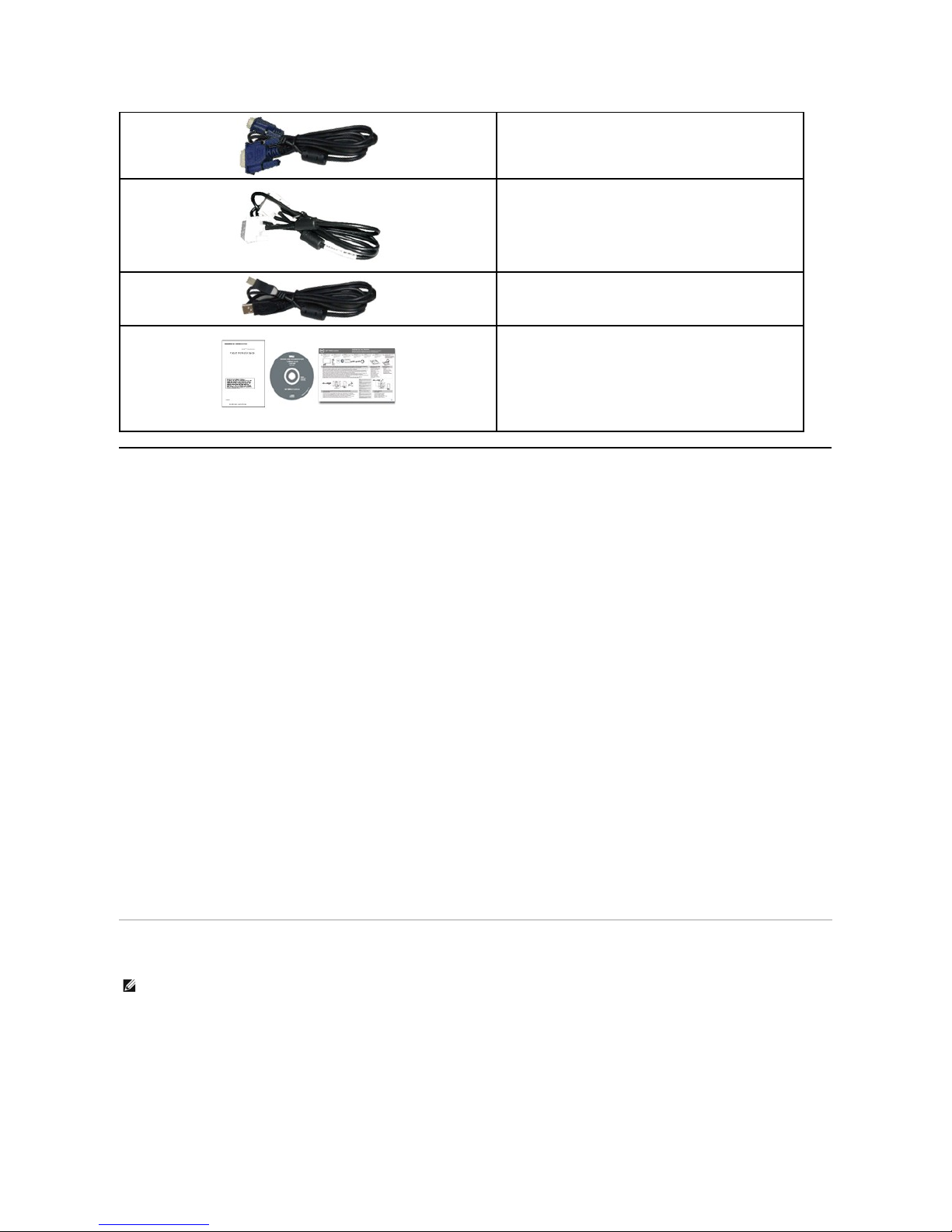

lVGA Cable (attached to the monitor)
lDVI Cable
lUSB up stream cable (enables the USB ports on the monitor)
lDrivers and Documentation media
lQuick Setup Guide
lSafety Information
NOTE: Using Black bezel model for illustration

Back View

Note: The regulatory rating label and barcode serial number label is revealed when plate is pulled out from USB compartment.
Front View
Front panel controls
Label
Description
1
Energy Modes (default, but configurable)
2
Brightness & Contrast (default, but configurable)
3
Menu
4
Exit
5
Power button (with power light indicator)
Back view
Back View with monitor stand
Label
Description
Use
1
VESA mounting holes (100mm)
(Behind attached base plate)
To mount the monitor.
2
Security lock slot
To help secure your monitor.
3
Dell Soundbar mounting brackets
To attach the optional Dell Soundbar.
4
Stand Release Button
To press to release the stand.
5
Cable management slot
To organize cables by placing them through the slot.
6
label compartment
To pull out to view labels

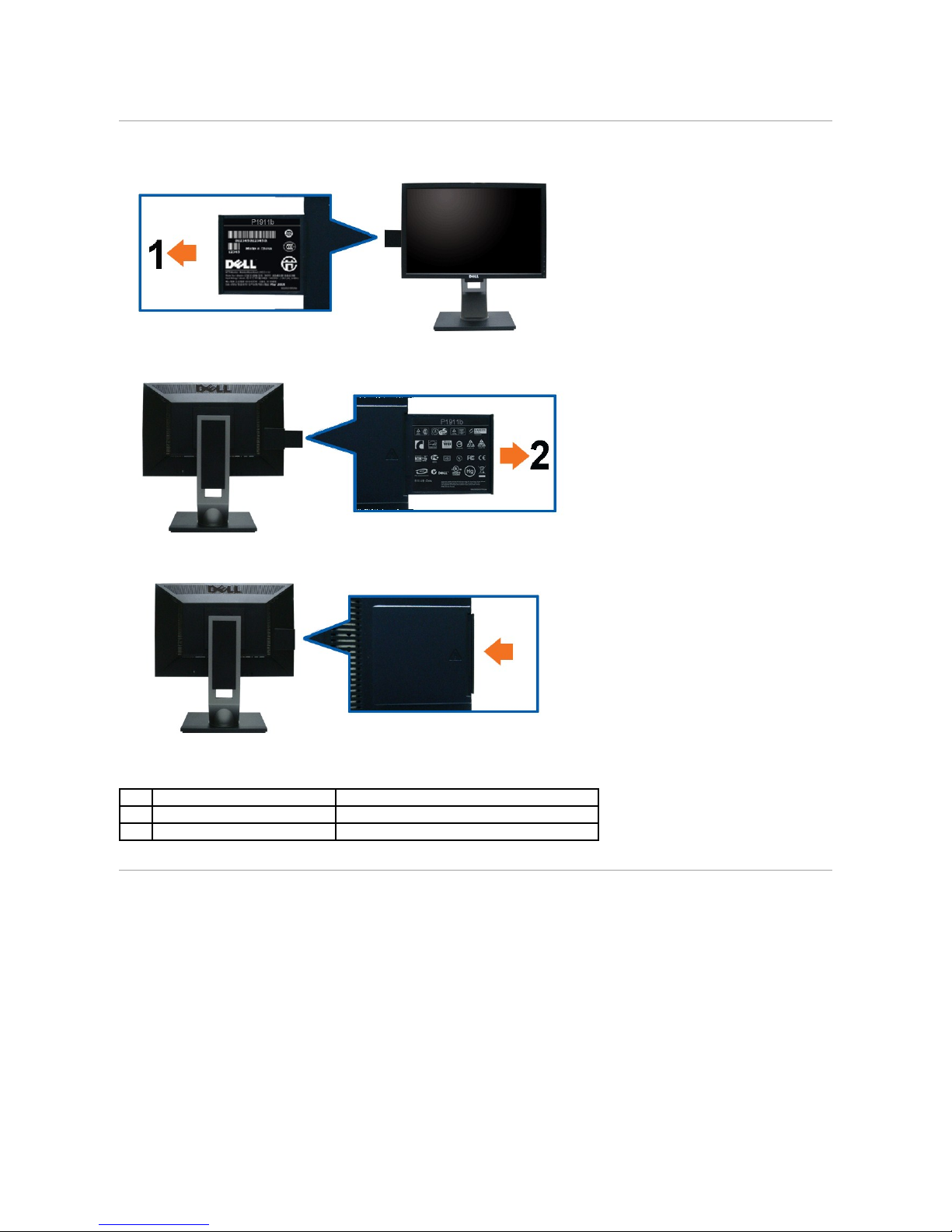

Label View

NOTE: The regulatory rating label and barcode serial number label is revealed when plate is pulled out from USB compartment.

Side View

Monitor front view with pull-out card extended to reveal barcode serial number marks.
Monitor rear view with pull-out card extended to reveal regulatory marks.
Monitor rear view with pull-out card inserted back to provide a clean back view.
Label
Description
Use
1
Barcode serial number label
To contact Dell for technical support.
2
Regulatory label
Lists the regulatory approvals.



Bottom View

Leftview
Right view
Label
Description
1
USB downstream ports
Bottom view
Label
Description
1
AC power cord connector
2
Dell Soundbar power connector
3
DVI connector
4
VGA connector
5
USB upstream port
6
USB downstream ports
Monitor Specifications
Flat Panel Specifications

*[P1911] color gamut (typical) is based on CIE1976 (80%) and CIE1931 (72%) test standards.
Screen type
Active matrix - TFT LCD
Panel type
TN
Screen dimensions
48.26 cm (19 inches viewable image
size)
Preset display area:
408.24(H) X 255.15(V)
Horizontal
408.24 mm (16.08 inches)
Vertical
255.15 mm (10.05 inches)
Pixel pitch
0.2835 mm
Viewing angle
160°(vertical)typical,160°
(horizontal) typical
Luminance output
250 cd/m²(typical)
Contrast ratio
1000:1 (typical)
Dynamic contrast ratio
50,000:1 (max.)
Faceplate coating
Antiglare with hard-coating 3H
Backlight
CCFL (2) edgelight system
Response Time
5 ms typical
Color Gamut
80%*
