Dell S2317HJ User manual

Model No.: S2317HJ
Regulatory model: S2317HJb
User’s Guide
Dell S2317HJ

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better
use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of
data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury or death.
_________________________
Information in this document is subject to change without notice.
© 2016 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission
of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft
and Windows are either trademarks or registered trademarks of Microsoft. Corporation in
the United States and/or other countries, Intel is a registered trademark of Intel Corporation
in the U.S. and other countries; and ATI is a trademark of Advanced Micro Devices, Inc.
Other trademarks and trade names may be used in this document to refer to either the
entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary
interest in trademarks and trade names other than its own.
2016 - 07 Rev. A01

Contents | 3
Contents
About Your Monitor ................................................................ 5
Package Contents......................................................................................5
Product Features ........................................................................................6
Identifying Parts and Controls.................................................................8
Plug and Play Capability.......................................................................... 12
LCD Monitor Quality and Pixel Policy..................................................12
Maintenance Guidelines .........................................................................12
Setting Up the Monitor......................................................... 13
Connecting the Stand .............................................................................13
Connecting Your Monitor ......................................................................14
Organizing Cables....................................................................................15
Removing the Monitor Stand.................................................................16
Operating Your Monitor....................................................... 17
Power On the Monitor ............................................................................ 17
Using the Front Panel Controls............................................................. 17
Using the On-Screen Display (OSD) Menu.........................................19

4| Contents
Setting the Maximum Resolution..........................................................32
Using the Tilt .............................................................................................33
Using the Wireless Charging Base........................................................34
Troubleshooting.................................................................... 37
Self-Test .....................................................................................................37
Built-in Diagnostics..................................................................................38
Common Problems .................................................................................39
Product-Specific Problems....................................................................41
Wireless Charging Specific Problems ..................................................41
Appendix ....................................................................................................42
FCC Notices (U.S. Only) and Other Regulatory Information ..........42
Contact Dell ..............................................................................................42
Setting Up Your Monitor.........................................................................43
Monitor Specifications .........................................................45

About Your Monitor | 5
About Your Monitor
Package Contents
Your monitor ships with the components shown below. Ensure that you have
received all the components and Contact Dell if something is missing.
NOTE: Some items may be optional and may not ship with your monitor. Some
features or media may not be available in certain countries.
Monitor
∞
Stand Riser
∞
Wireless Charging Base
∞
Power Adapter
∞
Power Cable (varies by
∞ country)

6| About Your Monitor
HDMI Cable
∞
Drivers and
∞ Documentation Media
Quick Setup Guide
∞
Safety and Regulatory
∞ Information
Wireless Safety and
∞ Regulatory Information
Product Features
The Dell S2317HJ flat panel display has an active matrix, Thin-Film Transistor (TFT),
Liquid Crystal Display (LCD), and LED backlight. The monitor features include:
58.42 cm (23 inch) viewable area display (measured diagonally). 1920 x 1080
∞ resolution, plus full-screen support for lower resolutions.
Wide viewing angle to allow viewing from a sitting or standing position, or while
∞ moving from side-to-side.
Wireless charging stand base, designed for Qi/PMA compliance*, makes wireless
∞ charging possible for your smartphones or mobile devices.
Plug and play capability if supported by your system.
∞
VGA and HDMI connectivity makes it simple and easy to connect with legacy
∞ and new systems.
Built-in Speaker (3W) x 2.
∞
On-Screen Display (OSD) adjustments for ease of set-up and screen
∞ optimization.
Software and documentation media includes an Information File (INF), Image
∞ Color Matching File (ICM), and product documentation.
Dell Display Manager Software included (in the CD shipped with the monitor).
∞
Security-lock slot.
∞
Capability to switch from wide aspect to standard aspect ratio while maintaining
∞ the image quality.
TCO-Certified Displays.
∞
BFR/PVC- Reduced.
∞
High Dynamic Contrast Ratio (8,000,000:1).
∞
0.3 W standby power when in the sleep mode.
∞
Energy Gauge shows the energy level being consumed by the monitor in real
∞ time (consumption from the wireless charging base is not included).

About Your Monitor | 7
* The “Qi” symbol is a trademark of the Wireless Power Consortium; the PMA logo is a
property of Power Matters Alliance, Inc.

8| About Your Monitor
Identifying Parts and Controls

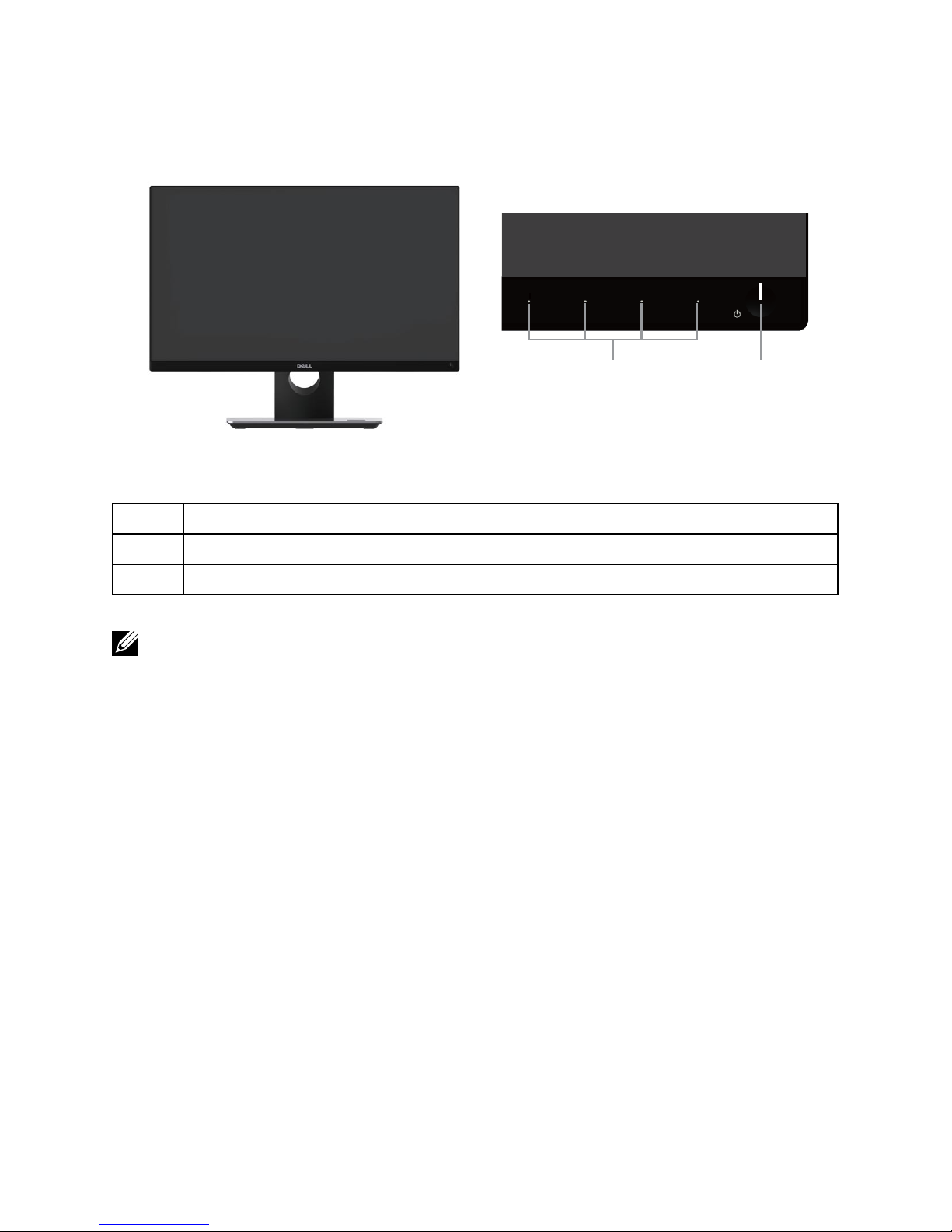

Front View
Front panel controls
2
1
Label Description
1Function buttons (For more information, see Operating Your Monitor)
2Power On/Off button (with LED indicator)
NOTE: For displays with glossy bezels the user should consider the placement of
the display as the bezel may cause disturbing reflections from surrounding light
and bright surfaces.

About Your Monitor | 9
Back View
1
2
4
5
6
7
3
Back View with monitor stand
Back View without monitor stand
Label Description Use
1Stand release button Releases stand from monitor.
2Security-lock slot Secures monitor with security lock
(security lock not included).
3Barcode serial number label Refer to this label if you need to
contact Dell for technical support.
4Wireless charging power switch Turns on the switch for the readiness
of wireless charging.
5Cable management slot Uses to organize cables by placing
them through the slot.
6DC out cable Plugs to the power-adapter port on
the monitor, with a 12V DC power
supply.
7Power-adapter port Connects the power cable using a
19V DC adapter for transition.

10 | About Your Monitor

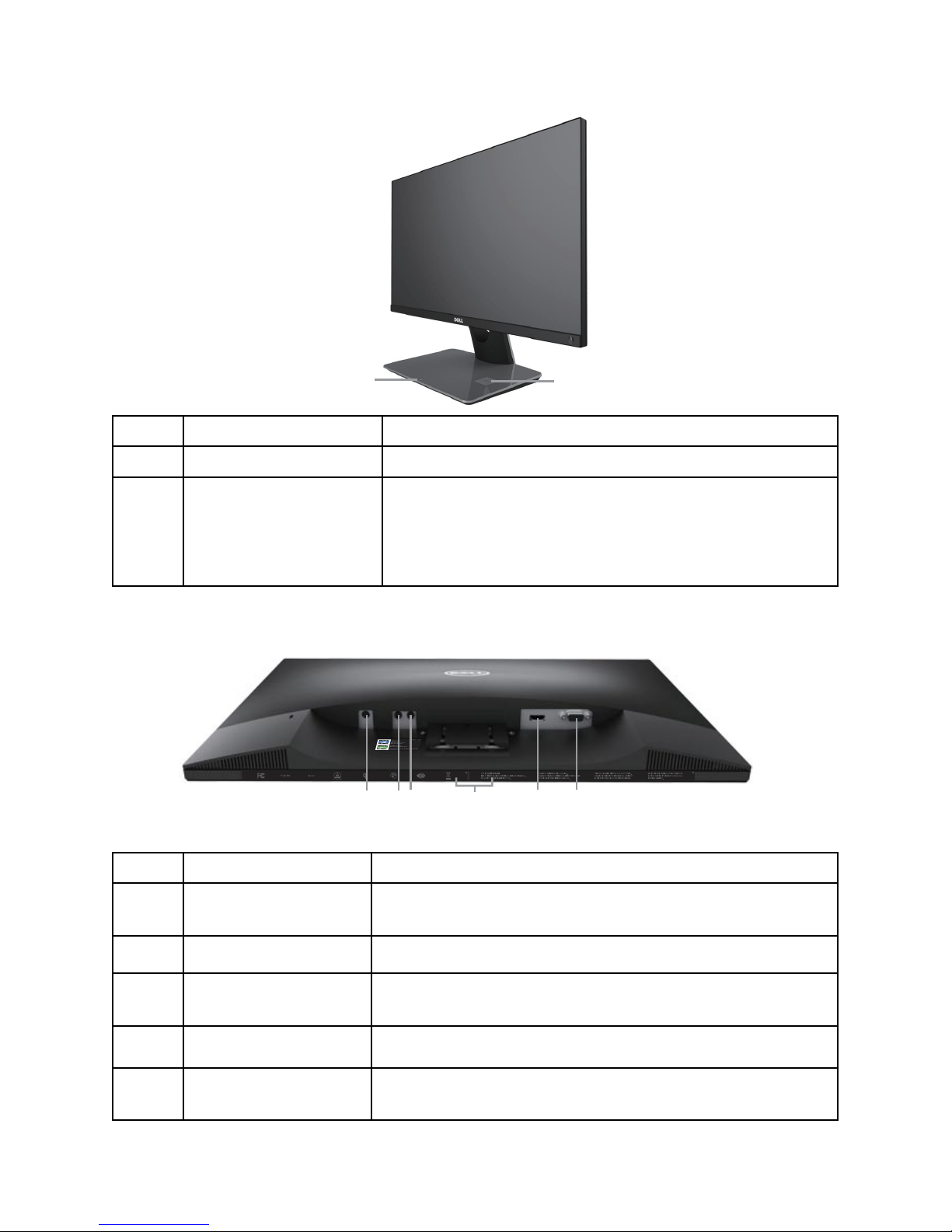

Side View
21
Label Description Use
1Wireless charging LED Indicates the wireless charging status.
2Wireless charging pad Charge your Qi (WPC) or PMA compliance
•devices.
Align your device to the pad to get max•
charging.
Bottom View
546
1 2 3
Bottom view without monitor stand
Label Description Use
1Power-adapter port Connects the DC out cable of the wireless charging
base.
2Audio Line Out port Connects external speakers (Optional Purchase) *
3Audio Line In port Connects the audio cable (Optional Purchase) from
the source device to the monitor.
4Regulatory label Lists the regulatory approvals.
5HDMI port Connects your computer to the monitor using an
HDMI cable.

About Your Monitor | 11
6VGA port Connects your computer to the monitor using a VGA
cable.
* Headphone usage is not supported for the audio line out port.

12 | About Your Monitor
Plug and Play Capability
You can install the monitor in any Plug and Play-compatible system. The monitor
automatically provides the computer system with its Extended Display Identification
Data (EDID) using Display Data Channel (DDC) protocols so the system can configure
itself and optimize the monitor settings. Most monitor installations are automatic,
you can select different settings if desired. For more information about changing the
monitor settings, see Operating Your Monitor.
LCD Monitor Quality and Pixel Policy
During the LCD Monitor manufacturing process, it is not uncommon for one or more
pixels to become fixed in an unchanging state which are hard to see and do not affect
the display quality or usability. For more information on Dell Monitor Quality and Pixel
Policy, see Dell Support site at: www.dell.com/support/monitors.
Maintenance Guidelines
Cleaning Your Monitor
WARNING: Before cleaning the monitor, unplug the monitor power cable from
the electrical outlet.
CAUTION: Read and follow the Safety Instructions before cleaning the monitor.
For best practices, follow the instructions in the list below while unpacking, cleaning
or handling your monitor:
To clean your anti-static screen, lightly dampen a soft, clean cloth with water.
∞ If possible, use a special screen-cleaning tissue or solution suitable for the anti-
static coating. Do not use benzene, thinner, ammonia, abrasive cleaners or
compressed air.
Use a lightly-dampened, warm cloth to clean the monitor. Avoid using
∞ detergent of any kind as some detergents leave a milky film on the monitor.
If you notice white powder when you unpack your monitor, wipe it off with a
∞ cloth.
Handle your monitor with care as a darker-colored monitor may get scratched
∞ and show white scuff marks more than a lighter-colored monitor.
To help maintain the best image quality on your monitor, use a dynamically
∞ changing screen saver and turn Off your monitor when not in use.

Setting Up the Monitor | 13
Setting Up the Monitor
Connecting the Stand
NOTE: The stand is detached when the monitor is shipped from the factory.
NOTE: The following steps are applicable for a monitor with a stand.
To attach the monitor stand:
Remove the cover and place the monitor on it.
1.
Insert the stand base blocks fully into the stand slot.
2.
Turn the screw clockwise. After fully tightening the screw, fold the screw handle
3.
flat within the recess.
Fit the two tabs on the upper part of the stand to the groove on the back of the
4.
monitor.
Press the stand till it snaps into place.
5.
43
2

14 | Setting Up the Monitor

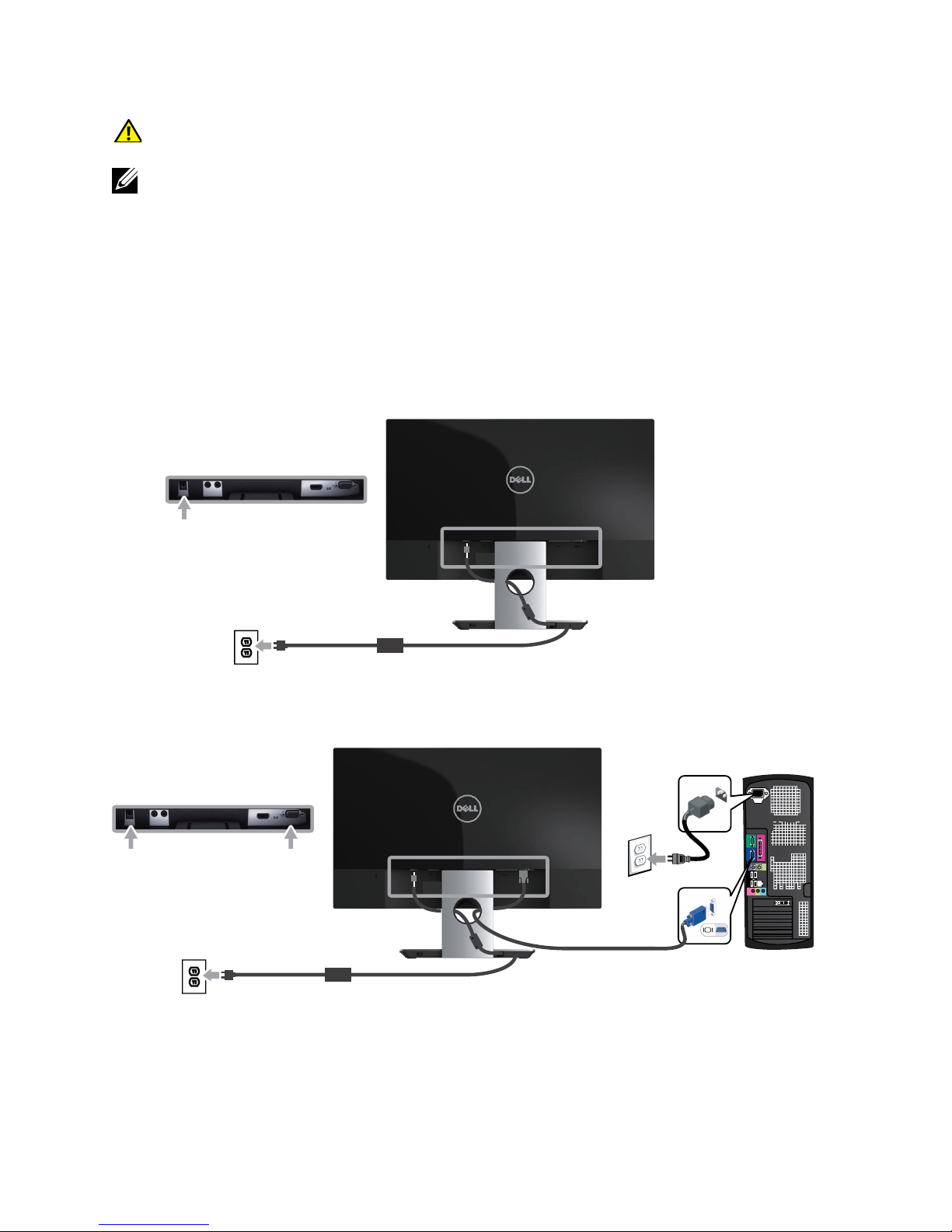

Connecting Your Monitor
WARNING: Before you begin any of the procedures in this section, follow the
Safety Instructions.
NOTE: Do not connect all cables to the computer at the same time.
To connect your monitor to the computer:
Turn Off your computer and disconnect the power cable.
1.
Connect the VGA/HDMI/audio cable from your monitor to the computer.
2.
Plug the DC out cable of the wireless charging base to the power adapter port
3.
on the monitor. And plug the supplied power cable with 19V DC adapter to the
power adapter port on the wireless charging base.
Connecting the VGA cable (Optional Purchase)
VGA

Setting Up the Monitor | 15

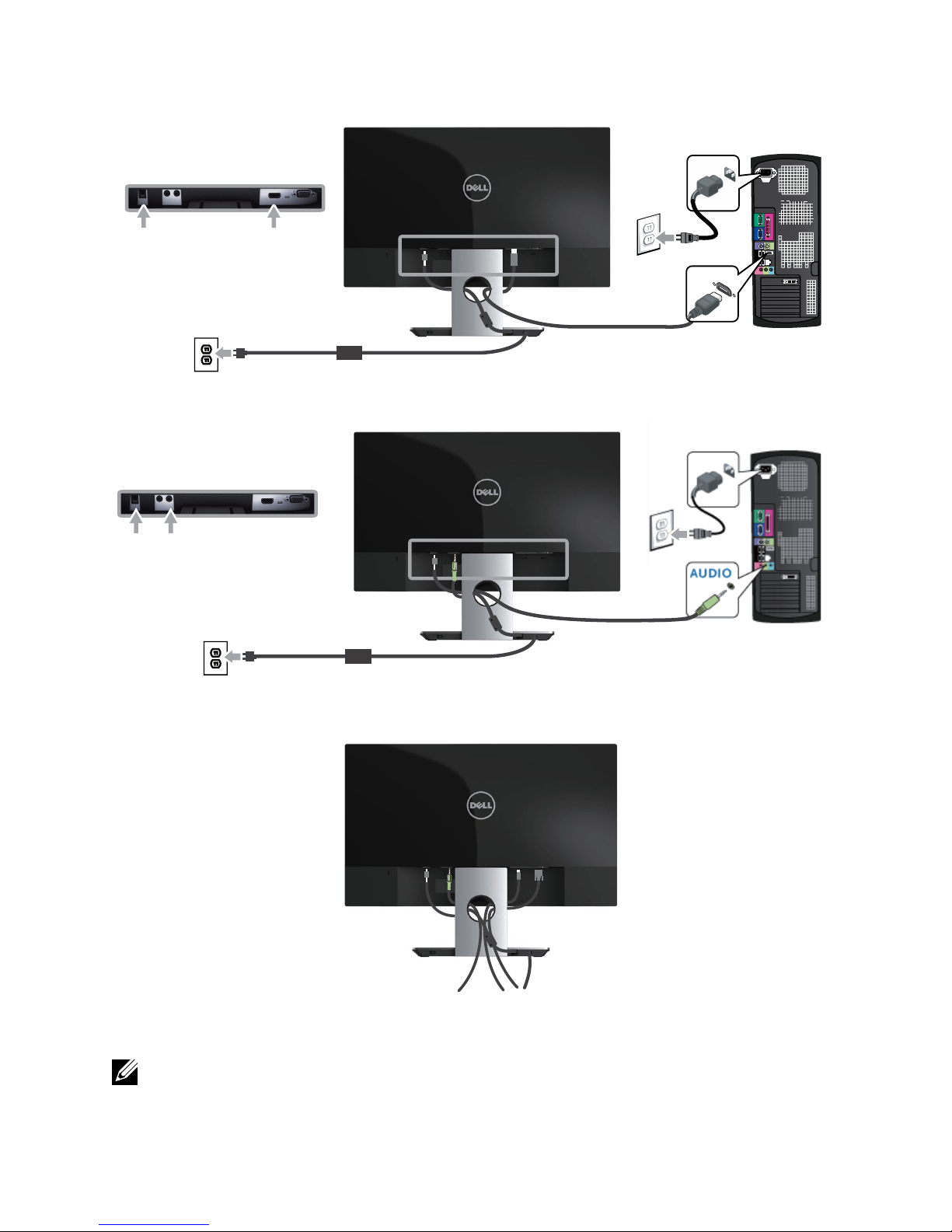

Connecting the HDMI cable
HDMI
Connecting the audio cable (Optional Purchase)
Organizing Cables
After you connect all necessary cables to your monitor and computer, organize all
cables as shown above.
NOTE: After the cables are connected, they will have to be disconnected again
to route them through the hole.

16 | Setting Up the Monitor

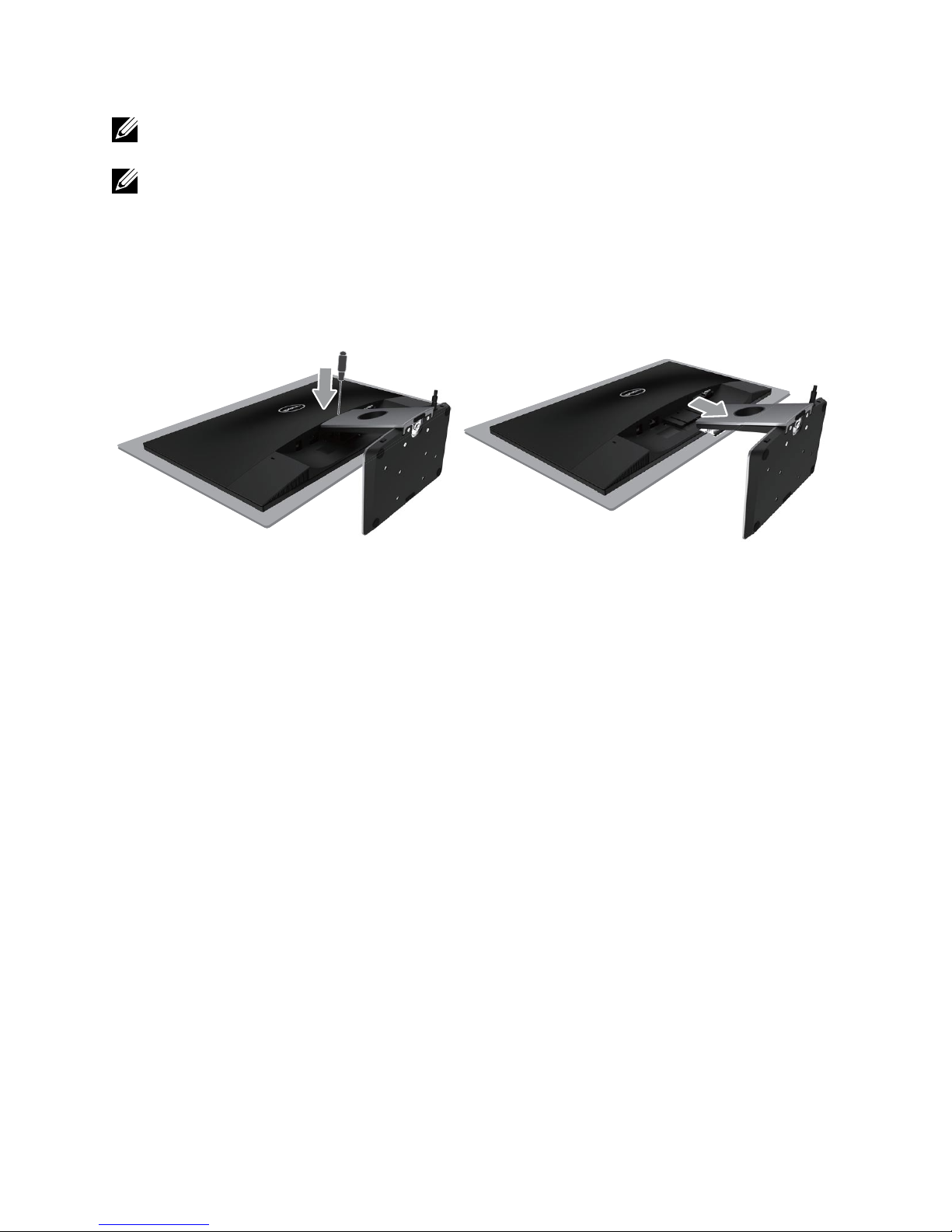

Removing the Monitor Stand
NOTE: To prevent scratches on the LCD screen while removing the stand,
ensure that the monitor is placed on a soft and clean surface.
NOTE: The following steps are applicable for a monitor with a stand.
To remove the stand:
Place the monitor on a soft cloth or cushion.
1.
Use a long and thin screwdriver to push the release latch.
2.
Once the latch is released, remove the stand away from monitor.
3.

Operating Your Monitor | 17
Operating Your Monitor

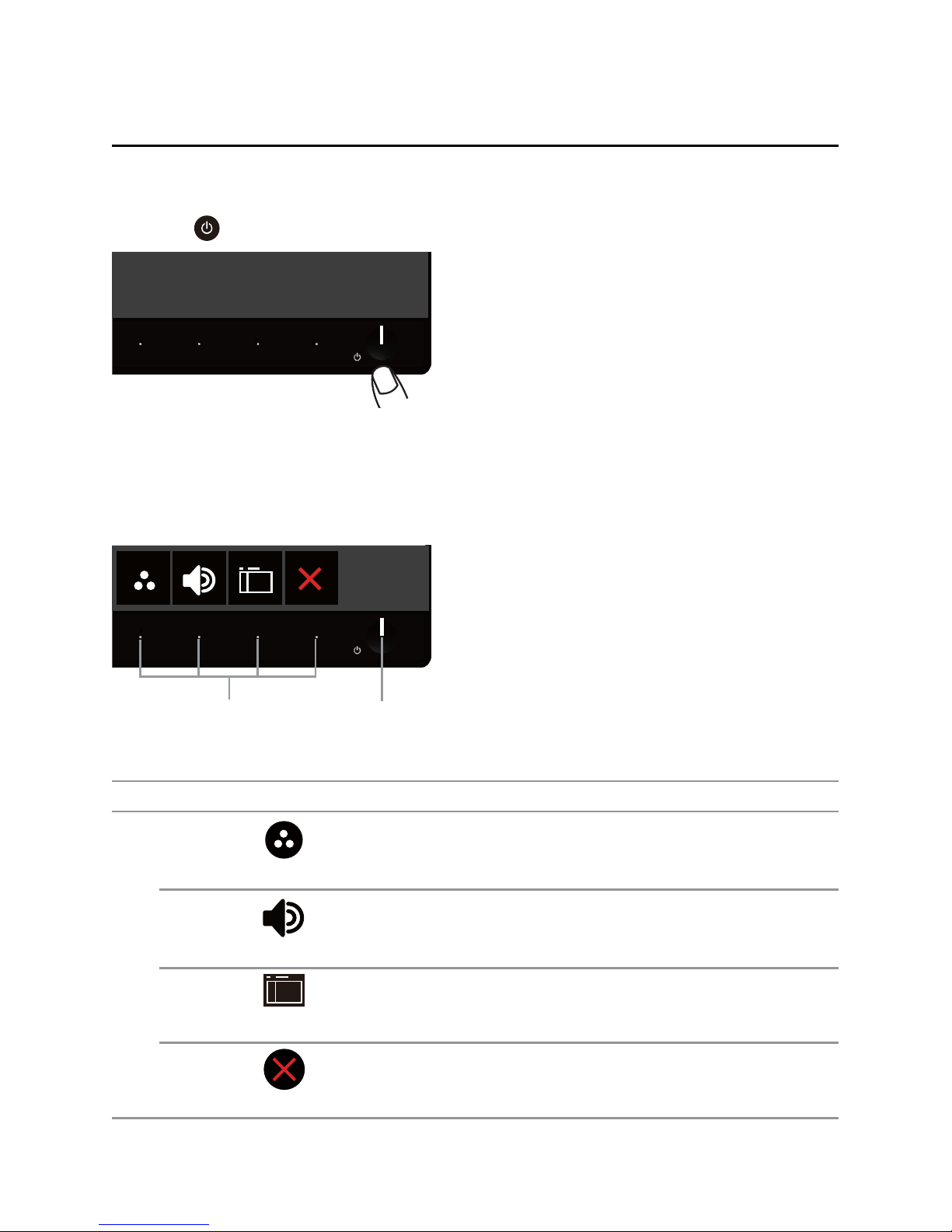

Power On the Monitor
Press the button to turn On the monitor.
Using the Front Panel Controls
Use the control buttons on the front of the monitor to adjust the image being
displayed.
21
The following table describes the front panel buttons:
Front Panel Button Description
1
Shortcut key/Preset Modes
Use this button to choose from a list of preset
modes.
Shortcut key/Volume
Use the buttons to adjust the volume. Minimum
is 0 (-). Maximum is 100 (+).
Menu
Use the Menu button to launch the On-Screen
Display (OSD) and select the OSD Menu. See
Accessing the OSD menu.
Exit
Use this button to go back to the main menu or
exit the OSD main menu.

18 | Operating Your Monitor
2
Power On/Off button (with
LED indicator)
Use the Power button to turn the monitor On
and Off.
Solid white light indicates the monitor is On and
fully functional. Blinking white light indicates the
power save mode.
OSD controls
Use the buttons on the front of the monitor to adjust the image settings.
1234
Front Panel Button Description
1
Up
Use the Up button to increase values or move up.
2
Down
Use the Down button to adjust (decrease ranges)
items in the OSD menu.
3
OK
Use the OK button to confirm your selection.
4
Back
Use the Back button to go back to the previous menu.

Operating Your Monitor | 19
Using the On-Screen Display (OSD) Menu
Accessing the OSD menu
NOTE: If you change the settings and then either proceed to another menu or
exit the OSD menu, the monitor automatically saves those changes. The changes
are also saved if you change the settings and then wait for the OSD menu to
disappear.
Press the
1. button to display the OSD main menu.
Main Menu for analog (VGA) input
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Energy
Menu
Personalize
Others
Resolution: 1920x1080, 60Hz
Dell S2317HJ Energy Use
75%75%
Audio
Press the
2. and buttons to move between the setting options. As you move
from one icon to another, the option name is highlighted. See the following
table for a complete list of all the options available for the monitor.
Press the
3. button once to activate the highlighted option.
Press
4. and button to select the desired parameter.
Press
5. and then use the and buttons, according to the indicators on
the menu, to make your changes.
Select the
6. button to return to the main menu.

20 | Operating Your Monitor
Icon Menu and
Submenus
Description
Brightness/
Contrast
Use this menu to activate Brightness/Contrast adjustment.
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Energy
Menu
Personalize
Others
Reso lution: 1920x1080, 60Hz
De ll S2317HJ Energy Use
75%75%
Audio
Brightness Brightness adjusts the luminance of the backlight.
Press the button to increase the brightness and press
the button to decrease the brightness (min. 0 / max.
100).
NOTE: Manual adjustment of Brightness is disabled when
Dynamic Contrast is switched On.
Contrast Adjust the Brightness first, and then adjust the Contrast
only if further adjustment is necessary.
Press the button to increase the contrast and press the
button to decrease the contrast (min. 0 / max. 100).
The Contrast function adjusts the degree of difference
between darkness and lightness on the monitor screen.
