Dell P2418HT Instructions for use

Product Announcement:
This product is certificated to meet RoHS
Directive and Lead-Free produced definition.
Using approved critical components only is
recommended when the situation to replace
defective parts. Vender assumes no liability
express or implied, arising out of any unauthorized
modification of design or replacing non-RoHS
parts. Service providers assume all liability.
Qualified Repairability:
Proper service and repair is important to the safe,
reliable operation of all series products. The
service providers recommended by vender should
be aware of notices listed in this service manual in
order to minimize the risk of personal injury when
perform service procedures. Furthermore, the
possible existed improper repairing method may
damage equipment or products. It is recommended
that service engineers should have repairing
knowledge, experience, as well as appropriate
product training per new model before performing
the service procedures.
NOTICE:
! To avoid electrical shocks, the products should be
connected to an authorized power cord, and turn
off the master power switch each time before
removing the AC power cord.
! To prevent the product away from water or
expose in extremely high humility environment.
! To ensure the continued reliability of this
product, use only original manufacturer’s
specified parts.
! To ensure following safety repairing behavior, put
the replaced part on the components side of
PWBA, not solder side.
! To ensure using a proper screwdriver, follow the
torque and force listed in assembly and
disassembly procedures to unscrew screws.
! Using Lead-Free solder to well mounted the
parts.
! The fusion point of Lead-Free solder requested in
the degree of 220°C.
1. Important Safety Notice

2. Exploded view diagram with list of items
Front Bezel
Front Plate
Panel
Power BD
IF BD
Main Chassis
Key BD
Mid Frame
Function Key
Rubber Foot
Rear Cover
Cable Cover
Stand
Cable Clip
Release Button
Spring
USB BD
Support Plate
USB Cover
Lock Holder

3. Wiring Connectivity Diagram
USB 2.0
Interface board
USB 2.0
USB 3.0
Display Port
Down
stream
port with
charging
Down
stream
port
Down
stream
port
Touch module
DSUBHDMI
HDMI video
input, HDCP
Analog video
input
Audio
jack
Audio
out Up
stream
port
Down
stream
port
Display port
input, HDCP
USB board
(23.8" 16:9 1920x1080)
LED driver output
Function key
board
WLED LCD IPS panel
with in-cell touch system
LM238WF5-SSA1
Power board
AC
110/220V
input

4. Disassembly and Assembly Procedures
S2

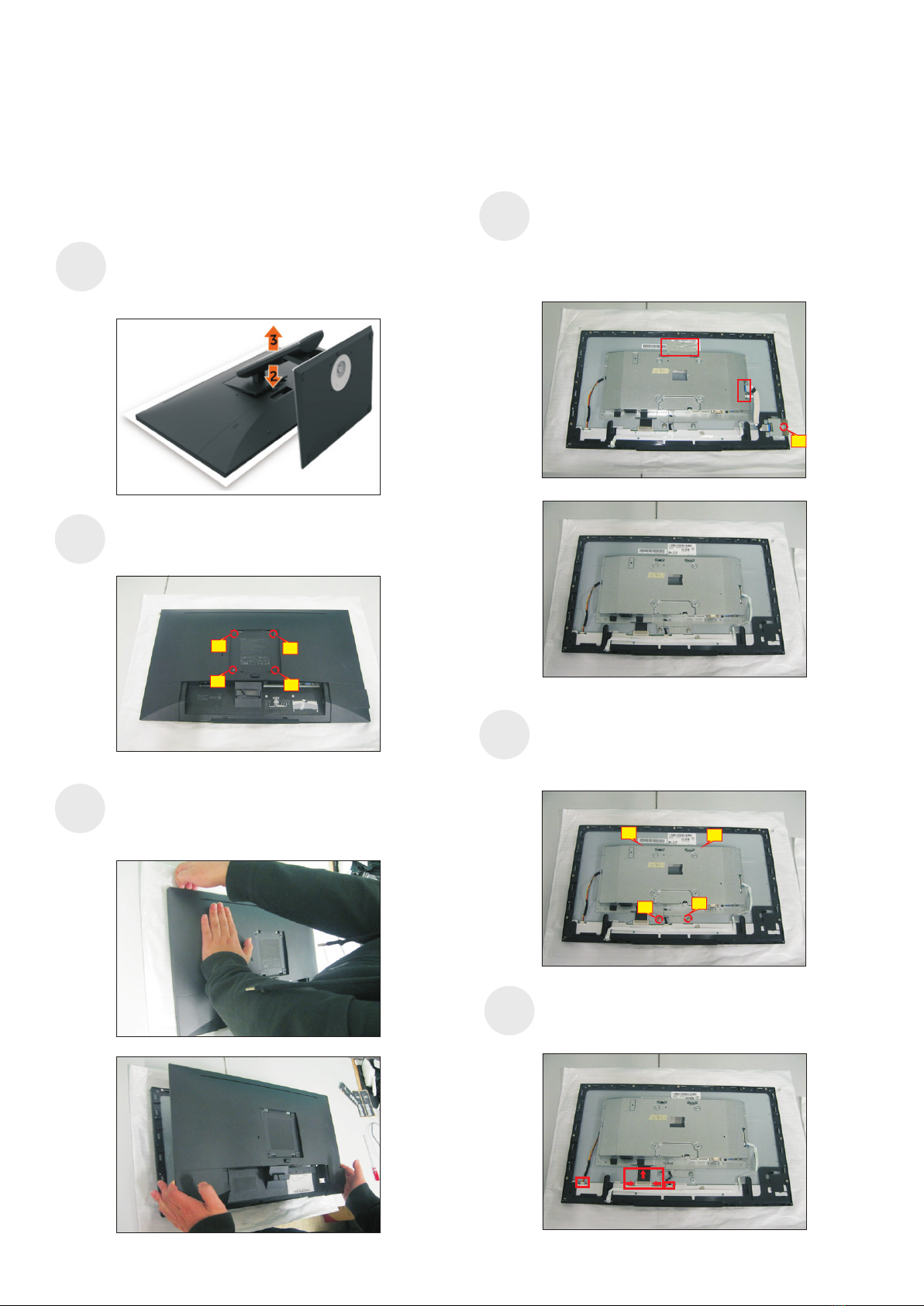

4.1 Disassembly Procedures:
S1
S3
S5
S4
Remove the monitor stand base:
1. Place the monitor on a soft cloth or cushion.
2. Press and hold the stand-release button.
3. Lift the stand up and away from the monitor.
S6
Use one hand to press the rear cover, then wedge
your fingers between the rear cover and the middle
bezel on the corners of the top left side to the right
side of the monitor to release the rear cover.
Use a Philips-head screwdriver to remove four
screws for unlocking mechanisms.
(No.1~4 screw size=M4x10,Torque=12±0.5kgfxcm)
Remove the rear cover. Tear off the aluminum foil,
and then disconnect the USB cable and
away from the connector of the interface
board. Use
Function
key cable
a Philips-head screwdriver to remove
one screw for unlocking the USB unit, remove the
USB unit from the hooks.
(No.1 screw size=M3x5, Torque=4±0.5kgfxcm)
1
2
4
3
1
U
.
se a Philips-head screwdriver to remove four
screws for unlocking the bracket chassis module
with the panel module
(No.1~4 Screw size= M3x4, Torque=5±0.5kgfxcm)
4
1
2
3
Disconnect the panel power cable to the connector of
the panel module. Then disconnect the other cables
as the below picture shown.
Necessary repair and test equipment:
1. Philips-head screwdriver
2. Hex-head screwdriver

4. Disassembly and Assembly Procedures
S9
S11
S8
S10
S7
U Philips-head screwdriver to removese a two
screws for unlocking the AC-power outlet connector.
And Use a Hex-head screwdriver to remove two
screws for unlocking mechanisms of the VGA
connectors.
(No.1~2 screw size=M3x10, Torque=6±0.5kgfxcm)
(No.3~4 screw size=M3x8, Torque=6±0.5kgfxcm)
Tear off the adhesive tapes to release the function
key cable. Remove the middle bezel and front bezel
then put them on a protector.
Use a Philips-head screwdriver to remove nine
screws for unlocking the middle bezel with the
assembled unit. Use a Philips-head screwdriver to
remove two screws for unlocking the front bezel. Put
the bracket chassis module on the protector.
(No.1~9 screw size=M3x4, Torque=5±0.5kgfxcm)
(No.10~11 screw size=M1.6x3.1, Torque=0.7±0.2kgfxcm)
6
11 10
9
5
4
1
2
3
8
7
Remove the interface and power boards from the
disconnect all of the cables.
bracket chassis module carefully, and then
2
34
1
Turn over the bracket chassis module. Remove the
Mylar from the hooks of the bracket, and then use a
Philips-head screwdriver to remove screws for
unlocking the interface board and power board.
six
(No.1 screw size=M4x8, Torque=6±0.5kgfxcm;
No.2~6 screw size=M3x7.5, Torque=6±0.5kgfxcm)
2
14
5
3
6

4. Disassembly and Assembly Procedures

4. Disassembly and Assembly Procedures
4.2 Assembly Procedures:
Turn over a power board and put the power board
into the bracket chassis, then use a Philips-head
screwdriver to tighten four screws for locking the
power board.
(No.1 screw size=M4x8, Torque=6±0.5kgfxcm;
No.2~4 screw size=M3x7.5, Torque=6±0.5kgfxcm)
Place a bracket chassis base on a protective
cushion.
S2
S1
Take a mylar to insert the hooks of the bracket to
cover the power board. locate the two cables into the
hook of the bracket chassis.
S4
Take a interface board, connect the cable of the
power board to the CN2201 of the interface board.
Turn over the interface board and locate it into the
bracket. Use a Philips-head screwdriver to tighten
two screws for locking the interface board.
(No.1~2 screw size=M3x7.5, Torque=6±0.5kgfxcm)
2
1
CN2201
S3
4
2
3
1
Panel preparation: Examine the panel surface
according to inspection criteria. Turn over the panel
to place screen faced down. Take a front bezel and
put the front bezel under the panel as the below
picture shown.
S6
Turn over the bracket chassis module and then
Philips-head screwdriver to tighten
use
a two screws for
locking the AC-power outlet connector. And Use a
Hex-head screwdriver to tighten two screws for
locking mechanisms of the VGA connectors.
(No.1~2 screw size=M3x10, Torque=6±0.5kgfxcm)
(No.3~4 screw size=M3x8, Torque=6±0.5kgfxcm)
S5
2
34
1

4. Disassembly and Assembly Procedures
Take a function key board and a middle bezel, then
thread the function key cable through the hole of the
middle bezel, and then locate the function board unit
to the specific position of the middle bezel. U
function key board middle bezel.
se a
Philips-head screwdriver to tighten three screws for
locking the with the
(No.1~3 Screw size= M2x3.3, Torque=1±0.2kgfxcm)
S7
2
13
P
and push the middle bezel for two parts firmly
attachment. Tear off all the double-faced adhesive
tapes which pasted on the back of the function key
cable, and then fix the cable on the panel.
ut down the middle bezel on the assembled unit
S8
Adjust the bracket chassis module, and then u
.
se a
Philips-head screwdriver to tighten four screws for
locking the bracket chassis with the panel module
(No.1~4 Screw size= M3x4, Torque=5±0.5kgfxcm)
Use a Philips-head screwdriver to tighten nine
screws for locking the middle bezel with the
assembled unit. Use a Philips-head screwdriver to
tighten two screws for locking the front bezel. Put the
bracket chassis module on the panel module.
(No.1~9 screw size=M3x4, Torque=5±0.5kgfxcm)
(No.10~11 screw size=M1.6x3.1, Torque=0.7±0.2kgfxcm)
S9
Connect the panel power cable to the connector of
the panel module. Then connect the other cables as
the below picture shown.
S10
S11
6
11 10
9
5
4
1
2
3
8
7
4
1
2
3
Prepare a USB board, a USB hub and a connect
cable. Connect the cable to the USB board, then
locate the USB board into the hooks of the middle
bezel. Take the USB Hub to cover the USB board,
and then
.
use a Philips-head screwdriver to tighten
one screw for locking the USB board with the USB
hub with the middle bezel
(No.1 screw size=M3x5, Torque= kgfxcm)4±0.5
S12

4. Disassembly and Assembly Procedures
1
Connect the USB cable and the function key cable
to the connector of the interface board. Then stick a
piece of aluminum foil on the specific position as the
picture below shown.
Take a rear cover, p
assembled unit carefully and push the rear cover on
the positions marked for the rear cover mechanisms
engagement.
ut down the rear cover on the
S14
S13
Use a Philips-head screwdriver to tighten four
screws for locking the rear cover. Stick three pieces
of label on the specific positions
(No.1~4 screw size=M4x10, Torque=12±0.5kgfxcm)
S15
Take a stand close to the monitor. Fit the two tabs on
the upper part of the stand into the grooves on the
back of the monitor, and then lower the stand so that
the monitor mounting area snaps onto the stand.
Lift up the monitor to checking the gap between the
front bezel with panel module , then provide power
supply and a video signal to the monitor , then turn on
the monitor for functionality check.
S16
S18
1
2
4
3
Take a stand base close to the stand, and fix the
base to the stand as the below picture shown.
S17

5. Trouble Shooting Instructions
WARNING: Before you begin any of the procedures in this section, follow the
Safety Instructions.
Self-Test
Your monitor provides a self-test feature that allows you to check whether your monitor
is functioning properly. If your monitor and computer are properly connected but the
monitor screen remains dark, run the monitor self-test by performing the following
steps:
1Turn o both your computer and the monitor.
2Unplug the video cable from the back of the computer. To ensure proper Self-Test
operation, remove all digital and the analog cables from the back of computer.
3Turn on the monitor.

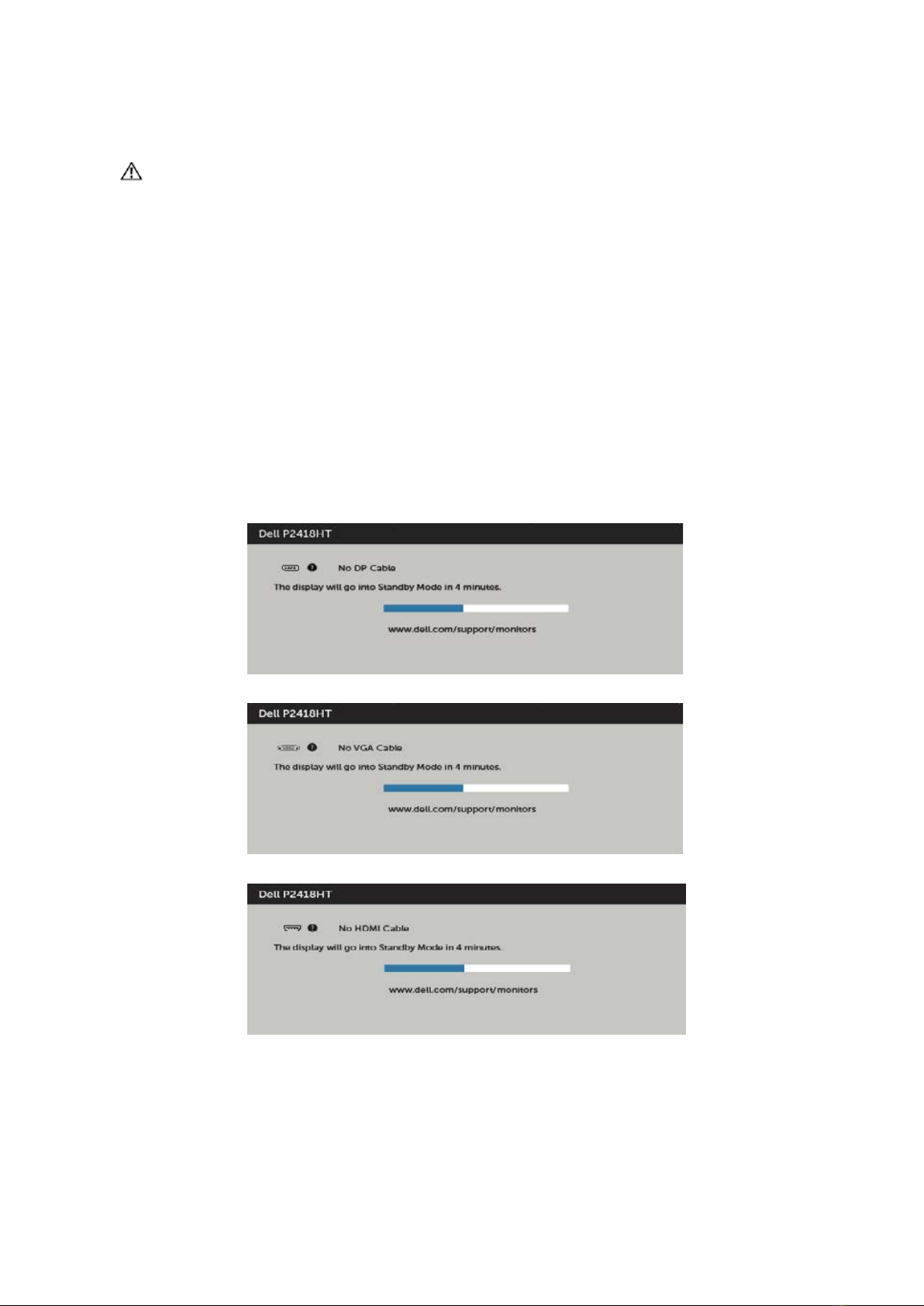

The floating dialog box should appear on-screen (against a black background), if the
monitor cannot sense a video signal and is working correctly. While in self-test mode,
the power LED remains white. Also, depending upon the selected input, one of the
dialogs shown below will continuously scroll through the screen.
or
or
4This box also appears during normal system operation, if the video cable becomes
disconnected or damaged.
5Turn o your monitor and reconnect the video cable; then turn on both your
computer and the monitor.
If your monitor screen remains blank after you use the previous procedure, check your
video controller and computer, because your monitor is functioning properly.

5. Trouble Shooting Instructions
Built-in Diagnostics
Your monitor has a built-in diagnostic tool that helps you determine if the screen
abnormality you are experiencing is an inherent problem with your monitor, or with your
computer and video card.
NOTE: You can run the built-in diagnostics only when the video cable is unplugged
and the monitor is in self-test mode.
To run the built-in diagnostics:
1Make sure that the screen is clean (no dust particles on the surface of the screen).
2Unplug the video cable(s) from the back of the computer or monitor. The monitor
then goes into the self-test mode.
3Press and hold Button 1 for 5 seconds. A gray screen appears.
4Carefully inspect the screen for abnormalities.
5Press Button 1 on the front panel again. The color of the screen changes to red.
6Inspect the display for any abnormalities.
7Repeat steps 5 and 6 to inspect the display in green, blue, black, white, and text
screens.
The test is complete when the text screen appears. To exit, press Button 1 again.
If you do not detect any screen abnormalities upon using the built-in diagnostic tool,
the monitor is functioning properly. Check the video card and computer.

5. Trouble Shooting Instructions
Common Problems
The following table contains general information about common monitor problems you
might encounter and the possible solutions:
Common
Symptoms
What You
Experience
Possible Solutions
No Video/Power
LED off
No picture • Ensure that the video cable connecting the
monitor and the computer is properly connected
and secure.
• Verify that the power outlet is functioning
properly using any other electrical equipment.
• Ensure that the power button is depressed fully.
• Ensure that the correct input source is selected in
the Input Source menu.
No Video/Power
LED on
No picture or no
brightness
• Increase brightness & contrast controls via OSD.
• Perform monitor self-test feature check.
• Check for bent or broken pins in the video cable
connector.
• Run the built-in diagnostics.
• Ensure that the correct input source is selected in
the Input Source menu.
Poor Focus Picture is fuzzy,
blurry, or ghosting
• Perform Auto Adjust via OSD.
• Adjust the Phase and Pixel Clock controls via OSD.
• Eliminate video extension cables.
• Reset the monitor to factory settings.
• Change the video resolution to the correct aspect ratio.
Shaky/Jittery
Video
Wavy picture or
fine movement
• Perform Auto Adjust via OSD.
• Adjust the Phase and Pixel Clock controls via OSD.
• Reset the monitor to factory settings.
• Check environmental factors.
• Relocate the monitor and test in another room.
Missing Pixels LCD screen has
spots
• Cycle power on-off.
• Pixel that is permanently off is a natural defect
that can occur in LCD technology.
• For more information on Dell Monitor Quality
and Pixel Policy, see Dell Support site at:
http://www.dell.com/support/monitors.
Stuck-on Pixels LCD screen has
bright spots
• Cycle power On-Off.
• Pixel that is permanently off is a natural defect
that can occur in LCD technology.
• For more information on Dell Monitor Quality
and PixelPolicy, see Dell Support site at:
http://www.dell.com/support/monitors.
Brightness
Problems
Picture too dim
or too bright
• Reset the monitor to factory settings.
• Auto Adjust via OSD.
• Adjust brightness & contrast controls via OSD.

5. Trouble Shooting Instructions
Common
Symptoms
What You
Experience
Possible Solutions
Geometric
Distortion
Screen not
centered correctly
• Reset the monitor to factory settings.
• Auto Adjust via OSD.
• Adjust horizontal & vertical controls via OSD.
Horizontal/
Vertical Lines
Screen has one or
more lines
• Reset the monitor to factory settings.
• Perform Auto Adjust via OSD.
• Adjust Phase and Pixel Clock controls via OSD.
• Perform monitor self-test feature check and determine
if these lines are also in self-test mode.
• Check for bent or broken pins in the video cable
connector.
• Run the built-in diagnostics.
Synchronization
Problems
Screen is
scrambled or
appears torn
• Reset the monitor to factory settings.
• Perform Auto Adjust via OSD.
• Adjust Phase and Pixel Clock controls via OSD.
• Perform monitor self-test feature check to determine if
the scrambled screen appears in self-test mode.
• Check for bent or broken pins in the video cable
connector.
• Restart the computer in safe mode.
Safety Related
Issues
Visible signs of
smoke or sparks
• Do not perform any troubleshooting steps.
• Contact Dell immediately.
Intermittent
Problems
Monitor
malfunctions on
& off
• Ensure that the video cable connecting the
monitor to the computer is connected properly
and is secure.
• Reset the monitor to factory settings.
• Perform monitor self-test feature check to
determine if the intermittent problem occurs in
self-test mode.
Missing Color Picture missing
color
• Perform monitor self-test.
• Ensure that the video cable connecting the
monitor to the computer is connected properly
and is secure.
• Check for bent or broken pins in the video cable
connector.
Wrong Color Picture color
not good
• Change the settings of the Preset Modes in the
Color menu OSD depending on the application.
• Adjust R/G/B value under Custom. Color in Color
menu OSD.
• Change the Input Color Format to PC RGB or
YPbPr in the Color menu OSD.
• Run the built-in diagnostics.
Image retention
from a static
image left on
the monitor for
a long period of
time
Faint shadow
from the static
image displayed
appears on the
screen
• Set the screen to turn o after a few minutes
of screen idle time. These can be adjusted in
Windows Power Options or Mac Energy Saver
setting.
• Alternatively, use a dynamically changing
screensaver.

5. Trouble Shooting Instructions
Product Specific Problems
Specific
Symptoms
What You
Experience
Possible Solutions
Screen image is
too small
Image is
centered on
screen, but does
not fill entire
viewing area
• Check the Aspect Ratio setting in the Display
menu OSD.
• Reset the monitor to factory settings.
Cannot adjust
the monitor
with the buttons
on the front
panel
OSD does not
appear on the
screen
• Turn o the monitor, unplug the monitor power
cable, plug it back, and then turn on the monitor.
• Check whether the OSD menu is locked. If yes,
press and hold the button beside the power
button for 6 seconds to unlock (for more
information, see Lock).
No Input Signal
when user
controls are
pressed
No picture,
the LED light is
white
• Check the signal source. Ensure the computer
is not in the power saving mode by moving the
mouse or pressing any key on the keyboard.
• Check whether the signal cable is plugged in
properly. Re-plug the signal cable if necessary.
• Reset the computer or video player.
The picture
does not fill the
entire screen
The picture
cannot fill the
height or width
of the screen
• Due to dierent video formats (aspect ratio) of
DVDs, the monitor may display in full screen.
• Run the built-in diagnostics.
Touchscreen Problems
Specific
Symptoms What You Experience Possible Solutions
Touch report
error
Touch function
miss alignment
or no touch
function
• Use the Dell provided USB cable to connect your
computer.
• Make sure the power cable has a ground pin.
• Unplug and replug the power cable from the
power adapter to allow auto-recalibration of the
touch module.
• Make sure computer supports USB 2.0 or later.
• If the display cannot be detected by the
computer, power o/on the monitor or unplug
and replug the USB cable.
Touchscreen
non-responsive
in standby
mode
Cannot wake
up monitor and
computer by
using touch in
standby mode
1. Access Device Manager, expand HID Interface
Device under Human Device.
2. Right click HID- compliant device, click
Properties and select the check-box to allow
the device to wake the computer.
Windows 7,
Windows 8,
Windows 8.1
and Windows 10
Calibration
Cursor does
not accurately
follow your
finger when
you touch the
screen
1. Open Control Panel, open Hardware and
Sound, and then open Tablet PC Settings.
2. Select Calibration.
3. Follow the instructions to recalibrate your
screen

5. Trouble Shooting Instructions
Universal Serial Bus (USB) Specific Problems
Specific
Symptoms
What You
Experience
Possible Solutions
USB interface is
not working
USB peripherals
are not working
• Check that your monitor is turned ON.
• Reconnect the upstream cable to your computer.
• Reconnect the USB peripherals (downstream
connector).
• Switch o and then turn on the monitor again.
• Reboot the computer.
• Some USB devices like external portable HDD
require higher electric current; connect the
device directly to the computer system.
SupreSpeed USB
3.0 interface is
slow.
SuperSpeed USB
3.0 peripherals
working slowly
or not working
at all
• Check that your computer is USB 3.0-capable.
• Some computers have USB 3.0, USB 2.0, and
USB 1.1 ports. Ensure that the correct USB port is
used.
• Reconnect the upstream cable to your computer.
• Reconnect the USB peripherals (downstream
connector).
• Reboot the computer.
Wireless USB
peripherals stop
working when a
USB 3.0 device
is plugged in
Wireless USB
peripherals
responding
slowly or only
working as
the distance
between itself
and its receiver
decreases
• Increase the distance between the USB 3.0
peripherals and the wireless USB receiver.
• Position your wireless USB receiver as close as
possible to the wireless USB peripherals.
• Use a USB-extender cable to position the wireless
USB receiver as far away as possible from the
USB 3.0 port.
