Dell S2719DC User manual

Monitor Model: S2719DC
Regulatory Model: S2719DCt
Dell S2719DC
User’s Guide

NOTE: A NOTE indicates important information that helps you make
better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of
data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
Copyright © 2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are
trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
2018 – 07
Rev. A00

Contents
About your monitor ..................................... 5
Contents of the box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Product features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Identifying features and controls . . . . . . . . . . . . . . . . . . . . . . . . . 7
Monitor specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Plug-and-play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
LCD monitor quality and pixel policy . . . . . . . . . . . . . . . . . . . . . . 14
Setting up the monitor.................................. 15
Connecting your monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Organizing your cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Using the tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Operating the monitor .................................. 19
Turning on the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Using the front panel controls . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Front-panel button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Using the On-Screen Display (OSD) menu . . . . . . . . . . . . . . . . . . . 22
Troubleshooting ....................................... 37
Self-test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Built-in diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Contents | 3

4 | Contents
Recovery mode for HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Common problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Product specific problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Appendix ..............................................43
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
FCC notices (U.S. only) and other regulatory information . . . . . . . . . 43
Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Setting up your monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Maintenance guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Pin assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

About your monitor | 5
About your monitor
Contents of the box
Your monitor ships with the components indicated in the table. Ensure that you have
received all the components and see Contacting Dell if anything is missing.
NOTE: Some components may be optional and may not ship with your monitor.
Somefeatures may not be available in certain countries.
Monitor with stand
Power cable (varies by country)
Power adapter
USB cable (Type-C to Type-C)
•Quick Setup Guide
•Safety, Environmental, and
Regulatory Information (SERI)

6 | About your monitor
Product features
The Dell S2719DC monitor has an active matrix, Thin-Film Transistor (TFT), liquid crystal
display (LCD), and LED backlight. The monitor features include:
• 68.47cm (27-inch) viewable area display (measured diagonally).
• 2560x1440 resolution with full-screen support for lower resolutions.
• Mega dynamic contrast ratio (8,000,000:1).
• Wide viewing angles with high color gamut.
• Tilt adjustment capability.
• Single USB (Type-C) port to supply power to compatible laptop while receiving video
signal and USB data.
• Plug and play capable if supported by your computer.
• Minimize eye discomfort with a flicker-free screen.
• The possible long-term effects of blue light emission from the monitor may cause
damage to the eyes, including eye fatigue or digital eye strain. ComfortView feature is
designed to reduce the amount of blue light emitted from the monitor to optimize eye
comfort.
• Adapted High Dynamic Range appropriate for monitor usage.
• Supports AMD FreeSync technology.
• On-screen display (OSD) adjustments for easy setup and screen optimization.
• Energy Star Certified.
• CFR/BFR/PVC-Reduced (Circuit boards are made from CFR/BFR/PVC-free
laminates).
• TCO-certified displays.
• EPEAT Silver compliant.
• RoHS compliant.
• Arsenic-free glass and mercury-free for the panel only.
• 0.5 W standby power when in the sleep mode.

About your monitor | 7
Identifying features and controls
Front view
Label Description Use
1 Function buttons Use the function buttons to adjust items in the OSD
menu. (For more information, see Using the front panel
controls)
2 Power button Power on/off button (with LED indicator)
Use the power button to turn the monitor On and Off.

8 | About your monitor
Back and bottom view
Label Description Use
1Audio line-out port Connect speakers to playback audio coming through
HDMI audio channels.
Only supports 2-channel audio.
NOTE: The audio line-out port does not support
headphones.
WARNING: Excessive sound pressure from
earphones or headphones can cause hearing
damage or loss.
2USB Type-C/DisplayPort Connect to your computer using the USB Type-C
cable. Also provides Power Delivery of up to 45 W.
NOTE: USB Type-C is not supported on Windows
versions that are prior to Windows 10.
3HDMI port Connect your computer with an HDMI cable.
4Power-adapter port Connect the power adapter to the monitor.
5USB 3.0 downstream ports Connect your USB device. You can use these ports
only after you have connected the USB cable (Type-C
to Type-C) from the computer to the monitor. Port
with battery icon supports Battery Charging
Rev. 1.2.
6Cable-management slot Use to organize cables by placing them through the
slot.
7Regulatory label, barcode,
serial number, and Service
Tag label
Lists the regulatory approvals. Refer to this label if
you need to contact Dell for technical support.
NOTE: The rating label is located at the base of
the stand.

About your monitor | 9
Monitor specifications
Screen type Active matrix - TFT LCD
Panel type Plane to Line Switching
Aspect ratio 16:9
Viewable image dimensions:
Diagonal 684.7 mm (27 in.)
Active area:
Horizontal 596.74 mm (23.49 in.)
Vertical 335.66 mm (13.21 in.)
Area 200301.75 mm² (310.47 in.²)
Pixel pitch 0.233 mm x 0.233 mm
Pixel per inch (PPI) 109
Viewing angle:
Horizontal 178° (typical)
Vertical 178° (typical)
Brightness 400 cd/m² (typical)
600 cd/m² (peak)
Contrast ratio 1000 to 1 (typical)
8,000,000 to 1 (dynamic contrast on)
Faceplate coating Anti-glare treatment of the front polarizer (3H)
Backlight White LED, EDGELIGHT system
Response time (Gray to Gray) •5 ms (FAST mode)
•8 ms (NORMAL mode)
Color depth 16.7 million colors
Color gamut sRGB 1931 coverage ≥ 99%
DCI-P3 1976 coverage 90% (typical)
Connectivity •1 x HDMI 2.0 with HDCP 2.2 (combine HDMI 1.4
with HDCP 1.4)
•2 x USB 3.0 downstream port
•1 x Analog 2.0 audio line out (3.5 mm jack)
•1 x USB Type-C (Alternate mode with DisplayPort
1.2, USB 3.1 upstream port, Power Delivery PD up to
45 W)
Bezel width (edge of monitor to active area):
To p 7.10 mm (0.28 in.)
Left/Right 7.10 mm (0.28 in.)
Bottom 8.00 mm (0.31 in.)

10 | About your monitor
Adjustability
Tilt -5° to 21°
Dell Display Manager (DDM)
Compatibility
Easy Arrange
and other key features
Resolution specifications
Horizontal scan range 30 kHz to 120 kHz (HDMI 1.4/USB Type-C)
30 kHz to 140 kHz (HDMI 2.0)
Vertical scan range 48 Hz to 75 Hz (HDMI 1.4/HDMI 2.0/USB Type-C)
Maximum preset resolution 2560 x 1440 at 60 Hz
Video input capabilities
(HDMI/USB Type-C playback)
480p, 576p, 720p, 1080p (HDMI 1.4/HDMI 2.0/USB
Type-C) 2160p (HDMI 2.0)
Preset display modes
Display mode Horizontal
frequency
(kHz)
Vertical
frequency
(Hz)
Pixel clock
(MHz)
Sync polarity
(Horizontal/
Vertical)
720 x 400 31.5 70.0 28.3 -/+
VESA, 640 x 480 31.5 60.0 25.2 -/-
VESA, 640 x 480 37.5 75.0 31.5 -/-
VESA, 800 x 600 37.9 60.3 40.0 +/+
VESA, 800 x 600 46.9 75.0 49.5 +/+
VESA, 1024 x 768 48.4 60.0 65.0 -/-
VESA, 1024 x 768 60.0 75.0 78.8 +/+
VESA, 1152 x 864 67.5 75.0 108.0 +/+
VESA, 1280 x 1024 64.0 60.0 108.0 +/+
VESA, 1280 x 1024 80.0 75.0 135.0 +/+
VESA, 1600x 1200 75.0 60.0 162.0 +/+
VESA, 1920 x 1080 67.5 60.0 148.5 +/+
CVT, 2560 x 1440 88.8 60.0 241.5 +/-

About your monitor | 11

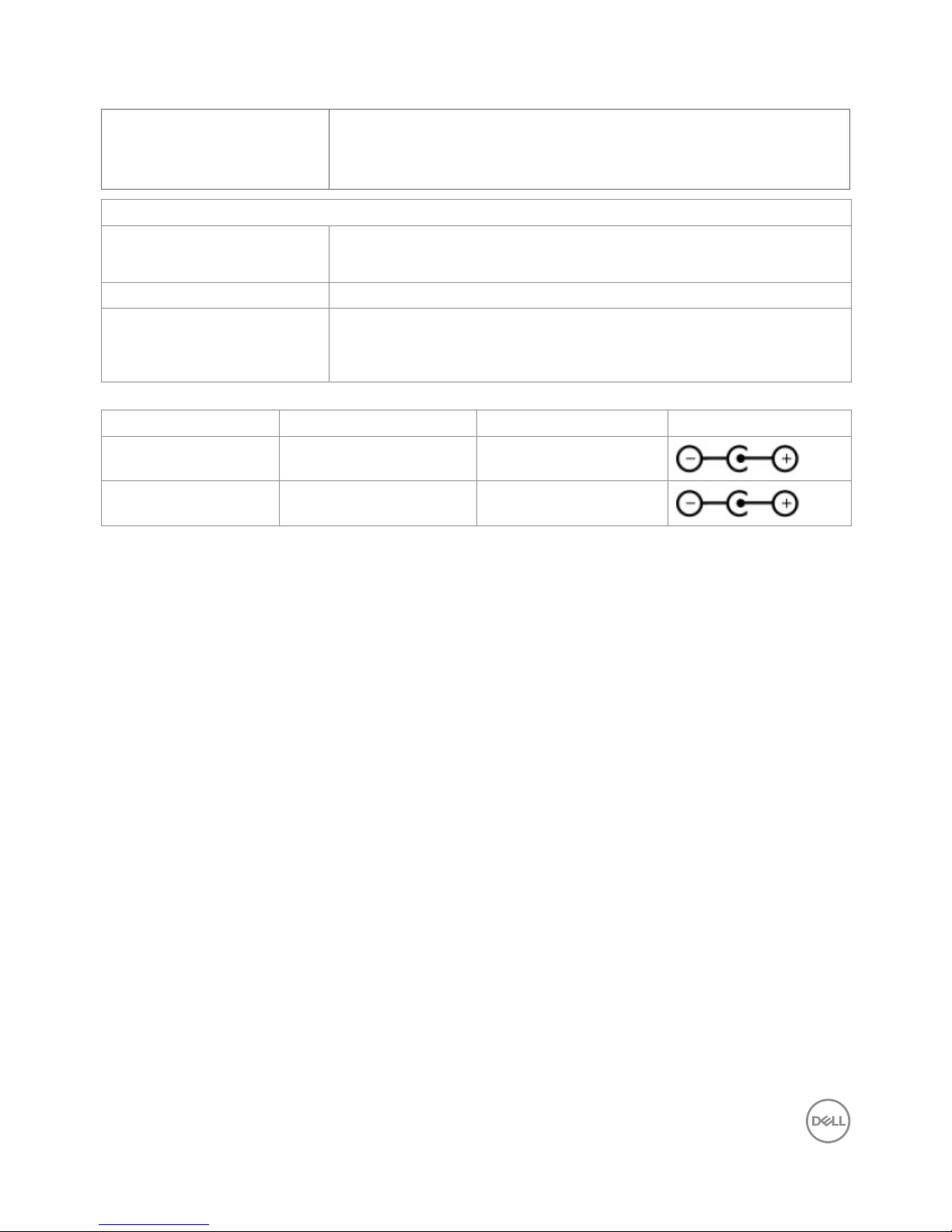

Electrical specifications
Video input signals •Digital video signal for each dierential line
Per dierential line at 100 ohm impedance
•HDMI/USB Type-C signal input support
AC/DC adapter:
Input voltage/
frequency/current
100-240 VAC/50 or 60 Hz ± 3 Hz/1.8 A (maximum)
Output voltage/current 19.5 VDC/6.67 A
Inrush current Initial Inrush current: 140 A (peak)
At 115 VAC/230 VAC, specification shown is for First power up
(Cold).
Brand Manufacturer Model Polarity
Dell Delta DA130PM130
Dell Chicony HA130PM130

12 | About your monitor
Physical characteristics
Port type •HDMI 2.0
•Audio line-out
•USB Type-C
•USB 3.0 downstream
Signal cable type USB Type-C to Type-C 1.8 m cable
Dimensions (with stand):
Height 452.7 mm (17.82 in.)
Width 610.9 mm (24.05 in.)
Depth 157.6 mm (6.20 in.)
Dimensions (without stand):
Height 354.1 mm (13.94 in.)
Width 610.9 mm (24.05 in.)
Depth 29.0 mm (1.14 in.)
Stand dimensions:
Height 227.7 mm (8.96 in.)
Width 228.3 mm (8.99 in.)
Depth 157.6 mm (6.20 in.)
Weight:
Weight with packaging 8.26 kg (18.21 lb)
Weight with stand assembly and
cables
5.16 kg (11.38 lb)
Environmental characteristics
Temperature:
Operating 0°C to 40°C (32°F to 104°F)
Non-operating –20°C to 60°C (–4°F to 140°F)
Humidity:
Operating 20% to 80% (non-condensing)
Non-operating 10% to 90% (non-condensing)
Altitude:
Operating 5,000 m (16,404 ft) (maximum)
Non-operating 12,192 m (40,000 ft) (maximum)
Thermal dissipation 443.53 BTU/hour (maximum)
119.41 BTU/hour (typical)

About your monitor | 13
Power management modes
If you have VESA’s DPM-compliant video card or software installed on your computer, the
monitor can automatically reduce its power consumption when not in use. This is referred
to as power save mode1. If the computer detects input from the keyboard, mouse, or other
input devices, the monitor automatically resumes functioning. The following table shows the
power consumption and signaling of this automatic power saving feature.
VESA mode Horizontal
sync
Vertical
sync
Video Power indicator Power consumption
Normal
operation
Active Active Active White 130 W (maximum)2
35 W (typical)
Active-off
mode
Inactive Inactive Off White
(Glowing)
Less than 0.5 W
Switch off - - - Off Less than 0.3 W
Energy Star Power consumption
PON 21.46 W3
ETEC 68.59 kWh4
The OSD operates only in the normal operation mode. If you press any button in the active-
off mode, one of the following message is displayed.
1 Zero power consumption in OFF mode can only be achieved by disconnecting
the power cable from the monitor.
2 Adapter output maximum power consumption with maximum luminance.
3 Power consumption of on mode as defined in Energy Star 7.0 version.
4 Total energy consumption in kWh as defined in Energy Star 7.0 version.
This document is informational only and reflects laboratory performance. Your product
might perform differently, depending on the software, components, and peripherals you
ordered and shall have no obligation to update such information. Accordingly, you should not
rely upon this information in making decisions about electrical tolerances or otherwise. No
warranty as to accuracy or completeness is expressed or implied.
Activate the computer and the monitor to gain access to the OSD.
NOTE: This monitor is ENERGY STAR® compliant as defined in the program
requirements product specification for displays version 7.1.

14 | About your monitor
Plug-and-play
You can install the monitor in any Plug-and-Play-compatible system. The monitor
automatically provides the computer with its Extended Display Identification Data (EDID)
using Display Data Channel (DDC) protocols so that the computer can configure itself and
optimize the monitor settings. Most monitor installations are automatic; you can select
different settings, if necessary. For more information about changing the monitor settings,
see Operating the monitor.
LCD monitor quality and pixel policy
During the LCD monitor manufacturing process, it is normal for one or more pixels to
become fixed in an unchanging state, which are hard to see and do not affect the display
quality or usability. For more information about LCD Monitor Pixel Policy, see Dell support
site at: www.dell.com/support/monitors.

Setting up the monitor | 15
Setting up the monitor
Connecting your monitor
WARNING: Before you perform any procedure in this section, follow the
Safety instructions.
To connect your monitor to the computer:
1 Turn off your computer.
2 Connect the HDMI/USB Type-C cable from your monitor to thecomputer.
3 Switch on your monitor.
4 Select the correct input source at Monitor OSD Menu and turn on your computer.
Connecting the HDMI cable (optional)

16 | Setting up the monitor
Connecting the USB cable (Type-C to Type-C)
The USB Type-C port on your monitor:
• Can be used as USB Type-C or DisplayPort 1.2, alternatively.
• Supports USB Power Delivery (PD), with profiles up to 45 W.
NOTE: Regardless of the power requirement/actual power consumption of your laptop,
or the remaining power runtime in your battery, the Dell S2719DC monitor is designed
to supply power delivery of up to 45 W to your laptop.
Rated power (on
laptops that have
USB Type-C with
PowerDelivery)
Maximum charging
power
45 W 45 W
65 W 45 W
90 W Not supported
130 W Not supported

Setting up the monitor | 17
Requirements to view or play HDR content
Through Ultra BluRay DVD or Game consoles
Ensure that the DVD player and Game consoles used are HDR-capable (for example
Panasonic DMP-UB900, Microsoft Xbox One S, and Sony PS4 Pro). Download and
install an appropriate graphics card driver for computer applications.
Through computer that supports HDR content
Ensure that the graphics card used is HDR-capable (HDMI version 2.0a HDR
compliant), and also ensure that HDR graphics driver is installed. HDR-capable player
application must be used, for example, Cyberlink PowerDVD 17, Microsoft Movies & TV
app.
For example, Dell XPS 8910 and Alienware Aurora R5 are bundled with the following
graphic cards.
Dell Graphics
driver with HDR
support
For downloading the latest graphics driver that supports HDR
playback on your desktop or laptop, see Dell support site at
www.dell.com/support/monitors.
NVIDIA HDR-capable NVIDIA graphics cards include GTX1070,
GTX1080, P5000, P6000, and so on. For a full range of
HDR-capable NVIDIA graphics cards, see the NVIDIA website
www.nvidia.com. Driver that supports Full Screen Playback
mode (for example, computer games, UltraBluRay players),
HDR on Win10 Redstone 2 OS: 384.76 or later.
AMD HDR-capable AMD graphics cards include RX480, RX470,
RX460, WX7100, WX5100, WX4100, and so on. For a full range
of HDR-capable AMD graphics cards, see www.amd.com.
Check the HDR driver support information and download the
latest driver from www.amd.com.
Intel (Integrated
Graphics)
HDR-capable system: CannonLake or later
Suitable HDR player: Windows 10 Movies and TV app
OS with HDR support: Windows 10 Redstone 3
Driver with HDR support: For more information about the latest
HDR drivers, see downloadcenter.intel.com.
NOTE: HDR playback through OS, for example, playback of HDR in a window within
desktop requires Windows 10 Redstone 2 or later with appropriate player applications
like PowerDVD17. Playing back protected content requires appropriate DRM software
and/or hardware like Microsoft PlayreadyTM. For HDR support information, see
Microsoft website.

18 | Setting up the monitor
Organizing your cables
After attaching all necessary cables to your monitor and computer, organize all cables as
shown in the image. For more information about connecting the cables, see Connecting your
monitor.
Using the tilt
You can tilt the monitor for the most comfortable viewing angle.

Operating the monitor | 19
Operating the monitor
Turning on the monitor
Press to turn on the monitor.
Using the front panel controls
Use the control buttons at the bottom edge of the monitor to adjust the characteristics of
the image being displayed. As you use these buttons to adjust the controls, an OSD shows
the numeric values of the characteristics as they change.

20 | Operating the monitor
The following table describes the front panel buttons.
Label Description Use
1
Shortcut key:
Preset Modes
Choose from a list of preset colormodes.
2
Shortcut key:
Brightness/Contrast
Directly access the “Brightness/Contrast” bar.
3
Menu
Launch the on-screen display (OSD) and select the
OSD menu.
See Accessing the menu system.
4
Exit
Go back to the main menu or exit the OSD main menu.
5
Power (with power light
indicator)
Turn the monitor On and Off.
The white LED indicates the monitor is On and fully
functional.
A glowing white LED indicates DPMS Power Save
Mode.
