Dell™ST2010-BLK Flat Panel Monitor User's Guide
Notes, Notices, and Cautions
Information in this document is subject to change without notice.
©2009DellInc.Allrightsreserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELLlogoaretrademarksofDellInc;Microsoft and Windows are either trademarks or registered trademarks of
Microsoft Corporation in the United States and/or other countries. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an
ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc.
disclaims any proprietary interest in trademarks and trade names other than its own.
Model ST2010b
June 2009 Rev. A00
About Your Monitor
Setting Up the Monitor
Operating the Monitor
Solving Problems
Appendix
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Downloaded from ManualMonitor.com Manuals
Back to Contents Page
About Your Monitor
Dell™ST2010-BLK Flat Panel Monitor User's Guide
Package Contents
Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.
Product Features
The ST2010-BLK flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:
Package Contents
Product Features
Identifying Parts and Controls
Monitor Specifications
Plug and Play Capability
LCD Monitor Quality and Pixel Policy
Maintenance Guidelines
NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not
be available in certain countries.
lMonitor with stand
lPower Cable
lVGA Cable (attached to the monitor)
lSafety Information
lDrivers and Documentation media
lQuick Setup Guide
Downloaded from ManualMonitor.com Manuals
■20-inch ( 444.8*251.1 mm)viewable area display (Measured diagonally) .
■1600 x 900 resolution, plus full-screen support for lower resolutions.
■Tilt capability.
■Plug and play capability if supported by your system.
■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
■Software and documentation media includes an information file (INF), Image color Matching File (ICM), and product documentation.
■Energy Saver feature for Energy Star compliance.
■Security lock slot.
Identifying Parts and Controls
Front View
Back View
Front View
On screen control and buttons on Mid Frame
Label
Description
1-2
Shortcut keys
*The default settings are Preset Modes select, Brightness/Contrast select
1. Preset Modes Select
2. Brightness/Contrast Select
3
OSD menu select
4
EXIT
5
Power button (with power light indicator)
Back view with monitor stand
Label
Description
Use
Downloaded from ManualMonitor.com Manuals
Side View
Bottom View
1
Barcode serial number label
To contact Dell for technical support.
2
Security lock slot
To help secure your monitor.
3
Regulatory rating label
Lists the regulatory approvals.
4
Dell Soundbar mounting brackets
To attach the optional Dell Soundbar.
Right view
left view
Bottom view
Label
Description
1
AC power cord connector
2
HDMI connector
3
VGA connector
Monitor Specifications
Thefollowingsectionsgiveyouinformationaboutthevariouspowermanagementmodesandpinassignmentsforvariousconnectorsforyourmonitor.
Flat Panel Specifications
Screen type
Active matrix - TFT LCD
Panel type
TN
Screen dimensions
20 inches (20-inch viewable image size)
Downloaded from ManualMonitor.com Manuals
*[ST2010] color gamut (typical) is based on CIE1976 (83%) and CIE1931 (72%) test standards.
Preset display area:
442.8 mm (W) X 249.1 mm (H)
Horizontal
442.8 mm (17.43 inches)
Vertical
249.1 mm (9.81 inches)
Pixel pitch
0.2768(H) X 0.2768(W)
Viewing angle
160°(vertical)typical,160°(horizontal)typical
Luminance output
250 cd/m²(typical)
Contrast ratio
1000 to 1 (typical)
Faceplate coating
Anti-Glare
Backlight
2-CCFL edgelight system
Response Time
5ms panel typical
Color depth
16.7 million colors
Color Gamut
83%*
Resolution Specifications
Supported Video Modes
Horizontal scan range
30 kHz to 83 kHz (automatic)
Vertical scan range
56Hzto76Hz(automatic)
Maximum preset resolution
1600x900 at 60 Hz
Video display capabilities (HDMI
playback)
480p, 576p, 720p, 1080p, 480i, 576i, 1080i.
Preset Display Modes
Display Mode
Horizontal Frequency
(kHz)
Vertical Frequency (Hz)
Pixel Clock (MHz)
Sync Polarity
(Horizontal/Vertical)
VESA, 720 x 400
31.5
70.0
28.3
-/+
VESA, 640 x 480
31.5
60.0
25.2
-/-
VESA, 640 x 480
37.5
75.0
31.5
-/-
VESA, 800 x 600
37.9
60.7
40.0
+/+
VESA, 800 x 600
46.9
75.0
49.5
+/+
VESA, 1024 x 768
48.4
60.0
65.0
-/-
VESA, 1024 x 768
60.0
75.0
78.8
+/+
VESA, 1152 x 864
67.5
75.0
108.0
+/+
VESA, 1280 x 1024
64.0
60.0
108.0
+/+
VESA, 1280 x 1024
80.0
75.0
135.0
+/+
VESA, 1600 x 900
55.5
60.0
97.75
+/-
Electrical Specifications
Video input signals
Analog RGB, 0.707 Volts +/-5%, positive polarity at 75 ohm input impedance
HDMI, 600mV for each differential line, 100 ohm input impedance per differential pair
Synchronization input signals
Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG (Composite SYNC on
green)
AC input voltage/frequency/current
100 to 240 VAC/50 or 60 Hz +3 Hz/2.0A (Max.)
Inrush current
120 V: 30 A (Max.)
240 V: 60 A (Max.)
Physical Characteristics
Downloaded from ManualMonitor.com Manuals
Connector type
15-pin D-subminiature, blue connector
19-pin HDMI ,black connector
Signal cable type
Analog: Detachable, D-Sub, 15pins, shipped attached
to the monitor
Dimensions (with stand)
Height
362.3 mm (14.27 inches)
Width
491.0 mm (19.33 inches)
Depth
193.5 mm (7.62 inches)
Dimensions (without stand)
Height
297.4 mm (11.70inches)
Width
491.02 mm (19.29 inches)
Depth
80.4 mm (3.17 inches)
Stand dimensions
Height
127.9 mm (5.01 inches)
Width
193.5 mm (7.62 inches)
Depth
193.5 mm (7.62 inches)
Weight
Weight with packaging
5.475kg ( 12.07 lb)
Weight with stand assembly and cables
4.598kg( 10.14 lb)
Weight without stand assembly
(For wall mount or VESA mount
considerations -no cables)
4.07 kg ( 8.97 lb)
Weight of stand assembly
0.308 kg (0.68 lb)
Environmental Characteristics
Temperature
Operating
0°to40°C
Non-operating
Storage: -20°to60°C
Shipping: -20°to60°C
Humidity
Operating
10% to 80% (non-condensing@5°to35°C)
Non-operating
Storage: 5% to 90% (non-condensing@-20°to60°C)
Shipping: 5% to 90% (non-condensing@-20°to60°C)
Altitude
Operating
3,657.60 m (12,000 ft) max
Non-operating
12,192 m (40,000 ft) max
Thermal dissipation
256.08 BTU/hour (maximum)
119.50 BTU/hour (typical)
Power Management Modes
IfyouhaveVESA'sDPM™compliancedisplaycardorsoftwareinstalledinyourmonitor,themonitorcanautomaticallyreduceitspowerconsumptionwhen
not in use. This is referred to as Power Save Mode*. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically
resumes functioning. The following table shows the power consumption and signaling of this automatic power saving feature:
Activate the computer and the monitor to gain access to the OSD.
VESA Modes
Horizontal Sync
Vertical Sync
Video
Power Indicator
Power Consumption
Normal operation
Active
Active
Active
White
20 W (typical)
Active-off mode
Inactive
Inactive
Blanked
Amber
Less than 0.5 W
Switch off
-
-
-
Off
Less than 0.5 W
NOTE: This monitor is ENERGY STAR®-compliant.
Downloaded from ManualMonitor.com Manuals
* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.
Downloaded from ManualMonitor.com Manuals
Downloaded from ManualMonitor.com Manuals
Back to Contents Page
Appendix
Dell™ST2010-BLK Flat Panel Monitor User's Guide
Safety Instructions
FCC Notice (U.S. Only) and Other Regulatory Information
Contacting Dell
CAUTION: Safety Instructions
For information on safety instructions, see the Product Information Guide.
FCC Notices (U.S. Only) and Other Regulatory Information
For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com\regulatory_compliance.
Contacting Dell
For customers in the United States, call 800-WWW-DELL (800-999-3355).
Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be
available in your area. To contact Dell for sales, technical support, or customer service issues:
Back to Contents Page
CAUTION: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock,
electrical hazards, and/or mechanical hazards.
NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill,
or Dell product catalog.
1.
Visit support.dell.com.
2.
Verify your country or region in the Choose A Country/Region drop-downmenuatthebottomofthepage.
3.
Click Contact Us on the left side of the page.
4.
Select the appropriate service or support link based on your need.
5.
Choose the method of contacting Dell that is convenient for you.
Downloaded from ManualMonitor.com Manuals
Back to Contents Page
Setting Up Your Monitor
Dell™ST2010-BLK Flat Panel Monitor
IfyouhaveaDell™desktoporaDell™portablecomputerwithinternetaccess
1. Go to http://support.dell.com,enteryourservicetag,anddownloadthelatestdriverforyourgraphicscard.
2. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1600x900 again.
Back to Contents Page
NOTE:
Ifyouareunabletosettheresolutionto1600x900,pleasecontactDell™toinquireaboutaGraphicsAdapterthatsupportstheseresolutions.
Downloaded from ManualMonitor.com Manuals
Back to Contents Page
Setting Up Your Monitor
Dell™ST2010-BLK Flat Panel Monitor
IfyouhaveanonDell™desktop,portablecomputer,orgraphicscard
1. Right-click on the desktop and click Properties.
2. Select the Settings tab.
3. Select Advanced.
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com OR http://www.NVIDIA.com ).
6. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1600X900 again.
Back to Contents Page
NOTE: If you are unable to set the resolution to 1600x900, please contact the manufacturer of your computer or consider purchasing a graphics adapter
thatwillsupportthevideoresolutionof1600x900.
Downloaded from ManualMonitor.com Manuals
Back to Contents Page
Operating the Monitor
Dell™ST2010-BLK Flat Panel Monitor User's Guide
Using the Front Panel Controls
Using the On-Screen Display (OSD) Menu
Setting the Maximum Resolution
Using the Dell Soundbar (Optional)
Using the Tilt
Using the Front Panel
Usethebuttonsonthefrontofthemonitortoadjusttheimagesettings.
The following table describes the side panel buttons:

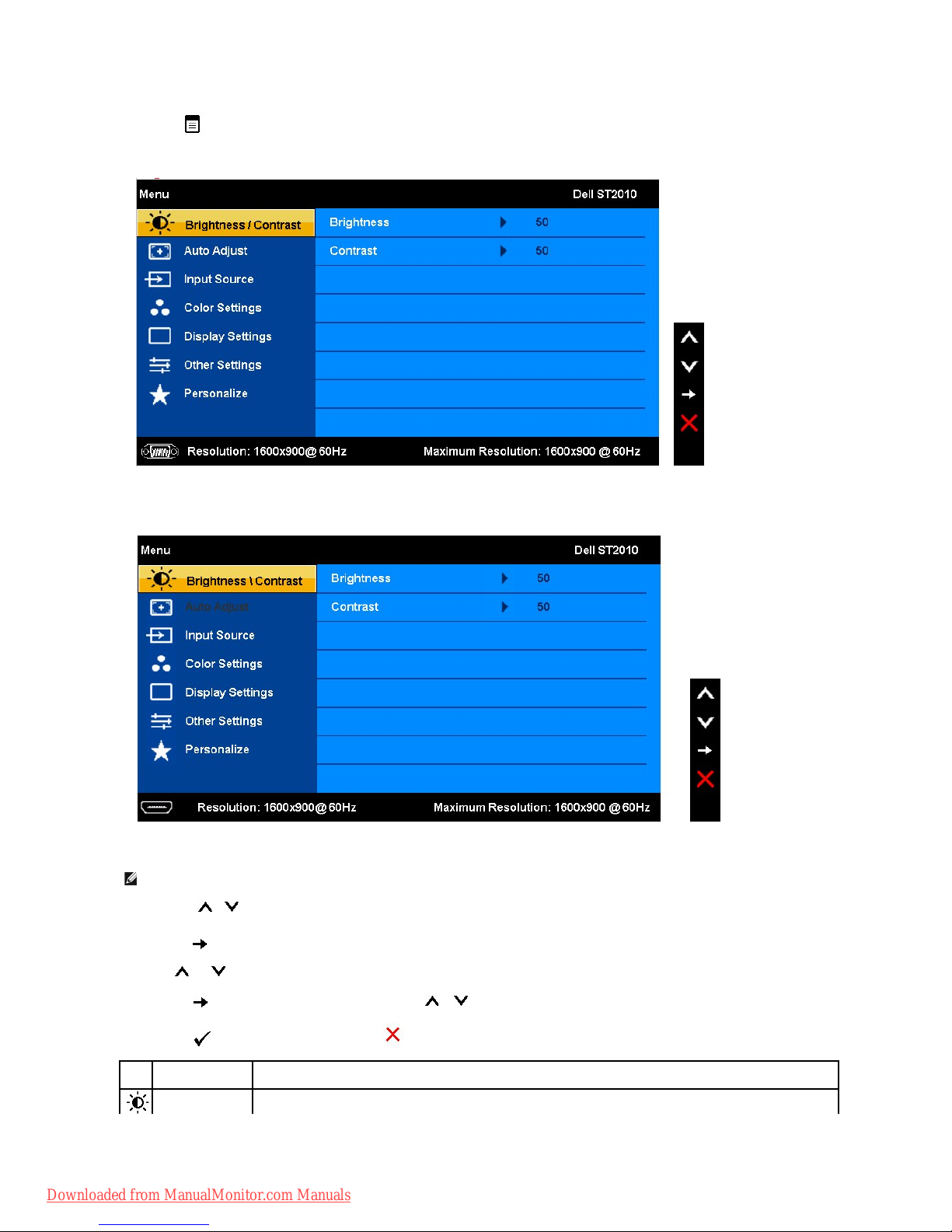

Using the On-Screen Display (OSD) Menu
Accessing the Menu System
1-2
Shortcut keys
Use this key for direct access to the control menu that you define in the personalize menu.
*The default settings are Preset Modes Select, Brightness/Contrast Select
1
Preset Modes
Use this button for different displays on your monitor.
Use Preset Modes button to select between different display modes that may be connected to your monitor.
Displays the modes selection bar. Press or button to move between the setting options and press
toselectthedisplaymodes
you want.
2
Brightness/Contrast
Use this button for direct access to the "Brightness/Contrast" control menu.
3
OSD Menu
Use this key to open the on-screen display (OSD). See Using the OSD Menu.
4
Exit
Use this key to exit the OSD menu.
5
Power button
(withpowerlight
indicator)
Usethepowerbuttontoturnthemonitoronandoff.
Thewhitelightindicatesthemonitorisonandfullyfunctional.Anamberlightindicatespowersavemode.
NOTE: Ifyouchangethesettingsandtheneitherproceedtoanothermenu,orexittheOSDmenu,themonitorautomaticallysavesthechanges.The
changes are also saved if you change the settings and then wait for the OSD menu to disappear.
Downloaded from ManualMonitor.com Manuals
1.Press tolaunchtheOSDmenuanddisplaythemainmenu.
Main Menu for Analog (VGA) Input
or
Main Menu for HDMI Input
1.Presstheor button to move between the setting options. As you move from one icon to another, the option name is highlighted. See the
followingtableforacompletelistofalltheoptionsavailableforthemonitor.
2.Pressthe buttononcetoactivatethehighlightedoption.
3.Press and button to select the desired parameter.
4. Press the button to enter the slide bar and then use the or button, according to the indicators on the menu, to make your changes.
5.Select the option to return to the main menu or the OSD menu.
NOTE: AUTO ADJUST is only available when you use the analog (VGA) connector.
Icon
Menu and
Submenus
Description
Brightness/Contrast
Use this menu to activate Brightness/Contrast adjustment.
Downloaded from ManualMonitor.com Manuals
Brightness
Brightness adjusts the luminance of the backlight.
Press the button to increase brightness and press the button to decrease brightness (min 0 ~ max 100).
Contrast
Adjust Brightness first, and then adjust Contrast only if further adjustment is necessary.
Press the button to increase contrast and press the button to decrease contrast (min 0 ~ max 100).
The Contrast function adjusts the degree of difference between darkness and lightness on the monitor screen.
Back
Press togobacktothemainmenu.
Auto Adjust
Even though your computer recognizes your monitor on startup, the Auto Adjustment function optimizes the display settings for
use with your particular setup.
NOTE: Inmostcases,AutoAdjustproducesthebestimageforyourconfiguration.Thisoptionisonlyavailablewhenyouare
using the analog (VGA).
Input Source
The Input Source menu is to select between different video signals that may be connected to your monitor.
Auto Select
Scan for Sources. Press to scan for available input signals.
VGA
Select VGA input when you are using the analog (VGA) connector. Press to select the VGA input source.
HDMI
Select HDMI input when you are using the Digital (HDMI) connector. Press toselecttheDVIinputsource.
Downloaded from ManualMonitor.com Manuals
Back
Press togobacktothemainmenu.
Color Setting
Use the Color Settings to adjust the color setting mode and color temperature.
There are different color setting sub-menus for VGA and HDMI input.
Input Color Format
Allowsyoutosetthecolorformatto:
RGB-Suitable for normal PC graphics display over HDMI
YPbPr-Suitable for HD video playback over HDMI
Mode Selection
Allows you to set the display mode to Graphics or Video. If your computer is connected to your monitor, choose Graphics. If a
DVD, STB, or VCR is connected to your monitor, choose Video.
Preset modes
When you select Graphics, you can choose Standard, Multimedia, Game, Warm, Cool, or Custom (R,G,B);
lIf you view media application like photo, clip etc via PC, choose "Multimedia" preset;
lIf you play a game in PC, choose "Gaming" preset;
lIf you prefer a lower color temperature (5700K), choose "Warm" preset;
lIf you prefer a higher color temperature, choose "Cool" preset;
lCustom (R, G, B) Preset offers a range of 6500K colors;
lChoose "Standard" to utilize the panel native color format;
lSelect Warm preset for a reddish tint. This color setting is used for color-intensive applications (photograph image editing,
multimedia, movies, etc.)
lSelect Cool preset for a bluish tint. This color setting is used for text based applications (spreadsheets, programming, text
editors, etc.)
lSelect Custom preset to increase or decrease each of the three colors (R, G, B) independently, in single digit increments,
from 0 to 100.
Downloaded from ManualMonitor.com Manuals
Video Mode
WhenyouselectVideo,youcanchooseMovie,Game,Sports,orNaturepreset:
lFor playing a movie, choose "Movie" preset;
lFor playing a sport program, choose "Sports" preset;
lFor playing a game, choose "Game" preset;
lFor general picture or web or watch TV, choose" Nature" preset. You can adjust the Hue(Tint)/Saturation based on your
preference. If you want to restore default color settings, choose Color Reset;
lSelect Color Reset preset to restore default (factory) Color settings. This setting is also the “sRGB”standard default color
space.
Hue
This feature can make the video image color shift from green to purple. Use this feature to adjust the skin tone. Use or
button to adjust the hue from '0' to '100'.
increases the green hue in the image
increases the purple hue in the image
NOTE:Hue adjustment is only available for video input.
Situration
Allows you to adjust the color saturation of the video image. Use orbutton to adjust the saturation from '0' to '100'
makes video image looks monochrome
makes video image looks colorful
NOTE: Saturation adjustment is only available for video input.
Demo Mode
Vertically splits the screen into two segments. The left half of the screen in the normal mode and the right half of the screen is
displayed in the color enhanced mode.
NOTE: Demo Mode is only available for video input.
Reset Color
Settings
Returns your monitor color settings to those that were set at the time of manufacture.
Back
Press to go back to the main menu.
Display Settings
Use the Display Settings to adjust image.
Downloaded from ManualMonitor.com Manuals
Wide Mode
Adjusts the image ratio as 1:1, Aspect or full screen.
NOTE:WideModeadjustmentisnotrequiredatmaximumpresetresolution1600x900.
Horizontal Position
Use the orbutton to adjust image left and right. Minimum is '0' (-). Maximum is '100' (+).
Vertical Position
Use the orbutton to adjust image up and down. Minimum is '0' (-). Maximum is '100' (+).
Sharpness
This feature can make the image look sharper or softer. Use orto adjust the sharpness from '0' to '100' .
Pixel Clock
The Phase and Pixel Clock adjustments allow you to adjust your monitor to your preference. These settings are accessed
through the main OSD menu, by selecting 'Image Settings'.
Use orbutton to adjust for best image quality.
Phase
If satisfactory results are not obtained using the Phase adjustment, use the Pixel Clock (coarse) adjustment and then use Phase
(fine),again.
NOTE: Pixel Clock and Phase Adjustments are only available for "VGA" input.
Reset Display
Settings
Resets the display settings to the original factory settings.
Back
Press to go back to the main menu.
Other Settings
Select this option to adjust the settings of the OSD, such as, the languages of the OSD, the amount of time the menu remains on
screen, and so on.
Language
Language option to set the OSD display to one of six languages (English, Espanol, Francais, Deutsch, Simplified chinese or
Japanese).
Menu Transparency
Select this option to change the menu transparency by pressing or(Minimum:0~Maximum:100).
Downloaded from ManualMonitor.com Manuals
Menu Timer
OSD Hold Time: Sets the length of time the OSD will remain active after the last time you pressed a button.
Use the andbutton to adjust the slider in 5 second increments, from 5 to 60 seconds.
Menu Lock
Controls user access to adjustments. When 'Lock' is selected, no user adjustments are allowed. All buttons are locked except
the menu button.
NOTE: When the OSD is locked, pressing the menu button takes the user directly to the OSD settings menu, with OSD Lock
selected. Select "Unlock" to unlock and allow user access to all applicable settings.
DDC/CI
DDC/CI (Display Data Channel/Command Interface) allows your monitor parameters (brightness, color balance etc) to be
adjustable via software on your monitor. You can disable this feature by selecting "Disable".
Enable this feature for best user experience and optimum performance of your monitor.
LCD Conditioning
Helps reduce minor cases of image retention. Depending on the degree of image retention, the program may take some time to
run. You can enable this feature by selecting "Enable".
Factory Reset
ResetallOSDsettingstothefactorypresetvalues.
Back
Press to go back to the main menu.
Personalize
There are two shortcut keys on the front panel. Select one control menu for each shortcut key to allow direct access.
Downloaded from ManualMonitor.com Manuals
Note: This monitor has a built-in diagnostics to automatically calibrate the brightness to compensate for CCFL aging.
OSD Warning Messages
When the monitor does not support a particular resolution mode you will see the following message:
This means that the monitor cannot synchronize with the signal that it is receiving from the computer. See Monitor Specifications for the
HorizontalandVerticalfrequencyrangesaddressablebythismonitor.Recommendedmodeis1600 x 900.
YouwillseethefollowingmessagebeforetheDDC/CIfunctionisdisabled.
WhenmonitorentersPowerSavemode,thefollowingmessageappears:
Activate the computer and wake up the monitor to gain access to the OSD
If you press any button other than the power button one of the following messages will appear depending on the selected input:
VGA/HDMI input
Downloaded from ManualMonitor.com Manuals
See Solving Problems for more information.
Setting the Maximum Resolution
To set the maximum resolution for the monitor:
1. Right-click on the desktop and select Properties.
2. Select the Settings tab.
3. Set the screen resolution to 1600 x 900.
4. Click OK.
If you do not see 1600 x 900 as an option, you may need to update your graphics driver. Depending on your computer, complete one of the following
procedures:
lIf you have a Dell desktop or portable computer:
¡Go to support.dell.com, enter your service tag, and download the latest driver for your graphics card.
lIf you are using a non-Dell computer (portable or desktop):
¡Go to the support site for your computer and download the latest graphic drivers.
¡Go to your graphics card website and download the latest graphic drivers.
Using the Dell Soundbar (Optional)
The Dell Soundbar is a stereo two channel system adaptable to mount on Dell Flat Panel Displays. The Soundbar has a rotary volume and on/off control to
adjust the overall system level, a blue LED for power indication, and two audio headset jacks.
Using the Tilt
If either VGA or HDMI input is selected and both VGA and HDMI cables are not connected, a floating dialog box as shown below appears.
or
1.
Attach mechanism
2.
Headphone jacks
3.
Power indicator
4.
Power/Volume control
Downloaded from ManualMonitor.com Manuals
Other manuals for ST2010-BLK
2
Table of contents
Other Dell Monitor manuals
Dell
Dell Alienware AW2523HF User manual
Dell
Dell 2720HB User manual
Dell
Dell ST2210B User manual
Dell
Dell UltraSharp U2515H User manual
Dell
Dell U2312HM Parts list manual
Dell
Dell S3221QSA User manual
Dell
Dell E1715S User manual
Dell
Dell 3008WFP - UltraSharp - 30" LCD Monitor User manual
Dell
Dell P2422H User manual
Dell
Dell UltraSharp 27 User manual
Dell
Dell D1626HT - UltraScan 1600HS - 21" CRT Display User manual
Dell
Dell G2410H User manual
Dell
Dell ST2220L User manual
Dell
Dell W2600 User instructions
Dell
Dell SE2219H User manual
Dell
Dell E771p - 17" CRT Display User manual
Dell
Dell M992 - 19" CRT Display User manual
Dell
Dell E177FPc User manual
Dell
Dell E2209Wf User manual
Dell
Dell 210-AXLH User manual
