Dell UltraSharp 1909W AIO User manual

Dell™1909W AIO Flat Panel Monitor ForDellOptiPlex™USFFComputer
Notes, Notices, and Cautions




Information in this document is subject to change without notice.
©2008DellInc.Allrightsreserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo aretrademarksofDellInc;Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in
the United Statesand/or other countries.ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined
that this product meets the ENERGY STAR guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model 1909Wf
September2008Rev.A00

About Your Monitor
Setting Up the Monitor
Operating the Monitor
Troubleshooting
Appendix

NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Back to Contents Page

About Your Monitor
Dell™1909W AIOFlatPanelMonitorForDellOptiPlex™USFFComputer
Package Contents
Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.

Package Contents
Product Features
Identifying Parts and Controls
Monitor Specifications
Plug and Play Capability
Universal Serial Bus (USB) Interface
LCD Monitor Quality and Pixel Policy
Maintenance Guidelines
NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not
be available in certain countries.
lMonitor
lStand
lPower Cable


Product Features
The 1909W USFF AIO flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:
■19-inch (482.6 mm) viewable area display (Measured diagonally) .
■1440x900 resolution, plus full-screen support for lower resolutions.
■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.
■Tilt and vertical extension capabilities.
■Removable pedestal and Video Electronics Standards Association (VESA) 100 mm mounting holes for flexible mounting solutions.
■Plug and play capability if supported by your system.
■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
■Software and documentation media which includes an information file (INF), Image color Matching File (ICM), and product documentation.
■Energy Saver feature for Energy Star compliance.
■Security lock slot.
■AIO stand with built-in thumbscrews for toolless computer mounting and a handle for system portability.
■Dedicated stand integrating the Dell OptiPlex USFF computer and monitor in an All-In-One configuration.
■Asset management capability.
Identifying Parts and Controls
lDVI Cable
lUSB up stream cable (enables the USB ports on the monitor)
lCable Cover
lDrivers and Documentation media
lQuick Setup Guide
lSafety Information
lStand Template

Front View
Back View

Front View
Front panel controls
Label
Description
1
Brightness & Contrast
2
Automatic adjust
3
Input source Select
4
Menu
5
Power (with power light indicator)
Back view
Back View with monitor stand
Label
Description
Use
1
Security lock slot
To help secure your monitor.
2
VESA mounting holes (100mm)
(Behind attached base plate)
To mount the monitor.
3
Stand removal button
Press to release the stand.
4
Dell Soundbar mounting brackets
To attach the optional Dell Soundbar.
5
Thumbscrews
Fasten the chassis to the stand with thumbscrews.

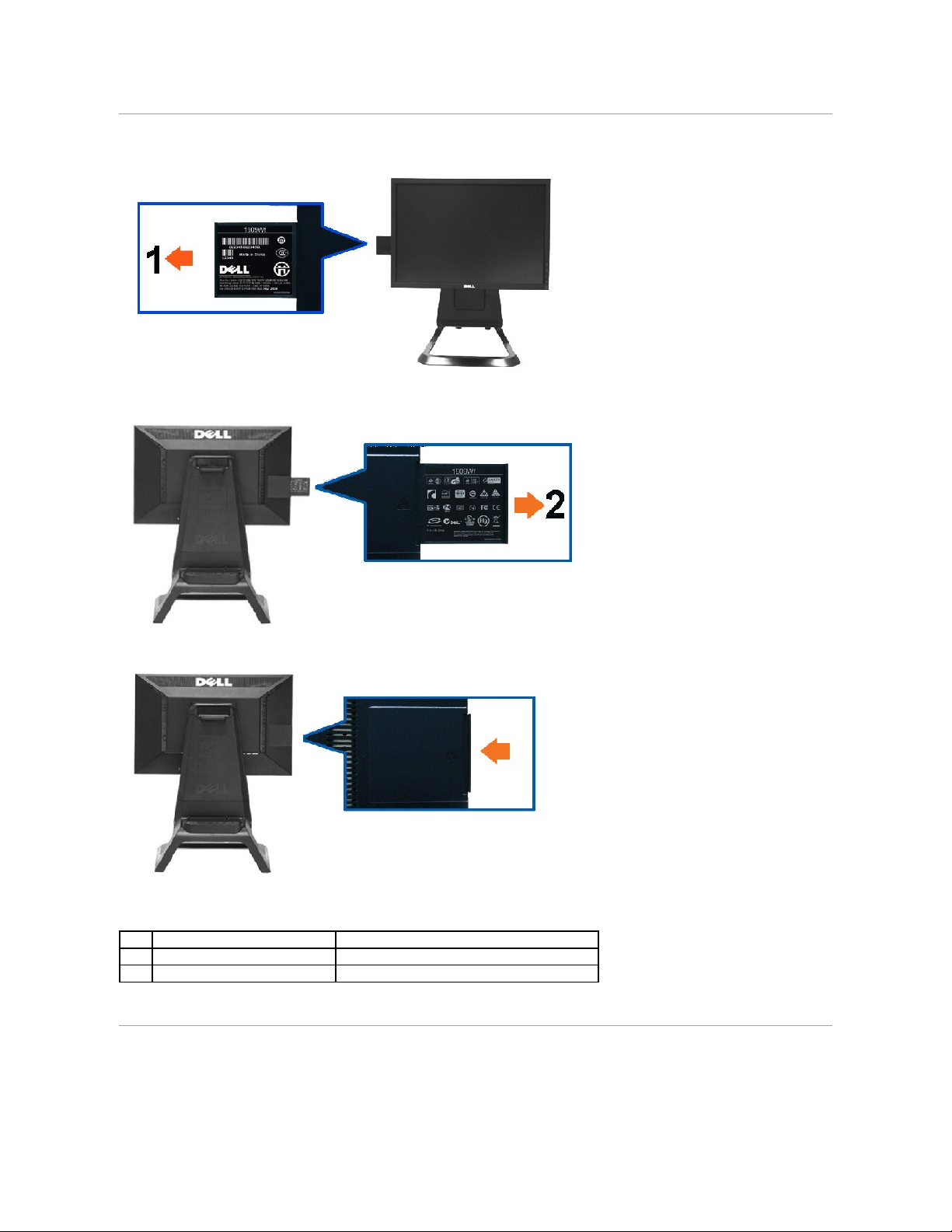

Label View

Note: The regulatory rating label and barcode serial number label is revealed when plate is pulled out from USB compartment.

Side View

Monitor front view with label card extended to reveal barcode serial number label.
Monitor rear view with label card extended to reveal regulatory label.
Monitor rear view with label card inserted back to provide a clean back view.
Label
Description
Use
1
Barcode serial number label
To contact Dell for technical support.
2
Regulatory label
Lists the regulatory approvals.



Bottom View

Leftview
Right view
Label
Description
1
USB downstream ports
2
label card
Bottom view
Label
Description
1
AC power cord connector
2
Dell Soundbar power connector
3
DVI connector
4
VGA connector
5
USB upstream port
6
USB downstream ports
Monitor Specifications
Flat Panel Specifications
Screen type
Active matrix - TFT LCD
Screen dimensions
19 inches (19-inch viewable image
size)
Preset display area:
408.24(H)X255.15(V)
Horizontal
408.24 mm (16.08 inches)
Vertical
255.15 mm (10.05 inches)

*[1909W USFF AIO] color gamut (typical) is based on CIE1976 (83%) and CIE1931 (72%) test standards.
Pixel pitch
0.2835 mm
Viewing angle
160°(vertical)typical,160°
(horizontal) typical
Luminance output
300 CD/m²(typical)
Contrast ratio
1000 to 1 (typical)
Faceplate coating
Antiglare with hard-coating 3H
Backlight
CCFL (2) edgelight system
Response Time
5 ms typical
Color Gamut
83%*
