Dell UltraSharp UP3017Q User manual

Model: UP3017Q
Regulatory model: UP3017Qt
Dell UltraSharp UP3017Q
User’s Guide

NOTE: A NOTE indicates important information that helps you make better use of
your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if
instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
Copyright © 2016 Dell Inc. All rights reserved. This product is protected by U.S. and international
copyright and intellectual property laws.
Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions.
All other marks and names mentioned herein may be trademarks of their respective companies.
2016 – 05 Rev. A01

Contents
About Your Monitor ..................................... 5
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Identifying Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Monitor Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Plug-and-Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
OLED Monitor Quality and Pixel Policy. . . . . . . . . . . . . . . . . . . . . 18
Setting Up the Monitor.................................. 19
Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Using the Tilt, Swivel and Vertical Extension . . . . . . . . . . . . . . . . . 22
Adjusting the Rotation Display Settings of Your System . . . . . . . . . . 22
Connecting Your Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Organizing Your Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Removing the Monitor Stand. . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Wall Mounting (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
OLED Screen Protection Mode ..........................28
Operating the Monitor .................................. 29
Turning on the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Using the Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . 29
Using the On-Screen Display (OSD) Menu . . . . . . . . . . . . . . . . . . . 32
Contents | 3

4| Contents
Troubleshooting .......................................45
Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Built-in Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Common Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Product Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Appendix .............................................. 51
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
FCC Notices (U.S. only) and Other Regulatory Information . . . . . . . . .51
Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Setting Up Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Maintenance Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

About Your Monitor | 5
About Your Monitor
Package Contents
Your monitor ships with the components shown below. Make sure that you have
received all the components and contact Dell if something is missing.
NOTE: Some items may be optional and may not ship with your monitor.
Somefeatures or media may not be available in certain countries.
Monitor
Stand riser
Stand base
Power cable (varies by country)

6| About Your Monitor
Power adapter
HDMI cable
DP cable (mDP to DP)
mDP cable (mDP to mDP)
USB Type C cable (C to C)
USB Type C cable (C to A)
USB Type C Holder
Cleaning cloth
•Drivers and documentation media
•Quick Setup Guide
•Safety and Regulatory Information
•Factory Calibration Report

About Your Monitor | 7
Product Features
The Dell UltraSharp UP3017Q monitor has an Active Matrix Organic Light Emitting
Diode (AMOLED) that uses LTPS TFT(Low Temperature Poly Silicon Thin Film Transistor)
as switching components.The monitor features include:
• 76.19cm (30.0-inch) viewable area display (measured diagonally).
• Wide color coverage of 100% AdobeRGB, sRGB & Rec709, 97.5% DCI-P3 and 85.8%
Rec2020, 114.8% NTSC (CIE1931), 126.5% NTSC (CIE1976).
• 14-bit Gamma LUT.
• Wide viewing angle to allow viewing from a sitting or standing position, or while
moving from side-to-side.
• Supports HDMI, USB Type-C, Mini DisplayPort sources.
• Tilt, swivel and vertical extension adjustment capabilities.
• Removable pedestal and Video Electronics Standards Association (VESA™) 100 mm
mounting holes for flexible mounting solutions.
• Single USB Type-C to supply power to compatible notebook while receiving video
signal.
• On-Screen Display (OSD) adjustments for easy set-up and screen optimization.
• Software and documentation media includes an information file (INF), Image
color Matching File (ICM), Dell Display Manager software application and product
documentation. Dell Display Manager included (comes in the USB thumb driver).
• Security lock slot.
• Asset Management Capability.
• RoHS compliant.
• BFR/PVC Free monitor (excluding cables).
• Arsenic-Free glass and Mercury Free.
• Energy Gauge shows the energy level being consumed by the monitor in real time.
• TCO Certified Displays.
• Dedicated Custom Color Mode (6-axis Color-control) for Saturation, Hue, Gain
(RGB) and offset (RGB).

8| About Your Monitor
Identifying Parts and Controls
Front view
Label Description
1Function buttons (For more information, see Operating the Monitor)
2Power on/off button (with LED indicator)
Back View
Label Description Use
1VESA mountiong holes (100 mm
x 100 mm-behind attached VESA
cover)
Wall mount monitor using VESA-
compatible wall mount kit (100 mm x 100
mm).
2Regulatory label Lists the regulatory approvals.
3Stand release button Release stand from monitor.
4Security lock slot Secures monitor with security cable lock
(sold separately).

About Your Monitor | 9
5Barcode, serial number, and Service
Tag label Refer to this label if you need to contact Dell for technical support.
6Cable management slot Use to organize cables by placing them
through the slot.
Bottom View
Label Description Use
1DC power connector To connect the monitor power cable.
2Stand lock feature To lock the stand to the monitor using a M3 x
6mm screw (screw not included).
3Audio line-out port Connect speakers to playback audio coming
through HDMI or DP audio channels.
Only supports 2-channel audio.
NOTE: The audio line-out port does not support
headphones.
WARNING: Excessive sound pressure from
earphones or headphones can cause hearing
damage or loss.
4HDMI connector Connect your computer with HDMI cable.
5mDP connector Connect your computer with mDP to DP or mDP
to mDP cable.

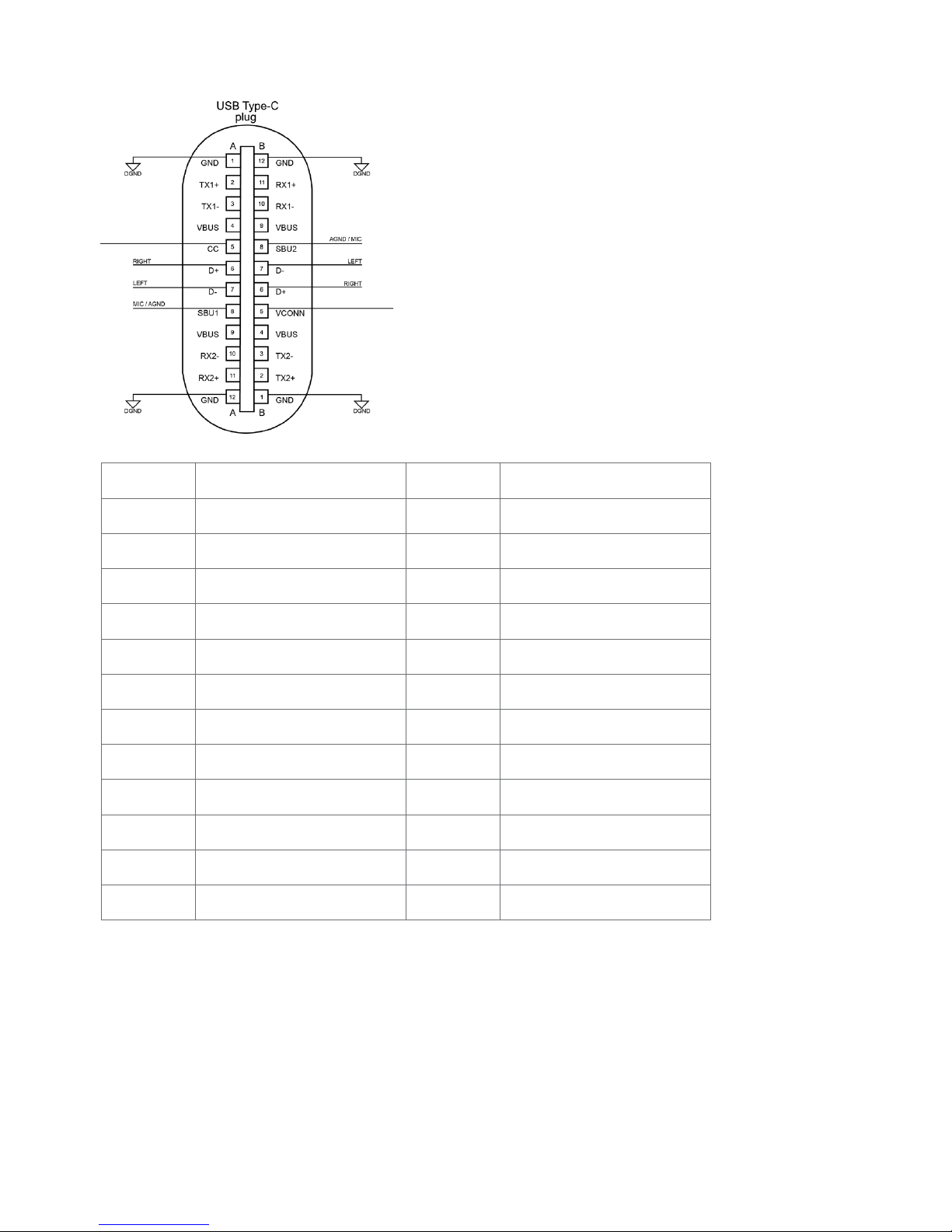

6USB Type C connector Connect your computer with USB Type C cable.

10 | About Your Monitor
Monitor Specifications
Panel type OLED
Viewable image
Diagonal 76.19 cm (30 inches)
Active Area
Horizontal 699.86 mm (27.55 inches)
Vertical 379.22 mm (14.93 inches)
Area 265400.90 mm2(411.32 inches2)
Aspect Ratio 16:9
Pixel pitch 0.173 mm x 0.173 mm
Pixel Per Inch (PPI) 147
Viewing angle
Horizontal 178° (typical)
Vertical 178° (typical)
Brightness Typ. 300 cd/m² (≤1% Load),Typ. 120 cd/m² (100%
Load)
Note: Loading is proportional to screen content. A
full white page is 100% loading.
Note: Luminance output when Uniformity
Compensation is OFF.
Mini Luminance (Black) 0.0005 cd/m²
Note: Limited by equipment tolerance (min
measurable 0.0005 cd/m²)
Contrast ratio 1000,000:1 (Perceptual)
600,000:1 (≤1% Load)
200,000:1 (100% Load)
Note: Measurable contrast ratio is limited by
equipment tolerance.
Perceptual contrast ratio is derived assuming
optical equipment can measure to below
0.0005 cd/m².
Display Screen Coating AR (Anti-Reflection) reflectivity: 4.5%
Hardness 2H
Response time 90us (on/off)
Color depth 1.07 Billion colors (10bits)
Color gamut 100% AdobeRGB
100% sRGB
100% Rec709
97.5% DCI-P3
85.8% Rec2020
114.8% NTSC (CIE1931)
126.5% NTSC (CIE1976)
