Dell™ColorLaserPrinter1320cUser'sGuide
Notes, Notices, and Cautions



Information in this document is subject to change without notice.

©2008 Dell Inc. All rights reserved.


Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Dell Color Laser Printer 1320c User's Guide
Finding Information
About Your Printer
Installing the Toner Cartridges and PHD (Print Head Device) Unit
Connecting Your Printer

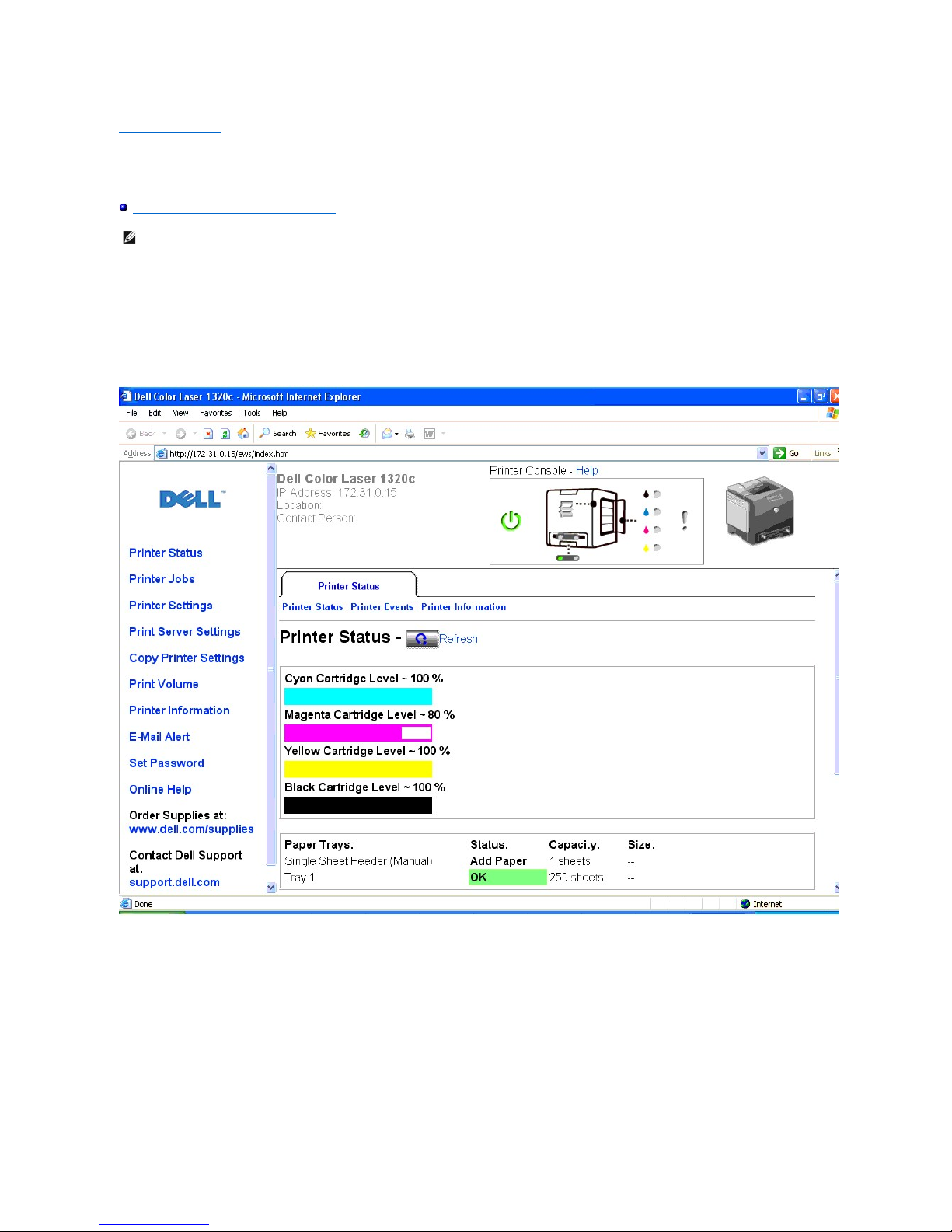

Dell Printer Configuration Web Tool
Print Media Guidelines
Loading Print Media
Operator Panel
Printer Settings
Understanding Tool Box Menus
Understanding Your Printer Software
Printing
Setting Up for Shared Printing
Clearing Jams
Troubleshooting Guide
Installing Printer Drivers
Maintaining Your Printer
Printer Specifications
Safety and Regulatory Information
Appendix
NOTE: A NOTE indicates important information that helps you make better use of your printer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Dell, the DELL logo, Dell Precision, Dimension, Inspiron, Latitude, OptiPlex, PowerConnect, PowerEdge, PowerVault, and XPS are trademarks of Dell Inc.; Microsoft,
Windows, Windows Server, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries;
EMC is the registered trademark of EMC Corporation; ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR
Partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency; Adobe and Photoshop are registered trademarks
or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names of their products. Dell Inc.
disclaims any proprietary interest in trademarks and trade names other than its own.

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

This software and documentation are provided with RESTRICTED RIGHTS. Use, duplication or disclosure by the Government is subject to restrictions as set
forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 and in applicable FAR provisions: Dell
Inc., One Dell Way, Round Rock, Texas, 78682, USA.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.


November 2008 Rev. A00


back to contents page
Dell™ColorLaserPrinter1320cUser'sGuide


Click the links on the left for information on the features, options, and operation of your printer. For information on other documentation included with your
printer, see "Finding Information".

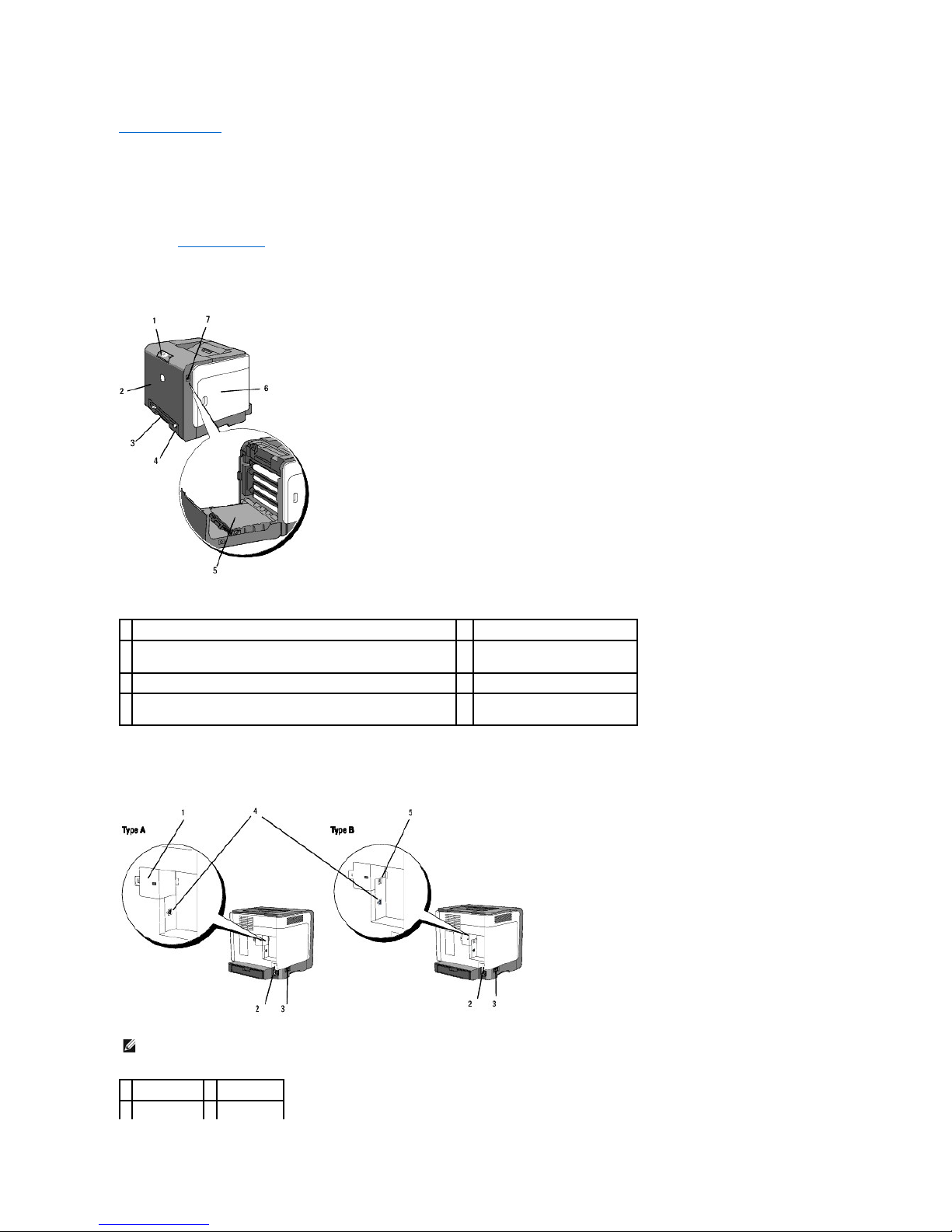

Front View


Rear View


1
Operator panel
5
Belt unit
2
Front cover
NOTE: You can open the front cover by pushing the button (right side).
6
Side cover (toner cartridges inside)
3
Single sheet feeder
7
Button (right side)
4
Tray 1
NOTE: You can use your network as standard, if your printer is type B as shown in the illustration.
1
Network cover
3
Power switch
2
Reset button
4
USB port


To order replacement toner cartridges or supplies from Dell:
1. Double-click the icon on your desktop.

2. Visit the Dell Printer Supplies website at www.dell.com/supplies, or order Dell printer supplies by phone.
For best service, have your Dell printer Service Tag available.
For help locating your Service Tag number, see "Express Service Code and Service Tag number."

back to contents page
5
Ethernet port

back to contents page

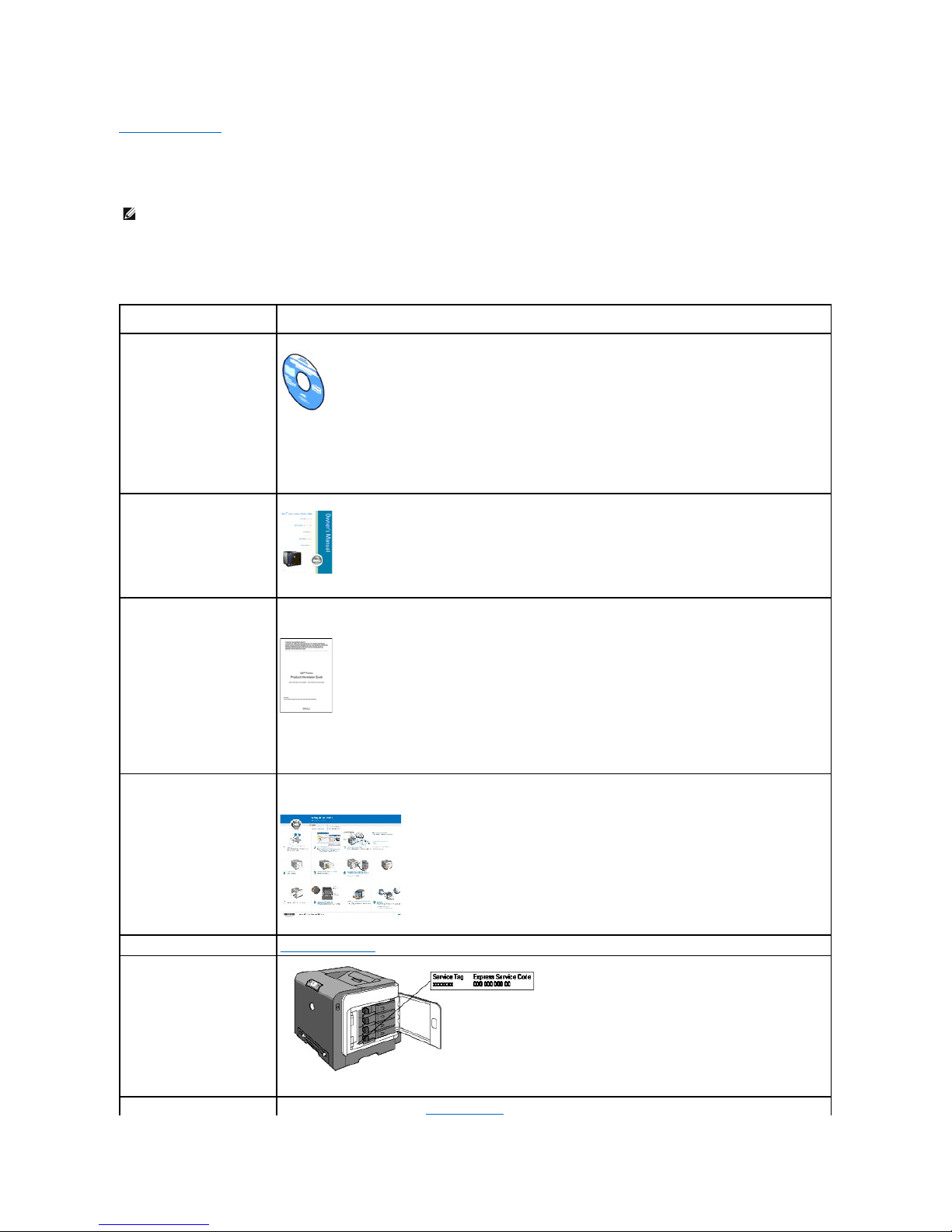

Finding Information

nUSB cable
nEthernet cable

NOTE: The following are options you need to buy separately.
What are you looking for?
Find it here
Drivers for my printer
My User's Guide
Drivers and Utilities CD
The Drivers and Utilities CD contains documentation and drivers for your printer. You can use the CD to uninstall/reinstall
drivers or access your documentation.

Readme files may be included on your CD to provide last-minute updates about technical changes to your printer or
advanced technical reference material for experienced users or technicians.
Safety information
How to use my printer
Warranty information
Owner's Manual
NOTE: The Owner's Manual may not be available in your country or region.
Safety information
Warranty information
Product Information Guide


CAUTION: Read and follow all safety instructions in your Product Information Guide prior to setting up and
operating your printer.
How to set up my printer
Setup diagram

Troubleshooting
Troubleshooting Guide
Express Service Code and
Service Tag number
The Express Service Code and Service Tag numbers are located inside the side door of your printer.
Latest drivers for my printer
See the Dell Support website at support.dell.com



back to contents page
Answers to technical service and
support questions
Documentation for my printer

The Dell Support website, support.dell.com provides several online tools, including:
Solutions -Troubleshooting hints and tips, articles from technicians, and online courses
Upgrades -Upgrade information for components, such as printer driver
Customer Care -Contact information, order status, warranty, and repair information
Downloads -Drivers
Reference -Printer documentation and product specifications
You can access the Dell Support website at support.dell.com. Select your region on the support page, and fill in the
requested details to access help tools and information.

back to contents page
About Your Printer

Operator Panel
Protecting Your Printer

ThefollowingillustrationsshowthestandardDell™ColorLaserPrinter1320c.



Provide enough room to open the printer tray, covers, and option. It is also important to allow space around the printer for proper ventilation.

Operator Panel

1
Operator panel
4
Tray 1
2
Front cover
5
Belt unit
3
Single sheet feeder
6
Button (right side)


For details on the operator panel, see "Operator Panel."

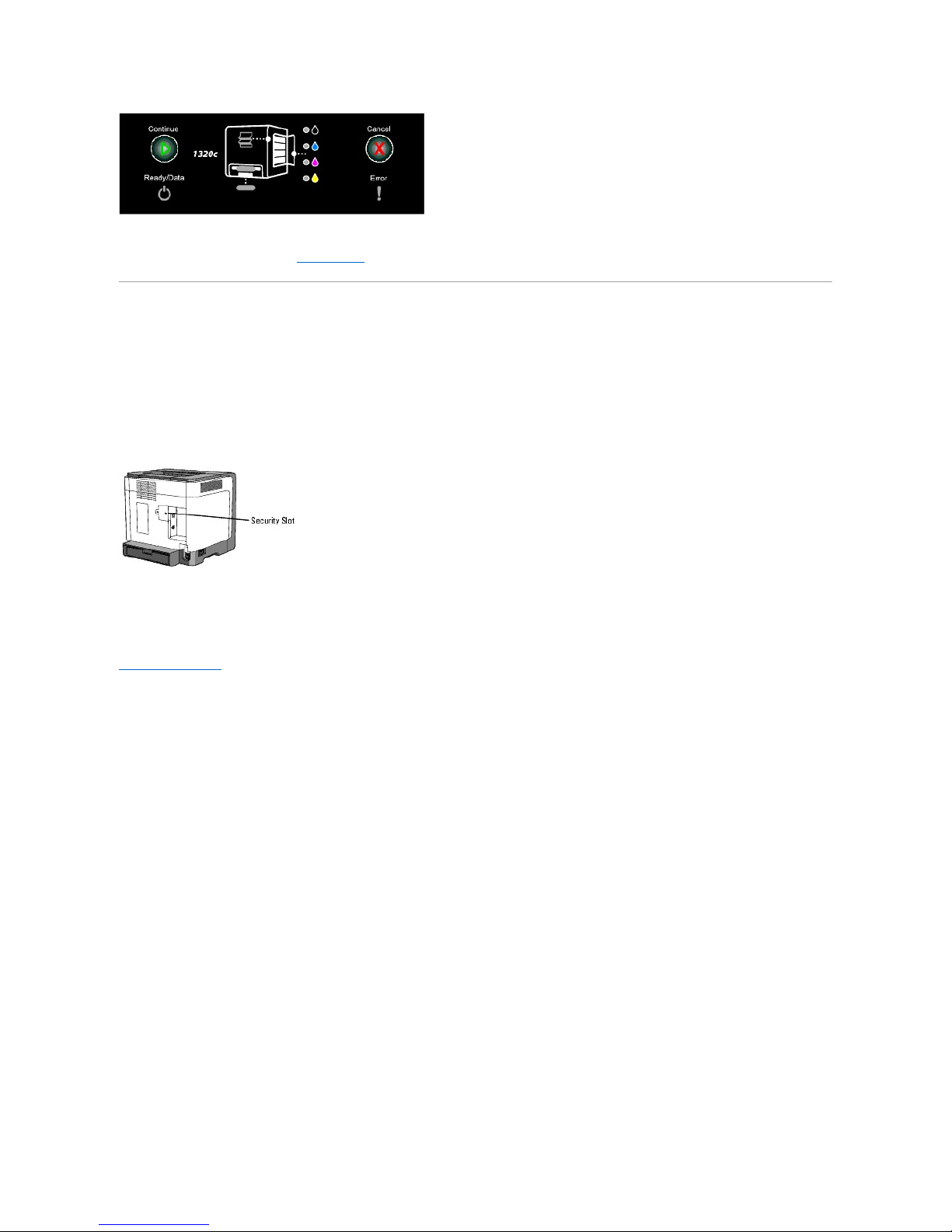

Protecting Your Printer

To protect your printer from theft, you can use the optional Kensington lock.

Attach the Kensington lock to the security slot of your printer.


For details, see the operating instructions supplied with the Kensington lock.

back to contents page

back to contents page
Installing the Toner Cartridges and PHD (Print Head Device) Unit

Installing the Toner Cartridges
Installing the PHD (Print Head Device) Unit
Installing the Toner Cartridges
1. Open the side cover.

2. Completely pull out and remove the four ribbons.

3. Press and slide the blue latches of four toner cartridges to the locked position.

4. Close the side cover.

CAUTION: Before performing any of the following procedures, read and follow the safety instructions in your Product Information Guide.
NOTICE: To protect the drums of the toner cartridges against bright light, close the front cover within three minutes. If the front cover remains open for
more than three minutes, print quality may deteriorate.
NOTICE: Ensure that nothing touches or scratches the surface (black-colored film) of the belt unit. Scratches, dirt, or oil from your hands on the film of
the belt unit may affect print quality.

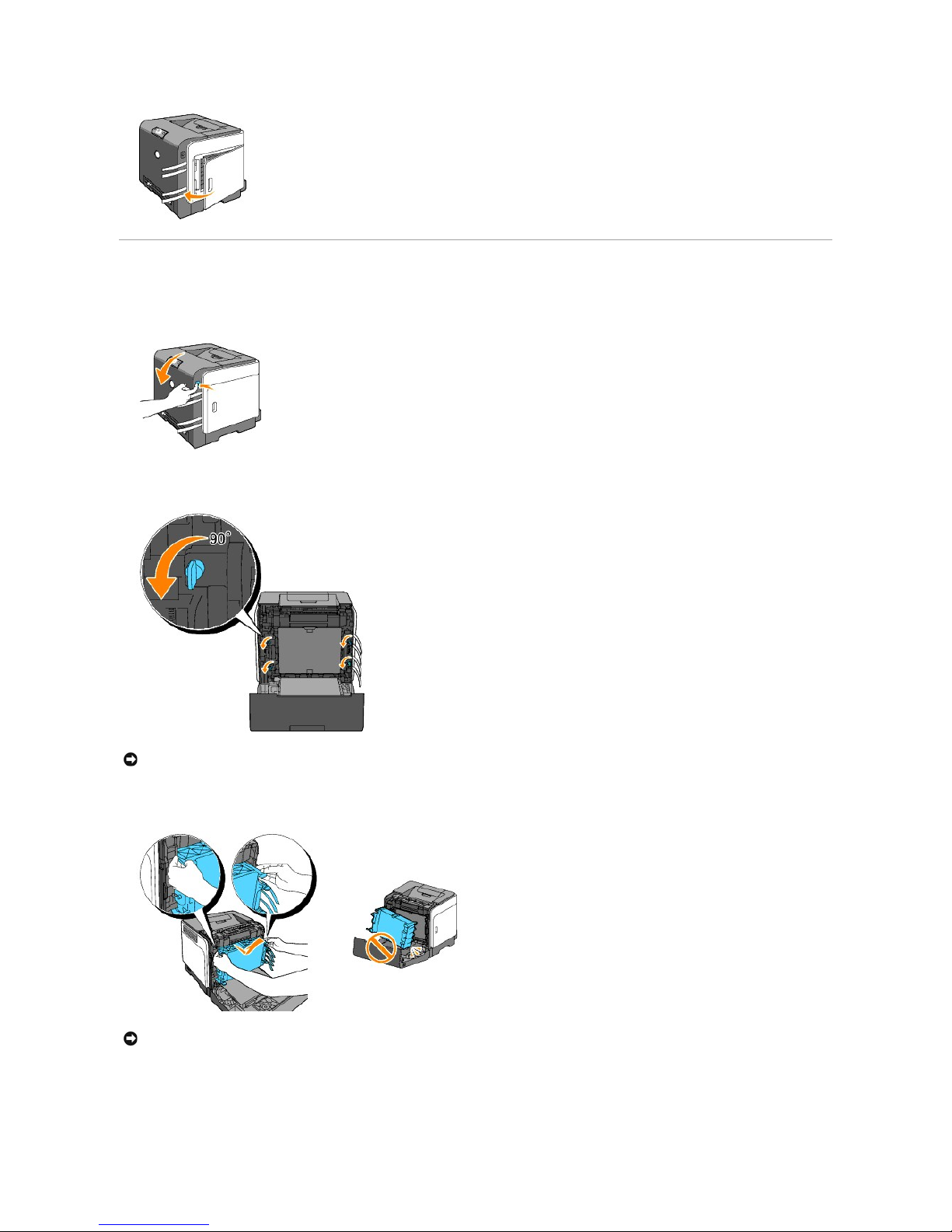

Installing the PHD (Print Head Device) Unit
1. Press the button (right side) and open the front cover.

2. Turn the four PHD lock levers counterclockwise to unlock the unit.

3. Pull the PHD unit out of the printer.

4. Completely remove the four yellow ribbons from the PHD unit.

NOTICE: Do not touch the belt unit.
NOTICE: Do not remove the protective sheet on the PHD unit.

5. Use the small gray tabs to place the PHD unit back into the printer completely.

6. Turn the four PHD lock levers clockwise to lock the PHD, and then remove the protective sheet.

7. Close the front cover.


back to contents page

back to contents page
Connecting Your Printer

Choosing the Right Cable
Connecting the Printer Directly to a Computer
Turn On the Printer
Connecting the Printer to a Network
Using the Reset button
Choosing the Right Cable

YourDell™ColorLaserPrinter1320cinterconnectioncablemustmeetthefollowingrequirements:



Connecting the Printer Directly to a Computer

A local printer is a printer attached to your computer using a USB cable. If your printer is attached to a network instead of your computer, skip this section and
go to "Turn On the Printer."

Connection type
Connection specifications
USB
USB 2.0
Ethernet*
10 Base-T/100 Base-TX
* If your printer is type A, an optional Network Adapter for Dell 1320c is required to connect the Ethernet cable.
NOTE: You can use your network as standard, if your printer is type B as shown in the illustration.
1
Ethernet port

2
USB port


Microsoft®Windows®2000, Windows XP, Windows XP 64-bit Edition, Windows Server®2003, Windows Server 2008, Windows Vista®, and Windows Vista 64-
bit Edition support USB connections. See your computer operating system documentation to see if your system supports USB.

To attach the printer to a computer:
1. Ensure that the printer, computer, and any other attached devices are turned off and unplugged.
2. Connect the printer to the computer using a USB.



A USB port requires a USB cable. Ensure that you match the USB symbol on the cable to the USB symbol on the printer.

Plug the other end of the cable into a USB port on the back of the computer. For a USB cable, do not plug it into the USB keyboard.
Turn On the Printer
1. Connect the power cable to the printer and plug it into an electrical wall outlet.

2. Turn on the computer and the printer. When you use the USB cable, the USB driver is automatically installed.
Connecting the Printer to a Network
1
USB port
CAUTION: Do not use extension cords or power strips.
CAUTION: The printer should not be plugged into a UPS system.


To attach the printer to a network:
1. Ensure that the printer, computer, and any other attached devices are turned off and unplugged.
2. Remove the network cover.

3. Insert the Network Adapter for Dell 1320c.

4. Connect the printer to the network using an Ethernet cable.



To connect the printer to the network, plug one end of an Ethernet cable into the Ethernet port on the back of the printer, and the other end into a LAN drop
or hub.
NOTE: If your printer is type A, an optional Network Adapter for Dell 1320c is required to connect the Ethernet cable. In that case, follow the next 2 to 3
steps. Otherwise, proceed with step 4.
1
Ethernet port

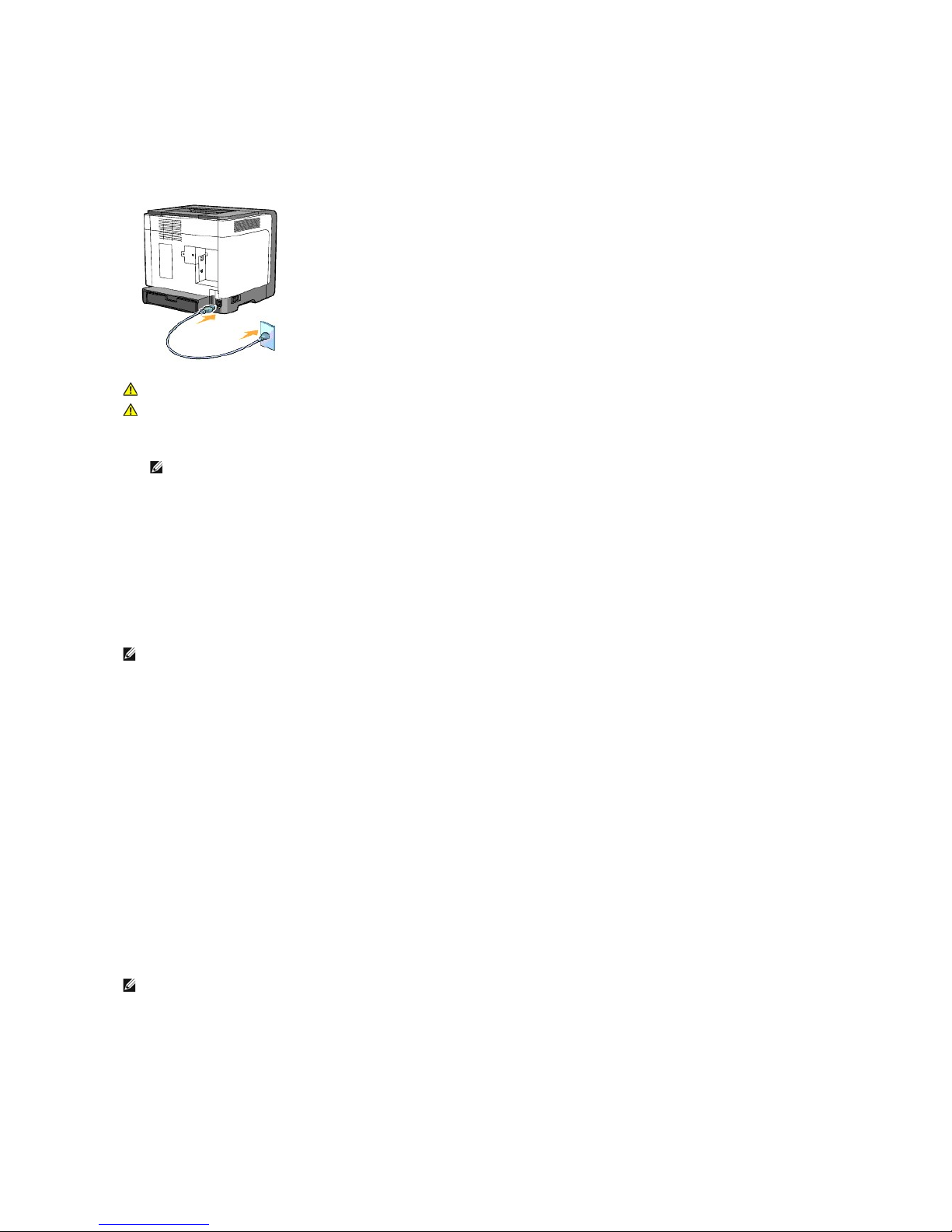

Turn On the Printer
1. Plug one end of the printer power cable into the socket at the back of the printer and the other end into a properly grounded outlet.

2. Turn on the computer and the printer.
Print and Check the Printer Settings Page

Print the Printer Settings page.

When the Ready/Data indicator lights (ready status), press and hold the Continue button on the printer's operator panel until the Ready/Data indicator blinks.
Advanced Funtions
1. Click Start®All Programs®Dell Printers®Additional Color Laser Software®Status Monitor Console.
The Printer Selection dialog box opens.
2. Click Dell Color Laser 1320c listed in Printer Name.
The Dell Color Laser 1320c Launcher window opens.
3. Click the Tool Box button.
The Tool Box opens.
You can also launch the Tool Box from the printer icon on the taskbar.
4. Click the Printer Settings Report tab.
5. Select Reports from the list at the left side of the page.
The Reports page is displayed.
Assign an IP Address

An IP address is a unique number that consists of four sections that are delimited by a period and can include up to three digits in each section, for example,
111.222.33.44.

Assigning an IP address already in use can cause network performance issues.
1. Click Start®All Programs®Dell Printers®Additional Color Laser Software®Status Monitor Console.
The Printer Selection dialog box opens.
2. Click Dell Color Laser 1320c listed in Printer Name.
The Dell Color Laser 1320c Launcher window opens.
3. Click the Tool Box button.
The Tool Box opens.
You can also launch the Tool Box from the printer icon on the taskbar.
4. Click the Printer Maintenance tab.
CAUTION: Do not use extension cords or power strips.
CAUTION: The printer should not be plugged into a UPS system.
NOTE: If your printer is type A, the LED of the Network Adapter for Dell 1320c lights.
NOTE: The following sections are considered advaned functions and should only be carried out by a system administrator. These sections assume you
have already installed the Dell Color Laser Software on your PC.
NOTE: Assigning an IP address is considered as an advanced function and is normally done by a system administrator.

5. Select TCP/IP Settings from the list at the left side of the page.
The TCP/IP Settings page is displayed.
6. Select the mode from IP Address Mode, and then enter the values in IP Address, Subnet Mask, and Gateway Address.
7. Press the Apply New Settings button to take effect.


You can also assign the IP address to the printer when installing the printer drivers with installer. When you use the Network Installation feature, you can
set the IP address from 0.0.0.0 to the desired IP address on the printer selection window.
Verify the IP Settings
1. Print another Printer Settings page.
2. Look under the TCP/IP heading on the Printer Settings page to ensure that the IP address, netmask, and gateway are what you expected.
or
Ping the printer and verify that it responds. For example, at a command prompt on a network computer, type ping followed by the new printer IP
address (for example, 192.168.0.11):
ping 192.168.0.11
If the printer is active on the network, you will receive a reply.

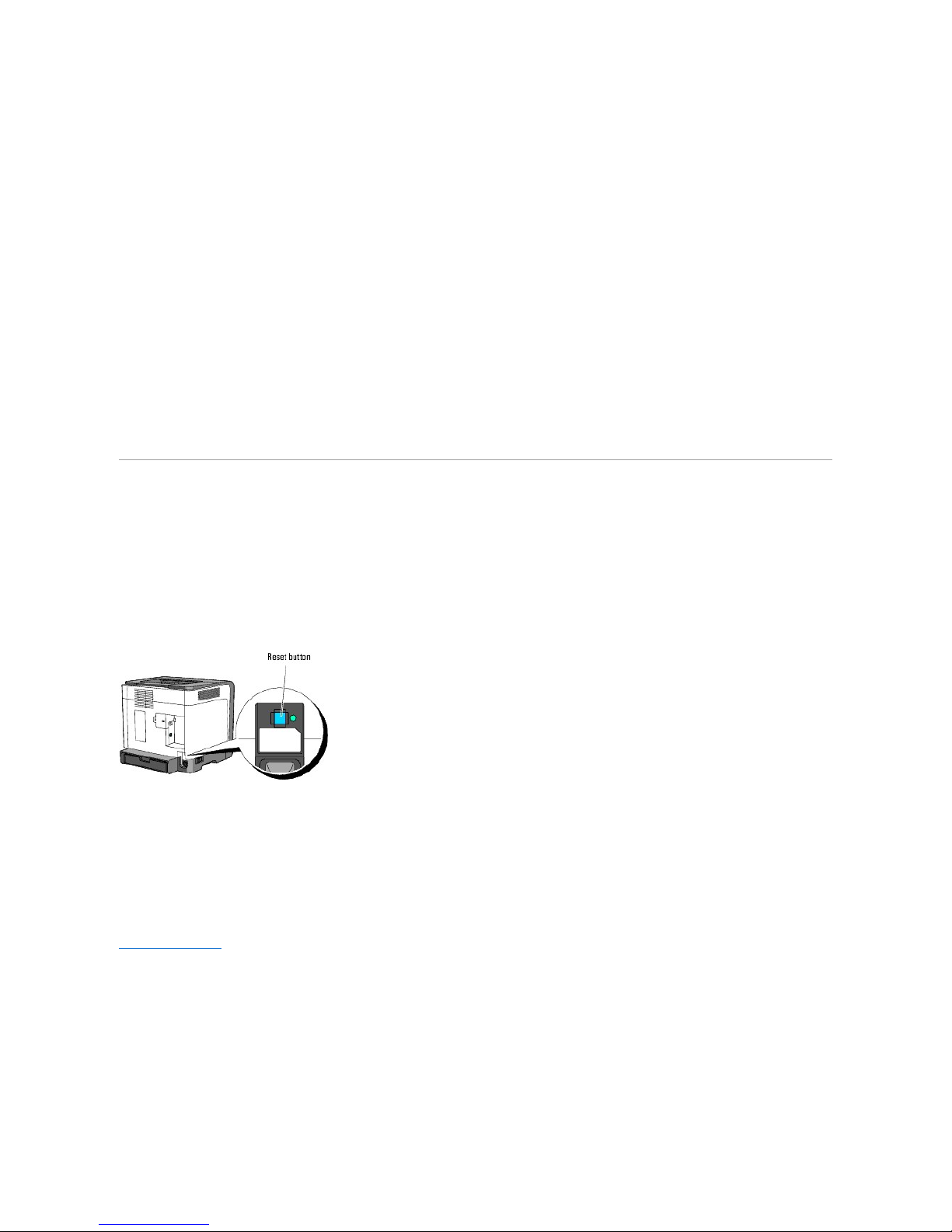

Using the Reset button

Your printer is supplied with an electric leakage detector, which prevents electric shock or fire due to electric leakage by automatically cutting circuits inside the
printer.

When electric leakage is detected, the Reset button is tripped. In this case, press the Reset button to turn the printer back on. If the Reset button is tripped
again after you press the Reset button, contact Dell.


Check whether or not the electric leakage detector is functioning at least once a month by following the steps below:
1. Turn on the printer, and then press the Test button.
lIf the Reset button is tripped and the printer is turned off, the electric leakage detector functions correctly. Press the Reset button to turn the
printer back on.
lIf the Reset button is not tripped, contact Dell. Do not continue to use the printer if the electric leakage detector is not functioning.

back to contents page

back to contents page
Dell Printer Configuration Web Tool

Using the Dell Printer Configuration Web Tool

One of the features of the Dell™PrinterConfigurationWebTool is E-Mail Alert Setup, which sends an e-mail to you or the key operator when the printer
needs supplies or intervention.

To fill out printer inventory reports requiring the asset tag number of all the printers in your area, use the Printer Information feature in the Dell Printer
Configuration Web Tool. Just type the IP address of each printer on the network to display the asset tag number.


The Dell Printer Configuration Web Tool feature also allows you to change the printer settings and keep track of printing trends. If you are a network
administrator, you can easily copy the printer settings to one or all printers on the network using your Web browser.

To launch the Dell Printer Configuration Web Tool, type your network printer's IP address in your Web browser.

If you do not know the IP address of your printer, print a printer settings page, which lists the IP address:
1. Click Start®All Programs®Dell Printers®Additional Color Laser Software®Status Monitor Console.
The Printer Selection dialog box opens.
NOTE: This web tool is not available unless the printer is connected using a network cable.

2. Click Dell Color Laser 1320c listed in Printer Name.
The Dell Color Laser 1320c Launcher window opens.
3. Click the Tool Box button.
The Tool Box opens.
You can also launch the Tool Box from the printer icon on the taskbar.
4. Click the Printer Maintenance tab.
5. Select EWS (Embedded Web Server or Dell Printer Configuration Web Tool) from the list on the left side of the page.
The EWS page is displayed.
6. Press the Print Server Settings button.
The printer settings page is printed.

If the IP address shows 0.0.0.0 (the factory default), an IP address has not been assigned. To assign one for your printer, see "Assign an IP Address."

Use the Dell Printer Configuration Web Tool for:
Printer Status

Use the Printer Status menu to get immediate feedback on printer supply status. When toner cartridge is running low, click the order supplies link on the first
screen to order additional toner cartridges.
Printer Jobs

Use the Printer Jobs menu to contain information on Job List page and Completed Jobs page.
These pages show the details of the status regarding each protocol or the print jobs.
Printer Settings

Use the Printer Settings menu to change printer settings and view the settings in the Tool Box remotely.
Print Server Settings

Using the Print Server Settings menu, you can change the type of printer interface and necessary conditions for communications.
Copy Printer Settings

Use the Copy Printer Settings menu to copy the printer's settings to another printer or printers on the network just by typing each printer's IP address.
Print Volume

Use the Print Volume option to check the histories of printing, such as paper usage and types of jobs being printed, and limit which users use the color mode
and the maximum number of pages they can print.
Printer Information

Use the Printer Information menu to get the information on service calls, inventory reports, or the status of current memory and engine code levels.
E-Mail Alert

Use the E-Mail Alert menu to receive an e-mail when the printer needs supplies or intervention. Type your name or the key operator's name in the e-mail list
box to be notified.
Set Password

NOTE: You must log in as an administrator to use this feature.

Use the Set Password menu to lock the Dell Printer Configuration Web Tool with a password so that other users do not inadvertently change the printer
settings you selected.
Online Help

Click Online Help to visit the Dell Support website, and see the User's Guide on that page to verify configured settings.
Order Supplies at:

www.dell.com/supplies
Contact Dell Support at:

support.dell.com
Using the Dell Printer Configuration Web Tool

Ensure that you activate JavaScript in your browser before using the Dell Printer Configuration Web Tool.
Environment Settings for Web Browsers

Dell recommends configuring the environment settings for your Web browsers, before using the Dell Printer Configuration Web Tool.
For Internet Explorer®6.0 or Internet Explorer 7.0:
Setting Up the Display Language
1. Select Internet Options from Tools on the menu bar.
2. Select Languages in the General tab.
3. Specify the display language in order of preference in the Language in order of preference list.
For example:
Italian (Italy) [it]
Spanish (Traditional Sort) [es]
German (Germany) [de]
French (France) [fr]
English [en] or English (United States) [en-us]
Setting the Printer's IP Address to Non-Proxy
1. Select Internet Options from the Tools menu.
2. Select Proxy server under LAN Settings in the Connections tab.
3. Do either of the following:
lClear the Use a proxy sever for your LAN check box.
lClick Advanced, and then specify the printer's IP address in the Do not use proxy server for addresses beginning with field under Exceptions.

After setting the language and proxy, type <http://nnn.nnn.nnn.nnn/> (the printer's IP address) in the URL entry field of the browser to activate the Dell
Printer Configuration Web Tool.
For Firefox 1.5 or Later:
Setting Up the Display Language
1. Select Options from the Tools menu.
2. Click Advanced.
NOTE: You must log in as an administrator to use this feature.
NOTE: The Dell Printer Configuration Web Tool pages may be displayed unreadable if the pages were configured by the different language with your
browser's.

3. Click Edit Languages in the General tab.
4. Specify the display language in order of preference in the Languages in order of preference list.
For example:
English [en] or English/United States [en-us]
Italian [it]
Spanish [es]
German [de]
French [fr]
Dutch [nl]
Norwegian [no]
Swedish [sv]
Setting the Printer's IP Address to Non-Proxy
1. Select Options from the Tools menu.
2. Click General on the Options dialog box.
3. Click Connection Settings®Connection Settings.
4. Do one of the following:
lSelect the Direct connection to the Internet check box.
lSelect the Auto-detect proxy settings for this network check box.
lSelect the Manual proxy configuration check box, and then enter the printer's IP address in the No Proxy for edit box.
lSelect the Automatic proxy configuration URL check box.

After setting the language and proxy, type <http://nnn.nnn.nnn.nnn/> (the printer's IP address) in the URL entry field of the browser to activate the Dell
Printer Configuration Web Tool.
Page Display Format

The layout of the page is divided into three sections mentioned below:
Top Frame

The Top Frame is located at the top of all pages. When Dell Printer Configuration Web Tool is activated, the current status and specifications of the printer
are displayed in the Top Frame on every page.

The following items are displayed in the Top Frame.

Left Frame

The Left Frame is located at the left side of all pages. The menu titles displayed in the Left Frame are linked to corresponding menus and pages. You can go to
the corresponding page by clicking their characters.

The following menus are displayed in the Left Frame.

Dell Color Laser
1320c
Displays the printer product name.
IP Address
Displays the printer's IP address.
Location
Displays the printer's location. The location can be changed in Basic Information on the Print Server Settings page.
Contact Person
Displays the printer's administrator's name. The name can be changed in the Basic Information on the Print Server Settings page.
Printer Console
Displays the status of the printer settings and indicators and automatically refreshes at the set interval. The interval can be changed in
the Basic Information on Print Server Settings page.
Help
Links to the Dell web page. See the User's Guide on the Dell Support website, support.dell.com for help on this product.
Printer Bitmap
Shows the printer bitmap. The Printer Status menu appears in the Right Frame by clicking the bitmap.
Printer Status
Links to the Printer Status menu.
