PowerEdge FX2 - Upgrading from 10GbE
Pass-through Modules to FN410S I/O Modules
Dell Networking Solutions Engineering
June 2016

2 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0
Revisions
Date
Revision
Description
Authors
June 2016
1.0
Initial Release
Jim Slaughter, Mark Fisher, Shree Rathinasamy
Copyright © 2016 Dell Inc. or its subsidiaries. All Rights Reserved.
Except as stated below, no part of this document may be reproduced, distributed or transmitted in any form or by any
means, without express permission of Dell.
You may distribute this document within your company or organization only, without alteration of its contents.
THIS DOCUMENT IS PROVIDED “AS-IS”, AND WITHOUT ANY WARRANTY, EXPRESS OR IMPLIED. IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY
DISCLAIMED. PRODUCT WARRANTIES APPLICABLE TO THE DELL PRODUCTS DESCRIBED IN THIS DOCUMENT
MAY BE FOUND AT: http://www.dell.com/learn/us/en/vn/terms-of-sale-commercial-and-public-sector-warranties
Performance of network reference architectures discussed in this document may vary with differing deployment
conditions, network loads, and the like. Third party products may be included in reference architectures for the
convenience of the reader. Inclusion of such third party products does not necessarily constitute Dell’s recommendation of
those products. Please consult your Dell representative for additional information.
Trademarks used in this text:
Dell™, the Dell logo, PowerEdge™ and Force10™ are trademarks of Dell Inc. Other Dell trademarks may be used in this
document. Other trademarks and trade names may be used in this document to refer to either the entities claiming the
marks and/or names or their products and are the property of their respective owners. Dell disclaims proprietary interest in
the marks and names of others. Other trademarks and trade names may be used in this document to refer to either the
entities claiming the marks and/or names or their products and are the property of their respective owners. Dell disclaims
proprietary interest in the marks and names of others.

3 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0
Table of contents
Revisions.............................................................................................................................................................................2
1Introduction...................................................................................................................................................................4
1.1 Typographical conventions.................................................................................................................................4
1.2 Before upgrading................................................................................................................................................4
2Hardware......................................................................................................................................................................5
2.1 The Dell PowerEdge FX2/FX2s and supported modules...................................................................................5
2.2 Dell 10GbE Pass-through Module......................................................................................................................7
2.3 PowerEdge FN410S I/O Module........................................................................................................................7
3Upgrade........................................................................................................................................................................8
3.1 Overview.............................................................................................................................................................8
3.2 Step-by-step example.........................................................................................................................................9
3.2.1 Part 1 - Configure the ToR switch ....................................................................................................................11
3.2.2 Part 2 –Replace the PTM in Slot A1 with an FN410S.....................................................................................12
3.2.3 Part 3 –Replace the PTM in Slot A2 with an FN410S.....................................................................................14
AReferences and additional resources.........................................................................................................................16
BComponents used in this guide..................................................................................................................................17
CTerminology................................................................................................................................................................18
DFN IOM internal port mapping....................................................................................................................................19
D.1 Quarter-width servers with dual-port CNAs......................................................................................................19
D.2 Half-width servers with dual-port CNAs............................................................................................................20
D.3 Half-width servers with quad-port CNAs...........................................................................................................21
D.4 Full-width servers with dual-port CNAs ............................................................................................................22
D.5 Full-width Servers with quad-port CNAs...........................................................................................................23
ESupport and feedback ................................................................................................................................................24

4 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0
1Introduction
This deployment guide covers a step-by-step procedure to minimize network downtime when upgrading from
Dell 10 Gigabit Ethernet (10GbE) Pass-through Modules (PTMs) to PowerEdge FN410S Input/Output
Modules (IOMs) in a PowerEdge FX2 chassis.
When upgrading, all servers in the chassis may remain up throughout the process. In the scenario covered in
this guide, the PTMs are hot-swapped one at a time so that no more than half of the server network ports are
down at any point in the upgrade.
Upgrading from PTMs to FN410S IOMs provides the following benefits:
Adds multilayer switching capability to the chassis
Adds redundancy to links going to the top-of-rack (ToR) switch
Optimizes east-west traffic by allowing server-to-server communication within the chassis
Can significantly reduce cabling at the back of the chassis
Additional configuration is not required on the FN410S for many common deployments
Note: If FX2 server network adapters are configured such that a single LACP NIC team spans both PTMs,
and therefore will span both FN410S IOMs upon replacement, the FN410S IOMs will need to be configured
as Virtual Link Trunking (VLT) peers. This will bring all network ports in the FX2 chassis down during
configuration. Use the PowerEdge FX2 –FN I/O Module –VLT Deployment Guide for this scenario.
1.1 Typographical conventions
This document uses the following typographical conventions:
Monospace text CLI examples
Bold monospace text Commands entered at the CLI prompt
Underlined monospace text CLI examples that word wrap (text is entered as a single command)
Italic monospace text Variables in CLI examples
1.2 Before upgrading
Dell EMC recommends reviewing the Dell PowerEdge FN I/O Module (FN IOM) - Easy Deployment Guide
before upgrading to FN410S IOMs. The Easy Deployment Guide covers basic FN IOM tasks such as the
following:
Resetting to factory defaults
Establishing a remote or serial connection to the management interface
Disabling and re-enabling Uplink Failure Detection (UFD)

5 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0
2Hardware
This section briefly describes the hardware used in this guide.
2.1 The Dell PowerEdge FX2/FX2s and supported modules
The PowerEdge FX2 and FX2s enclosures are 2U, hybrid, rack-based computing platforms. They combine
the density and efficiencies of blades with the simplicity and cost benefits of rack-based systems.
Dell PowerEdge FX2s (front) with one PowerEdge FC630 server installed
Dell PowerEdge FX2s (back) with two PowerEdge FN410S IOMs installed
Note: This guide applies to either the PowerEdge FX2 or FX2s chassis. The FX2 does not offer PCIe
expansion slots. The FX2s includes eight PCIe expansion slots, as Figure 2 shows.

6 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0
FX2 with server and networking modules
FX2 module descriptions

7 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0

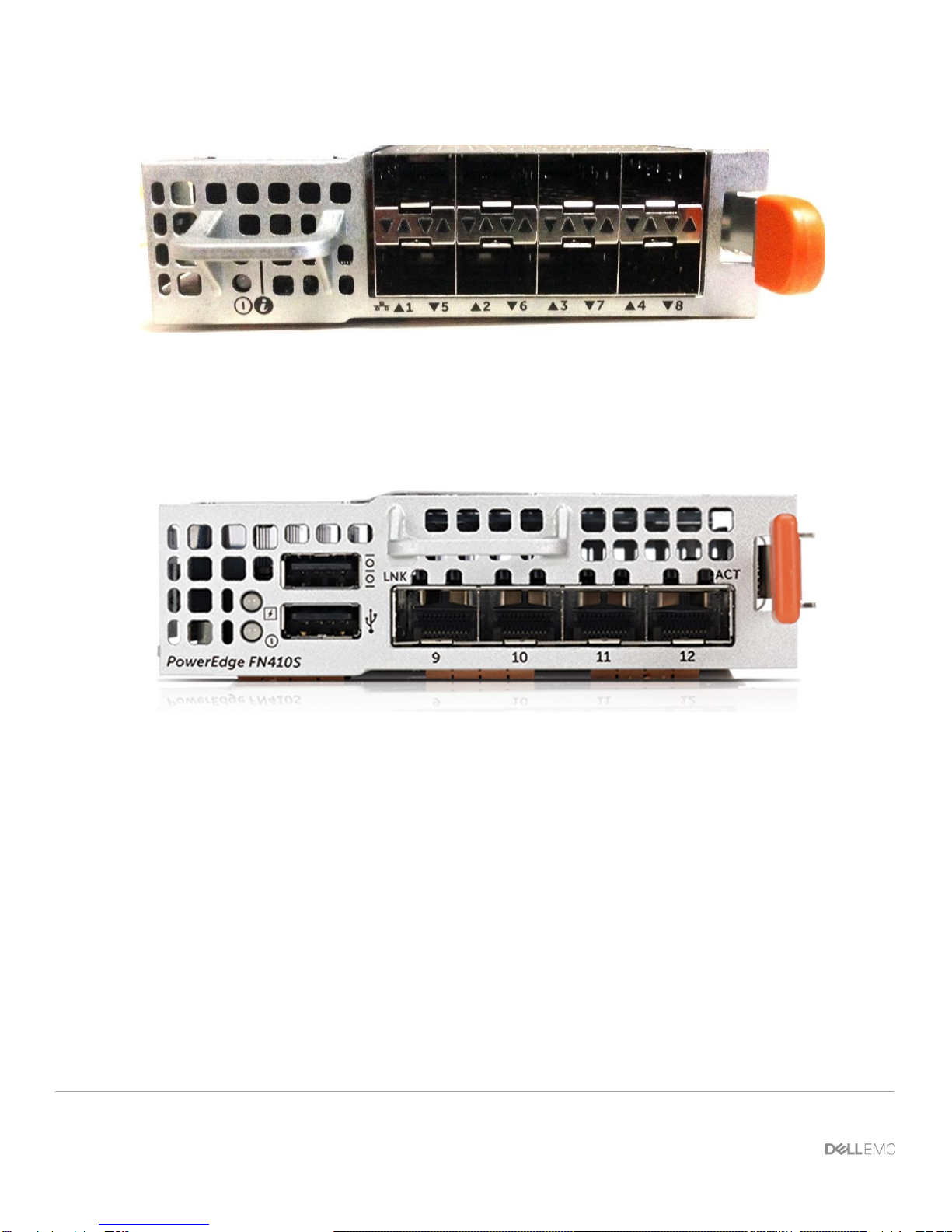

2.2 Dell 10GbE Pass-through Module
The Dell 10GbE PTM provides one-to-one connectivity from blade server network adapter ports to ToR switch
ports. It has eight internal ports and eight external SFP+ ports. The pass-through module does not do any
switching.
2.3 PowerEdge FN410S I/O Module
The PowerEdge FN410S IOM is a Layer 2 and 3 switch with eight internal ports and four external SFP+ ports.
In addition to full switching and routing features, it supports FCoE, iSCSI with data center bridging (DCB),
stacking, and VLT. It comes preconfigured for many common deployments.

8 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0
3Upgrade
3.1 Overview

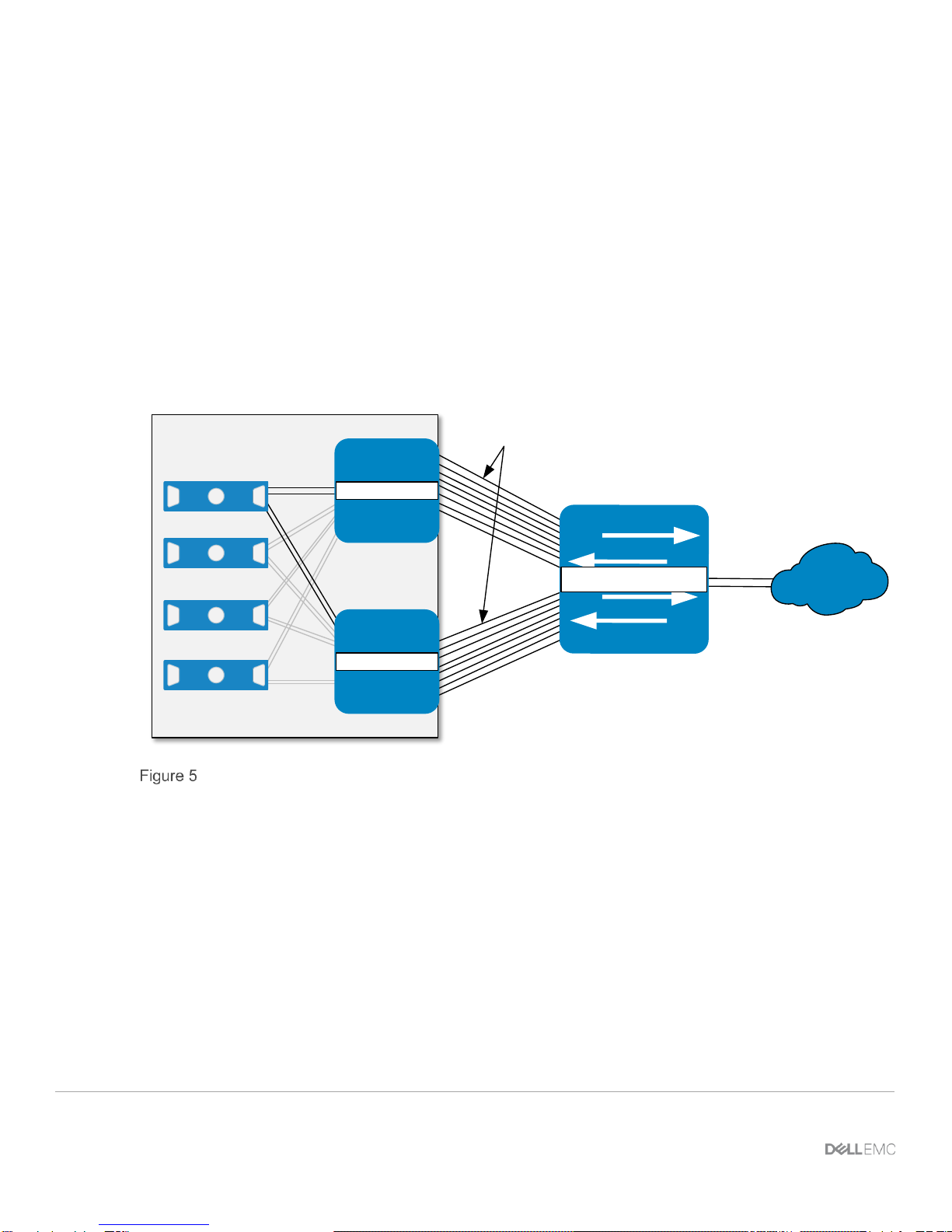

Figure 5 shows a fully loaded FX2 chassis configured with two 10GbE PTMs. Four FC630 servers reside in
the front slots, each containing a quad-port converged network adapter (CNA). The PTMs reside in slots A1
and A2 in the back of the chassis.
This configuration requires eight uplinks from each PTM to the ToR switch, one for each server CNA port. If
an uplink fails, the corresponding CNA port goes down until the link is restored.
ToR Switch
FX2 Chassis
FC630 Slot 2
FC630 Slot 3
FC630 Slot 4
FC630 Slot 1
PTM-A2
PTM-A1
Eight 10GbE Uplinks
from each PTM
Before Upgrade
Fully loaded FX2 chassis before upgrade
The same FX2 chassis with the two PTMs replaced by two FN410S IOMs is shown in Figure 6.
The four external ports on each FN410S are configured in a 40GbE LACP port channel connected to the ToR
switch. Anywhere from one to four uplinks can be used from each FN410S. The bandwidth of each LACP port
channel will equal the sum of the connected links.
Dell EMC recommends a minimum of two uplinks from each FN410S for redundancy. If an uplink fails, traffic
continues to flow on the remaining uplink(s) in the port channel without affecting connectivity of the server
CNAs.

9 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0
ToR Switch
FX2 Chassis
FC630 Slot 2
FN410S-A1
FC630 Slot 3
FC630 Slot 4
FC630 Slot 1
FN410S-A2
40GbE LACP Port
Channels
After Upgrade
Fully loaded FX2 chassis after upgrade
3.2 Step-by-step example
This section provides steps to replace each PTM with an FN410S in a sequence that minimizes network
downtime on the servers inside the FX2 chassis. The chassis and servers remain up and running throughout
the upgrade.
For clarity in the diagrams, this step-by-step example uses a reduced number of connections as shown in
Figure 7 and Figure 8.
In this example, there are two FC630 servers in the chassis, and each FC630 server has a dual-port CNA. On
each server, one CNA port is untagged in the default vlan and the other port is tagged in VLAN 6. A Dell
Networking S4048-ON functions as the ToR switch.
Notes:
Any Dell or third-party switch that supports 10GbE SFP+ links and LACP may be used as the ToR
switch in place of the S4048-ON. See the Dell PowerEdge FN I/O Module (FN IOM) - Easy Deployment
Guide for LACP configuration commands on common third-party switches.
The FN410S IOMs are at their factory default settings throughout the upgrade. See the Dell PowerEdge
FN I/O Module (FN IOM) - Easy Deployment Guide for steps to reset FN IOMs to factory defaults if
needed.
Replace the VLANs and port numbers in this example with those in your configuration.

10 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0
S4048-ON
FX2 Chassis
Upstream
Server
PTM-A2
FC630
Slot 3
CNA port 1
10.0.0.1
FC630
Slot 1
CNA port 1
10.0.0.3
CNA port 2
192.168.1.1
CNA port 2
192.168.1.3
port 1
port 1
port 5
port 5 te 1/1
te 1/2
te 1/3
te 1/4
te 1/9
te 1/10
port 1
10.0.0.6
port 2
192.168.1.6
port 1
port 1
port 5
port 5
ToR
Switch
PTM-A1
Step-by-Step Example: Before Upgrade
default VLAN
VLAN 6

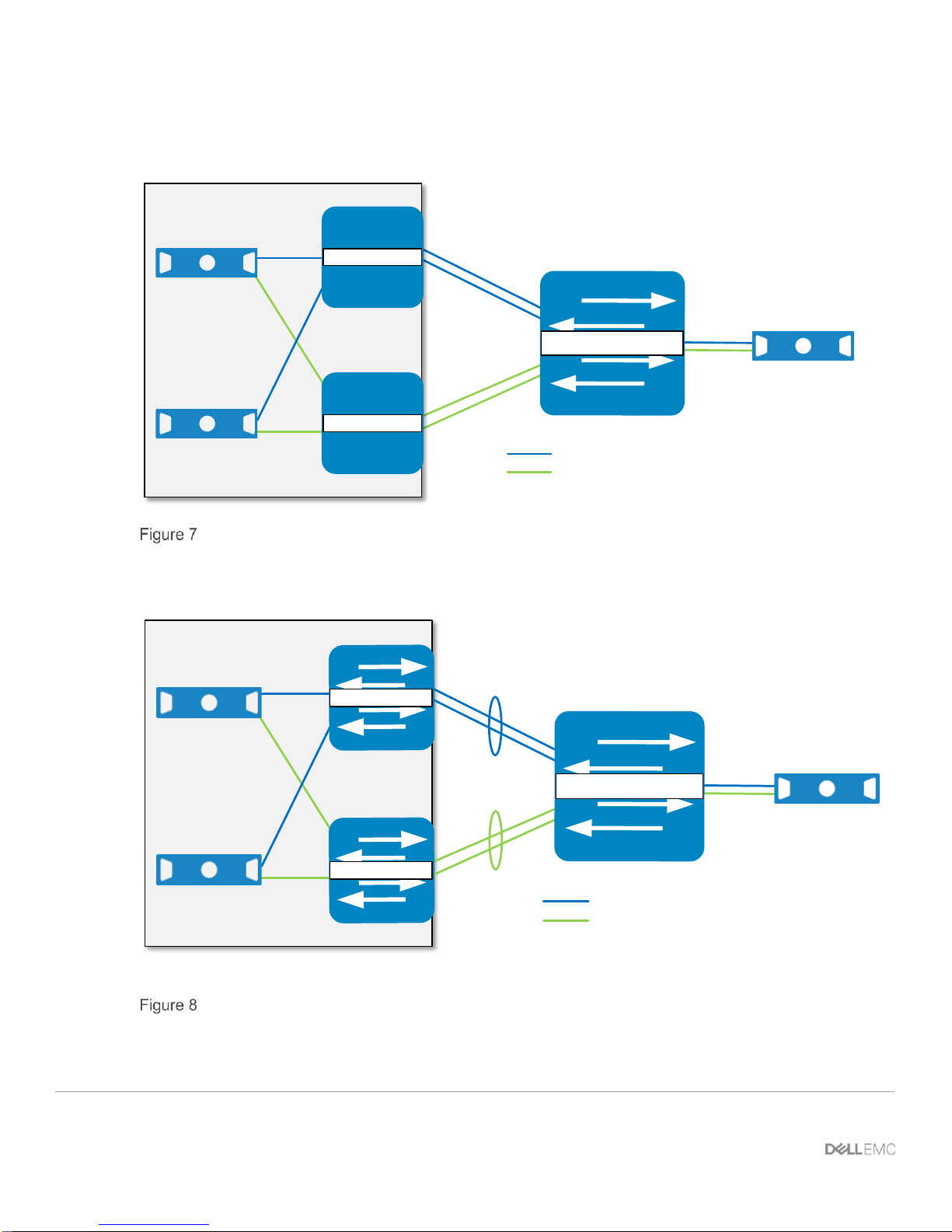

Step-by-step example - before upgrade with PTMs installed
S4048-ON
FX2 Chassis
Upstream
Server
FC630
Slot 3
CNA port 1
10.0.0.1
FC630
Slot 1
CNA port 1
10.0.0.3
CNA port 2
192.168.1.1
CNA port 2
192.168.1.3
te 0/9
te 0/9
te 0/10
te 0/10 te 1/5
te 1/6
te 1/7
te 1/8
te 1/9
te 1/10
port 1
10.0.0.6
port 2
192.168.1.6
te 0/1
te 0/1
te 0/5
te 0/5
ToR
Switch
Po 128
FN410S-A1
FN410S-A2
Po 10
Po 128
Po 11default VLAN
VLAN 6
Step-by-Step Example: After Upgrade
Step-by-step example - after upgrade with FN410S IOMs installed

11 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0
3.2.1 Part 1 - Configure the ToR switch
Notes: By default, all four external (uplink) ports on FN410S IOMs are preconfigured in LACP port channel
128. In this example, two links from each FN410S are used. The corresponding connections on the ToR
switch must also be configured as LACP port channels. Port channel numbers 10 and 11 are used on the
S4048-ON, but they can be assigned any number supported by the ToR switch.
Figure 7 shows that before upgrade, the two PTMs connect to four S4048-ON ports (te 1/1-1/4). Figure 8
shows that, upon completion of the upgrade, the FN410S IOMs connect to four different S4048-ON ports (te
1/5-1/8). The connections can reuse the original ports. But, if they are available, using different ports
minimizes network downtime during the upgrade.
1. Configure port channel 10 on the S4048-ON to later connect to FN410S-A1 port channel 128:
S4048-ON(conf)#interface range tengigabitethernet 1/5-1/6
S4048-ON(conf-if-range-te-1/5-1/6)#no shutdown
S4048-ON(conf-if-range-te-1/5-1/6)#description LINK TO FN410S-A1
S4048-ON(conf-if-range-te-1/5-1/6)#port-channel-protocol lacp
S4048-ON(conf-if-range-te-1/5-1/6-lacp)#port-channel 10 mode active
S4048-ON(conf-if-range-te-1/5-1/6-lacp)#exit
S4048-ON(conf-if-range-te-1/5-1/6)#exit
S4048-ON(conf)#interface port-channel 10
S4048-ON(conf-if-po-10)#portmode hybrid
S4048-ON(conf-if-po-10)#switchport
S4048-ON(conf-if-po-10)#description PO TO FN410S-A1
S4048-ON(conf-if-po-10)#no shutdown
Port channel 10 does not require VLAN configuration in this example because it will only carry traffic on the
default, untagged VLAN (VLAN 1).
2. Configure port channel 11 on the S4048-ON to later connect to FN410S-A2 port channel 128:
S4048-ON(conf)#interface range tengigabitethernet 1/7-1/8
S4048-ON(conf-if-range-te-1/7-1/8)#no shutdown
S4048-ON(conf-if-range-te-1/7-1/8)#description LINK TO FN410S-A2
S4048-ON(conf-if-range-te-1/7-1/8)#port-channel-protocol lacp
S4048-ON(conf-if-range-te-1/7-1/8-lacp)#port-channel 11 mode active
S4048-ON(conf-if-range-te-1/7-1/8-lacp)#exit
S4048-ON(conf-if-range-te-1/7-1/8)#exit
S4048-ON(conf)#interface port-channel 11
S4048-ON(conf-if-po-11)#portmode hybrid
S4048-ON(conf-if-po-11)#switchport
S4048-ON(conf-if-po-11)#description PO TO FN410S-A2
S4048-ON(conf-if-po-11)#no shutdown
S4048-ON(conf-if-po-11)#exit

12 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0
3. Tag port channel 11 in VLAN 6:
S4048-ON(conf)#interface vlan 6
S4048-ON(conf-if-vl-6)#tagged port-channel 11
This completes S4048-ON switch configuration. It assigns the correct interfaces to LACP port channels 10
and 11, and configures the port channels in the appropriate VLANs.
3.2.2 Part 2 –Replace the PTM in Slot A1 with an FN410S
1. Disconnect all cables from the PTM in slot A1 (PTM-A1). A1 is the top slot.
2. Remove PTM-A1 from the chassis.
All server CNA ports connected to PTM-A1 go down.
The PTM in slot A2 (PTM-A2) is not affected and continues to function normally.
3. Insert an FN410S into slot A1 (FN410S-A1).
FN410S-A1 powers up and takes about 2 minutes to boot.
After FN410S-A1 has booted, the server CNA ports will continue to be down until the next step. This
is due to a feature called Uplink Failure Detection (UFD) whereby when upstream connectivity is
down, the FN IOM disables the downstream, server-facing links.
Notes:
The FN410S switch console can be monitored using a serial cable, SSH, or telnet session.
See the Dell PowerEdge FN I/O Module (FN IOM) - Easy Deployment Guide for console
connection instructions and more information on UFD.
By default on the FN410S, all internal ports and the uplink port channel (po 128) are untagged in
the default VLAN (VLAN 1) and tagged in all other VLANS (VLANS 2-4094). This eliminates the
requirement to manually configure VLANs on the FN410S for most common deployments,
including this example.

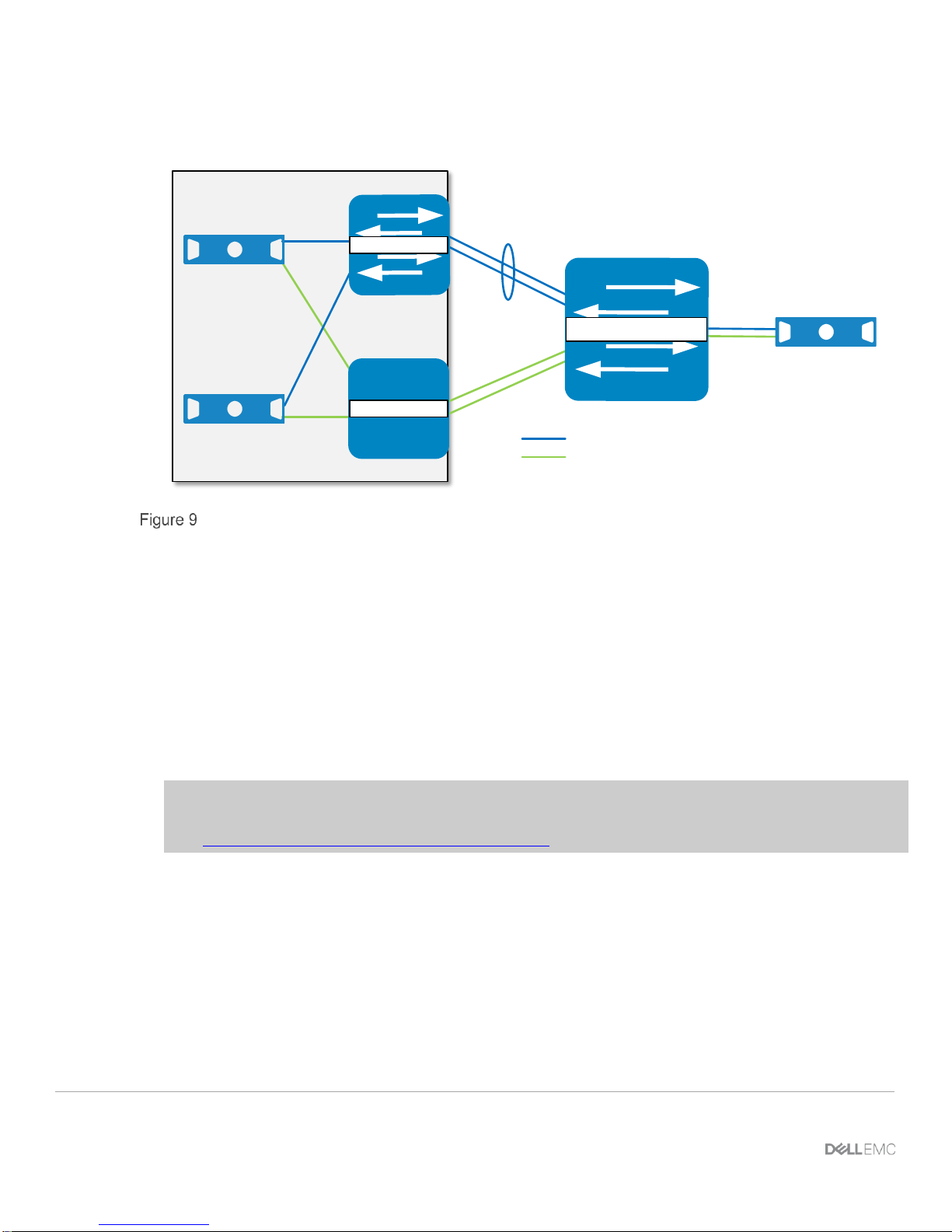

4. Connect cables from S4048-ON ports te 1/5-1/6 to FN410S-A1 ports te 0/9-0/10. The network now
appears as shown in Figure 9.
After the connection is made, the LACP port channel between FN410S-A1 and the S4048-ON comes
up.
On FN410S-A1, UFD detects port channel 128 is up and brings up the internal, server-facing ports
(FN410S-A1 ports te 0/1 and te 0/5 in Figure 9). This causes the corresponding server CNA ports to
come up.

13 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0
S4048-ON
FX2 Chassis
Upstream
Server
FC630
Slot 3
CNA port 1
10.0.0.1
FC630
Slot 1
CNA port 1
10.0.0.3
CNA port 2
192.168.1.1
CNA port 2
192.168.1.3
te 0/9
port 1
port 5
te 0/10 te 1/5
te 1/6
te 1/3
te 1/4
te 1/9
te 1/10
port 1
10.0.0.6
port 2
192.168.1.6
te 0/1
port 1
te 0/5
port 5
ToR
Switch
Po 128
FN410S-A1 Po 10
PTM-A2
Step-by-Step Example: Upgrade Midpoint
default VLAN
VLAN 6
Upgrade midpoint with one PTM and one FN410S installed
5. After the FC630 server's CNA ports are up, a north-south connectivity check is done by pinging the
servers in the FX2 chassis from an upstream device on all applicable VLANs traversing FN410S-A1.
The upstream server at 10.0.0.6 successfully pings the FX2 servers at 10.0.0.1 and 10.0.0.3 through
the ToR and FN410S-A1 on the default VLAN.
PTM-A2 is not affected and functions normally.
6. An east-west connectivity check is done by pinging between the servers in the FX2 chassis on all
applicable VLANs traversing FN410S-A1.
The FC630 server at 10.0.0.1 successfully pings the FC630 server at 10.0.0.3 through FN410S-A1 on
the default VLAN without going through the ToR switch.
Note: If you want to verify east-west traffic bypasses the ToR switch by shutting port channel 128,
disable UFD on the FN410S first. Instructions for disabling and re-enabling UFD are in the appendix of
the Dell PowerEdge FN IOM Easy Deployment Guide.

14 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0
3.2.3 Part 3 –Replace the PTM in Slot A2 with an FN410S
1. Disconnect all cables from the PTM in slot A2 (PTM-A2).
2. Remove PTM-A2 from the chassis.
All server CNA ports connected to PTM-A2 go down.
FN410S-A1 is not affected and functions normally.
3. Insert an FN410S into slot A2 (FN410S-A2).
FN410S-A2 powers up and takes about 2 minutes to boot.
After FN410S-A2 has booted, the server CNA ports will continue to be down until the next step due to
the UFD feature.
4. Connect cables from S4048-ON ports te 1/7-1/8 to FN410S-A2 ports te 0/9-0/10. The network now
appears as shown in Figure 10.
After the connection is made, the LACP port channel between FN410S-A2 and the S4048-ON comes
up.
On FN410S-A2, UFD detects port channel 128 is up and brings up the internal, server-facing ports
(FN410S-A2 ports te 0/1 and te 0/5 in Figure 10). This causes the corresponding server CNA ports to
come up.
S4048-ON
FX2 Chassis
Upstream
Server
FC630
Slot 3
CNA port 1
10.0.0.1
FC630
Slot 1
CNA port 1
10.0.0.3
CNA port 2
192.168.1.1
CNA port 2
192.168.1.3
te 0/9
te 0/9
te 0/10
te 0/10 te 1/5
te 1/6
te 1/7
te 1/8
te 1/9
te 1/10
port 1
10.0.0.6
port 2
192.168.1.6
te 0/1
te 0/1
te 0/5
te 0/5
ToR
Switch
Po 128
FN410S-A1
FN410S-A2
Po 10
Po 128
Po 11default VLAN
VLAN 6
Step-by-Step Example: After Upgrade
Both FN410S IOMs installed
5. After the FC630 server's CNA ports are up, a north-south connectivity check is done by pinging the
servers in the FX2 chassis from an upstream device on all applicable VLANs traversing FN410S-A2.
The upstream server at 192.168.1.6 successfully pings the FX2 servers at 192.168.1.1 and 192.168.1.3
through the ToR and FN410S-A2 on VLAN 6.

15 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0
6. An east-west connectivity check is done by pinging between the servers in the FX2 chassis on all
applicable VLANs traversing FN410S-A2.
The FC630 server at 192.168.1.1 successfully pings the FC630 server at 192.168.1.3 via FN410S-A2 on
VLAN 6 without going through the ToR switch.
Note: If you want to verify east-west traffic bypasses the ToR switch by shutting port channel 128,
disable UFD on the FN410S first. Instructions for disabling and re-enabling UFD are in the appendix of
the Dell PowerEdge FN IOM Easy Deployment Guide.
All connections have been verified and the upgrade is complete.

16 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0
AReferences and additional resources
Dell PowerEdge FN I/O Module (FN IOM) - Easy Deployment Guide
Dell TechCenter Networking Home
Manuals and Documentation for PowerEdge FX2/FX2s and Modules
PowerEdge FX2 –FN I/O Module –VLT Deployment Guide

17 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0
BComponents used in this guide
The components and versions used while developing this guide are shown below.
Component
Software Version
Dell 10GbE pass-through module
NA
PowerEdge FN410S IOM
Dell Networking OS 9.10(0.1)
Dell Networking S4048-ON ToR switch
Dell Networking OS 9.10(0.1)
PowerEdge FX2 Chassis Management Controller
1.30

18 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0
CTerminology
CNA (Converged Network Adapter): Combines the functionality of a network interface controller and a
storage host bus adapter. It connects to storage area networks and local area networks.
FN IOA (FN I/O Aggregator): Legacy term for FN IOM.
FN IOM (FN I/O Module): FN IOM refers to the switch modules on the rear of the Dell PowerEdge FX2/FX2s
chassis that receive and transmit network IO from the blade servers. This includes the PowerEdge FN410S,
FN410T and FN2210S. This term does not refer to pass-through modules.
LACP (Link Aggregation Control Protocol): LACP is used to control the bundling of several physical ports
together to form a single logical channel. LACP allows a network device to negotiate an automatic bundling of
links by sending LACP packets to the peer (which is a directly connected device that also implements LACP).
NIC Teaming: NIC Teaming allows multiple network interfaces on a computer to be placed into a team to
combine bandwidth or provide traffic failover to prevent connectivity loss in the event of a network component
failure.
Port Channel: Two or more network links bundled together to function as a single link. Port Channels provide
increased bandwidth, redundancy and load balancing.
ToR (Top of Rack): A switch that is positioned at the top of a server rack in a data center.
UFD (Uplink Failure Detection): When upstream connectivity fails, the FN IOM disables the downstream,
server-facing links. This feature ensures NIC teaming failovers occur properly if links are lost upstream. The
FN IOM uses LACP for the uplink port channel so it is necessary for the corresponding connections at the
upstream switch to also be configured as an LACP port channel.

19 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0
DFN IOM internal port mapping
D.1 Quarter-width servers with dual-port CNAs
The PowerEdge FC430 is an example of a quarter-width server. For quarter-width servers with dual-port
CNAs, each CNA port maps to a single port on each of the two FN IOMs. The server slots in the top row are
designated 1a through 1d, and 3a through 3d on the bottom row. See Figure 11 and Table 1.
FN IOM A1 (Top)
Internal Ports
5 6
3
7
4
8
2
FN IOM A2 (Bottom)
Internal Ports
1b
3a 3b
1c 1d
3c 3d
5 6
3
7
4
8
21
1
1a
Quarter-width servers with dual-port CNAs
Quarter-width servers with dual-port CNAs
Note: Quad-port CNAs are not available for quarter-width servers.
Server Slot
FN IOM A1 (Top)
Internal Port Numbers
FN IOM A2 (Bottom)
Internal Port Numbers
1a
1
1
1b
2
2
1c
3
3
1d
4
4
3a
5
5
3b
6
6
3c
7
7
3d
8
8

20 PowerEdge FX2 - Upgrading from 10GbE Pass-through Modules to FN410S I/O Modules | version 1.0
D.2 Half-width servers with dual-port CNAs
The PowerEdge FC630 is an example of a half-width server. For half-width servers with dual-port CNAs
installed, the CNA ports map to a single port on each of the two FN IOMs. Figure 12 and Table 2 present the
port mapping for half-width servers with dual-port CNAs.
Note: Ports 2, 4, 6 and 8 are not used when using half-width blades with dual-port adapters.
Half-width servers with dual-port CNAs
Half-width servers with dual-port CNAs
Server Slot
FN IOM A1 (Top)
Internal Port Numbers
FN IOM A2 (Bottom)
Internal Port Numbers
1
1
1
2
3
3
3
5
5
4
7
7
Slot 2
Slot 3 Slot 4
FN IOM A1 (Top)
Internal Ports
5 6
3
7
4
8
21
FN IOM A2 (Bottom)
Internal Ports
5 6
3
7
4
8
1
Slot 1
2
