Information Update
This document provides information for your system on the following topics:
• Reconfiguring the system for regional power requirements
• Processor upgrades
• Adaptec SCSI Card 39160 expansion-card slot restrictions
• System start-up behavior
• Integrated NIC IPMI port functionality
• Remote Access Controller card interaction with integrated video
• System messages
• Environmental data sheets
• Removing and installing the cooling shroud
• Linux operating system information
– Booting Red Hat
®
Enterprise Linux AS (Version 4) for Intel
®
x86 with more than eight logical
processors
– Using more than eight logical processors with Red Hat Enterprise Linux (Version 4)
for Intel Extended Memory 64 Technology (Intel EM64T)
– Rebooting Red Hat Enterprise Linux AS (Version 4) for Intel EM64T
– NIC device names
• Microsoft
®
Windows Server ™ 2003 installation with more than eight logical processors
• Microsoft Windows
®
2000 installation
• Console redirection—escape key sequences
CAUTION: Only trained service technicians are authorized to remove the system cover and access any of
the components inside the system. Before performing any procedure, see your Product Information Guide for
complete information about safety precautions, working inside the computer, and protecting against electrostatic
discharge.

4Information Update
Reconfiguring the System for Regional Power Requirements
CAUTION: If you relocate a system operating in the 120–127 VAC or 200–240 VAC range to a different geographic
area, ensure that jumper CB_TYPE matches the AC line voltage range of your new location.
If the new power source is less than 120 VAC and you do not reconfigure jumper CB_TYPE for the lower voltage
power source, damage to the system power cable or the system itself may occur.
Table 1-1
lists countries where the AC line voltage may be less than 120 V. Confirm the power source in your
particular location and reconfigure the CB_TYPE jumper if necessary.
Table 1-2 and Figure 1-1 show the settings and location of the CB_TYPE jumper.
Table 1-1. Areas Where AC Line Voltage May Be Less Than 120 V
AC Line Voltage Country
100 V Japan, Korea, Okinawa
105 V Korea
110 V Anguilla, Azores, Belgium, Belize, Bolivia, Brazil, Colombia, Curacao, Dominican
Republic, Ecuador, El Salvador, France, Guam, Guyana, Haiti, Honduras, Jamaica,
Lebanon, Panama, Peru, Philippines, Somalia, Surinam, Tahiti, Taiwan, Turkey, Virgin
Islands
115 V Aruba, Barbados, North Mariana Island, St. Pierre & Miquelon, Surinam, Tonga,
Trinidad & Tobago
Table 1-2. Power Configuration Jumper Settings
Jumper Setting Description
CB_TYPE AC line voltage is 120 V or greater*
(default) AC line voltage is less than 120 V
* This jumper is not functional for systems using a line voltage in the range of 200–240 VAC.

Information Update 5

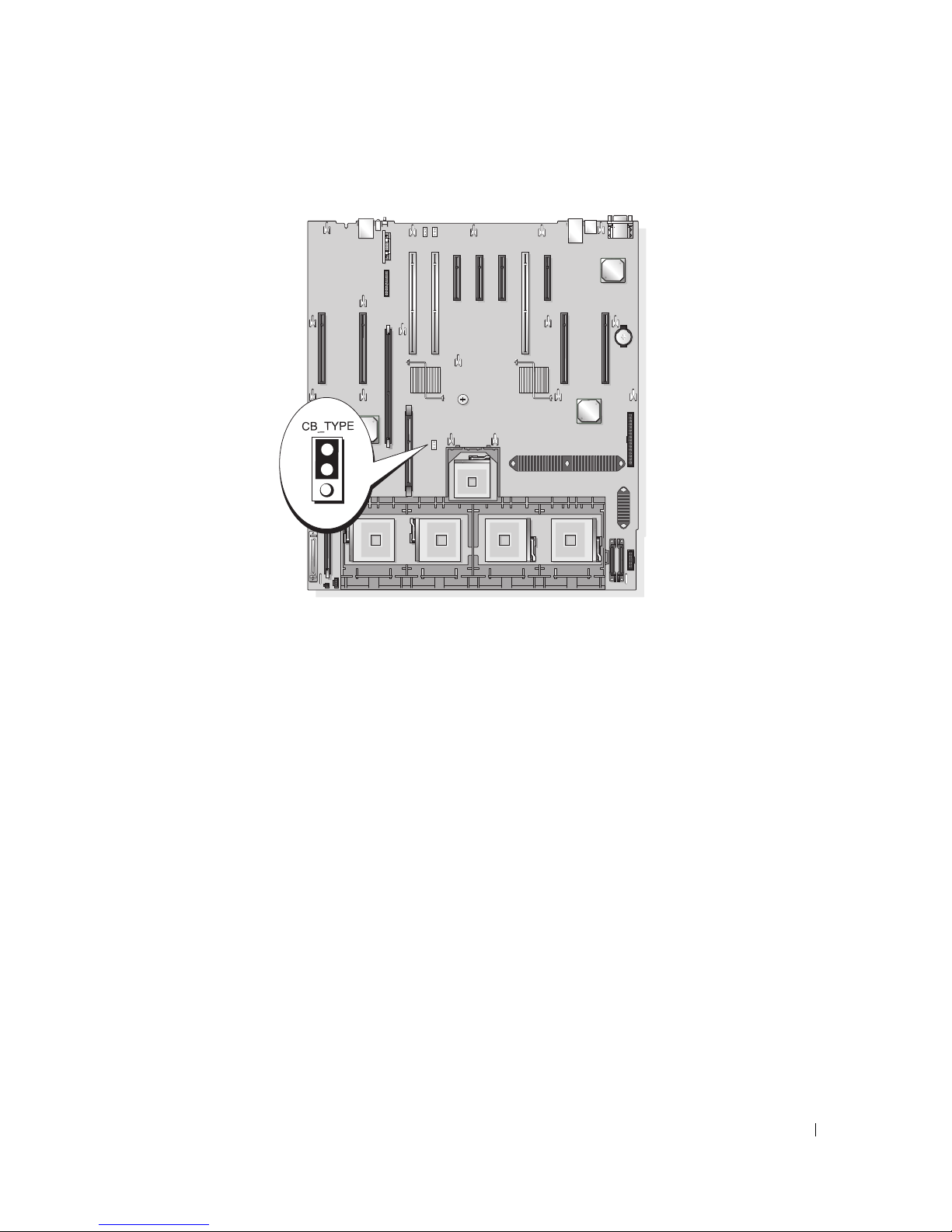

Figure 1-1. Power Configuration Jumper Location
Processor Upgrades
If you add one or more processors to your system, ensure that all processors have the same stepping value
and the same cache size and technology. If you install processors with different speeds, they will operate
at the speed of the slowest processor.
You must install all voltage regulator modules (VRMs) included in the upgrade kit, in addition to the
processors. See "Processors" in your
Installation and Troubleshooting Guide for details on installing processors
and VRMs.
Adaptec SCSI Card 39160 Expansion-Card Slot Restrictions
If you add an Adaptec SCSI Card 39160 to a system running the Microsoft Windows 2000 Server operating
system, and a Dell™ Remote Access Controller 4/P (DRAC 4/P) card is installed in expansion-card slot 7,
the Adaptec 39160 card must be installed in expansion-card slot 2.
Memory Test at System Start-Up
The System Memory Testing option in the System Setup program is disabled by default. If the option is
enabled, the system memory is tested at each system startup. Systems with large memory configurations
may take more time to complete the memory test. See your
User’s Guide for information on the System
Setup program.

6Information Update
System Start-Up Behavior
The following system behaviors during system start-up are normal and do not indicate a problem with the
system:
• When AC power is applied to the system, if the System Setup program’s
AC Power Recovery option is
not set to allow the system to power up when AC power is applied, the cooling fans will spin-up briefly
and then stop. (See your
User’s Guide for information on the System Setup program.)
• It may take 30 seconds or longer for video to display after the system is powered on.
Integrated NIC IPMI Port Functionality
If you configure the integrated NIC for Intelligent Platform Management Interface (IPMI) pass-through
traffic, and you also configure the system to boot from the network using the same IPMI port, the NIC
will not be available for management traffic during system boot. After system boot is completed, IPMI
functionality is automatically restored.
In addition, if you configure the NIC to support IPMI management traffic, the NIC driver’s Large-Send
Offload (LSO) feature will be disabled on that port.
Remote Access Controller Card Interaction With Integrated Video
If you install an optional remote access controller card for remote systems management, the system’s front
and back panel video ports will be disabled.
System Messages
Table 1-3 provides an updated list of system status messages that the system’s front panel LCD may
display at system start-up, if a memory error occurs. See "System Messages" in your
Installation and
Troubleshooting Guide
for additional information about system messages.

Information Update 7
Table 1-3. LCD Status Messages
Line 1
Message
Line 2
Message
Causes Corrective Actions
SYSTEM
ID
SYSTEM NAME SYSTEM ID is a unique name,
five characters or less, defined by
the user.
SYSTEM NAME is a unique
name, 16 characters or less,
defined by the user.
The system ID and name display
under the following conditions:
• The system is powered on.
• The power is off and active
POST errors are displayed.
This message is for information
only.
You can change the system ID
and name in the System Setup
program. See your User's Guide
for instructions.
E0000 OVRFLW CHECK LOG LCD overflow message.
A maximum of three error
messages can display sequentially
on the LCD. The fourth message
displays as the standard overflow
message.
Check the SEL for details on the
events.
E1000 FAIL SAFE Failsafe event. Capture the event log and see
"Getting Help" in your
Installation and Troubleshooting
Guide.
E1000 MISCONFIG Missing or improperly installed
VRMs.
See "Installing a Processor VRM"
in your Installation
and Troubleshooting Guide. If
the VRMs appear to be properly
configured and installed, see
"Getting Help" in your
Installation and Troubleshooting
Guide.
E0119 TEMP AMBIENT Ambient system temperature
is out of acceptable range.
See "Troubleshooting System
Cooling Problems" in your
Installation and Troubleshooting
Guide.
E0119 TEMP PROC # The specified processor is out
of acceptable temperature range.
See "Troubleshooting System
Cooling Problems" in your
Installation and Troubleshooting
Guide.

8Information Update
E0119 TEMP PLANAR System board temperature is out
of acceptable temperature range.
See "Troubleshooting System
Cooling Problems" in your
Installation and Troubleshooting
Guide.
E0212 PROC VTT Processor VTT voltage is out
of acceptable voltage range.
See "Troubleshooting Power
Supplies" in your Installation
and Troubleshooting Guide.
E0212 VOLT PG nSystem power supply is out of
acceptable voltage range; faulty
or improperly installed power
supply.
See "Troubleshooting Power
Supplies" in your Installation
and Troubleshooting Guide.
E0212 VOLT PG nVideo Video voltage is out of acceptable
voltage range.
See "Getting Help" in your
Installation and Troubleshooting
Guide.
E0212 VOLT BATT ROMB Faulty RAID battery. Replace the RAID battery.
See "Activating the Optional
Integrated RAID Controller"
in your Installation
and Troubleshooting Guide.
E0212 VOLT BATT CMOS Faulty system battery. See "Troubleshooting the System
Battery" in your Installation
and Troubleshooting Guide.
If the problem persists, see "
Getting Help" in your Installation
and Troubleshooting Guide.
E0276 PROC # STATUS Faulty or improperly installed
processor.
See "Troubleshooting the
Microprocessors" in your
Installation and Troubleshooting
Guide.
E0276 PROC # VCORE The VCORE voltage of the
specified processor is out of
acceptable range.
See "Troubleshooting the
Microprocessors" in your
Installation and Troubleshooting
Guide. If the problem still
persists, see "Getting Help"
in your Installation
and Troubleshooting Guide.
Table 1-3. LCD Status Messages (continued)
Line 1
Message
Line 2
Message
Causes Corrective Actions

Information Update 9
E0276 VRM # PG The voltage of the specified VRM
is out of acceptable range.
See "Troubleshooting the
Microprocessors" in your
Installation and Troubleshooting
Guide. If the problem still
persists, see "Getting Help"
in your Installation
and Troubleshooting Guide.
E0276 VCACHE # PG The voltage of the specified
VCACHE is out of acceptable
range.
See "Troubleshooting the
Microprocessors" in your
Installation and Troubleshooting
Guide. If the problem still
persists, see "Getting Help"
in your Installation
and Troubleshooting Guide.
E0276 PS AC CURRENT Power supply AC current is out
of acceptable range.
See "Troubleshooting Power
Supplies" in your Installation
and Troubleshooting Guide.
E0276 PS OVER CURRENT Power supply current is out
of acceptable range.
See "Troubleshooting Power
Supplies" in your Installation
and Troubleshooting Guide.
E0412 RPM FAN PS BLANK Power supply fan RPM is out
of acceptable range.
See "Troubleshooting System
Cooling Problems" in your
Installation and Troubleshooting
Guide.
E0412 RPM FAN n
FAN REDUNDANCY
LOST
Specified cooling fan is faulty,
improperly installed, or missing.
See "Troubleshooting System
Cooling Problems" in your
Installation and Troubleshooting
Guide.
E0780 PROC # CONFIG
ERR
The specified processor has
a configuration error.
See "Troubleshooting the
Microprocessors" in your
Installation and Troubleshooting
Guide.
E0780 PROC # DISABLED The specified processor is
disabled.
See "Troubleshooting the
Microprocessors" in your
Installation and Troubleshooting
Guide.
Table 1-3. LCD Status Messages (continued)
Line 1
Message
Line 2
Message
Causes Corrective Actions

10 Information Update
E0780 PROC nPRESENCE Microprocessor is not installed
in socket n.
Install a microprocessor in socket
n. See "Installing a Processor"
in your Installation
and Troubleshooting Guide.
E07F0 PROC nIERR Faulty or improperly installed
microprocessor.
See "Troubleshooting the
Microprocessors" in your
Installation and Troubleshooting
Guide.
E07FA PROC nTHERMTRIP Specified microprocessor is out
of acceptable temperature range
and has halted operation.
See "Troubleshooting System
Cooling Problems" in your
Installation and Troubleshooting
Guide. If the problem persists,
ensure that the microprocessor
heat sinks are properly installed.
See " Removing a Processor"
in your Installation
and Troubleshooting Guide.
NOTE: The LCD continues to
display this message until the
system’s power cord is
disconnected and reconnected to
the AC power source, or the SEL is
cleared using either Server
Assistant or the BMC Management
Utility. See the Dell OpenManage
Baseboard Management
Controller User’s Guide for
information about these utilities.
E0876 PS nMISSING
PS nSTATUS
No power available from the
specified power supply; specified
power supply is improperly
installed or faulty.
See "Troubleshooting Power
Supplies" in your Installation
and Troubleshooting Guide.
E0876 PS nPREDICTIVE Power supply voltage is out of
acceptable range; specified power
supply is improperly installed
or faulty.
See "Troubleshooting Power
Supplies" in your Installation
and Troubleshooting Guide.
E0876 PS nAC LOST
PS nAC RANGE
Power source for specified power
supply is unavailable, or out
of acceptable range.
Check the AC power source
for the specified power supply.
Table 1-3. LCD Status Messages (continued)
Line 1
Message
Line 2
Message
Causes Corrective Actions

Information Update 11
E0880 PS REDUNDANCY
LOST
Power supply redundancy has
been lost because a power supply
has been removed from the
system.
Reinstall the power supply
to restore redundancy.
E0D76 BP DRIVE nFaulty or improperly installed
hard drive or RAID controller.
See "Troubleshooting SCSI Hard
Drives," "Troubleshooting a RAID
Controller Card," and
"Troubleshooting the Integrated
RAID Controller" in your
Installation and Troubleshooting
Guide.
E0D76 1x2 Drive nThe specified drive on the 1x2
backplane is faulty or improperly
installed, or the RAID controller
is faulty or improperly installed.
See "Troubleshooting SCSI Hard
Drives," "Troubleshooting a RAID
Controller Card," and
"Troubleshooting the Integrated
RAID Controller" in your
Installation and Troubleshooting
Guide.
E0D76 SCSI CONNECTOR SCSI cable is not connected. See "Troubleshooting SCSI Hard
Drives" in your Installation
and Troubleshooting Guide.
EB107 PROC BUS PERR
PROC INIT ERR
PROC PROTOCOL
ERR
Faulty or improperly installed
microprocessor or system board.
See "Troubleshooting the
Microprocessors" in your
Installation and Troubleshooting
Guide.
If the problem persists, see
"Getting Help" in your
Installation and Troubleshooting
Guide.
EB107 PROC MACHINE CHK Faulty or improperly installed
microprocessor or system board.
See "Troubleshooting the
Microprocessors" in your
Installation and Troubleshooting
Guide. If the problem persists,
see "Getting Help" in your
Installation and Troubleshooting
Guide.
EB107 PROC HOT Processor is out of acceptable
temperature range and has halted
operation.
See "Troubleshooting System
Cooling Problems" in your
Installation and Troubleshooting
Guide.
Table 1-3. LCD Status Messages (continued)
Line 1
Message
Line 2
Message
Causes Corrective Actions

12 Information Update
EB10C ECC UNCORR ERR
ECC UNCORR ERR
BANK #
Uncorrectable ECC errors have
occurred in system memory. The
affected memory bank may be
specified.
See "Troubleshooting System
Memory" in your Installation
and Troubleshooting Guide.
EB113 I/O CHANNEL CHK System I/O channel check error
has occurred.
See "Getting Help" in your
Installation and Troubleshooting
Guide.
EB113 PCI PARITY ERR PCI parity error has occurred. See "Troubleshooting Expansion
Cards" in your Installation
and Troubleshooting Guide. If
the problem persists, see "Getting
Help" in your Installation
and Troubleshooting Guide.
EB113 PCI SYSTEM ERR PCI system error has occurred. See "Troubleshooting Expansion
Cards" in your Installation
and Troubleshooting Guide. If
the problem persists, see "Getting
Help" in your Installation
and Troubleshooting Guide.
EB113 PCIE FATAL ERR Fatal PCIe error has occurred. See "Troubleshooting Expansion
Cards" in your Installation
and Troubleshooting Guide. If
the problem persists, see "Getting
Help" in your Installation
and Troubleshooting Guide.
EB113 PCIE NON
FATAL ERR
Non-fatal PCIe error has
occurred.
See "Troubleshooting Expansion
Cards" in your Installation
and Troubleshooting Guide. If
the problem persists, see "Getting
Help" in your Installation
and Troubleshooting Guide.
Table 1-3. LCD Status Messages (continued)
Line 1
Message
Line 2
Message
Causes Corrective Actions

Information Update 13
Environmental Data Sheets
For additional information about environmental measurements for specific system configurations,
see
www.dell.com/environment_datasheets .
EB113 CHIPSET ERR An error has occurred in the
chipset.
See "Troubleshooting the
Microprocessors" in your
Installation and Troubleshooting
Guide. If the problem persists,
see "Troubleshooting Expansion
Cards" in your Installation
and Troubleshooting Guide.
If the problem still persists, see
"Getting Help" in your
Installation and Troubleshooting
Guide.
EFFF2 ROMB PRESENCE Integrated RAID controller is
activated.
Information only.
I0000 BIB BMC unable to read BIOS Initial
Block (BIB).
See "Getting Help" in your
Installation and Troubleshooting
Guide.
IB110 SBE LOG DISABLED Single-bit error log disabled. Information only.
IB110 LOGGING DISABLED BIOS logging disabled. Information only.
IB10C MEMORY SPARED Memory spare bank enabled. Information only.
IB10C MEMORY MIRRORED Memory mirroring enabled. Information only.
IB10C MEMORY RAID Memory RAID enabled. Information only.
IS000 INTRUSION System cover has been removed. Information only
NOTE: For the full name of an abbreviation or acronym used in this table, see the "Glossary"
in your User’s Guide.
Table 1-3. LCD Status Messages (continued)
Line 1
Message
Line 2
Message
Causes Corrective Actions

14 Information Update
Removing and Installing the Cooling Shroud
To remove the cooling shroud, grasp each end of the shroud and lift the shroud straight up from the system.
To install the cooling shroud, slowly lower the shroud straight down into the system and then press down on
the four icons (above the latches) until the shroud snaps into place. See Figure 1-2.
Figure 1-2. Removing and Installing the Cooling Shroud
cooling shroud
icons (4)
latches (4)

Information Update 15
Linux Operating System Information
Booting Red Hat Enterprise Linux AS (Version 4) for Intel x86 With More than Eight Logical
Processors
A system running the Red Hat Enterprise Linux AS (version 4) for Intel x86 operating system will fail
to boot if it is configured with more than eight logical processors. To work around this issue, pass the
parameter apic=bigsmp to the kernel command line at system boot. A correction for this issue will
be available in a future Red Hat Enterprise Linux Version 4 Update.
Using More than Eight Logical Processors With Red Hat Enterprise Linux (Version 4)
for Intel EM64T
A limitation in the Red Hat Enterprise Linux (version 4) for Intel EM64T operating system will cause the
operating system to use no more than eight logical processors even if more processors are present in your
system. On systems with more than eight logical processors, the Linux operating system will recognize and
report only eight processors. For more information about this limitation, see the
Red Hat Enterprise Linux 4
Update 3 Release Notes
on the Red Hat web site at http://www.redhat.com/docs/manuals/enterprise/ .
Rebooting Red Hat Enterprise Linux AS (Version 4) for Intel EM64T
The system may hang when the message Restarting System appears while rebooting a system
running the Red Hat Enterprise Linux AS (version 4) for Intel EM64T operating system. If this occurs,
use the power button to power off the system. A correction for this issue will be available in a future
Red Hat Enterprise Linux Version 4 Update.
NIC Device Names
In a system using the Linux operating system without an optional PCI-X NIC card installed, the integrated
NICs are assigned device names
eth0 and eth1 . However, if you install a PCI-X NIC card, the card’s NIC port
is assigned device name
eth0 (a dual-port card will be assigned device names eth0 and eth1) and the
integrated NICs will be assigned subsequent numbers. The designations are assigned in the order of the PCI
bus scan.
Microsoft Windows Server 2003 Installation With More
than Eight Logical Processors
A system configured with more than eight logical processors may hang during installation of versions
of Microsoft Windows Server 2003 Standard or Enterprise Edition earlier than SP1. To avoid this issue,
temporarily disable Logical Processor in the System Setup program.
(See your User’s Guide for
information on the System Setup program.)

16 Information Update
Microsoft Windows 2000 Installation
Installation of Microsoft Windows 2000 Server or Microsoft Windows 2000 Advance Server is not supported
on PowerEdge 6800 systems featuring dual-core processors with L3 cache.
NOTE: Installation of Microsoft Windows 2000 Server or Microsoft Windows 2000 Advanced Server is
supported on PowerEdge 6800 systems featuring single-core processors (with or without L3 cache)
and dual-core processors with L2 cache only.
The processor type can be obtained by one of the following methods:
• Check your system purchase order details.
• Check the system startup screen.
• Check
CPU Information in the system setup program.
Console Redirection—Escape Key Sequences
The following table updates the escape key sequences for function keys in the "Using Console
Redirection" section of your User’s Guide.
Table 1-4. Escape Sequences for Function Keys
Key(s) Supported Sequence
<F1> <Esc><1>
<F2> <Esc><2>
<F3> <Esc><3>
<F4> <Esc><4>
<F5> <Esc><5>
<F6> <Esc><6>
<F7> <Esc><7>
<F8> <Esc><8>
<F9> <Esc><9>
<F10> <Esc><0>
<F12> <Esc><@>

www.dell.com | support.dell.com
Dell™PowerEdge™6800 系统
信息更新

注、注意和警告
注：注表示可以帮助您更好地使用计算机的重要信息。
注意：注意表示可能会损坏硬件或导 数据丢失，并告诉您如何避免此类问题。
警告：警告表示可能会导致财产损失、人身伤害甚至死亡。
____________________
本文件中的信息如有更改，恕不另行通知。
© 2006 Dell Inc. 版权所有，翻印必究。
未经 Dell Inc. 书面许 ，严禁以任何形式进行复制。
本文中使用的商标：Dell、DELL 徽标和 PowerEdge 是Dell Inc. 商标； Intel 是Intel Corporation 的注册商标； Microsoft 和Windows
是Microsoft Corporation 的注册商标，Windows Server 是Microsoft Corporation 的商标； Red Hat 是Red Hat Corporation 的注册商
标； SUSE 是SUSE LINUX Products GmbH 的注册商标。
本文件中述及的其它商标和产品名称是指拥有相应商标和名称的公司或其制造的产品。Dell Inc. 对本公司的商标和产品名称之外
的其它商标和产品名称不拥有任何专有权。
2006 年9 月P/N F3227 修订版 A09
