Getting Started With Your System 3
Installation and Configuration
WARNING: Before performing the following procedure, review the safety
instructions that came with the system.
Unpacking the System
Unpack your system and identify each item.
Optional – Connecting the Keyboard, Mouse, and Monitor

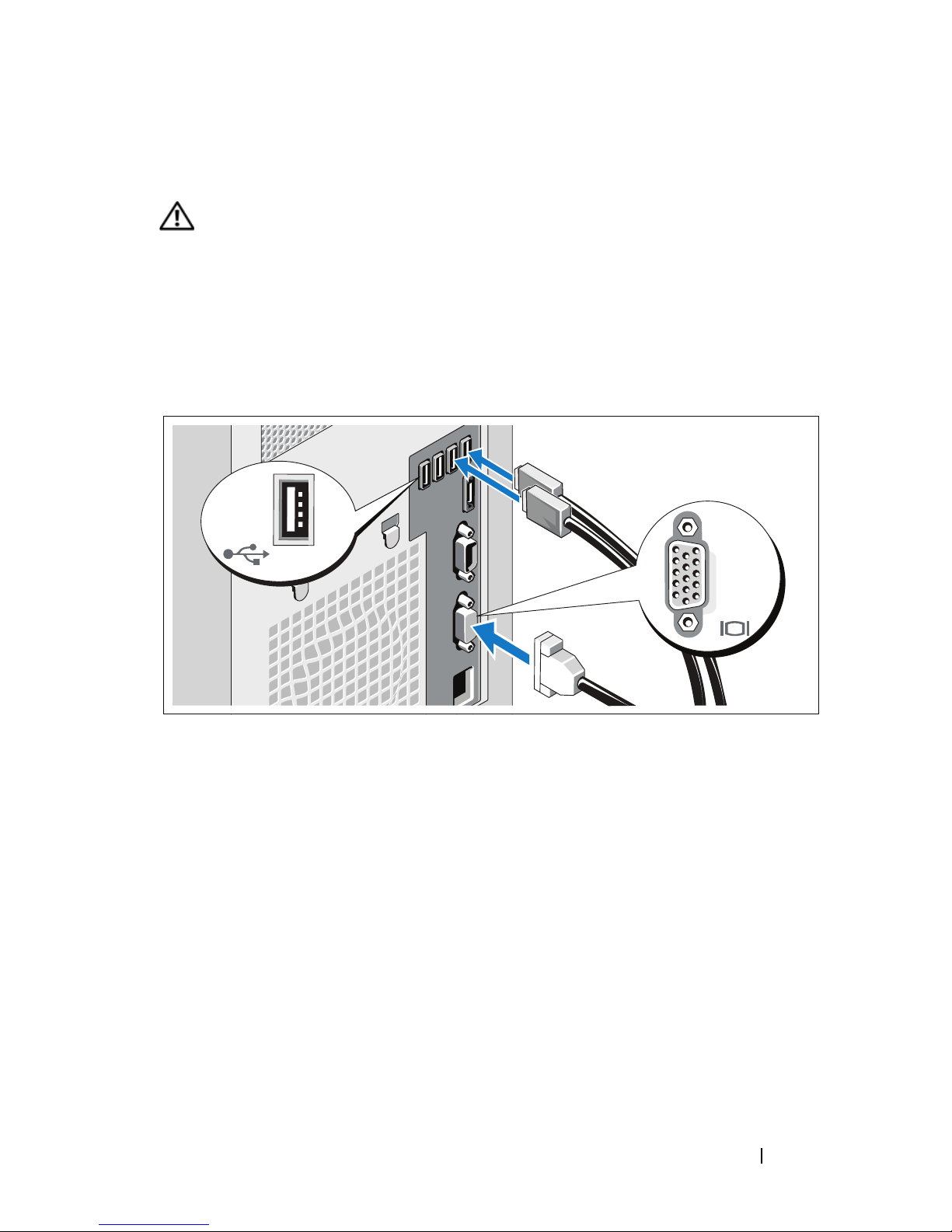

Connect the keyboard, mouse, and monitor (optional).
The connectors on the back of your system have icons indicating which cable
to plug into each connector. Be sure to tighten the screws (if any) on the
monitor's cable connector.

4Getting Started With Your System
Connecting the Power Cable
CAUTION: Be sure to set the voltage selection switch on the power supply for the
voltage that most closely matches the AC power available at your location.
Connect the system’s power cable to the system and, if a monitor is used,
connect the monitor’s power cable to the monitor.
Securing the Power Cable

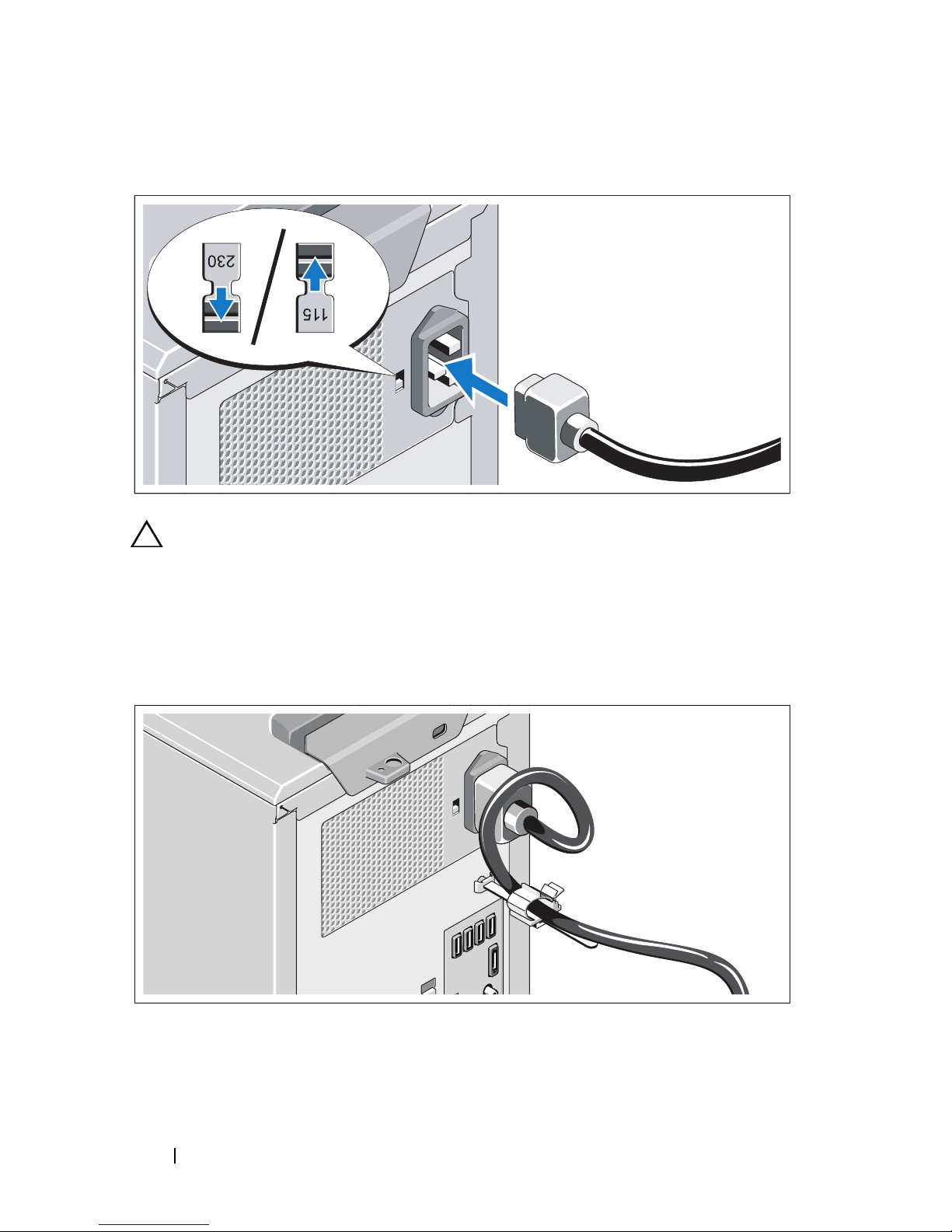

Bend the system power cable into a loop as shown in the illustration and
attach to the cable clasp.

Getting Started With Your System 5
Plug the other end of the power cable into a grounded electrical outlet or
a separate power source such as an uninterrupted power supply (UPS) or
a power distribution unit (PDU).
NOTE: Ensure that the system is connected to a stand-alone power source with
stable power supply for better performance.
Turning On the System

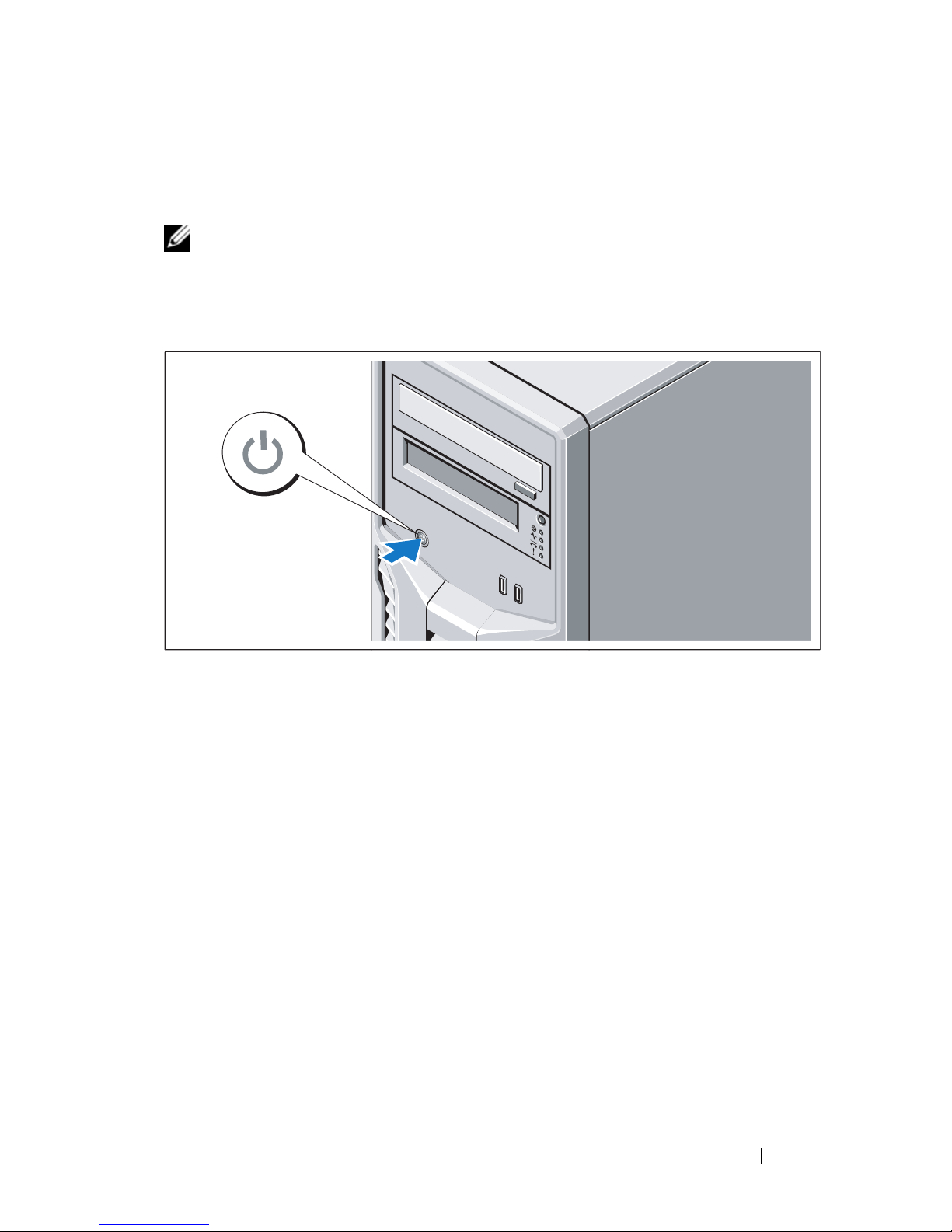

Press the power button on the system. The power indicator should light.
Complete the Operating System Setup
If you purchased a preinstalled operating system, see the operating system
documentation that ships with your system. To install an operating system for
the first time, see the installation and configuration documentation for your
operating system. Be sure the operating system is installed before installing
hardware or software not purchased with the system.

6Getting Started With Your System
Supported Operating Systems
• Microsoft
®
Windows Server
®
2008 R2 Standard and
Foundation (x64) Editions
• Microsoft Windows Server 2008 Standard (x86) Edition with SP2
• Microsoft Windows Server 2008 Standard (x64) Edition with SP2
• Microsoft Windows Server 2008 Standard (x86) Edition
• Microsoft Windows Server 2008 Standard and Foundation (x64) Editions
• Microsoft Windows
®
Small Business Server 2008 Standard and
Premium (x64) Editions
• Microsoft Windows Essential Business Server 2008 Standard and
Premium (x64) Editions
• Microsoft Windows Server 2003 R2 Standard (x86) Edition
• Microsoft Windows Server 2003 R2 Standard (x64) Edition
• Microsoft Windows Server 2008 Hyper-V™
• Microsoft Hyper-V Server 2008
•RedHat
®
Enterprise Linux
®
Server 5.3 (x86_64)
• Red Hat Enterprise Linux Server 5.3 (x86)
•SUSE
®
Linux Enterprise Server 11 (x86_64)
NOTE: For the latest information on supported operating systems,
see www.dell.com.

Getting Started With Your System 7
Other Information You May Need
WARNING: See the safety and regulatory information that shipped with
your system. Warranty information may be included within this document or as
a separate document.
• The Hardware Owner’s Manual provides information about system
features and describes how to troubleshoot the system and install or
replace system components. This document is available online at
support.dell.com/manuals .
• Any media that ships with your system that provides documentation and tools
for configuring and managing your system, including those pertaining to the
operating system, system management software, system updates, and system
components that you purchased with your system.
NOTE: Always check for updates on support.dell.com/manuals and read the
updates first because they often supersede information in other documents.
Obtaining Technical Assistance
If you do not understand a procedure in this guide or if the system does not
perform as expected, see your Hardware Owner’s Manual. Dell™ offers
comprehensive hardware training and certification. See www.dell.com/training
for more information. This service may not be offered in all locations.

8Getting Started With Your System
Technical Specifications
Processor
Processor type Intel®Xeon®Processor 3400 series
Expansion Bus
Bus type PCI Express Generation 2
Expansion slots: Slot 1: PCIe x8 (x8 routing), half-length
Slot 2: PCIe x16 (x8 routing), full-length
Slot 3: PCIe x8 (x4 routing), half-length
Slot 4: PCIe x1 (x1 routing), half-length
Memory
Architecture 1066-MHz or 1333-MHz DDR3 unbuffered
Error Correcting Code (ECC) DIMMs
Memory module sockets Four 240-pin
Memory module capacities 1 GB, 2 GB, or 4 GB
Minimum RAM 1 GB
Maximum RAM 16 GB
Drives
Hard drives Up to four 3.5-inch, cabled SAS or SATA
internal drives
Optical drive Optional internal SATA DVD-ROM or SATA
DVD+/-RW
Optional external USB DVD-ROM
NOTE: DVD devices are data only.
Tape drive One optional internal half-height tape
backup device

Getting Started With Your System 9
Connectors
Back
NIC One RJ-45 (for integrated 1-GB NIC)
Serial 9-pin, DTE, 16550-compatible
USB Four 4-pin, USB 2.0-compliant
Video 15-pin VGA
eSATA One 7-pin connector
Front
USB Two 4-pin, USB 2.0-compliant
Internal
USB Two 4-pin, USB 2.0-compliant
Video
Video type Matrox G200, integrated in Winbond
WPCM450
Video memory 8 MB
Power
AC power supply (per power supply)
Wattage 305 W
Voltage 90-135 VAC (115 V)/180-264 VAC (230 V),
50/60 Hz, 9-4.5 A
Heat dissipation 1776 BTU/hr maximum
Maximum inrush current Under typical line conditions and over the
entire system ambient operating range,
the inrush current may reach 35 A per power
supply for 10 ms or less.
Batteries
System battery CR 2032 3.0-V lithium ion coin cell

10 Getting Started With Your System
Physical
Height 42.03 cm (16.55 in)
Width 18.9 cm (7.44 in)
Depth 46.38 cm (18.26 in)
Weight (maximum configuration) 15.49 kg (34.14 lb)
Environmental
NOTE: For additional information about environmental measurements for specific
system configurations, see www.dell.com/environmental_datasheets.
Temperature
Operating 10° to 35°C (50° to 95°F) with a maximum
temperature gradation of 10°C per hour
NOTE: For altitudes above 2950 feet,
the maximum operating temperature
is derated 1ºF/550 ft.
Storage –40° to 65°C (–40° to 149°F) with
a maximum temperature gradation
of 20°C per hour
Relative humidity
Operating 20% to 80% (noncondensing) with a
maximum humidity gradation of 10% per hour
Storage 5% to 95% (noncondensing)
Maximum vibration
Operating 0.26 Grms at 5–350 Hz for 15 min
Storage 1.54 Grms at 10–250 Hz for 15 min

Getting Started With Your System 11
Maximum shock
Operating One shock pulse in the positive z axis
(one pulse on each side of the system) of
31 G for 2.6 ms in the operational orientation
Storage Six consecutively executed shock pulses in
the positive and negative x, y, and z axes
(one pulse on each side of the system) of
71 G for up to 2 ms
Six consecutively executed shock pulses
in the positive and negative x, y, and z axes
(one pulse on each side of the system) of
32 G faired square wave pulse with velocity
change at 270 inches/second
(686 centimeters/second)
Altitude
Operating –16 to 3,048 m (–50 to 10,000 ft)
NOTE: For altitudes above 2950 feet,
the maximum operating temperature
is derated 1ºF/550 ft.
Storage –16 to 10,600 m (–50 to 35,000 ft)
Airborne Contaminant Level
Class G2 or lower as defined by ISA-S71.04-1985
Environmental (continued)

12 Getting Started With Your System

Systèmes Dell™
PowerEdge™ T110
Guide de mise en route
Modèle réglementaire E11S
Type réglementaire E11S001

Remarques, précautions et avertissements
REMARQUE : Une REMARQUE indique des informations importantes qui peuvent
vous aider à mieux utiliser votre ordinateur.
PRÉCAUTION : Une PRÉCAUTION vous avertit d'un risque de dommage matériel
ou de perte de données en cas de non-respect des instructions données.
AVERTISSEMENT : Un AVERTISSEMENT vous avertit d'un risque
d'endommagement du matériel, de blessure corporelle ou de mort.
____________________
Les informations contenues dans ce document sont sujettes à modification sans préavis.
© 2009 Dell Inc. Tous droits réservés.
La reproduction de ce document de quelque manière que ce soit sans l'autorisation écrite de Dell Inc.
est strictement interdite.
Marques mentionnées dans ce document : Dell, le logo DELL et PowerEdge sont des marques de
Dell Inc. ; Intel et Xeon sont des marques déposées d'Intel Corporation aux États-Unis et dans d'autres
pays ; Microsoft,Hyper-V, Windows et Windows Server sont des marques ou des marques déposées
de Microsoft Corporation aux États-Unis et/ou dans d'autres pays ; Red Hat et Enterprise Linux sont
des marques déposées de Red Hat, Inc., aux États-Unis et dans d'autres pays ; SUSE est une marque
déposée de Novell Inc. aux États-Unis et dans d'autres pays.
D'autres marques commerciales et noms de marque peuvent être utilisés dans ce document pour faire
référence aux entités se réclamant de ces marques et de ces noms ou de leurs produits. Dell Inc. dénie
tout intérêt propriétaire vis-à-vis des marques commerciales et des noms de marque autres que les siens.
Modèle réglementaire E11S
Type réglementaire E11S001
Juin 2009 N/P U508M Rév. A00

Guide de mise en route 15
Installation et configuration
AVERTISSEMENT : Avant de commencer, consultez les consignes de sécurité
fournies avec le système.
Déballage du système
Sortez le système de son emballage et identifiez chaque élément.
Facultatif – Connexion du clavier, de la souris et du moniteur
Connectez le clavier, la souris et le moniteur (si nécessaire).
Les icônes des connecteurs situées à l'arrière du système indiquent où insérer
chaque câble. N'oubliez pas de serrer les vis situées sur le connecteur du câble
du moniteur, s'il en est équipé.

16 Guide de mise en route
Branchement du câble d'alimentation
PRÉCAUTION : Veillez à sélectionner sur le bloc d'alimentation la tension la plus
proche de l'alimentation secteur de votre région.
Branchez le câble d'alimentation au système et, si vous utilisez un moniteur,
branchez son câble d'alimentation.
Fixation du câble d'alimentation
Faites une boucle comme indiqué dans l'illustration et insérez le câble
d'alimentation du système dans le clip.

Guide de mise en route 17
Branchez ensuite l'autre extrémité du câble d'alimentation sur une prise
secteur mise à la terre ou sur une source d'alimentation autonome
(onduleur ou unité de distribution de l'alimentation).
REMARQUE : Vérifiez que le système est relié à une source d'alimentation
autonome et stable (pour de meilleures performances).
Mise sous tension du système
Appuyez sur le bouton de mise sous tension du système. Le voyant
d'alimentation doit s'allumer.
Fin de l'installation du système d'exploitation
Si vous avez acheté un système d'exploitation préinstallé, consultez tout
d'abord la documentation associée, fournie avec l'ordinateur. Pour une
première installation du système d'exploitation, consultez la documentation
concernant l'installation et la configuration du système d'exploitation. Veillez
à installer le système d'exploitation avant tout élément matériel ou logiciel
acheté séparément.

18 Guide de mise en route
Systèmes d'exploitation pris en charge
• Microsoft
®
Windows Server
®
2008 R2, éditions Standard et
Foundation (x64)
• Microsoft Windows Server 2008, édition Standard (x86) avec SP2
• Microsoft Windows Server 2008, édition standard (x64) avec SP2
• Microsoft Windows Server 2008, édition Standard (x86)
• Microsoft Windows Server 2008, éditions Standard et Foundation (x64)
• Microsoft Windows
®
Small Business Server 2008, éditions Standard
et Premium (x64)
• Microsoft Windows Essential Business Server 2008, éditions Standard
et Premium (x64)
• Microsoft Windows Server 2003 R2, édition Standard (x86)
• Microsoft Windows Server 2003 R2, édition Standard (x64)
• Microsoft Windows Server 2008 Hyper-V™
• Microsoft Hyper-V Server 2008
•RedHat
®
Enterprise Linux
®
Server 5.3 (x86_64)
• Red Hat Enterprise Linux Server 5.3 (x86)
•SUSE
®
Linux Enterprise Server 11 (x86_64)
REMARQUE : Pour obtenir les informations les plus récentes sur les systèmes
d'exploitation pris en charge, rendez-vous sur le site www.dell.com.
