Media migration
Dell PowerVault DL backup
to Disk Appliance
powered by Symantec

Media Migration
2
Executive summary
During the operation of the Dell™ PowerVault™ DL backup to
Disk Appliance Powered by Symantec Backup Exec™, it may
become necessary to migrate or copy backup data from one
appliance to another. Depending on the appliance configuration,
this data may reside on disk, tape, or both. This guide provides
instructions for migrating the data from one appliance to
another for the following items:
Disk Group(s)•
Tape Media•
Tape Library/Libraries•
Data Set(s)•
Disk Group(s) not associated with a PowerVault DL Appliance•
Migrating an entire disk group
An entire Disk Group (the physical drives making up the virtual
disks on the PowerVault DL Appliance) must be migrated
together from one PowerVault DL Appliance to another.
Migrating single drives or partial drives in a Disk Group will result
in data loss for the entire Disk Group.
Perform the following steps to migrate a Disk Group from one
appliance to another:
Determine the Disk Group for migration.1.
Note: Although Disk Groups in a standard configuration state
(as defined in the Dell PowerVault™ DL Appliance Powered
by Symantec Backup Exec Quick Start Guide) are typically
contained in Slots 1-7 or Slots 8-14 on each PowerVault
MD1000 Storage Enclosure, there are cases where the
slot locations may be dierent or have changed. Using the
following procedure ensures the correct drives are migrated
in all cases.
From Symantec’s Backup Exec Management Console,a.

Media Migration
3
select the Devices tab and then determine the
“Hardware name” of the resource of the Storage Array
to be migrated.
In the example found in Figure 1, “VIRTDISK 8” in “ARRAY 1”
is going to be migrated, and its associated hardware name is
“VDS_CREATED_001”.

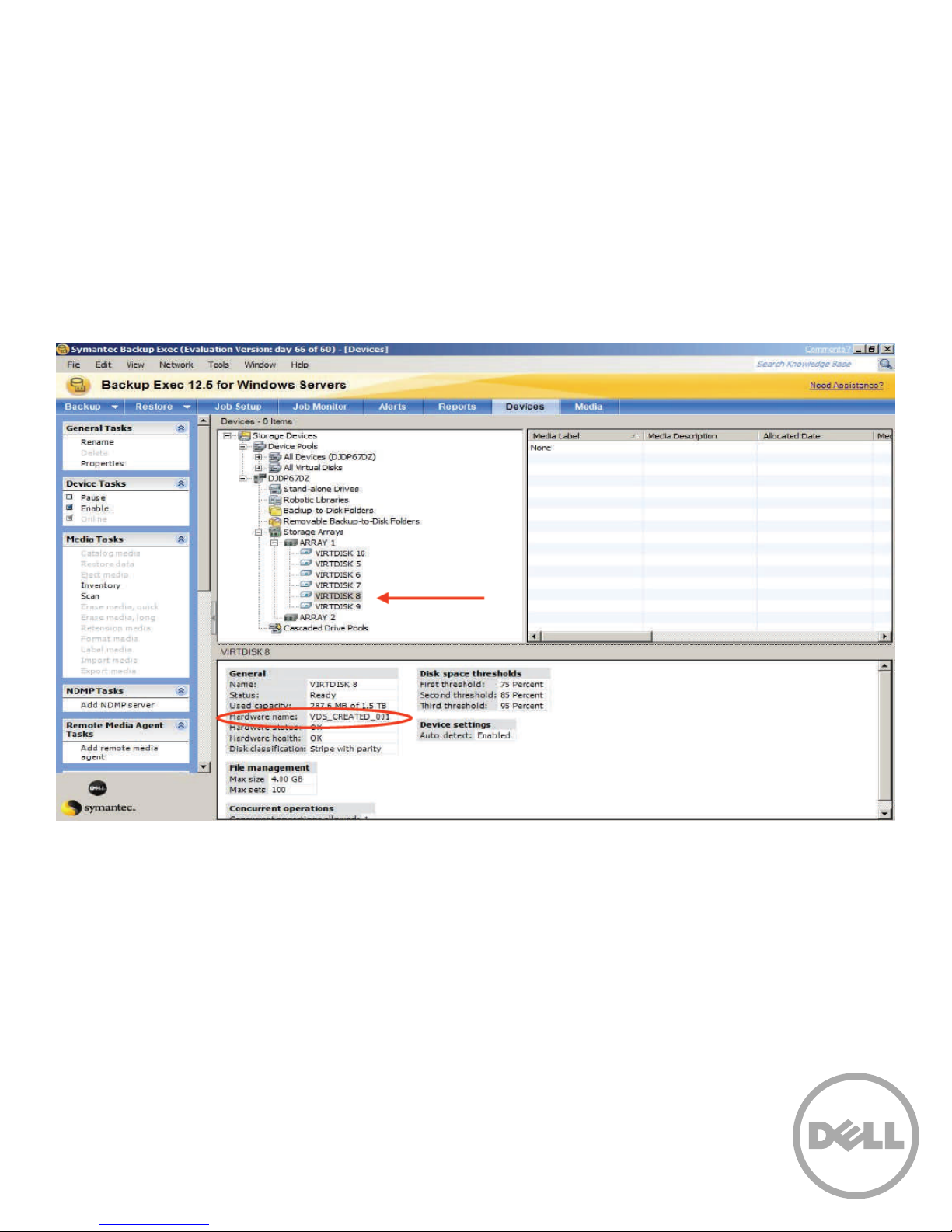

Figure 1: Example selection of a storage resource to be migrated
From the DL Backup to Disk Appliance Console,b.
launch Dell’s OpenManage Server Administrator
(OMSA). Select Virtual Disks from the appropriate
PERC 6/e Adapter as seen in Figure 2 and locate the
hardware name of the resource to be migrated as
determined in step 1.a.

Media Migration
4

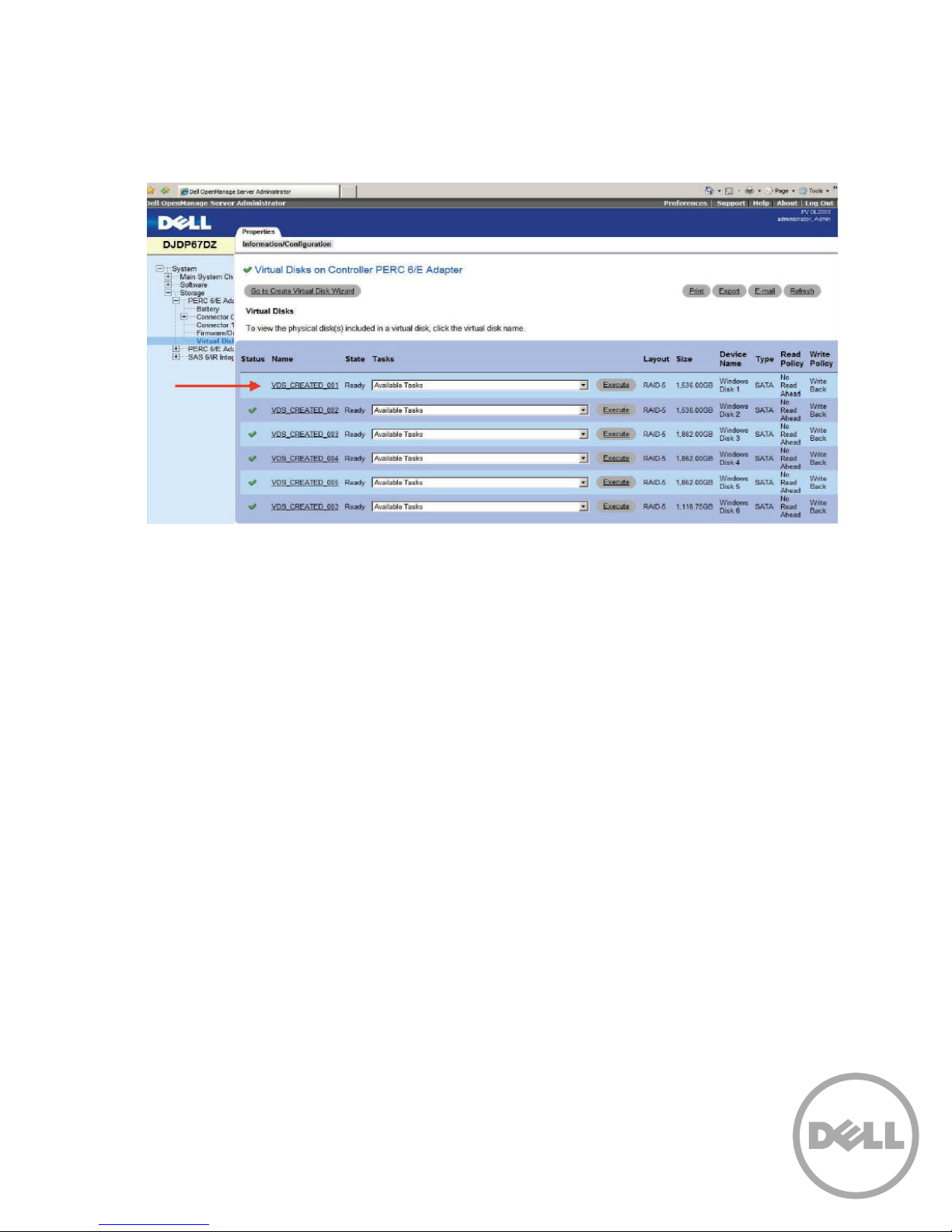

Figure 2: OMSA view of storage resource to be migrated
Determine and make note of which physical disksc.
the Disk Group is comprised of by either 1) using the
Blink task (see Figure 3) and then manually viewing
the physical drives (now blinking) associated with the
resource on the MD1000 Storage Enclosure; or 2)
by viewing the details of the virtual disk as shown in
Figure 4.

Media Migration
5

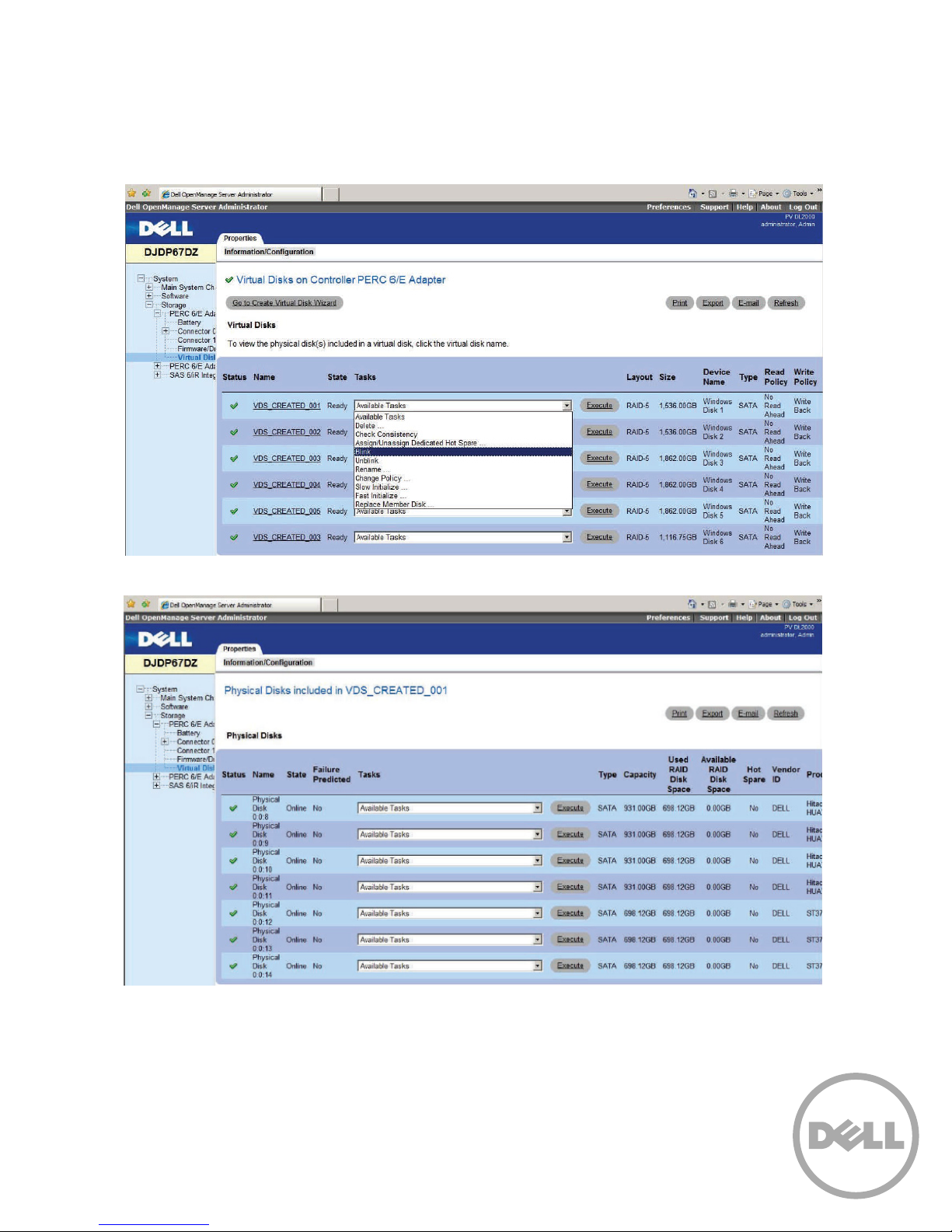

Figure 3: Selection of the Blink task in OMSA
Figure 4: Physical disks associated with the resource to be migrated

Media Migration
6
Power down the PowerVault DL Appliance, including the2.
server and all attached MD1000 Storage Enclosures.
Remove the physical disks for the Disk Group to be3.
migrated as determined in Step 1.c.
On the target PowerVault DL appliance, set the4. Disk
Configuration Policy to Manual via the Appliance
Management Console.
Install the physical disks of the migrated Disk Group in to5.
the MD1000 Storage Enclosure connected to the target
PowerVault DL Appliance.
Note: If the goal is to keep the Disk Configuration State as
Standard, the migrated Disk Group must occupy Slots 1-7
or Slots 8-14 in the new MD1000 Storage Enclosure. The
optional hot spare should be installed in Slot 0.
From the target PowerVault DL Appliance Console,6.
launch Dell’s OpenManage Server Administrator (OMSA)
tool. Import the migrated Disk Group(s) using OMSA.
Refer to the Dell OpenManage Server Administrator
(OMSA) User Guide for specific steps. Note: Use the
OMSA procedure for importing foreign configurations.
On the target PowerVault DL appliance, reset the Disk7.
Configuration Policy to one of the Automatic settings via
the Appliance Management Console.
Launch Symantec Backup Exec once the Disk Group has8.
been imported. Backup Exec will automatically discover
and detect the imported Disk Group (listed as an Array in
the Devices tab), including its virtual disks. The contents
of the migrated Disk Group / array must be inventoried
and cataloged before they are available
for use.
Select the9. Devices tab from within the Backup Exec
management console. Right-click the imported virtual
disk and select Inventory from the pop-up menu. Repeat
this step for each imported virtual disk. Once all virtual
disks have been inventoried, their contents must be
cataloged.

Media Migration
7
Cataloging the migrated disk group
The virtual disks contained in the migrated Disk Group must
be cataloged in Backup Exec once the virtual disks have been
imported and inventoried on the new PowerVault DL Appliance.
Cataloging the virtual disks allows Backup Exec to read and store
the information contained in the virtual disks which includes:
Media number/label/name (something to identify that•
media from all others)
Date and time of the backup•
Type of backup•
What directories/files were backed up•
From the Backup Exec Management Console, perform the
following steps to catalog the imported virtual disks:
From the1. Devices tab, select the first virtual disk that was
imported. Refer to Figure 1 for an example location.
Select all of the media on the right.2.
Right-click all of the media and select3. Catalog Media
from the pop-up menu. Specify the following (if
necessary) on the Catalog Job Properties dialogue:
Under• Device, specify a password if the media is
password protected
Under• General, specify a job name and priority
Under• Schedule, select Run Now to start the
Inventory Operation
Continue to specify the settings for each media in the4.
catalog operation. Backup Exec will catalog the media
and it will be available for use.
Migrating tape media

Media Migration
8
It may be necessary to migrate backup sets stored on tape
media from one PowerVault DL Appliance to another. In order
to migrate tape media from one appliance to another, the tape
media must be exported from the tape library attached to the
original appliance.
Exporting Tape Media
An export job must be created to export tape media so that
the Backup Exec database is updated. The Backup Exec export
media job fully supports robotic libraries with portals. When this
job is run on one or more robotic library slots, the exported
media is placed in the portals. If you select more media than
there are portals, the robotic library will fill as many slots as
possible, and then you are prompted to remove the media from
the portal. This process continues until all of the selected media
has been removed from the robotic library.
Open the1. Symantec Backup Exec
Management Console.
Click2. Devices on the navigation bar.
Select the robotic library containing the tape media.3.
Click4. Slots.
On the5. Results pane, select the slots you want to export
tape media from.
Under6. Media Tasks in the Task pane, select Export
media.
Complete the appropriate options as follows:7.
Job Name•
Job Priority•
Select8. Run Now to have the import media operation run.
Importing Tape Media

Media Migration
9
On the PowerVault DL Appliance that you wish to import the
tape media into, you must create an import media job to insert
media into your robotic library so that the Backup Exec database
is updated. The Backup Exec import media job fully supports
robotic libraries with portals. When this job is run, the slots you
selected are checked for media. If media is found, it is exported
to the portals. After all the media has been exported, you are
prompted to insert new media into the portal so it can be
imported. This process continues until all of the requested media
has been imported into the robotic library.
Before you create an import media job, note the following:
If the media does not have a bar code, when you•
create the import job, you must select the option
Auto-inventory after import is completed.
If your robotic library uses a media magazine, make•
sure no jobs are currently running and that all media
are ejected from the drive and are back in the
magazine slots before swapping the magazine.
You can select any number of slots to import.
You can monitor this job on the Job Monitor.
To import media to a robotic library:
On the navigation bar, click1. Devices.
Select the robotic library.2.
Click3. Slots.
On the4. Results pane, select the slots you want to import
media to.
Under5. Media Tasks in the Task pane, select Import
media.
Complete the appropriate options as follows:6.
Job Name•
Job Priority•
Backup Exec must inventory the media after it has7.
been placed in the library. In order for Backup Exec to
automatically create an inventory job to run after the
import job completes, under Settings, click Options, and

Media Migration
10
then select Auto-inventory after import is completed.
Select8. Run Now to have the import media operation run.
Cataloging migrated tape media
The tape media must be cataloged once the tape media has
been imported and inventoried on the new PowerVault DL
Appliance. Cataloging the tape media allows Backup Exec to
read and store the information contained in the tape media
catalog which includes:
Tape number/label/name (something to identify that tape•
from all others, which is typically the barcode for tape media)
Date and time of the backup•
Type of backup•
What directories/files were backed up•
Perform the following steps to catalog the imported tape media:
Click the tape drive/robotic library.1.
Select the slots containing the tape media that was just2.
imported.
Right-click the tapes/slots and select3. Catalog.
Migrating a tape library
Perform the following steps to move a tape library from one
PowerVault DL Appliance to another PowerVault DL Appliance.
Note: The correct number of Library Expansion Option
licenses must be installed on the new appliance to support
your PowerVault Tape Library.
Power down the PowerVault DL Appliance including the1.
server and attached tape library.
Perform the necessary steps to disconnect the2.
PowerVault Tape Library from the original appliance
and connect the PowerVault Tape Library to the new
appliance. Refer to your PowerVault Tape Library
documentation for more information on cabling your
Power- Vault Tape Library.
Power on the new PowerVault DL Appliance and3.
complete the appliance log in process.

Media Migration
11
Launch Backup Exec 12.5 and install the correct number4.
of Library Expansion Option licenses to support the
PowerVault Tape Library.
On the navigation bar, click Devices.5.
Select the robotic library.6.
Click Inventory. The tape library will inventory each7.
cartridge within the library. This process could take
several minutes depending on the number of cartridges
in the library.
Cataloging Media from a Migrated Tape Library
The tape media must be cataloged once the PowerVault Tape
library has completed the inventory process. Cataloging the tape
media allows Backup Exec to read and store the information
contained in the tape media catalog which includes:
Tape number/label/name (something to identify that•
tape from all others)
Date and time of the backup•
Type of backup•
What directories/files were backed up•
Perform the following steps to catalog the tape media in the
library:
Click the tape drive/robotic library.1.
Select the slots containing the tape media that was just2.
imported.
Right-click the tapes/slots and select3. Catalog.
Copying data sets

Media Migration
12
Copying Data Sets
Specific media sets can be copied from one PowerVault DL
Appliance to another. Copying sets involves the duplicate
operation to copy media sets from one appliance to another.
Perform the following steps to copy media sets from one
appliance to another:
On the source appliance, create a backup-to-disk folder1.
where the data will reside on the target appliance.
Selecta. Tools › Wizards › Backup-to-Disk.
Clickb. Next to continue the wizard.
Selectc. Create a new backup to disk folder.
Selectd. Backup-to-disk folder.
Name the backup-to-disk folder.e.
Select a path to store the backup-to-disk folder. Thisf.
path should be located on the appliance where the
media sets are being copied.
Set the size for the backup-to-disk files.g.
Set the maximum file size.h.
Set the number of backup sets per file.i.
Set the maximum number of concurrent jobs.j.
Set the low disk space thresholds.k.
Complete the wizard.l.
On the2. Job Setup tab, select New Job to Duplicate
Backup Sets.
Select3. Duplicate Existing Backup Sets.
Select the backup sets that are to be copied to the new4.
appliance.
Select the backup-to-disk folder on the new appliance5.
(specified in step 1) as the destination for the duplicate
operation from the Device and Media tab.
Complete other settings for the wizard and select6. Run
Now to run the duplicate operation.
Once the duplicate operation has completed, go to the7.
new appliance.
On the new appliance, create a backup-to-disk folder8.
following step 1. Specify the path for the backup-to-disk

Media Migration
13
folders as the local path on the appliance set in Step 1.
Complete the wizard.
Select the9. Devices tab from Backup Exec. Right-click
the backup-to-disk folder created in the previous step
and select Inventory from the pop-up menu. Once the
backup-todisk folder has been inventoried, the contents
must be cataloged.
Cataloging copied data sets
The media in the backup-to-disk folder must be cataloged once
the backup-to-disk folder has been inventoried on the new
PowerVault DL Appliance. Cataloging the backup-to-disk folder
allows Backup Exec to read and store the information contained
in the folders which includes:
Media number/label/name (something to identify that•
media from all others)
Date and time of the backup•
Type of backup•
What directories/files were backed up•
Perform the following steps to catalog the imported virtual disks:
From the1. Devices tab, select the backup-to-disk folder
that was imported.
Select all of the media on the right.2.
Right-click all of the media and select3. Catalog Media
from the pop-up menu. Specify the following (if
necessary) on the Catalog Job Properties dialogue:
Under• Device, specify a password if the media is
password protected
Under• General, specify a job name and priority
Under• Schedule, select Run Now to start the
Inventory Operation
Continue to specify the settings for each media in the4.
catalog operation. Backup Exec will catalog the media
and it will be available for use.
Migrating and unassociated disk group

Media Migration
14
Disk Group(s) from other systems (e.g., another Dell PowerEdge
Server with attached storage enclosures) may be migrated to a
PowerVault DL Appliance.
Perform the following steps to migrate a Disk Group from one
system to a targeted PowerVault DL Appliance:
Determine the Disk Group for migration.1.
Power down the system that owns the Disk Group,2.
including the server and all attached MD1000 Storage
Enclosures.
Remove the physical disks for the Disk Group to be3.
migrated .
On the target PowerVault DL Appliance, set the4. Disk
Configuration Policy to Manual via the Appliance
Management Console.
Install the physical disks of the migrated Disk Group in to5.
the MD1000 Storage Enclosure connected to the target
PowerVault DL Appliance.
Note: If the goal is to keep the Disk Configuration State as
Standard, the migrated Disk Group must occupy Slots 1-7 or
Slots 8-14 in the new MD1000 Storage Enclosure. The optional
hot spare should be installed in Slot 0.
From the target PowerVault DL Appliance Console,6.
launch Dell’s OpenManage Server Administrator (OMSA)
tool. Import the migrated Disk Group(s) using OMSA.
Refer to the Dell OpenManage Server Administrator
(OMSA) User Guide for specific steps.
Note: Use the OMSA procedure for importing foreign
configurations. If importing the foreign configurations fails, issue

Media Migration
15
the Clear command for the migrated Disk Group.
7. Using OMSA, perform a7. Fast Initialization on each of
the imported virtual disks and then delete any imported
virtual disks.
8. On the target PowerVault DL Appliance, reset the8. Disk
Configuration Policy to one of the Automatic settings
via the Appliance Management Console. Backup Exec
will then configure the imported Disk Group(s) as one or
more virtual disks and make them available for use by the
PowerVault DL Appliance.
Summary
The need to migrate or copy backup data from one
Dell PowerVault DL Appliance to another is handled via
straightforward processes and procedures. Depending on the
appliance configuration, this data may reside on disk, tape,
or both. The procedures contained herein provide a direct
methodology to accomplish the aforementioned tasks.
