Dell™ Systems
Rack Installation Guide

Notes, Notices, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you
how to avoid the problem.
CAUTION: A CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
WARNING: A WARNING indicates a potentially hazardous situation which, if not
avoided, may result in severe injury.
Information in this document is subject to change without notice.
© 2001 Dell Computer Corporation. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Computer Corporation is strictly
forbidden.
Trademarks used in this text:
Dell , the DELL logo, PowerEdge , RapidRails , and VersaRails are trademarks of Dell
Computer Corporation.
Other trademarks and trade names may be used in thisdocument to refer to eitherthe entities claiming the marks and
names or their products. Dell Computer Corporation disclaims any proprietary interest in trademarks and trade names
other than its own.
September 2001 P/N 7F206 Rev. A00

Contents 3
Contents
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
RapidRails Rack Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Dell Rack Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
VersaRails Rack Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Non-Dell Rack Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Rack Stabilizer Feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Recommended Tools and Supplies . . . . . . . . . . . . . . . . . . . . . . . 1-5
Installation Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Removing the Rack Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Marking the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Installing the RapidRails Mounting Rails . . . . . . . . . . . . . . . . . . 1-7
Installing the VersaRails Mounting Rails . . . . . . . . . . . . . . . . . . 1-9
Installing the Tower-to-Rack Conversion Kit . . . . . . . . . . . . . . 1-10
Removing the Bezel, Drives, Covers, and Front Panel . . . . . . . . 1-10
Installing the Rack Front Panel . . . . . . . . . . . . . . . . . . . . . . . . 1-13
Installing the System in the Rack . . . . . . . . . . . . . . . . . . . . . . 1-14
Replacing the Rack Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
Index

4Contents
Figures
Figure 1-1. RapidRails Rack Kit Contents . . . . . . . . . . . . . . . 1-3
Figure 1-2. VersaRails Rack Kit Contents . . . . . . . . . . . . . . . 1-3

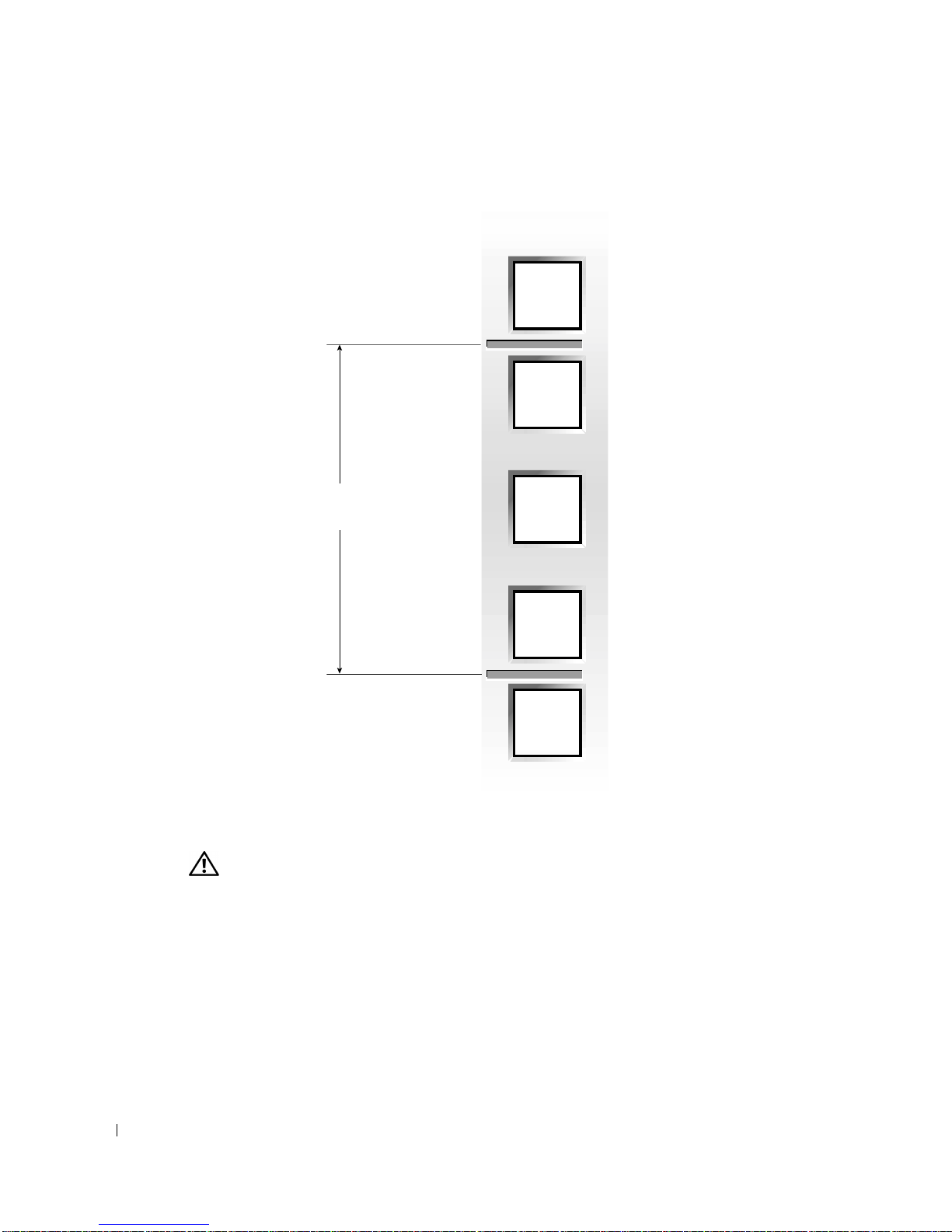

Figure 1-3. One Rack Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Figure 1-4. Marking the Vertical Rails . . . . . . . . . . . . . . . . . 1-7
Figure 1-5. Installing the RapidRails Mounting Rails . . . . . . . 1-8
Figure 1-6. Installing the VersaRails Mounting Rails . . . . . . . 1-9
Figure 1-7. Removing the Front Bezel . . . . . . . . . . . . . . . . . 1-11

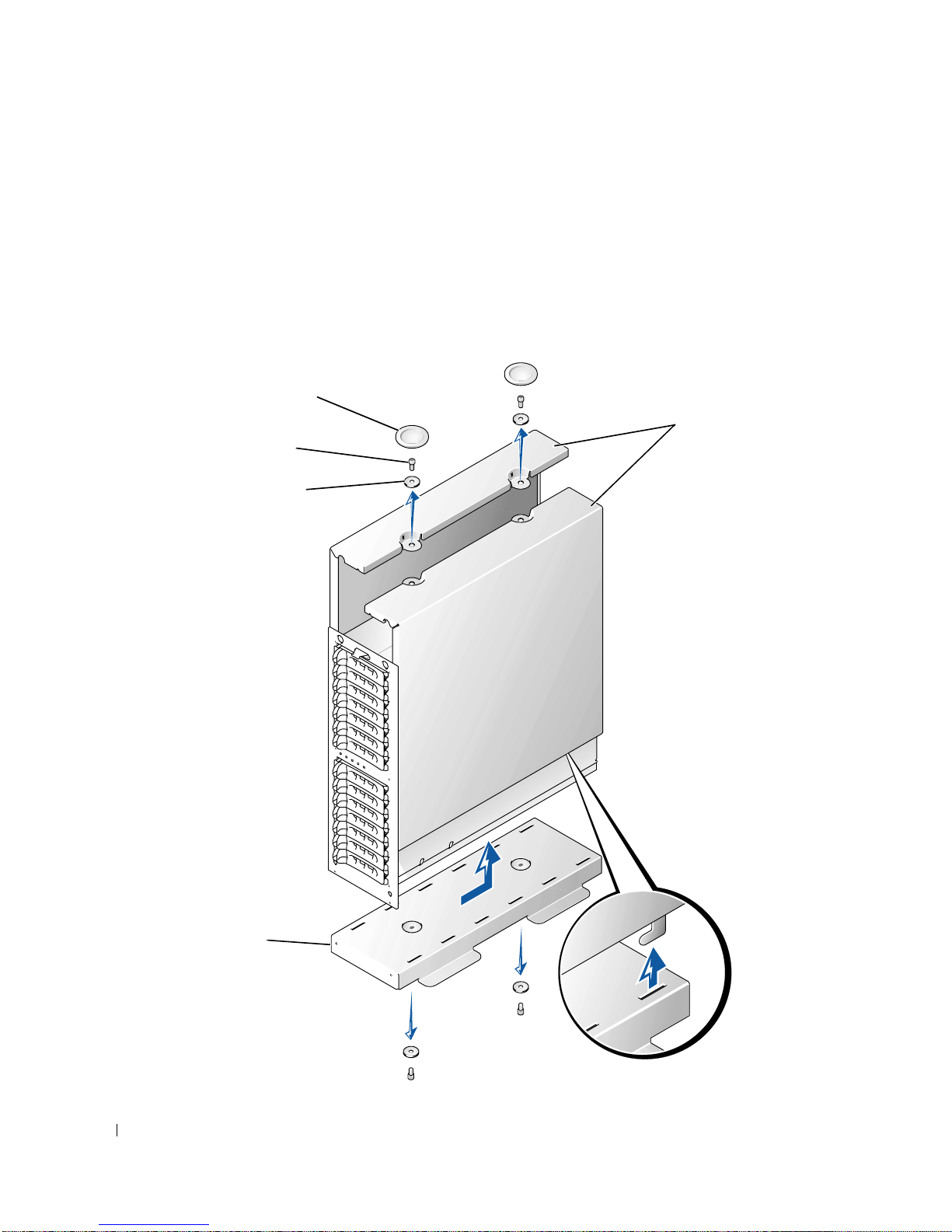

Figure 1-8. Removing the Tower System Cover. . . . . . . . . . . 1-12

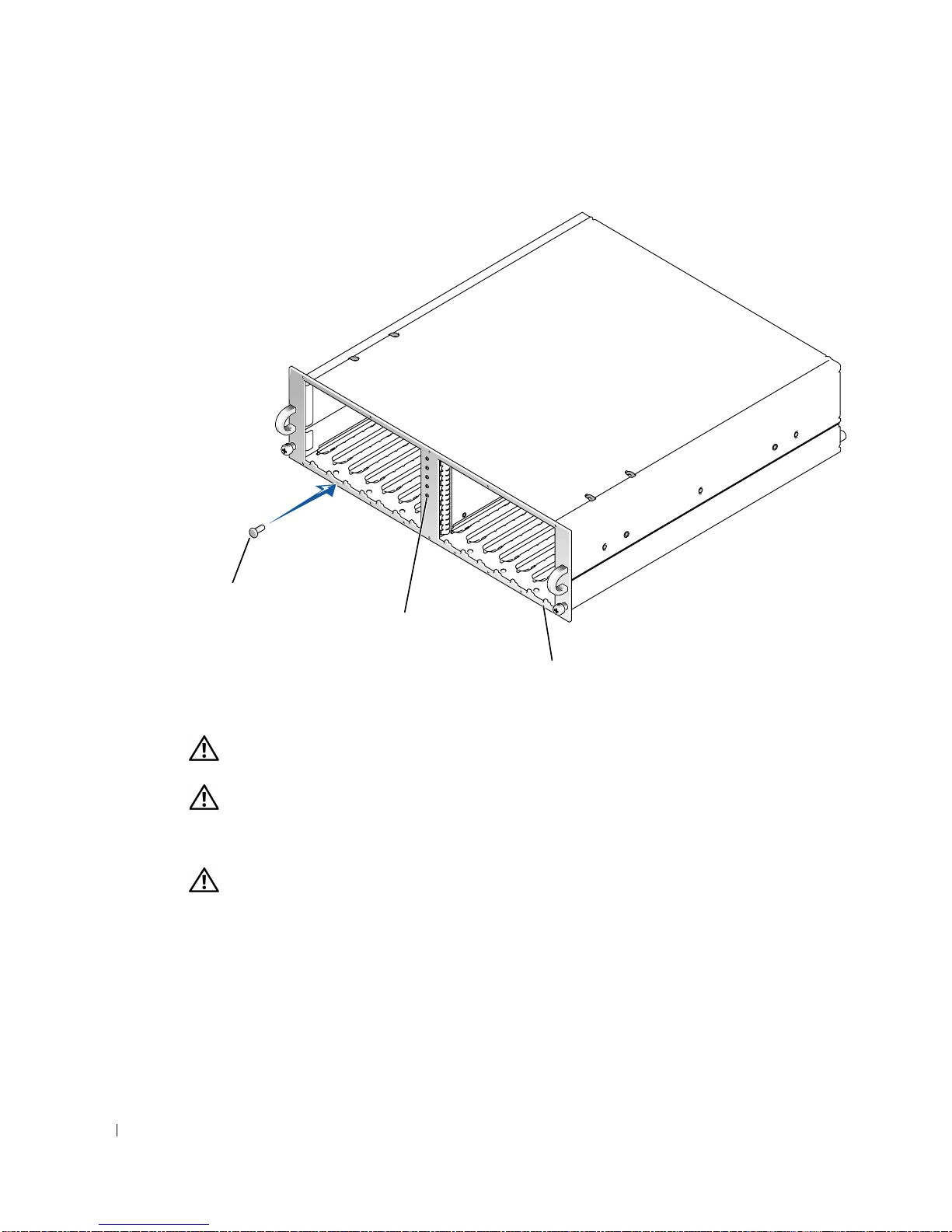

Figure 1-9. Installing the Rack Front Panel . . . . . . . . . . . . . 1-14
Figure 1-10. Installing the System in the Rack. . . . . . . . . . . . 1-15

Rack Installation Guide 1-1
Safety Instructions
Use the following safety guidelines to ensure your own personal safety and to help protect
your server, storage system, or appliance from potential damage. For complete safety,
regulatory, and warranty information, refer to your Dell™ system’s System Information
document.
Precautions for Rack-Mountable Products
Observe the following precautions for rack stability and safety. Also refer to the rack
installation documentation accompanying the system and the rack for specific warning
and/or caution statements and procedures.
Servers, storage systems, and appliances are considered to be components in a rack. Thus,
“component” refers to any server, storage system, or appliance, as well as to various
peripherals or supporting hardware.
CAUTION: Installing system components in a rack without the front and side
stabilizers installed could cause the rack to tip over, potentially resulting in
bodily injury or death under certain circumstances. Therefore, always install the
stabilizers before installing components in the rack.
CAUTION: After installing system/components in a rack, never pull more than
one component out of the rack on its slide assemblies at one time. The weight of
more than one extended component could cause the rack to tip over and injure
someone.
NOTE: Your Dell system is safety-certified as a free-standing unit and as a component for use in
a Dell rack cabinet using the Dell customer rack kit. The installation of your system and rack kit
in any non-Dell rack cabinet has not been approved by any safety agencies. It is your
responsibility to have the final combination of system and rack kit in a non-Dell rack cabinet
evaluated for suitability by a certified safety agency. Dell disclaims all liability and warranties in
connection with such combinations.
• System rack kits are intended to be installed in a Dell rack by trained service
technicians. If you install the kit in any other rack, be sure that the rack meets the
specifications of a Dell rack.
• Do not move large racks by yourself. Due to the height and weight of the rack, it is
recommended that a minimum of two people perform this task.
• Before working on the rack, make sure that the stabilizers are secured to the rack,
extend to the floor, and that the full weight of the rack rests on the floor. Install front
and side stabilizers on a single rack or front stabilizers for joined multiple racks before
working on the rack.

1-2 Rack Installation Guide
www.dell.com | support.dell.com
• Always load the rack from the bottom up, and load the heaviest item in the rack first.
• Make sure that the rack is level and stable before extending a component from the
rack.
• Use caution when pressing the component rail release latches and sliding acomponent
into or out of a rack; the slide rails can pinch your fingers.
• After a component is inserted into the rack, carefully extend the rail into a locking
position, and then slide the component into the rack.
• Do not overload the AC supply branch circuit that provides power to the rack.
The total rack load should not exceed 80 percent of the branch circuit rating.
• Ensure that proper airflow is provided to components in the rack.
• Do not step on or stand on any system/component when servicing other
systems/components in a rack.
Installation Instructions
This installation guide provides instructions for trained service technicians installing one or
more systems in a rack cabinet. The RapidRails™ rack kit can be installed in all Dell™ rack
cabinets, and the VersaRails™ rack kit can be installed in most industry-standard rack
cabinets. The procedures for installing both RapidRails and VersaRails rack kits are similar.
One rack kit is required for each system to be installed in the rack cabinet.
CAUTION: Do not attempt to install rack kit components designed for another
system. Use only the rack kit for your system. Using the rack kit for another
system may result in damage to the system and personal injury to yourself and to
others.
NOTE: If your system is a tower version, you must first convert the system to a rack version
using a tower-to-rack conversion kit. Instructions for installing this kit are included in this
document.
RapidRails Rack Kit Contents
The RapidRails rack kit consists of one pair of RapidRails mounting rails (see Figure 1-1).

Rack Installation Guide 1-3
Figure 1-1. RapidRails Rack Kit Contents
Dell Rack Requirements
NOTICE: This rack kit is intended to be installed in a Dell rack by trained service technicians.
If you install the kit in any other rack, be sure that the rack meets the specifications of American
National Standards Institute (ANSI)/Electronic Industries Association (EIA) standard
ANSI/EIA-310-D-92, International Electrotechnical Commission (IEC) 297, and Deutsche
Industrie Norm (DIN) 41494. One rack kit is required for each system that is installed in a rack.
VersaRails Rack Kit Contents
The VersaRails rack kit includes the following items (see Figure 1-2):
• One pair of VersaRails mounting rails
• Eight 10-32 x 0.5-inch Phillips screws
NOTE: The nonmetric screws described in illustrations and in procedural steps are identified by
size and number of threads-per-inch. For example, a #10 Phillips-head screw with 32 threads
per inch is identified as a 10-32 screw.
Figure 1-2. VersaRails Rack Kit Contents
RapidRails mounting rails
10-32 x 0.5-inch
pan-head Phillips
screws (8) VersaRails mounting rails

1-4 Rack Installation Guide
www.dell.com | support.dell.com
Non-Dell Rack Requirements
NOTICE: This rack kit is intended to be installed by trained service technicians in a rack that
meets the specifications of American National Standards Institute (ANSI)/Electronic Industries
Association (EIA) standard ANSI/EIA-310-D-92, International Electrotechnical Commission
(IEC) 297, and Deutsche Industrie Norm (DIN) 41494. One rack kit is required for each system
that is installed in a rack.
Before You Begin
Before you install your system in the rack, read the “Safety Instructions” in the front of this
document, as well as the safety instructions in your System Information booklet for
additional information.
CAUTION: When installing multiple systems in a rack, complete all of the
procedures for the current system before attempting to install the next system.
Important Safety Information
Observe the safety precautions in the following subsections when installing your system in
the rack.
CAUTION: You must strictly follow the procedures in this document to protect
yourself as well as others who may be involved. Your system may be very large
and heavy, and proper preparation and planning are important to prevent injury
to yourself and others. This becomes increasingly important when systems are
installed high up in the rack.
Rack Stabilizer Feet
CAUTION: Installing systems in a rack without the front and side stabilizer feet
installed and anchored to the floor could cause the rack to tip over, potentially
resulting in bodily injury or death under certain circumstances. Therefore,
always install and anchor the stabilizer feet before installing components in the
rack.
CAUTION: After installing systems in a rack, never pull more than one system
out of the rack at one time. The weight of more than one extended system could
cause the rack to tip over and cause injury.
The stabilizer feet help prevent the rack from tipping over when a system or other
component is pulled out of the rack. See the documentation provided with the rack cabinet
for instructions on installing and anchoring the stabilizer feet.

Rack Installation Guide 1-5
Recommended Tools and Supplies
The following items make the installation easier:
• A #2 Phillips screwdriver (if installing a VersaRails kit)
• Torx T-10 driver (if installing the tower-to-rack kit)
• 3/16-inch hex-head wrench (if installing the tower-to-rack kit)
Installation Tasks
Installing a rack kit involves the following tasks:
1Removing the rack doors
2Marking the rack
3Installing the mounting rails in the rack
4Installing the tower-to-rack conversion kit (if needed)
5Installing the system in the rack
6Replacing the rack doors
NOTE: The procedures that follow apply to both Dell rack cabinets and rack cabinets not
manufactured by Dell unless identified as specific to one or the other.
Removing the Rack Doors
See the procedures for removing doors in the documentation provided with your Dell 24-U
and 42-U rack cabinets. If you have a Dell PowerEdge™ 4210 rack cabinet, see the
procedures in the Dell PowerEdge 4210 Rack Installation Guide. If you have a rack cabinet
not manufactured by Dell, see the manufacturer’s documentation for removing doors.
CAUTION: Because of the size and weight of the rack cabinet doors, never
attempt to remove or install them by yourself.
Marking the Rack
NOTE: If you are installing a VersaRails rack kit, skip to the procedure, “Installing the
VersaRails Mounting Rails.”
You must allow 3-U (5.25 inches) of vertical space for each system you install in the rack.
Dell rack cabinets and rackcabinets not manufactured by Dell that meet EIA-310standards
have an alternating pattern of three holes per U with center-to-center hole spacing
(beginning at the top hole of a1-U space) of 15.9 mm, 15.9 mm, and 12.7 mm (0.625-inch,
0.625-inch, and 0.5-inch) for the front and rear vertical rails (see Figure 1-3).

1-6 Rack Installation Guide
www.dell.com | support.dell.com
Figure 1-3. One Rack Unit
For more information about requirements for installing components in a Dell rack, see the
Dell Rack Advisor software available on the Dell website at http://support.dell.com.
CAUTION: If you are installing more than one system, install the mounting rails
so that the first system is installed in the lowest available position in the rack.
To mark the rack, perform the following steps:
1Place a mark on the rack’s front vertical rails where you want to locate the bottom of
the system you are installing in the rack cabinet.
The bottom of each 1-U space is at the middle of the narrowest metal space between
holes (marked with a horizontal line on some rack cabinets—see Figure 1-3).
1-U (4.4 centimeters or 1.75) inches)
12.7 mm (0.5 inch)
15.9 mm (0.625 inch)
15.9 mm (0.625 inch)
12.7 mm (0.5 inch)

Rack Installation Guide 1-7
2Place a mark 13.3 centimeters (5.25 inches) above the original mark (or count up nine
holes in a rack that meets EIA-310 standards) and mark the rack’s front vertical rails
with a felt-tipped marker or place masking tape where the system’s upper edge will be
located (see Figure 1-4).
Figure 1-4. Marking the Vertical Rails
Installing the RapidRails Mounting Rails
NOTE: If you are installing VersaRails rails, see “Installing the VersaRails Mounting Rails.”
1At the front of the rack cabinet, position one of the mounting rails so that its
mounting-bracket flange fits between the marks or tape you placed on the rack (see
Figure 1-5).
2Align the rail mounting-bracket flange (on the front of the rail) with the square holes
in the front vertical rails (see Figure 1-5).
tape marking locations for
top and bottom of system
3-U (5.25 inches) between
rails (drawing is not to
scale)

1-8 Rack Installation Guide
www.dell.com | support.dell.com
3Push the rail forward until the mounting hooks are positioned in their square holes on
the vertical rail, and then push down on the mounting-bracket flange until the
mounting hooks seat in the square holes, and the blue push button pops out and
clicks.
Figure 1-5. Installing the RapidRails Mounting Rails
4At the back of the cabinet, pull back on the mounting-bracket flange until the
mounting hooks are positioned in their square holes on the vertical rail, and then push
down on the mounting-bracket flange until the mounting hooks seat in the square
holes, and the blue push button pops out and clicks.
5Repeat steps 1 through 4 for the remaining rail on the other side of the rack.
6Ensure that the rails are mounted at the same position on the vertical railson each
side of the rack.
front of rack RapidRails mounting rail (2)
front vertical rail
mounting hooks (2)
blue push button
mounting bracket flange

Rack Installation Guide 1-9
Installing the VersaRails Mounting Rails
NOTE: If you have already installed RapidRails mounting rails, skip this section.
1At the front of the rack cabinet, position one of the mounting rails so that its
mounting-bracket flange fits at the location you have selected in the rack (see
Figure 1-6).
The vertical rail holes in rack cabinets may be round or square.
Figure 1-6. Installing the VersaRails Mounting Rails
2Push the mounting rail forward until the mounting holes are aligned with the holes on
the front vertical rail.
3Using two 10-32 x 0.5 Phillips screws, secure the front mounting-bracket flange to the
front vertical rail.
4At the back of the cabinet, pull back on the back mounting-bracket flange until it is
aligned with the holes on the back vertical rail.
front of rack VersaRails mounting rail (2)
vertical rail
holes may be
round or square
mounting-bracket flange
mounting holes (2)

1-10 Rack Installation Guide
www.dell.com | support.dell.com
5Using two 10-32 x 0.5 Phillips screws, secure the back mounting-bracket flange to the
back vertical rail.
6Repeat steps 1through 5 for the remaining mounting rail on the other side of the rack.
7Ensure that the mounting rails are mounted at the same position on the vertical rails
on each side of the rack.
Installing the Tower-to-Rack Conversion Kit
NOTE: If you have a rack-only version of the system, skip this procedure and proceed to
“Installing the System in the Rack.”
CAUTION: Your system may be very large and heavy. To prevent personal injury,
do not attempt to move the system by yourself.
The tower-to-rack conversion kit includes a rack front panel with rack handles and
thumbscrews.
Removing the Bezel, Drives, Covers, and Front Panel
1Shut down and turn off power to your system and disconnect your power and
peripheral cables.
2To remove the bezel (see Figure 1-7):
aUsing the system key, unlock the front bezel.
bSwing the bezel away and down from the system until it is perpendicular to the
system.
cLoosen the two thumbscrews that secure the bezel hinge to the front panel (see
Figure 1-7).
dPull the bezel away and set it aside.

Rack Installation Guide 1-11
Figure 1-7. Removing the Front Bezel
3Label all hard drives and remove them from the system.
NOTE: Although it is not necessary for the conversion, you might want to remove the two
power-supply and cooling modules at the back of the system chassis to reduce the weight of
the chassis while you are performing this procedure (see your system Installation and
Troubleshooting Guide
for instructions for removing and replacing these modules).
4To remove the system left and right covers (see Figure 1-8):
aRemove the two round covers from the top of the tower system.
bUse a 3/16-inch hex-head (Allen)wrench to remove the hex-socket cap screws and
flat washers from the top of the tower system.
cSlide the left and right cover back, away from the chassis front to disengage, and
pull the covers up, away from the base to remove.
thumbscrew
lock
bezel

1-12 Rack Installation Guide
www.dell.com | support.dell.com
5To remove the tower system base:
aLay the system on its right side.
bUse a 3/16-inch hex-head (Allen) wrench to remove the two hex-socket cap screws
and flat washers from the base of the tower chassis
cRemove the base and set it aside (see Figure 1-8).
Figure 1-8. Removing the Tower System Cover
round covers (2)
base
hex-socket
cap screw (4)
flat washer (4)
left and right covers

Rack Installation Guide 1-13
6To remove the tower system front panel (see Figure 1-9):
aPosition the system so that the front panel extends about 2.5 centimeters (1 inch)
beyond the edge of the table or work surface.
bRemove the 14 4-40 x 0.25-inch pan head black T-10 Torx screws that secure the
tower front panel to the chassis.
cRemove the front panel from the system chassis, taking care to avoid damaging
the five plastic light pipes that extend through the front panel.
Installing the Rack Front Panel
1Position the rack front panel on thefront of the system chassis, using care toinstall the
five light pipes in their holes in the front panel.
NOTE: In the next step, start all 14 T-10 Torx screws in their holes before tightening any
of the screws to ensure proper alignment.
2Secure the rack front panel to the chassis with the 14 T-10 Torx screws that you
removed in step 6 of the last procedure, “Removing the Bezel, Drives, Covers, and
Front Panel” (see Figure 1-9).
3Reinstall the power and cooling modules (if they were removed).
NOTE: Do not install the hard drives until the next procedure, “Installing the System in
the Rack,” is completed.

1-14 Rack Installation Guide
www.dell.com | support.dell.com
Figure 1-9. Installing the Rack Front Panel
Installing the System in the Rack
CAUTION: If you are installing more than one system, install the heaviest system
in the lowest available position in the rack.
CAUTION:
Never pull more than one component out of the rack at a time.
1Lift the system into position in front of the mounting rails you installed in the rack
cabinet.
CAUTION: Because of the size and weight of the system, never attempt to install
the system in the rails by yourself.
2Slide the system into the rack until the system front panel is against the vertical rails
(see Figure 1-10).
3Tighten the captive thumbscrews on each side of the system’s front panel.
light pipes (5)
screws (14)
front panel

Rack Installation Guide 1-15
Figure 1-10. Installing the System in the Rack
Replacing the Rack Doors
See the procedures for replacing doors in the documentation provided with your Dell 24-U
and 42-U rack cabinets. If you have a Dell PowerEdge 4210 rack cabinet, see the procedures
in the Dell PowerEdge 4210 Rack Installation Guide. If you have a rack cabinet not
manufactured by Dell, see the manufacturer’s documentation for replacing doors.
This completes the rack installation of your system.
captive thumbscrews
(2)

1-16 Rack Installation Guide
www.dell.com | support.dell.com
