Dell FS7500 Manual

EqualLogic FS7500
Installation and Setup

PS Series Firmware Version 5.1 and 5.2
Copyright 2012 Dell Inc. All rights reserved.
Dell and EqualLogic are trademarks of Dell Inc.
All trademarks and registered trademarks mentioned herein are the property of their respective owners.
Information in this document is subject to change without notice.
Reproduction in any manner whatsoever without the written permission of Dell is strictly forbidden.
January 2012
Part Number: K24VX-A00

Table of Contents
Preface iii
1 Before You Begin 1
Introduction to the EqualLogic FS7500 1
Steps for Getting Started 3
Preliminary Tasks 3
Installation Safety Recommendations 3
Hardware Protection 4
Environmental Requirements 5
FS7500 Controller Technical Specifications 6
FS7500 Backup Power Supply Technical Specifications 6
Shipping Box Contents 7

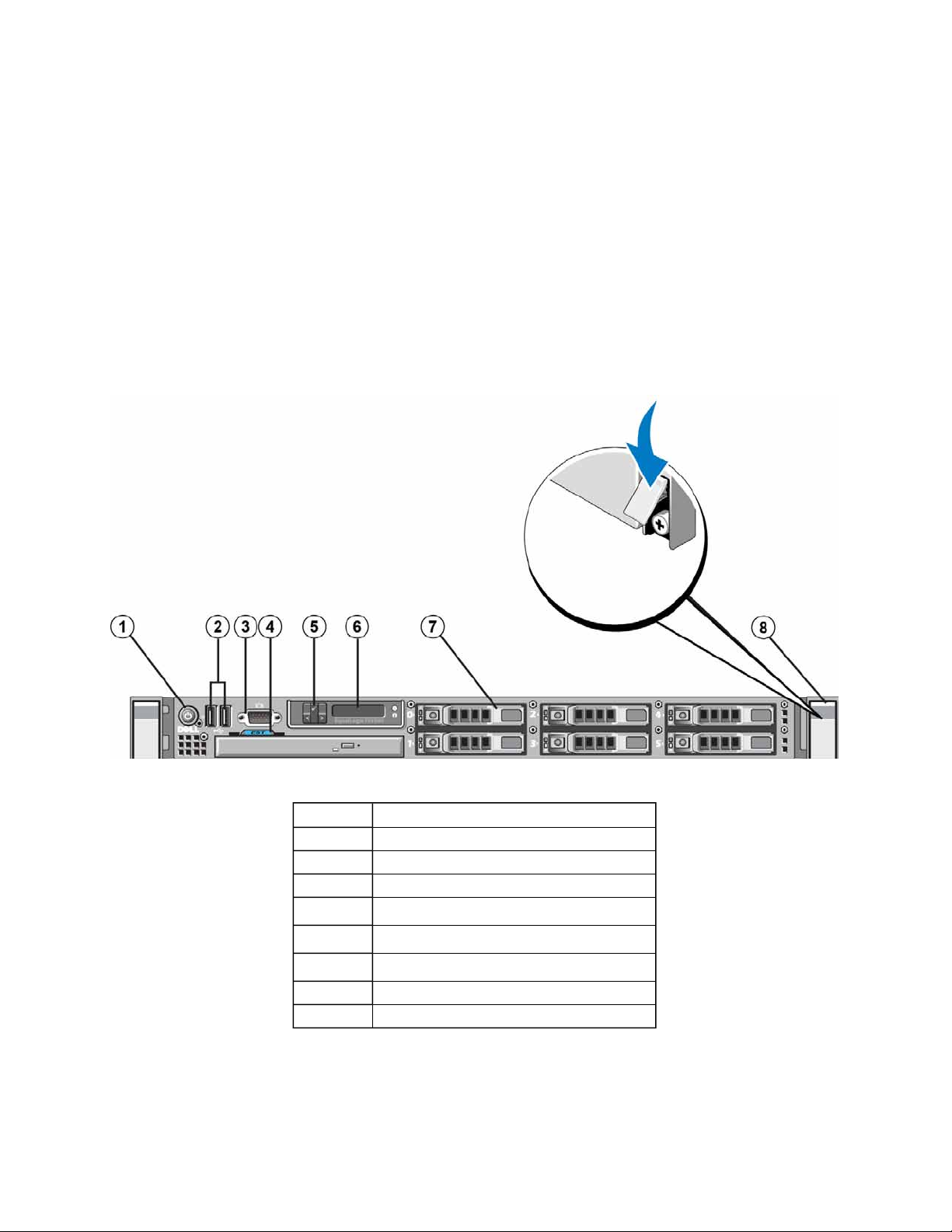

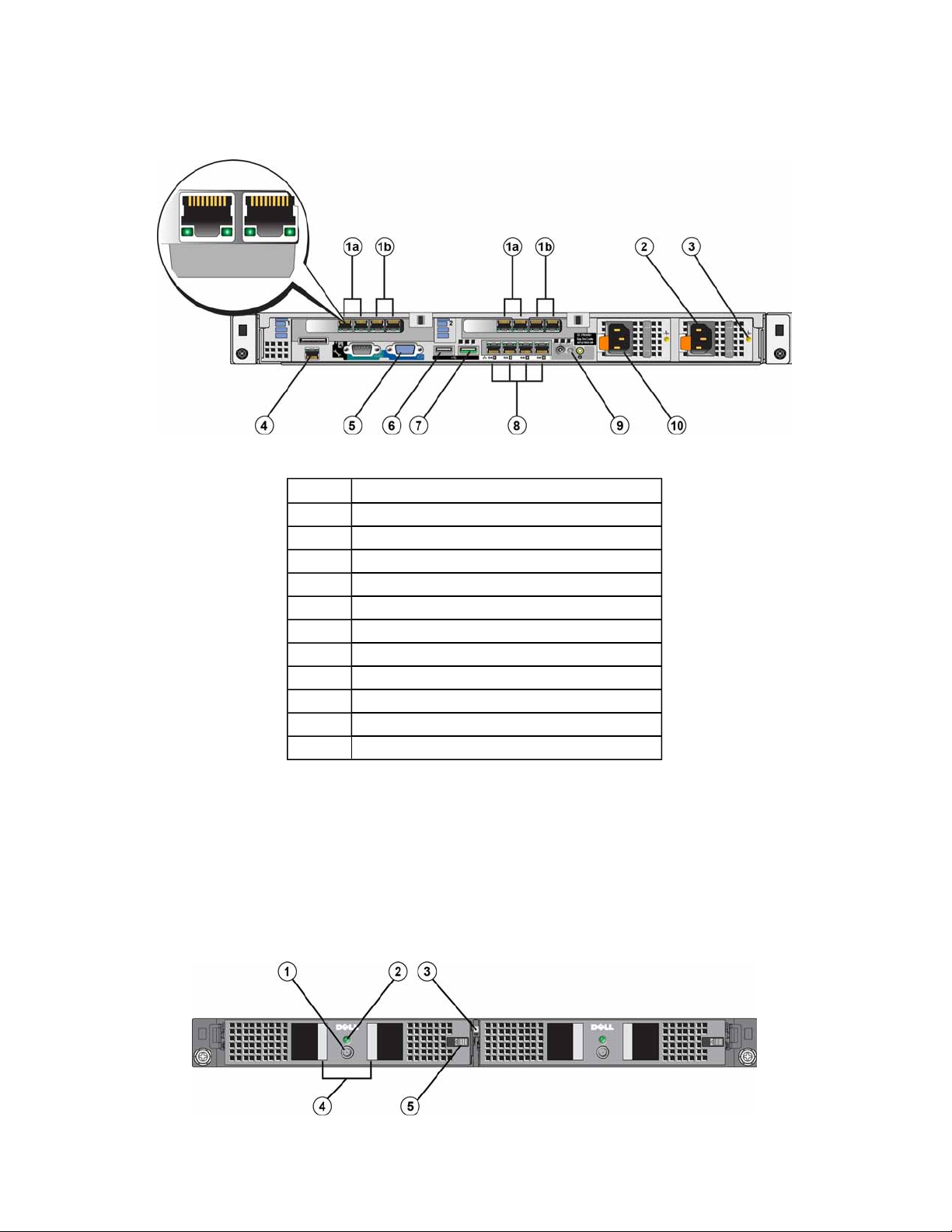

FS7500 Controller Front and Back Panels 8
FS7500 BPS Front and Back Panels 9
Required Hardware That Is Not Supplied 10
Rack Requirements 11
Switch Requirements 12
Required Tools 12
2 Hardware Rack Mounting 13
Guidelines for Installing Mounting Rails in a Rack 13
Steps for Installing an FS7500 Backup Power Supply into a Rack 14
Attaching the BPS Rails to the Rack 15
Removing the Power Modules from the BPS Chassis 16
Installing the Empty BPS Chassis Into a Rack 17
Connecting the Battery in a BPS Power Module 18
Inserting Each Power Module into the BPS Chassis 22
Attaching the BPS Bezel 22
Steps for Installing an FS7500 Controller in a Rack 23
Positioning the ControllerRails 24
Attaching the Controller Rails to the Rack 24
Installing the Controllers Into the Rack 25
Securing the Controllers to the Rack 25
Attaching the Controller Bezel 26
3 Power Connections 29
Steps for Connecting a BPS to Power 29
Connecting a BPS Power Module to a Power Source 29
Removing the BPS Bezel 31
Turning On Power to a BPS Power Module 32
Attaching the BPS Bezel 33
Steps for Connecting a Controller to a BPS and Power 33
Removing the Controller Bezel 35
Turning On Power to a Controller 36
Attaching the Controller Bezel 36
Powering Down the Controller 36
4 Network Cable Connections 37
Network Configuration Overview 37
Controller Network Interface Ports 37
Network Connection Requirements and Recommendations 38
Steps for Connecting Network Cables 39
Connecting SAN and Internal Network Cables 41
Connecting the Client Network Cables 41
Managing the Controller Cables 41
Steps for Managing Cables in a Standard Installation 41
Routing the Power Cables Through the Strain Relief Straps 42
Bundling the Signal and Power Cables 43
Securing the Signal and Power Cable Bundles to the Rails 43
Steps for Managing Cables Using a Service Loop 45
Routing the Power Cables Through the Strain Relief Straps 45
i

EqualLogic FS7500 Installation and Setup Preface
Extending the Controller into Service Position 46
Bundling the Signal and Power Cables 46
5 NAS Service Configuration 49
Steps for Configuring a NAS Service 49
Gathering the NAS Service Configuration Information 49
Using the LCD Screen to Display Service Tag Information 50
NAS Service Network Requirements and Recommendations 51
NAS Configuration Reference Table 52
Security and Permissions 53
Transferring Share Ownership 54
Discovering Controllers and Configuring a NAS Service 54
6 NAS Storage Allocation 61
Steps for Allocating NAS Storage 61
Gathering the NAS File System Information 61
Creating a NAS File System 62
Accessing a CIFS Share 65
Accessing an NFS Export 66
7 What to Do Next 67
NAS Service Documentation 67
NAS Service Post-Setup Tasks 67
NAS File System Post-Setup Tasks 68
Appendix 1: Custom Racking Instructions 71
Reconfiguring the BPS Rails for a Tooled Rack (Special Configuration) 71
Cable Management for Controllers Installed on Static Rails 72
Removing the Brackets From the Controller Rails 73
Glossary 75
Index 1
ii

Preface
A PS Series group provides iSCSI-accessible block storage. With the latest version of the
PS Series firmware and the addition of an EqualLogic FS7500, the same PS Series group can provide block
storage and support for NAS (Network Attached Storage).
The EqualLogic FS7500 includes:
• Two FS7500 Controller units with pre-installed file serving software
• One FS7500 Backup Power Supply System (BPS) unit
This manual describes how to install EqualLogic FS7500 hardware and configure a NAS service.
Note: An EqualLogic FS7500 requires a PS Series group running the PS Series Firmware Version 5.1 or 5.2.
Audience
This manual is designed for the administrators responsible for installing EqualLogic FS7500 hardware.
Administrators are not required to have extensive network or storage system experience. However, it may be
useful to understand:
• Basic networking concepts
• Current network environment
• User disk storage requirements
• RAID configurations
• Disk storage management
Note: Although this manual provides examples of using an EqualLogic FS7500 in some common network
configurations, detailed information about setting up a network is beyond its scope.
Organization
This manual is organized as follows:
• Chapter 1, Before You Begin, describes the preliminary tasks you must perform before beginning the
installation.
• Chapter 2, Hardware Rack Mounting, describes how to install the BPS and controller hardware in a rack.
• Chapter 3, Power Connections, describes how to connect the BPS and controllers to power.
• Chapter 4, Network Cable Connections, describes how to connect the controllers to the networks.
• Chapter 5, NAS Service Configuration, describes how to discover controllers and set up a NAS service.
iii

EqualLogic FS7500 Installation and Setup Preface
• Chapter 6, NAS Storage Allocation, describes how to create NAS file systems and set up and manage NFS
exports and CIFS shares.
• Chapter 7, What to Do Next, describes common NAS service tasks and where to find more information.
• Appendix 1, Custom Racking Instructions, contains information about installing the EqualLogic FS7500
hardware into a tooled rack.
• The Glossary describes terminology related to the EqualLogic FS7500 and a NAS service.
Technical Support and Customer Service
Dell's support service is available to answer your questions about PS Series SAN arrays. If you have an Express
Service Code, have it ready when you call. The code helps Dell's automated-support telephone system direct
your call more efficiently.
Contacting Dell
Dell provides several online and telephone-based support and service options. Availability varies by country and
product, and some services might not be available in your area.
For customers in the United States, call 800-945-3355.
Note: If you do not have access to an Internet connection, contact information is printed on your invoice,
packing slip, bill, or Dell product catalog.
Use the following procedure to contact Dell for sales, technical support, or customer service issues:
1. Visit support.dell.com or the Dell support URL specified in information provided with the Dell product.
2. Select your locale. Use the locale menu or click on the link that specifies your country or region.
3. Select the required service. Click the “Contact Us” link, or select the Dell support service from the list of
services provided.
4. Choose your preferred method of contacting Dell support, such as e-mail or telephone.
Online Services
You can learn about Dell products and services using the following procedure:
• Visit www.dell.com (or the URL specified in any Dell product information).
• Use the locale menu or click on the link that specifies your country or region
Warranty Information
The EqualLogic FS7500 warranty is included in the shipping box. For information about registering a warranty,
visit support.dell.com/EqualLogic.
iv

1 Before You Begin
Proper planning and adherence to requirements help ensure a successful installation. Before you begin the
installation, review the steps for getting started and perform all the preliminary tasks.
Introduction to the EqualLogic FS7500
A PS Series group provides iSCSI-accessible block storage. With the latest version of the PS Series firmware
and the addition of an EqualLogic FS7500, the same PS Series group can provide block storage and support for
NAS (Network Attached Storage).
A NAS service can support multiple, scalable NAS file systems. On each file system, you can create multiple
CIFS shares and NFS exports. Clients with the correct credentials can then access the shares and exports
through the NAS service IP address.
The NAS service network configuration requires three networks: client, SAN, and internal.
For security reasons, the internal network is usually a private network, and the client network is separate from
the SAN and internal network. See Network Configuration Overview on page 37.
Figure 1 shows the NAS service hardware configuration.
1

Figure 1: NAS Hardware Configuration
Table 1: NAS Service Components
Callout Description
1 Clients
2 Client connections to the client network
3 Client network
4 Controller connections to the client network
5 Internal connections (between controllers)
6 EqualLogic FS7500
7 BPS
8 Controller connections to the SAN network
9 SAN network
10 PS Series group connections to the SAN network
2
EqualLogic FS7500 Installation and Setup 1 Before You Begin

EqualLogic FS7500 Installation and Setup 1 Before You Begin
Steps for Getting Started
To install the EqualLogic FS7500 hardware and create a NAS service, follow these steps:
1. Make sure you meet the safety, environmental, and other requirements and have all the necessary hardware.
See Preliminary Tasks on page 3.
2. Install the FS7500 Backup Power Supply (BPS) and both FS7500 Controllers in the same rack. See Chapter
2, Hardware Rack Mounting.
3. Connect the BPS and controllers to power. See Chapter 3, Power Connections.
4. Connect the controllers to the networks. See Chapter 4, Network Cable Connections.
5. Use the Group Manager GUI to discover the controllers and configure a NAS service. See Chapter 5, NAS
Service Configuration.
6. Create a NAS file system and optionally create a CIFS share or NFS export. See Chapter 6, NAS Storage
Allocation.
After getting started, see Chapter 7, What to Do Next.
Preliminary Tasks
Perform the following tasks before beginning the installation.
• Read the installation safety precautions. See Installation Safety Recommendations on page 3.
• Learn how to protect sensitive hardware. See Hardware Protection on page 4.
• Make sure the installation meets the environmental requirements. See Environmental Requirements on page
5.
• Unpack the shipping box according to the instructions on the setup poster, and make sure the shipping box
contents are complete. See Shipping Box Contents on page 7.
• Gather the hardware needed for the installation but not provided in the shipping box. See Required Hardware
That Is Not Supplied on page 10.
• Make sure the rack meets the rack requirements. See Rack Requirements on page 11.
• Gather the tools needed for the installation, if any. See Required Tools on page 12.
Installation Safety Recommendations
Follow these safety recommendations:
• Before you install the EqualLogic FS7500 hardware, read and follow the safety instructions packaged with
your system.
• Only individuals with rack mounting experience should install EqualLogic FS7500 hardware in a rack.
3

• Use care when moving and opening the cartons. Leave the components packaged until you are ready to
install them.
• Place the components in a protected area that has adequate airflow and is free of humidity, flammable gas,
and corrosion.
• You need at least two people to install the hardware. Use proper lifting and carrying techniques when
unpacking and moving the components.
• Make sure each FS7500 Controller is fully grounded at all times to prevent damage from electrostatic
discharge.
• When handling an FS7500 Controller, use the electrostatic wrist guard shipped with the controller or a
similar form of protection. See Hardware Protection on page 4.
• Hold the hardware level with the rack when you install it.
Warning: The BPS contains LETHAL VOLTAGES. All repairs and service should be performed by
AUTHORIZED SERVICE PERSONNEL ONLY. There are no customer replaceable parts inside
the BPS.
• Unpacking the BPS in a low-temperature environment might cause condensation to occur in and on the
chassis. This could cause electric shock. Do not install the chassis and power modules until both the inside
and outside of the chassis are dry.
• Always connect the BPS battery packs to the chassis before connecting the input power cables.
• Both the 120V (LV) and the 230V (HV) power modules have IEC 320 C13 output receptacles. Make sure to
use power cables rated for the correct input power source rating. The rating is on a label next to the input
connector on the power module rear panel.
Hardware Protection
When not installed in a rack, an FS7500 Controller must be in its original packaging or placed on a sturdy
surface that is protected from electrostatic discharge.
When handling an FS7500 Controller, make sure you use the electrostatic wrist strap that is shipped with the
controller or a similar form of protection.
Using an Electrostatic Wrist Strap
You must protect sensitive hardware from electrostatic discharge.
To use an electrostatic wrist strap:
1. Connect the steel snap on the coil cord to the stud on the elastic band. See Figure 2.
4
EqualLogic FS7500 Installation and Setup 1 Before You Begin

EqualLogic FS7500 Installation and Setup 1 Before You Begin
Figure 2: Using an Electrostatic Wrist Strap
2. Fit the band closely around your wrist.
3. Connect the banana plug to ground, or attach the plug to the alligator clip and connect the clip to a grounded
device such as an ESD mat or the metal frame of a grounded piece of equipment.
Environmental Requirements
The location of the EqualLogic FS7500 hardware must meet the following environmental requirements:
• Only operate an enclosure from a power source with a voltage range of 100 to 240 VAC.
• Make sure each power source has sufficient electrical overload protection.
• In North America, connect the enclosure to a source of power with over-current protection provided by a
double pole 20A or less device (UL 489 circuit breakers). In Europe, the over-current protection must be
provided by a 20A or less device (IEC circuit breakers).
• Make sure there is sufficient space for air flow in front of and behind the hardware.
• Make sure the location is properly vented.
• Review the technical specifications in FS7500 Controller Technical Specifications on page 6 and FS7500
Backup Power Supply Technical Specifications on page 6 to make sure your environment supports its
requirements.
5

FS7500 Controller Technical Specifications
Table 2: FS7500 Controller Technical Specifications
Attribute Value
Weight of controller 39 pounds or 17.69 kilograms
Operating temperature 50 to 95 degrees F (10 to 35 degrees C)
Storage temperature -40 to 149 degrees F (-40 to 65 degrees C)
Operating altitude -50 to 10,000 feet (-16 to 3048 meters)
Operational relative humidity 20 to 80 percent non-condensing
Thermal output (fully-loaded controller) 2446.5 BTU/hr maximum (High Output)
1712.9 BTU/hr maximum (Energy Smart)
Operational shock Half sine shock in all operational orientations of 31G plus or
minus 5% with a pulse duration of 2.6 ms plus or minus 10%
Operational vibration 0.26 Gms from 5-350 Hz for 5 minutes in operational
orientations
Input voltage 90 to 264 VAC (auto-sensing)
Input frequency 47 - 63 Hz
System input power 90-264 VAC, autoranging, 47-63 Hz
Each power supply 502 W
Input current: up to 55 A per power supply for 10 ms or less
Dimensions 1.68 in. height x 18.99 in. width x 30.39 in. depth
(4.26 cm height x 48.24 cm width x 77.2 cm depth)
FS7500 Backup Power Supply Technical Specifications
Table 3: FS7500 Backup Power Supply Technical Specifications
Attribute Value
Weight of fully-loaded BPS 66.1 pounds (30 kilograms)
Operating temperature 32 to 104 degrees F (0 to 40 degrees C)
Storage temperature 5 to 113 degrees F (-15 to 45 degrees C)
Operating altitude 10,000 feet (3048 meters)
Operational relative humidity 0 to 95 percent non-condensing
Input voltage 120 V models: 90-140 V, auto-sensing
230 V models: 180-264 V, auto-sensing
Input frequency 50 - 60 Hz (auto-sensing), +/- 3 Hz
Power levels 500 W DC output
Dimensions 17.1 in. x 1.6 in. x 28.5 in. (434 cm x 42 cm x 723 cm)
6
EqualLogic FS7500 Installation and Setup 1 Before You Begin

EqualLogic FS7500 Installation and Setup 1 Before You Begin
Shipping Box Contents
The EqualLogic FS7500 ships in one or three boxes, depending on your location. The single box contains the
controllers and a box that contains the BPS. If you receive three boxes, two boxes contains the two controllers.
The other box contains the BPS.
Unpack the EqualLogic FS7500. After unpacking, place each FS7500 Controller and the FS7500 Backup Power
Supply on a sturdy surface that is protected from electrostatic discharge.
Make sure you have all the items supplied in the shipping box, described in Table 4.
Table 4: Shipping Box Contents
Part Description
Two FS7500 Controllers Provides high availability and processing power for the NAS service.
Electrostatic wrist strap Protects sensitive hardware from electrical discharge.
Two controller bezels Protects the front of the controller chassis.
Two USB cables Connect the controllers to the BPS
Six power cables
Included in the FS7500 ship kit. The cords included vary based on region.
Each cable has a C13 connector (to connect to the C14 connector on a BPS
power module) and a connector that fits the receptacle of your power source.
Note that the connector to the power source varies depending on your country.
The cables are used for the following connections:
• Two cables to connect each BPS power module to a power source.
• Two cables to connect each controller to a power source.
• Two cables to connect each controller to a BPS power module.
Two controller rail kits
Contains the left and the right rails for a tool-less square-hole or round-hole rack,
in addition to two strips with hook-and-loop fasteners. Use the strips to organize
your cables in the rack.
FS7500 Backup Power
Supply shipping box
Contains the following:
• BPS chassis with two installed power modules.
• Accessory box, containing the protective bezel, two USB cables, two strips
with hook-and-loop fasteners (for cable management), and two green Remote
Emergency Power Off (REPO) port connectors. Check with your data center
administrator about whether REPO is required for your installation. For more
information about the REPO ports, see the FS7500 Backup Power Supply
Hardware Maintenance Guide.
• Rail kit for the BPS, containing the left and the right rails. The rail kit is tool-
less and does not require any tools or extra hardware.
Documentation
The following documentation is included in the shipping box:
• Hardware setup poster
• Installation and Setup manual (this document)
• License, regulatory, and warranty information
7

Note: You must supply the network cables for each FS7500 Controller. Each controller needs 13 network
cables, depending on network configuration. See Required Hardware That Is Not Supplied on page 10.
FS7500 Controller Front and Back Panels
Figure 3 and Figure 5 show the front panel and the back panel of the FS7500 Controller.
The external video and USB connectors on the front panel are used when updating the FS7500 software. You
can use these ports to connect an external monitor and keyboard to the controller. For more information about
software updates, see the EqualLogic FS7500 Release Notes.
Figure 3: FS7500 Controller Front Panel
Figure 4: FS7500 Controller Front Panel Components
Number Component
1 Power button
2 USB ports
3 Video port
4Service tag pull-out card
5LCD screen control keys
6LCD screen
7 One of six hot-swappable drives
8 Retaining screws (under latch)
8
EqualLogic FS7500 Installation and Setup 1 Before You Begin

EqualLogic FS7500 Installation and Setup 1 Before You Begin
Figure 5: FS7500 Controller Back Panel
Figure 6: FS7500 Controller Back Panel Components
Number Component
1a Internal network interfaces
1b SAN network interfaces
2 C14 power connector (to AC power source)
3 Power supply status LED
4 IPMI port
5 Video port
6 USB port (to external keyboard)
7 USB port (to BPS)
8 Client network interfaces
9 System power-on status LED
10 C14 power connector (to BPS)
FS7500 BPS Front and Back Panels
Figure 7 and Figure 8 show the front panels and the back panel of an FS7500 Backup Power Supply with both
power modules installed, and the BPS bezel removed.
Each power module has a front cover. The power modules contain the batteries.
Figure 7: FS7500 BPS Front Panel
9

Table 5: FS7500 BPS Front Panel Components
Number Component
1 Power button
2 Indicator LED
3 Center release latch
4 Hand grips
5 Power module cover release latch
Figure 8: FS7500 BPS Back Panel
Table 6: FS7500 Back Panel Components
Number Component
1 BPS Power Module LED
2 USB port (to controller)
3 C13 power connector (to controller)
4 C14 power connector to AC power source (under latch)
5 Power rating label (under latch)
Required Hardware That Is Not Supplied
You must provide additional hardware that is specific to your environment and not included in the shipping box.
See Table 7.
10
EqualLogic FS7500 Installation and Setup 1 Before You Begin

EqualLogic FS7500 Installation and Setup 1 Before You Begin
Table 7: Required Hardware – Not Supplied
Component Description
19 inch (48.3 cm), four-
post, tool-less rack
Provides easy access to hardware in your computing environment. See Rack
Requirements on page 11.
Network cables
Connects FS7500 Controller network ports to a network switch.
Use Category 5E or Category 6 cables with RJ45 connectors. Use Category 5 cables
only if they adhere to the TIA/EIA TSB95 standard.
For each FS7500 Controller, you need 13 network cables.
• For a two-controller installation: 26 cables total.
• For a four-controller installation: 52 cables total.
See Network Configuration Overview on page 37.
1GE network switch Connects devices to a network. Multiple switch stacks are recommended. See
Switch Requirements on page 12.
Rack Requirements
For each EqualLogic FS7500, you must install the BPS and the two controllers in the same rack.
See your FS7500 support provider for detailed information about supported racks.
The rack and the hardware installation must meet the following requirements:
• Only four-post, square-hole or round-hole, tool-less racks are supported by default. The graphics in this
manual show a square-hole rack, but the installation instructions are applicable to round-hole racks.
• Use an industry-standard (for example, CEA-310-E), 48.3 cm (19 inch) rack.
• Tooled racks are supported only if you obtain a different FS7500 Controller rail kit than that which is
provided in the shipping box. This rail kit must include installation instructions and also a list of the hardware
needed for the tooled installation. In addition, the user must reconfigure the FS7500 Backup Power Supply
rail kit to support a tooled rack and must obtain the necessary hardware (screws) to fit their rack. Appendix
1, Custom Racking Instructions, describes how to convert the rail kit to fit a tooled rack.
• The rack must be rated for 540 kg (1200 pounds) static load or greater.
• The minimum rack depth is 100 cm (40 inches) from the front to the back of the rack.
• The distance between the inside of the front and back rack posts (the mounting surfaces) must be 61 cm (24
inches) to 90 cm (36 inches).
• Secure the rack to the floor for added stability.
• There must be at least 4.1 cm (1.6 inches) between the rack door and the front of the hardware to
accommodate the front bezel.
• The rack (with installed hardware) must meet the safety requirements of UL 60950-1 and
IEC 60950-1.
• Mount the hardware in a horizontal position, or you void your warranty and support contract.
11

Switch Requirements
At a minimum, you can connect all the network ports in an EqualLogic FS7500 to the same physical switch.
However, this configuration is appropriate only for demonstration or testing purposes because the network switch
is a single point of failure. Dell recommends that you use a highly-available network switch configuration for the
client, SAN, and internal network connections.
Ideally, you want a network switch configuration in which a switch failure does not disrupt the availability of the
NAS service. This means that no single switch should have all the client, SAN, or internal network connections.
See Network Connection Requirements and Recommendations on page 38.
Required Tools
You might need tools to install the controllers and BPS in a rack. These tools are not provided in the shipping
box.
• #2 Phillips screwdriver
12
EqualLogic FS7500 Installation and Setup 1 Before You Begin

2 Hardware Rack Mounting
For proper operation, you must install the EqualLogic FS7500 hardware (two FS7500 Controller nodes and one
FS7500 Backup Power Supply unit) in a rack.
Figure 9 shows the BPS and two controllers installed in a rack. Your FS7500 installation should look similar to
this when complete.
Figure 9: EqualLogic FS7500 Installed in a Rack
Guidelines for Installing Mounting Rails in a Rack
Before you install the EqualLogic FS7500 hardware in a rack, you must plan where to install the mounting rails
for each controller and for the BPS. Each device is a 1U device.
Dell recommends that you install the rails according to the following guidelines:
13

• Make sure rack meets the requirements in Rack Requirements on page 11. The graphics in this manual show
a square-hole rack, but the installation instructions are applicable to round-hole racks.
• If you are installing multiple sets of EqualLogic FS7500 hardware in the same rack, separate each pair of
controllers with a BPS.
• Make sure that the BPS and the controllers are located close enough together that the cabling between the
components can be easily installed. For best results, use the shortest network cables possible.
• Install hardware starting from the bottom of the rack.
• Install a maximum of four EqualLogic FS7500 configurations in a rack.
Note: Using the rail kits shipped with the EqualLogic FS7500, you can install the controllers and BPS only in a
four-post, tool-less, square-hole or round-hole rack.
You can install an EqualLogic FS7500 in a tooled rack only if you contact your PS Series support provider and
obtain a different controller rail kit. In addition, you must reconfigure the BPS rail kit to support a tooled rack, as
described in Appendix 1, Custom Racking Instructions.
Steps for Installing an FS7500 Backup Power Supply into a Rack
Before you begin, obtain the FS7500 Backup Power Supply (BPS) rail kit. See Shipping Box Contents on page 7.
Note: Even if you have an uninterruptible power supply (UPS) system in your lab, you must install the BPS.
Caution: You need at least two individuals to install the BPS in a rack. The BPS is heavy, and you must keep it
level to install it properly.
Warning: Make sure the voltage of your power source is compatible with the voltage rating of the BPS. If the
power source voltage is too low, the BPS will not activate. If the voltage is too high, the BPS can be
destroyed.
Follow these steps to mount a FS7500 BPS in a rack using the rail kits:
1. Position the left and right BPS rails in the orientation in which you will install the rails. See Positioning the
BPS Rails on page 15.
2. Attach the rails to the rack posts. See Attaching the BPS Rails to the Rack on page 15.
3. Place the BPS chassis on a stable surface.
4. Remove the power modules from the BPS chassis. See Removing the Power Modules from the BPS Chassis
on page 16.
5. Slide the empty BPS chassis into the rack and secure the chassis to the rack. See Installing the Empty BPS
Chassis Into a Rack on page 17.
6. For each power module, connect the battery. See Connecting the Battery in a BPS Power Module on page
18.
14
EqualLogic FS7500 Installation and Setup 2 Hardware Rack Mounting
