Dell PowerVault MD3000i User manual

FILE LOCATION: H:\Enterprise\Bulldog\DL1106 - Getting Started Guides\DAO-BCC - DY731A00\EN\fc.fm
DELL CONFIDENTIAL – PRELIMINARY 5/15/07 – FOR PROOF ONLY
Current template as of 4/26/2007
Model AMP01
Getting Started
With Your System
Guide de mise en route
Primeiros passos com o sistema
Procedimientos iniciales con el sistema

FILE LOCATION: H:\Enterprise\Bulldog\DL1106 - Getting Started Guides\DAO-BCC -
DY731A00\EN\title.fm
DELL CONFIDENTIAL – PRELIMINARY 5/15/07 – FOR PROOF ONLY
Model AMP01
Getting Started
With Your System

FILE LOCATION: H:\Enterprise\Bulldog\DL1106 - Getting Started Guides\DAO-BCC -
DY731A00\EN\title.fm
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use
of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data
and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury,
or death.
____________________
Information in this document is subject to change without notice.
© 2007 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly
forbidden.
Trademarks used in this text: Dell, the DELL logo, PowerVault, and Dell OpenManage are trademarks
of Dell Inc. Microsoft, Windows, and Windows Server are either registered trademarks or trademarks
of Microsoft Corporation in the United States and/or other countries SUSE and NetWare are regist e r e d
trademarks of Novell, Inc., in the United States and other countries Red at and Enterprise Linux
are registered trademarks of Red Hat, Inc. Intel and Intel XScale are registered trademarks of Intel
Corporation in the U.S. and other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Model AMP01
May 2007 P/N DY731 Rev. A00

Getting Started With Your System 3
System Features
This section describes the major hardware and software features of your
system. It also provides information about other documents you may need
when setting up your system and how to obtain technical assistance.
Performance Features
• 667-MHz Intel
®
XScale
®
processor
• 512-MB high-speed data cache memory
Scalability Features
• Capacity for 15 1-inch, hot-plug, 3.0-Gbps, serial-attached SCSI (SAS)
physical disks.
• Support for up to two daisy-chained storage enclosures for a total
of 45 physical disks.
• Controller capable of supporting sessions from 32 iSCSI initiators
(16 hosts with redundant connections) simultaneously with multiple
connections per session. For more information, refer to the
Dell
PowerVault MD Systems Support Matrix
at support.dell.com .
• Support for a wide range of servers. (For additional support information,
refer to the
Dell PowerVault MD Systems Support Matrix at
support.dell.com ).
• Support for both simplex (single controller) and duplex (dual controller)
array configurations.
Availability Features
• Up to two active/active RAID controller modules (duplex configuration)
for redundant data and system management capability; simplex
configuration also available
• Battery backup unit (BBU) to power the RAID controller system memory
(cache) for a minimum of 72 hours in case of a power outage
• Redundant hot-plug power supply and cooling modules that are combined
for easy serviceability

4Getting Started With Your System
Manageability and Serviceability Features
• Efficient rack-mount designed storage system
• Hot-pluggable drives
• Four sensors for monitoring ambient temperatures
• Over-temperature shutdown protection capability
• Configuration and monitoring via the MD Storage Manager software
Supported Operating Systems
Your system supports the following operating systems:
• Microsoft
®
Windows
®
Storage Server 2003 R2
• Microsoft Windows Server
®
2003 R2 Standard and Enterprise Editions
• Microsoft Windows Server 2003 Service Pack 1(SP1) with patches
• Microsoft Windows Server 2003 Service Pack 2 (SP2)
• Microsoft Windows Server XP Professional SP2 (management station only,
no I/0 attach)
•RedHat
®
Enterprise Linux
®
V4.0 with Update 4 (AS, ES, WS), 32 bit
and 64 bit (2.6 kernel)
•SUSE
®
Linux Enterprise Server V9.0 service pack 3 with Intel
EM64T(2.6 kernel)
For more information, refer to the Dell PowerVault MD Systems Support Matrix
at
support.dell.com .
Other Information You May Need
CAUTION: The Product Information Guide provides important safety and
regulatory information. Warranty information may be included within this
document or as a separate document.
•The Rack Installation Instructions included with your rack solution
describes how to install your system into a rack.
•The
Hardware Owner’s Manual provides information about system
features and describes how to troubleshoot the system and install or
replace system components. This document can be found on the CDs
that came with your system or at
support.dell.com .

Getting Started With Your System 5
• CDs included with your system provide documentation and tools for
installing, configuring, and managing your system.
• The
Dell PowerVault MD Systems Support Matrix at support.dell.com
provides compatibility information, including servers, operating systems,
controllers, software, and hardware configurations.
• Updates are sometimes included with the system to describe changes
to the system, software, and/or documentation.
NOTE: Always check for updates on support.dell.com and read the updates
first because they often supersede information in other documents.
• Release notes or readme files may be included to provide current updates
to the system or documentation or advanced technical reference material
intended for experienced users or technicians.
Obtaining Technical Assistance
If you do not understand a procedure in this guide or if the system does
not perform as expected, see your Hardware Owner’s Manual.
Dell Enterprise Training and Certification is available; see
www.dell.com/training for more information. This service may not be offered
in all locations.
Installation
CAUTION: Before performing the following procedure, read and follow the safety
instructions and important regulatory information in your Product Information
Guide.
This section describes the steps to set up your system for the first time.
For more detailed information, refer to the Installation Guide provided
on the CDs that came with your system.
Unpack the System
Unpack your system and identify each item. Keep all shipping materials
in case you need them later.

6Getting Started With Your System

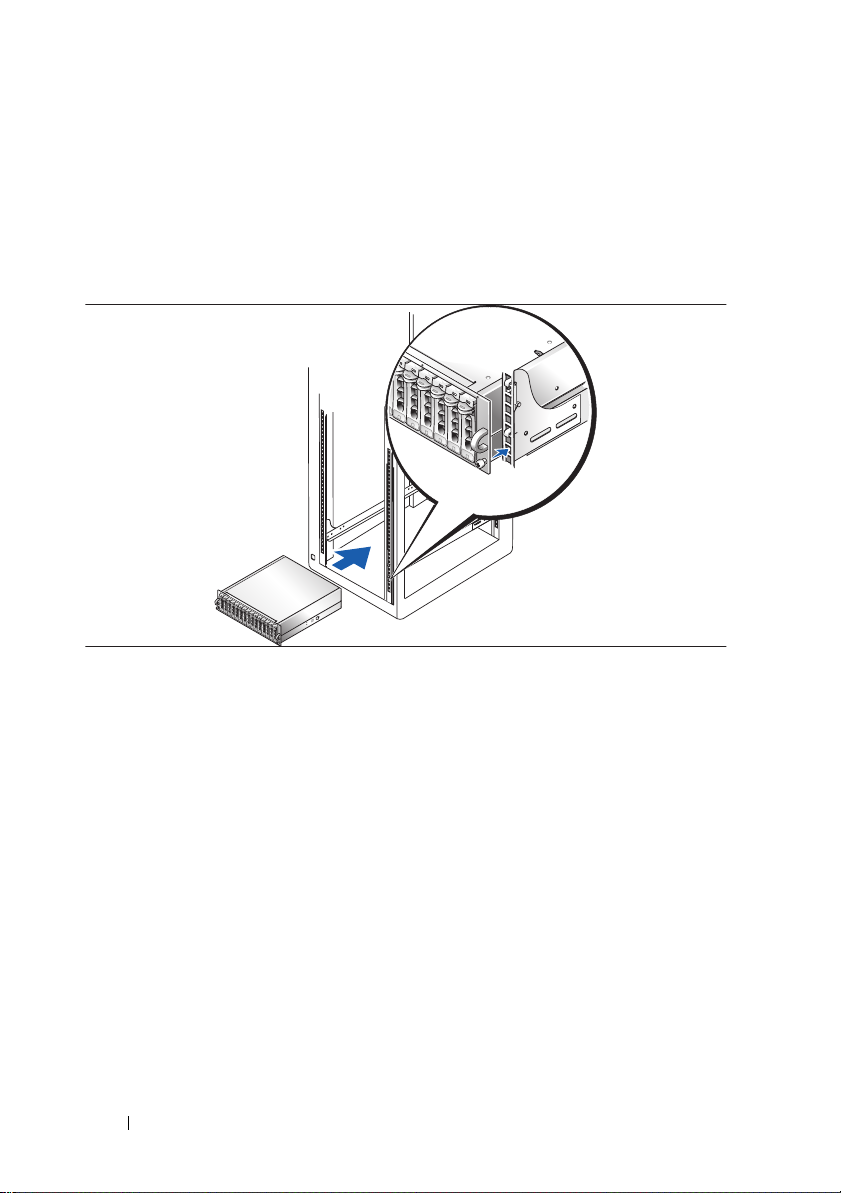

Install the Rails and System in a Rack
Install the rails and system in the rack once you have read the "Safety
Instructions" located in the rack installation documentation for your system.
See your rack installation documentation for instructions on installing your
system in a rack.

Getting Started With Your System 7

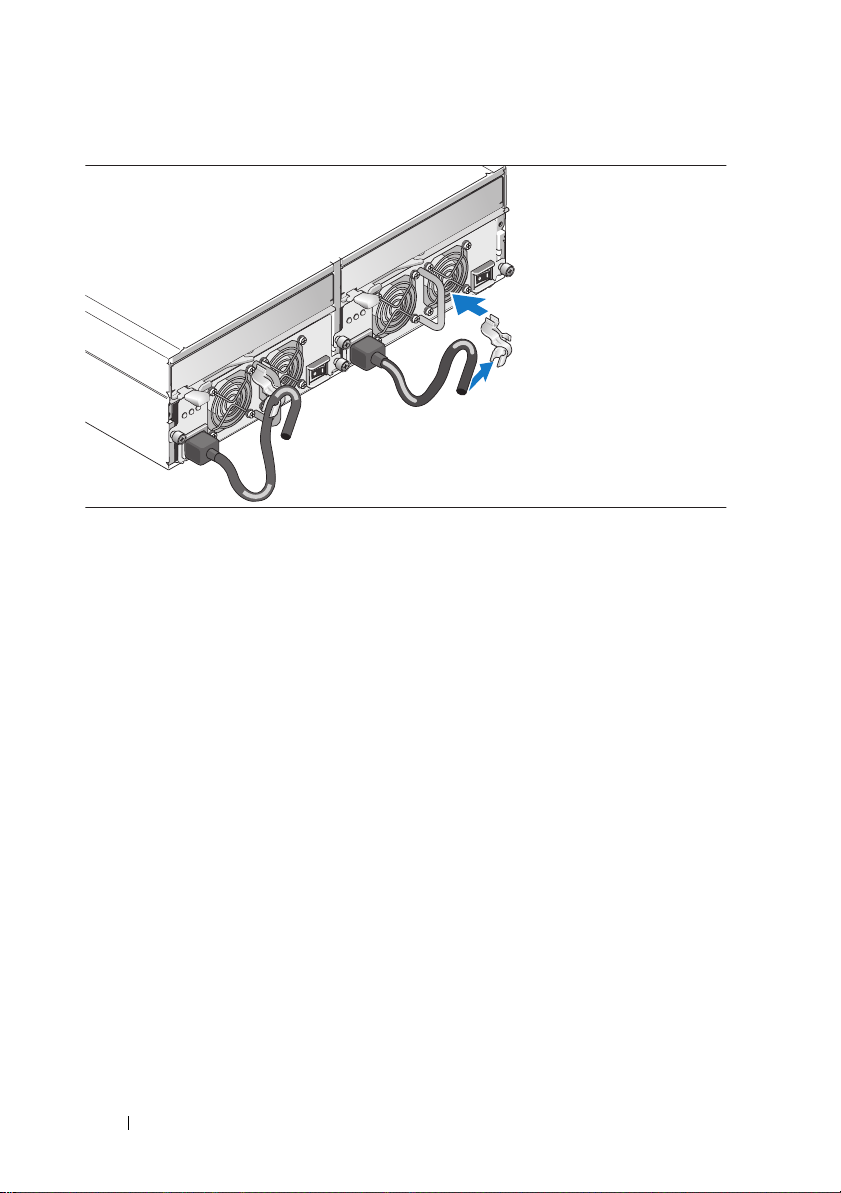

Connect the Power Cables and Power Cord Retention Bracket
Connect both power cables to the power supply/cooling fan modules.
Attach the power cord retention bracket to the power supply loop by affixing
the back clasp of the bracket to the top of the loop and the middle clasp to
the vertical middle of the loop. Attach the system power cable to the bracket’s
cable clasp. Repeat the procedure for the second power supply.

8Getting Started With Your System
Plug the other end of the power cables into a grounded electrical outlet
or a separate power source such as
an uninterruptible po wer supply (UPS)
or a power distribution unit (PDU).
Cable the RAID controller modules according to the instructions provided
in the
Hardware Owner’s Manual .

Getting Started With Your System 9

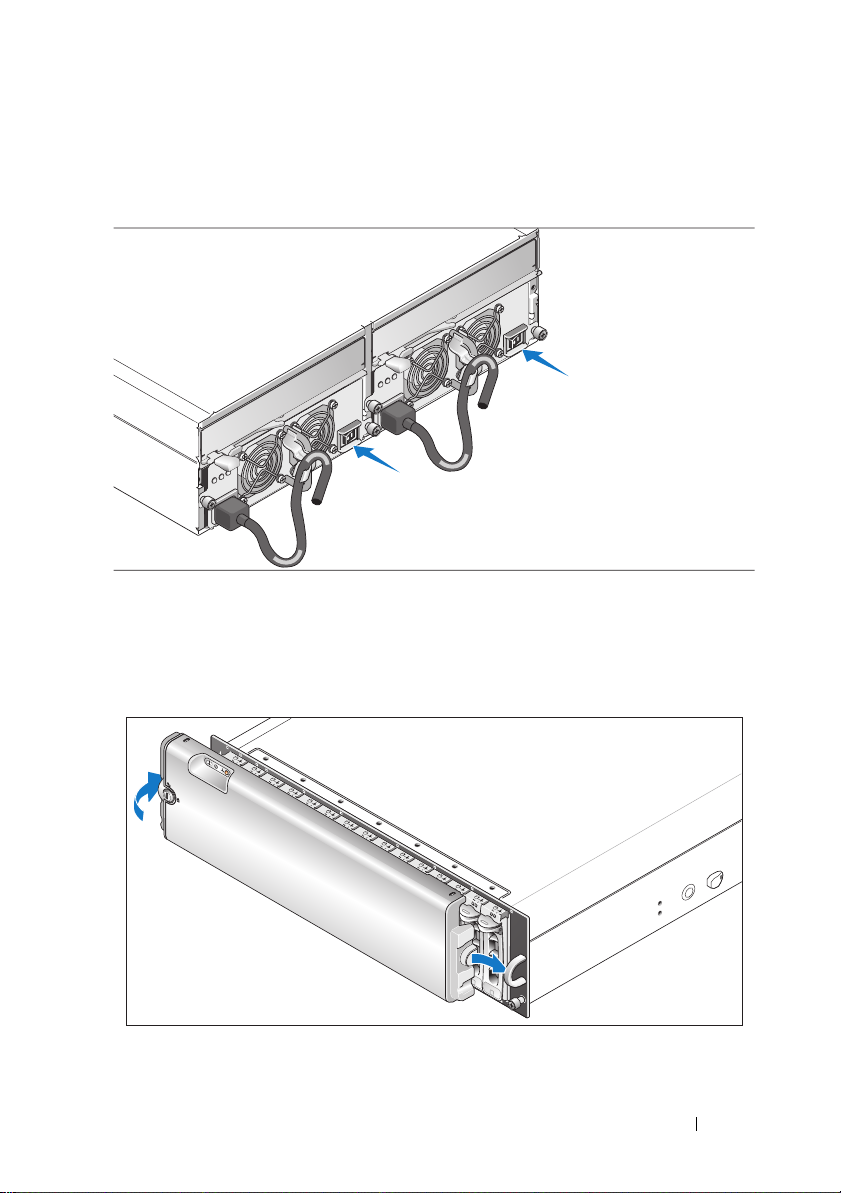

Turn on the System
Turn on the system by turning on both power supply/cooling fan modules.
If you have purchased the optional system bezel, install it after turning on
the system. Insert the right edge of the bezel into the right front loop on the
system, and then press the left edge of the bezel to the system until the bezel
snaps into place.

10 Getting Started With Your System
Specifications
Disks
Physical disks Up to 15 1-inch-by-3.5-inch SAS hot-plug
physical disks (3.0 Gbps). (See your
system readme file for supported disk
capacities.)
RAID Controller Modules
iSCSI RAID controllers
• Two hot-pluggable active/active
controllers (or one controller in simplex
mode)
• 512 MB of cache per controller
• Simplex or duplex configurations
• One temperature sensor per controller
RAID Controller Back-Panel Connectors
iSCSI ports (per RAID controller)
• One 100/1000 BASE-T iSCSI Port 0 "In"
connector for connecting hosts
• One 100/1000 BASE-T iSCSI Port 1 "In"
connector for connecting additional
hosts
SAS expansion port
(per RAID controller)
One 3.0 Gbps SAS Port "Out" connector
for expansion to an additional enclosure
Debug connector
(per RAID controller)
One 6-pin mini-DIN connector
Management port
(per RAID controller)
One 10/100 BASE-T connection for out-
of-band management of the enclosure

Getting Started With Your System 11
Backplane Board
Connectors
• 15 SAS physical-disk connectors
• Two power supply/cooling fan module
connectors
• Two sets of RAID controller connectors
(six connectors each controller)
• One control panel connector for front
LEDs
Sensors Two temperature sensors
LED Indicators
Front panel
• One two-color LED indicator for system
status
• Two single-color LED indicators
(one for power; one nonfunctional)
Physical disk carrier • One single-color activity LED
• One two-color LED status indicator
per disk
RAID controller The following single-color LEDs:
• Battery fault
• Cache active
• Controller fault
• Controller power
• Ethernet link
• Ethernet activity
• SAS Out fault/active
• iSCSI In fault (2)
• iSCSI In active (2)
Power supply/cooling fan module Three LED status indicators for power
supply status, power supply/fan fault,
and AC status

12 Getting Started With Your System
Power Supplies
Wattage 488 W maximum continuous; 550 W
peak
Voltage 100–240 V rated (actual 90–264 V)
Frequency 47–63 Hz
Amperage 7.2 A at 100 V, 3.6 A at 200 V
Available Physical Disk Power (Per Slot)
Supported physical-disk power
consumption
up to 1.3 A at +12 V
up to 1.5 A at +5 V
Physical
Height 13.11 cm (5.16 in)
Width 44.63 cm (17.57 in)
Depth 48.01 cm (18.9 in)
Weight (maximum configuration) 35.37 kg (78 lb)
Environmental (Enclosure)
NOTE: For additional information about environmental measurements for specific
system configurations, see dell.com/environmental_datasheets
Temperature
Operating 10° to 35°C (50° to 95°F)
Storage –40° to 65°C (–40° to 149°F)
Relative humidity
Operating 5% to 80% (noncondensing)
Storage 5% to 95% (noncondensing)
Altitude
Operating –16 to 3048 m (–50 to 10,000 ft)
Storage –16 to 10,600 m (–50 to 35,000 ft)
BTU per hour 1430 (maximum)

Getting Started With Your System 13
Environmental (Battery Backup Unit [BBU])
NOTE: For additional information about environmental measurements for specific
system configurations, see dell.com/environmental_datasheets
Maximum input power
• +12 VDC +/–5% at 1 A
• +3.3 VDC +/–5% at 150 mA
• Operating temperature range: 5° to
35°C (41° to 95°F)
Regulated output voltage from BBU • +2.5 VDC +/–3% at 20 mA to 120 mA
• Operating temperature range: 5° to
45°C (41° to 113°F)
Minimum retention time (life
expectancy)
72 hours for 512-MB DDR-I DIMM,
2.5 V at 120 mA
Working temperature range (dry bulb)
• 5° to 35°C (41° to 95°F)
• Maximum dry bulb temperature
derated by 3.3°C (37.9°F) per 1000 m
(3281 ft) above 500 m (1640 ft)
Working relative humidity range 5% to 90% noncondensing
Storage temperature range (dry bulb)
• –10° to 45°C (14° to 113°F) for
3 months maximum
• Maximum dry bulb temperature
derated by 3.3°C (37.9°F, guaranteed)
per 1000 m (3281 ft) above 500 m
(1640 ft)
Transit temperature range (dry bulb) –20° to 60°C (–4° to 140°F) for 1 week
maximum
Storage and transit humidity range 5% to 95% relative humidity
Storage and transit maximum
temperature gradient
1°C (33.8°F) per minute to a maximum
of 20°C (68°F) per hour
Storage and transit maximum humidity
gradient
30% relative humidity per hour

14 Getting Started With Your System

FILE LOCATION: H:\Enterprise\Bulldog\DL1106 - Getting Started Guides\DAO-BCC -
DY731A00\FR\title.fm
DELL CONFIDENTIAL – PRELIMINARY 5/23/07 – FOR PROOF ONLY
Modèle AMP01
Guide de mise en route

FILE LOCATION: H:\Enterprise\Bulldog\DL1106 - Getting Started Guides\DAO-BCC -
DY731A00\FR\title.fm
Remarques, avis et précautions
REMARQUE : Une REMARQUE indique des informations importantes qui peuvent
vous aider à mieux utiliser votre ordinateur.
AVIS : Un AVIS vous avertit d'un risque de dommage matériel ou de perte
de données et vous indique comment éviter le problème.
PRÉCAUTION : Une PRÉCAUTION indique un risque potentiel d'endommagement
du matériel, de blessure corporelle ou de mort.
____________________
Les informations contenues dans ce document peuvent être modifiées sans préavis.
© 2007 Dell Inc. Tous droits réservés.
La reproduction de ce document de quelque manière que ce soit sans l'autorisation écrite de Dell Inc.
est strictement interdite.
Marques utilisées dans ce document : Dell, le logo DELL, PowerVault et Dell OpenManage sont
des marques de Dell Inc. ; Microsoft, Windows et Windows Server sont des marques ou des marques
déposées de Microsoft Corporation aux tats-Unis et/ou dans d'autres pays ; SUSE et NetWare sont
des marques déposées de Novell, Inc. aux tats-Unis et dans d'autres pays ; Red Hat et Enterprise
Linu sont des marques déposées de Red Hat, Inc. ; Intel et Intel XScale sont des marques déposées
de Intel Corporation aux tats-Unis et dans d'autres pays.
Tous les autres noms de marques et marques commerciales utilisés dans ce document se rapportent
aux sociétés propriétaires de ces marques et de ces noms ou à leurs produits. Dell Inc. décline tout
intérêt dans l'utilisation des marques déposées et des noms de marques ne lui appartenant pas.
Modèle AMP01
Mai 2007 N/P DY731 Rév. A00

Guide de mise en route 17
Caractéristiques du système
Cette section décrit les principales caractéristiques du système sur le plan
matériel et logiciel. Elle contient également des informations sur les autres
documents utiles à la configuration du système et sur l'obtention d'assistance
technique.
Performances
• Processeur Intel
®
XScale
®
cadencé à 667 MHz.
• Mémoire cache de données à haut débit de 512 Mo.
Évolutivité
• Possibilité d'installer 15 disques physiques SAS (Serial-Attached SCSI)
à 3,0 Gbps (disques de 1 pouce enfichables à chaud).
• Prise en charge d'un maximum de deux châssis de stockage reliés en série
(soit un total de 45 disques physiques).
• Contrôleur pouvant assurer la prise en charge simultanée des sessions
de 32 initiateurs iSCSI (16 systèmes hôtes avec connexions redondantes),
avec plusieurs connexions par session. Pour plus d'informations, reportez-
vous au document
Dell PowerVault MD Systems Support Matrix (Matrice
de support des systèmes Dell PowerVault MD). Ce guide est disponible
sur le site
support.dell.com .
• Prise en charge d'une vaste gamme de serveurs. Pour plus d'informations
sur le support, reportez-vous au document
Dell PowerVault MD Systems
Support Matrix
(Matrice de support des systèmes Dell PowerVault MD).
Ce guide est disponible sur le site
support.dell.com .
• Prise en charge des baies configurées en simplex (un seul contrôleur)
ou en duplex (deux contrôleurs).

18 Guide de mise en route
Disponibilité
• Jusqu'à deux contrôleurs RAID actif/actif (configuration en duplex)
permettant la mise en redondance des données et des fonctions de gestion
du système ; configuration en simplex également disponible.
• Unité de batterie de sauvegarde (BBU) permettant d'alimenter la mémoire
système du contrôleur RAID (mémoire cache) pendant au moins
72 heures en cas de coupure de courant.
• Blocs d'alimentation et modules de refroidissement redondants et
enfichables à chaud, combinés en un seul bloc pour faciliter la mainte-
nance du système.
Facilité de gestion et de maintenance
• Conception optimisée pour un montage en rack.
• Lecteurs enfichables à chaud.
• Quatre capteurs assurant le contrôle des températures ambiantes.
• Fonction de coupure en cas de surchauffe.
• Configuration et contrôle via le logiciel MD Storage Manager.
Systèmes d'exploitation pris en charge
Le système prend en charge les systèmes d'exploitation suivants :
• Microsoft
®
Windows
®
Storage Server 2003 R2
• Microsoft Windows Server
®
2003 R2 Standard Edition et Enterprise
Edition
• Microsoft Windows Server 2003 Service Pack 1 (SP1) avec correctifs
• Microsoft Windows Server 2003 Service Pack 2 (SP2)
• Microsoft Windows Server XP Professionnel SP2 (station de gestion
uniquement, sans connexions d'E/S)
•RedHat
®
Enterprise Linux
®
V4.0 avec Update 4 (AS, ES, WS),
32 bits et 64 bits (noyau 2.6)
•SUSE
®
Linux Enterprise Server V9.0 Service Pack 3 avec Intel EM64T
(noyau 2.6)
Pour plus d'informations, reportez-vous au document
Dell PowerVault MD
Systems Support Matrix
(Matrice de support des systèmes Dell PowerVault MD).
Ce guide est disponible sur le site
support.dell.com .
