Dell™ PowerConnect™
M6220 Series Stackable Switches
Getting Started Guide
Model PCM6220
JR183.book Page 1 Thursday, June 7, 2007 2:40 PM

Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
____________________
Information in this document is subject to change without notice.
© 2007 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and PowerConnect are trademarks of Dell Inc.; Microsoft and Windows are registered
trademarks of Microsoft Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
Model PCM6220
May 2007 P/N JR183 Rev. A00
JR183.book Page 2 Thursday, June 7, 2007 2:40 PM

Contents 3
Contents
1 Installation
Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Unpacking the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Unpacking Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connecting a Switch to a Terminal . . . . . . . . . . . . . . . . . . . . . 6
Assembling a Stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Starting and Configuring the Switch
Connecting the Terminal to the Switch . . . . . . . . . . . . . . . . . . . 8
Booting the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Initial Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Initial Configuration Procedure. . . . . . . . . . . . . . . . . . . . . 10
Example Session . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Managing a Stack
Master and Member Switches . . . . . . . . . . . . . . . . . . . . . . . 14
Stack Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Topology Discovery . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Auto Stack ID Assignment . . . . . . . . . . . . . . . . . . . . . . . 15
Firmware Version Checking . . . . . . . . . . . . . . . . . . . . . . 15
System Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . 15
CLI/ Telnet/ Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . 16
Insertion and Removal of Switches. . . . . . . . . . . . . . . . . . . 16
Operating as Standalone Switch . . . . . . . . . . . . . . . . . . . . 16
Stack ID Renumbering. . . . . . . . . . . . . . . . . . . . . . . . . 16
User Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
JR183.book Page 3 Thursday, June 7, 2007 2:40 PM

4Contents
JR183.book Page 4 Thursday, June 7, 2007 2:40 PM

Getting Started Guide 5
Installation
This document provides basic information to install, configure, and operate Dell™ PowerConnect™
M6220 systems. For more information, see the
Hardware Owner’s Manual , which is available on
your
User Documentation CD, or check the Dell Support web site at support.dell.com for the latest
updates on documentation and firmware.
Site Preparation
Before installing the switch, make sure that the chosen installation location meets the site
requirements specified in the
Hardware Owner’s Manual .
Unpacking the Switch
Package Contents
When unpacking each switch, make sure that the following items are included:
• One PowerConnect switch
• One USB type A-to-DB9 serial cable
•
User Documentation CD
• Getting Started Guide
• Product Information Guide
Unpacking Steps
NOTE: Before unpacking the switch, inspect the container and immediately report any evidence of damage.
1
Place the container on a clean, flat surface and cut all straps securing the container.
2 Open the container or remove the container top.
3 Carefully remove the switch from the container and place it on a secure and clean surface.
4 Remove all packing material.
5 Inspect the product and accessories for damage.
JR183.book Page 5 Thursday, June 7, 2007 2:40 PM

6Getting Started Guide
www.dell.com | support.dell.com
Connecting a Switch to a Terminal
1 Connect the DB9 connector of the USB-to-DB9 serial cable to a VT100 terminal
or to a computer running VT100 terminal emulation software.
2 Connect the USB connector at the other end to the USB port on the switch.
NOTE: If you are installing a stack of switches, connect the terminal to the Master Switch. When a stack
is powered up for the first time, the switches elect the Master Switch, which may occupy any location in
the stack. If you connect the terminal to a member (non-Master) switch, you will not be able to use the
command line interface (CLI).
Assembling a Stack
Stacking modules are installed in the back of the chassis to enable stacking the PowerConnect
M6220 switches. The software supports up to 12 stacked switches, supporting up to 240 1G ports.
CAUTION: Ensure that a switch is turned off before adding it to the stack.
1
Install a separately purchased stacking module in rear "Bay 1" in each of the switches to be
stacked.
2 Use the cables supplied with the stacking modules to connect each stacking module
to the next until all switches are connected in a ring.
3 Connect the last stacking module to the first stacking module to create a loop.
4 If necessary, use a separately purchased 3-meter stacking cable to connect the switches.

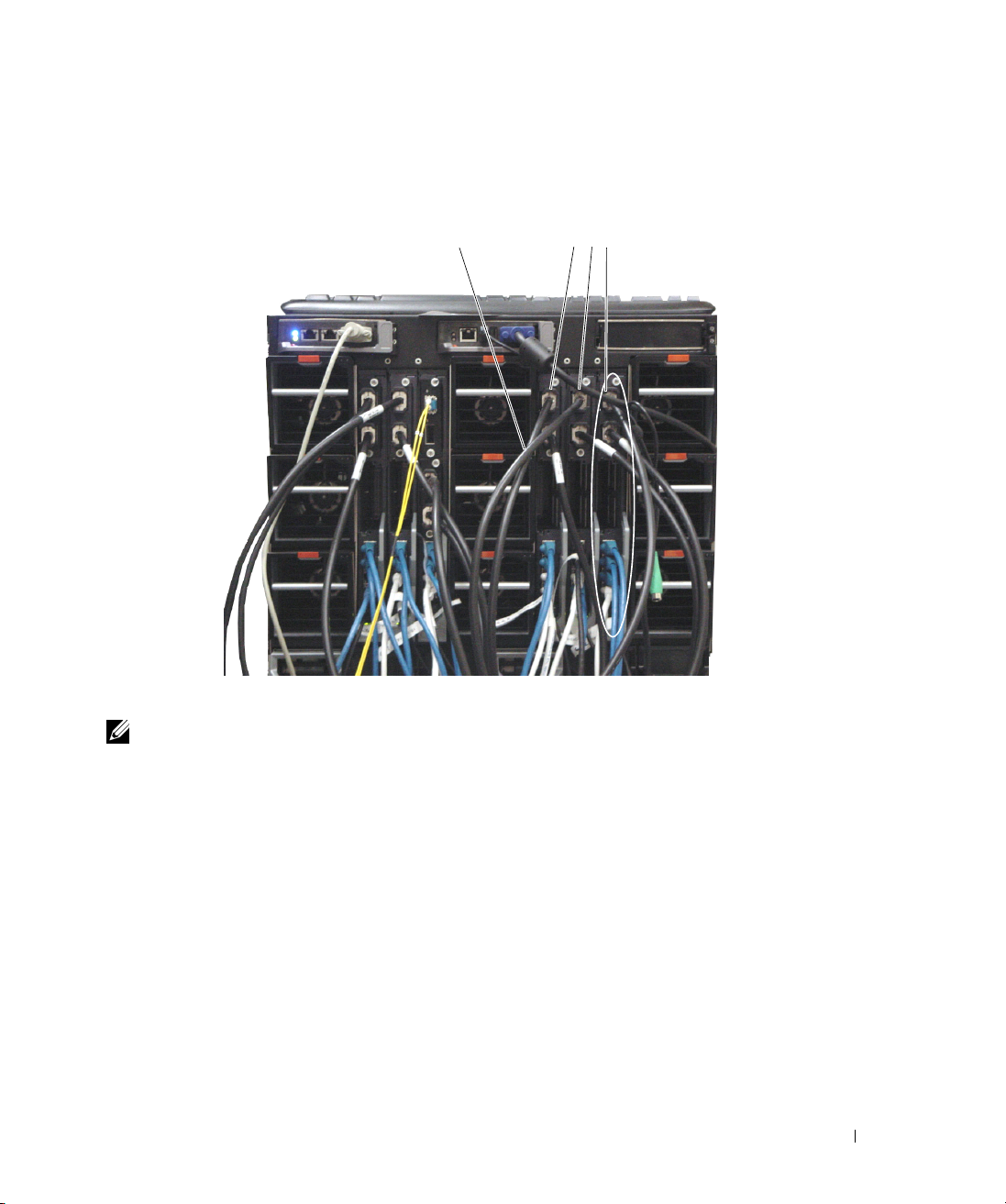

Figure 1 shows a chassis with six M6220 switches, three on the left and three on the right. Each
switch has an upper slot that contains a stacking module, and a lower slot for an optional plug-in
module.
JR183.book Page 6 Thursday, June 7, 2007 2:40 PM

Getting Started Guide 7
Figure 1. Connecting a Stack of Switches
NOTE: The resulting ring topology allows the entire stack to function as a single switch with resilient
fail-over capabilities.
A
B
C
D
stacking cables stacking modlues
JR183.book Page 7 Thursday, June 7, 2007 2:40 PM

8Getting Started Guide
www.dell.com | support.dell.com
Starting and Configuring the Switch
After completing all external connections, connect a terminal to a switch to configure the switch
or stack. Additional advanced functions are described in the
User's Guide located on your
User Documentation CD.
NOTE: Read the release notes for this product before proceeding. You can download the release notes
from the Dell Support website at support.dell.com.
NOTE: We recommend that you obtain the most recent version of the user documentation from
the Dell Support website at support.dell.com.
Connecting the Terminal to the Switch
To monitor and configure the switch via serial console, use the console port on the rear of the
switch to connect it to a VT100 terminal or to a computer running VT100 terminal emulation
software. The console port is implemented as a data terminal equipment (DTE) connector.
The following is required to use the console port:
• VT100-compatible terminal or a desktop or a portable system with a serial port, running
VT100 terminal emulation software.
• A serial cable (provided) with a USB type A connector for the console port and DB9
connector for the terminal.
Perform the following tasks to connect a terminal to the switch console port:
NOTE: If you are installing a stack of switches, you need to assemble and cable the stack before
powering up and configuring it.
1
Connect the DB9 connector on the serial cable to the terminal running VT100 terminal emulation
software.
2 Configure the terminal emulation software as follows:
a Select the appropriate serial port (serial port 1 or serial port 2) to connect to the console.
b Set the data rate to 9600 baud.
c Set the data format to 8 data bits, 1 stop bit, and no parity.
d Set the flow control to none.
e Set the terminal emulation mode to VT100 .
f Select Terminal keys for Function, Arrow, and Ctrl keys. Make sure that the setting
is for Terminal keys (not Microsoft
®
Windows
®
keys).
NOTE: When using HyperTerminal with Microsoft Windows 2000, make sure that you have
Windows 2000 Service Pack 2 or later installed. With Windows 2000 Service Pack 2, the arrow keys
function properly in HyperTerminal's VT100 emulation. Go to www.microsoft.com for more information
on Windows 2000 service packs.
JR183.book Page 8 Thursday, June 7, 2007 2:40 PM

Getting Started Guide 9
3 Connect the USB type A connector on the USB cable directly to the switch USB console port.
The PowerConnect M6220 series USB console port is located on the left side of the rear
panel, as shown in Figure 2.
NOTE: If you are installing a stack of switches, connect the terminal to the Master Switch. When a stack
is powered up for the first time, the switches elect the Master Switch, which may occupy any location in
the stack. If you connect the terminal to a member switch, you will not be able to use the CLI.
Figure 2. Connecting to the Console Port
latch closed
latch open
JR183.book Page 9 Thursday, June 7, 2007 2:40 PM

10 Getting Started Guide
www.dell.com | support.dell.com
Booting the Switch
Refer to the Hardware Owner’s Manual for instructions on booting the switch.
Initial Configuration
NOTE: The initial simple configuration procedure is based on the following assumptions:
• The PowerConnect switch was never configured before and is in the same state as when
you received it.
• The PowerConnect switch booted successfully.
• The console connection was established and the Dell Easy Setup Wizard prompt appears
on the screen of a VT100 terminal or terminal equivalent.
The initial switch configuration is performed through the console port. After the initial
configuration, you can manage the switch either from the already-connected console port
or remotely through an interface defined during the initial configuration.
NOTE: The switch is not configured with a default user name and password.
NOTE: All of the settings below are necessary to allow the remote management of the switch through
Telnet (Telnet client) or HTTP (Web browser).
Before setting up the initial configuration of the switch, obtain the following information
from your network administrator:
• The IP address to be assigned to the management VLAN.
• The IP subnet mask for the network.
• The IP address of the management VLAN default gateway.
Initial Configuration Procedure
You can perform the initial configuration using the Dell Easy Setup Wizard, or by using the
Command Line Interface (CLI). The Setup Wizard automatically starts when the switch
configuration file is empty. You can exit the wizard at any point by entering [ctrl+z], but all
configuration settings specified will be discarded (the switch will use the default values). For more
information on CLI initial configuration see the
User Guide . This guide shows how to use the
Setup Wizard for initial switch configuration. The wizard sets up the following configuration on
the switch:
• Establishes the initial privileged user account with a valid password. The wizard configures
one privileged user account during the setup.
• Enables CLI login and HTTP access to use the local authentication setting only.
• Sets up the IP address for the management VLAN.
JR183.book Page 10 Thursday, June 7, 2007 2:40 PM

Getting Started Guide 11
• Sets up the SNMP community string to be used by the SNMP manager at a given IP address.
You may choose to skip this step if SNMP management is not used for this switch.
• Allows you to specify the management server IP or permit management access from all IP
addresses.
• Configures the default gateway IP address.
Example Session
This section describes an Easy Setup Wizard session. The following values are used by the example
session:
• The IP address for the management VLAN is
192.168.1.100:255.255.255.0 .
• The user name is
admin , and password is admin123 .
• The network management system IP address is
192.168.1.10 .
• The default gateway is
192.168.1.1 .
• The SNMP community string to be used is
Dell_Network_Manager .
The setup wizard configures the initial values as defined above. After you complete the wizard,
the switch is configured as follows:
• SNMPv1/2c is enabled and the community string is set up as defined above. SNMPv3
is disabled by default.
• The admin user account is set up as defined.
• A network management system is configured. From this management station, you can access
the SNMP, HTTP, and CLI interfaces. You may also choose to allow all IP addresses to access
these management interfaces by choosing the (0.0.0.0) IP address.
• An IP address is configured for the default management VLAN (1).
• A default gateway address is configured.
NOTE: In the example below, the possible user options are enclosed in [ ]. Also, where possible, the
default value is provided in { }. If you press <Enter> with no options defined, the default value is accepted.
Help text is in parentheses.
The following example contains the sequence of prompts and responses associated with running
an example Dell Easy Setup Wizard session, using the input values listed above.
JR183.book Page 11 Thursday, June 7, 2007 2:40 PM

12 Getting Started Guide
www.dell.com | support.dell.com
After the switch completes the POST and is booted, the following dialog appears:
Welcome to Dell Easy Setup Wizard
The Setup Wizard guides you through the initial switch
configuration, and gets you up and running as quickly as possible.
You can skip the setup wizard, and enter CLI mode to manually
configure the switch. You must respond to the next question to run
the setup wizard within 60 seconds, otherwise the system will
continue with normal operation using the default system
configuration.Note: You can exit the setup wizard at any point
by entering [ctrl+z].
Would you like to run the setup wizard (you must answer this
question within 60 seconds)? [Y/N] y
Step 1:
The system is not setup for SNMP management by default. To manage
the switch using SNMP (required for Dell Network Manager) you can:
o Set up the initial SNMP version 2 account now.
o Return later and setup other SNMP accounts. (For more information
on setting up an SNMP version 1 or 3 account, see the user
documentation).
Would you like to setup the SNMP management interface now? [Y/N] y
To setup the SNMP management account you must specify the
management system IP address and the "community string" or
password that the particular management system uses to access the
switch. The wizard automatically assigns the highest access level
[Privilege Level 15] to this account. You can use Dell Network
Manager or other management interfaces to change this setting,
and to add additional management system later. For more
information on adding management systems, see the user
documentation.
To add a management station:
Please enter the SNMP community string to be used.
{public}:
public<Enter>
Please enter the IP address of the Management System (A.B.C.D)
or wildcard (0.0.0.0) to manage from any Management Station.
{0.0.0.0}:
192.168.2.1<Enter>
JR183.book Page 12 Thursday, June 7, 2007 2:40 PM

Getting Started Guide 13
Step 2:
Now we need to setup your initial privilege (Level 15) user
account. This account is used to login to the CLI and Web
interface. You may setup other accounts and change privilege
levels later. For more information on setting up user accounts
and changing privilege levels, see the user documentation.
To setup a user account:
Please enter the user name: admin<Enter>
Please enter the user password: ********<Enter>
Please reenter the user password: ********<Enter>
Step 3:
Next, an IP address is setup. The IP address is defined on the
default VLAN (VLAN #1), of which all ports are members. This is the
IP address you use to access the CLI, Web interface, or SNMP
interface for the switch.
Optionally you may request that the system automatically retrieve
an IP address from the network via DHCP (this requires that you
have a DHCP server running on the network).
To setup an IP address:
Please enter the IP address of the device (A.B.C.D) or enter "DHCP"
(without the quotes) to automatically request an IP address from
the network DHCP server.
192.168.2.1<Enter>
Please enter the IP subnet mask (A.B.C.D or /nn):
255.255.255.0<Enter>
Step 4:
Finally, set up the gateway. Please enter the IP address of the
gateway from which this network is reachable
192.168.1.1<Enter>
This is the configuration information that has been collected:
SNMP Interface = "public"@192.168.2.1
User Account setup = admin
Password = **********
Management IP address = 192.168.2.1 255.255.255.0
Gateway = 0.0.0.0
JR183.book Page 13 Thursday, June 7, 2007 2:40 PM

14 Getting Started Guide
www.dell.com | support.dell.com
Step 5:
If the information is correct, please select (Y) to save the
configuration, and copy to the start-up configuration file. If the
information is incorrect, select (N) to discard configuration and
restart the wizard: [Y/N]
y<Enter>
Thank you for using the Dell Easy Setup Wizard. You will now enter
CLI mode.
.....
console>
Managing a Stack
Master and Member Switches
A stack of switches can be managed as a single entity when connected together. The stack can be
managed from a web-based interface, an SNMP management station, or a CLI. When a stack is
created, one switch automatically becomes the master switch. You can manually allocate an IP
address to the master switch using the console, or let DHCP do so automatically. Afterwards,
you can manage the entire stack through the IP address of the Master Switch. The Master Switch
detects and reconfigures the ports with minimal operational impact in the event of:
• Switch failure
• Inter-switch stacking link failure
• Switch insertion
• Switch removal
If the Master Switch goes off line, any of the Member Switches in the stack can replace it.
The system will elect a new Master Switch and reconfigure the System Configuration for the stack.
Stack Startup
Topology Discovery
When a stack is formed, a topology discovery process builds up a database that contains
information about all of the switches in the stack, including the Firmware Version, Hardware
Version, Management Preference, Switch MAC Address, and Switch Serial Number. You can use
the command line interface (CLI) or the Web interface to view this information.
NOTE: See the CLI Reference Manual and the User’s Guide for assistance with the CLI and Web
interface, respectively.
JR183.book Page 14 Thursday, June 7, 2007 2:40 PM

Getting Started Guide 15
Auto Stack ID Assignment
During the stack formation process, every switch is assigned a Stack ID. Once Stack ID assignment
is complete, each switch saves its Stack ID into the nonvolatile FLASH memory. You can use
the CLI or the Web interface to view the stack IDs.
Firmware Version Checking
Following Stack ID assignment, the Master Switch performs a consistency check to make sure
that all switches in the stack are running the same firmware version.
If the switch software versions do not match, then the ports on the member switch will not become
valid for operation. This condition is known as the Suspended Stacking Mode. You can then
synchronize the firmware on the member switch with the firmware that is running on the Master
Switch.
System Initialization
If the Master Switch determines during the firmware version consistency check that all switches are
running the same version of firmware, the switch will be initialized for Stacking Mode.
System Initialization for Normal Stacking Mode
The Master Switch will initialize the stack using the last saved system configuration file. For those
switches that do not have a configuration file, the system will apply default settings to those
switches.
If the configuration file is corrupted, the Master Switch will initialize the stack and set it to the
Factory Default Configuration.
You can save the configuration file. The Master Switch automatically distributes the configuration
file to the member switches. If the Master Switch later becomes unavailable, a Member Switch
becomes the new Master Switch and configures the stack with the latest configuration
synchronized from the Master Switch.
System Initialization for Suspended Stacking Mode
After system initialization is complete, the Master Switch will enter Suspended Stacking Mode
if the firmware versions of the stack are inconsistent. In this mode, only the Master Switch is
initialized with configuration file information. None of the member switches are initialized.
This forces all member switches to remain in non-operational mode.
NOTE: All ports disabled by default.
JR183.book Page 15 Thursday, June 7, 2007 2:40 PM

16 Getting Started Guide
www.dell.com | support.dell.com
CLI/ Telnet/ Web Interface
You can use the CLI / WEB / SNMP to synchronize the firmware that is stored in the Master
Switch to a member switch.
Insertion and Removal of Switches
You can insert and remove switches to/from the current stack without cycling the power. The entire
network may be affected when a topology change occurs, as a stack reconfiguration will take place.
A new Master Switch will not be re-elected, unless the Master Switch was removed from the stack.
Stack reconfiguration takes a maximum of two minutes in a stack of twelve switches, less time for
smaller stacks.
Operating as Standalone Switch
If a switch cannot detect a stacking partner on a port enabled for stacking, the switch will operate
as a standalone switch. If a stacking partner is detected, the switch will always operate in stacking
mode.
Stack ID Renumbering
You can manually assign Stack IDs to a switch. A switch can only be assigned a Stack ID that has
not already been assigned to another switch in the stack. Any configuration information that was
saved for the new Stack ID is applied to the switch that is taking that Stack ID.
User Controls
Use the following CLI commands to control this feature. See the CLI Reference Manual for details
on the syntax of each command.
movemanagement
reload
member
set description
switch priority
switch renumber
stacking
show stack-port
show stack-port counters
show stack-port diag
show switch
show supported switchtype
JR183.book Page 16 Thursday, June 7, 2007 2:40 PM

www.dell.com | support.dell.com
Dell™ PowerConnect™
M6220 系列可堆叠交换机
使用入门指南
型号 PCM6220
JR183.book Page 17 Thursday, June 7, 2007 9:31 AM

注、注意和警告
注：“注”表示可以帮助您更好地使用计算机的重要信息。
注意：“注意”表示可能会出现硬件 坏或导致数据丢失的问题，并告诉您如何避免此类问题。
警告：“警告”表示可能会出现导致财产损失、人身伤害甚至死亡的情况。
____________________
本说明文件中的信息如有更改，恕不另行通知。
© 2007 Dell Inc. 版权所有，翻印必究。
未经 Dell Inc. 书 许可，严禁以任何形式进行复制。
本文中使用的商标： Dell、DELL 徽标和 PowerConnect 是Dell Inc. 的商标； Microsoft 和Windows 是Microsoft Corporation 的注册
商标。
本文件中述及的其它商标和产品名称是指拥有相应商标和名称的公司或其制造的产品。Dell Inc. 对本公司的商标和产品名称之外
的其它商标和产品名称不拥有任何专有权。
型号 PCM6220
2007 年5 月P/N JR183 Rev. A00
JR183.book Page 18 Thursday, June 7, 2007 9:31 AM
