Features
Feature
1. Power button • Press to turn on the tablet if it is
turned off or in sleep state.
• Press to put the tablet in sleep state
if it is turned on.
2. Power and battery-charge
status light
Indicates the power-state of the tablet.
6

Feature
3. Right microphone Provides sound input for audio
recording, voice calls, and so on.
4. Left microphone Provides sound input for audio
recording, voice calls, and so on.
5. Front camera Allows you to video chat, capture
photos, and record videos.
6. Headset port Connect a headphone, a microphone,
or a headset (headphone and
microphone combo).
7. Volume-control buttons (2) Press to increase or decrease the
volume.
8. Micro-HDMI port Connect a TV, monitor, or another
HDMI-in enabled device. Provides
video and audio output.
9. USB 3.0 port Connect peripherals such as storage
devices, printers, and so on. Provides
data transfer speeds up to 5 Gbps.
10. USB 3.0 and power-adapter
port (USB-C)
Connect a power adapter to provide
power to your tablet and charge the
battery. Connect peripherals that
support USB-C. Provides data transfer
speeds up to 5 Gbps.
11. Rear camera Allows you to video chat, capture
photos, and record videos.
12. Keyboard docking slots (2) Allows docking to the keyboard dock.
13. Service Tag label Provides the Service Tag and Express
Service Code needed when contacting
Dell.
14. Docking pins Allows docking to the keyboard dock.
15. NFC-sensor area (optional) Allows NFC-enabled devices to
communicate with your tablet.
16. Noble security cable slot Connect a Noble security cable to
prevent unauthorized movement of
your tablet.
17. Micro-SIM card slot Insert a micro-SIM card to connect to a
mobile broadband network.
7

Feature
18. microSD card slot Insert a microSD card to expand the
tablet’s storage capacity. Your tablet
supports a microSD card with capacity
up to 128 GB.
19. Windows button • Press to display the Windows Start
menu or Start screen.
• Press for quick access to the most
recently used app or most recently
viewed screen.
20. Camera-status light Turns on when the camera is in use.
8

Accessories
Your tablet supports the following accessories:
• Keyboard
• Stylus
Keyboard and stylus features
Feature
1. Docking connector Allows docking to the tablet.
2. Undock button Press to undock the tablet.
3. Tabs (2) Allows docking to the tablet.
4. Left-click area Press to left-click.
5. Right-click area Press to right-click.
6. Stylus holder Allows you to charge the stylus.
Replace the stylus here after use.
7. Buttons (2) Customize these buttons to perform
functions such as right-click, erase, and
so on.
9

Feature
8. Stylus Allows you to draw, write text, and
perform basic mouse functions.
10

Setting up your tablet
WARNING: Before you begin any of the procedures in this section,
read the safety information that shipped with your tablet. For
additional best practices information, go to www.dell.com/
regulatory_compliance.
Charging the tablet
CAUTION: Charge the battery in an ambient temperature of 0°C to
35°C (32°F to 95°F).
CAUTION: Use only the supplied power adapter to charge your tablet.
Using unauthorized power adapters or cables may severely damage
your tablet.
NOTE: The battery may not be fully charged when you unpack your
tablet.

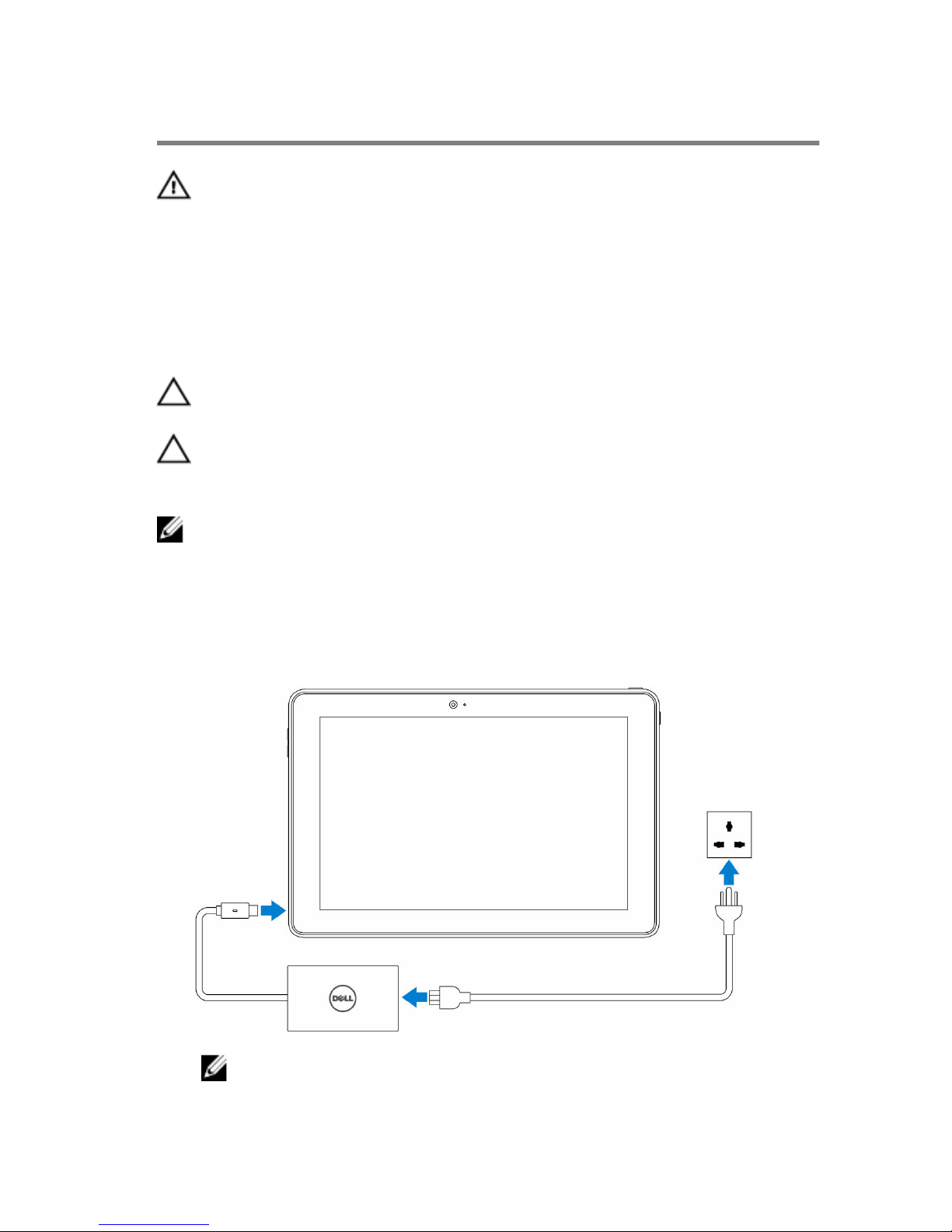

1 Connect the power cable into the power adapter.
2 Connect the power adapter to the power-adapter port on the tablet.
3 Connect the power adapter to an electrical outlet and charge the tablet
until the battery is fully charged.
NOTE: A fully discharged battery takes about 4 to 5 hours to fully
charge.
11

Checking battery-charge status
You can check the battery charge status from the battery-charging status
light or the battery icon displayed at the bottom of the Windows desktop.
Battery-charge status light
Behavior Description
Solid white Battery is getting charged.
Solid amber Battery charge is critically low.
NOTE: If you try turning on the tablet
when the battery charge is critically
low, the Dell logo flashes on the
screen, the battery-charge status
light turns on for 2 seconds, and then
the tablet turns off.
Off Battery is not getting charged or battery is
fully charged.
Battery icon
Battery icon Description
Tablet is connected to a power supply and the
battery is fully charged.
Tablet is connected to a power supply and the
battery is getting charged.
Tablet is running on the battery power and the
battery is discharging.
Tablet is running on the battery power and the
battery charge is low.
Tablet is running on the battery power and the
battery charge is critically low.
NOTE: For more details, tap or click the battery icon.
12

Turning on your tablet
When you turn on the tablet for the first time, you must finish Windows setup
to start using your tablet. For more information, see the Quick Start Guide
that shipped with your tablet.
1 Press and hold the power button for 2 seconds to turn on your tablet.
The lock screen appears.
2 Swipe up from the bottom of the display to switch to the login screen,
select your account, and enter your password to log in to Windows.
NOTE: If the login screen is not enabled, the Start screen appears
when you swipe up on the lock screen.
The tablet is ready for use when the Windows Start screen is displayed.
Inserting a micro-SIM card
1 Open the slot cover and locate the micro-SIM card slot.
CAUTION: Ensure that the micro-SIM card is aligned as shown in
the image.
2 Insert the micro-SIM card into the card slot until it locks into place.
3 Close the slot cover.
13

Removing the micro-SIM card
CAUTION: Removing the micro-SIM card while it is in use may cause
data loss or result in application errors.
1 Open the slot cover.
2 Press the micro-SIM card inward and release it.
The micro-SIM card pops out.
3 Slide the micro-SIM card out of the slot.
4 Close the slot cover.
Inserting a microSD card
1 Open the slot cover and locate the microSD card slot.
CAUTION: Ensure that the microSD card is aligned as shown in the
image.

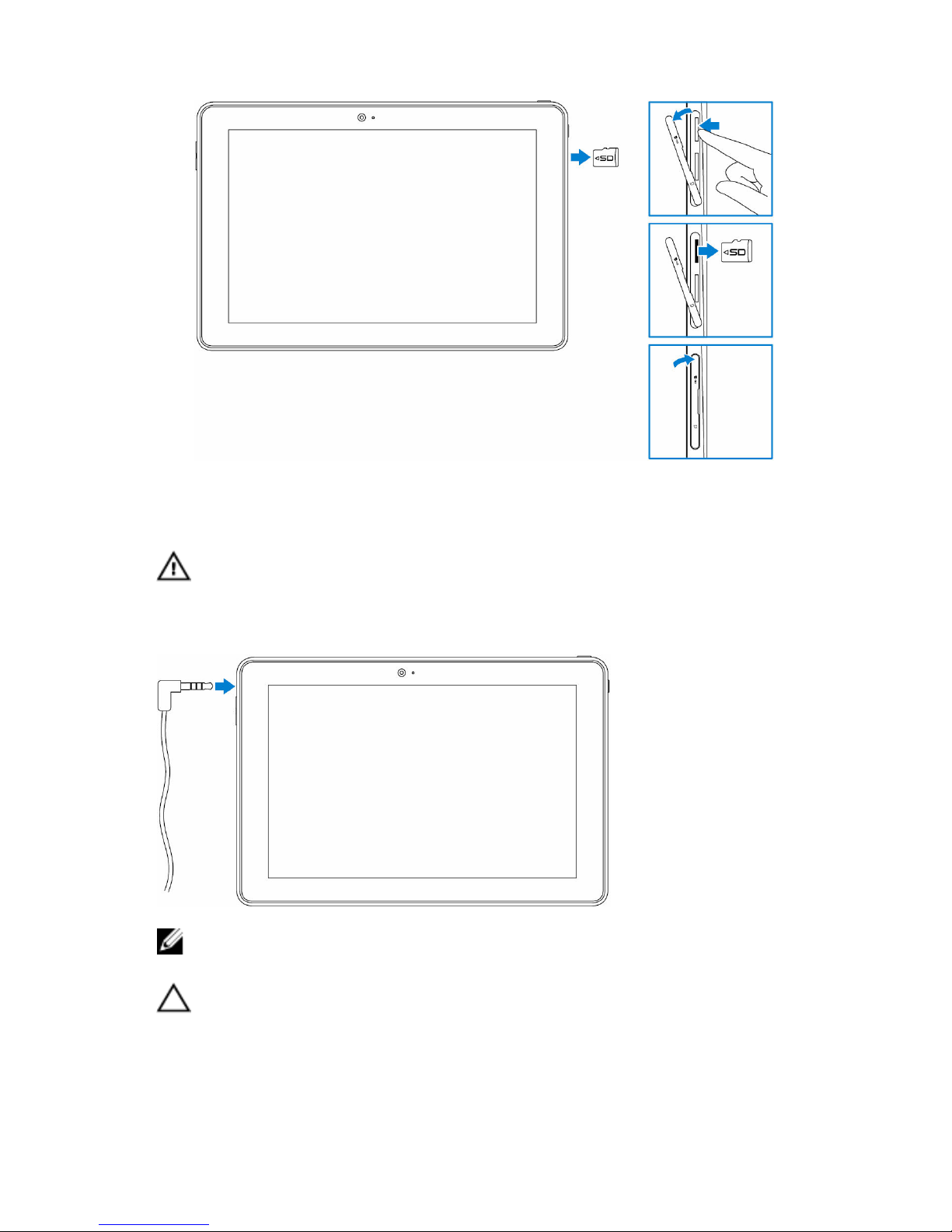

2 Insert the microSD card into the card slot until it locks into place.
14

3 Close the slot cover.
Removing the microSD card
CAUTION: Removing the microSD card while it is in use may cause
data loss or result in application errors.
1 In the notification area at the bottom-right corner of the Windows
desktop, tap (Safely Remove Hardware and Eject Media).
NOTE: If you do not see the icon, tap (Show hidden icons) to
display all icons in the notification area.
2 Tap Eject SD Memory Card. A message appears confirming that the
microSD card can be safely removed.
NOTE: If a warning message appears stating the microSD card
cannot be removed, ensure all data transfers involving the microSD
card are complete.
3 Open the slot cover.
4 Press the microSD card inward and release it.
The microSD card pops out.
5 Slide the microSD card out of the slot.
15

6 Close the slot cover.
Using headphones
WARNING: Listening to loud audio for an extended period of time can
lead to hearing loss.
Connect a headset, headphones, microphone, or other audio equipment to
the headset port on your tablet.
NOTE: When you connect an audio device to the headset port, the
integrated speaker on your tablet is muted automatically.
CAUTION: To prevent damaging your headphones when
disconnecting it from the tablet, pull the connector and not the cable.
16

Using your tablet
NOTE: For detailed information on using Windows, see Getting help.
Turning off your tablet
Using the power button on the Start screen
On the top-right corner of the Start screen, tap the power button →Shut
down .
Using the charms menu
1 Swipe-in from the right edge of the display to access the charms menu.
2 In the charms menu, tap Settings →Power →Shut down to turn
off the tablet.
Using the power button
1 Press and hold the power button for at least 4 seconds.
2 Swipe down the shut-down confirmation screen to turn off the tablet.
Turning off the screen
Using the charms menu
1 Swipe-in from the right edge of the display to access the charms menu.
2 Tap Settings →Power →Sleep to turn off the screen.
NOTE: If your tablet is in a standby state, press the power button or
Windows button to turn on the screen.
Using the power button
Press the power button to turn off the screen.
17

Start screen
The Start screen displays tiles that act as shortcuts to installed apps.
Tiles on your Start screen change and update in real time to show news and
sports updates, weather updates, social-networking feeds, and so on.
You can customize the Start screen by pinning your favorite apps as tiles,
setting your favorite picture as a wallpaper, and so on.
Wi-Fi
Turning Wi-Fi on or off
1 Swipe in from the right edge of the display to access the charms.
2 Tap Settings →wireless network icon .
3 Swipe the Wi-Fi slider to the right or left to turn Wi-Fi on or off.
Connecting to a network
1 Swipe in from the right edge of the display to access the charms menu.
2 Tap Settings →wireless network icon .
3 Select an available network from the list and tap Connect.
NOTE: If connecting to a secured network, enter the security key
when prompted.
18

Mobile broadband setting
Turning mobile broadband on or off
1 Swipe-in from the right edge of the display to access the charms menu.
2 Tap Settings →Change PC settings →Networks.
3 Under Networks, swipe the Mobile broadband slider right or left to turn
mobile broadband on or off.
Connecting to a network
1 Swipe in from the right edge of the display to access the charms menu.
2 In the notifications area, tap the network icon .
3 Tap an available network from the list and tap Connect.
Bluetooth
Turning Bluetooth on or off
1 Swipe-in from the right edge of the display to access the charms menu.
2 Tap Settings →Change PC settings →PC and devices →Bluetooth.
3 Swipe the Bluetooth slider to the right or left to turn off or on Bluetooth.
Pairing with Bluetooth-enabled devices
NOTE: Bluetooth connection between your tablet and Apple devices are
not supported.
1 Swipe-in from the right edge of the display to access the charms menu.
2 Tap Settings →Change PC settings →PC and devices →Bluetooth.
3 Ensure that Bluetooth is turned on.
4 From the list of devices, tap the device you want to pair with, and tap
Pair.
NOTE: It may take a few seconds for the device to be displayed in
the list. If the device is not displayed, ensure that it is in pairing
mode and within Bluetooth range.
19

5 If needed, verify that the Bluetooth passcode that appears on the tablet
and the Bluetooth-enabled device are the same.
6 Confirm the pairing process on the tablet and device.
NOTE: After a device is successfully paired with the tablet, it
automatically connects with the tablet when Bluetooth is enabled
on both tablet and device and they are in Bluetooth range.
Screen orientation
For optimal viewing experience, the screen orientation changes automatically
to portrait or landscape depending on how you hold the tablet. You can
disable automatic screen rotation and lock the screen in portrait or landscape
mode.
NOTE: Some apps may not support automatic screen rotation and are
designed to work only in one orientation.
Locking/unlocking the screen orientation
1 Change the screen to the desired orientation.
2 Swipe in from the right edge of the display to access the charms.
3 Tap Settings →Screen .
4 Tap to lock the screen orientation, or tap to unlock the screen
orientation.
Adjusting the screen brightness
1 Swipe-in from the right edge of the display to access the charms menu.
2 Tap Settings →Screen .
20
