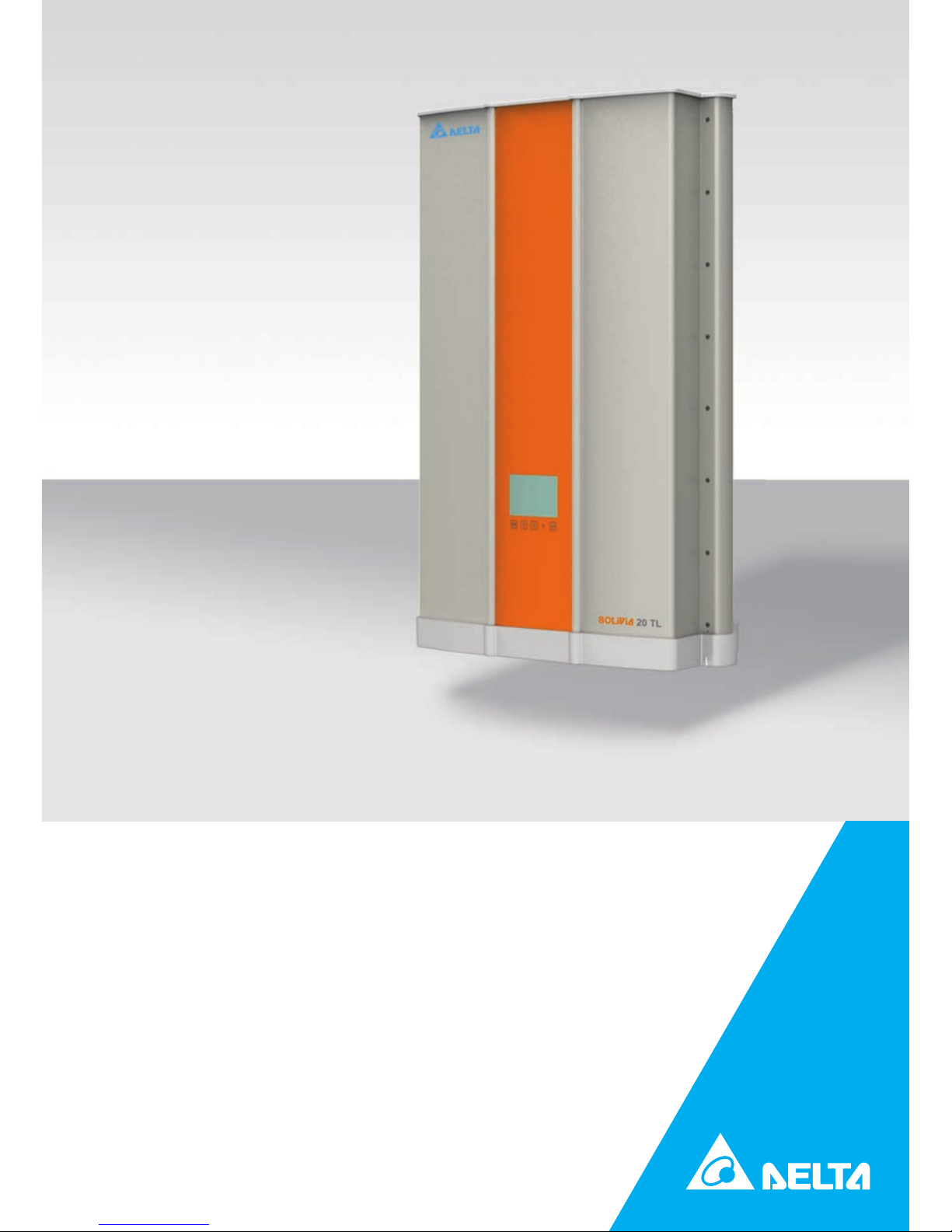

Delta Energy Systems Solivia 30 EU T4 TL Specification sheet

Operation and Installation
manual
SOLIVIA 6.0 EU T4 TL
SOLIVIA 8.0 EU T4 TL
SOLIVIA 10 EU T4 TL
SOLIVIA 12 EU T4 TL
SOLIVIA 15 EU G4 TL
SOLIVIA 20 EU G4 TL
SOLIVIA 30 EU T4 TL

3
EN
© Copyright – Delta Energy Systems (Germany) GmbH - All rights reserved.
This manual accompanies our equipment for use by the end users.
The technical instructions and illustrations contained in this manual are to be treated as condential and no part may be repro-
duced without the prior written permission of Delta Energy Systems Service engineers and end users may not divulge the informa-
tion contained herein or use this manual for purposes other than those strictly connected with correct use of the equipment.
All information and specications are subject to change without notice.
This manual is subject to change.
Please check our website at www.solar-inverter.com
for the most up-to-date manual version.

4
Table of Contents
1. General Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2. General Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2.1 About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2.2 Safety Symbols & Instruction . . . . . . . . . . . . . . . . . . . . . . .9
2.3 Validity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2.4 Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2.5 Application & Intended Use . . . . . . . . . . . . . . . . . . . . . . . 10
2.6 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.7 Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3. Preparing for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.1 Instruction before Installing . . . . . . . . . . . . . . . . . . . . . . . 12
3.2 Checking the Package . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.3 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

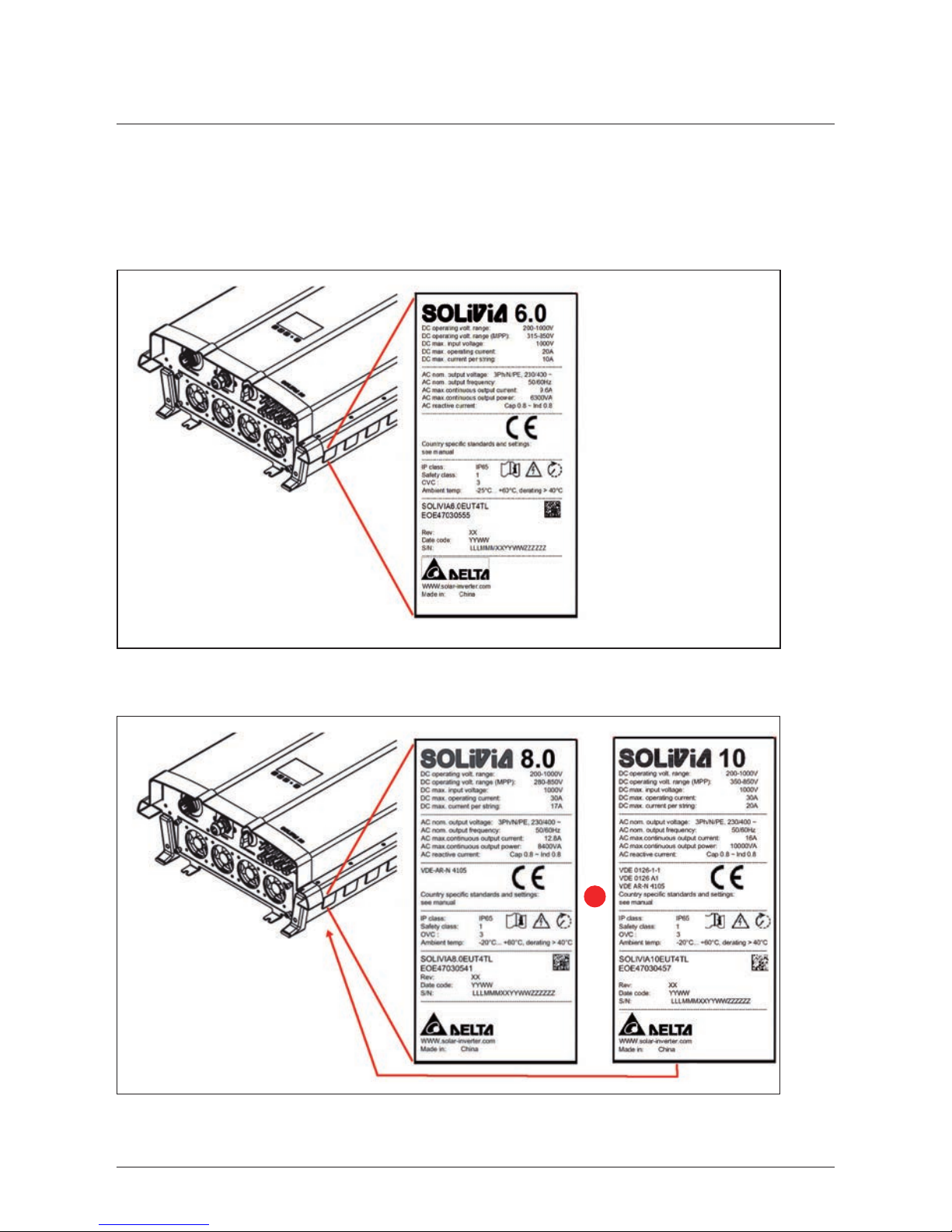

3.4 Identify the Inverter. . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4. Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

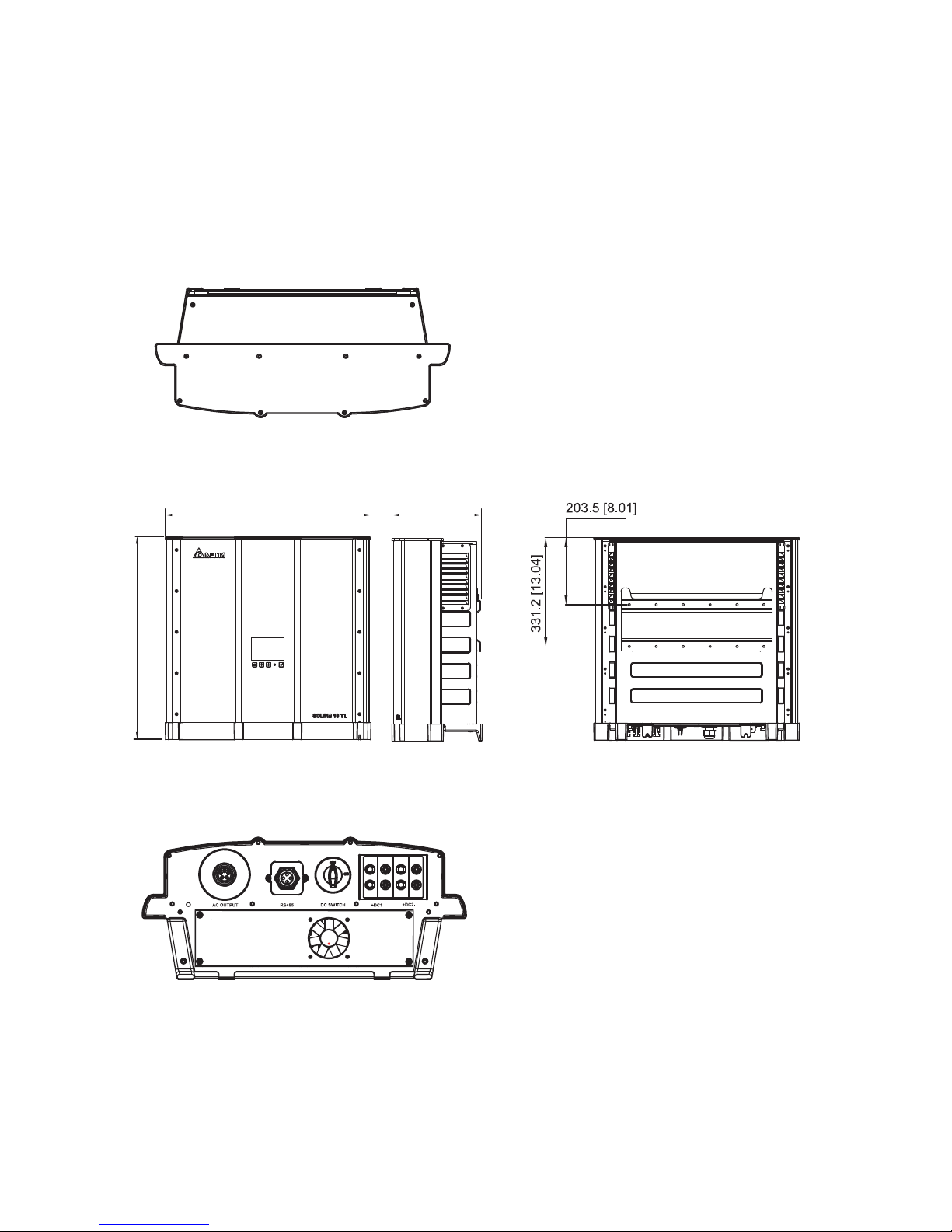

4.1 Dimensions SOLIVIA 6.0 TL / 8.0 TL / 10 TL / 12 TL. . . . . . . . . . . 16

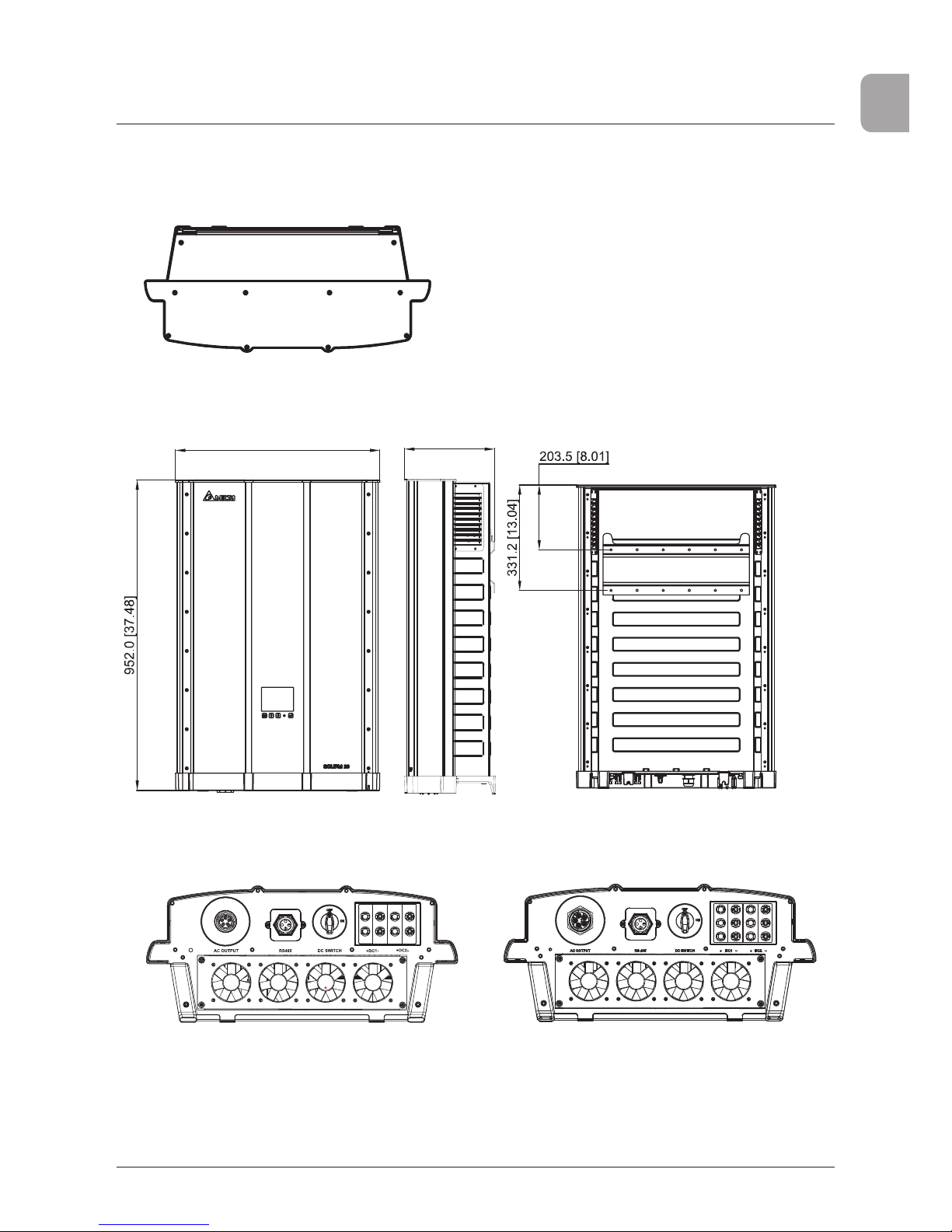

4.2 Dimensions SOLIVIA 15 TL, 20 TL, 30 TL . . . . . . . . . . . . . . . . 17

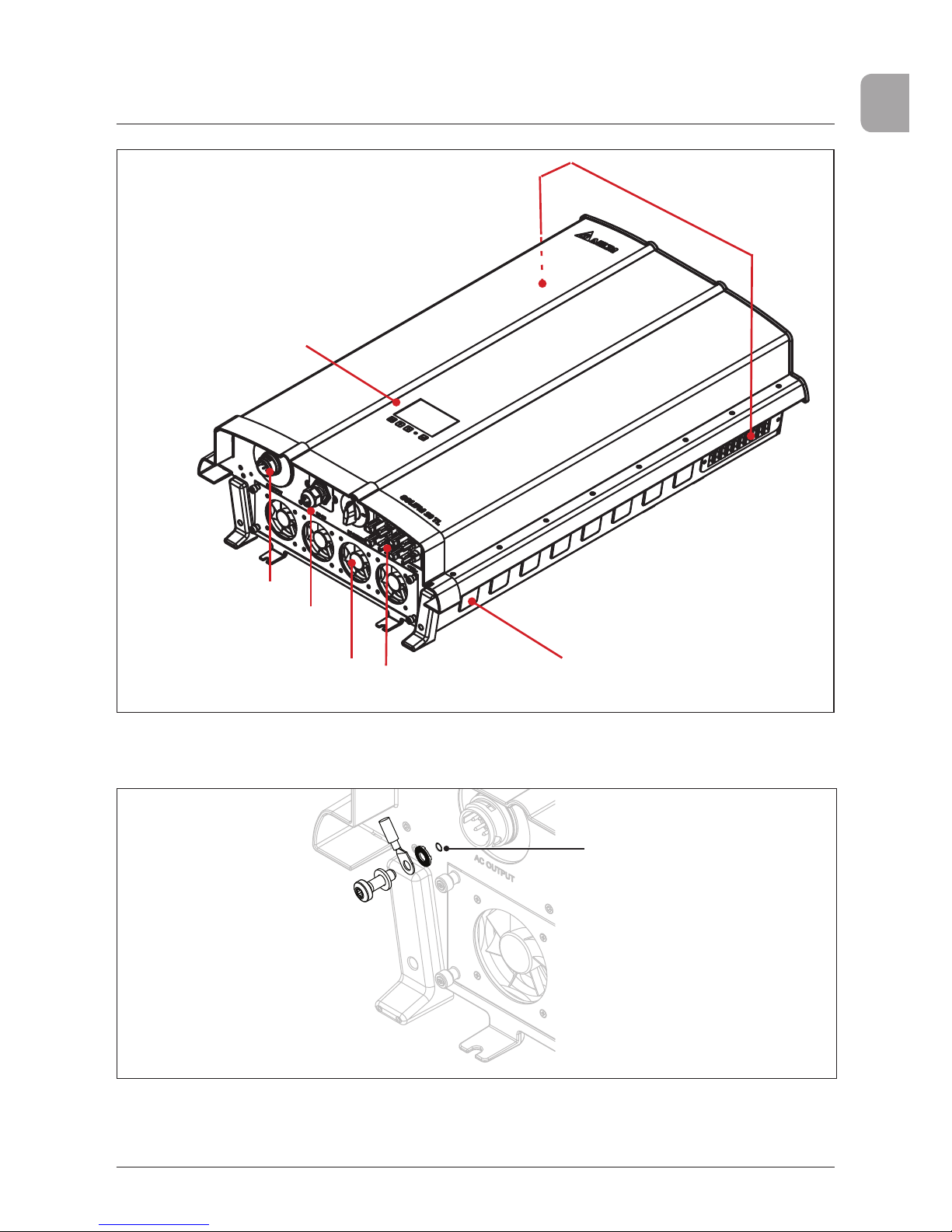

4.3 Function Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.3.1 LCD Display and Buttons . . . . . . . . . . . . . . . . . . . . . . . . 20
4.3.2 Inverter Input/Output Interface . . . . . . . . . . . . . . . . . . . . . . 21
4.3.3 Air outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5. Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.1 Installing Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.2 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.3 Ambient temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6. Wiring the Inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.1 Preparation before Wiring . . . . . . . . . . . . . . . . . . . . . . . . 30
6.2 AC Grid Connection: 3 Phase + N + PE . . . . . . . . . . . . . . . . . 33
6.2.1 Required protective devices and cable cross-sections . . . . . . . . . 33
6.2.1.1 Residual Current Devices.....................................33
6.2.1.2 AC Cable Requirements .....................................34
6.2.2 AC bayonet connectors for 6.0 TL, 8.0 TL, 10 TL, 12 TL, 15 TL, 20 TL . 35
6.2.3 AC bayonet connectors for 30 TL . . . . . . . . . . . . . . . . . . . . 37

5
EN
6.2.4 AC Wiring Considerations . . . . . . . . . . . . . . . . . . . . . . . . 39
6.3 DC Connection (from PV array) . . . . . . . . . . . . . . . . . . . . . 39
6.3.1 Asymmetrical Loading . . . . . . . . . . . . . . . . . . . . . . . . . . 42
6.4 Efciency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.5 Communication Module Connections . . . . . . . . . . . . . . . . . . 48
6.5.1 RS485 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
6.5.2 EPO (Emergency Power Off) Connections . . . . . . . . . . . . . . . 50
6.5.3 Dry Contact Connection . . . . . . . . . . . . . . . . . . . . . . . . . 51
7. Operating the PV inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
7.1 Disconnection Parameter Settings . . . . . . . . . . . . . . . . . . . . 55
7.1.1 Power Disconnection Device (PDD) Settings . . . . . . . . . . . . . . 55
7.1.2 SPI device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
7.2 Home Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
7.3 LCD Flow Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
7.3.1 Power Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
7.3.2 Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
7.3.3 Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
7.3.3.1 Internal Data...............................................59
7.3.3.2 Events Journal (Germany LVD or MVD Grid Only) .................59
7.3.4 Actual data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
7.3.5 Inverter Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
7.3.6 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
7.3.6.1 General Settings............................................62
7.3.6.2 Install Settings .............................................62
7.3.6.3 Active/Reactive Power control for DE LVD and DE MVD.............63
7.3.6.3.1 Power Limit ..............................................65
7.3.6.3.2 Power vs. Frequency .......................................66
7.3.6.3.3 Constant cos φ............................................68
7.3.6.3.4 cosφ(P) .................................................68
7.3.6.3.5 Constant Reactive Power....................................69
7.3.6.3.6 Q(V) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
7.3.6.3.7 Fault Ride Through (FRT) ...................................71
7.3.6.4 Active/Reactive Power control for Italy CEI 0-21 and Italy A70 ........73
7.3.6.4.1 Power Limit ..............................................74
7.3.6.4.2 Power vs. Frequency .......................................75
7.3.6.4.3 Constant cosφ ............................................76

6
7.3.6.4.4 cosφ(P) .................................................76
7.3.6.4.5 Constant Reactive Power....................................79
7.3.6.4.6 Q(V) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
7.3.6.4.7 LVFRT Low Voltage Fault Ride Through (LVFRT) .................81
7.3.6.5 Reactive Power Control for Slovenia (SONDO) for 15 / 20 / 30 TL .....83
8. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
8.1 Cleaning the Fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
8.2 Replace a Fan Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 87
8.3 Cleaning the Air Outlets . . . . . . . . . . . . . . . . . . . . . . . . . 88
9. Measurements and Messages . . . . . . . . . . . . . . . . . . . . . . . . . 89
9.1 Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
9.2 Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
10. Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
11. Decommissioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
12. Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
12.1 Specication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
12.2 Cable Recommendations . . . . . . . . . . . . . . . . . . . . . . . 105
12.3 Earthing Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
12.4 15 TL and 20 TL Models With Earlier DC Input Panel . . . . . . . . . 107
13.Certicates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

7
EN
General Safety Instructions
1. General Safety Instructions
DANGER
Risk of death by electrocution
Potentially fatal voltage is applied to the solar inverter during operation. This
potentially fatal voltage is still present for ve minutes after all power sources
have been disconnected.
►Never open the solar inverter.
►Always disconnect the solar inverter from power before installation, open
the DC isolating switch and make sure neither can be accidentally recon-
nected.
► Wait at least ve minutes until the capacitors have discharged.
DANGER
Risk of death or serious injury from electrocution
Potentially fatal voltage may be applied to the DC connections of the solar
inverter.
►Never disconnect the PV modules when the solar inverter is powered.
►First switch off the grid connection so that the solar inverter cannot feed
energy into the grid.
►Then open the DC isolating switch.
►Make sure the DC connections cannot be accidentally touched.
●The solar inverter can be safely and normally operated if installed and used in accordance
with this manual (see IEC 62109-5.3.3). Delta Energy Systems is not responsible for damage
incurred by failure to observe the installation and operating instructions in this manual. For
this reason, be sure to observe and follow all instructions!
● Installation and commissioning may only be performed by qualied electricians using the
installation and commissioning instructions found in this manual.
●The solar inverter must be disconnected from power and the PV modules before any work on
it can be performed.
●The solar inverter has a high leakage current value. The ground wire must be connected
before commissioning.
●Do not remove any warning signs that the manufacturer has installed on the solar inverter.
● Improper handling of the solar inverter my result in physical injury and damage to property.
For this reason, observe and follow all general safety instructions and warnings.
●The solar inverter contains no components that must be maintained or repaired by the opera-
tor or installer. All repairs must be performed by Delta Energy Systems. Opening the cover
will void the warranty.
●Do not disconnect any cables when the solar inverter is powered due to risk of a fault arc.
●To prevent lightning strikes, follow the relevant regulations applicable in your country.
●The surface of the solar inverter can become very hot.

8
General Safety Instructions
●The solar inverter is very heavy. The solar inverter must be lifted and carried by at least two
people.
●Only devices in compliance with SELV (EN 69050) may be connected to the RS485 and USB
interfaces.
● All connections must be sufciently insulated in order to comply with the IP65 protection rat-
ing. Unused connections must be closed by placing cover caps on the solar inverter.

9
EN
General Information
2. General Information
2.1 About this Manual
This manual provides the detail information for the specication, installation procedures and all
related functional settings of the solar inverter model.
Installation technicians must be well-trained and qualied for installing solar system and must
follow all the safety instruction and installation procedures.
2.2 Safety Symbols & Instruction
CAUTION!
CAUTION!
Machine and equipment damage may occur if
this hazardous situation is not avoided
WARNING!
WARNING!
Death and serious injury may occur if this
hazardous situation is not avoided
DANGER!
DANGER!
Death and serious injury will occur if this haz-
ardous situation is not avoided
WARNING! BURN HAZARD
The enclosure temperature may exceed 70° C
while inverter is in operation. A dangerous burn
hazard is present in this situation. Please do
not touch!
2.3 Validity
This user manual describes the installation procedures, maintenance, technical data and safety
instruction of the specied solar inverter models under the DELTA brand.
The software version of your inverter is found on the inverter display. Please nd more information
in section 7.35 “Inverter Information.”
2.4 Product Description
The SOLIVIA TL inverters are 3 phase grid-tied solar inverters with reactive power control. These
devices convert direct current (DC) electricity from photovoltaic power collected from PV arrays
into 3 phase alternating current (AC) to feed the excess capacity back to the local mains electri-
cal grid. Using cutting-edge technology allows a wide voltage input range (250~1000 V) and high
performance efciency based on a user-friendly operation design. In addition, special DSP (Digital
Signal Processor) design decreases the circuit complication and electronic components. Please
note that this device does not support off-grid function. The following are the key features of
SOLIVIA TL series 3 phase grid-tied solar inverters.

10
General Information
Key Features
●Power Rating: 6 / 8 / 10 / 12 / 15 / 20 / 30 kVA
●Power Balancing (33/67) in asymmetrical dc loading situations
●3-Phase (3-Phase + N + PE), Grid-tie, Transformerless solar inverter
● Maximum efciency: up to 98.2 %
● Europe efciency: up to 97.8 %
●Reactive power capability (Cap 0.80 - Ind 0.80)
● Low input current harmonic distortion (THD < 3%) @ full load
●2 MPP Trackers
●Record up to 30 event logs.
●5” LCD display
●EPO
The SOLIVIA TL inverters comply with the latest country regulations and standards. Please see
the list on the website www.solar-inverter.com for the complete list of compliance standards.
2.5 Application & Intended Use
The operation of the solar inverter is as shown as in the gure 2.1. In order to save energy and
electricity, solar inverters convert the DC input power supplied from the PV array into three-phase
AC output power to the grid.
NOTE
Languages supported: English, Italian, French, German, Dutch, Spanish
The solar power inverter may only be used as intended.
Proper use of the solar power inverter meets the following criteria:
●Use in stationary PV systems connected to the local power grid for converting the direct cur-
rent in the PV system to alternating current and feeding it into the grid
● Use within the specied power range (see Sec. 12.1 - Technical Specications) and under
the specied ambient conditions (indoor area or covered outdoor area with up to IP65)
Any of the following uses of the solar power inverter is considered improper:
●Isolated operation: The solar power inverter has anti-islanding and other monitoring features.
●Use in mobile PV systems.

11
EN
General Information
2.6 Additional Information
For more detailed information about the SOLIVIA TL series or other related product information,
please visit the website at http://www.solar-inverter.com for more support.
Solar Inverter
PV Array
Electrical Grid
3-Phase, N, PE
Surge arrestor
DC Distribution
Box
AC Distribution
Box
Fuse
DC Switch
Surge arrestor
AC breaker
3PH
Figure 2.1.: Solar Inverter System Operation Illustration
2.7 Monitoring
The SOLIVIA TL inverters include a display for monitoring performance on location. Remote
monitoring is also an option for the TL series inverters with Solar Log and Meteocontrol as well as
Delta’s own monitoring solution, SOLIVIA Monitor G2. Please contact your Delta supplier for more
information on these remote monitoring options.
SOLIVIA Monitor G2 ensures reliable operation and maximum performance of PV systems. The
system is compatible with all SOLIVIA String Inverter models from Delta. The all-in-one solution
is made up of the SOLIVIA GW M1 G2, a gateway that acts as an interface, and an online portal
that is available to users at http://monitoring.solar-inverter.com. Both real-time data reports and
historical data statistics can be generated and exported as a CSV or Excel le. Automated alert
messages notify the operator and ensure that the solar investment pays off. The installer also has
the opportunity to manage its customers’ systems in order to gain a quick overview of the system
status at all times. What’s more, the user receives information on the weather and also the latest
news via the integrated news feed.
For more information about technical features and functions, please refer to the company website
at the following link: http://www.solar-inverter.com/eu/en/SOLIVIA-monitoring-system.htm.

12
Preparing for Installation
3. Preparing for Installation
3.1 Instruction before Installing
Due to the variety of user installation environments, reading the manual thoroughly before installa-
tion is strongly recommended. All the installation and start-up procedures must be undertaken by
a professional and well-trained technician.
3.2 Checking the Package
There might be some unpredictable situations during transportation. Please check if there is any
damage to the cardboard carton. After opening the package, please check both the outer case
and inner part of this inverter as below.
1. Check the right side on the inverter case to ensure the model number and the specication is
the same with the model you have purchased.
2. Check if there are any loose components.
3. Check if all the accessories are in the package, the standard accessories are listed in the
below table:
Item Quantity Description
Solar Inverte 1 6 kVA, 8 kVA, 10 kVA, 12 kVA, 15 kVA, 20 kVA, or
30 kVA solar inverter
User Manual 1 User installation and operation instructions
AC Plug 1 Connector for AC connection
Mounting Bracket 1 Bracket to install the inverter on the wall
Table 3.1.: Packing List
NOTE
When there is outer or inner damage on the inverter or there is any missing
or damaged standard accessories, please contact your inverter supplier for
support.

13
EN
Preparing for Installation
3.3 Unpacking
1. Open the top of the cardboard box as shown in the gure below.
2. Remove the top packing material after opening the box.
3. Lift the Inverter out of the package and save the packaging in case of return.
Figure 3.1.: Unpacking Process

14
Preparing for Installation
3.4 Identify the Inverter
User can identify the model number by the information on the product label. The model number,
specication as well as the series no. is specied on the product label. In regard to the label loca-
tion, please refer to the below gure.
Figure 3.2.: The Type Label 6.0 TL
or
Figure 3.3.: The Type Label 8.0 TL and 10 TL

15
EN
Preparing for Installation
or
Figure 3.4.: The Type Label 12 TL and 15 TL
or
Figure 3.5.: The Type Label 20 TL and 30 TL

16
Product Overview
4. Product Overview
4.1 Dimensions SOLIVIA 6.0 TL / 8.0 TL / 10 TL / 12 TL
625 [24.6] 275 [10.83]
618 [24.3]
Bottom view
Rear viewSide view
Front view
Top view
Figure 4.1.: Dimensions of SOLIVIA 6.0 TL / 8.0 TL / 10 TL / 12 TL

17
EN
Product Overview
4.2 Dimensions SOLIVIA 15 TL, 20 TL, 30 TL
Bottom view: 15 TL / 20 TL
Rear viewSide view
Front view
275 [10.83]
625 [24.6]
Top view
Figure 4.2.: Dimensions of SOLIVIA 15 TL / 20 TL / 30 TL
Bottom view: 30 TL

18
Product Overview
4.3 Function Introduction
Inverter exterior features are shown on gure 4.3 and 4.4, and a more detailed description is
found in the sections from 4.3.1 to 4.3.3
*Note: The fan is shown without
the required protective screen for
illustrative purposes
Communication
Connections
LCD/LED Display
Buttons
Label
Air outlets
DC Connectors
AC Connector
Fan
Figure 4.3.: 6.0 TL / 8.0 TL / 10 TL / 12 TL Inverter Exterior View

19
EN
Product Overview
Communication
Connections
LCD/LED Display
Buttons
Label
Air outlets
DC Connectors
AC Connector
Fan *4
*Note: The fans shown are without
the required protective screen for
illustrative purposes
Please note the 15 TL / 20 TL model
is shown here. The 30 TL will look
slightly different - a different AC
connector and 2 addl. DC inputs will
be present on the 30 TL.
Figure 4.4.: 15 TL / 20 TL / 30 TL Inverter Exterior View
➀
Figure 4.5.: Grounding Kit

20
Product Overview
The chassis has a predrilled hole ➀to accept a grounding screw as shown. The maximum torque
of the M6 grounding screw is 4.4 Nm. There is a 15 mm diameter unpainted surface around the
center of the ground screw hole that allows for a solid ground connection when installing the
grounding kit.
4.3.1 LCD Display and Buttons
ESC: ESC MENU
DOWN: MOVE DOWN
UP: MOVE UP
ENTER: ENTER MENU OR CONFIRM
LED Indicator (GRN/RED)
LCD Display
Figure 4.6.: LCD Display and Control Panel
