Delta Vivitek NovoTouch EK650i User manual

User Manual
(For EK650i)

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 2
Table of Contents
Safety..........................................................................................4
Regulatory Compliance............................................................................................. 6
Package Contents......................................................................8
Optional Accessories ................................................................................................ 9
Overview...................................................................................10
Display Front View................................................................................................... 10
Display Rear View .................................................................................................... 11
Display Right View................................................................................................... 12
Display Left View...................................................................................................... 13
Display Bottom View................................................................................................ 14
Remote Control........................................................................................................ 15
Installing Batteries..........................................................................................................................16
Remote Control Usage...................................................................................................................16
Installing the Wall Mount.........................................................17
Connections .............................................................................20
HDMI-In ..................................................................................................................... 20
VGA-In....................................................................................................................... 21
Audio-In .................................................................................................................... 21
LAN (RJ-45)............................................................................................................... 22
Touch ........................................................................................................................ 22
RS-232....................................................................................................................... 23
USB (2.0/3.0)............................................................................................................. 23
microSD .................................................................................................................... 23
Audio-Out.................................................................................................................. 24
Getting Started.........................................................................25
Installing the Wi-Fi USB Dongle.............................................................................. 25
Powering the Display............................................................................................... 26
Switching Input Source ........................................................................................... 27
Setting up an Internet Connection.......................................................................... 28
Setting up aWi-Fi Connection........................................................................................................28
Setting up aWi-Fi Hotspot..............................................................................................................31
Display Settings....................................................................................................... 33
Audio.............................................................................................................................................34

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 3
Screen...........................................................................................................................................34
Display...........................................................................................................................................35
Adjust ............................................................................................................................................35
Using the Display.....................................................................36
Home Screen............................................................................................................ 36
Finder........................................................................................................................ 37
Browser..................................................................................................................... 38
Tools ......................................................................................................................... 39
Note........................................................................................................................... 40
Cleaning the Display................................................................41
Specifications...........................................................................42
Troubleshooting.......................................................................43
Appendix (RS-232 Specifications)...........................................44
Copyright Statement................................................................47

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 4
Safety
Placement
Do not place the unit on an unstable cart, stand, tripod, bracket, table, or shelf.
Do not expose the unit to direct sunlight and other sources of heat.
Do not put the unit near appliances that generate magnetic fields.
Do not put any liquid near or on the unit, make sure you do not spill any liquid
inside the unit.
Do not put heavy objects on top of the unit.
Power Supply
Check that the unit’s operating voltage is identical to your local power supply.
Please unplug the display from the power supply during possible thunder-storms or
lightning.
Please unplug the display from the power supply when the unit will be idle for a
long time.
Please prevent the power cable from receiving physical or mechanical damage.
Please use the original power cable from the product packaging, and don't modify
or lengthen it.
Please check and ensure that the AC source is connected with the ground.
The power cable that comes with the display is for use exclusively by this device.
LED Screen
This display only supports landscape display orientation. Do not mount in portrait
display orientation or mount facing up or facing down.
Never use any hard or sharp object in place of the styluses.
Do not use permanent or dry-erase markers on the screen. If dry-erase markers
are used on the screen, remove the ink as soon as possible with a lint-free,
non-abrasive cloth.
Unplug the power cable before cleaning.
For a longer panel lifetime and better display performance, do not set the display to
high brightness for a long period of time.
Temperature
Do not place the unit near or over a radiator or a heater.
If your display is suddenly moved from a cold to a warm place, please unplug the
power cable and do not turn it on at least 2 hours, making sure the moisture inside
the unit is all evaporated.
Normal operating temperature is 0 - 40°C.

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 5
Humidity
Do not expose the unit to rain, or place in a high humidity area.
Please make sure indoor environment is dry and cool.
Normal operating humidity is 10% - 90%.
Ventilation
Please put the unit in a well ventilated place, so the heating can be released easily.
Ensure that the unit has enough space for ventilation. Space requirement: left, right
and back >10cm, top> 20cm.
Earphone
Using the earphones to listen to loud audio for an extended period of time might
affect one’s hearing.
Before using earphones, please turn down the volume in advance.
Battery
Please make sure the battery is properly disposed or recycled after use.
Please keep the battery away from children.
DO NOT throw the battery into a fire.
For the remote control batteries, ensure that the correct batteries are used and
installed in the proper orientation.
Maintenance
This machine should only be maintained/serviced by certified technician.
Inspect the display mount frequently to ensure that it has remained securely
installed.
Check the mounting location for loose screws, gaps, distortions, signs of damage
or weakness that can occur over time.
Disposal of Old Electric and Electronic Equipment
The symbol on your product or the package represents that the product
should not be treated as the normal household waste when discarded but
should be carried to the recycling location of the waste electric and
electronic equipment. The consequence on the environment and human
health due to theincorrect disposal of the product can be prevented if it can
be ensured that the product is properly discarded. Material recycling is helpful to the
protection of natural resources. The symbol is only valid in European Union. If you
want to discard electrical and electronic equipment, contact the governmental
authorities or your dealer for the correct method of disposal.

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 6
Important Recycling Instructions
The product may contain other electronic wastes and may pose risk if not discarded
properly. Abide by the local, state/provincial or federal laws of recycling or discarding.
For more information, please visit the website and contact Electronic Industries
Alliance (EIA) on WWW.EIAE.ORG.
Regulatory Compliance
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be required to correct
the interference at his/her own expense.
Changes or modifications not expressly approved by the parties responsible for
compliance could void the user’s authority to operate the equipment.
Federal Communications Commission (FCC) Notice (U.S. Only)
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Canada
This class A digital apparatus complies with Canadian ICES-003.
CE Declaration of Conformity
This device complies with the requirements set out in the Council Directive on the
Approximation of the Laws of the Member States relating to Electromagnetic
Compatibility (2014/30/EU), Low-voltage Directive (2014/35/EU) and RoHS directive
(2011/65/EU).
This product has been tested and found to comply with the harmonized standards for
Information Technology Equipment, these harmonized standards published under
Directives of Official Journal of the European Union.
WARNING: This equipment is compliant with Class A of EN55032/CISPR 32. In a
residential environment this equipment may cause radio interference.

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 7
NOTE: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
Safety Certifications
FCC-A, cTUVus, CE, CB, EAC, RoHS
Disposal and Recycling
This product may contain other electronic waste that can be hazardous if not disposed
of properly. Recycle or dispose in accordance with local, state, or federal Laws. For
more information, contact the Electronic Industries Alliance at www.eiae.org.
EPA ENERGY STAR Compliance
This device is marked with the ENERGY STAR logo and thus
complies with the requirements of the U.S. Environmental Protection
Agency (EPA)’s ENERGY STAR program. As an ENERGY STAR
partner in good standing, Vivitek (A brand of Delta) indicates that this
device meets the strict ENERGY STAR guidelines for energy efficiency. For
additional information on ENERGY STAR, please refer to https://www.energystar.gov/.

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 8

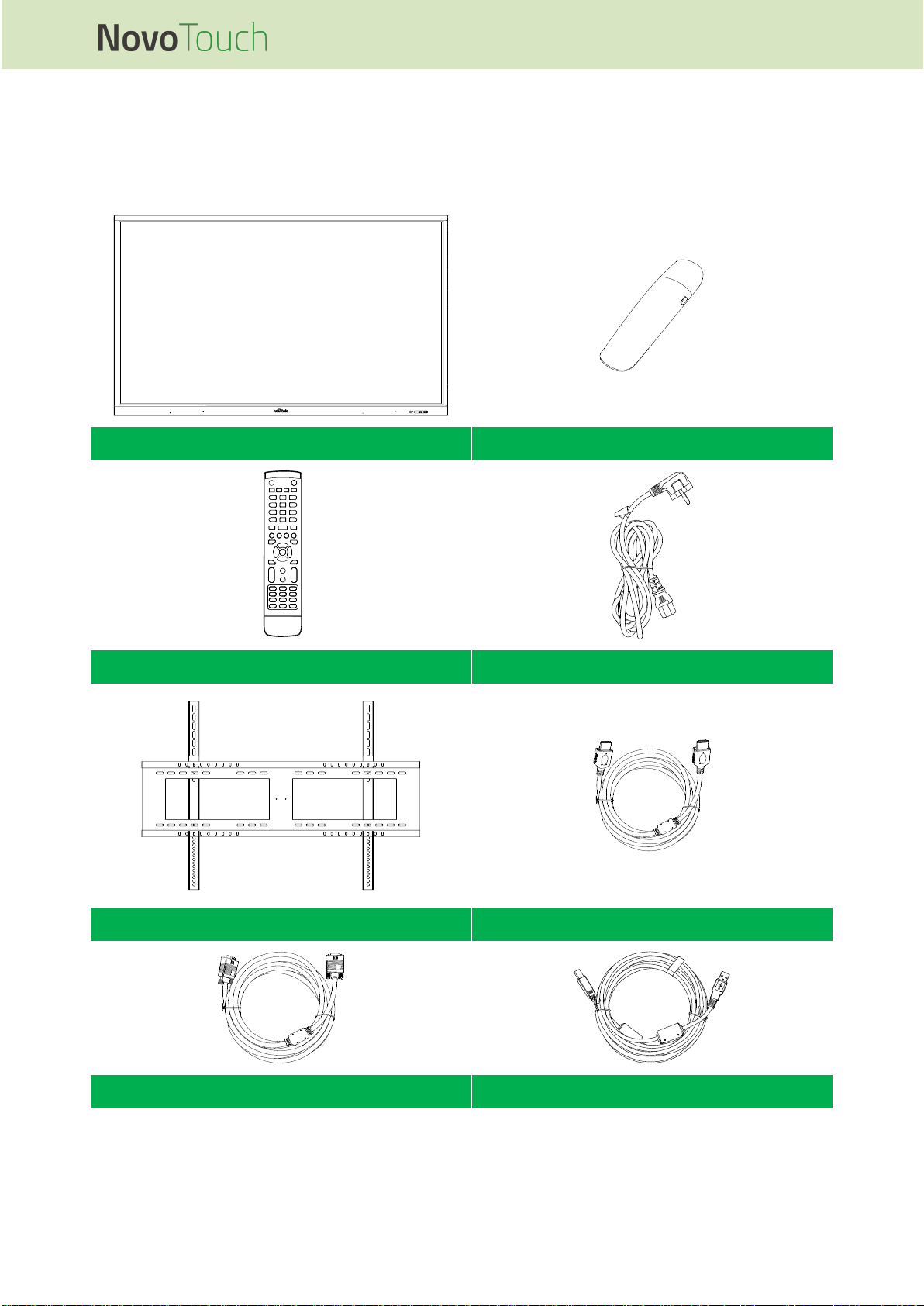

Package Contents
Ensure that all of the proper items are included with the display in the packaging. The
items that should be included in the packaging are:
NovoTouch
Wi-Fi USB Dongle
i
Remote Control
Power Cable
Wall Mount Kit
HDMI Cable
VGA Cable
USB Cable

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 9

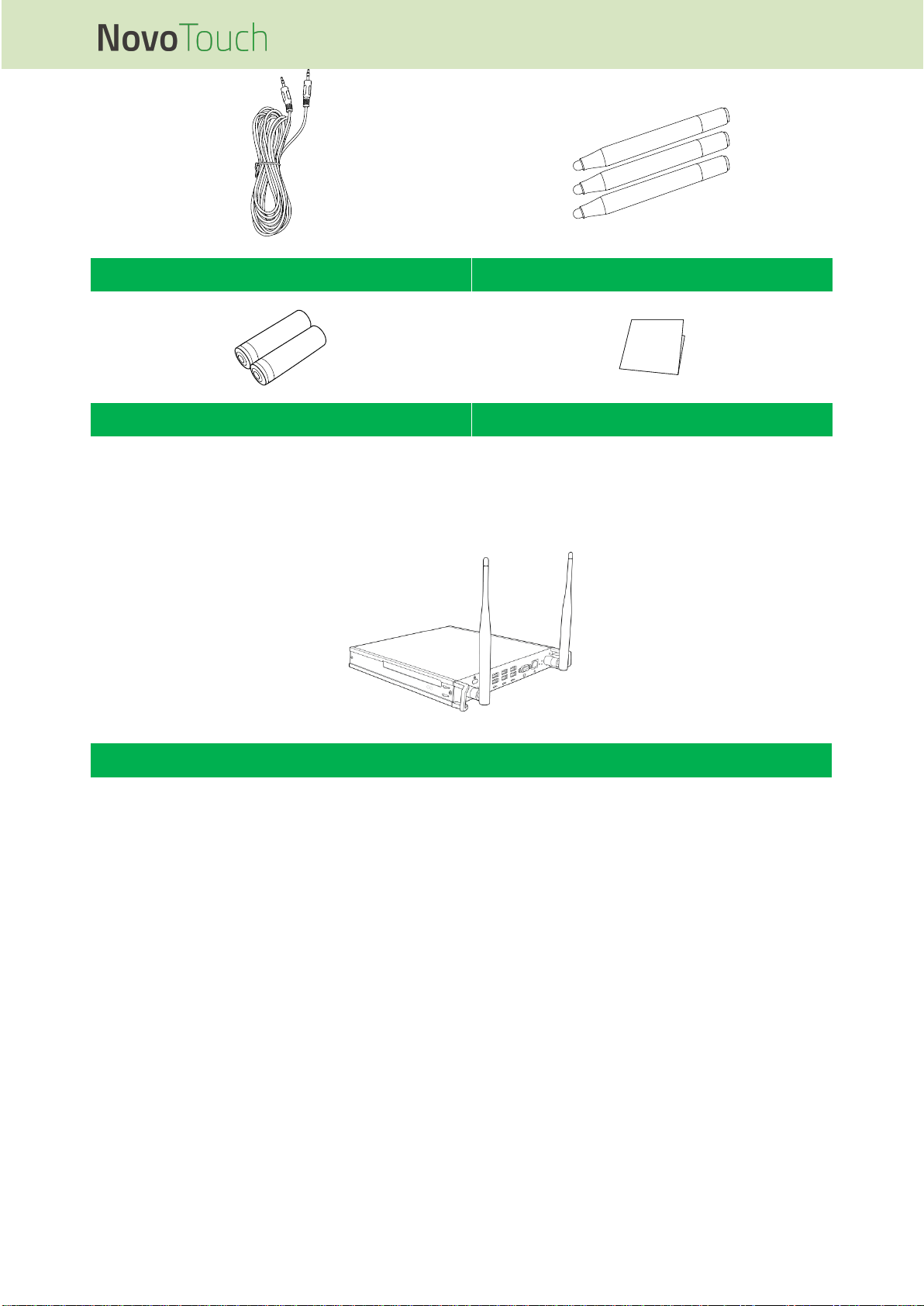

Audio Cable
Stylus x 3
Batteries x 2
Quick Start Guide
Optional Accessories
VKW21 PC Module

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 10
Overview
Display Front View
The following illustration shows the front side of the display and its various
components:
No.
Item
Description
1
Touchscreen
Use touch gestures to navigate the display’s user interface.
Tap to wake the display when it is in standby mode (the screen is off but the
display is on).
2
Magnetic Stylus Holder
Holds the styluses included in with the display.
3
Power Button
[When display is off]:
Press to power on the display.
[When display is on]:
Press to place the display on standby.
Press and hold for 2 seconds to power off the display.
4
Status Indicator LED
Blue: The display is powered on or in standby mode.
Red: The display is connected to a power source but not powered on.
Off: The display is not connected to a power source.
Flashing Red/Blue: (1) The display is in standby mode, (2) the display is
powering off, or (3) the firmware is upgrading
5
Remote Control IR Sensor
Receives the signal from the display’s remote control with a range of up to 8
meters.
6
USB 2.0 Ports
Connects to a USB flash drive to view media files or to a mouse/keyboard.

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 11
Display Rear View
The following illustration shows the rear of the display and its various components:
No.
Item
Description
1
Wall Mount Screw Holes
Used to install the wall mount included with the display. See the “Installing the
Wall Mount” section for more information.

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 12

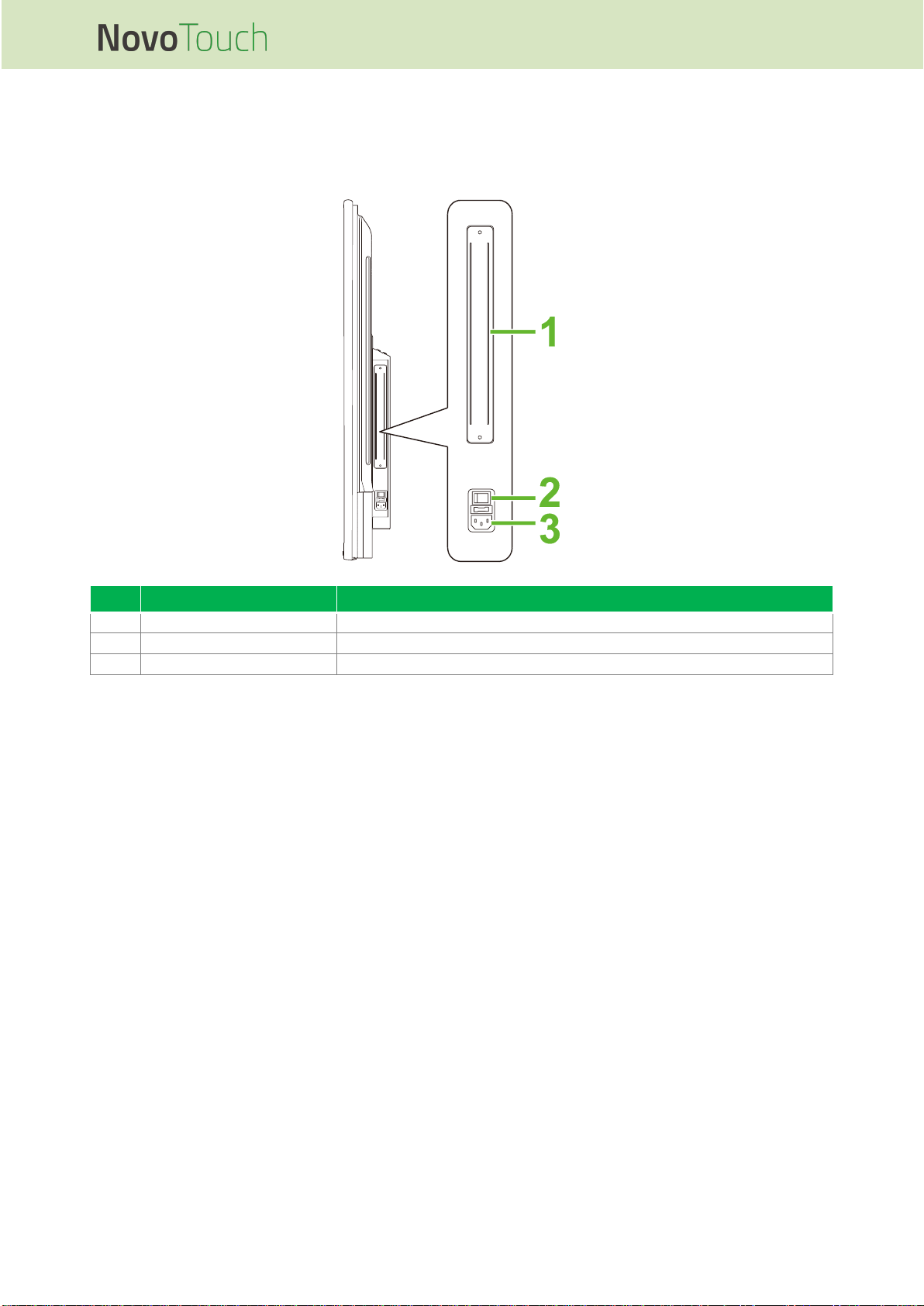

Display Right View
The following illustration shows the right side of the display and its various
components:
No.
Item
Description
1
OPS Slot
Remove the cover to install an OPS PC module to the display.
2
Power Switch
Activates the display once it is connected to a power source.
3
Power Socket
Connects to a power outlet.

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 13
Display Left View
The following illustration shows the left side of the display and its various components:
No.
Item
Description
1
microSD Card Slot
Reads media files stored on a microSD card.
2
USB Ports
(Top: USB 2.0 / Bottom: USB
3.0)
Top (USB 2.0): Connects to a USB flash drive to view media files or to a
mouse/keyboard.
Bottom (USB 3.0): Connect the Wi-Fi USB Dongle to this port.
3
HDMI In Port 2 (2.0)
Connects to Blu-Ray/DVD players, set-top boxes, digital media players,
computers, or other video sources to broadcast video and audio.
4
HDMI In Port 1 (2.0)
Connects to Blu-Ray/DVD players, set-top boxes, digital media players,
computers, or other video sources to broadcast video and audio.
5
LAN Port
Connects to a network router.
6
VGA In Port
Connects to a computer to broadcast video.
7
Audio In Jack
Connects to the video source to broadcast its audio.
8
Touch (USB-B) Port
Connects to the computer connected to the HDMI 1 port to allow the
touchscreen to control the computer’s interface.
9
Audio Out Jack
Connects to external speakers to broadcast audio.
10
RS232 Port
Connects to a computers or servers for control commands.

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 14
Display Bottom View
The following illustration shows the bottom of the display and its various components:
No.
Item
Description
1
Speakers
Broadcasts the display’s audio.

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 15

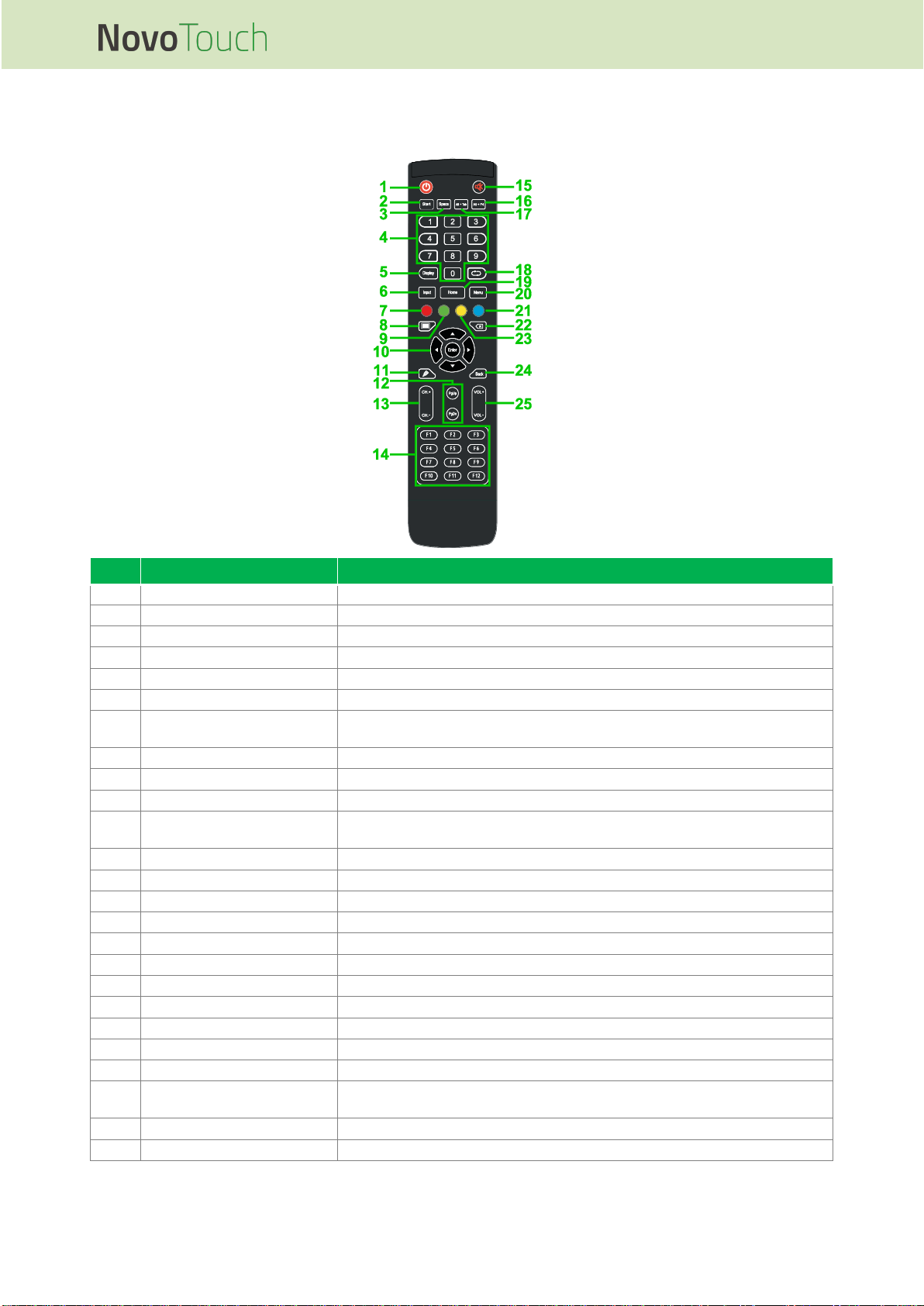

Remote Control
The following illustration shows the display’s remote control and its buttons:
No.
Button
Description
1
Power
Turns the display on or off.
2
Start*
Performs the same action as the Windows key on a PC keyboard.
3
Spacebar*
Performs the same action as the spacebar on a PC keyboard.
4
Numeric Keypad
Numeric input buttons.
5
Display Information
Displays the current channel/input information.
6
Input Source
Opens the input source menu.
7
Lock/Unlock Display Buttons
and Touchscreen
Disables/Enables both the buttons located on the front of the display and the
display’s touchscreen.
8
Blank Screen
Makes the screen display a monochromatic screen.
9
Lock/Unlock
Disables/Enables the buttons located on the front of the display.
10
Navigation Buttons
Navigates between various applications and menus shown on screen.
11
Quick Draw
Launches the displays drawing tools. See the Tools section for more
information.
12
Page Up/Down*
Performs the same action as the Page Up/Down buttons on a PC keyboard.
13
Function Buttons
Functional buttons.
14
F1 - F12*
Performs the same action as the F1 - F12 keys on a PC keyboard.
15
Mute
Disables the display’s audio.
16
Alt+F4 (Close Window)*
Performs the same action as the Alt+F4 key combination on a PC keyboard.
17
Alt+Tab (SwitchWindow)*
Performs the same action as the Alt+Tab key combination on a PC keyboard.
18
Function Button
Functional button.
19
Home Screen
Returns the display to the home screen.
20
Settings Menu
Opens the OSD settings menu.
21
Freeze Screen
Freezes the screen.
22
Backspace
Deletes the entered text.
23
Lock/Unlock Touchscreen
Disables/Enables the display’s touchscreen and prevents touch gestures from
working.
24
Back
Returns to the previous screen.
25
Volume +/-
Adjusts the display’s audio level.
*Only functional when an OPS unit running Windows is installed into the display.

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 16
Installing Batteries
Before using the display’s remote control you must first install the two AAA batteries
included with the display.
1. Open the battery compartment cover on the remote control.
2. Insert the batteries ensuring that the + and - terminals on the battery match their
corresponding terminals in the battery compartment.
WARNING: Failure to install the correct batteries in the correct orientation may result in
damage or possibly injury.
3. Replace the battery compartment cover on the remote control.
Remote Control Usage
When using the remote control ensure that the remote control is pointed at the IR
sensor at the front of the display within a range of 8 meters distance and 30-degrees to
the left and right of the IR sensor.

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 17
Installing the Wall Mount
Before installing the wall mount ensure the following:
Installation should only be done by a certified professional.
Maximum wall mount kit load capacity:150kg (330lbs).
When setting the display down to install the wall mount, place it face down on a flat
and stable surface covered by a protective sheet or cloth and a table cushion as
shown in the illustration provided. DO NOT place the display on an uncovered
surface.
Ensure that all the following parts are included in the wall mount kit:
Letter
Item
Quantity
A
Wall Mount Frame
1
B
Wall Mount Brackets
2
C
Bracket Screws
4
D
Frame Screws
2
E
Wall Screw Washers
8
F
Wall Screws
8
G
Anchor Screws
8

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 18

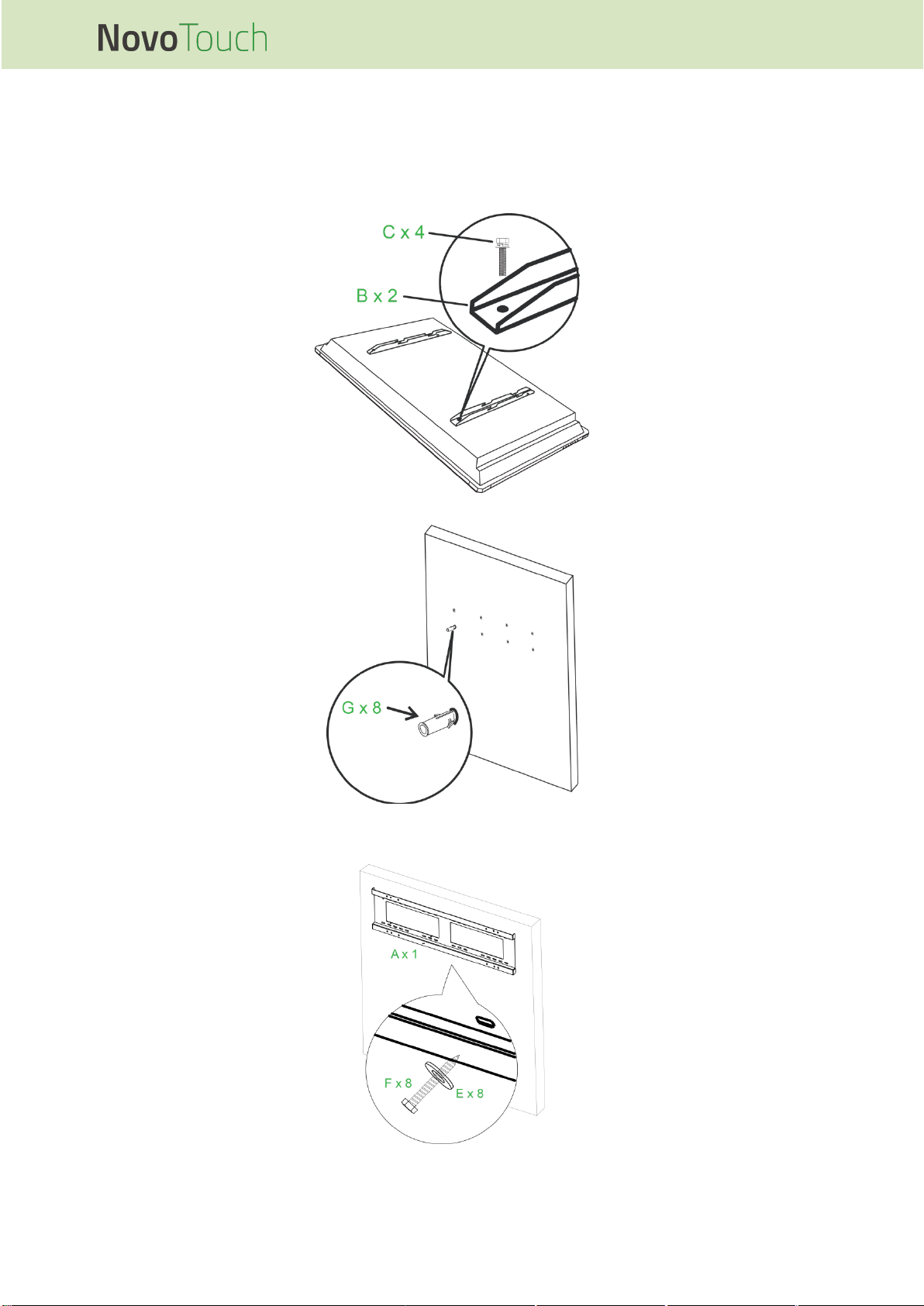

To mount NovoTouch onto a wall follow the instructions below:
NOTE: This display only supports landscape display orientation. Do not mount in portrait
display orientation or mount facing up or facing down.
1. Install the two (B) the wall mount brackets onto the display using the four (C)
bracket screws.
2. Install the eight (G) anchor screws into the wall you want to mount NovoTouch on.
3. Install the (A) wall mount frame onto the wall by securing the eight (F) wall screws
and (E) washers to the anchors.

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 19

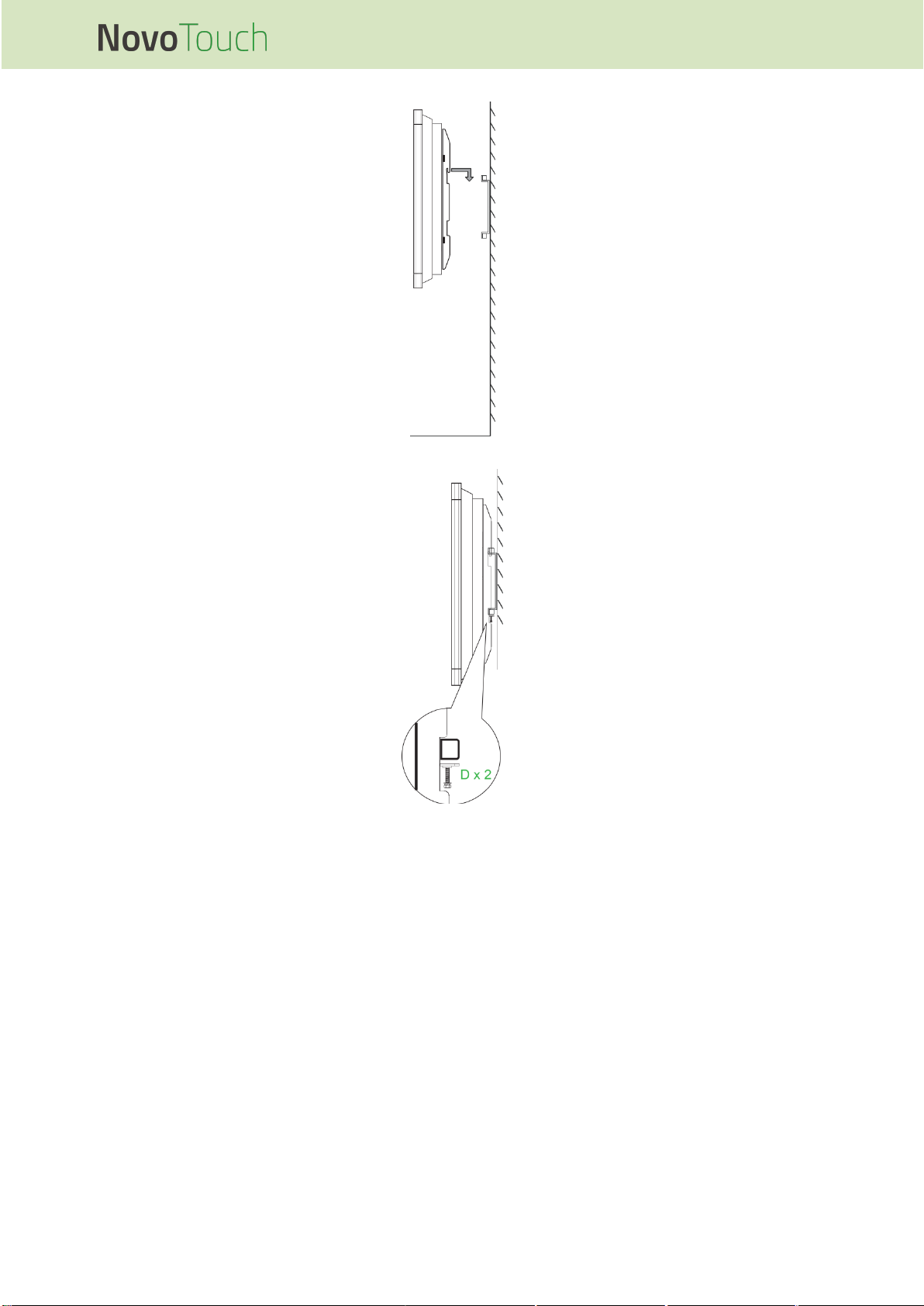

4. Mount the displays’ wall mount brackets onto the wall mount frame.
5. Secure the wall mount brackets to the frame using the two (D) frame screws.

NovoTouch User Manual
Copyright © 2019 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Page 20
Connections
This section describes the connections available for the various ports located on either
the right or bottom side of the NovoTouch display.
NOTE: It is suggested that you make any connections prior to powering on the display.

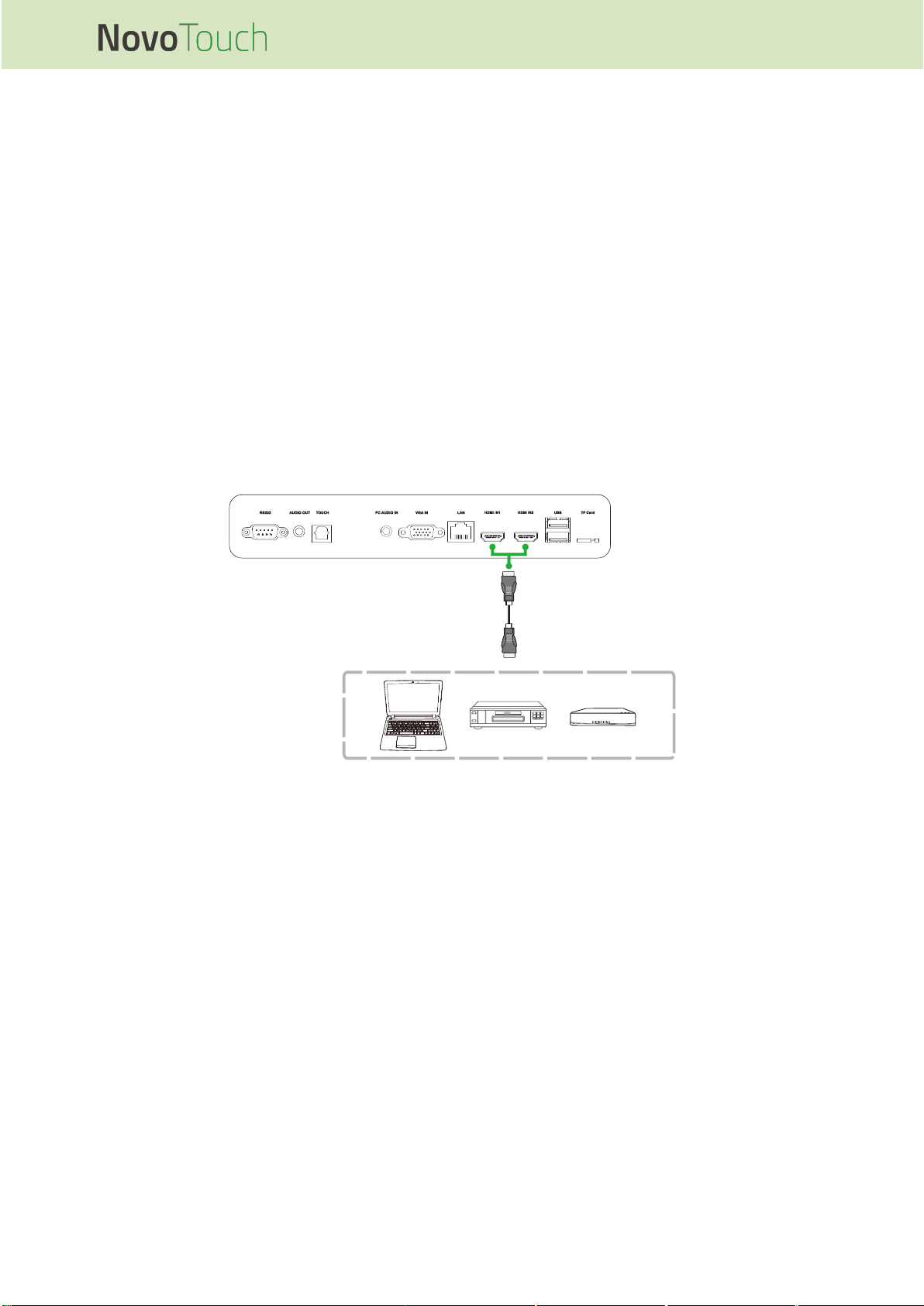

HDMI-In
The HDMI-In ports connects to various devices such as Blu-Ray/DVD players, set-top
boxes, digital media players, computers, and other sources to broadcast video and
audio on the NovoTouch. When connecting a device to the HDMI-In port:
Use an HDMI cable with a standard Type-A HDMI connector.
Select the corresponding HDMI input in the input source menu on the NovoTouch.
See the Switching Input Source section for more information on selecting input
sources.
