Delta Jetted Shower User manual

Single Handle Monitor®
MultiChoice®Jetted
Shower™ and Jetted
Shower XO®Trim
Installation Instructions
Owners Manual
18 Series
Write purchased model number here.
ASME A112.18.1 / CSA B125.1
ASSE 1016
®
®
UPC
THIS VALVE MEETS OR EXCEEDS THE
FOLLOWING STANDARDS:
ASME A112.18.1/CSA B125.1 and ASSE 1016.
CAUTION: This system/device must be set by the
installer to ensure safe, maximum temperature.
Any change in the setting may raise the discharge
temperature above the limit considered safe and
may lead to hot water burns.
NOTICE TO INSTALLER: CAUTION!–As the
installer of this valve, it is your responsibility
to properly INSTALL and ADJUST this valve
per the instructions given.This valve does
not automatically adjust for inlet temperature
changes, therefore, someone must make the
necessary Rotational Limit Stop adjustments at
the time of installation and further adjustments
may be necessary due to seasonal water
temperature change.YOU MUST inform the
owner/user of this requirement by following the
instructions. If you or the owner/user are unsure
how to properly make these adjustments, please
refer to pages 9 and 15 and if still uncertain, call
us at 1-800-345-DELTA.
After installation and adjustment, you must affix
your name, company name and the date you
adjusted the Rotational Limit Stop to the caution
label provided and apply or attach the label to
the back side of the closest cabinet door and
the warning label to the water heater. Leave
this Instruction Sheet for the owner’s/user’s
reference.
WARNING: This pressure balanced bath
valve is designed to minimize the effects
of outlet water temperature changes due to
inlet pressure changes, commonly caused by
dishwashers, washing machines, toilets and
the like. It may not provide protection from hot
water burns when there is a failure of other
temperature controlling devices elsewhere
in the plumbing system, if the rotational limit
stop is not properly set or if the hot water
temperature is changed after the settings
are made or if the water inlet changes due to
seasonal changes.
WARNING: Do not install a shut-off device on
either outlet of this valve. When this type of
device shuts off the water flow, it can defeat
the ability of the valve to balance the hot and
cold water pressures.
Table of Contents:
Warranty ............................................................................. Page 2
18 Series Installation Instructions
Separate Units ..................................................................Pages 3 - 9
Single Units ......................................................................Pages 10 - 15
Maintenance ....................................................................... Page 16
Replacement Parts ............................................................. Pages 17 - 24
1
You May Need
1/10/12
51915 Rev. D

All parts and finishes of the Delta®faucet are
warranted to the original consumer purchaser to
be free from defects in material & workmanship
for as long as the original consumer purchaser
owns their home. Delta Faucet Company
recommends using a professional plumber for all
installation & repair.
Delta will replace, FREE OF CHARGE, during
the warranty period, any part or finish that proves
defective in material and/or workmanship under
normal installation, use & service. Replacement
parts may be obtained by calling 1-800-345-
DELTA (in the U.S. and Canada) or by writing to:
In the United States:
Delta Faucet Company
Product Service
55 E. 111th Street
Indianapolis, IN 46280
In Canada:
Masco Canada Limited, Plumbing Group
350 South Edgeware Road,
St. Thomas, Ontario, Canada N5P 4L1
This warranty is extensive in that it covers
replacement of all defective parts and even
finish, but these are the only two things that
are covered. LABOR CHARGES AND/OR
DAMAGE INCURRED IN INSTALLATION,
REPAIR, OR REPLACEMENT AS WELL AS ANY
Lifetime Faucet and Finish Limited Warranty
OTHER KIND OF LOSS OR DAMAGES ARE
EXCLUDED. Proof of purchase (original sales
receipt) from the original consumer purchaser
must be made available to Delta for all warranty
claims. THIS IS THE EXCLUSIVE WARRANTY
BY DELTA FAUCET COMPANY, WHICH DOES
NOT MAKE ANY OTHER WARRANTY OF ANY
KIND, INCLUDING THE IMPLIED WARRANTY
OF MERCHANTABILITY.
This warranty excludes all industrial, commercial
& business usage, whose purchasers are
hereby extended a five year limited warranty
from the date of purchase, with all other terms
of this warranty applying except the duration of
the warranty. This warranty is applicable to Delta®
faucets manufactured after January 1, 1995.
Some states/provinces do not allow the exclusion
or limitation of incidental or consequential
damages, so the above limitation or exclusion
may not apply to you. Any damage to this faucet
as a result of misuse, abuse, or neglect, or any
use of other than genuine Delta®replacement
parts WILL VOID THE WARRANTY.
This warranty gives you specific legal rights, and
you may also have other rights which vary from
state/province to state/province. It applies only
for Delta®faucets installed in the United States of
America, Canada, and Mexico.
© 2012 Masco Corporation of Indiana
2
Delta Faucet Company
Product Service
55 E. 111th Street
Indianapolis, IN 46280
www.deltafaucet.com

1

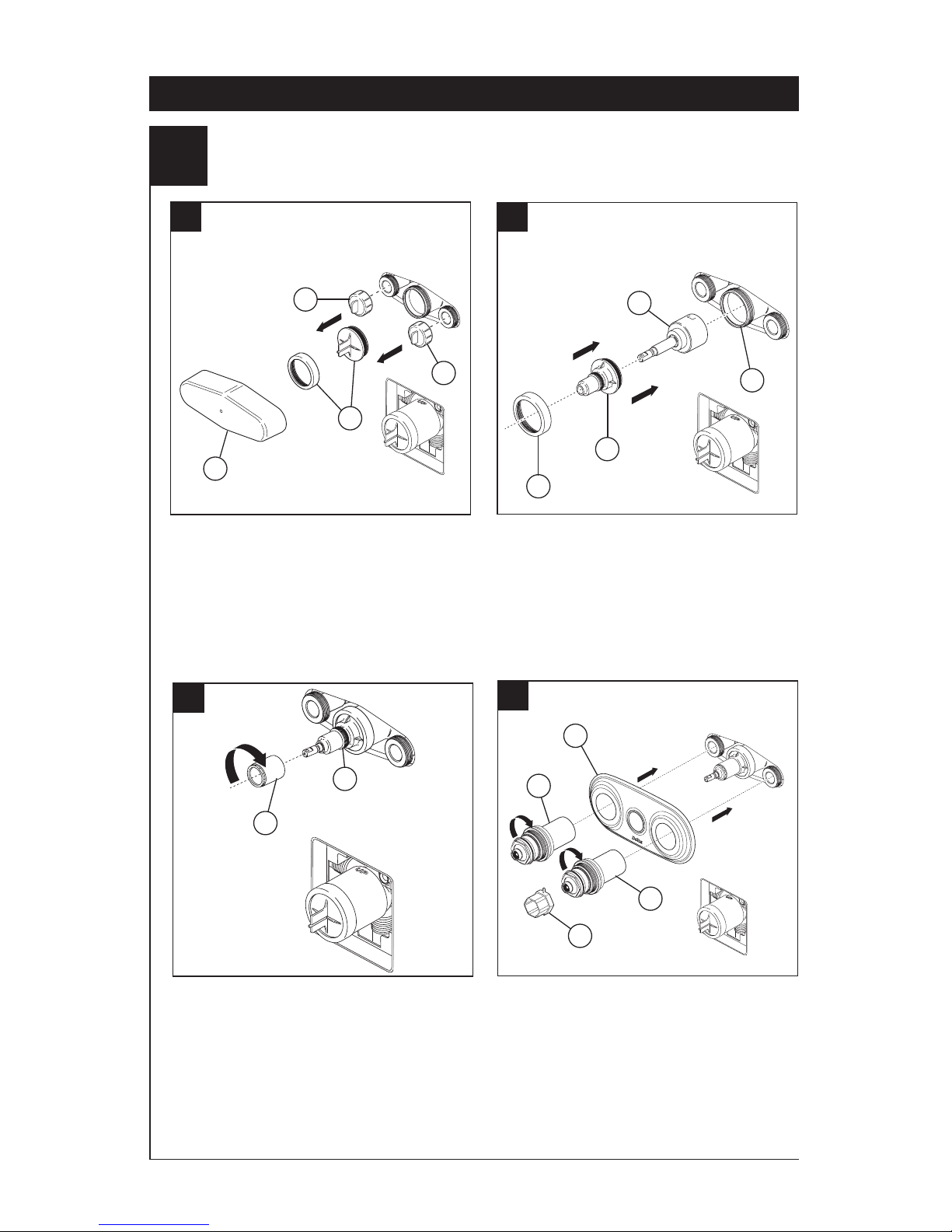

Jetted Shower™ Jet Module Trim Installation
Turn off water supplies. Unscrew test caps
(1) from the body. If this is not a thin wall
mounting, the entire plasterguard may be
removed. Remove bonnet nut (2) from
the body.
Thread sleeve (1) onto brass body, use wrench
to tighten. Place the oval escutcheon (2) over
jet body module. Thread the jet sleeve
assemblies (3) onto the jet body module. Use
the wrench (4) to tighten the sleeve assemblies.
CAUTION: DO NOT OVERTIGHTEN.TIGHTEN
UNTIL THE ESCUTCHEON IS FLAT AGAINST
THE WALL.
3

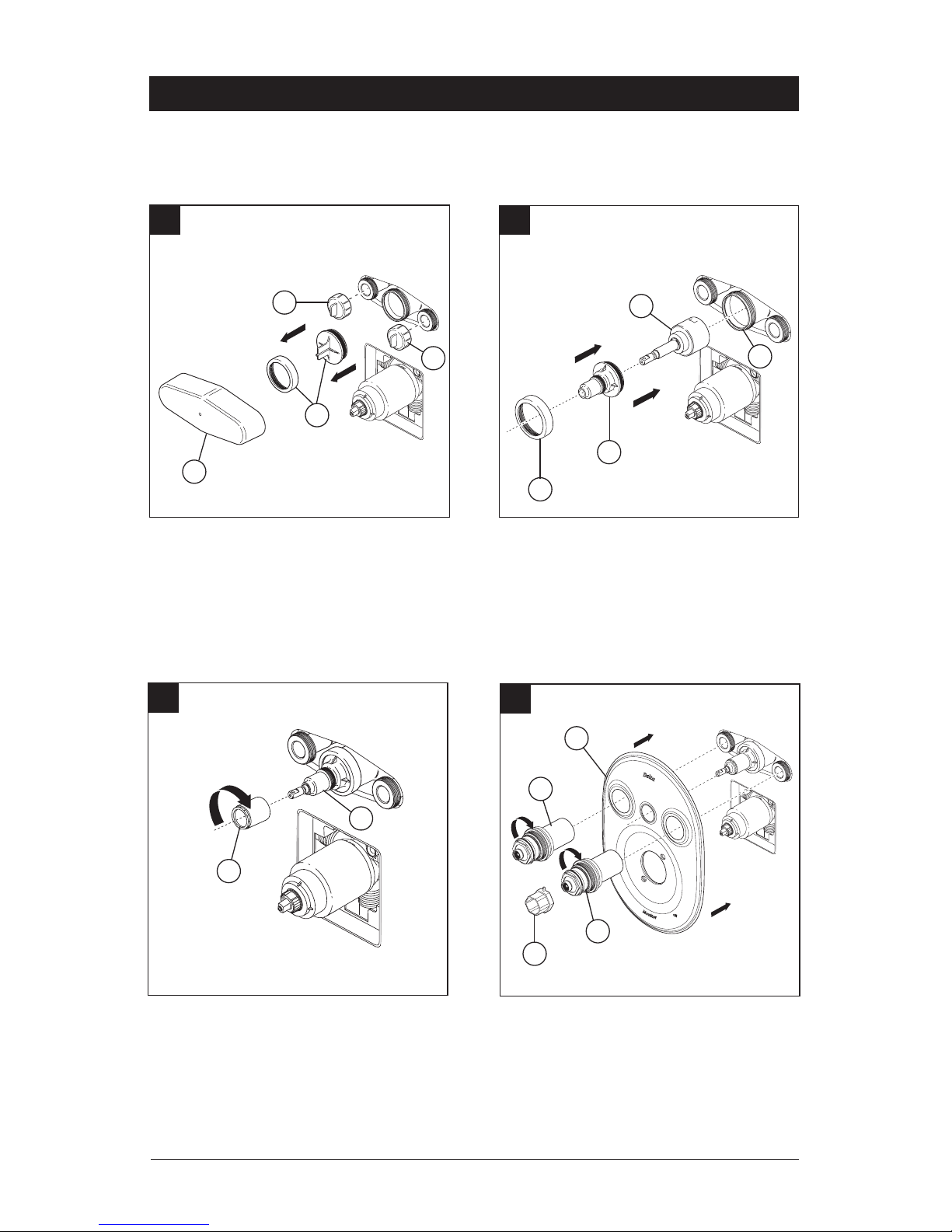

18 Series Installation - Separate Units
A. B.
1
1
2
1
2
Assemble the off/on label (1) onto trim ring (2).
Slide trim ring onto sleeve (3) until it bottoms
out on the escutcheon (4). Install handle (5)
onto stem, tighten set screw to secure. Thread
the bonnet assemblies (6) onto the jet sleeve
assemblies (7).
1
2
34
5
6
6
7
C.
4
3

1
Jetted Shower XO®Jet Module Cartridge and Trim Installation
Turn off water supplies. Remove
plasterguard (1), test caps (2), bonnet nut
and test cap (3) from the body.
Install cartridge (1) into body (2). Slide
sleeve (3) over cartridge stem and onto body.
Secure with bonnet (4). Ensure bonnet is
tightened securely.
4
18 Series Installation - Separate Units
A. B.
2
2
3
1
2
4
3
Thread trim sleeve (1) onto threaded sleeve (2).
Tighten securely with wrench.
C.
2
1
Place the oval escutcheon (1) over the jet
body module. Thread the jet sleeve
assemblies (2) onto the jet body module. Use
wrench (3) to tighten the sleeve assemblies.
CAUTION: DO NOT OVERTIGHTEN.
TIGHTEN UNTIL THE ESCUTCHEON IS
FLAT AGAINST THE WALL.
D.
3
1
2
1
2

F.
Install handle (1) onto stem, tighten set screw to
secure. Thread the bonnet assemblies (2) onto
the jet sleeve assemblies.

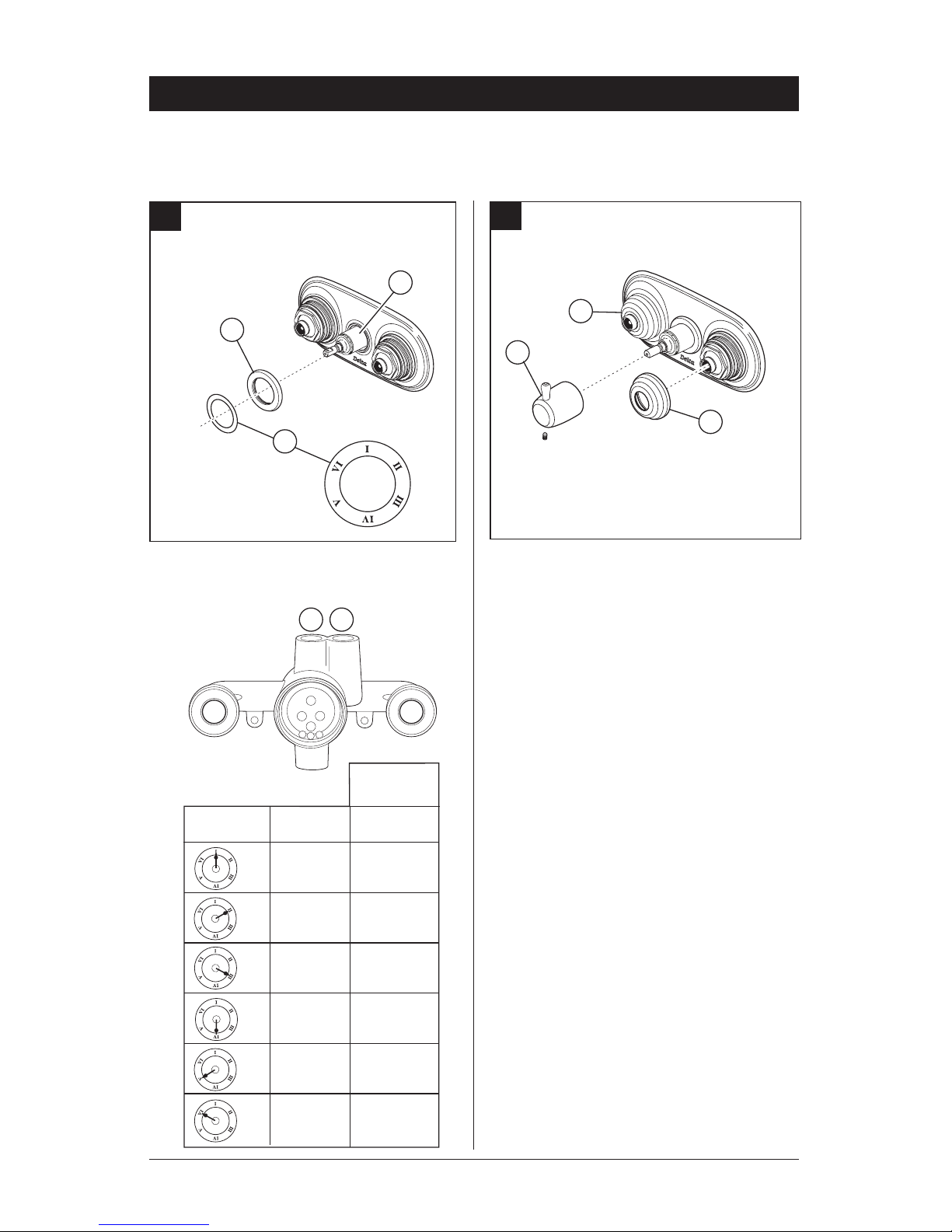

18 Series Installation - Separate Units
1
Assemble label (1) onto trim ring (2). Slide
trim ring onto sleeve (3) until it bottoms out
on the escutcheon.
1
E.
2
5
Jetted Shower XO®Jet Module Cartridge and Trim Installation
3
2
2
1 2
33
1
Handle
Position
1 & 2
2
2 & 3
3
1 & 3
Open
Ports
VI
V
IV
III
II
I
Open
Ports
Non Shared
Cartridge
1
N/A
2
N/A
3
N/A

18 Series Installation - Separate Units
2

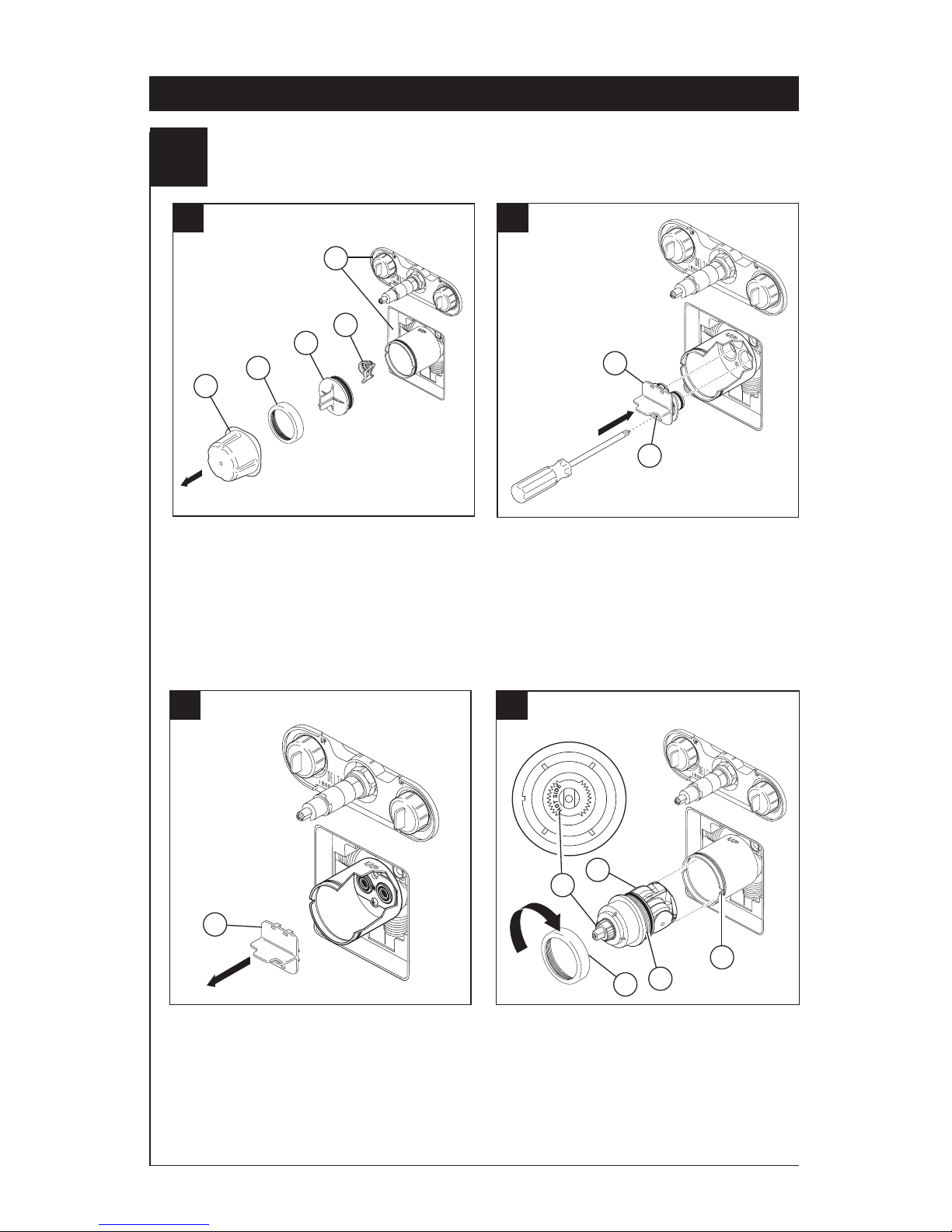

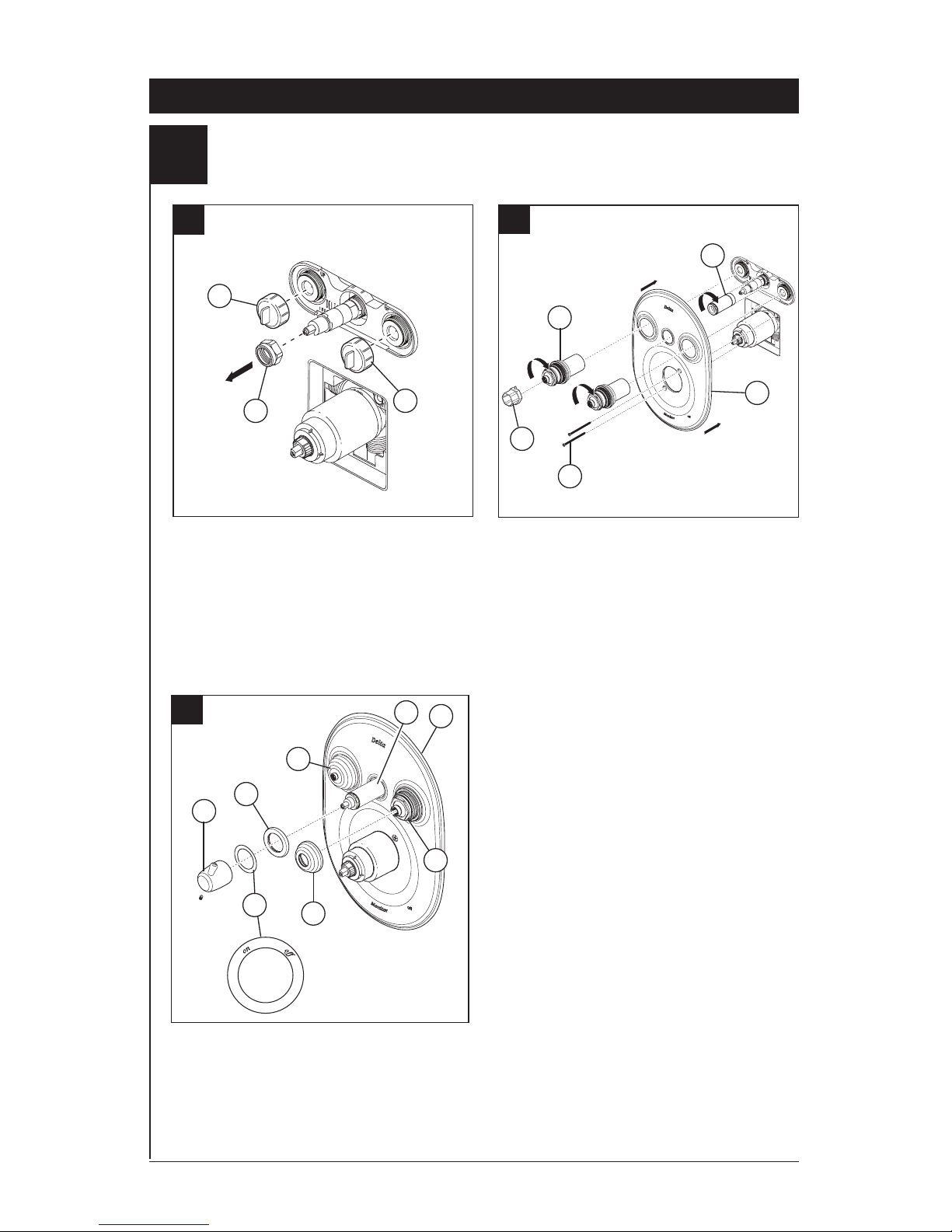

Valve Cartridge Installation
A.
C.
Turn off water supplies. Remove
cover (1), bonnet nut (2) and test cap (3)
from the body. If this is not a thin wall
mounting, the entire plasterguard (4) may
be removed. If screen (5) is in place, remove
before installing cartridge.
B.
Insert adapter assembly (1) into valve body.
Make sure the adapter assembly is correctly
positioned and is pressed all the way down
inside body. Secure adapter with the screw
(2) provided in the adapter assembly.
Remove the retainer (3) from the adapter.
For back to back or reverse installations
(hot on right and cold on left): Rotate cartridge
(1) so the words “HOT SIDE” (2) appear on the
right. Install the cartridge making sure that the
key is fully engaged with the slot in the brass
body (See step C). Slide bonnet nut (3) over
the cartridge and thread onto the body. Hand
tighten securely.
Back to back Installation
Rotate cartridge (1) so the words
“HOT SIDE” (2) appear on the left. Insert
cartridge assembly into valve body. Make
sure the key (3) on the cartridge is fully
engaged with the slot in the brass body (4).
Slide bonnet nut (5) over the cartridge and
thread onto the body. Hand tighten securely.
1
2
31
1
3
4
Reverse
Installation
Cold
Hot
1
6
5
2
3
3
4
Normal Installation
(changes not required)
2
2
5

C. D.
A. B.

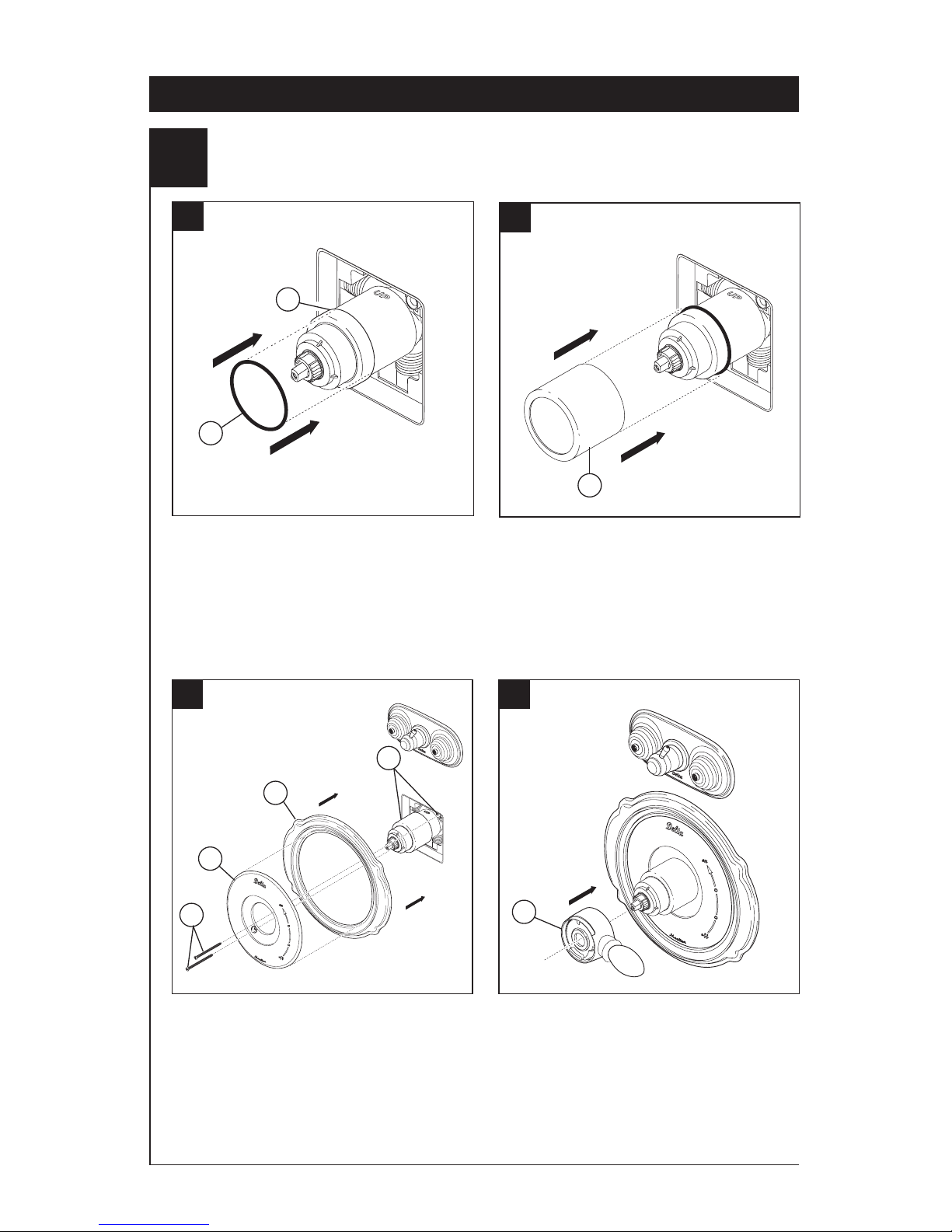

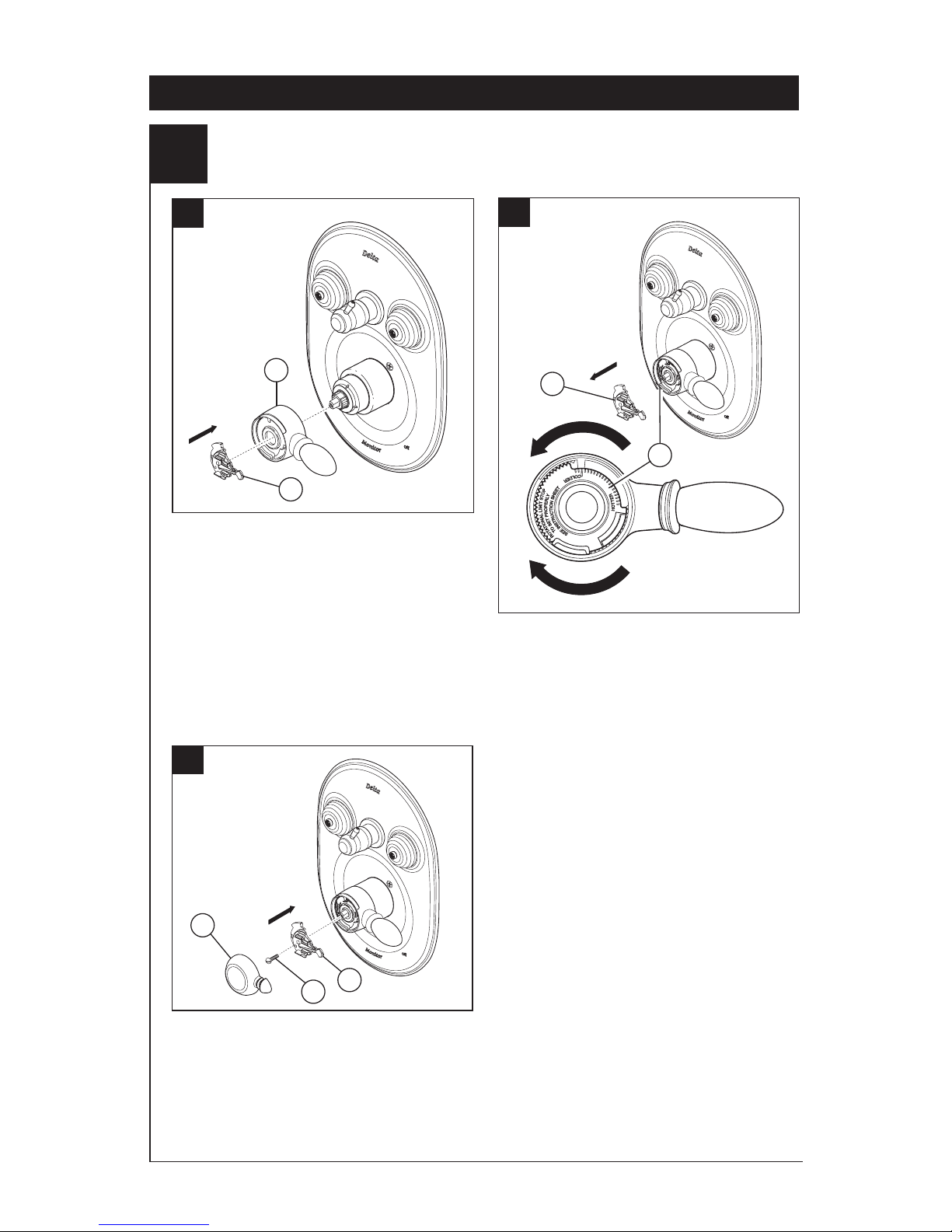

Slide O-ring (1) over cartridge and the
bonnet nut (2). The O-ring, which acts as
a spacer to steady the sleeve, should rest
behind the bonnet nut.
Slide the sleeve (1) over the cartridge, body
and O-ring. Ensure sleeve is properly posi-
tioned over the front of cartridge.
Secure the escutcheon (1) and backplate (2)
(if your model has one) to the bracket (3) with
the 2 screws provided (4). Do not overtighten
escutcheon screws.
Install volume control handle (1) with lever to
the right. DO NOT SECURE WITH SCREW.
18 Series Installation - Separate Units
3

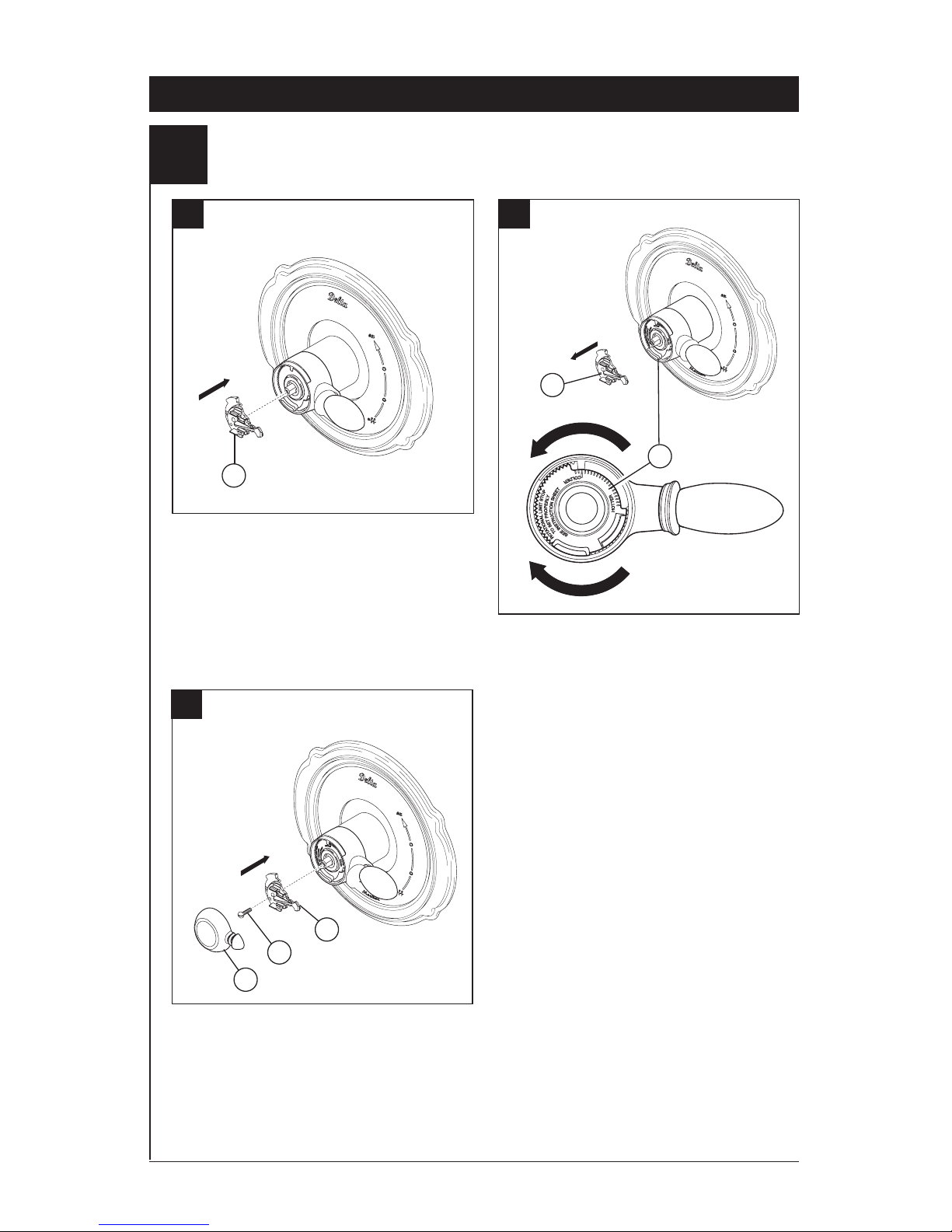

Valve Trim Installation
1
2
1
1
2
3
41
7

8
4

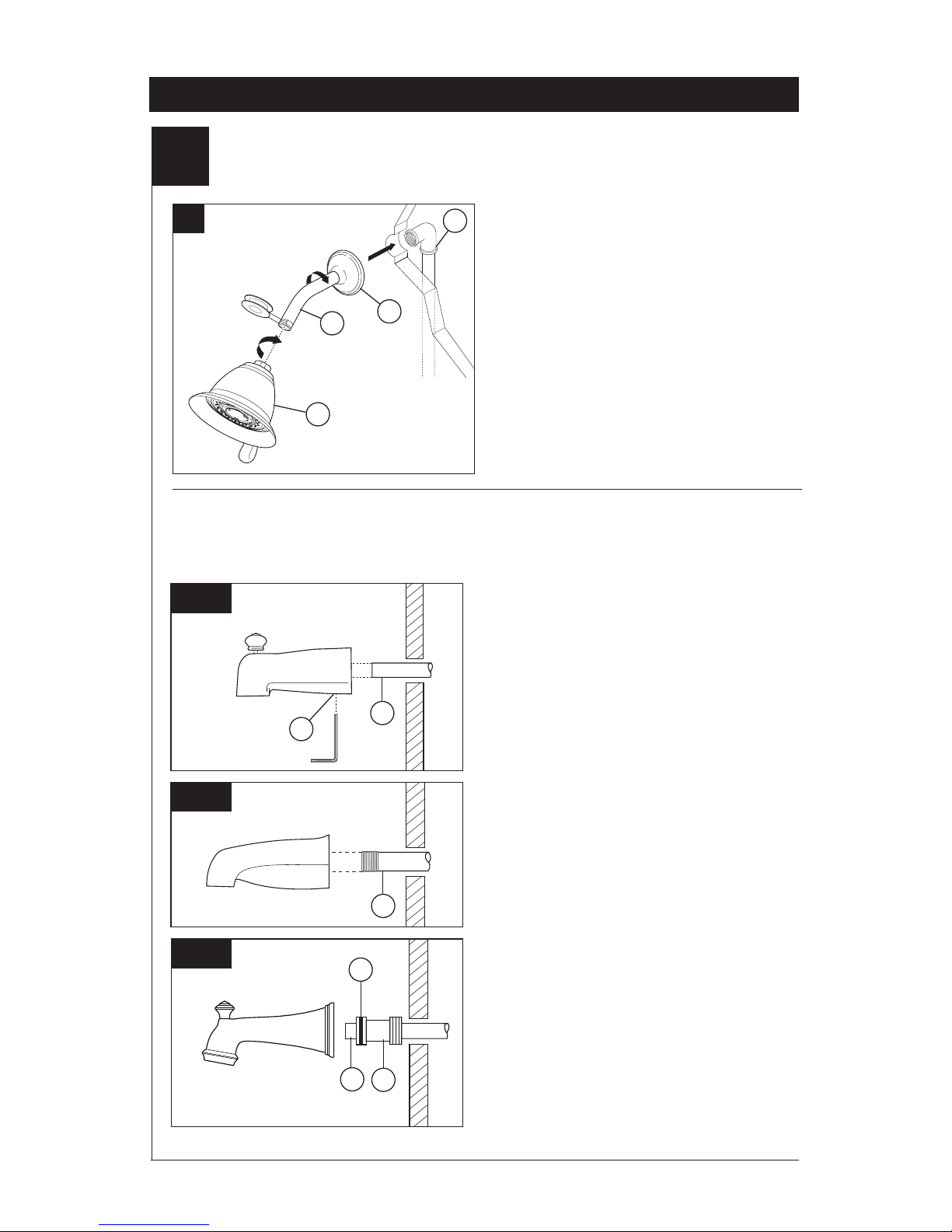

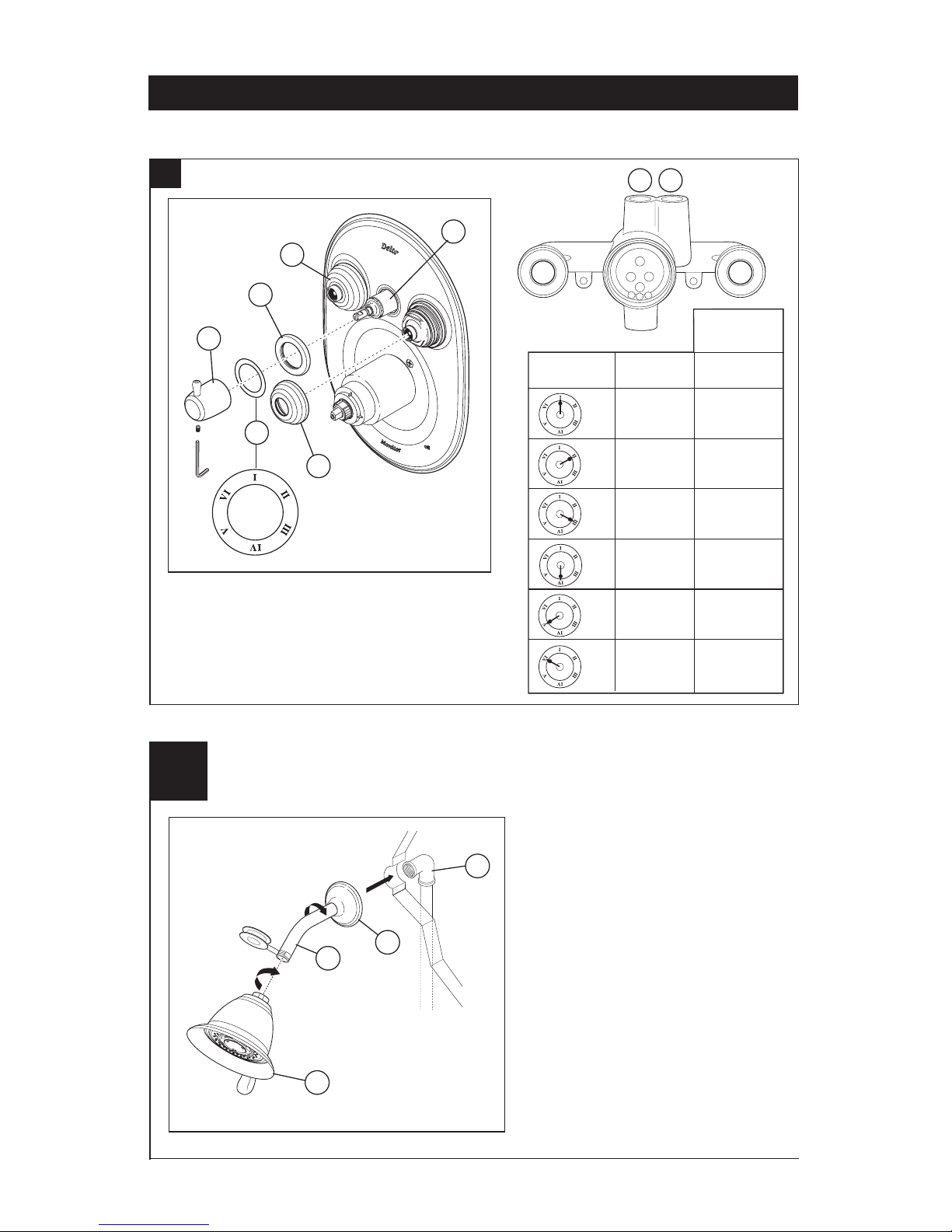

Showerhead and Tub Spout Installation
FOR SHOWERHEAD INSTALLATION:
Connect top outlet (1) to shower arm (2)
with proper fittings. To prevent damage to
finish on shower arm, insert wall end of
shower arm into shower flange (3) before
screwing arm into riser connection. Thread
showerhead (4) onto shower arm. Apply
plumber tape to pipe threads on both ends.
Do not overtighten showerhead.
A.
3
2
1
Slip-On Installation
The copper tube (1) must be 1/2” nominal
copper. Important: If it is necessary to cut the
copper tube, the end must be chamfered free
of burrs to prevent cutting or nicking O-ring
inside the spout. Slide spout over copper tube
flush with the finished tub or wall surface.
Tighten set screw (2), but do not overtighten.
4
1
FOR TUB SPOUT INSTALLATION:
Refer to the installation instructions supplied with your spout. Do not connect deck mount spouts
to in-wall valves. Do not use hand showers connected in lieu of a tub spout to a tub/shower
valve. Do not use PEX tubing for tub spout drop.
B-1
B-2
B-3
Iron Pipe Installation
Install threaded pipe nipple (1) to extend past
finished wall. Apply plumber tape to threads
on pipe nipple and screw on tub spout.
Copper Sweat Installation
Remove O-ring (1) from adapter (2). Solder
adapter to tube taking care to keep solder away
from O-ring groove. CAUTION: NO SOLDER
PERMITTED ON OUTSIDE DIAMETER OF
ADAPTER ADJACENT TO O-RING GROOVE.
Cut off tube (3) and replace O-ring on groove of
brass adapter. Thread tub/spout onto adapter,
taking care not to damage O-ring, and hand
tighten until spout is firmly against finished wall
and all slack is taken up behind wall.
2
1
1
2
3
18 Series Installation - Separate Units

5
Installation and Adjustment of the Rotational Limit Stop
C.
A. B.
Place the temperature control knob (1)
on volume handle and rotate to the mixed
position (if required). DO NOT SECURE WITH
SCREW. Turn on water supplies; let the water
run until both hot and cold water is as
hot/cold as possible. Place thermometer in
a plastic tumbler, and hold the tumbler in the
water stream. Record the temperature reading. If the water temperature is above 120°F,
remove the temperature control knob (1) and
rotate the limit stop (2) clockwise one tooth for
every 4°F - 6°F (approximate) change in tem-
perature. If water temperature is cooler than
desired, rotate the limit stop counterclockwise.
IMPORTANT: The first position of the
Rotational Limit Stop (the Limiter) is that
position that restricts the rotation of the stem
the most and is at the maximum clockwise
setting. According to industry standards, the
maximum allowable temperature of the water
exiting from the valve is 120oF. This
temperature may vary in your local area. The
Rotational Limit Stop may need to be
readjusted if the inlet water temperature
changes. For instance, during the winter, the
cold water temperature is colder than it is
during the summer which could result in
varying outlet temperatures. Typical
temperature for a comfortable bath or
shower is between 90o and 110oF.
Secure temperature control knob (1) with
screw (2) and snap control cover (3) onto
knob. NOTE: Secure screw until handle
wobble is reduced, DO NOT FULLY
TIGHTEN. Overtightening will result in
difficulty to operate temperature control knob.
Screw is self locking.
18 Series Installation - Separate Units
1
1
2
2
1
3
9
Hotter
Colder

18 Series Installation - Single Units
1
Valve Cartridge Installation
A.
D.
Turn off water supplies. Remove cover (1),
bonnet nut (2) and test cap (3) from the body.
If this is not a thin wall mounting, the entire
plasterguard (4) may be removed. If screen
(5) is in place, remove before
installing cartridge.
B.
Insert adapter assembly (1) into valve body.
Make sure the adapter assembly is correctly
positioned and is pressed all the way down
inside body. Secure adapter with the screw
(2) provided in the adapter assembly.
Rotate cartridge (1) so the words “HOT
SIDE” (2) appear on the left. Insert cartridge
assembly into valve body. Make sure the key
(3) on the cartridge is fully engaged with the
slot in the brass body (4). Slide bonnet nut (5)
over the cartridge and thread onto the body.
Hand tighten securely.
1
2
3
1
2
1
3
4
5
2
C.
Remove the retainer (1) from the adapter.
1
10
4
5

E. F.
Slide O-ring (1) over cartridge and the
bonnet nut (2). The O-ring, which acts as
a spacer to steady the sleeve, should rest
behind the bonnet nut.
Slide the sleeve (1) over the cartridge,
body and O-ring. Ensure sleeve is properly
positioned over the front of cartridge.
18 Series Installation - Single Units
1
2
1
For back to back or reverse installations
(hot on right and cold on left): Rotate
cartridge (1) so the words “HOT SIDE” (2)
appear on the right. Install the cartridge
Back to back Installation
Reverse
Installation
Cold
Hot
1
3
making sure that the key is fully engaged with
the slot in the brass body (see step D). Slide
bonnet nut (3) over the cartridge and thread
onto the body. Hand tighten securely.
Valve Cartridge Installation
11
2
Normal Installation
(changes not required)

18 Series Installation - Single Units
12
2
Jetted Shower™ Trim Installation
B.
Thread sleeve (1) onto brass body, use wrench
to tighten. Place escutcheon (2) over jet body
module. Install screws (3). Thread the jet sleeve
assemblies (4) onto the jet body module.
Use the wrench (5) to tighten the sleeve
assemblies. CAUTION: TIGHTEN UNTIL THE
ESCUTCHEON IS FLAT AGAINST THE WALL.
DO NOT OVER TIGHTEN.
A.
1
1
2
4
2
1
Turn off water supplies. Unscrew test caps
(1) from the body. If this is not a thin wall
mounting, the entire plasterguard may be
removed. Remove bonnet nut (2) from
the body.
5
3
Assemble the off/on label (1) onto trim ring (2).
Slide trim ring onto sleeve (3) until it bottoms
out on the escutcheon (4). Install handle (5)
onto stem, tighten set screw to secure. Thread
the bonnet assemblies (6) onto the jet sleeve
assemblies (7).
1
2
34
5
6
6
7
C.

13
18 Series Installation - Single Units
Jetted Shower XO®Jet Module Cartridge and Trim Installation
Turn off water supplies. Remove
plasterguard (1), test caps (2), bonnet nut
and test cap (3) from the body.
Install cartridge (1) into body (2). Slide
sleeve (3) over cartridge stem and onto body.
Secure with bonnet (4). Ensure bonnet is
tightened securely.
A. B.
2
2
3
1
2
4
3
Thread trim sleeve (1) onto threaded sleeve (2).
Tighten securely with wrench.
C.
2
1
Place escutcheon (1) over the jet body module.
Thread the jet sleeve assemblies (2) onto the
jet body module. Use wrench (3) to tighten the
sleeve assemblies. CAUTION: TIGHTEN UNTIL
THE ESCUTCHEON IS FLAT AGAINST THE
WALL. DO NOT OVERTIGHTEN.
D.
3
1
2
1
2

14
3
Showerhead Installation
Connect top outlet (1) to shower arm (2)
with proper fittings. Apply plumber tape
to pipe threads on both ends. To prevent
damage to finish on shower arm, insert
wall end of shower arm into shower
flange (3) before screwing arm into
riser connection. Thread showerhead (4)
onto shower arm. Do not overtighten
showerhead.
3
2
1
4
18 Series Installation - Single Units
Jetted Shower XO®Jet Module Cartridge and Trim Installation
Assemble label (1) onto trim ring (2). Slide trim
ring onto sleeve (3) until it bottoms out on the
escutcheon. Install handle (4) onto stem, tighten
set screw to secure. Thread the bonnet assem-
blies (5) onto the jet sleeve assemblies.
E.
2
3
1 2
33
1
4
5
5
1
Handle
Position
1 & 2
2
2 & 3
3
1 & 3
Open
Ports
VI
V
IV
III
II
I
Open
Ports
Non Shared
Cartridge
1
N/A
2
N/A
3
N/A

4
Installation and Adjustment of the Rotational Limit Stop
C.
A. B.
Install volume control handle (1) with lever
to the right, then turn to the on position.
DO NOT SECURE WITH SCREW. Place the
temperature control knob (2) on volume handle
and rotate to the mixed position (if required).
DO NOT SECURE WITH SCREW. Turn on
water supplies; let the water run until both hot
and cold water is as hot/cold as possible. Place
thermometer in a plastic tumbler, and hold
the tumbler in the water stream. Record the
temperature reading.
If the water temperature is above 120°F,
remove the temperature control knob (1) and
rotate the limit stop (2) clockwise one tooth for
every 4°F - 6°F (approximate) change in tem-
perature. If water temperature is cooler than
desired, rotate the limit stop counterclockwise.
IMPORTANT: The first position of the
Rotational Limit Stop (the Limiter) is that
position that restricts the rotation of the stem
the most and is at the maximum clockwise
setting. According to industry standards, the
maximum allowable temperature of the water
exiting from the valve is 120oF. This
temperature may vary in your local area. The
Rotational Limit Stop may need to be
readjusted if the inlet water temperature
changes. For instance, during the winter, the
cold water temperature is colder than it is
during the summer which could result in
varying outlet temperatures. Typical
temperature for a comfortable bath or
shower is between 90oand 110oF.
Secure temperature control knob (1) with
screw (2) and snap control cover (3) onto
knob. NOTE: Secure screw until handle
wobble is reduced, DO NOT FULLY
TIGHTEN. Overtightening will result in
difficulty to operate temperature control knob.
Screw is self locking.
18 Series Installation - Single Units
11
2
21
3
Hotter
Colder
2
15

Cannot receive more than a trickle of water:
Both hot and cold supply lines must be
pressurized. If only one side is pressurized, the
pressure balance system will not allow adequate
flow of water.
Volume control handle rotates 360
degrees or is not positioned correctly per
escutcheon, (sleeve is also loose). The keys
of the cartridge have not been properly placed
in the keyways in the brass body or keys on
cartridge have been sheared off due to improper
installation. BE SURE TO CORRECT THIS
SITUATION IMMEDIATELY.
Cannot receive enough hot water:
See step 3 and/or check water
heater temperature.
Faucet leaks from tub spout/showerhead:
SHUT OFF WATER SUPPLIES. Replace
Adapter Assembly –Repair Kit RP46073.
If leak persists–
SHUT OFF WATER SUPPLIES
Replace cartridge assembly–RP46463.
Unable to maintain constant water
temperature:
SHUT OFF WATER SUPPLIES. Remove
cartridge assembly, shake cartridge side to
side. Spool should rattle in sleeve. If rattle
cannot be heard, spool may be stuck. Spool
may be freed up by rapping cartridge briskly
sideways into the palm of your hand. If spool
cannot be freed, replace cartridge assembly–
RP46463.
NOTE: If the water in your area has lime, rust,
sand, or other contaminants in it, your pressure
balance valve will require periodic inspection.
The frequency of the inspection will depend on
the amount of contaminants in the water. To
inspect cartridge, remove it from the body and
shake it rigorously. If there is a rattling sound,
the unit is functional and can be reinstalled
in its previous position. If there is no rattle,
replace the cartridge with RP46463.
18 Series Maintenance
Care should be given to the cleaning of this
product. Although its finish is extremely du-
rable, it can be damaged by harsh abrasives
or polish. To clean, simply wipe gently with a
damp cloth and blot dry with a soft towel.
Cleaning and Care
16

11/10/12
51915 Rev. D
Manual de Instrucciones
para la Instalación del
Accesorio de la Regadera
a Chorro MultiChoice®de
Una Manija Monitor® Jetted
Shower™ y Jetted Shower
XO®
18 Series
Escriba aquí el número del modelo comprado.
ASME A112.18.1 / CSA B125.1
ASSE 1016
®
®
UPC
ESTA VÁLVULA CUMPLE O EXCEDE LAS
SIGUIENTES NORMAS: ASME A112.18 1 / CSA
B125.1 y ASSE 1016.
ADVERTENCIA: El instalador debe apostar este
sistema/divisa para garantizar temperatura máximo
y seguro. Cualquier cambio en el ajuste puede
subir la temperatura del agua de descarga sobre
el límite considerado seguro y puede resultar en
quemaduras de agua caliente.
AVISO PARA EL INSTALADOR: PRECAUCIÓN
– Como instalador de esta válvula, es su
responsabilidad de INSTALAR Y AJUSTAR
apropiadamente esta válvula como se describe
en las instrucciones, por lo tanto, debe
haber una persona para hacer los ajustes
necesarios del Tope del Límite Rotacional en el
momento que se haga la instalación y pueda
necesitar ajustes adicionales por los cambios
estacionales de la temperatura del agua. USTED
DEBE informarle al dueño/usuario sobre este
requisito siguiendo las instrucciones. Si usted
o el dueño/usuario no están seguros como
hacer estos ajustes apropiadamente, por favor
refiérase a las páginas del 9 al 15 y si todavía no
está seguro, llámenos al 1-800-345-DELTA.
Después de hacer la instalación y el ajuste,
usted puede agregarle a la etiqueta de aviso
proporcionada, su nombre, el nombre de la
compañía y la fecha cuando ajustó el Tope del
Límite Rotacional y aplicar o fijar la etiqueta al
dorso de la puerta del gabinete más cercano y la
etiqueta de aviso al calentador de agua. Deje la
Hoja de Instrucciones para referencia del dueño/
usuario.
ADVERTENCIA: Esta válvula de presión está
diseñada para minimizar los efectos de los
cambios de temperatura de agua por causa de
los cambios de presión en el agua de entrada,
comúnmente causados por lavadoras de
platos, lavadoras de ropa, inodoros, y otros
aparatos por el estilo. Puede no proporcionar
protección de quemaduras de agua caliente
cuando hay alguna falla de otros aparatos
para el control de temperatura en otro sitio
en el sistema de plomería.También no
proporcionará protección si el tope del límite
rotacional para el ajuste de la temperatura
no está apropiadamente fijo o si cambia la
temperatura del agua caliente después de
hacer los ajustes o si los cambios del agua de
entrada son por los cambios estacionales.
ADVERTENCIA: No instale un aparato de corte
o cierre en cualquiera de las tomas de esta
válvula. Cuando este tipo de aparato cierra el
flujo de agua, puede hacer fallar la habilidad
de la válvula de balancear las presiones del
agua caliente y fría.
Contenido:
Garantías ............................................................................Página 2
Instrucciones para la Instalación de la Serie 18
Unidades Separadas ...........................................................Páginas 3-9
Unidades Sencillas .............................................................Páginas 10 -15
Mantenimiento .....................................................................Página 16
Piezas de Repuesto .............................................................Páginas 17-24
Usted puede necesitar

2
Todas las piezas y acabados de la llave Delta®
están garantizados al consumidor comprador
original, de estar libres de defectos de material
y fabricación, por el tiempo que el consumidor
comprador original sea dueño de su casa. Delta
Faucet Company recomienda que use un
plomero profesional para todas las instalaciones
y zreparaciones.
Delta reemplazará, LIBRE DE CARGO, durante
el período de garantía, cualquier pieza o
acabado que pruebe tener defectos de material
y/o fabricación bajo instalación normal, uso y
servicio. Piezas de repuesto pueden ser
obtenidas llamando al 1-800-345-DELTA (en los
Estados Unidos y Canada) o escribiendo a:
En los Estados Unidos:
Delta Faucet Company
Product Service
55 E. 111th Street
Indianapolis, IN 46280
En Canada:
Masco Canada Limited, Plumbing Group
350 South Edgeware Road,
St. Thomas, Ontario, Canada N5P 4L1
Esta garantía es extensiva en lo que cubre el
reemplazamiento de todas las piezas
defectuosas y hasta el acabado, pero éstas
son las únicas dos cosas que están cubiertas.
CARGOS DE LABOR Y/O DAÑOS INCURRIDOS
EN LA INSTALACIÓN, REPARACIÓN, O
REEMPLAZAMIENTO COMO TAMBIÉN
CUALQUIER OTRO TIPO DE PÉRDIDA O
GarantÍa Limitada De Por Vida de la Llave y su Acabado
DAÑOS ESTÁN EXCLUÍDOS. Prueba de
compra (recibo original de venta) del comprador
consumidor original debe de ser disponible a
Delta para todos los reclamos. ESTA ES LA
GARANTÍA EXCLUSIVA DE DELTA FAUCET
COMPANY, QUE NO HACE CUALQUIER
OTRA GARANTÍA DE CUALQUIER TIPO,
INCLUYENDO LA GARANTÍA IMPLÍCITA DE
COMERCIALIZACIÓN.
Esta garantía excluye todo uso industrial,
comercial y de negocio, a cuyos compradores
se les da una garantía limitada extendida de
cinco años desde la fecha de compra, con todos
los otros términos de esta garantía aplicados,
excepto el de duración de ésta. Esta garantía
es aplicable a las llaves de Delta®fabricadas
después de Enero 1, 1995.
Algunos estados/provincias no permiten la
exclusión o limitación de daños incidentales o
consecuentes, de manera que la limitación o
exclusión arriba escrita puede no aplicarle a
usted. Cualquier daño a esta llave, resultado del
mal uso, abuso, o descuido, o cualquier otro uso
de piezas de repuesto que no sean genuinas de
Delta®ANULARÁN LA GARANTÍA.
Esta garantía le da derechos legales específicos,
y usted puede, también tener otros derechos que
varían de estado/provincia a estado/provincia.
Es aplicable sólo a las llaves Delta®instaladas
en los Estados Unidos de America, Canada
y Mexico.
© 2012 Masco Corporación de Indiana
www.deltafaucet.com

1
Instalación de Accesorios del Módulo de la Regadera a Chorro
Jetted Shower™
Cierre los suministros de agua. Destornille
las tapas de prueba (1) del cuerpo. Si no es
para instalar en pared delgada, puede quitar
el protector de yeso completo. Quite la tuerca
tapa (2) del cuerpo.
Enrosque la manga (1) en el cuerpo de
bronce. Use una llave de tuercas para apre-
tar. Coloque la placa ovalada (2) sobre el
módulo del cuerpo del chorro. Enrosque los
ensambles de la manga del chorro (3) en el
cuerpo del módulo del chorro. Use una llave de
tuercas (4) para apretar los ensambles de la
manga. AVISO: NO APRIETE DEMASIADO.
APRIETE HASTA QUE LA PLACA QUEDE
PLANA CONTRA LA PARED.
3
Instalación de la Serie 18 - Unidades Separadas
Ensamble la etiqueta para apagar/prender ‘off/on’
(1) en el aro del accesorio (2). Deslice el aro
del accesorio (3) hasta que quede al fondo de
la chapa de cubierta (4). Instale la manija (5) en
la espiga, apriete el tornillo de ajuste para fijar.
Enrosque los ensambles del casquete (6) en los
ensambles de la manga del chorro (7).
1
2
34
5
6
6
7
C.
A. B.
1
1
2
1
2
4
3

1
Instalación de Accesorios del Módulo de la Regadera a Chorro
Jetted Shower XO®
Instalación de la Serie 18 - Unidades Separadas
4
Cierre los suministros de agua. Quite
el protector de yeso (1), las tapas de
prueba (2), el capuchón y la tapa de
prueba (3) del cuerpo.
Instale el cartucho (1) en el cuerpo (2).
Deslice la manga (3) sobre la espiga del
cartucho y en el cuerpo. Fije con el
capuchón (4). Asegure que el capuchón
esté apretado fijamente.
A. B.
2
2
3
1
2
4
3
Enrosque la manga del accesorio (1) en la
manga enroscada (2). Apriete fijamente con
una llave de tuercas.
C.
2
1
Coloque la chapa de cubierta ovalada (1)
sobre el cuerpo del modulo del chorro de
agua. Enrosque los ensambles de la manga
del chorro (2) en el modulo del chorro de
agua. Use una llave de tuercas (3) para
apretar los ensambles de la manga.
AVISO: NO APRIETE DEMASIADO.
APRIETE HASTA QUE LA CHAPA DE
CUBIERTA QUEDE PLANA CONTRA LA
PARED.
D.
3
1
2
1
2
