INSTRUCTION MANUAL
Hollow Chisel
Mortiser
(Model 14-651)
PART NO. 910209 - 02-21-03
Copyright © 2003 Delta Machinery
To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
please call 1-800-223-7278 (In Canada call 1-800-463-3582).
ESPAÑOL: PÁGINA 17

2
Woodworking can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there
are certain hazards involved with the operation of the product. Using the machine with respect and caution will
considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored,
personal injury to the operator may result. Safety equipment such as guards, push sticks, hold-downs, featherboards,
goggles, dust masks and hearing protection can reduce your potential for injury. But even the best guard won’t make
up for poor judgment, carelessness or inattention. Always use common sense and exercise caution in the workshop.
If a procedure feels dangerous, don’t try it. Figure out an alternative procedure that feels safer. REMEMBER: Your
personal safety is your responsibility.
This machine was designed for certain applications only. Delta Machinery strongly recommends that this machine not
be modified and/or used for any application other than that for which it was designed. If you have any questions relative
to a particular application, DO NOT use the machine until you have first contacted Delta to determine if it can or should
be performed on the product.
Technical Service Manager
Delta Machinery
4825 Highway 45 North
Jackson, TN 38305
(IN CANADA: 505 SOUTHGATE DRIVE, GUELPH, ONTARIO N1H 6M7)
1. FOR YOUR OWN SAFETY, READ INSTRUCTION
MANUAL BEFORE OPERATING THE TOOL. Learn the
tool’s application and limitations as well as the specific
hazards peculiar to it.
2. KEEP GUARDS IN PLACE and in working order.
3. ALWAYS WEAR EYE PROTECTION. Wear safety
glasses. Everyday eyeglasses only have impact resistant
lenses; they are not safety glasses. Also use face or dust
mask if cutting operation is dusty. These safety glasses
must conform to ANSI Z87.1 requirements. NOTE:
Approved glasses have Z87 printed or stamped on them.
4. REMOVE ADJUSTING KEYS AND WRENCHES. Form
habit of checking to see that keys and adjusting wrenches
are removed from tool before turning it “on”.
5. KEEP WORK AREA CLEAN. Cluttered areas and
benches invite accidents.
6. DON’T USE IN DANGEROUS ENVIRONMENT. Don’t
use power tools in damp or wet locations, or expose them
to rain. Keep work area well-lighted.
7. KEEP CHILDREN AND VISITORS AWAY. All children
and visitors should be kept a safe distance from work area.
8. MAKE WORKSHOP CHILDPROOF – with padlocks,
master switches, or by removing starter keys.
9. DON’T FORCE TOOL. It will do the job better and be
safer at the rate for which it was designed.
10. USE RIGHT TOOL. Don’t force tool or attachment to
do a job for which it was not designed.
11. WEAR PROPER APPAREL. No loose clothing, gloves,
neckties, rings, bracelets, or other jewelry to get caught in
moving parts. Nonslip footwear is recommended. Wear
protective hair covering to contain long hair.
12. SECURE WORK. Use clamps or a vise to hold work
when practical. It’s safer than using your hand and frees
both hands to operate tool.
13. DON’T OVERREACH. Keep proper footing and
balance at all times.
14. MAINTAIN TOOLS IN TOP CONDITION. Keep tools
sharp and clean for best and safest performance. Follow
instructions for lubricating and changing accessories.
15. DISCONNECT TOOLS before servicing and when
changing accessories such as blades, bits, cutters, etc.
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may
result in property damage.
This manual contains information that is important for you to know and understand. This information relates to protect-
ing YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols to the right. Please read the manual and pay attention to these sections.
SAFETY GUIDELINES - DEFINITIONS
SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER
CONSTRUCTION ACTIVITIES contains chemicals known to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
· lead from lead-based paints,
· crystalline silica from bricks and cement and other masonry products, and
· arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with approved safety equipment, always wear MSHA/NIOSH
approved, properly fitting face mask or respirator when using such tools.
READ AND UNDERSTAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE
USING THIS EQUIPMENT. Failure to follow all instructions listed below, may result in electric shock,
fire, and/or serious personal injury or property damage.
SAVE! IMPORTANT SAFETY INSTRUCTIONS SAVE!
GENERAL SAFETY RULES

3
ADDITIONAL SAFETY RULES FOR
HOLLOW CHISEL MORTISERS
1. DO NOT OPERATE THIS MACHINE until it is
assembled and installed according to the instructions.
2. OBTAIN ADVICE FROM YOUR SUPERVISOR,
instructor, or another qualified person if you are not
familiar with the operation of this machine.
3. FOLLOW ALL WIRING CODES and recommended
electrical connections.
4. NEVER turn the machine “ON” before clearing the
table of all objects (tools, scrap pieces, etc.).
5. ALWAYS keep hands, fingers and hair away from
the rotating bit.
6. DO NOT attempt to mortise material that does not
have a flat surface, unless a suitable support is used.
7. ALWAYS position holddown directly over workpiece
to prevent workpiece from lifting during operation.
8. ALWAYS support workpiece securely against fence
to prevent rotation.
9. BE SURE drill bit is sharp, not damaged, and properly
secured in the chuck before operation.
10. NEVER turn on the power with the drill bit or chisel
contacting the workpiece.
11. NEVER perform layout, assembly, or set-up work on
the table while the machine is operating.
12. ADJUST the depth stop to avoid drilling into the
table.
13. ALWAYS turn off the power before removing scrap
pieces from the table.
14. SHUT-OFF the power, remove the drill bit and chisel,
and clean the table before leaving the machine.
15. FOR YOUR OWN SAFETY – Don’t wear gloves when
operating the machine.
16. TURN THE MACHINE “OFF”, disconnect the
machine from the power source, and clean the
table/work area before leaving the machine. LOCK THE
SWITCH IN THE “OFF” POSITION to prevent
unauthorized use.
17. ADDITIONAL INFORMATION regarding the safe
and proper operation of this tool is available from the
Power Tool Institute, 1300 Summer Avenue, Cleveland,
OH 44115-2851. Information is also available from the
National Safety Council, 1121 Spring Lake Drive, Itasca,
IL 60143-3201. Please refer to the American National
Standards Institute ANSI 01.1 Safety Requirements for
Woodworking Machines and the U.S. Department of
Labor OSHA 1910.213 Regulations.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY.
SAVE THESE INSTRUCTIONS.
Refer to them often
and use them to instruct others.
16. USE RECOMMENDED ACCESSORIES. The use of
accessories and attachments not recommended by Delta
may cause hazards or risk of injury to persons.
17. REDUCE THE RISK OF UNINTENTIONAL STARTING.
Make sure switch is in “OFF” position before plugging in
power cord.
In the event of a power failure, move switch
to the “OFF” position.
18. NEVER STAND ON TOOL. Serious injury could occur
if the tool is tipped or if the cutting tool is accidentally
contacted.
19. CHECK DAMAGED PARTS. Before further use of the
tool, a guard or other part that is damaged should be
carefully checked to ensure that it will operate properly and
perform its intended function – check for alignment of
moving parts, binding of moving parts, breakage of parts,
mounting, and any other conditions that may affect its
operation. A guard or other part that is damaged should be
properly repaired or replaced.
20. DIRECTION OF FEED. Feed work into a blade or
cutter against the direction of rotation of the blade or cutter
only.
21. NEVER LEAVE TOOL RUNNING UNATTENDED.
TURN POWER OFF. Don’t leave tool until it comes to a
complete stop.
22. STAY ALERT, WATCH WHAT YOU ARE DOING, AND
USE COMMON SENSE WHEN OPERATING A POWER
TOOL. DO NOT USE TOOL WHILE TIRED OR UNDER
THE INFLUENCE OF DRUGS, ALCOHOL, OR
MEDICATION. A moment of inattention while operating
power tools may result in serious personal injury.
23. MAKE SURE TOOL IS DISCONNECTED FROM
POWER SUPPLY while motor is being mounted,
connected or reconnected.
24. THE DUST GENERATED by certain woods and wood
products can be injurious to your health. Always operate
machinery in well ventilated areas and provide for proper
dust removal. Use wood dust collection systems whenever
possible.

4
A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should
be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3-
prong grounding type plugs and matching receptacle which will accept the machine’s plug. Before connecting the
machine to the power line, make sure the switch is in the “OFF” position and be sure that the electric current is of the
same characteristics as indicated on the machine. All line connections should make good contact. Running on low
voltage will damage the machine.
DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN DAMP LOCATIONS.
Fig. A Fig. B
GROUNDED OUTLET BOX
CURRENT
CARRYING
PRONGS
GROUNDING BLADE
IS LONGEST OF THE 3 BLADES
GROUNDED OUTLET BOX
GROUNDING
MEANS
ADAPTER
2. Grounded, cord-connected machines intended for use
on a supply circuit having a nominal rating less than 150
volts:
If the machine is intended for use on a circuit that has an
outlet that looks like the one illustrated in Fig. A,the
machine will have a grounding plug that looks like the plug
illustrated in Fig. A. A temporary adapter, which looks like
the adapter illustrated in Fig. B, may be used to connect
this plug to a matching 2-conductor receptacle as shown
in Fig. B if a properly grounded outlet is not available. The
temporary adapter should be used only until a properly
grounded outlet can be installed by a qualified electrician.
The green-colored rigid ear, lug, and the like, extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box. Whenever
the adapter is used, it must be held in place with a metal
screw.
NOTE: In Canada, the use of a temporary adapter is not
permitted by the Canadian Electric Code.
IN ALL CASES, MAKE CERTAIN THE
RECEPTACLE IN QUESTION IS PROPERLY
GROUNDED. IF YOU ARE NOT SURE HAVE A
QUALIFIED ELECTRICIAN CHECK THE RECEPTACLE.
1. All grounded, cord-connected machines:
In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current to
reduce the risk of electric shock. This machine is
equipped with an electric cord having an equipment-
grounding conductor and a grounding plug. The plug must
be plugged into a matching outlet that is properly installed
and grounded in accordance with all local codes and
ordinances.
Do not modify the plug provided - if it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
Improper connection of the equipment-grounding
conductor can result in risk of electric shock. The
conductor with insulation having an outer surface that is
green with or without yellow stripes is the equipment-
grounding conductor. If repair or replacement of the
electric cord or plug is necessary, do not connect the
equipment-grounding conductor to a live terminal.
Check with a qualified electrician or service personnel if
the grounding instructions are not completely
understood, or if in doubt as to whether the machine is
properly grounded.
Use only 3-wire extension cords that have 3-prong
grounding type plugs and matching 3-conductor
receptacles that accept the machine’s plug, as shown in
Fig. A.
Repair or replace damaged or worn cord immediately.
POWER CONNECTIONS
MOTOR SPECIFICATIONS
Your machine is wired for 120 volt, 60 HZ alternating current. Before connecting the machine to the power source,
make sure the switch is in the “OFF” position.
GROUNDING INSTRUCTIONS
THIS MACHINE MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM
ELECTRIC SHOCK.

Use proper extension cords. Make sure your extension cord is in good condition and is a 3-wire
extension cord which has a 3-prong grounding type plug and matching receptacle which will accept the machine’s
plug. When using an extension cord, be sure to use one heavy enough to carry the current of the machine. An
undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. Fig. D, shows the correct
gauge to use depending on the cord length. If in doubt, use the next heavier gauge. The smaller the gauge number,
the heavier the cord.
EXTENSION CORDS
FOREWORD
Delta Model 14-651 is easier to operate than a conventional drill press equipped with a mortising attachment. The model
14-651 is made of cast-iron and steel for rigidity and stability. The mortiser comes with a standard 3-jaw type chuck for
positive gripping of mortising bits.
5
Fig. D
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere Total Length Gauge of
Rating Volts of Cord in Feet Extension Cord
0-6 120 up to 25 18 AWG
0-6 120 25-50 16 AWG
0-6 120 50-100 16 AWG
0-6 120 100-150 14 AWG
6-10 120
up to 25 18 AWG
6-10 120 25-50 16 AWG
6-10 120 50-100 14 AWG
6-10 120 100-150 12 AWG
10-12 120
up to 25 16 AWG
10-12 120 25-50 16 AWG
10-12 120 50-100 14 AWG
10-12 120 100-150 12 AWG
12-16 120
up to 25 14 AWG
12-16 120 25-50 12 AWG
12-16 120 GREATER THAN 50 FEET NOT RECOMMENDED
OPERATING INSTRUCTIONS
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from
all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone,
gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household
floor paste wax.
NOTICE: THE MANUAL COVER PHOTO ILLUSTRATES THE CURRENT
PRODUCTION MODEL. ALL OTHER ILLUSTRATIONS ARE REPRESENTATIVE
ONLY AND MAY NOT DEPICT THE ACTUAL COLOR, LABELING OR
ACCESSORIES AND MAY BE INTENDED TO ILLUSTRATE TECHNIQUE ONLY.

6
HOLLOW CHISEL MORTISER PARTS
Fig. 2
1. Mortising Machine
2. Tool and Chisel Holder
3. Chuck Key / Wrench
4. Column Extension
5. Hydraulic Cylinder
6. Handle
7. Extended Hold down rod (use with column
extension)
8. Special Screw (for raising and lowering handle)
9. M8x1.25x80mm Head Screw (4) (for assembling
column extension to base)
1
2
3
4
5
6
8
9
10
10. M6x1x25mm Pan Head Screws (2) (for assembling tool
and chisel holder)
11. Spring
12. Bushing (for use with extra long chisels)
13. M6 Lockwashers (2) (for assembling tool and chisel
holder)
14. 1/2" Mortising Chisel and Bit
15. 3/8" Mortising Chisel and Bit
16. 5/16" Mortising Chisel and Bit
17. 1/4" Mortising Chisel and Bit
11
12
13
14
15
16
17
7

7
FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL THE
MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION
MANUAL.

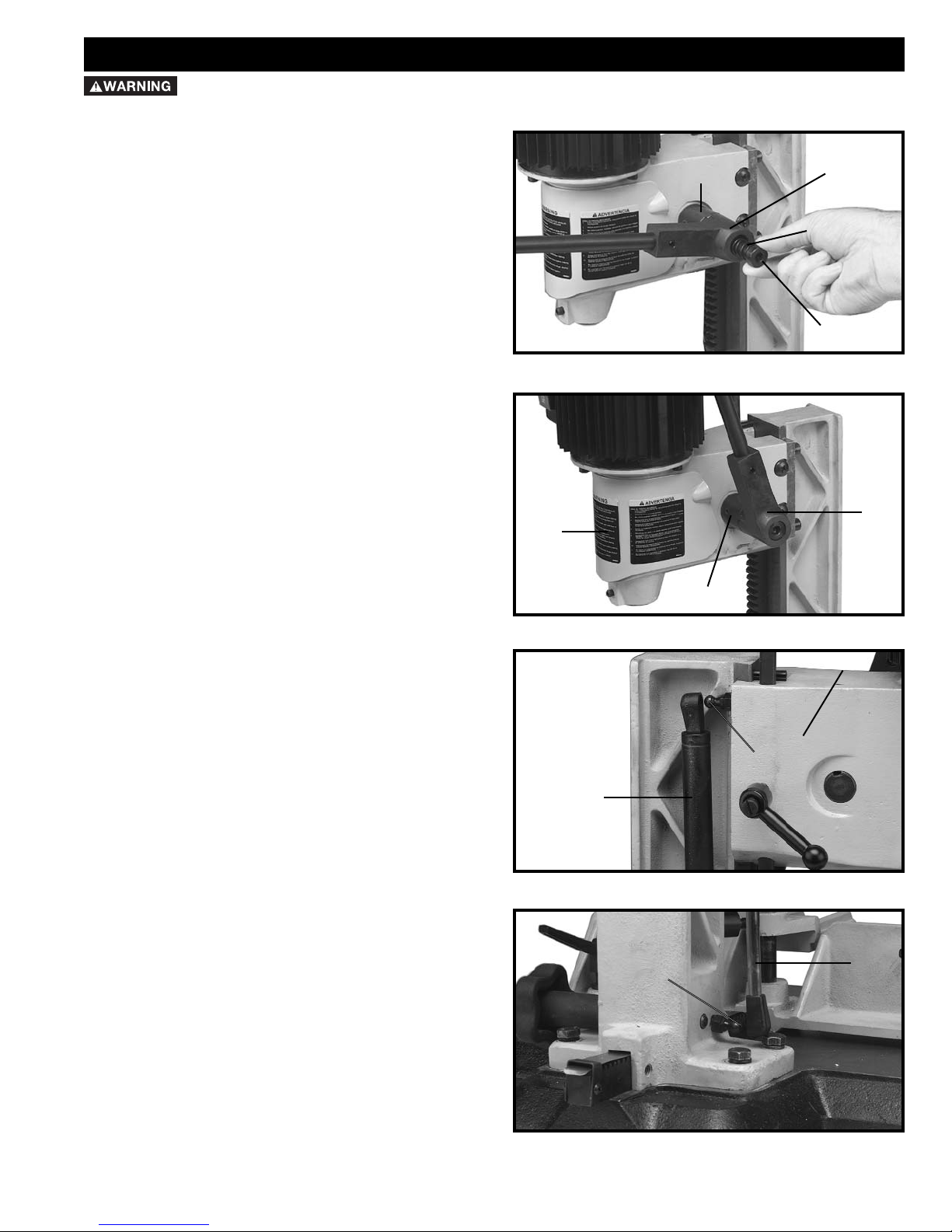

RAISING AND LOWERING
HANDLE
1. Assemble hub of handle assembly (A) Fig. 3, to end
of pinion shaft (B) and fasten handle to pinion shaft
using special screw (C) and spring (D).
2. Raise mortising machine head (E) Fig. 4, to the up
position by turning handle (A) clockwise. NOTE: Handle
(A) is spring-loaded and can be repositioned by pulling
out handle and repositioning it on pinion shaft (B).
HYDRAULIC CYLINDER
Make sure head (A) Fig. 5, is held in the up position and
assemble the hydraulic cylinder (B) to the two fittings,
one located on the back of the head (C) Fig. 5, and the
other on the column (D) Fig. 6. Push each end of the
hydraulic cylinder onto each fitting to hold the cylinder in
place.
Fig. 3
Fig. 4
Fig. 5
Fig. 6
A
B
C
D
B
A
E
A
B
C
B
D
ASSEMBLY

8

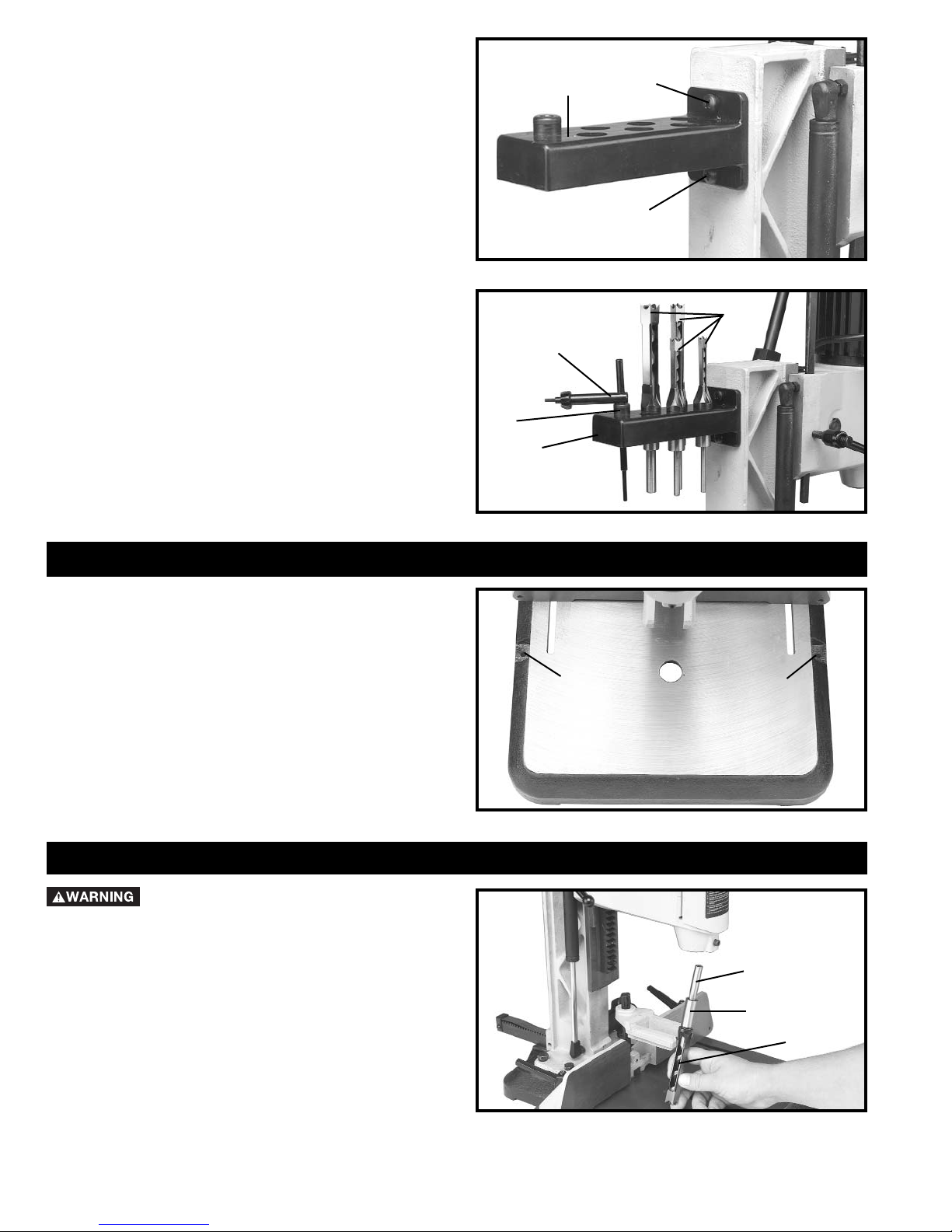

TOOL AND CHISEL HOLDER
1. Assemble tool and chisel holder (A) Fig. 7, to back of
column using the two M6x1x25mm screws (B) and M6
lockwashers as shown.
Fig. 7
Fig. 8
2. Fig. 8, illustrates the chuck key/wrench (C), bushing
(F) for use with extra long chisels, and chisels and bits
(E) in holes of tool and chisel holder (A) when not in use.
FASTENING MACHINE TO SUPPORTING SURFACE
If during operation there is any tendency for the mortiser
to tip over, slide or walk on the supporting surface, the
base must be secured to the supporting surface with
fasteners (not supplied), through the two holes (A) Fig. 9,
located in the mortiser base.
Fig. 9
ASSEMBLING CHISEL AND BIT
DISCONNECT MACHINE FROM POWER
SOURCE.
1. Insert bit (A) Fig. 10, into chisel (B). NOTE: The
opening (C) on the side of the chisel should always be to
the right or left, never to the front or rear. The opening
allows chips to escape during operation.
Fig. 10
AB
B
C
E
A
AA
A
B
C
F

9
2. Loosen screw (D) Fig. 11, and push chisel (B) up
through hole in head as far as possible. Then lower chisel
(B) 1/16" to 3/16" and tighten set screw (D). IMPORTANT:
When inserting chisel (B) Fig. 12 into head, there must
be a space of 1/16" to 3/16" clearance (F) between the
bushing (E) and shoulder of chisel (B) as shown. This
assures having proper clearance between the cutting
lips of the bit and points of the chisel after the bit is
inserted into the chuck.
Fig. 11
Fig. 12
Fig. 13
Fig. 14
3. Push bit (A) Fig. 13, up through chisel and into
chuck (G) as far as it will go, and lock bit in chuck using
chuck key supplied.
4. Loosen set screw (D) Fig. 14, and push chisel (B) up
against bottom of bushing (E), as shown, and tighten set
screw (D). This should provide the proper distance be-
tween the cutting lips of the bit and the points of the
chisel.
D
B
D
E
F
B
G
A
D
E
B

10
Fig. 15
PUSH
CHISEL UP
AGAINST
BUSHING
1/16" to 3/16"
CLEARANCE TO SUIT
TYPE OF WOOD
ADJUST BIT IN
CHUCK TO GIVE
CLEARANCE

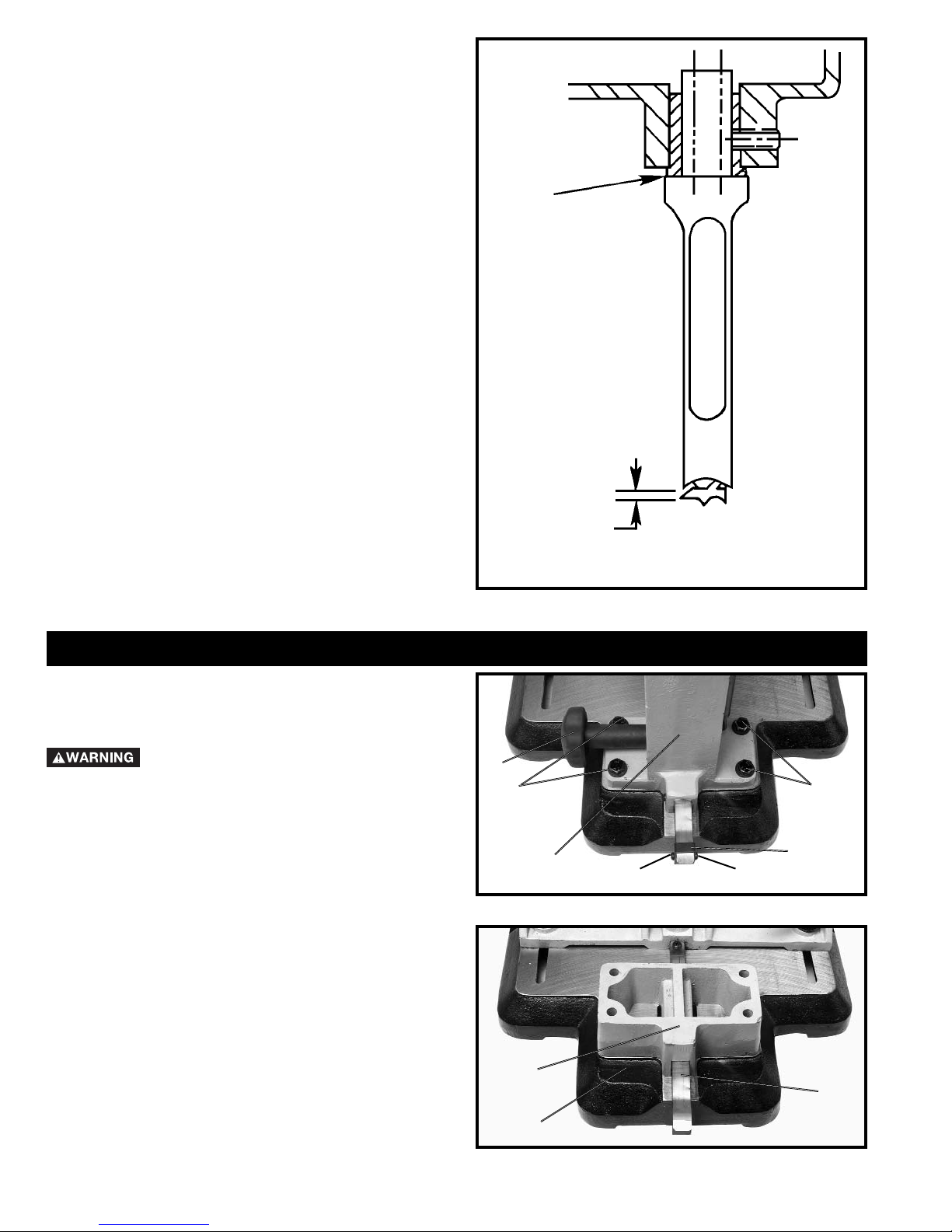

5. The flat portion of the bit should be adjusted to a
minimum of 1/16" below the bottom of the chisel, as
shown in Fig. 15. For certain types of wood it may be
necessary to increase this distance up to a maximum of
3/16" clearance. This method assures having proper
clearance between the cutting edges of the bit and the
points of the chisel.
ASSEMBLING COLUMN EXTENSION
The column can be extended for the purpose of
mortising taller work pieces. To extend the column
proceed as follows.
DISCONNECT MACHINE FROM POWER
SOURCE.
1. Remove the two screws (B) Fig. 16, from the rack
cover bracket and remove the rack cover bracket (D).
2. Remove the four screws and flat washers (A) Fig. 16.
3. Rotate handle (E) until the column assembly (C) Fig.
16, moves off the back of the rack and base. Fig. 16
Fig. 17
4. Place the column extension (A) Fig. 17, on top of the
rack (B). Align the four holes in the column extension (A)
Fig. 17, with the four holes in the base (C).
BB
D
AA
C
A
B
E
C

11

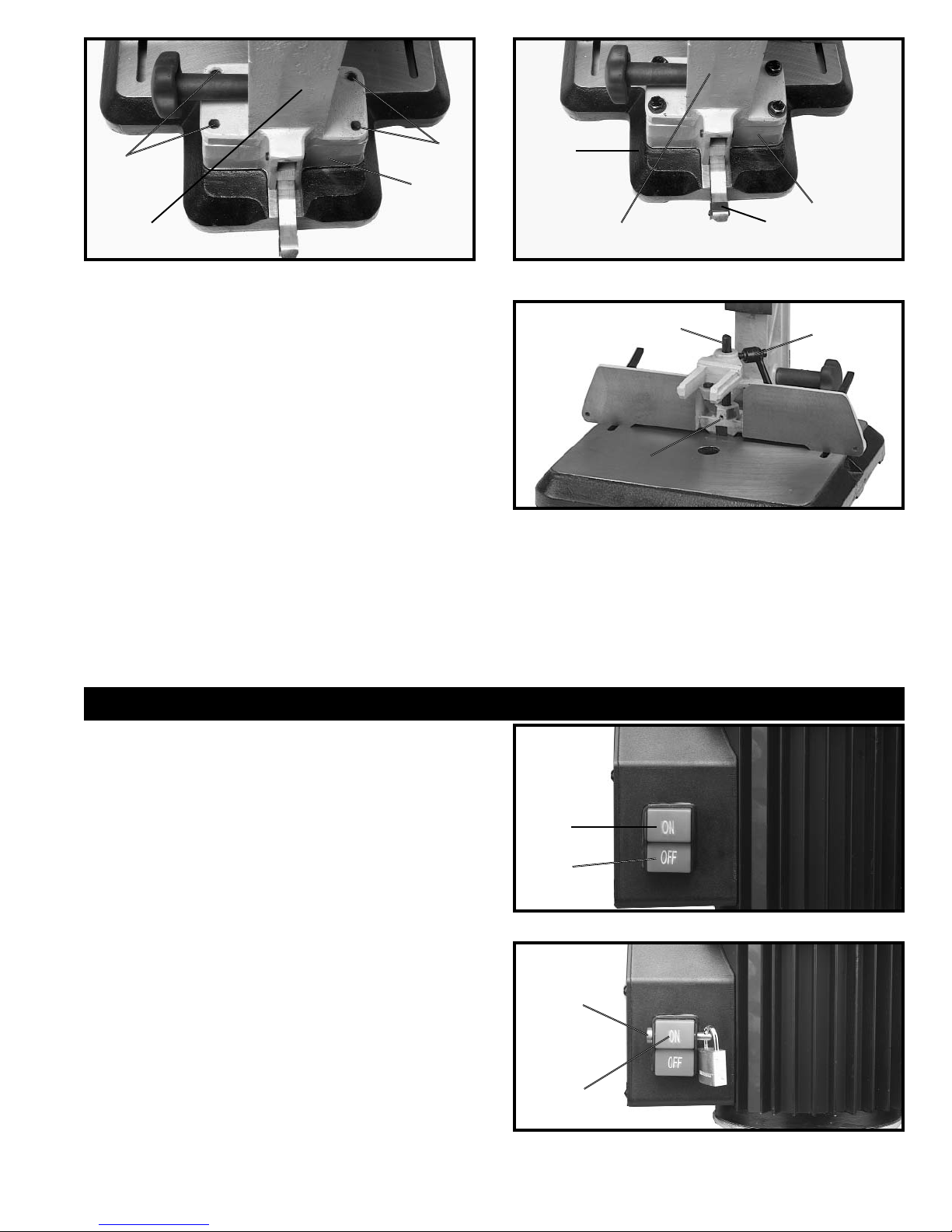

Fig. 18 Fig. 19
5. Place the column assembly (C) Fig. 18, on top of the
column extension (A) and align the four holes (B) in the
column assembly with the four holes in the column
extension (A).
6. Place a flat washer that was removed in STEP 2, on
an M8x1.25x80mm hex head screw.
7. Insert the screw through the hole in the column
assembly (C) Fig. 19, column extension (A), and thread into
base (B). Repeat this process for the three remaining
holes.
8. Replace the rack cover bracket (D) Fig. 19, that was
removed in STEP 1.
9. Loosen the holddown knob (B) Fig. 19A and remove
the hold down. Loosen set screw (C) and removed
holddown rod (A) and replace with the extended hold
down rod. Tighten set screw (C). Place the hold down (B)
on the hold down rod and tighten hold down handle (B).
NOTE: REVERSE THE PREVIOUS PROCEDURE
(“ASSEMBLING COLUMN EXTENSION”) TO REMOVE
THE COLUMN EXTENSION.
OPERATING CONTROLS AND ADJUSTMENTS
STARTING AND STOPPING
MORTISER
The power switch is located on the left side of the
mortiser. To turn the mortiser “ON”, press the green start
button (A) Fig. 20. To stop the mortiser, push the red
button (B).
Fig. 20
Fig. 21
LOCKING SWITCH IN
THE “OFF” POSITION
When the tool is not in use, the switch should be locked
in the “OFF” position to prevent unauthorized use. This
can be done by inserting the lockout pin (C) Fig. 21,
Delta accessory model number 50-164, through the hole
in the start button (A). Place the 1/8" shank of a lock
through the hole in the lockout pin and secure the lock
as shown.
A
B
C
A
C
A
BB
C
A
B
D
Fig. 19A
AB
C

12

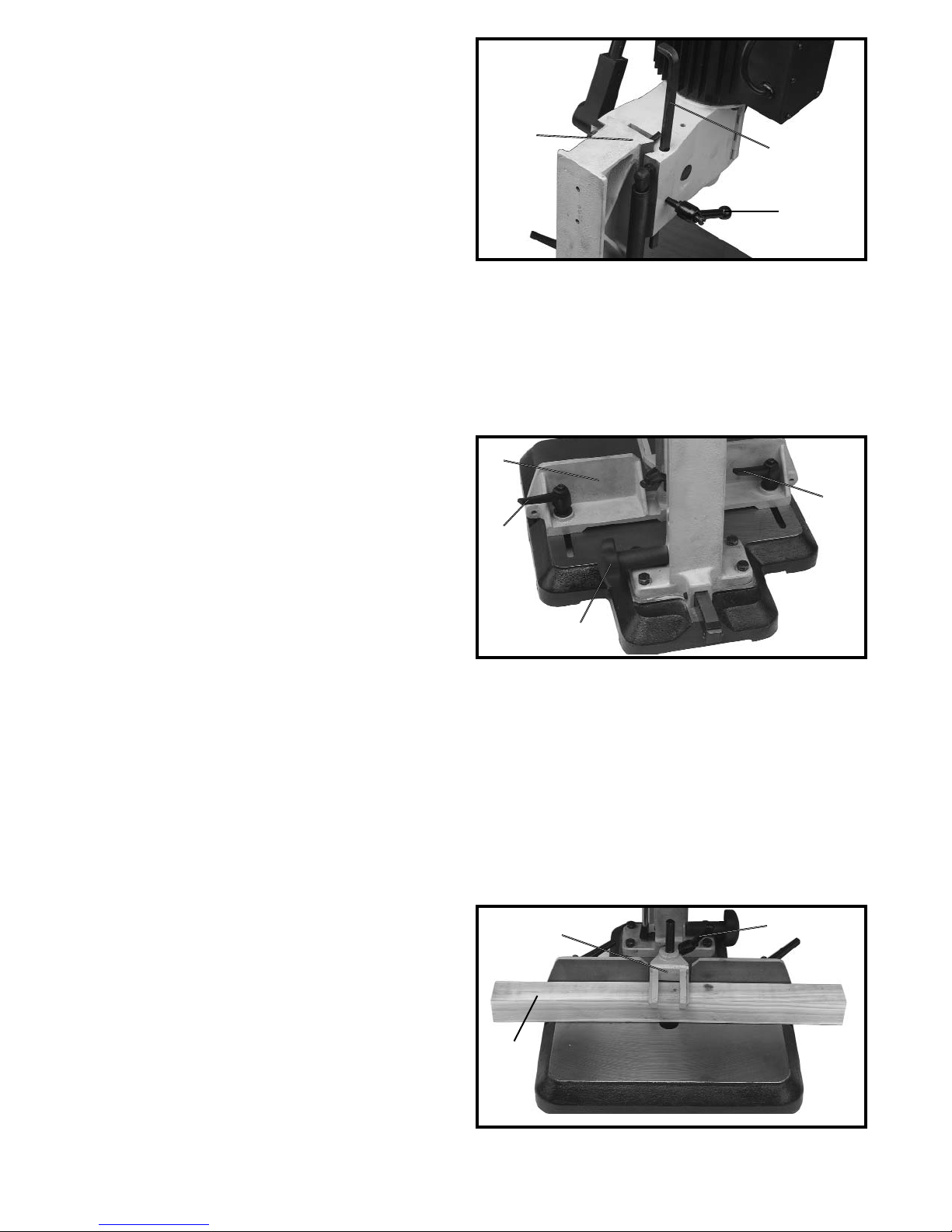

DEPTH STOP ROD
A depth stop rod (A) Fig. 23, is provided to limit the
depth of the chisel. To adjust the depth stop rod (A),
loosen lever (C) and lower head until the chisel is
at the desired depth. Lower depth stop rod (A) until it
contacts the top of the column (D) and tighten lever (C).
Fig. 23
FENCE
The fence (A) Fig. 24, can be moved in or out by
loosening lock handles (B), and rotate the fence rack
handle (C) to move the fence to the desired position and
tightening handles (B). NOTE: Levers (B) are spring-
loaded and can be repositioned by pulling out on the
lever and repositioning it on the serrated nut located
underneath the lever.
Fig. 24
Fig. 25
HOLDDOWN
The purpose of the holddown (C) Fig. 25, is to prevent
the workpiece (E) from lifting as the chisel is raised up,
out of the hole. The holddown (C) should be adjusted so it
just touches the top of the workpiece (E) and allows the
workpiece to slide left or right. The holddown (C) can be
turned upside down to accommodate thicker
workpieces. To adjust the holddown (C), loosen handle
(F), position holddown, and tighten handle (F).
A
D
C
B
B
A
C
C
E
F

13
CHISEL PARALLEL TO
WORKPIECE
The chisel (A) Fig. 26, can be adjusted parallel to the
workpiece by loosening screw (B) and rotating chisel
until the back surface of the chisel is touching
workpiece. Then tighten screw (B).
Fig. 26
SLIDING FIT BETWEEN
HEAD AND COLUMN
A dovetail gib (A) Fig. 27, is provided on the rear of the
head to insure a good sliding fit between the head and
the column when the head is raised and lowered.
Adjustment is made by loosening the two screws (B) and
turning adjusting screws (C). Then tighten two screws
(B). NOTE: Correct adjustment is when a good snug
sliding fit is obtained without any side movement
between the gib and the column. This adjustment
should not be too tight that it restricts the sliding
movement or too loose that it affects accuracy. Fig. 27
OPERATIONS
1. Make sure that chisels and bits are sharp.
2. Fig. 28, illustrates a typical mortising operation.
Note that the opening (A) in the chisel is to the right. This
means that after the first cut is complete, the workpiece
should be moved to the right for subsequent cuts. This
allows chips to escape freely through the opening in the
chisel.
3. Make sure the workpiece is held firmly against the
fence when cutting and that the holddown (B) Fig. 28, is
properly adjusted. The rate of penetration of the chisel
must be fast enough to prevent burning at the tip of the
bit, but not too fast as to stall the motor. You may en-
counter smoke from the bit or material once the chisel has
engaged the material. The smoke created is a natural
operating occurrence in hollow chisel mortising and is
caused by material chip friction and the resins in the
stock being burned off. Bluing of the chisel after initial
use is not indicative of a dull chisel, but a combination
of friction and resin buildup on the cutting faces of the
chisel. A dull chisel can be detected by the amount of
excess force required to complete a cut.
4. When performing a through mortise, a thin piece of
wood should be placed between the workpiece and the
table. This prevents “chip-out” at the bottom of the
mortise.
5. Fig. 29, illustrates the mortising operation
completed.
Fig. 28
Fig. 29
A
B
A
B
B
C
B
A

14
ROTATING COLUMN 180
DEGREES
The column (A) Fig. 31, can be rotated 180 degrees, as
shown, if it is desired to cut workpieces off the table. To
rotate the column, remove four screws, two of which are
shown at (B), rotate column (A) 180 degrees and replace
the four screws (B).
THE BASE MUST BE SECURED TO A
SUPPORTING SURFACE.
Fig. 31
USING BITS WITH EXTRA
LONG SHANKS
When using bits with extra long shanks, it will be
necessary to remove the extension (A) Fig. 32. This can be
done by inserting screwdriver into center hole of motor
end cap (B) Fig. 33, and into slot (E), in end of armature
shaft. Then using chuck key, unscrew and remove chuck
(C) Fig. 32, and extension (A). Remove extension (A)
from chuck (C) and replace chuck (C) on end of motor
shaft. The chisel spacer may also be used when using
chisels with extra long shanks. Place the chisel spacer
(D) Fig. 34 on the chisel shank (F) and insert chisel into
chisel holder and tighten chisel holder securely.
Fig. 33
Fig. 32
Fig. 34
B
A
A
C
B
E
D
F

15
NOTES

16
Printed in U.S.A.
Two Year Limited Warranty
Delta will repair or replace, at its expense and at its option, any Delta machine, machine part, or machine accessory which
in normal use has proven to be defective in workmanship or material, provided that the customer returns the product
prepaid to a Delta factory service center or authorized service station with proof of purchase of the product within two
years and provides Delta with reasonable opportunity to verify the alleged defect by inspection. Delta may require that
electric motors be returned prepaid to a motor manufacturer’s authorized station for inspection and repair or replacement.
Delta will not be responsible for any asserted defect which has resulted from normal wear, misuse, abuse or repair or
alteration made or specifically authorized by anyone other than an authorized Delta service facility or representative. Under
no circumstances will Delta be liable for incidental or consequential damages resulting from defective products. This
warranty is Delta’s sole warranty and sets forth the customer’s exclusive remedy, with respect to defective products; all
other warranties, express or implied, whether of merchantability, fitness for purpose, or otherwise, are expressly
disclaimed by Delta.
PARTS, SERVICE OR WARRANTY ASSISTANCE
All Delta Machines and accessories are manufactured to high quality standards and are serviced by a network
of Porter-Cable • Delta Factory Service Centers and Delta Authorized Service Stations. To obtain additional
information regarding your Delta quality product or to obtain parts, service, warranty assistance, or the location
of the nearest service outlet, please call 1-800-223-7278 (In Canada call 1-800-463-3582).
A complete line of accessories is available from your Delta Supplier, Porter-Cable • Delta Factory Service Centers,
and Delta Authorized Service Stations. Please visit our Web Site www.deltamachinery.com for a catalog or
for the name of your nearest supplier.
Since accessories other than those offered by Delta have not been tested with this
product, use of such accessories could be hazardous. For safest operation, only Delta
recommended accessories should be used with this product.
