Delta 36-850 User manual

INSTRUCTION MANUAL
PART NO. 1346942 - 03-30-05
Copyright © 2005 Delta Machinery
Stock Feeder
(Model 36-850)
To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
please call 1-800-223-7278 (In Canada call 1-800-463-3582).

2
TABLE OF CONTENTS
Read and understand all warnings and operating instructions before using any tool or equipment. When
using tools or equipment, basic safety precautions should always be followed to reduce the risk of personal injury.
Improper operation, maintenance or modification of tools or equipment could result in serious injury and property
damage. There are certain applications for which tools and equipment are designed. Delta Machinery strongly
recommends that this product NOT be modified and/or used for any application other than for which it was designed.
If you have any questions relative to its application DO NOT use the product until you have written Delta Machinery
and we have advised you.
Online contact form at www.deltamachinery.com
Postal Mail: Technical Service Manager
Delta Machinery
4825 Highway 45 North
Jackson, TN 38305
(IN CANADA: 505 SOUTHGATE DRIVE, GUELPH, ONTARIO N1H 6M7)
Information regarding the safe and proper operation of this tool is available from the following sources:
Power Tool Institute
1300 Sumner Avenue, Cleveland, OH 44115-2851
www.powertoolinstitute.org
National Safety Council
1121 Spring Lake Drive, Itasca, IL 60143-3201
American National Standards Institute, 25 West 43rd Street, 4 floor, New York, NY 10036 www.ansi.org
ANSI 01.1Safety Requirements for Woodworking Machines, and
the U.S. Department of Labor regulations www.osha.gov
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS!
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SAFETY GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
GENERAL SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ADDITIONAL SPECIFIC SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
FUNCTIONAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
CARTON CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
SERVICE CENTER LOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .back cover

3
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may
result in property damage.
It is important for you to read and understand this manual. The information it contains relates to protect-
ing YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this
information.
SAFETY GUIDELINES - DEFINITIONS
SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER
CONSTRUCTION ACTIVITIES contains chemicals known to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
· lead from lead-based paints,
· crystalline silica from bricks and cement and other masonry products, and
· arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with approved safety equipment, always wear NIOSH/OSHA
approved, properly fitting face mask or respirator when using such tools.
CALIFORNIA PROPOSITION 65

4
GENERAL SAFETY RULES
READ AND UNDERSTAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE
USING THIS EQUIPMENT. Failure to follow all instructions listed below, may result in electric shock,
fire, and/or serious personal injury or property damage.
IMPORTANT SAFETY INSTRUCTIONS
1. FOR YOUR OWN SAFETY, READ THE INSTRUCTION MAN-
UAL BEFORE OPERATING THE MACHINE. Learning the
machine’s application, limitations, and specific hazards
will greatly minimize the possibility of accidents and injury.
2. WEAR EYE AND HEARING PROTECTION. ALWAYS
USE SAFETY GLASSES. Everyday eyeglasses are NOT
safety glasses. USE CERTIFIED SAFETY EQUIPMENT.
Eye protection equipment should comply with ANSI Z87.1
standards. Hearing equipment should comply with ANSI
S3.19standards.
3. WEAR PROPER APPAREL. Do not wear loose
clothing, gloves, neckties, rings, bracelets, or other jewel-
ry which may get caught in moving parts. Nonslip footwear
is recommended. Wear protective hair covering to contain
long hair.
4. DO NOT USE THE MACHINE IN A DANGEROUS ENVI-
RONMENT. The use of power tools in damp or wet loca-
tions or in rain can cause shock orelectrocution. Keep your
work area well-lit to prevent tripping or placing arms,
hands, and fingers in danger.
5. MAINTAIN ALL TOOLS AND MACHINES IN PEAK
CONDITION. Keep tools sharp and clean for best and safest per-
formance. Follow instructions for lubricating and changing acces-
sories. Poorly maintained tools and machines can further damage
the tool or machine and/or cause injury.
6. CHECK FOR DAMAGED PARTS. Before using the machine,
check for any damaged parts. Check for alignment of
moving parts, binding of moving parts, breakage of parts,
and any other conditions that may affect its operation. A
guard or any other part that is damaged should be prop-
erly repaired or replaced. Damaged parts can cause fur-
ther damage to the machine and/or injury.
7. KEEP THE WORK AREA CLEAN. Cluttered areas and benches
invite accidents.
8. KEEP CHILDREN AND VISITORS AWAY. Your shop is a poten-
tially dangerous environment. Children and visitors can be injured.
9. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make
sure that the switch is in the “OFF” position before plug-
ging in the power cord. In the event of a power failure,
move the switch to the “OFF” position. An accidental
start-up can cause injury.
10. USE THE GUARDS. Check to see that all guards are in
place, secured, and working correctly to reduce the risk of
injury.
11. REMOVE ADJUSTING KEYS AND WRENCHES
BEFORE STARTING THE MACHINE. Tools, scrap pieces,
and other debris can be thrown at high speed, causing
injury.
12. USE THE RIGHT MACHINE. Don’t force a machine or an
attachment to do a job for which it was not designed.
Damage to the machine and/or injury may result.
13. USE RECOMMENDED ACCESSORIES. The use of
accessories and attachments not recommended by Delta
may cause damage to the machine or injury to the user.
14. USE THE PROPER EXTENSION CORD. Make sure your
extension cord is in good condition. When using an exten-
sion cord, be sure to use one heavy enough to carry the
current your product will draw. An undersized cord will
cause a drop in line voltage, resulting in loss of power and
overheating. See the Extension Cord Chart for the correct
size depending on the cord length and nameplate ampere
rating. If in doubt, use the next heavier gauge. The small-
er the gauge number, the heavier the cord.
15. SECURE THE WORKPIECE. Use clamps or a vise to hold
the workpiece when practical. Loss of control of a work-
piece can cause injury.
16. FEED THE WORKPIECE AGAINST THE DIRECTION OF THE
ROTATION OF THE BLADE, CUTTER, OR ABRASIVE SUR-
FACE. Feeding it from the other direction will cause the
workpiece to be thrown out at high speed.
17. DON’T FORCE THE WORKPIECE ON THE MACHINE.
Damage to the machine and/or injury may result.
18. DON’T OVERREACH. Loss of balance can make you fall
into a working machine, causing injury.
19. NEVER STAND ON THE MACHINE. Injury could occur if the tool
tips, or if you accidentally contact the cutting tool.
20. NEVER LEAVE THE MACHINE RUNNING UNATTENDED.
TURN THE POWER OFF. Don’t leave the machine until it comes
to a complete stop. A child or visitor could be injured.
21. TURN THE MACHINE “OFF”, AND DISCONNECT THE
MACHINE FROM THE POWER SOURCE before installing or
removing accessories, before adjusting or changing set-
ups, or when making repairs. An accidental start-up can
cause injury.
22. MAKE YOUR WORKSHOP CHILDPROOF WITH PAD-
LOCKS, MASTER SWITCHES, OR BY REMOVING
STARTER KEYS. The accidental start-up of a machine by
a child or visitor could cause injury.
23. STAY ALERT, WATCH WHAT YOU ARE DOING, AND
USE COMMON SENSE. DO NOT USE THE MACHINE
WHEN YOU ARE TIRED OR UNDER THE INFLUENCE
OF DRUGS, ALCOHOL, OR MEDICAT-ION. A moment of
inattention while operating power tools may result in injury.
24. USE OF THIS TOOL CAN GENERATE AND
DISBURSE DUST OR OTHER AIRBORNE PARTICLES,
INCLUDING WOOD DUST, CRYSTALLINE SILICA DUST
AND ASBESTOS DUST. Direct particles away from face and
body. Always operate tool in well ventilated area and provide
for proper dust removal. Use dust collection system wherev-
er possible. Exposure to the dust may cause serious and per-
manent respiratory or other injury, including silicosis (a serious
lung disease), cancer, and death. Avoid breathing the dust,
and avoid prolonged contact with dust. Allowing dust to get
into your mouth or eyes, or lay on your skin may promote
absorption of harmful material. Always use properly fitting
NIOSH/OSHA approved respiratory protection appropriate for
the dust exposure, and wash exposed areas with soap and
water.

5
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY.
ADDITIONAL SPECIFIC SAFETY RULES
SAVE THESE INSTRUCTIONS.
Refer to them often and use them to instruct others.
1. DO NOT OPERATE THIS MACHINE until it is completely
assembled and installed according to the instructions. A
machine incorrectly assembled can cause serious injury.
2. OBTAIN ADVICE from your supervisor, instructor, or
another qualified person if you are not thoroughly familiar
with the operation of this machine. Knowledge is safety.
3. FOLLOW ALL WIRING CODES and recommended electri-
cal connections to prevent shock or electrocution.
4. NEVER TURN THE MACHINE “ON” before clearing the
table/work area of all objects (tools, scraps of wood, etc.).
Flying debris is dangerous.
5. NEVER TURN THE MACHINE “ON” with the workpiece
contacting the stock feeder.
6. AVOID AWKWARD OPERATIONS AND HAND POSI-
TIONS. A sudden slip could cause a hand to move into
the stock feeder or the blade of the cutting machine.
7. KEEP ARMS, HANDS, AND FINGERS away from the
rotating parts of feeder and cutting machine.
8. ALLOW THE BLADE OF THE CUTTING MACHINE TO
REACH FULL SPEED before feeding a workpiece into the
stock feeder.
9. NEVER PERFORM LAYOUT, assembly, or set-up work
on the table/work area when the machine is running.
10. TURN THE MACHINE “OFF” AND DISCONNECT THE
MACHINE from the power source before installing or
removing accessories, before adjusting or changing set-
ups, or when making repairs.
11. TURN THE MACHINE “OFF”, disconnect the machine
from the power source, and clean the table/work area
before leaving the machine. LOCK THE SWITCH IN THE
“OFF” POSITION to prevent unauthorized use.
12. ADDITIONAL INFORMATION regarding the safe and
proper operation of power tools (i.e. a safety video) is
available from the Power Tool Institute, 1300 Sumner
Avenue, Cleveland, OH 44115-2851 (www.powertoolinsti-
tute.com). Information is also available from the National
Safety Council, 1121 Spring Lake Drive, Itasca, IL 60143-
3201. Please refer to the American National Standards
Institute ANSI 01.1 Safety Requirements for Woodworking
Machines and the U.S. Department of Labor OSHA
1910.213 Regulations.

6
A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should
be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3-
prong grounding type plugs and matching receptacle which will accept the machine’s plug. Before connecting the
machine to the power line, make sure the switch (s) is in the “OFF” position and be sure that the electric current is of
the same characteristics as indicated on the machine. All line connections should make good contact. Running on low
voltage will damage the machine.
DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN DAMP LOCATIONS.
Fig. A Fig. B
GROUNDED OUTLET BOX
CURRENT
CARRYING
PRONGS
GROUNDING BLADE
IS LONGEST OF THE 3 BLADES
GROUNDED OUTLET BOX
GROUNDING
MEANS
ADAPTER
2. Grounded, cord-connected machines intended for
use on a supply circuit having a nominal rating less
than 150 volts:
If the machine is intended for use on a circuit that has an
outlet that looks like the one illustrated in Fig. A,the
machine will have a grounding plug that looks like the plug
illustrated in Fig. A. A temporary adapter, which looks like
the adapter illustrated in Fig. B, may be used to connect
this plug to a matching 2-conductor receptacle as shown
in Fig. B if a properly grounded outlet is not available. The
temporary adapter should be used only until a properly
grounded outlet can be installed by a qualified electrician.
The green-colored rigid ear, lug, and the like, extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box. Whenever
the adapter is used, it must be held in place with a metal
screw.
NOTE: In Canada, the use of a temporary adapter is not
permitted by the Canadian Electric Code.
IN ALL CASES, MAKE CERTAIN THE
RECEPTACLE IN QUESTION IS PROPERLY
GROUNDED. IF YOU ARE NOT SURE HAVE A
QUALIFIED ELECTRICIAN CHECK THE RECEPTACLE.
1. All grounded, cord-connected machines:
In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current to
reduce the risk of electric shock. This machine is
equipped with an electric cord having an equipment-
grounding conductor and a grounding plug. The plug must
be plugged into a matching outlet that is properly installed
and grounded in accordance with all local codes and
ordinances.
Do not modify the plug provided - if it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
Improper connection of the equipment-grounding
conductor can result in risk of electric shock. The
conductor with insulation having an outer surface that is
green with or without yellow stripes is the equipment-
grounding conductor. If repair or replacement of the
electric cord or plug is necessary, do not connect the
equipment-grounding conductor to a live terminal.
Check with a qualified electrician or service personnel if
the grounding instructions are not completely
understood, or if in doubt as to whether the machine is
properly grounded.
Use only 3-wire extension cords that have 3-prong
grounding type plugs and matching 3-conductor
receptacles that accept the machine’s plug, as shown in
Fig. A.
Repair or replace damaged or worn cord immediately.
POWER CONNECTIONS
MOTOR SPECIFICATIONS
Your machine is wired for 120 Volt, 60 HZ alternating current. Before connecting the machine to the power source,
make sure the switch is in the “OFF” position.
GROUNDING INSTRUCTIONS
THIS MACHINE MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM
ELECTRIC SHOCK.

7
EXTENSION CORDS
Use proper extension cords. Make sure
your extension cord is in good condition and is a 3-wire
extension cord which has a 3-prong grounding type
plug and matching receptacle which will accept the
machine’s plug. When using an extension cord, be sure
to use one heavy enough to carry the current of the
machine. An undersized cord will cause a drop in line
voltage, resulting in loss of power and overheating. Fig.
D-1 shows the correct gauge to use depending on the
cord length. If in doubt, use the next heavier gauge. The
smaller the gauge number, the heavier the cord.
Fig. D-1
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere Total Length Gauge of
Rating Volts of Cord in Feet Extension Cord
0-6 120 up to 25 18 AWG
0-6 120 25-50 16 AWG
0-6 120 50-100 16 AWG
0-6 120 100-150 14 AWG
6-10 120
up to 25 18 AWG
6-10 120 25-50 16 AWG
6-10 120 50-100 14 AWG
6-10 120 100-150 12 AWG
10-12 120
up to 25 16 AWG
10-12 120 25-50 16 AWG
10-12 120 50-100 14 AWG
10-12 120 100-150 12 AWG
12-16 120
up to 25 14 AWG
12-16 120 25-50 12 AWG
12-16 120 GREATER THAN 50 FEET NOT RECOMMENDED
FOREWORD
The Delta Model 36-850 four-speed, three-roller, Stock Feeder includes a 1/4 hp, 120V single-phase reversing motor, 3
rubber feed rollers, vertical and horizontal support columns, universal joints, and an additional set of speed-changing
gears and lubricating gun.
FUNCTIONAL DESCRIPTION
NOTICE: The photo on the manual cover illustrates the current production model. All other illustrations contained in
the manual are representative only and may not depict the actual color, labeling, or accessories and are intended to
illustrate technique only.
1) Stock Feeder Assembly
2) Vertical and horizontal Support Columns
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from
all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone, gaso-
line or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household floor
paste wax.
CARTON CONTENTS
3) Additional Set of speed-changing gears
4) Lubricating Gun

8

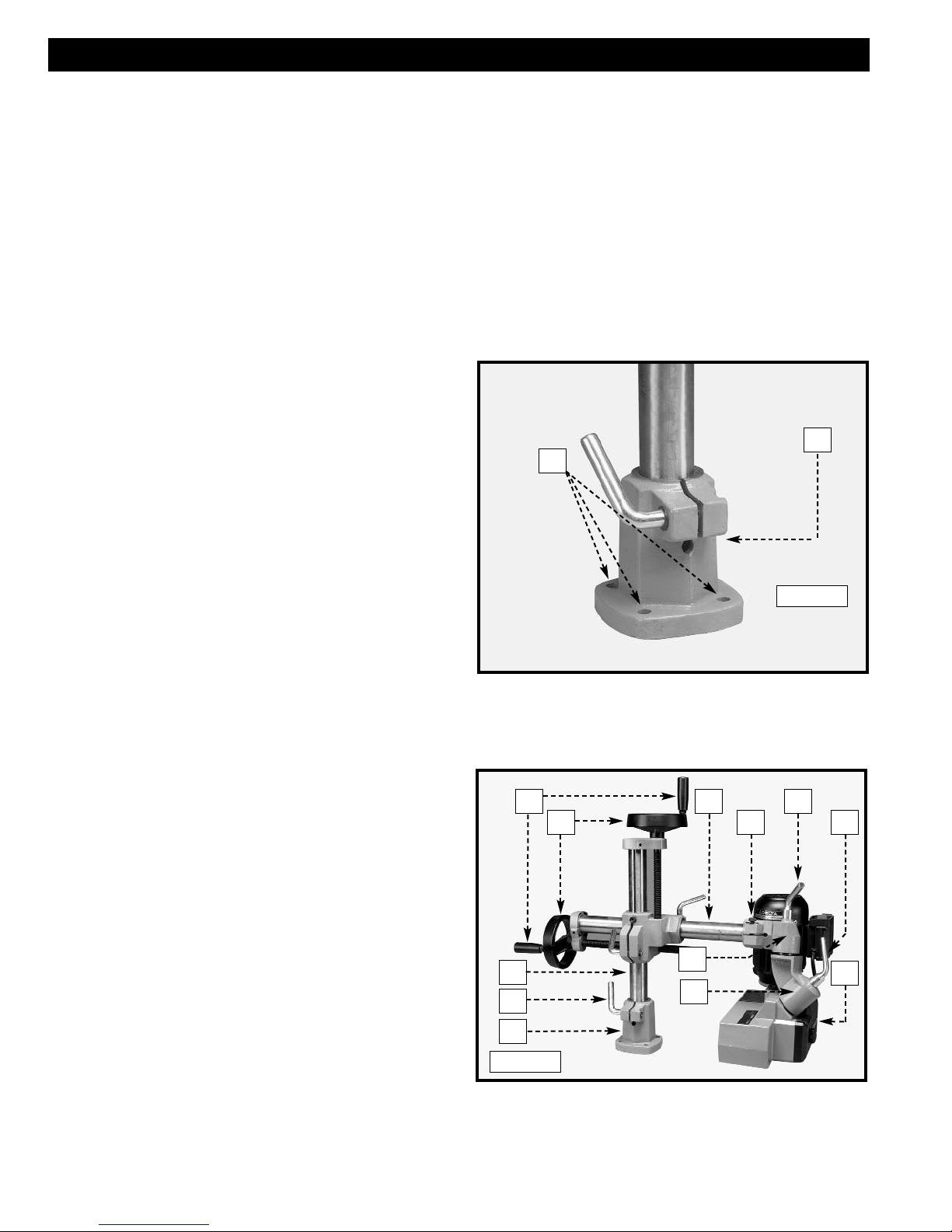

1. Position the mounting bracket (A) Fig. 2 at the
desired location on the machine.
2. Mark the locations (B) where the four mounting
holes are to be drilled in the table.Three are shown
here.
3. Center punch and drill four 3/8" diameter holes at
the locations marked in STEP 2.
NOTE: DO NOT drill through any table ribs or table
supports.
4. Fasten the mounting bracket (A) Fig. 2 to the table
by inserting four 2" bolts with a flat washer through
the holes in the mounting bracket, three of which are
shown at (B) Fig. 2. Secure the bolts from under-
neath with another flat washer, a lockwasher, and a
hex nut.
ASSEMBLY
ASSEMBLY TOOLS REQUIRED
ASSEMBLY TIME ESTIMATE
3/8" Wrench
5/16" Wrench
7/16" Wrench
1/2" Wrench
4mm Hex Wrench
Phillips Screwdriver
Approximately 2-4 hours
1. Loosen the locking lever (C) Fig. 3, and insert the
vertical arm (D) of the support assembly into the
mounting bracket (A).
2. Tighten the locking lever (C) Fig. 3 to hold the feed-
er assembly in position on the table.
3. Insert two 3-1/2" screws (supplied) through the two
handles (E) Fig. 3. Thread the jam nuts on the ends
of the screws.
4. Position the two handles (E) Fig. 3 over the thread-
ed holes in the two handwheels (F) and thread the
handles into the handwheels.
5. Loosen the screw (G) Fig. 3, and position the end
bracket (H) over the end of the horizontal support
arm (J). Tighten the screw (G).
6. Attach the angle bracket (L) Fig. 3 on the feeder (M).
Tighten the locking lever (N).
7. Attach the feeder (M) Fig. 3 with the angle bracket
(L) on the end bracket (H). Tighten the locking lever
(P).
NOTE: You can make adjustments to the feeder mount-
ing positions later.
ATTACHING THE TABLE MOUNTING BRACKET
Refer to Figs. 10, 11 and 12 when you mount the feeder assembly to a table saw, jointer or shaper. To mount the feed-
er assembly:
Fig. 2
A
B
ATTACHING THE SUPPORT ASSEMBLY TO THE STOCK FEEDER
F
E
A
C
D
J
G
P
A
LM
Fig. 3
H

9

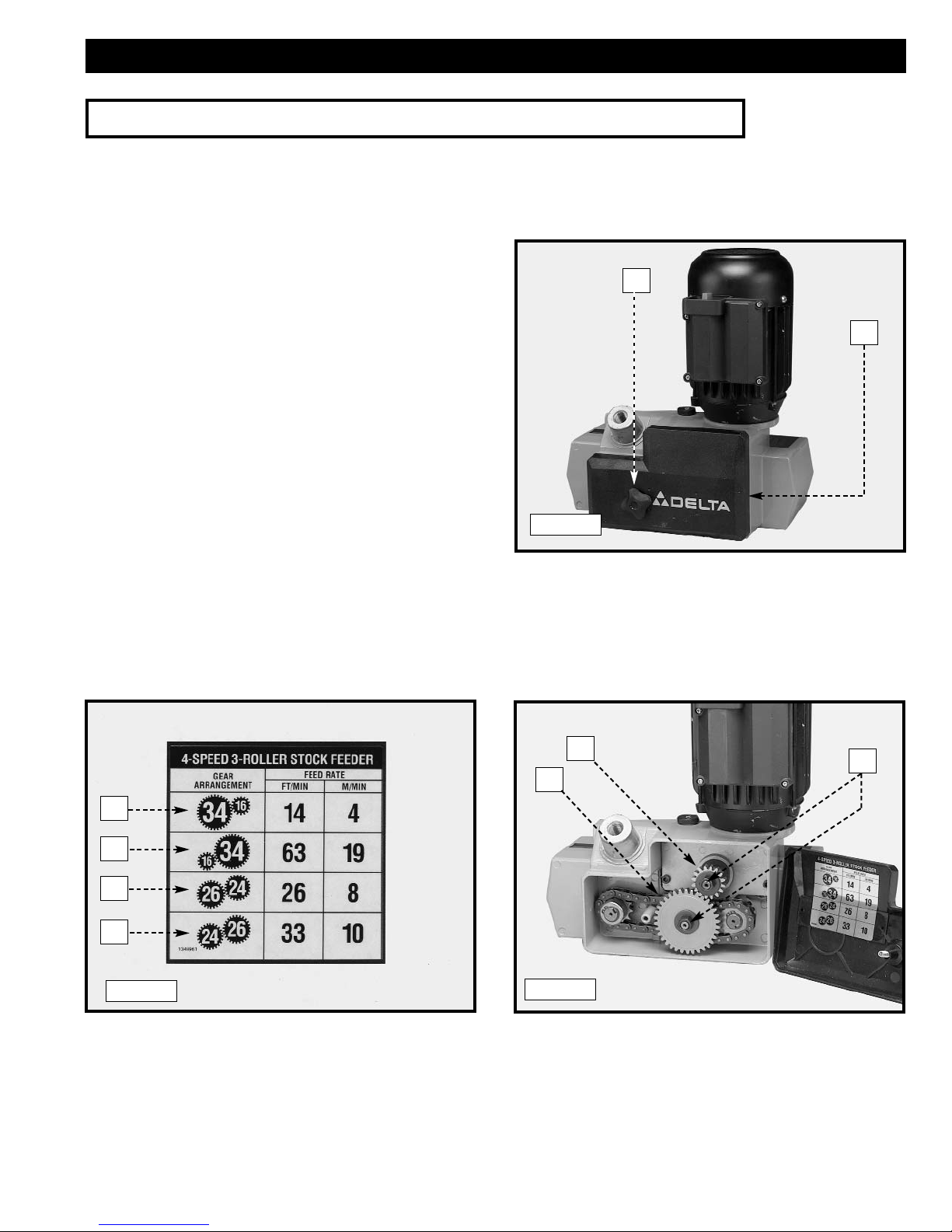

FEED RATE ADJUSTMENTS
Feed rates of 14, 26, 33, and 63 feet per minute (or 4, 8,
10 and 19 meters per minute) are available with the
stock feeder. A gear arrangement/feed rate chart (Fig.5)
is attached to the inside cover of the gear box.
To remove gear box cover (A) Fig. 4, turn the knob (B)
counter-clockwise. The numbers shown within the cir-
cles in Fig. 5 refer to the number of teeth on the gears as
shown at (C), (D), (E), and (F). With the 34 and 16 tooth
gears in the arrangement shown at (C), the feed rate is
14 FT/MIN (4 M/MIN). By interchanging the 34 and 16
tooth gears as shown at (D) Fig. 6, the feed rate is 63
FT/MIN (19 M/MIN).
The additional set of gears with 26 and 24 teeth, sup-
plied with the feeder, provides 26 and 33 FT/MIN
(8 and 10 M/MIN), depending on the gear arrangement
as shown at (E) and (F) Fig. 5.
To interchange the gears (G) and (H) Fig. 6, or to remove
gears and replace them with different gears, loosen and
remove the hex nuts (M) on the gear shaft.
NOTE: Always remove the bottom gear first when inter-
changing or replacing gears.
Re-assemble the gears as desired on the gear shafts
and replace the hex nuts (M) Fig. 6.
OPERATION
OPERATIONAL CONTROLS AND ADJUSTMENTS
C
D
E
F
A
B
Fig.4
Fig. 5 Fig. 6
G
HM

10

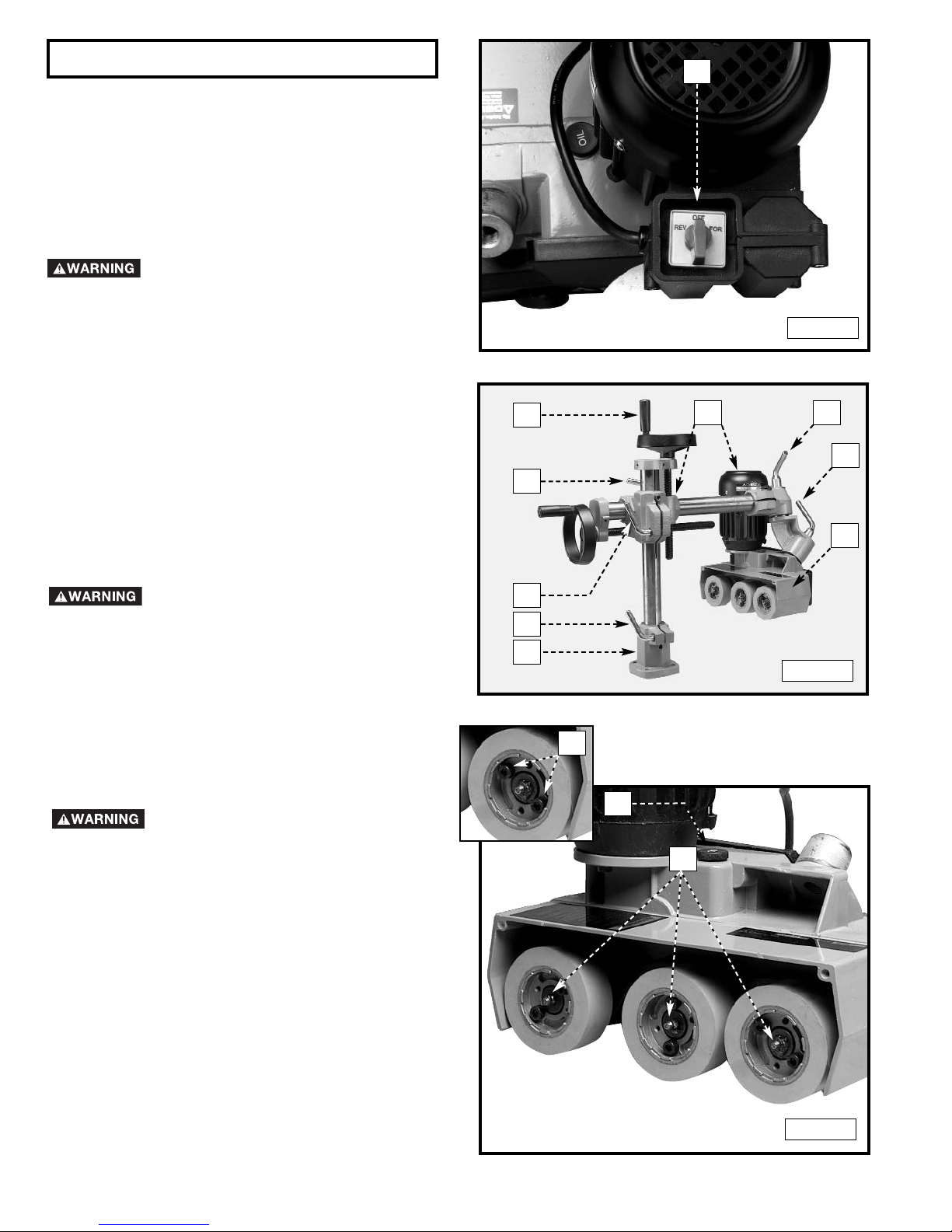

MOTOR CONTROL SPEED SWITCH
To operate the feeder in a forward position, turn switch
(A) Fig. 7 clockwise. To operate the feeder in the oppo-
site direction, turn switch (A) counterclockwise.
MACHINE USE
OPERATING CONTROLS
1. You can rotate the entire feeder assembly (A) Fig. 8
360 degrees in the mounting bracket (B) by loosen-
ing the locking lever (C).
2. To raise or lower the feeder assembly (A) Fig. 8,
loosen the locking lever (D) and rotate the hand-
wheel (E).
3. To move the feeder assembly (A) Fig. 8 in or out,
loosen the locking lever (G) and rotate the hand-
wheel (H).
4. To adjust the position of the feeder (F) Fig. 8, loosen
the locking levers (K) and/or (L).
5. Tighten all locking levers after adjustments are com-
pleted.
FEED ROLLER REPLACEMENT
You can remove each feed roller (A) Fig. 9 to repair or re-
place by removing the two screws (B) inset, then remov-
ing the feed roller. Install the new or repaired feed rollers
and secure with the two screws (B).
LUBRICATION
Disconnect machine from power source!
Disconnect machine from power source!
Disconnect machine from power source!
A
A
B
C
D
E
A
K
L
F
Fig. 8
Fig. 9
Fig. 7
A
B
Lubricate the feed rollers approximately every 200 hours
of use with grease through the grease fittings (A) Fig. 9
using the grease gun supplied with the machine.
Periodically, coat the gear chains with light machine oil.
Change the gear oil after every 1000 hours of use or
after heavy extended use. Replace the old oil with #90
weight gear oil. To gain access to the gear oil chamber,
turn the oil cap (C) Fig. 9 counter-clockwise. The oil level
should consistently be 2" to 2-1/4" below the top of the
gear case.
C

11

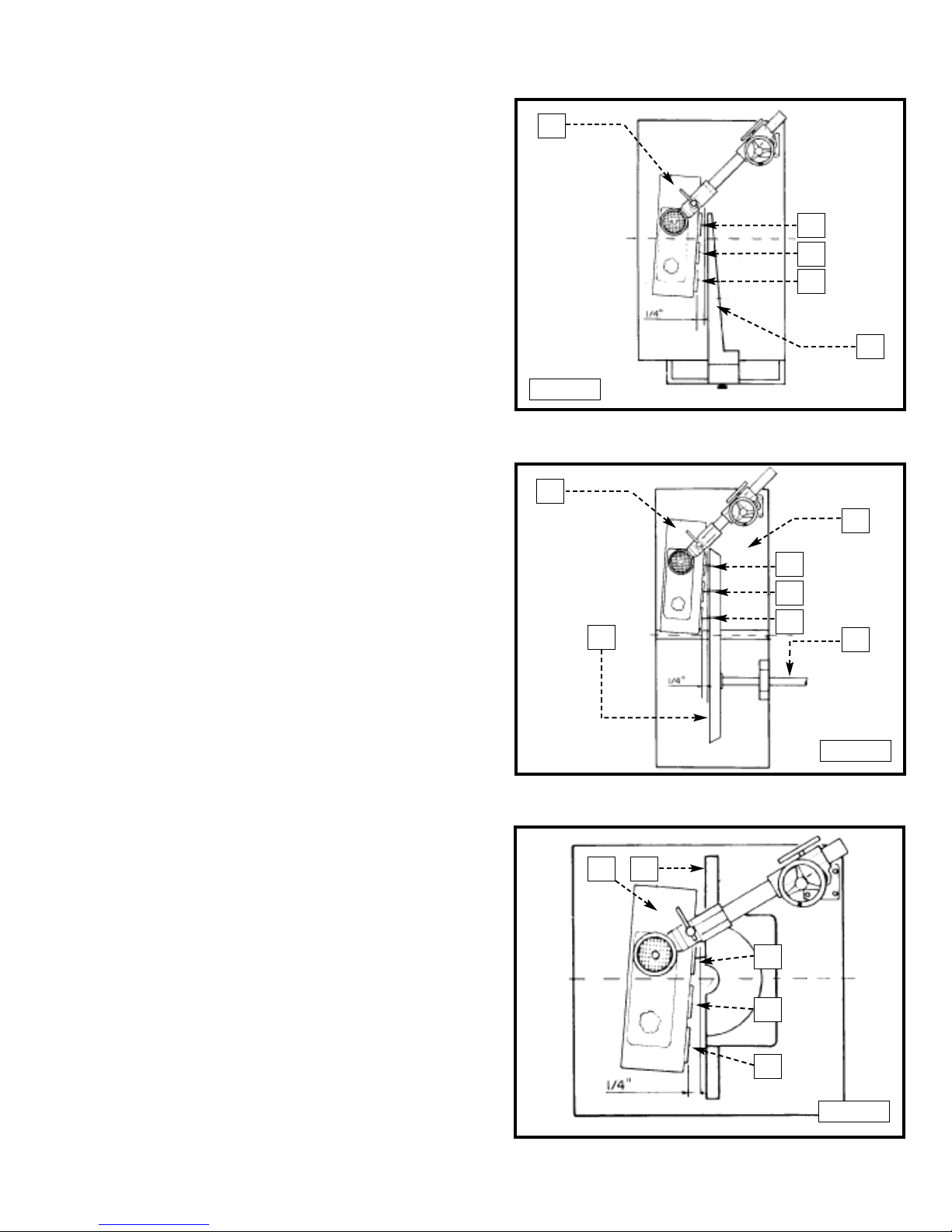

Position the feeder assembly (A) Fig. 10 on a table saw
so that the saw blade is between the middle roller (B)
and the outfeed roller (C) and slightly angled to the
direction of the feed. For example, the outfeed roller (C)
should be approximately 1/4" closer to the fence (D)
than the infeed roller (E), Fig. 10. This position will keep
the workpiece against the fence.
Position the feeder assembly (A) Fig. 12 so that the
shaper cutter is between the middle roller (B) and the
outfeed roller (C). Position the outfeed roller (C) approx-
imately 1/4" closer to the outfeed fence (E) than the
infeed roller (D).
USING THE STOCK FEEDER ON A TABLE SAW
USING THE STOCK FEEDER ON A JOINTER
USING THE STOCK FEEDER ON A SHAPER
Position the feeder assembly (G) on a jointer so that all
the rollers (A, B, and C) are over the outfeed table (D) of
the jointer (Fig. 11). The first roller (C) should be approx-
imately 1/4" from the leading edge (E) of the outfeed
table and the third roller (A) should be approximately
1/4" closer to the fence (F) than the first roller (C). The
downward pressure of the rollers on the stock should be
as light as possible.
Fig. 10
Fig. 11
Fig. 12
A
C
B
E
D
G
A
B
C
D
E
F
A E
C
B
D

12
TROUBLESHOOTING
For assistance with your machine, visit our website at www.deltamachinery.com for a list of service centers or call
the DELTA Machinery help line at 1-800-223-7278 (In Canada call 1-800-463-3582).
MAINTENANCE
PARTS, SERVICE OR WARRANTY ASSISTANCE
All Delta Machines and accessories are manufactured to high quality standards and are serviced by a network
of Porter-Cable • Delta Factory Service Centers and Delta Authorized Service Stations. To obtain additional
information regarding your Delta quality product or to obtain parts, service, warranty assistance, or the
location of the nearest service outlet, please call 1-800-223-7278 (In Canada call 1-800-463-3582).
KEEP MACHINE CLEAN
Periodically blow out all air passages with dry compressed
air. All plastic parts should be cleaned with a soft damp
cloth. NEVER use solvents to clean plastic parts. They could
possibly dissolve or otherwise damage the material.
Wear ANSI Z87.1 safety glasses while
using compressed air.
FAILURE TO START
Should your machine fail to start, check to make sure the
prongs on the cord plug are making good contact in the out-
let. Also, check for blown fuses or open circuit breakers in
the line.
LUBRICATION
Apply household floor paste wax to the machine table and
extension table or other work surface weekly.
PROTECTING CAST IRON FROM RUST
To clean and protect cast iron tables from rust, you will
need the following materials: 1 pushblock from a jointer,
1 sheet of medium Scotch-Brite™ Blending Hand Pad, 1
can of WD-40®, 1 can of degreaser, 1 can of TopCote®
Aerosol. Apply the WD-40 and polish the table surface
with the Scotch-Brite pad using the pushblock as a hold-
down. Degrease the table, then apply the TopCote®
accordingly.
