Delton Fingertip Oximeter User manual

User Manual for Fingertip Oximeter
I
Instructions to User
Dear Users,
Thank you very much for purchasing our product.
Please read the manual very carefully before
using this device. Failure to follow these
instructions may cause measuring abnormality or
equipment damage.
The Manual is published in English and we have
the ultimate right to explain the Manual. No part of
this manual may be photocopied, reproduced or
translated into another language without the prior
written consent. We reserve the right to improve
and amend it at any time without prior notice.
Version of This Manual: Ver 1.1
Revised date: Feb. 17, 2012
All rights reserved.
3502-2290046

User Manual for Fingertip Oximeter
II
Notes:
The contents contained in this manual are
subject to change without notice.
Information furnished by our company is
believed to be accurate and reliable.
However, no responsibility is assumed by us
for its use, or any infringements of patents or
other rights of third parties that may result
from its use.
Instructions for Safe Operations
Check the device to make sure that there
is no visible damage that may affect
user’s safety or measurement
performance with regard to sensors and
clips. It is recommended that the device
should be inspected minimally once a
week. When there is obvious damage,
stop using the device.
Necessary maintenance must be
performed only by qualified service
technicians. Users are not permitted to
maintain it by themselves.
The oximeter cannot be used together

User Manual for Fingertip Oximeter
III
with devices not specified in User
Manual.
Cautions
Explosive hazard—DO NOT use the
oximeter in environment with
inflammable gas such as some ignitable
anesthetic agents.
DO NOT use the oximeter while the
testee is under MRI or CT scanning.
Warnings
An uncomfortable or painful feeling may
appear if using the oximeter continuously
on the same place for a long time,
especially for poor microcirculation
patients. It is recommended that the
oximeter should not be applied to the
same location for longer than 2 hours. If
any abnormal condition is found, please
change the position of oximeter.
DO NOT clip this device on edema or
tender tissue.
The light (the infrared light is invisible)
emitted from the device is harmful to the

User Manual for Fingertip Oximeter
IV
eyes, so service technician or testee
should not stare at the light.
The local law must be followed when
disposing of the device.
Attentions
Keep the oximeter away from dust,
vibration, corrosive substances,
explosive materials, high temperature
and moisture.
The device should be kept out of the
reach of children.
If the oximeter gets wet, please stop
using it and do not resume operation
until it is dry. When it is carried from a
cold environment to a warm and humid
environment, please do not use it
immediately.
DO NOT operate the button on the front
panel with sharp materials.
DO NOT use high temperature or high
pressure steam disinfection on the
oximeter. Refer to Chapter 7 for
instructions of cleaning and disinfection.

User Manual for Fingertip Oximeter
V
Declaration of Conformity:
The manufacturer hereby declares that this
device complies with the following standards:
IEC 60601-1
ISO 9919
and follows the provisions of the council
directive MDD93/42/EEC.

User Manual for Fingertip Oximeter
VI
Table of Contents
1 OVERVIEW .........................................................1
1.1 Appearance..................................................1
1.2 Features........................................................2
1.3 Name..............................................................2
1.4 Applications and Scope............................2
2 BATTERY INSTALLATION...............................3
3 OPERATION........................................................4
4 INSTRUCTIONS FOR OPERATION................6
5 TECHNICAL SPECIFICATIONS ......................7
6 ACCESSORIES................................................10
7 REPAIR AND MAINTENANCE.......................11
7.1 Maintenance...............................................11
7.2 Cleaning and Disinfecting Instruction.12
8 TROUBLESHOOTING.....................................13
APPENDIX............................................................14
Key of Symbols ...............................................14
Common Knowledge......................................15

User Manual for Fingertip Oximeter
-1-
1 Overview
1.1 Appearance

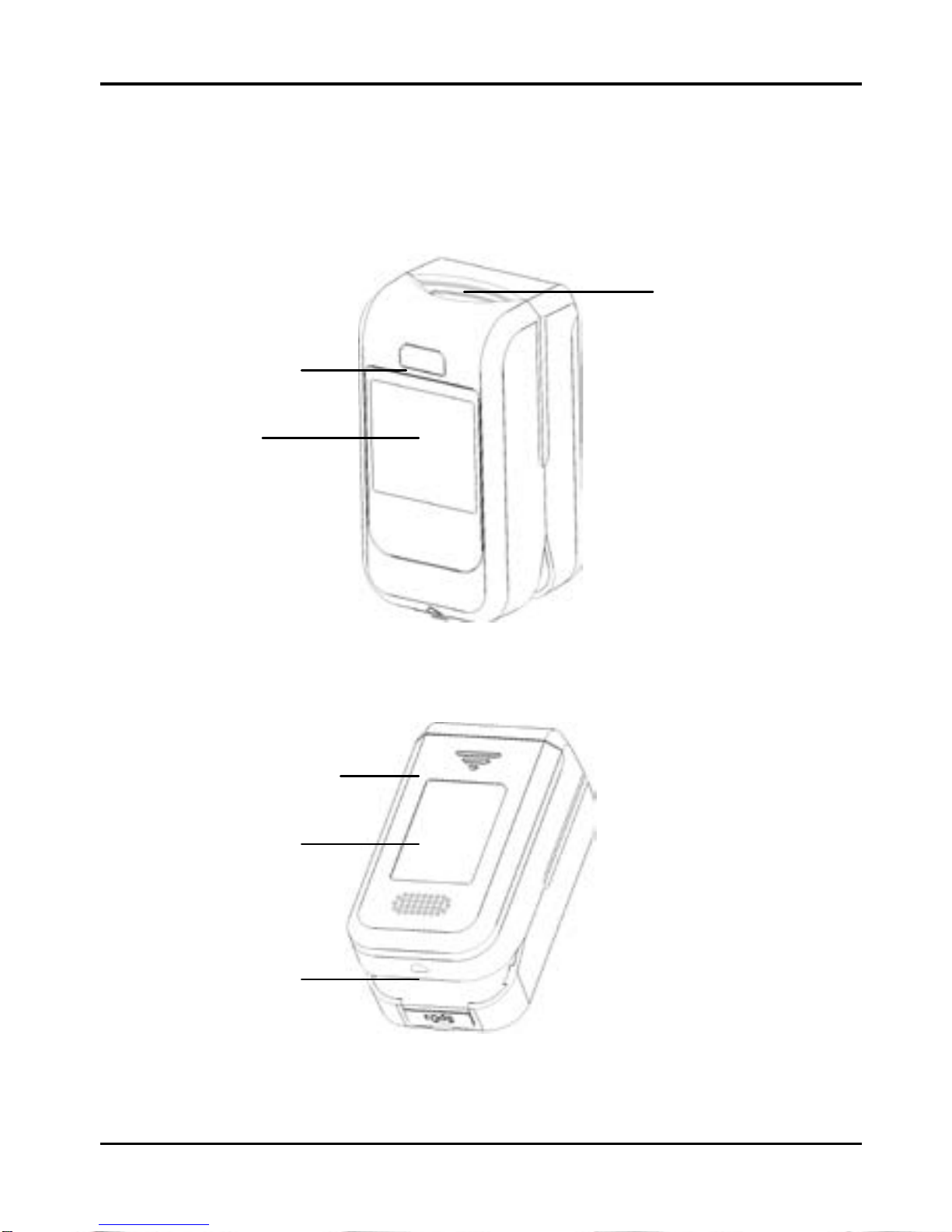

Figure 2 Rear View
Rubber
Cushions
Display
Screen
Display Key
Battery Cover
Nameplate
Hanging Hole
Figure 1 Front View

User Manual for Fingertip Oximeter
-2-
1.2 Features
The Fingertip Oximeter can be used to measure
pulse oxygen saturation (SpO2) value and pulse
rate value (PR). Simply put your finger into sensor
and press the start button, SpO2value and pulse
rate value will be displayed on screen.
It is lightweight, small in size and easy to
carry;
Large bright LCD;
Accurately measure SpO2value and pulse
rate value;
Automatically start measuring after putting
finger into rubber cushions;
Power off automatically without signal for less
than 5 seconds;
Visible alarm function;
Low voltage indication;
1.3 Name
Name: Fingertip Oximeter
1.4 Applications and Scope
Fingertip Oximeter is intended for measuring the

User Manual for Fingertip Oximeter
-3-
pulse rate and functional oxygen saturation (SpO2)
through patient’s finger. It is applicable for
spot-checking SpO2and pulse rates of adult and
pediatric patients in home and clinics.
2 Battery Installation

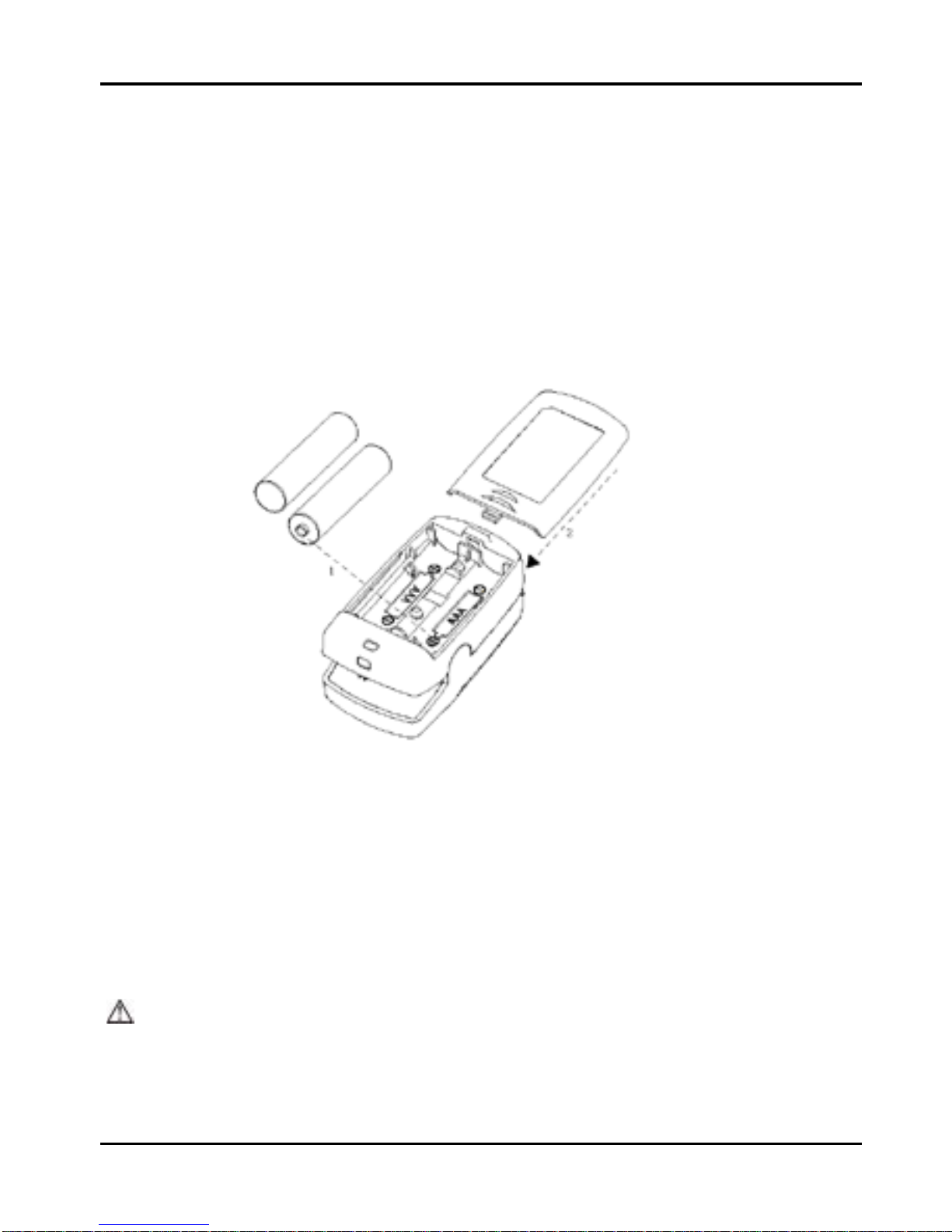

Figure 3 Battery Installation
1. Refer to Figure 3, insert two AAA size batteries
into the battery compartment properly in the right
direction.
2. Replace the cover.
Please take care when you insert the batteries,
or the improper insertion may make the device not
work.

User Manual for Fingertip Oximeter
-4-
3 Operation
1. Open the clip as shown in Figure 4.

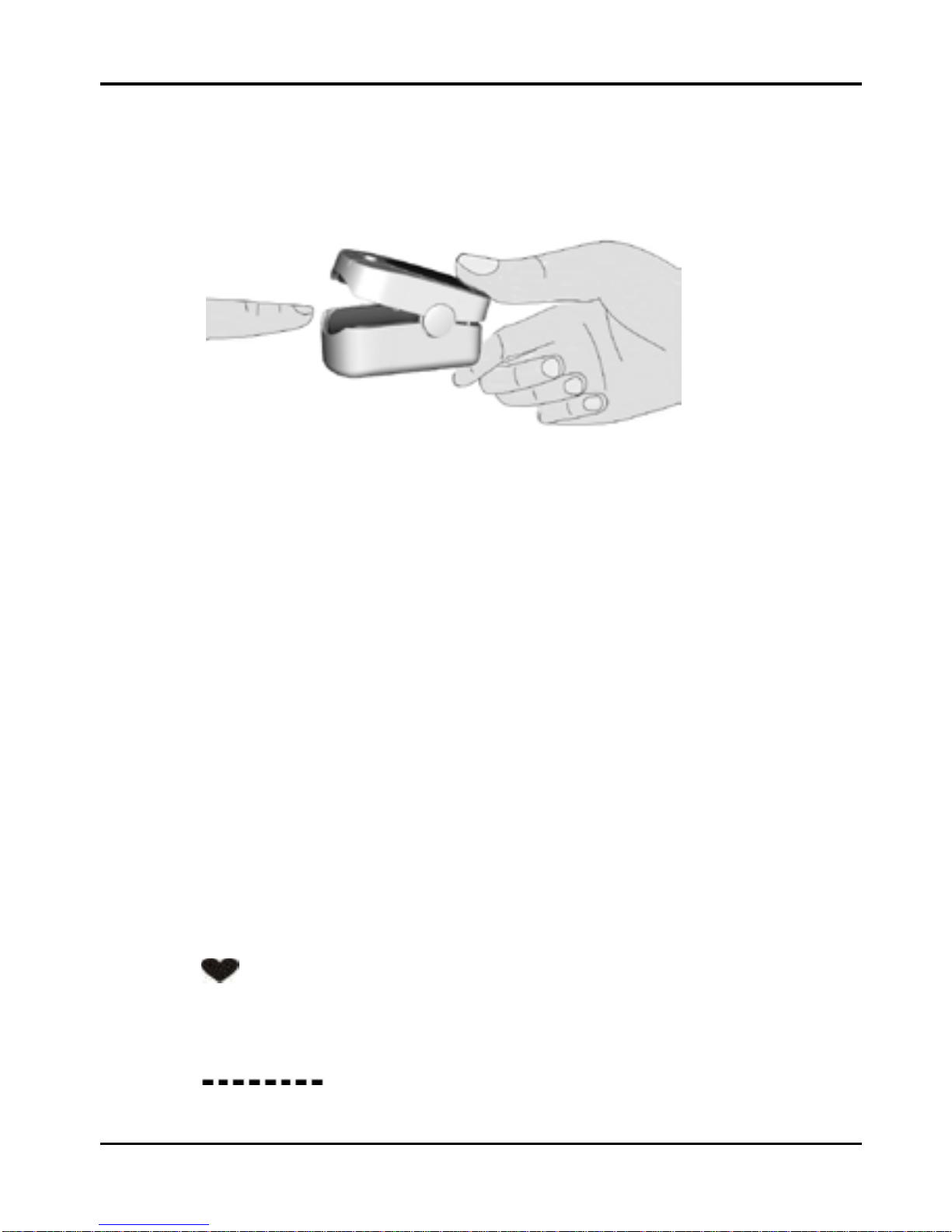

Figure 4 Put Finger into the Sensor
2. Put finger into the rubber cushions of the clip
(make sure the finger is in the right position),
and then clip the finger;
3. The device will power on automatically in 2
seconds and start to measure.
4. Measurement result will be displayed on the
screen (as shown in Figure 5). User can read
SpO2and HR values from display screen.
“%SpO2”: SpO2symbol
“”: Pulse beat icon;“BPM”: the unit of
pulse rate (beats per minute);
“”: Bargraph for pulsatile indication.

User Manual for Fingertip Oximeter
-5-

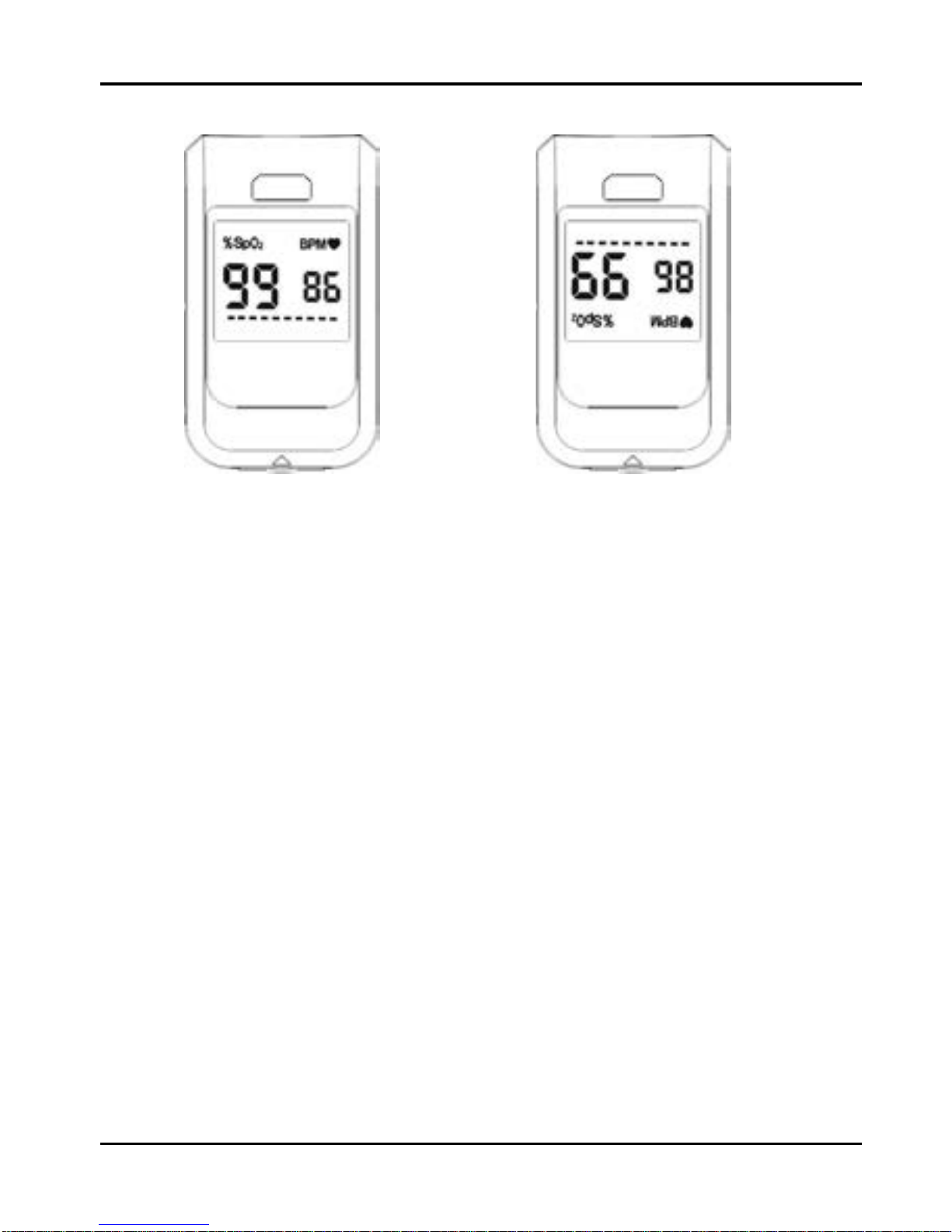

Figure 5 Figure 6
5. Change display direction.
Two directions display alternately. Press Display
Key once at a time, display screen will be flipped
180° each time in a cyclic manner. See Figure 6.
6. Alarm Indicator
When measuring, if SpO2value or pulse rate
value exceeds the preset alarm limit, the value
which exceeds limit on the screen will flash
(refer to Technical Specifications for alarm
limits).

User Manual for Fingertip Oximeter
-6-
4 Instructions for Operation
The finger should be put in properly and
correctly.
Do not shake the finger and keep at ease
during using.
Do not put wet finger directly into sensor.
Avoid placing the device on the same limb
which is wrapped with a cuff for blood
pressure measurement or during venous
infusion.
Do not let anything block the emitting light
from device.
Vigorous exercise and electrosurgical device
interference may affect the measuring
accuracy.
Using enamel or other makeup on the nail
may affect the accuracy of measurement.
If the first reading is unlikely true, the more
stable value is expected by waiting for a while,
or a restart is needed when necessary.

User Manual for Fingertip Oximeter
-7-
5 Technical Specifications
A. Display mode：LCD Display
B. Power supply requirement:
2 x LR03 (AAA) alkaline batteries
Supply voltage: 3.0VDC
Operating current: ≤40mA
C. SpO2Measurement
Transducer: dual-wavelength LED
Measurement wavelength:
Red light: 663 nm, Infrared light: 890 nm.
Maximal optical output power: less than 1.5mW
maximum average
Measuring range: 35~99%
Measuring accuracy:
Not greater than 3% for SpO2range from 70% to
100%
*NOTE: Accuracy defined as root-mean-square
value of deviation according to ISO 9919.
D. Pulse Rate Measurement
Measuring range: 30bpm~240bpm

User Manual for Fingertip Oximeter
-8-
Accuracy: ±2bpm or ±2% (whichever is greater)
E. Preset alarm limits
SpO2alarm: Lower limit: 90%
Pulse Rate alarm: Upper limit: 120bpm
Lower limit: 50bpm
F. Update rate:
8 beats moving average for Pulse Rate and
SpO2readings.
G. Environment requirement
Operating Temperature: 5°C ~40°C
Operating Humidity: 30%~80%
Atmospheric pressure: 70kPa~106kPa
H. The performance under low perfusion
condition
The accuracy of SpO2and PR measurement
still meet the precision described above when
the modulation amplitude is as low as 0.6%.
I. Resistance to interference of surrounding
light:
The difference between the value measured in
the condition of indoor natural light and that of
darkroom is less than ±1%.

User Manual for Fingertip Oximeter
-9-
J. Resistance to 50Hz /60Hz interference:
SpO2and PR are precise which have been
tested by SpO2simulator from Fluke Biomedical
Inc.
K. Dimensions: 60mm (L)*33mm (W)*30mm (H)
Gross Weight: 60g (including batteries)
L. Classification
The type of protection against electric shock:
Internally powered equipment.
The degree of protection against electric
shock: Type BF applied parts.
The degree of protection against harmful
ingress of liquids: Ordinary equipment without
protection against ingress of water.
Electro-Magnetic Compatibility:
Group I, Class B

User Manual for Fingertip Oximeter
-10-
6 Accessories
A. A lanyard
B. Two batteries
C. A pouch
D. A User Manual
E. Quality Certificate
Note: The accessories are subject to change.
Detailed items and quantity see the Packing List.

User Manual for Fingertip Oximeter
-11-
7 Repair and Maintenance
7.1 Maintenance
The service life (not a warranty) of this device is 5
years. In order to ensure its long service life,
please pay attention to the use of maintenance.
A. Please change the batteries when the
low-voltage indicator lightens.
B. Please clean the surface of the device before
using. Wipe the device with alcohol first, and
then let it dry in air or wipe it dry.
C. Please take out the batteries if the oximeter will
not be used for a long time.
D. The recommended storage environment of the
device:
ambient temperature: -20ºC ~60ºC, relative
humidity 10%~95%, atmospheric pressure:
50kPa~107.4kPa.
E. The oximeter is calibrated in the factory before
sale, there is no need to calibrate it during its life
cycle. However, if it is necessary to verify its
accuracy routinely, the user can do the
verification by means of SpO2simulator, or it can

User Manual for Fingertip Oximeter
-12-
be done by the local third party test house.
High-pressure sterilization cannot be used
on the device.
Do not immerse the device in liquid.
It is recommended that the device should be
kept in a dry environment. Humidity may
reduce the life of the device, or even damage
it.
7.2 Cleaning and Disinfecting Instruction
A. Surface-clean sensor with a soft gauze by
saturating with a solution such as 75%
isopropyl alcohol, if low-level disinfection is
required, use a 1:10 bleach solution.
B. Then surface-clean with clean water and dry
with a piece of cloth.
Caution: Do not sterilize by irradiation steam, or
ethylene oxide.
Do not use the sensor if it is damaged.

User Manual for Fingertip Oximeter
-13-
8 Troubleshooting
Trouble
Possible Reason
Solution
The
SpO2 and
Pulse
Rate
display
instable
1. The finger is not
placed far enough
inside.
2. The finger is
shaking or the patient
is moving.
1. Place the
finger correctly
inside and try
again.
2. Let the
patient keep
calm
The
device
can not
turn on
1. The batteries are
drained or almost
drained.
2. The batteries are
not inserted properly.
3. The device is
malfunction.
1. Change
batteries.
2. Reinstall
batteries.
3. Please
contact the
local service
center.
The
indicator
light is
off
suddenly
1. The device will
power off
automatically when it
gets no signal for 8
seconds.
2. The batteries are
almost drained.
1. Normal.
2. Change
batteries.

User Manual for Fingertip Oximeter
-14-

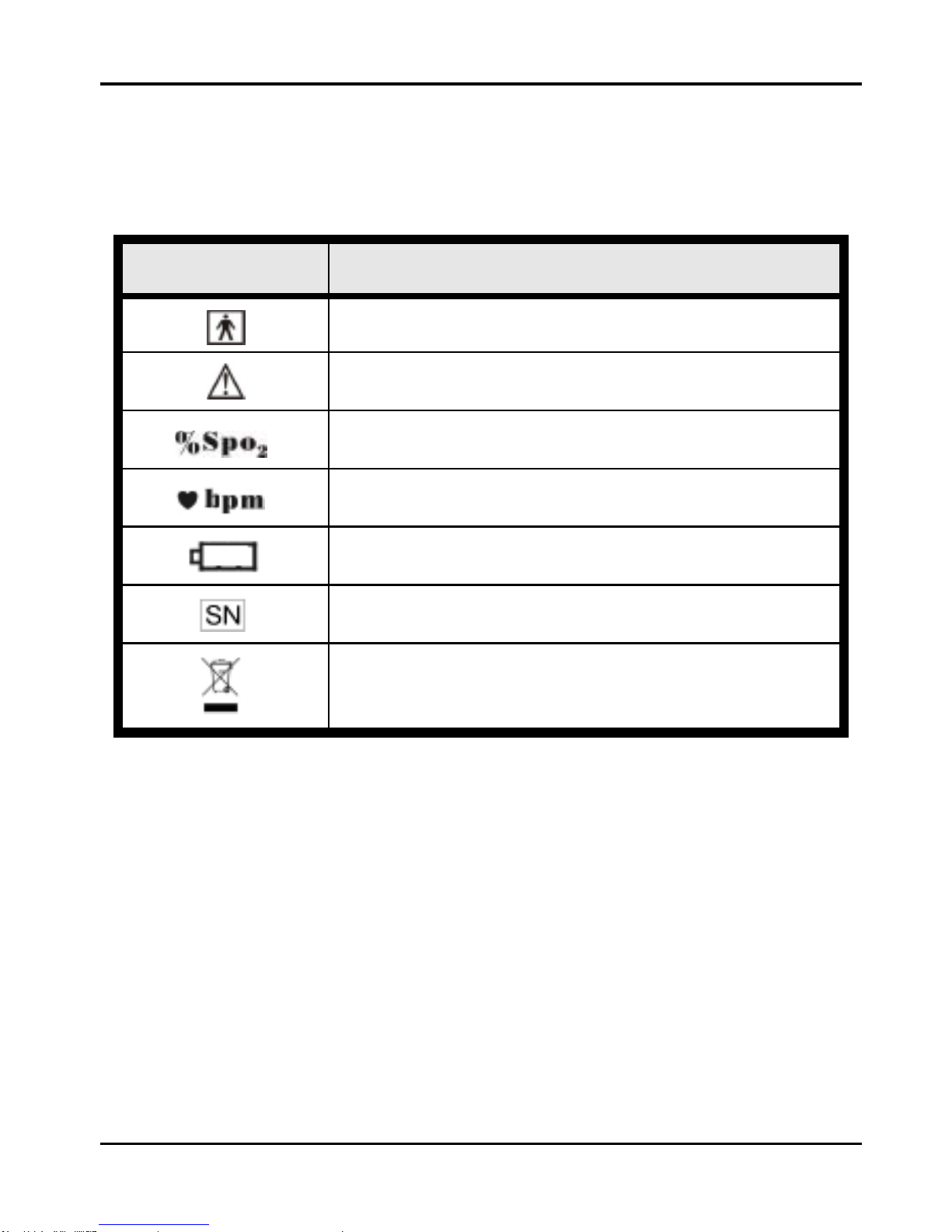

Appendix
Key of Symbols
Symbol
Description
With Type BF applied part
Warning ─ See User Manual
The pulse oxygen saturation
Pulse rate (beats per minute)
Low battery voltage
Serial number
Disposal of this device
according to WEEE regulations
