DENAGO K5242 LCD User manual

CITY MODEL 10 Monitor/Display made by King Meter (K5242)
USERS GUIDE
K5242 LCD

CITY MODEL 10 Monitor/Display made by King Meter (K5242)
CONTENT
Preface·························································································································································- 3 -
1. Appearance and Dimensions···················································································································- 4 -
1.1 Material and Color ............................................................................................................................ - 4 -
2. Function and Button Definition···············································································································- 5 -
2.1 Function description ......................................................................................................................... - 5 -
2.2 Normal Display Content .................................................................................................................... - 5 -
2.3 Button definition............................................................................................................................... - 5 -
3. Note for Users ·········································································································································- 6 -
4. Installation Instruction ····························································································································- 6 -
5. User Settings ···········································································································································- 6 -
5.1 On / Off ............................................................................................................................................. - 6 -
5.2 User interface.................................................................................................................................... - 7 -
5.3 Walk Assist Mode.............................................................................................................................. - 7 -
5.4 PAS Level Selection............................................................................................................................ - 8 -
5.5 Battery Indicator ............................................................................................................................... - 8 -
5.6 Speed/Single Trip/Odometer ............................................................................................................ - 9 -
5.6.1 Real time speed, Trip display interface .......................................................................................... - 9 -
5.6.2 Max Speed, Odometer display interface...................................................................................... - 10 -
5.6.3 Avg Speed, To Go display interface .............................................................................................. - 10 -
5.7 Error Code ....................................................................................................................................... - 11 -
6. User Settings ·········································································································································- 11 -
6.1 Wheel Size Setting........................................................................................................................... - 12 -
6.2 Speed Limit Setting ......................................................................................................................... - 12 -
6.3 Backlight Brightness Setting............................................................................................................ - 13 -
6.4 Display Unit Setting ......................................................................................................................... - 13 -
7. Preparation Before Startup ···················································································································- 14 -
8. FAQ ························································································································································- 14 -
9. Quality Assurance and Warranty Scope ································································································- 14 -
Appendix 1：Error Code Definition········································································································- 15 -

CITY MODEL 10 Monitor/Display made by King Meter (K5242)
- 3 -
Preface
Dear user, to ensure better performance of your e-bike, please read through the K5242-S product
introduction carefully before using. We will use the most concise words to inform you of all the details
(including the hardware installation, setting and normal operation use of the display) when using our
display. Meanwhile, the introduction will also help you to solve possible confusion and barriers.

CITY MODEL 10 Monitor/Display made by King Meter (K5242)
- 4 -
1. Appearance and Dimensions
1.1 Material and Color
K5242 products are made of black and white PC. Under the temperature of -20 to 60℃, the shell
material can ensure normal usage and good mechanical performance.

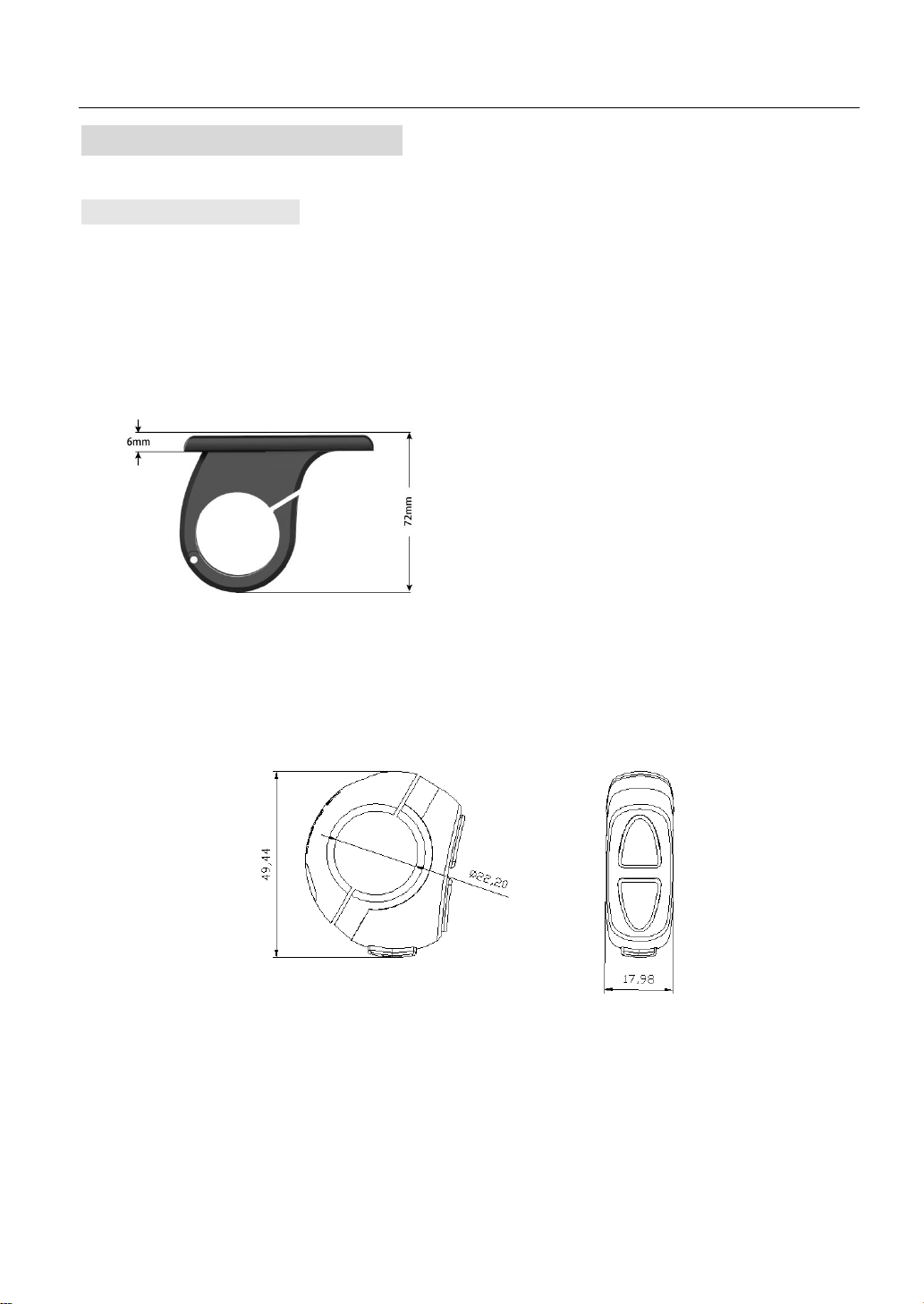

Dimension（unit：mm）

CITY MODEL 10 Monitor/Display made by King Meter (K5242)
- 5 -
2. Function and Button Definition
2.1 Function description
K5242 provides you with a variety of function modes, to meet your riding needs.
Its functions are as follows:
◆Battery power indication
◆Speed indication
◆Distance (including single trip distance and ODO display)
◆Walk assist indication
◆Backlight setting
◆Error code indication
◆Various setting parameters

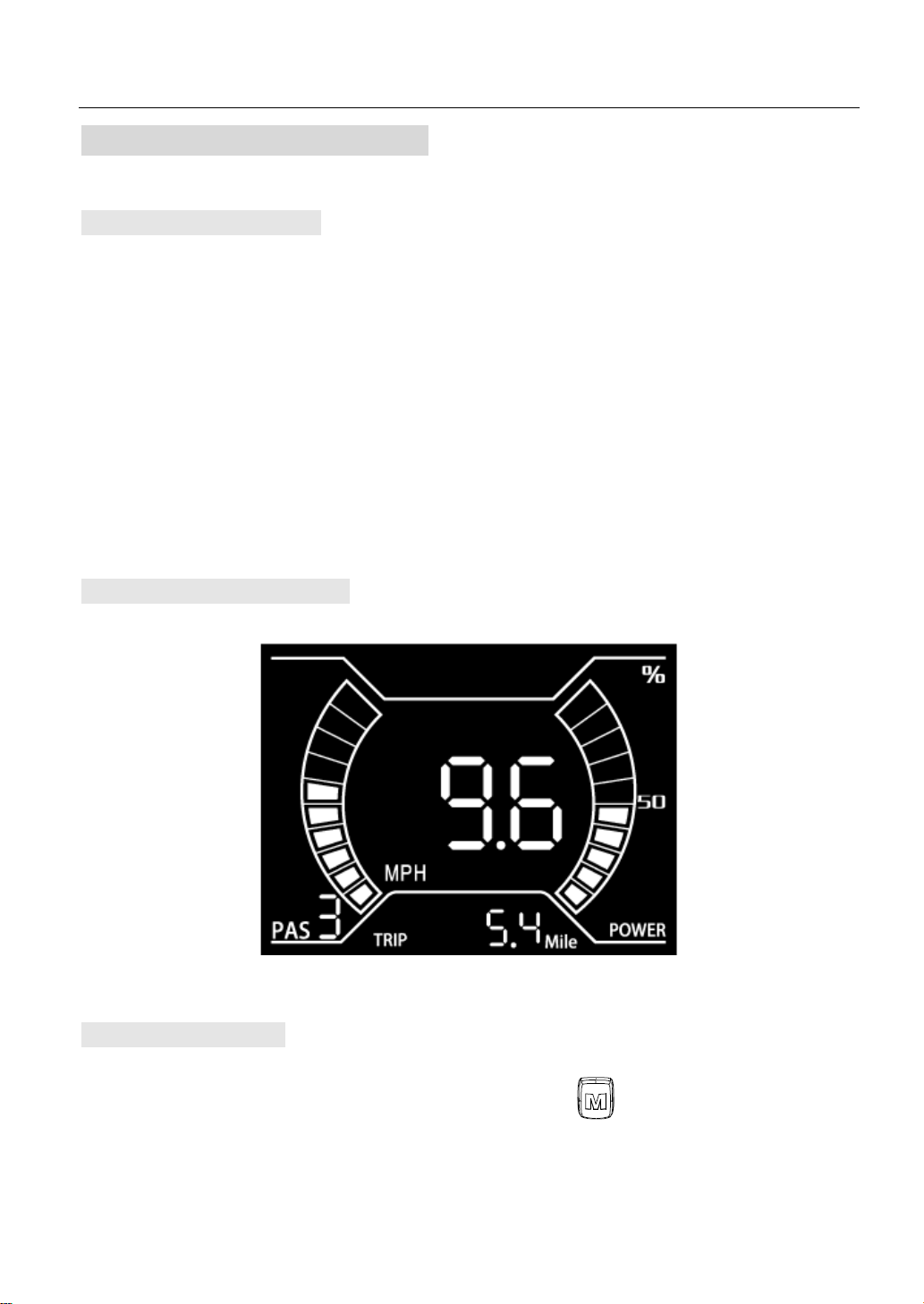

2.2 Normal Display Content
2.3 Button definition
There are 3 buttons on K5242-BLT, In the following introduction, is named as “MODE”. is
named as “UP” and is named as “DOWN”.

CITY MODEL 10 Monitor/Display made by King Meter (K5242)
- 6 -
3. Note for Users
Be care of the safety use. Don’t attempt to release the connector when battery is on power.
Try to avoid hitting.
Don’t split the waterproof sticker to avoid affecting the waterproof performance.
Don’t modify system parameters to avoid parameters disorder.
Make the display repaired when error code appears.
4. Installation Instruction
When the e-bike is powered off, you can insert the connector of display and the corresponding
connector of controller to complete the installation, and adjust the display to a suitable angle.
5. User Settings
5.1 On / Off
Long press “MODE” button then the display will work normally, and the controller will power on at the
same time.
With the display on, long press “MODE” button, the display will shut down, the display will leave off
battery, the leakage current of display on is less than 1μA.

CITY MODEL 10 Monitor/Display made by King Meter (K5242)
- 7 -

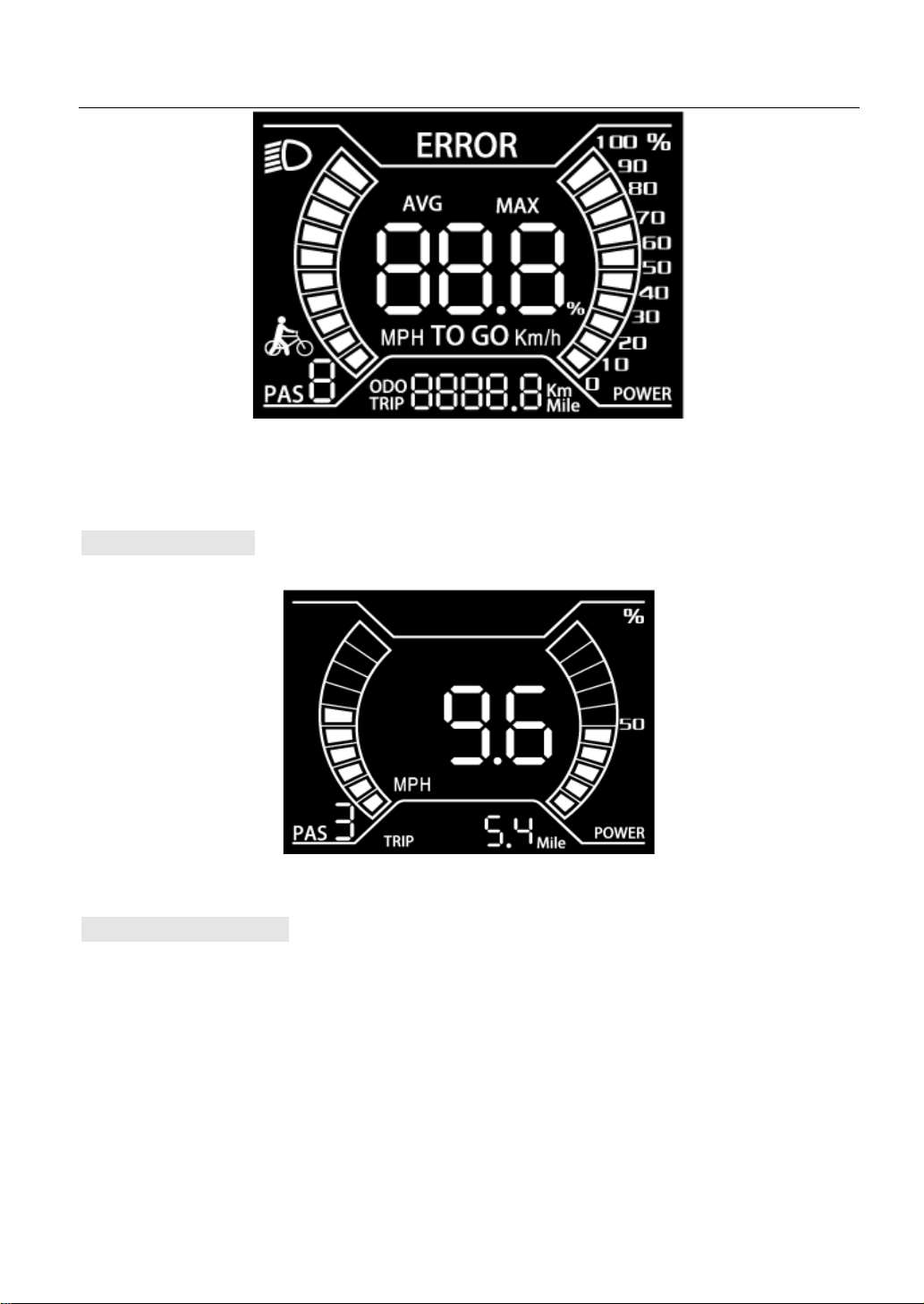

5.2 User interface
5.3 Walk Assist Mode
Press and hold the “DOWN” button for 2 seconds to enter the Walk assist mode. The E-bike will travel
at a constant speed of 6km/h.

CITY MODEL 10 Monitor/Display made by King Meter (K5242)
- 8 -
Walk assist mode interface
Walk Assist function can only be used as pushing the e-bike by hands. Please don’t use this
function when riding.
5.4 PAS Level Selection
Short press the "UP" or “DOWN” button to switch the PAS level in the main interface, the motor
output power will be changed accordingly by the PAS level of E-bike. The default range of PAS level is
0-5 levels. Level 1 is the lowest output level, and the level 5 is the highest output power level of the
motor.
PAS level indicator
5.5 Battery Indicator
The battery power is shown as a percentage bar. When the battery is fully charged, the power bar
shows 100%, each grid represents 10% Battery power.

CITY MODEL 10 Monitor/Display made by King Meter (K5242)
- 9 -

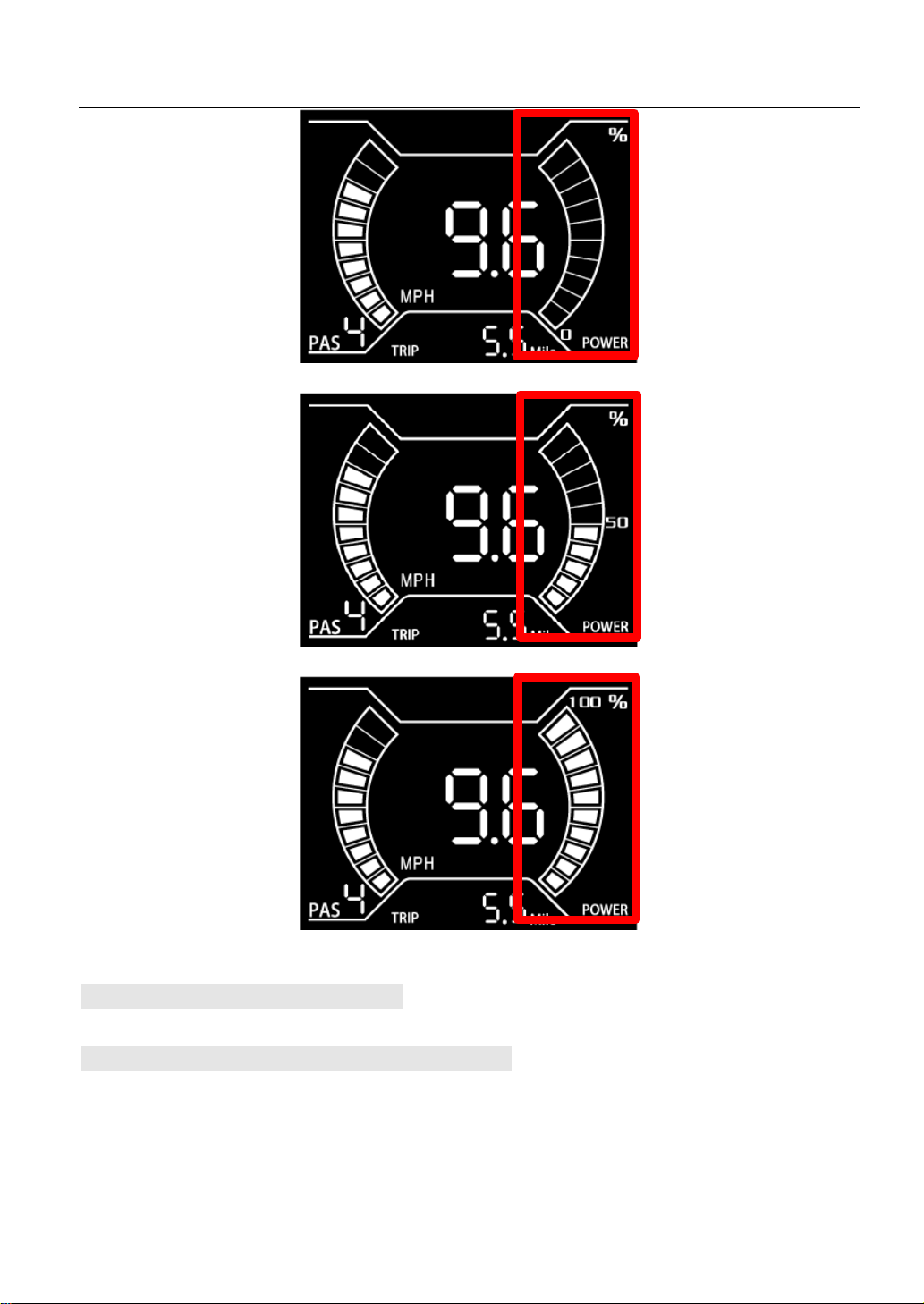

0% Battery indicator
50% Battery indicator
100% Battery indicator
5.6 Speed/Single Trip/Odometer
5.6.1 Real time speed, Trip display interface
When display is powered on, it shows the real-time speed and single trip mileage interface by default.
When the speed is zero, long press "MODE" and “DOWN” button for 2 seconds, and the current single
trip mileage will be cleared. After the display is shut down and restarted, the single trip mileage will
not be cleared.

CITY MODEL 10 Monitor/Display made by King Meter (K5242)
- 10
5.6.2 Max Speed, Odometer display interface
When display is powered on, short press "MODE" button in the normal interface to switch the Max
speed and Odometer mileage data. The Max speed represents the maximum speed during this ride,
and the Odometer mileage is the total mileage of the E-bike.
5.6.3 Avg Speed, To Go display interface
Short press "MODE" button again to switch to the Avg speed and To Go mileage display interface. The
Avg speed represents the average speed during this ride, and the To Go mileage represents the
remaining mileage that the E-bike can go.

CITY MODEL 10 Monitor/Display made by King Meter (K5242)
- 11
5.7 Error Code
When the e-bike electronic control system fails, the display will automatically indicate the error code.
For the definition of detailed error codes, see appendix 1.
The fault can only exited when the fault is eliminated, and the E-bike cannot continue
to drive after a fault occurs.
6. User Settings
When there is no speed in the power on state, press and hold the “UP” and “DOWN” button at the
same time for 2 seconds, and the display will enter the setting interface.

CITY MODEL 10 Monitor/Display made by King Meter (K5242)
- 12
6.1 Wheel Size Setting
When enter the wheel size setting option. The settable values are: 16, 18, 20, 22, 24, 26, 700C, 27.5,
and 28 inch. Select the corresponding wheel diameter of the E-bike through “UP” and “DOWN” button
to ensure the accuracy of the speed display and mileage display. Long press “MODE” button to return
to the normal interface.
6.2 Speed Limit Setting
Short press “MODE” button enter the speed limit setting option. The optional range of the maximum
speed setting is 17Km/h to 45Km/h (11MPH to 28 MPH). It can be set by “UP” and “DOWN” button.
The default setting is 45Km/H (28MPH). Long press “MODE” button to return to the normal interface.

CITY MODEL 10 Monitor/Display made by King Meter (K5242)
- 13

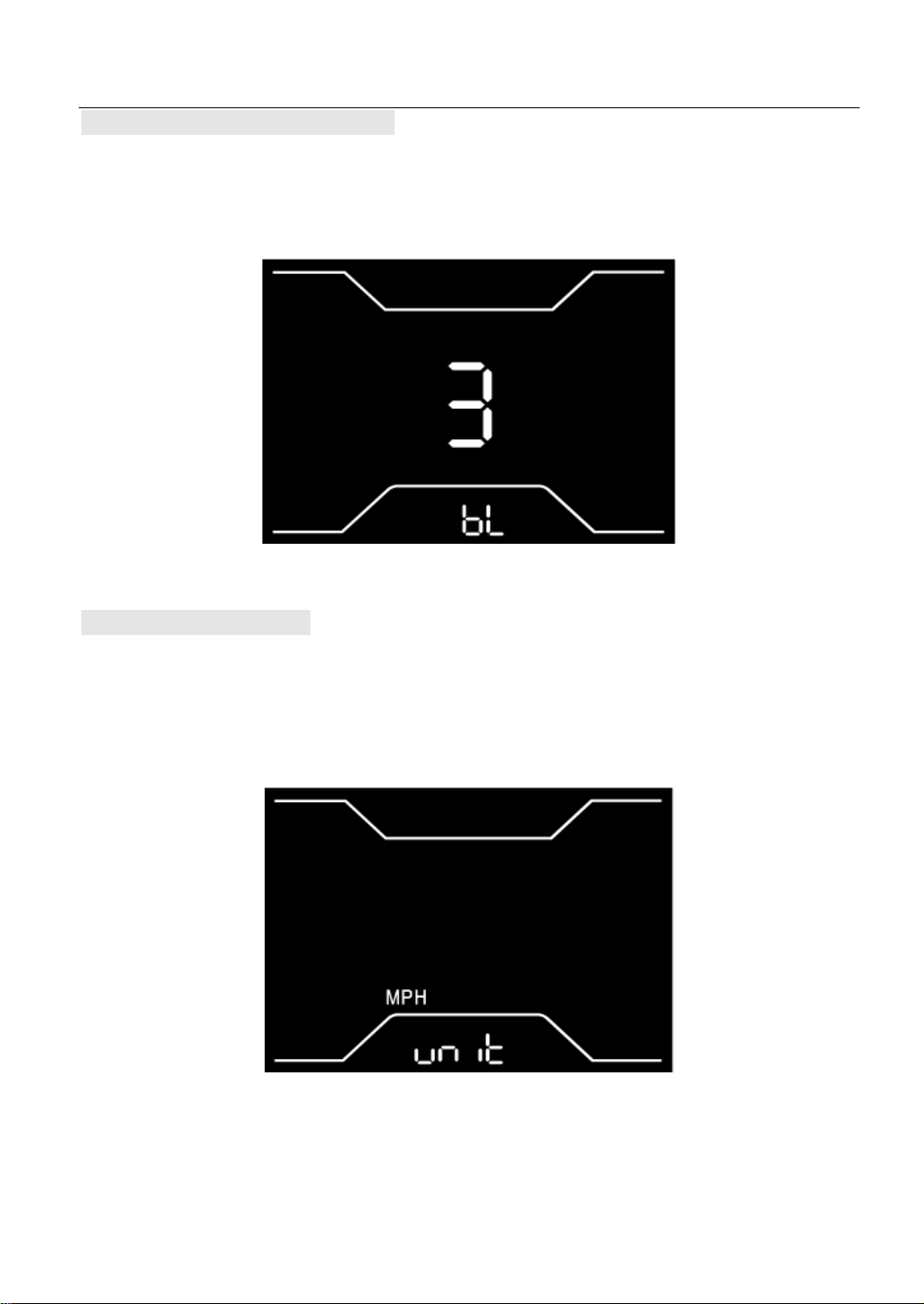

6.3 Backlight Brightness Setting
Short press “MODE” button to enter the backlight brightness setting option. The setting options: 1, 2
and 3 indicates the backlight brightness, 1 is the darkest, 2 is standard brightness, 3 is the brightest.
The default value is 3. Long press “MODE” button to return to the normal interface.
6.4 Display Unit Setting
Short press “MODE” button to enter the Unit setting option. The setting parameters are Km/h and
Mile/h. Km/h or Mile/h can be selected by pressing “UP” and “DOWN” button. Km/h means the unit is
metric system, and MPH means the unit is Imperial system. The default setting is MPH. Long press
“MODE” button to return to the normal interface.

CITY MODEL 10 Monitor/Display made by King Meter (K5242)
- 14
7. Preparation Before Startup
Please read the instruction carefully before using the display.
8. FAQ
Q: Why can’t turn on the display?
A: Please check whether the battery is turned on or the leakage lead wire is broken
Q: How to deal with the error code display?
A: Contact the e-bike maintenance station in time.
9. Quality Assurance and Warranty Scope
I, Warranty Information:
1, King-Meter will be responsible for all faults arising during normal operation that are caused by a
quality defect.
2, The warranty time is 24 months from the day the display leaves the factory.
II, The following are not covered by warranty:
1, Shell opened.
2, Connector damaged.
3, After display out of factory, the shell is scratched or damaged.
4, Lead wire of display scratch or break.
5, The fault or damage is caused by the force majeure (such as fire, earthquake, etc.) or natural disasters
(such as lighting, flooding, etc.)
6, Product exceeded warranty period.

CITY MODEL 10 Monitor/Display made by King Meter (K5242)
- 15
Appendix 1：Error Code Definition
Error Code Definition Solution
21 Current Abnormal Check whether the three phase wires of
the motor are short-circuited
22
Throttle Abnormal
Check whether the throttle is restored to
the initial state
23
Motor phase problem
Check whether the phase wires are in
good condition;
Check whether the motor phase line is well
connected to the controller
24
Motor Hall defect
No Hall controller: check whether the
phase wire is in good condition
With Hall controller: check whether the
Hall outlet is good
25
Brake Failed
Check whether the brake lever is reset
before power on.
30
Communication
failure
Check whether the connection between
display and controller is good
