Xtracycle RFA Kickback User manual

-
rfa kickback Manual 2021

Hardware included
(8) M8 washers
(4) M8 X 25 mm bolts
Tools needed
M6 Allen wrench with ball end
01 installing the rfa kickback
01 B
Place the KickBack so that the 2 ovalized holes on each side line
up with the bosses on the inside of the chain stay.
01 A
Bring the KickBack up and under the RFA. The mounting
plate should be placed inside the two horizontal chainstays.
2
Please note:
The RFA KickBack is only compatible with the RFA in
Utility mode.
01

3
01 D
The reason for starting this off with just your fingers is to
insure that you do not cross thread the bolt since you may be
coming at it from a not ideal angle.
Once the first bolt is secured loosely, mount the second bolt
to the opposite front boss.
01 C

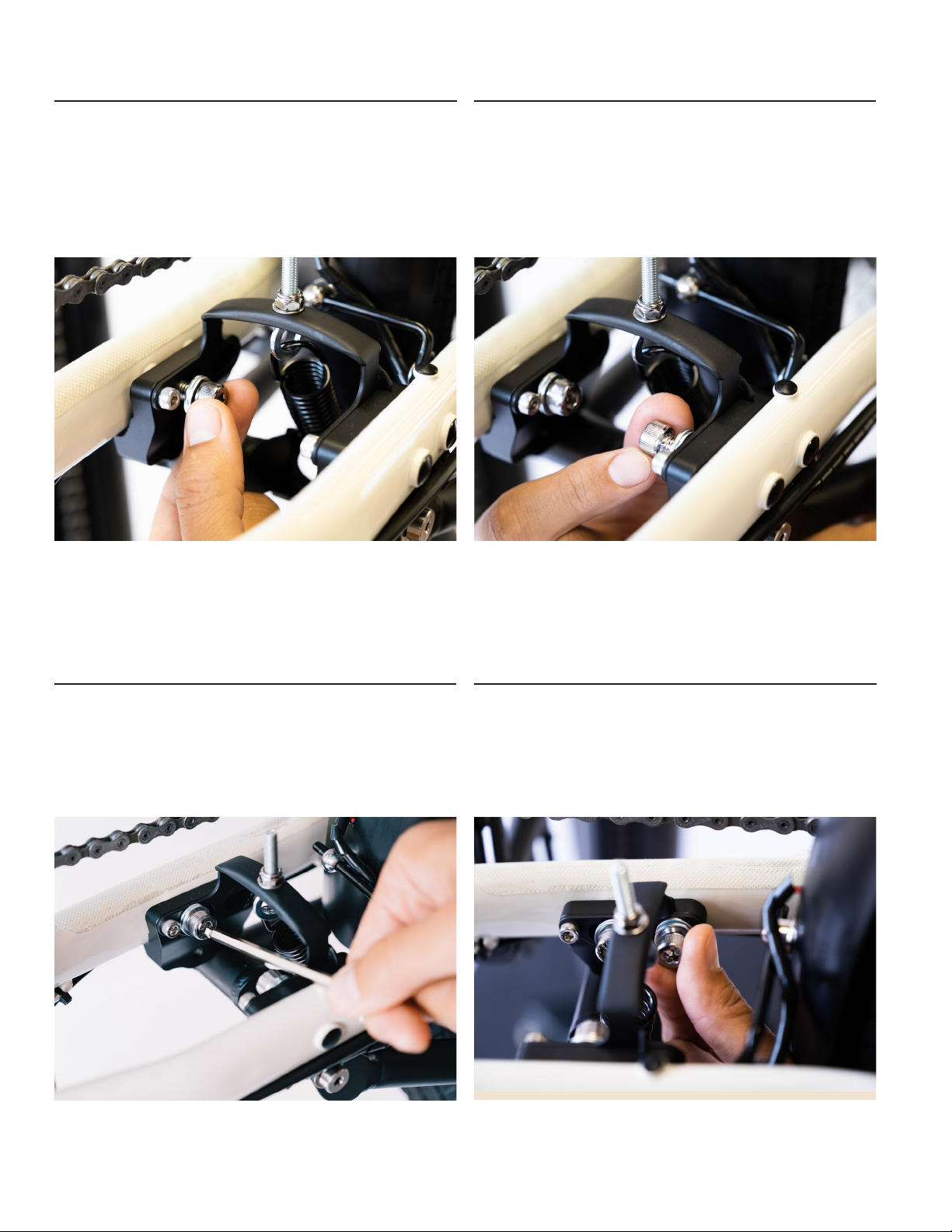

Place two washers on one of the M8 bolts. Starting on the
inside of the mounting plate and using just your fingers,
thread the bolt with the washers to the front boss until you
can not turn it any further. You should be able to thread the
bolt until you are certain it has engaged with the threaded
boss on the chainstay.
01 E
Make sure the holes in the mounting plate on the rear of the
KickBack line up with rear threaded bosses before tightening
all the way. Using the ball end of the Allen wrench, tighten the
two front bolts.
01 F
Place two washers on one of the M8 bolts. Starting on the
inside of the mounting plate and using just your fingers,
thread the bolt with the washers to the rear boss until you
can not turn it any further. Once the first bolt is secured
loosely, mount the second bolt to the opposite rear boss.

4
01 G
Using the ball end of the Allen wrench, tighten the two rear
bolts.
01 I
Your RFA KickBack installation is now complete.
01 H
Using the shorter end of the Allen wrench, tightly secure all
bolts in place.

Disengaging the RFA KickBack
With one hand on the handlebars and another on the
Hooptie / SnackBar bracket or rear deck, place your foot on
the ground in front of one of the KickBack legs. Roll the bike
forward until the KickBack legs retract.
To disengage the KickBack while on the bike: While holding
on the handlebars and with both feet on the ground, start
walking the bike forward until the KickBack legs retract.
Engaging the RFA KickBack
With one hand on the handlebars and another on the Hooptie
/ SnackBar bracket or rear deck, use your foot to pull the
KickBack legs down. When the KickBack legs are on the
ground and with your foot still resting behind the leg, roll the
bike backwards until the kickstand is fully engaged.
