DENAGO eXC 1 User manual

QUICKSTART
GUIDE
eXC 1

With over 100 years collectively in the bike industry, our team loves to share
with you what we learned from riding, working in bike shops
and working in the bike industry.
We are looking forward to you joining us for a ride.

THANK YOU and welcome to the Denago team.
We value and appreciate you and your choice.
If there is anything you need, please reach out
and let us know how we can help.
Email: [email protected]
Call Us: 877-755-2453 (BIKE)

ALWAYS WEAR A HELMET
Please make sure you read, understand and follow the instructions
in the quickstart guide as eBikes are new to most riders.
For more information, please visit:
denago.zendesk.com

EXC MODEL 1 5 | DENAGO
EXC MODEL 1

6 | DENAGO QUICKSTART GUIDE
WHAT’S IN THE BOX
The following accessories are included with your 90% pre-assembled Denago bike.

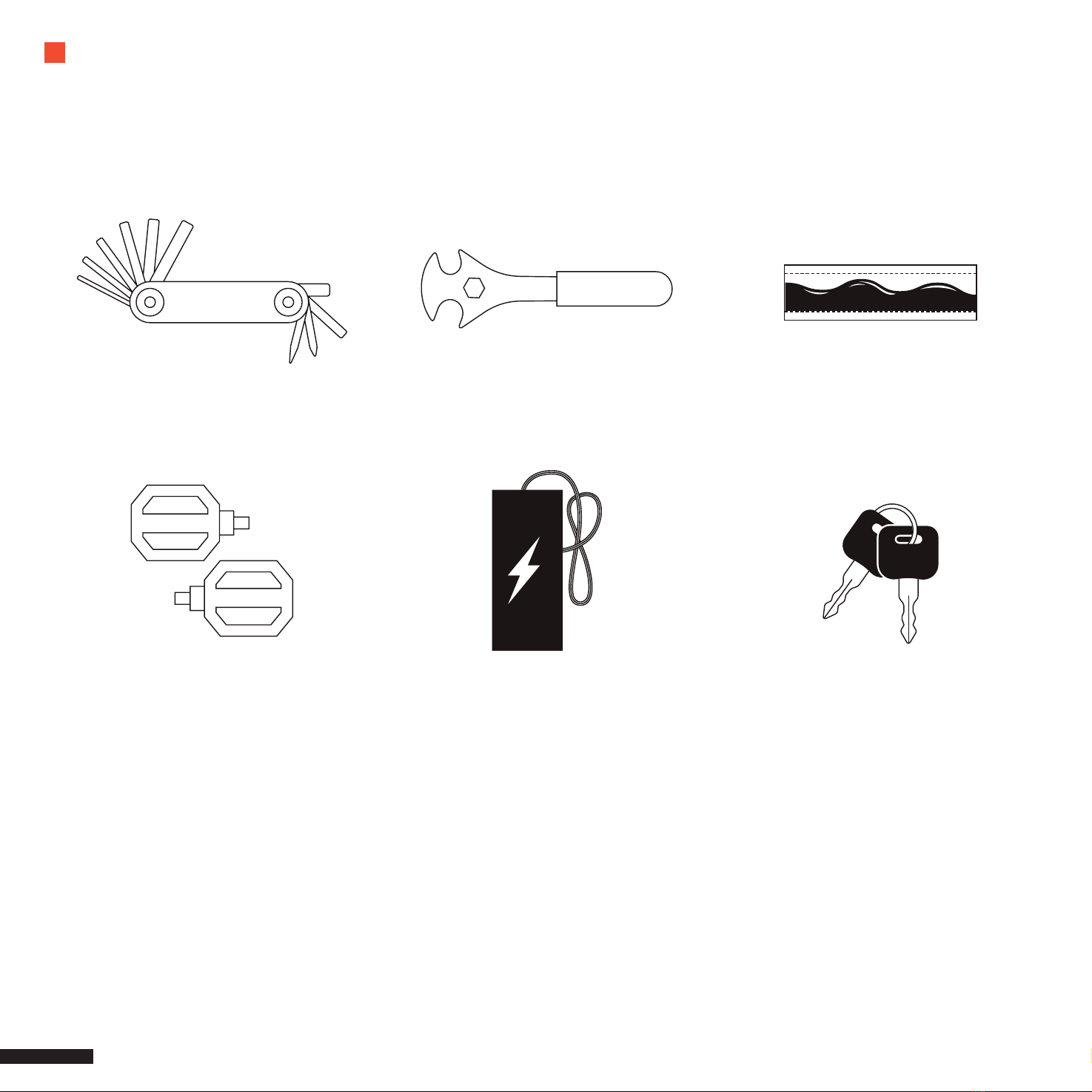

Pedal Battery Charger Battery Keys
Multi Tool Pedal / Wheel Wrench Bicycle grease packet

YOUR DENAGO BIKE IS 90% ASSEMBLED
The quickstart guide will assist you in completing the assembly.
By following the directions, you will be able to get outside and start
riding your new Denago eBike in less than 30 minutes.
If you are not comfortable or confi dent, please take your
bike to your local shop and ask for assistance.

GETTING STARTED

EXC MODEL 1 9 | DENAGO
Unpack and Unwrap your eBike

10 | DENAGO QUICKSTART GUIDE
LAY OUT THE PARTS AND TOOLS
We’d like to make your assembly process a bit easier.

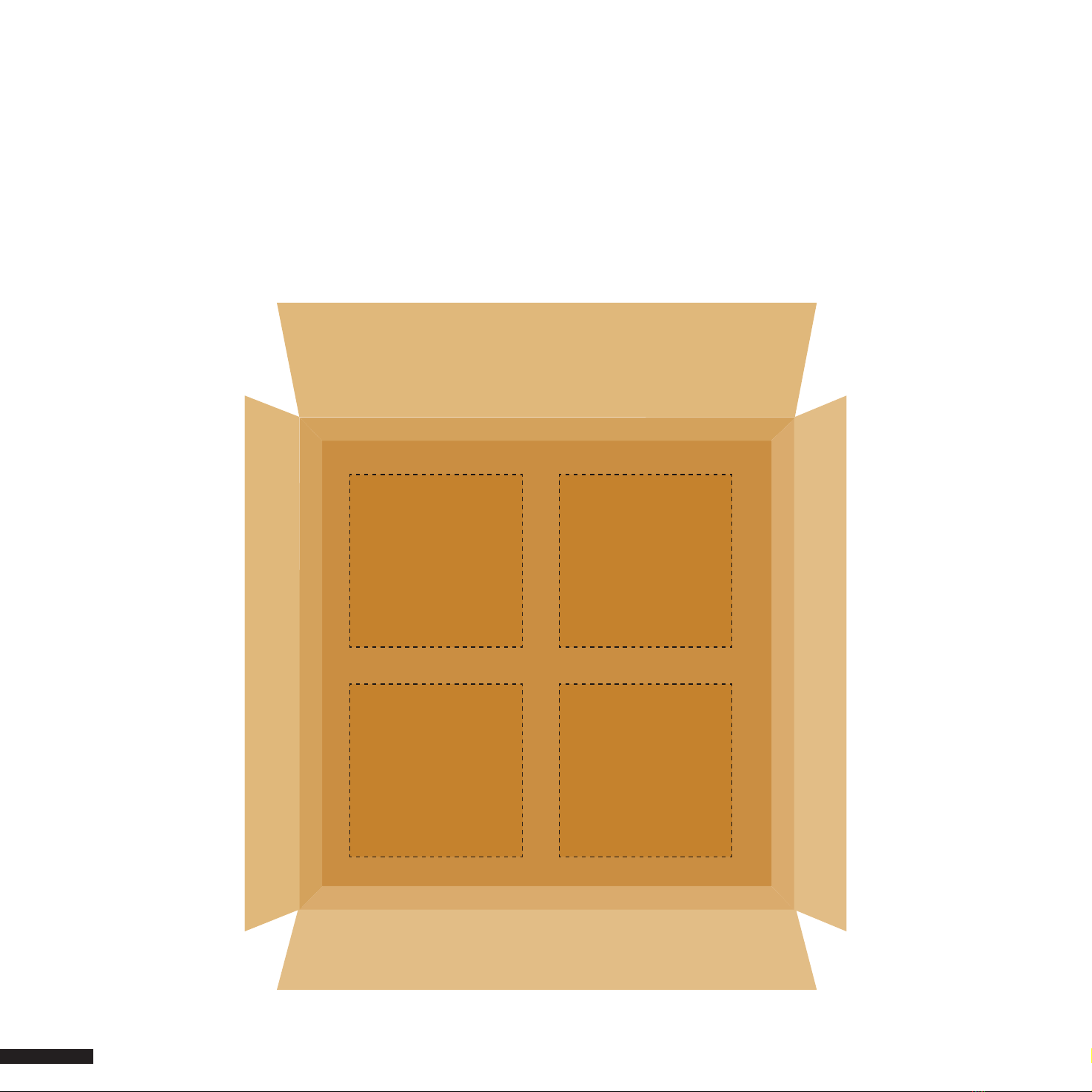

So we made a Parts & Tools layout inside the box.
Please lay Parts & Tools into each area.
Tool Set Front Wheel
& Parts
Pedals Other Stu

ASSEMBLY STEPS
1. HANDLEBAR
2. SEAT
3. FRONT WHEEL & BRAKE
4. PEDALS
5. MONITOR
6. ADJUSTMENTS

12 | DENAGO QUICKSTART GUIDE
HANDLEBAR COMPONENTS HAVE BEEN PRE-ASSEMBLED
Please tighten and secure all bolts
1. Disassemble the package, unscrew
the bolt and remove the cover, bolt and
paper tube, leaving all spacers in place.
2. Put the handlebar riser into the front
fork riser pipe according to the gure.
3. Attach the cover and bolt to the stem,
straighten the handlebars and tighten
the bolts above with a 4mm hex tool.
You will use the 5mm allen key on the multi tool for these steps.
ASSEMBLY | HANDLEBAR
4. Also tighten on both sides of the stem
with a 4mm hex tool.
5. Tighten the front reector with the
cross head screw-driver.

EXC MODEL 1 13 | DENAGO
SEAT | ASSEMBLY
THE SEAT WAS PRE-ASSEMBLED
4. Tighten the rear reector with the
cross head screw-driver.
2. Loosen the seat clamp with
a 6mm hex tool.
3. Pull the seat post up and push the
lower outlet line of the seat post to the
middle tube.
1. Grease the interior of the seat tube.
NOTE: DO NOT EXCEED THE MINIMUM INSERTION
MARK WHEN SETTING THE SADDLE HEIGHT

14 | DENAGO QUICKSTART GUIDE
1. Remove the shaft and the ller block
from the front disc brake caliper with
a 6mm hex tool.
2. Position the front wheel so that it is
centered between the front fork legs
and the shaft is in the front fork rack.
3. Align the disc brake of the front wheel
set with the disc brake seat to mount the
disc on the front fork.
4. Finally, insert the shaft into place on
the right side of the front fork and lock it
with 6mm hex tool
CAUTION
Tighten nuts securely to the fork dropouts
NOTE: DO NOT THROW IT AWAY, YOU NEED TO
REINSTALL THE PACKING BLOCK EACH TIME YOU
REMOVE THE FRONT WHEEL.
ASSEMBLY | FRONT WHEEL & BRAKE YOUR BIKE HAS A BOLT ON MECHANISM

15 | DENAGO
Do NOT touch the brake rotor, especially while in
motion. Be CAUTIOUS and do not allow oils to be
applied or added to the DISC/ROTOR. This can
cause squeaking and decrease braking performance.
Improper installation of the front wheel and or
handlebar stem can cause loss of control, accidents,
serious injury or death. Check regularly that the front
wheel and handlebar stem are ALWAYS properly
secure and in good working condition.
WARNING

16 | DENAGO QUICKSTART GUIDE

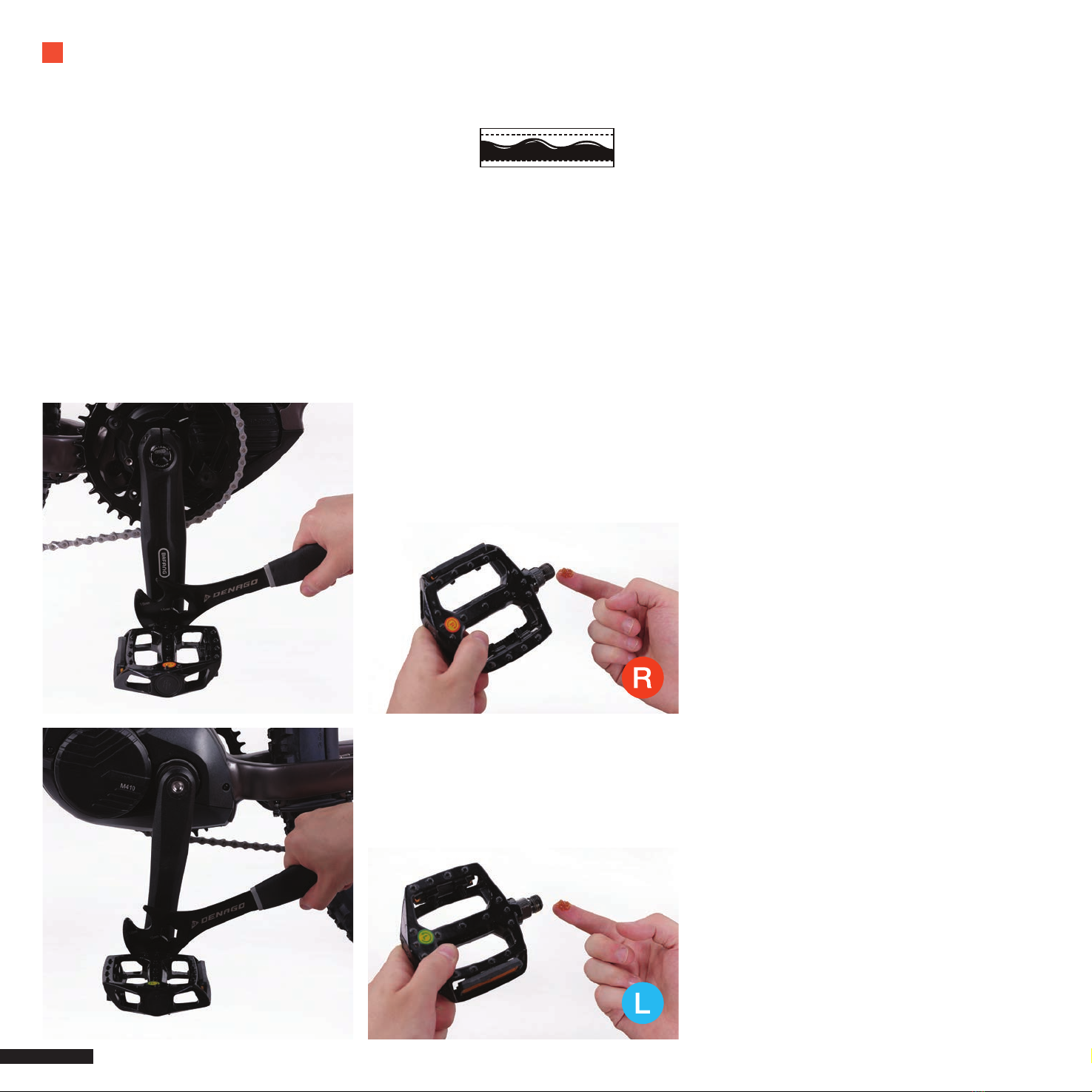

1. Drive Side of Bike select R-Right pedal
2. Apply grease to pedal threads
3. Insert Pedal into Crank/Drive side and start to turn CLOCKWISE.
4. Once hand tight apply 15mm wrench to pedal and tighten and secure.
1. NON Drive Side of Bike select L-Left pedal
2. Apply grease to pedal threads
3. Insert Pedal into Crank Arm/NON- Drive side and start to turn COUNTER CLOCKWISE.
4. Once hand tight apply 15mm wrench to pedal and tighten and secure.
Apply grease to threads on both Left and Right Pedal.
MATCH PEDAL and CRANK ARM CAREFULLY
Right pedal is applied to drive side/side with crank and gears and threads/twist on CLOCKWISE
Left pedal is applied on NON-DRIVE side/side with disk rotors and twist COUNTERCLOCKWISE
USE PEDAL WRENCH AND CONFIRM PEDALS ARE TIGHTENED AND SECURE
Check frequently
ASSEMBLY | PEDALS

EXC MODEL 1 17 | DENAGO

18 | DENAGO QUICKSTART GUIDE
ASSEMBLY | MONITOR

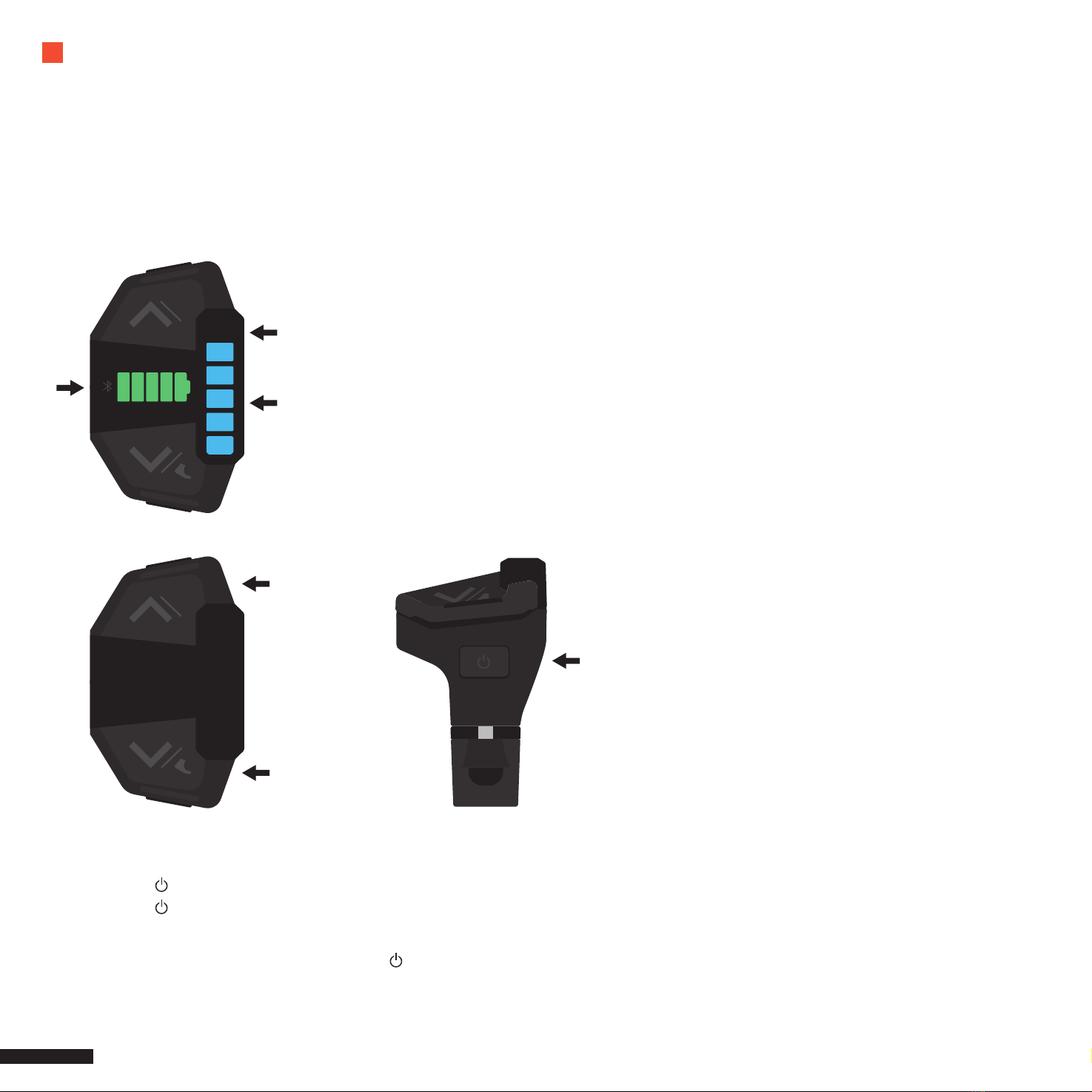

1. Battery capacity indication
2. AL sensitivity position
3. Power assistance indication
(level 1 to level 5 is from bottom to top,
no LED light means no power assistance)
4. Error code indication
(LED lights of level 1 and level 2 ash at a frequency of 1Hz)
2
3
1
Up
The monitor is connected in a number of ways to your eBike. It interfaces with the HMI to adjust
your PAS levels, advises if you have a problem with your brakes and also tracks a number of
great features. Like speed, distance, MAX speed, battery level etc.
The following will show you how to conrm and make needed adjustments.
STEP 1 – Press and hold (>2S) to power on the system.
Press and hold (>2S) again to power o the system.
STEP 2 – When the display is turned on, press (<0.5S) to switch to the power assisted level and change the output power of the motor.
The default level is level 0-5, of which the lowest is 1, the highest is 5, and level 0 is no power assistance.
Power on/o
Down/
Walk assistance

EXC MODEL 1 19 | DENAGO
STEP 3 – Briey press (<0.5S) to the level 0 (no indication of the power assistance), then press and hold (>2S)
to enter the walk assistance mode.
In the walk assistance mode, 5 LED lights ash at a frequency of 1Hz and the real-time speed is less than 6km/h.
Once releasing the button, it will exit the walk assistance mode.
If no operation within 5s, the display will automatically return to level 0.
PAS (Pedal Assist System) comes with the ability to set your MAX speed while also adjusting your PAS level speeds.

20 | DENAGO QUICKSTART GUIDE
Please con rm HANDLEBARS AND FRONT WHEEL are in alignment.
ASSEMBLY | ADJUSTMENTS
