Caution : Please read the manual before your first ride!
E-Bike
PRODUCT INSTRUCTION
MANUAL

Warranty
Attachment
Warnings
Safety Instruction
General Information
Bike Useage
Installation And Adjustment
Meter Operation
Battery And Charging: Further Information
Maintenance
01
03
07
09
16
17
19
20
21
23
CONTENTS

ANCHEER
1
Thank you for choosing our products.
To ensure your safety and health, we encourage you to read this manual thoroughly before
you assemble the bike and take the first ride.Safe and effective use can only be assured if the
equipment is assembled, maintained, and used properly. More importantly, this will offer
you a general understanding and get the most out of your bike.Please check your electric
bike before every ride, especially when traveling long distances.
This manual is intended as a general guide to your new e-bike. For technical support,
including repair information, please consult your dealer.
Things to know before use
Do not use the product before carefully reading the instructions from this manual
and understanding the performance of the item;
Don't lend this product to people who can't operate it, so as not to cause harm; if
you lend the bike, please let the user follow instructions, it could help to decrease
the risk of accident;
The E-bike cannot be used as off-road vehicles or used for extreme bicycle sports;
when riding the bicycle, please wear a safety helmet and protective gear. It is
forbidden to ride with one hand;
Please abide by the traffic rules and prohibit riding on motorized lanes and roads
withmultiple pedestrians;
Carry people or objects in accordance with the requirements of laws and regulations,
and do not park in the building's lobby, evacuation stairs, walkways, and safe
entrances and exits;
It is recommended to charge and park in a dedicated outdoor parking lot, while
avoiding rain; when charging, keep away from combustibles, and the charging time
should not be too long ;
For safety reasons, please do not change the default speed setting of the electric
bicycle and do not exceed speed limit in accordance with the traffic rule. Riding on
non-motorized lanes, downhills and paved roads not exceeding 15km/h;
When adjusting the handlebar or saddle, please be careful not to exceed the safety
line markings on the handlebar and saddle;
Please check the tire pressure before riding, the recommended tire pressure is 35-
45PSI;
Please check the power circuit, lighting circuit, etc. before riding;
●
●
●
●
●
●
●
●
●
●
Safety Instruction

ANCHEER
2
Safety Instruction
Before riding, please check whether the front and rear brakes work normally, check
the fastening status of the handlebars and front and rear wheels, and check whether
the reflector is damaged or contaminated;
When using the motor, please be careful not to hit vigorously and keep the rotating
shaft lubricated;
Try to avoid traveling in severe weather such as heavy rain;
Riding in rain or snow, the braking distance will be extended, pay attention to slow
down;
It is not allowed to exceed the maximum load of the vehicle body when riding(the
maximum load is 120KG);
It is suitable for people of 16+ years old and physically fit adults, and it is strictly
forbidden to drive electric bicycles on the road by people under 16 years old.
●
●
●
●
●
●

ANCHEER
3
General Information
1. About ANCHEER Electric Bike
ANCHEER electric bike is a leading icon of e-bikes. For years, ANCHEER has been not only
dedicating to innovation, cutting-edge technology and premium materials, but also
providing cost effective e-bikes, to satisfy riders' various needs of transportation and even
desire of exploring sports & outdoors life. Just ride freely with ANCHEER!
2. What’s In the Box (Parts List)
Description Quantity
ANCHEER Electric Bike
Pedal 2
1
User Manual
Saddle 1
1
Key
Saddle Tube
Tools Bag
1
1
2
Charging Adapter
Kickstand
Stem
Throttle
1
1
1
1
Battery
Front Fender 1
1
We will decide whether to include the throttle in your product package in accordance
with local laws and regulations. If it is included, it will come as a single part and will
not be pre-installed. You can choose whether to install or not. If you choose to install,
please use the throttle accurately under the guidance of laws and regulations.
Note:

ANCHEER
4
General Information
3. Bike Components
2
1
3
4
5
6
7
8
9
10
11
13
12
14
15
16
17
18
19
20
Rim
Flywheel
Front Fork
Chain
Tire
Rear Derailleur
Head Light/Front Light
Crank
Stem
Chain WheelSeat Post Clamp/ Seat Clamp
Front Fender
Saddle Post/ Seat Tube
Front Disc Brake Calipers
Saddle
DiscRear Seat
Wheel Reflector
Battery
Rear Disc Brake Callipers
1
2
3
4
589 7 610
11 13 14 15 16 17 18 19 2012

ANCHEER
5
General Information
21
26
22 28
27
24
25
23 29
30
Left Brake Lever Right Brake Lever
Meter Right Grip
Left Grip Throttle/ Twister
Pedal Rear Shifter
Kick Stand Handle Bar
21 26
22 27
23 28
24 29
25 30

ANCHEER
6
General Information
4. Tool list
5. Standover Height
For the sake of safety and comfortable riding, when the rider stands on the ground there
should be clearance of 46cm/18in from ground to the crotch of the rider. Also, at least
3-8cm/1-3in between the crotch and the top tube of the bike.
Standover height does not apply to bicycles with step-through frames. Instead, the limiting
dimension is determined by saddle height range. You should adjust your saddle position
without exceeding the limit line on the saddle tube.
Note

ANCHEER
7
Bike Usage
Before Riding
During riding
After riding
Before riding the bike on the open road, try all the settings on the electric bike, and get
used to various results in a safe and controllable environment.
Please check the power circuit, lighting circuit, and test the brake system before cycling.
Always check the tire pressure before starting to ride, and make sure that the tire is
inflated to a pressure within the specified range.
In order to ensure the safety of riding, please check regularly for loose parts or screws.
The places that need to be checked include but not limited to the seat tube, wheels,
handlebars and pedals.
If necessary, please confirm whether the remaining battery power can meet your riding
needs.
2.
1.
If the pressure exceeds the recommended maximum value, the tire may blow
out of the rim, which may damage the bicycle and cause injury to the cyclist and
nearby people.
If the pressure is too low, the wheel may be damaged, or the inner tube may be
squeezed, causing the tire to leak air.
Please wear helmets and riding gear that meet the requirements in accordance with
regulations.
Avoid traveling in severe weather such as heavy rain.
Carry people or objects in accordance with the requirements of laws and regulations,
and the load of the entire bike should not exceed 120kg.
Obey the traffic rules.
After heavy use, do not touch the hot surface, such as the disc brake rotor or the side
edge of the brake rim.
When folding the kickstand, always make sure that the stand is secure and the base is
firm to prevent the bicycle from falling.
If the bicycle is splashed with moisture, please wipe it dry and clean in time.
●
●
●
●
●
●
●
●
●
●
●
●

ANCHEER
8
Bike Usage
Shifting Recommendations
Brake Adjustment
In order to increase the range, we recommend shifting according to the speed.
For starting and low-speed riding, it is best to use a low-speed gear.
At higher speeds, a higher gear should be selected.
If the brake is not sensitive, loosen the
anchor bolt of the brake cable to shorten
the brake distance of the brake cable and
then tighten the bolt. Or, lengthen the
distance of the brake cable when the brake
is too sensitive.
If the rotor always rubs against the
brake pad or the gap is too large, loose
the two centering adjustment screws,
but do not remove them. Slowly rotate
the wheel and check the space between
the rotor and the brake pad; adjust the
position of the brake pad and the rotor.
Centering the rotor and the pads to
avoid friction. After the adjustment is
complete, tighten the screws.
Ensure that the brake cables are properly inserted into the brake levers before aligning a
mechanical disc brake. If the disc rotor is bent or damaged, replace the rotor first.
2.
1.
Leave the same clearance on
both sides of the disc rotor
Brake pad
Disc rotor
Adjust caliper to
center the rotor
Centering
adjustment screws

ANCHEER
9
Installation And Adjustment
Open the package of the bike, take out the electric bike and all the parts inside anduse the
tool to cut off the packing rope.
1. Install the handlebar
Remove the protective plug, install the handlebar into the stem, align it with the
front fork, and then tighten the screw. Please be careful not to exceed the limit line.
Adjust the angle of the handlebar, and then tighten the screw.
1.2
1.1

ANCHEER
10
Installation And Adjustment
2. Install the rack
Loosen the screws that secures the rack, put the rack in its position. Then re-
tighten the screws.
If you find the handlebar is not in the right
direction, loosen the top bolt, adjust the
angle of the handlebar to keep it in horizontal
direction, then tighten the top bolt.
Tighten the screws on the rack at the same
time.
Note:
2.1
1.3

ANCHEER
11
Installation And Adjustment

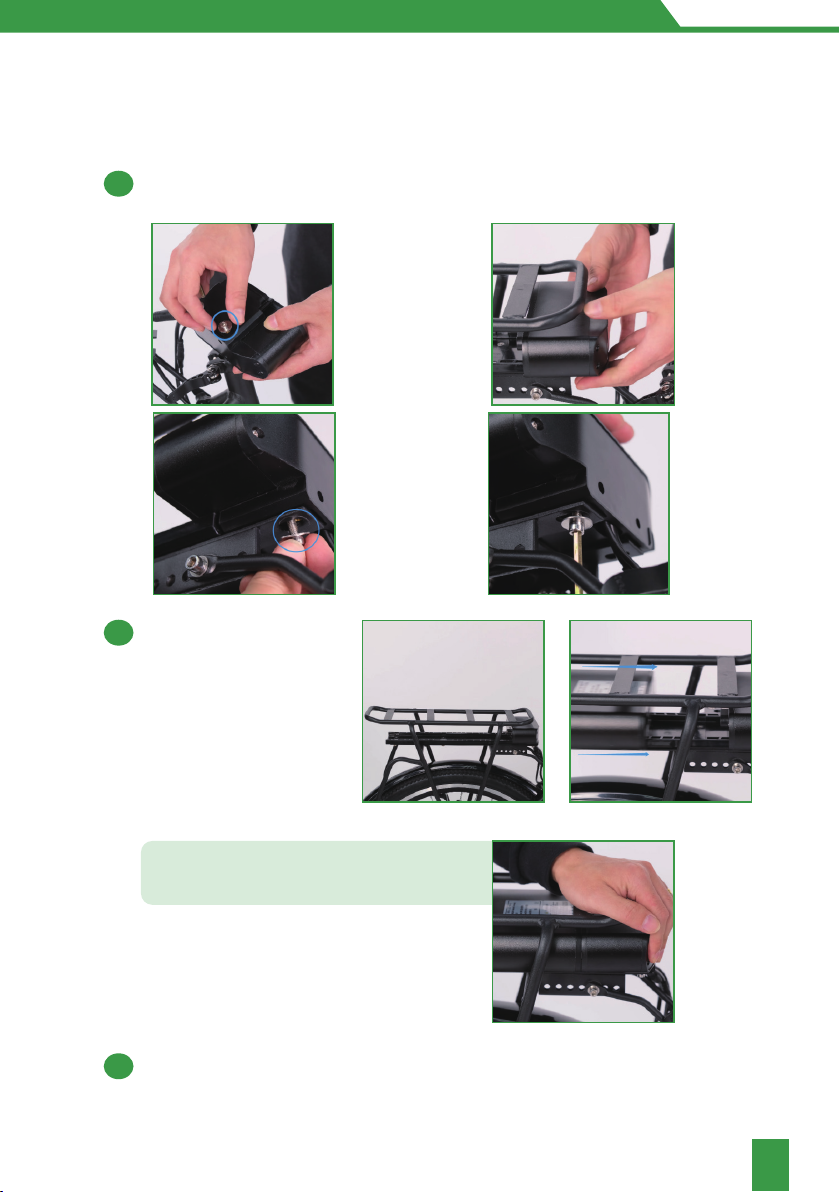

3. Install the controller and battery
Loosen the screws used to fix the controller on the rear rack, then place the
controller on the front of the rear rack, re-fix the screws and tighten them.
Push the battery along the
slide, and connect it with
the controller.
The controller and battery should be
connected tightly.
Note:
3.2
3.1
3.3 After completing the installation, you can turn on the switch on the battery, and
press the "M" button on the meter to see if the indicator lights of the meter is on to
confirm whether the controller and the battery are properly connected.

ANCHEER
12
4. Install the saddle tube
5. Install the front wheel
Install the saddle tube into post receiver. Set right its position and adjust height to
fit your ridding habit. Please be careful not to exceed the limit line. Then tighten
the clamp that secures the saddle tube and fasten it.
4.1
Installation And Adjustment
Front fork
Quick-release
lever
Inner
spring
Disc
rotor
Caliper
Skewer
Outer
spring
Adjustment
nut
5.1 Using the tool to loosen the
fixing rod of the front fork
and remove it (this accessory
is to prevent the front fork
from being deformed during
delivery).

ANCHEER
13
Installation And Adjustment
5.2 Take out the quick release from wheel and unscrew the bolt from the quick release.
Remember to take out the protective gasket from the brake before installing the
front wheel.
5.3 Set front wheel into front fork. Make sure fork hanger hold onto wheel axle, and
make sure the disc put into middle of brake.
5.4 Insert quick-release axle into spring and tighten screw(Quick release nut to be at
the same end as the brake).
Attention:
Tighten the quick release
with the adjustment nut
only!
Quick release
lever in the
closed position
Quick release
lever in the open
position

ANCHEER
14
6. Assemble the front fender and headlight
Loosen the screw on the corresponding position of the front wheel, as shown in
the figure below. Put the fender in this position.
Connect the front light, and re-fix the loosened screw. Adjust the position of the light
and tighten the screws.
Loosen the screws that secure the fender, fix the fender and then tighten them
again.
6.1
6.2
6.3
Installation And Adjustment

ANCHEER
15
7. Install the pedals and the kickstand
There are a right pedal marked "R" and a left pedal
marked "L". When installing, make sure to identify
the R/L letter on the pedal bolt.
Ensure that the thread of each pedal is fully inserted
into the crank arm. Tighten the pedals completely
with a wrench. (Counterclockwise screw the pedal
marked "L" on the left side crank. Clockwise screw
the pedal marked "R" on the right side crank.)
Finally, find the corresponding position of the kickstand, install the kickstand and
fix it with bolts.So far, congratulations! You have completed the assembly of the
entire bike.
7.1
7.2
7.3
Installation And Adjustment

ANCHEER
16
Meter Operation
1. Meter Instruction
2. Meter Operation
3. Operation Cautions
MODE
POWER
M
+ -
Assistance Level:Low
Assistance Level:Mid
Assistance Level:High
Battery Indicator
DOWN UPON/OFF
Operating instructions
Press and hold
the “M” key for
two seconds
to turn on. The
default value
is "low", which
means the
lowest pedal
assist level.
“high” is the
maximum
power of PAS.
Keep Press the
"-" key until all
three indicator
lights are off, the
bike enters the
electric throttle
mode.
To increase the
pedal assist
level, press the
"+" key. "mid"
is the second
pedal assist
level.
Avoid the risk of collision.
Don’t modify system parameters to avoid parameters disorder.
Contact the seller when error code appears.
●
●
●
MODE
POWE R
high
M + -
MODE
POWER
M + -
MODE
POWER
M + -
MODE
POWER
M + -
midlow highmidlow highmidlow highmidlow

ANCHEER
17
Battery And Charging: Further Information
Battery: Further information
Keep the battery out of reach of children.
Charging at 0°C~40°C/ 32°F~104°F, and discharging at -5°C~40°C/ 23°F~104°F. Please
do not store the battery in temperatures above 35°C/ 95°F or below -5°C/ 23°F.
Keep the battery dry, do not put the battery in acidic or alkaline liquid, keep away from
rain, fire and high temperature environment.
It is strictly forbidden to connect the positive and negative poles of the battery reversely,
and it is strictly forbidden to damage, disassemble or short-circuit the battery.
Used batteries are hazardous chemicals, and the used batteries should not be
disassembled without authorization, and recycled by relevant professional departments.
It is forbidden to modify the battery, electronic control system and the frame structure
of the bike, etc. Otherwise, it may cause safety hazards and void the warranty service. If
you continue to do so, all will be at your own peril.
Use the original battery. Do not replace it with other brand’s or product’s battery.
●
●
●
●
●
●
●
Charging port
Please follow the instructions for use, otherwise the consequences are at his own risk.
Please use the original special charger. It is strictly prohibited to use other chargers.
Pay attention to the battery type and applicable voltage that the charger can charge,
and it is strictly forbidden to mix them. The charging time shall not exceed 12 hours,
and the charging current shall not exceed 2A.
WHEN CHARGING THE BATTERY
●
●
●
Charging: Safe operation guide
❶
❷
❸
❹
Insert the charger probe into the charger port
on the e-bike battery. As shown in the figure.
Insert the pronged end of the battery cord
into the battery charger.
Insert the AC plug into an AC outlet.
The red indicator light turns on and will
remain red until it is fully charged. The
indicator light turns green once the battery is
fully charged.

ANCHEER
18
Battery and charging: Further Information
Reminder
Battery must be recycled or disposed of in an environmentally sound manner.
Do not dispose of the battery in a fire. The battery may explode or leak.
Do not dispose of a battery in your regular household trash.
It is recommended to charge the battery in the fireproof battery charging
cover when charging. And the battery should be stored in the fireproof
battery charging cover when not in use.
●
●
●
Battery Disposal
Charge a new battery 4-6 hours before you use it in your product for the first time.
If the battery is dropped or damaged due to a bicycle accident, there may be a danger of
electrolyte leakage. Please stop using it immediately.
It is better not to wait until the power is completely exhausted before charging, which
can more effectively extend the battery life. Besides, Overheating or undercharging the
battery may shorten battery life.
How far can a fully charged battery go?
It depends on the load weight, road conditions and battery capacity. But under the same
conditions, the average speed can last longer riding distances. Using pedal assist mode
allows you to go further.
When charging, it should be placed in a ventilated environment, and it is strictly
forbidden to charge in a confined space, residential building or in a hot environment.
The charger should not be carried with the ebike as much as possible. If it is really
necessary to carry it, it should be placed in the toolbox after the shock absorption
treatment is done. It is not allowed to disassemble or replace the components in the
charger by yourself.
When not in use for a long time, keep the battery in a cool and dry place, and charge
the battery for two hours a month.
●
●
●
