Denon AVC-X3700H User manual

.
AVC-X3700H
INTEGRATED NETWORK AV AMPLIFIER
Owner’s Manual
Contents Connections Playback Settings Tips Appendix
1
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

Accessories 8
Inserting the batteries 9
Operating range of the remote control unit 9
Features 10
High quality sound 10
High performance 11
Easy operation 16
Part names and functions 17
Front panel 17
Display 20
Rear panel 22
Remote control unit 26
Connections
Speaker installation 30
Connecting speakers 37
Before connecting speakers 37
Speaker configuration and “Amp Assign” settings 41
Connecting 5.1-channel speakers 43
Connecting 7.1-channel speakers 44
Connecting 9.1-channel speakers 48
Connecting 11.1-channel speakers 55
Connecting 7.1-channel speakers: Bi-amp connection of front
speakers 59
Connecting 7.1-channel speakers: Second pair of front speakers 60
Connecting multi-zone speakers 61
Connecting an external power amplifier 63
Connecting a TV 64
Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) / eARC
(Enhanced Audio Return Channel) 65
Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) / eARC
(Enhanced Audio Return Channel) 66
Connection 3 : TV equipped without an HDMI connector 67
Connecting a playback device 68
Connecting a set-top box (Satellite tuner/cable TV) 69
Connecting a DVD player or Blu-ray Disc player 70
Connecting a player device compatible with the 8K 71
Connecting a video camcorder or game console 72
Connecting a turntable 73
Connecting a USB memory device to the USB port 74
Connecting to a home network (LAN) 75
Wired LAN 75
Wireless LAN 76
Connecting an external control device 77
REMOTE CONTROL jacks 77
TRIGGER OUT jack 78
Connecting the power cord 79
Contents Connections Playback Settings Tips Appendix
2
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

Playback
Basic operation 81
Turning the power on 81
Selecting the input source 81
Adjusting the volume 82
Turning off the sound temporarily (Muting) 82
Playback a DVD player/Blu-ray Disc player 82
Playing a USB memory device 83
Playing files stored on USB memory devices 84
Listening to music on a Bluetooth device 87
Playing music from Bluetooth device 88
Pairing with other Bluetooth devices 89
Reconnecting to this unit from a Bluetooth device 90
Listening to audio on Bluetooth headphones 91
Listening to audio on Bluetooth headphones 92
Reconnecting to a Bluetooth headphones 93
Disconnecting Bluetooth headphones 93
Listening to Internet Radio 94
Listening to Internet Radio 95
Playing back files stored on a PC or NAS 96
Playing back files stored on a PC or NAS 97
Getting the HEOS App 100
HEOS Account 101
Playing from streaming music services 102
Listening to the same music in multiple rooms 105
AirPlay function 109
Playing songs from your iPhone, iPod touch or iPad 110
Playing iTunes music with this unit 110
Play a song from your iPhone, iPod touch or iPad on multiple
synced devices (AirPlay 2) 111
Spotify Connect function 112
Playing Spotify music with this unit 112
Contents Connections Playback Settings Tips Appendix
3
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

Convenience functions 113
Adding to HEOS Favorites 114
Playing back HEOS Favorites 114
Deleting a HEOS Favorites 115
Adjusting the volume of each channel to match the input source
(Channel Level Adjust) 116
Adjusting the tone (Tone) 117
Displaying your desired video during audio playback (Video
Select) 118
Adjusting the picture quality for your viewing environment (Picture
Mode) 119
Playing the same music in all zones (All Zone Stereo) 120
Changing the speaker settings to match the listening environment
(Speaker Preset) 121
Selecting a sound mode 122
Selecting a sound mode 123
Direct playback 124
Pure Direct playback 125
Auto surround playback 125
Description of sound mode types 126
Sound mode that can be selected for each input signal 131
HDMI Control function 137
Setting procedure 137
Smart Menu function 138
Sleep timer function 140
Using the sleep timer 141
Quick select plus function 142
Calling up the settings 143
Changing the settings 144
Panel lock function 145
Disabling all key button operations 145
Disabling all button operations except VOLUME 145
Canceling the Panel lock function 146
Remote lock function 147
Disabling the sensor function of the remote control unit 147
Enabling the remote sensor function 147
Web control function 148
Controlling the unit from a web control 148
Playback in ZONE2 (Another room) 150
Connecting ZONE2 150
Playback in ZONE2 153
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

Settings
Menu map 155
Menu operations 159
Audio 160
Center Level Adjust 160
Subwoofer Level Adjust 160
Surround Parameter 161
Restorer 167
Audio Delay 168
Volume 169
Audyssey®170
Graphic EQ 173
Video 175
Picture Adjust 175
HDMI Setup 177
Output Settings 182
On Screen Display 186
Screen Saver 187
4K/8K Signal Format 187
HDCP Setup 189
TV Format 189
Inputs 190
Input Assign 190
Source Rename 193
Hide Sources 193
Source Level 193
Speakers 194
Audyssey® Setup 194
Procedure for speaker settings (Audyssey® Setup) 196
Error messages 202
Retrieving Audyssey® Setup settings 204
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

Manual Setup 205
Amp Assign 205
Speaker Config. 212
Distances 216
Levels 217
Crossovers 218
Bass 219
Front Speaker 220
Speaker Preset 220
Network 221
Information 221
Connection 221
Wi-Fi Setup 222
Settings 224
Network Control 226
Friendly Name 226
Diagnostics 227
AirPlay 227
HEOS Account 228
You have not signed in 228
You have already signed in 228
General 229
Language 229
ECO 229
Bluetooth Transmitter 233
ZONE2 Setup 234
Zone Rename 236
Quick Select Names 236
Trigger Out 237
Front Display 237
Firmware 238
Information 241
Usage Data 243
Save & Load 243
Setup Lock 244
Reset 244
Limiting the operating zone with the remote control 245
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

Tips
Tips 247
Troubleshooting 249
Power does not turn on / Power is turned off 250
Operations cannot be performed through the remote control unit 251
Display on this unit shows nothing 251
No sound comes out 252
Desired sound does not come out 253
Sound is interrupted or noise occurs 256
No video is shown on the TV 257
The menu screen is not displayed on the TV 259
The color of the menu screen and operations content displayed
on the television is different from normal 259
AirPlay cannot be played back 260
USB memory devices cannot be played back 261
Bluetooth cannot be played back 262
The Internet radio cannot be played back 264
Music files on PC or NAS cannot be played back 265
Various online services cannot be played 266
The HDMI Control function does not work 266
Cannot connect to a wireless LAN network 267
When using HDMI ZONE2, the devices does not function properly 268
Update/upgrade error messages 269
Resetting factory settings 270
Resetting network settings 271
Restoring the firmware to the factory defaults 272
Appendix
About HDMI 273
Relationship between video signals and monitor output 277
Playing back a USB memory devices 279
Playing back a Bluetooth device 280
Playing back a file saved on a PC or NAS 281
Playing back Internet Radio 282
Personal memory plus function 282
Last function memory 282
Explanation of terms 283
Trademark information 292
Specifications 294
Index 300
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

Thank you for purchasing this Denon product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.

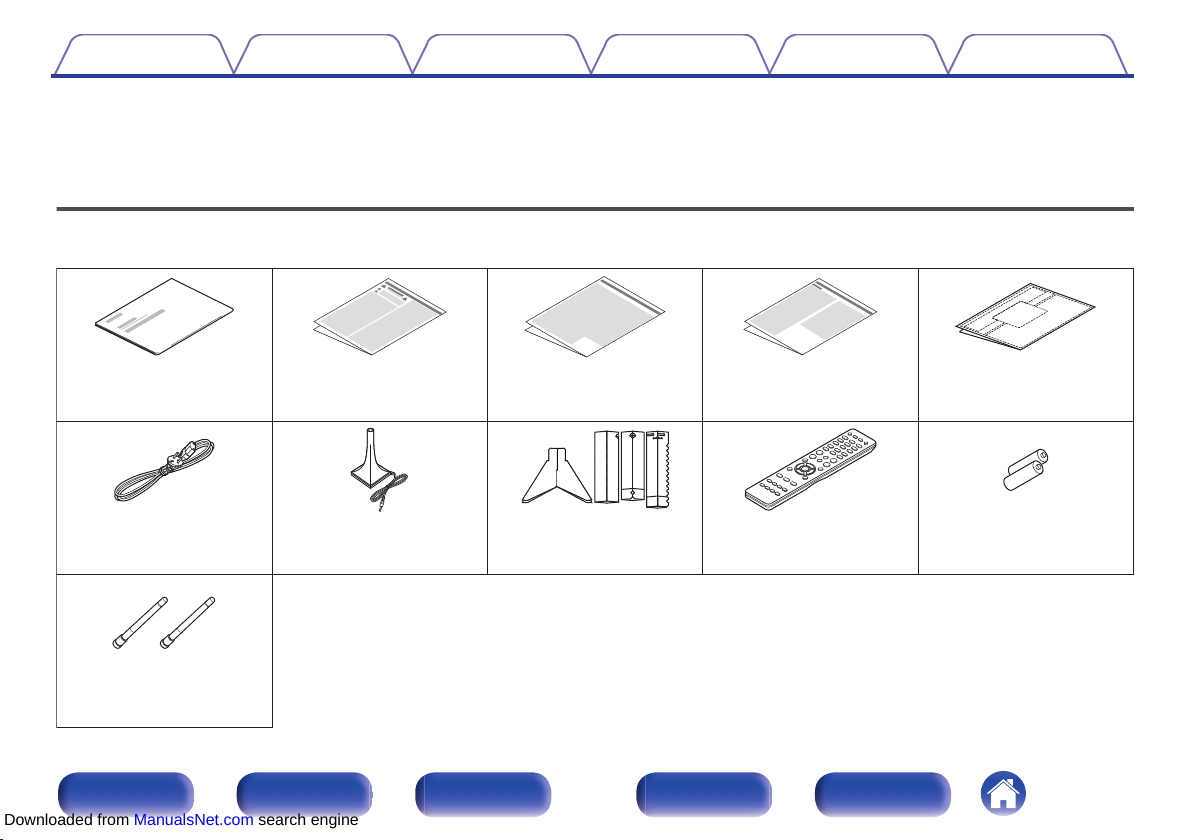

Accessories
Check that the following parts are supplied with the product.
.
External antennas for
Bluetooth/wireless
connectivity
Sound calibration
microphone
Sound calibration
microphone stand Remote control unit
(RC-1239)
R03/AAA batteries
Power cord
Cable labels
Notes on radio
Cautions on Using Batteries
Safety Instructions
Quick Start Guide
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

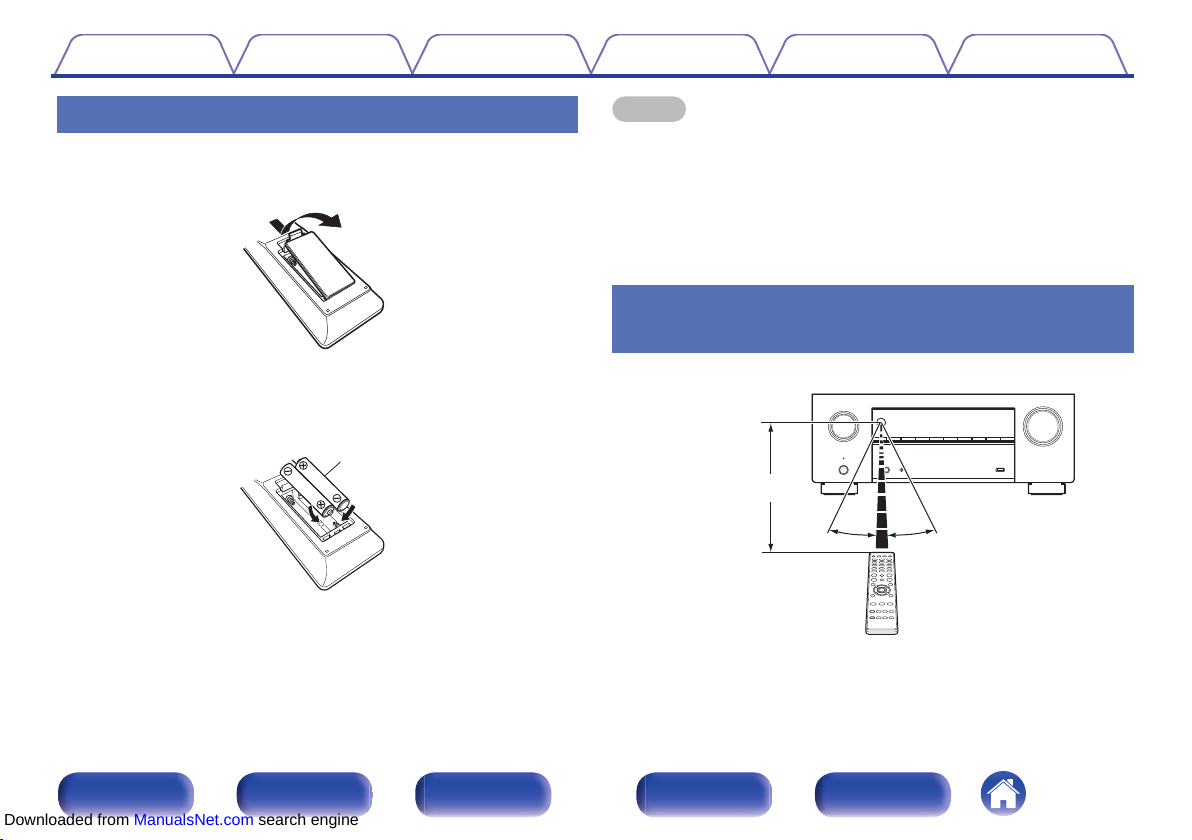

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
.
2Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30° 30°
Approx. 7 m
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

Features
High quality sound
0Powerful 9-channel Amplifier with the Latest Home Cinema Specs
Featuring discrete high-current amplifiers on all channels, this unit
delivers high-power performance at 105 watts per channel (8 Ω/ohms,
20 Hz - 20 kHz, T.H.D.: 0.08 %, 2ch. driven) to ensure a powerful and
precise entertainment experience, every time.
0Dolby Atmos (v p. 284)
This unit is equipped with a decoder that supports Dolby Atmos audio
format. The placement or movement of sound is accurately reproduced
by the addition of overhead speakers, enabling you to experience an
incredibly natural and realistic surround sound field.
0Speaker Virtualizer (v p. 163)
Speaker Virtualizer enables you to access a more immersive
entertainment experience from traditional channel based speaker
layouts through digital signal processing including Dolby Atmos height
virtualization and surround virtualization.
0Speaker Virtualizer is not for use when both height speakers and surround
speakers are connected.
0Height Virtualization may be applied when surround speakers are connected.
0DTS:X (v p. 287)
This unit is equipped with the DTS:X decoder technology. DTS:X brings
the home theater experience to new heights with its immersive object
based audio technology which removes the bounds of channels. The
flexibility of objects allows for sound to be scaled large or small and
moved around the room with greater accuracy than ever before leading
to a richer immersive audio experience.
0DTS Virtual:X (v p. 287)
DTS Virtual:X technology features DTS’s proprietary virtual height and
virtual surround processing to deliver an immersive sound experience
from any type of input source (stereo to 7.1.4 channel) and speaker
configuration.
0DTS Virtual:X is not for use when Height speakers are connected.
0IMAX Enhanced (v p. 287)
This IMAX Enhanced product have met stringent performance
standards established by IMAX and DTS in order to create a consistent
and higher bar for sound performance. DTS has developed a special
method for reproducing an IMAX signature sound experience in the
consumer’s home. This method combines a unique conversion process
for IMAX theatrical audio mixes utilizing an enhanced DTS codec
technology. The IMAX theatrical audio format with point source
surround speakers closely matches the speaker configuration most
consumers have in their homes today. Coupled with DTS audio
technology, IMAX Enhanced audio products will ensure the best and
most accurate audio reproduction over 5.1 or more speaker channels.
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

0Audyssey LFC™ (Low Frequency Containment) (v p. 172)
Audyssey LFC™ solves the problem of low frequency sounds
disturbing people in neighboring rooms or apartments. Audyssey
LFC™ dynamically monitors the audio content and removes the low
frequencies that pass through walls, floors and ceilings. It then applies
psychoacoustic processing to restore the perception of low bass for
listeners in the room. The result is great sound that no longer disturbs
the neighbors.
0Discrete subwoofers and Audyssey Sub EQ HT™ (v p. 195)
The unit has two subwoofer output capability and can adjust the level
and delay for each subwoofer individually.
Audyssey Sub EQ HT™ makes the integration seamless by first
compensating for any level and delay differences between the two
subwoofers and then applying Audyssey MultEQ® XT32 to both
subwoofers together for improved deep bass response and detail.
High performance
0Ultimate Home Theater Experience – 8K Ready
This unit delivers the ultimate home theater experience with 8K/60Hz
pass-through, 4K/120Hz pass-through for gaming, and support for the
latest HDMI specifications. This unit allows you to build the best 4K
home theater system, and offers the convenience of knowing that the
used AV receiver is ready for 8K format whenever the user decides to
use it.
Enjoy the highest quality 3D audio and video for even the most
demanding entertainment needs.
0HDCP 2.3
This unit is compatible with HDCP 2.3 copyright protection standard.
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

0Digital video processor upscales SD (resolution) or HD (720p/
1080p) / 4K to 8K
.
8K Ultra HD
8K 8K
Up to
1080p/4K 60Hz
8K
up scaling
This unit is equipped with a 8K video upscaling function that allows SD
(Standard Definition) or HD (High Definition)/4K 60Hz video to be output
via HDMI at 8K (7680 × 4320 pixels) resolution. This function enables
the device to be connected to a TV using a single HDMI cable, and
produces high definition images for any video source.
0Equipped with HDMI ZONE2 output (v p. 150)
The ZONE2 multi-room output includes an HDMI output that lets you
enjoy a different A/V source in that room, with another program playing
in the main room.
0HDMI connections enable connection to various digital AV
devices (7 inputs, 3 outputs)
.
73
OutIn
For connection to a broad range of digital sources, this unit features 7
HDMI inputs, that lets you quickly and conveniently connect a
camcorder, game console or other HDMI-equipped device. There are
dual HDMI outputs for the main room, and a third HDMI output for
ZONE2.
0eARC (Enhanced Audio Return Channel) function compatibility
The eARC function is compatible with conventional ARC function-
compatible audio formats in addition to multichannel linear PCM, Dolby
TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X and other audio
formats a conventional ARC function cannot transmit.
Additionally, connecting to an eARC function-compatible television
enables enjoyment of higher-quality surround playback of the audio
content played from your television.
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

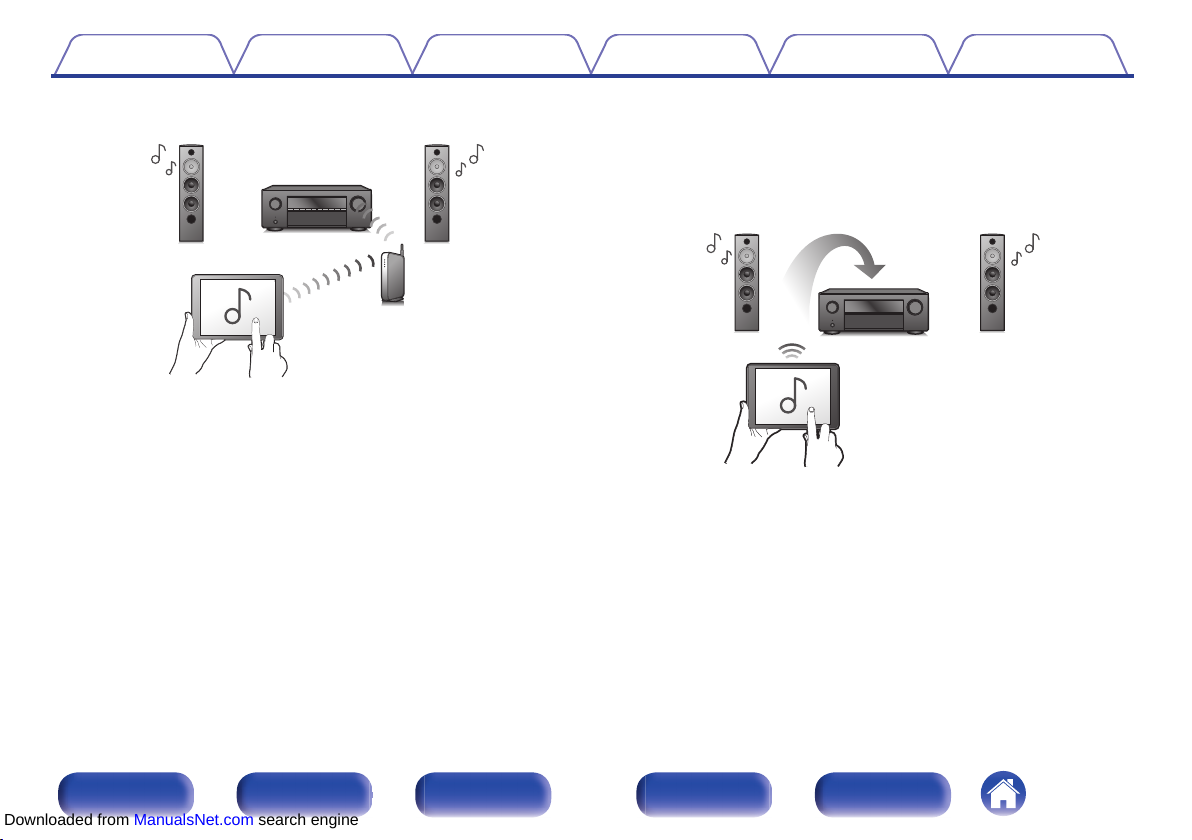

0The device is equipped with a AirPlay® function in addition to
network functions such as Internet radio etc. (v p. 109)
.
You can enjoy a wide variety of content, including listening to Internet
Radio, playing audio files stored on your PC.
This unit also supports Apple AirPlay which lets you stream your music
library from an iPhone®, iPad®, iPod touch® or iTunes®.
0Supports AirPlay 2® wireless audio
Sync multiple AirPlay 2 compatible devices/speakers for simultaneous
playback.
This unit supports AirPlay 2 and requires iOS 11.4 or later.
0Playback of DSD and FLAC files via USB and networks
This unit supports the playback of high resolution audio formats such as
DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality
playback of high resolution files.
0Wireless connection with Bluetooth devices can be carried out
easily (v p. 87)
.
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

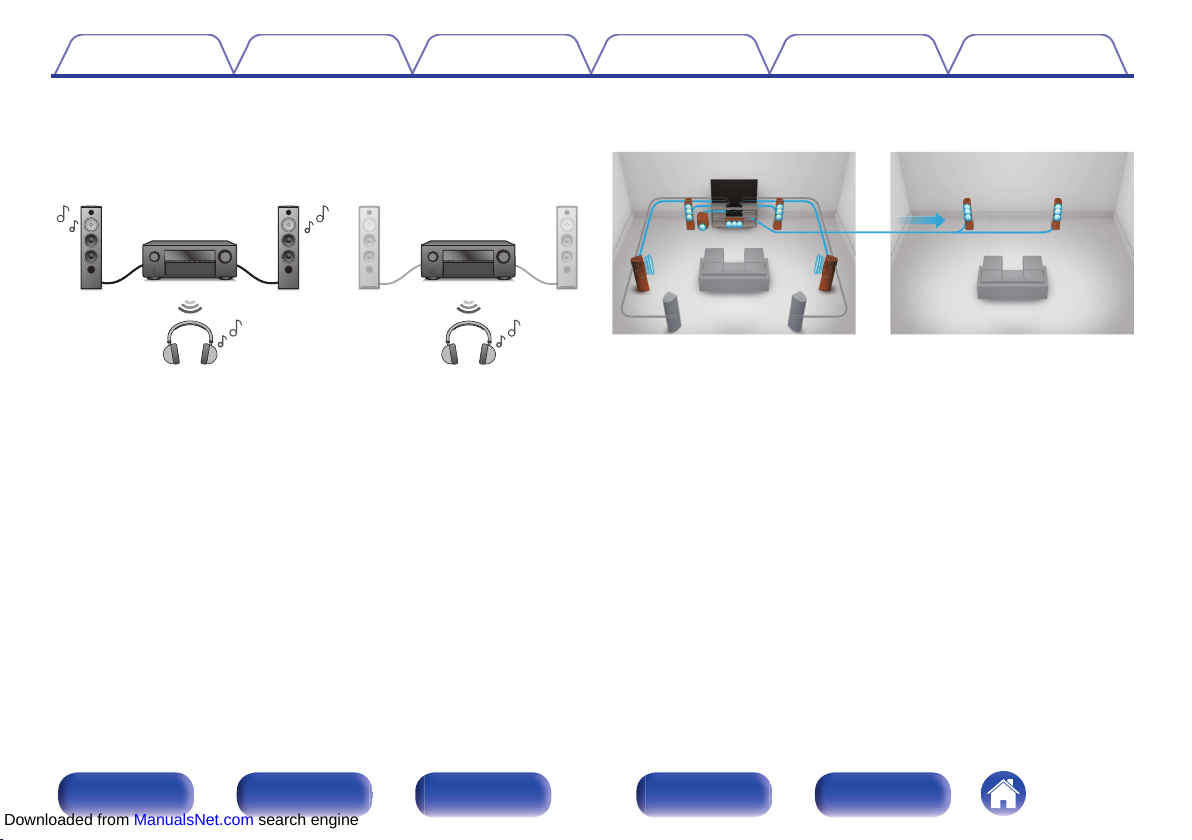

0Connect Bluetooth headphones
This unit can transmit Bluetooth so you can enjoy audio wirelessly
through your Bluetooth headphones.
Playback can be performed using connected speakers and Bluetooth
headphones simultaneously, or only using Bluetooth headphones.
.
0Multi-Room audio (v p. 120)
.
GMAIN ZONEHGZONE2H
You can select and play back the respective inputs in MAIN ZONE and
ZONE2.
In addition, when the All Zone Stereo function is used, the music being
played back in MAIN ZONE can be enjoyed in all the zones at the same
time. This is useful when you want to let the background music
propagate throughout the whole house.
0Energy-saving design
This unit is equipped with an ECO Mode function that allows you to
enjoy music and movies while reducing the power consumption during
use, and also an auto-standby function that automatically turns off the
power supply when the unit is not in use. This helps reduce
unnecessary power use.
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

0Compatible with the “Denon 2016 AVR Remote” Appz for
performing basic operations of the unit with an iPad, iPhone or
Android™ devices (Google, Amazon Kindle Fire)
.
Along with many new features, the graphics and user interface have
been completely overhauled. The new app gives you full control of this
unit as well as access to its setup menu for detailed adjustments from
your phones or tablets. “Denon 2016 AVR Remote” App also gives you
quick access to the receiver's status display, option menus, Denon Blu-
ray Disc player control, and online owner's manual for your
convenience.
zDownload the appropriate “Denon 2016 AVR Remote” App for your iOS or
Android devices. This unit needs to be connected to the same LAN or Wi-Fi
(wireless LAN) network that the iPad, iPhone or Android™ is connected to.
0HEOS provides streaming music from your favorite online music
sources
.
HEOS wireless multi-room sound system that enables you to enjoy your
favorite music anywhere and everywhere around your home. By utilizing
your existing home network and the HEOS App (available for iOS,
Android and Amazon devices), you can explore, browse, and play
music from your own music library or from many online streaming music
services.
When multiple products with HEOS Built-in are connected to the same
network, they can be grouped to play the same music on all products
simultaneously, or different music can be played on each one.
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

Easy operation
0“Setup Assistant” provides easy-to-follow setup instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers, network,
etc.
0Easy to use Graphical User Interface
This unit is equipped with a Graphical User Interface for improved
operability.
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

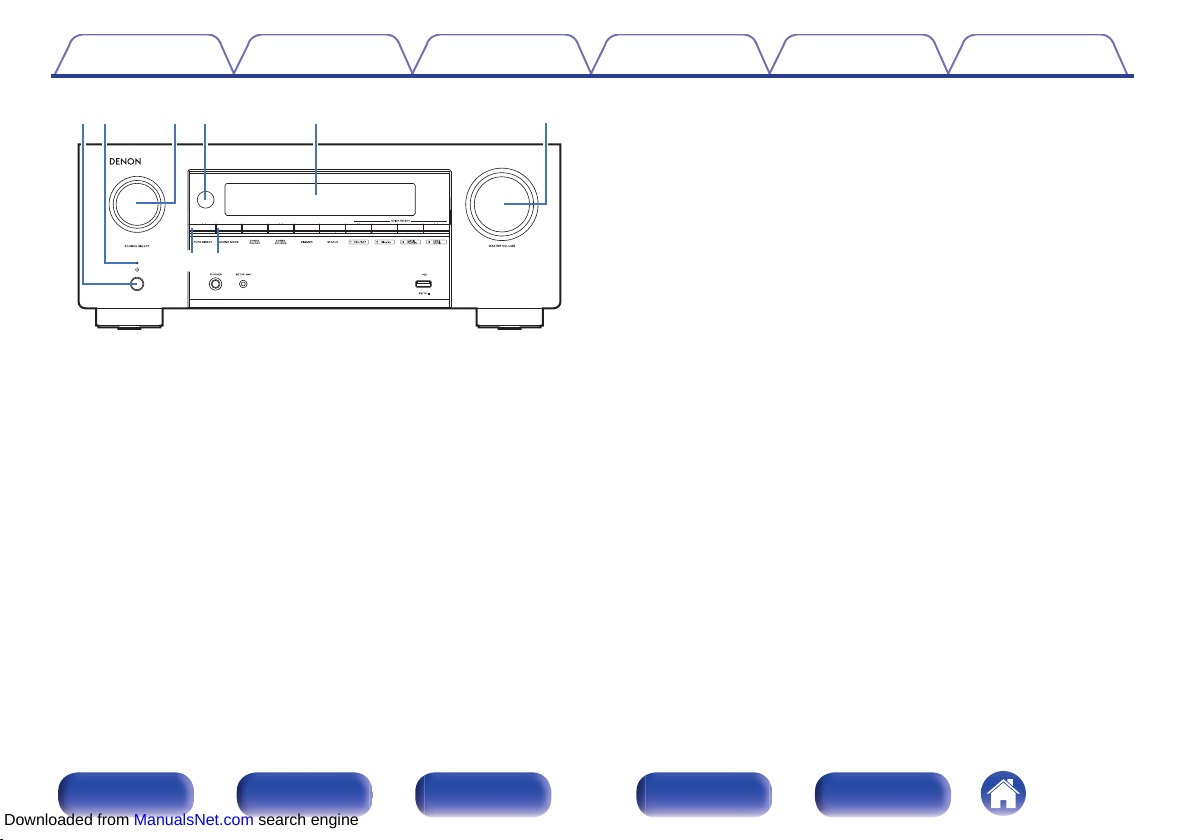

Part names and functions
Front panel
.
Q4 Q5 Q6
ui oQ0 Q1 Q2 Q3
er t yqw
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

.
ui
er t yqw
APower operation button (X)
Used to turn the power of the MAIN ZONE (room where this unit is
located) on/off (standby). (v p. 81)
BPower indicator
This is lit as follows according to the power status:
0Green: Power on
0Off: Normal standby
0Red:
0When “HDMI Pass Through” is set to “On” (v p. 177)
0When “HDMI Control” is set to “On” (v p. 179)
0When “Network Control” is set to “Always On” (v p. 226)
CSOURCE SELECT knob
This selects the input source. (v p. 81)
DRemote control sensor
This receives signals from the remote control unit. (v p. 9)
EDisplay
This displays various pieces of information. (v p. 20)
FMASTER VOLUME knob
This adjusts the volume level. (v p. 82)
GPURE DIRECT button
This switches the sound mode between Direct, Pure Direct and Auto
surround.
0“Direct playback” (v p. 124)
0“Pure Direct playback” (v p. 125)
0“Auto surround playback” (v p. 125)
HSOUND MODE button
Switching the sound mode. (v p. 122)
Contents Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

.
Q3
Q
4
Q
5
Q
6
oQ0 Q1 Q2
IZONE2 ON/OFF button
This turns the power of ZONE2 (another room) on/off. (v p. 153)
JZONE2 SOURCE button
This selects the input source for ZONE2. (v p. 153)
KDIMMER button
Each press of this switches the brightness of the display. (v p. 237)
LSTATUS button
Each press of this switches the status information that is shown on the
display.
MQUICK SELECT buttons
With a single press of any of these buttons, you can call up various
settings you’ve registered to each button such as the input source,
volume level and sound mode settings. (v p. 142)
NHeadphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the PRE OUT
connectors.
NOTE
0To prevent hearing loss, do not raise the volume level excessively when using
headphones.
OSETUP MIC jack
This is used to connect the supplied Sound calibration microphone.
(v p. 197)
PUSB port (T)
This is used to connect USB storages (such as USB memory devices).
(v p. 74)
Contents Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine

Display
.
yutrewq
ioQ
0
AInput mode indicators
These light according to the audio input mode settings of each input
source. (v p. 192)
BSurround back indicator
This lights when audio signals are being output from the surround back
speakers. (v p. 213)
CDecoder indicators
These light when Dolby or DTS signals are input or when the Dolby or
DTS decoder is running.
DAudyssey® indicator
This lights when “MultEQ® XT32”, “Dynamic EQ”, “Dynamic Volume” or
“Audyssey LFCTM” has been set up. (v p. 170)
ESleep timer indicator
This lights when the sleep mode is selected. (v p. 140)
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
Downloaded from ManualsNet.com search engine
