INTEGRATED AMPLIFIER
PMA-710AE
Owner’s Manual
Bedienungsanleitung
Manuel de l’Utilisateur
Manuale delle istruzioni
Manual del usuario
Gebruiksaanwijzing
Bruksanvisning

I
ITALIANO ESPAÑOL NEDERLANDS SVENSKADEUTSCH FRANCAISENGLISH
nSAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning ash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufcient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
• DECLARATION OF CONFORMITY
We declare under our sole responsibility that this product, to which this
declaration relates, is in conformity with the following standards:
EN60065, EN55013, EN55020, EN61000-3-2 and EN61000-3-3.
Following the provisions of 2006/95/EC and 2004/108/EC Directive.
• ÜBEREINSTIMMUNGSERKLÄRUNG
Wir erklären unter unserer Verantwortung, daß dieses Produkt, auf das
sich diese Erklärung bezieht, den folgenden Standards entspricht:
EN60065, EN55013, EN55020, EN61000-3-2 und EN61000-3-3.
Entspricht den Verordnungen der Direktive 2006/95/EC und 2004/108/
EC.
• DECLARATION DE CONFORMITE
Nous déclarons sous notre seule responsabilité que l’appareil, auquel se
réfère cette déclaration, est conforme aux standards suivants:
EN60065, EN55013, EN55020, EN61000-3-2 et EN61000-3-3.
D’après les dispositions de la Directive 2006/95/EC et 2004/108/EC.
• DICHIARAZIONE DI CONFORMITÀ
Dichiariamo con piena responsabilità che questo prodotto, al quale la
nostra dichiarazione si riferisce, è conforme alle seguenti normative:
EN60065, EN55013, EN55020, EN61000-3-2 e EN61000-3-3.
In conformità con le condizioni delle direttive 2006/95/EC e 2004/108/EC.
QUESTO PRODOTTO E’ CONFORME
AL D.M. 28/08/95 N. 548
• DECLARACIÓN DE CONFORMIDAD
Declaramos bajo nuestra exclusiva responsabilidad que este producto al
que hace referencia esta declaración, está conforme con los siguientes
estándares:
EN60065, EN55013, EN55020, EN61000-3-2 y EN61000-3-3.
Siguiendo las provisiones de las Directivas 2006/95/EC y 2004/108/EC.
• EENVORMIGHEIDSVERKLARING
Wij verklaren uitsluitend op onze verantwoordelijkheid dat dit produkt,
waarop deze verklaring betrekking heeft, in overeenstemming is met de
volgende normen:
EN60065, EN55013, EN55020, EN61000-3-2 en EN61000-3-3.
Volgens de bepalingen van de Richtlijnen 2006/95/EC en 2004/108/EC.
• ÖVERENSSTÄMMELSESINTYG
Härmed intygas helt på eget ansvar att denna produkt, vilken detta intyg
avser, uppfyller följande standarder:
EN60065, EN55013, EN55020, EN61000-3-2 och EN61000-3-3.
Enligt stadgarna i direktiv 2006/95/EC och 2004/108/EC.
DENON EUROPE
Division of D&M Germany GmbH
An der Landwehr 19, Nettetal,
D-41334 Germany
CAUTION:
To completely disconnect this product from the mains, disconnect
the plug from the wall socket outlet.
The mains plug is used to completely interrupt the power supply
to the unit and must be within easy access by the user.
VORSICHT:
Um dieses Gerät vollständig von der Stromversorgung abzutrennen,
ziehen Sie bitte den Stecker aus der Wandsteckdose.
Der Netzstecker wird verwendet, um die Stromversorgung zum
Gerät völlig zu unterbrechen; er muss für den Benutzer gut und
einfach zu erreichen sein.
PRECAUTION:
Pour déconnecter complètement ce produit du courant secteur,
débranchez la prise de la prise murale.
La prise secteur est utilisée pour couper complètement
l’alimentation de l’appareil et l’utilisateur doit pouvoir y accéder
facilement.
ATTENZIONE:
Per scollegare completamente questo prodotto dalla rete di
alimentazione elettrica, scollegare la spina dalla relativa presa a
muro.
La spina di rete viene utilizzata per interrompere completamente
l’alimentazione all’unità e deve essere facilmente accessibile
all’utente.
PRECAUCIÓN:
Para desconectar completamente este producto de la alimentación
eléctrica, desconecte el enchufe del enchufe de la pared.
El enchufe de la alimentación eléctrica se utiliza para interrumpir por
completo el suministro de alimentación eléctrica a la unidad y debe
de encontrarse en un lugar al que el usuario tenga fácil acceso.
WAARSCHUWING:
Om de voeding van dit product volledig te onderbreken moet de
stekker uit het stopcontact worden getrokken.
De netstekker wordt gebruikt om de stroomtoevoer naar het
toestel volledig te onderbreken en moet voor de gebruiker
gemakkelijk bereikbaar zijn.
FÖRSIKTIHETSMÅTT:
Koppla loss stickproppen från eluttaget för att helt skilja produkten
från nätet.
Stickproppen används för att helt bryta strömförsörjningen till
apparaten, och den måste vara lättillgänglig för användaren.

ENGLISH
II
DEUTSCHFRANCAISITALIANOESPAÑOLNEDERLANDSSVENSKA ENGLISH
CAUTION:
• The ventilation should not be impeded by covering the ventilation openings with items,
such as newspapers, tablecloths, curtains, etc.
• No naked ame sources, such as lighted candles, should be placed on the unit.
• Observe and follow local regulations regarding battery disposal.
• Do not expose the unit to dripping or splashing uids.
• Do not place objects lled with liquids, such as vases, on the unit.
ACHTUNG:
• Die Belüftung sollte auf keinen Fall durch das Abdecken der Belüftungsöffnungen durch
Gegenstände wie beispielsweise Zeitungen, Tischtücher, Vorhänge o. Ä. behindert
werden.
• Auf dem Gerät sollten keinerlei direkte Feuerquellen wie beispielsweise angezündete
Kerzen aufgestellt werden.
• Bitte beachten Sie bei der Entsorgung der Batterien die örtlich geltenden
Umweltbestimmungen.
• Das Gerät sollte keiner tropfenden oder spritzenden Flüssigkeit ausgesetzt werden.
• Auf dem Gerät sollten keine mit Flüssigkeit gefüllten Behälter wie beispielsweise Vasen
aufgestellt werden.
ATTENTION:
• La ventilation ne doit pas être gênée en recouvrant les ouvertures de la ventilation avec
des objets tels que journaux, rideaux, tissus, etc.
• Aucune amme nue, par exemple une bougie, ne doit être placée sur l’appareil.
• Veillez à respecter les lois en vigueur lorsque vous jetez les piles usagées.
• L’appareil ne doit pas être exposé à l’eau ou à l’humidité.
• Ne pas poser d’objet contenant du liquide, par exemple un vase, sur l’appareil.
ATTENZIONE:
• Le aperture di ventilazione non devono essere ostruite coprendole con oggetti, quali
giornali, tovaglie, tende e così via.
• Non posizionate sull’unità amme libere, come ad esempio candele accese.
• Prestate attenzione agli aspetti legati alla tutela dell’ambiente nello smaltimento delle
batterie.
• L’apparecchiatura non deve essere esposta a gocciolii o spruzzi.
• Non posizionate sull’unità alcun oggetto contenente liquidi, come ad esempio i vasi.
PRECAUCIÓN:
• La ventilación no debe quedar obstruida por haberse cubierto las aperturas con objetos
como periódicos, manteles, cortinas, etc.
• No debe colocarse sobre el aparato ninguna fuente inamable sin protección, como velas
encendidas.
• A la hora de deshacerse de las pilas, respete la normativa para el cuidado del medio
ambiente.
• No exponer el aparato al goteo o salpicaduras cuando se utilice.
• No colocar sobre el aparato objetos llenos de líquido, como jarros.
WAARSCHUWING:
• De ventilatie mag niet worden belemmerd door de ventilatieopeningen af te dekken met
bijvoorbeeld kranten, een tafelkleed, gordijnen, enz.
• Plaats geen open vlammen, bijvoorbeeld een brandende kaars, op het apparaat.
• Houd u steeds aan de milieuvoorschriften wanneer u gebruikte batterijen wegdoet.
• Stel het apparaat niet bloot aan druppels of spatten.
• Plaats geen voorwerpen gevuld met water, bijvoorbeeld een vaas, op het apparaat.
OBSERVERA:
• Ventilationen bör inte förhindras genom att täcka för ventilationsöppningarna med föremål
såsom tidningar, bordsdukar, gardiner osv.
• Inga blottade brandkällor, såsom tända ljus, får placeras på apparaten.
• Tänk på miljöaspekterna när du bortskaffar batterier.
• Apparaten får inte utsättas för vätska.
• Placera inte föremål fyllda med vätska, t.ex. vaser, på apparaten.

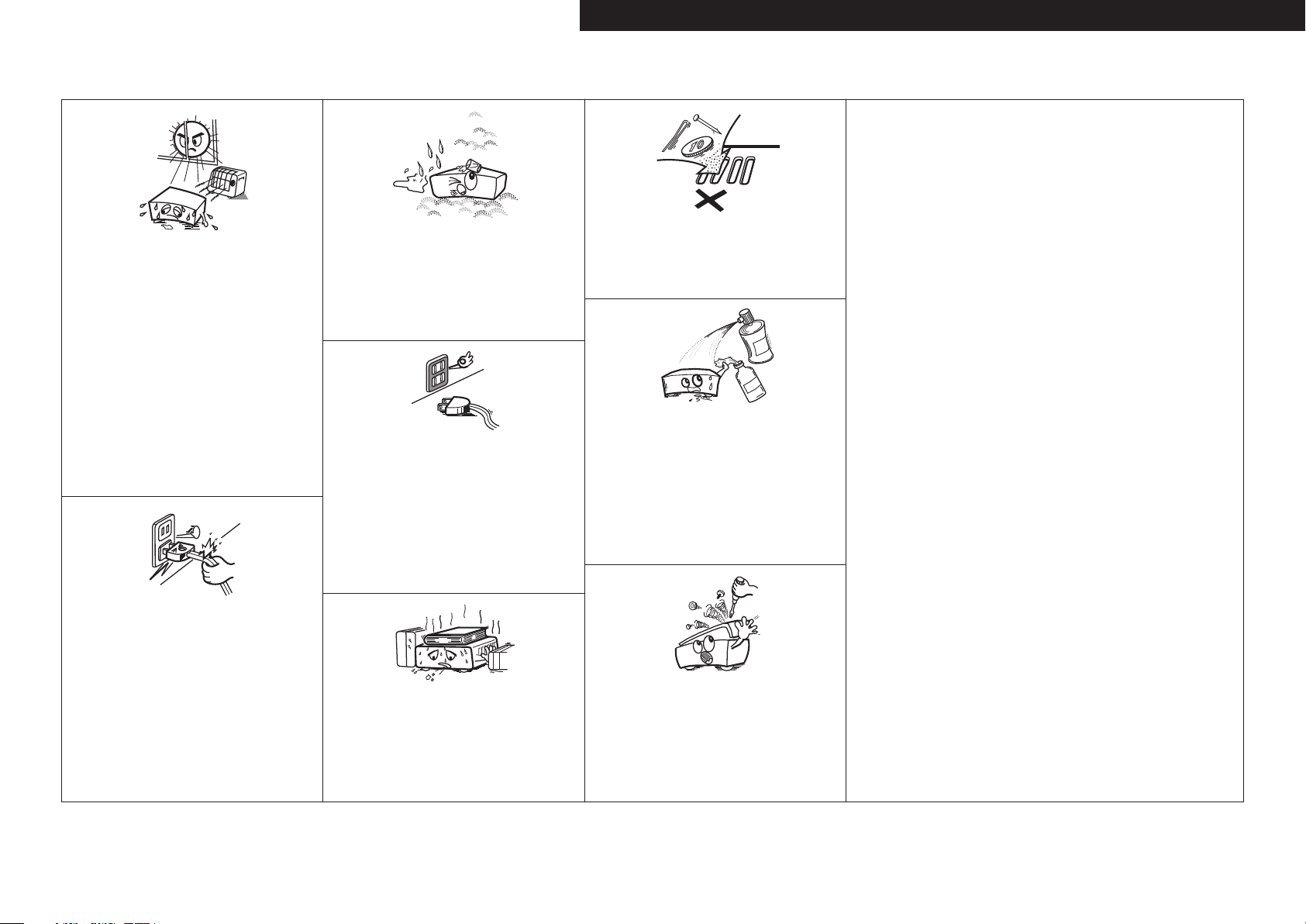

• Avoid high temperatures.
Allow for sufcient heat dispersion when installed in a rack.
• Vermeiden Sie hohe Temperaturen.
Beachten Sie, dass eine ausreichende Belüftung
gewährleistet wird, wenn das Gerät auf ein Regal gestellt
wird.
• Eviter des températures élevées.
Tenir compte d’une dispersion de chaleur sufsante lors de
l’installation sur une étagère.
• Evitate di esporre l’unità a temperature elevate.
Assicuratevi che vi sia un’adeguata dispersione del calore
quando installate l’unità in un mobile per componenti
audio.
• Evite altas temperaturas.
Permite la suciente dispersión del calor cuando está
instalado en la consola.
• Vermijd hoge temperaturen.
Zorg er bij installatie in een audiorack voor, dat de door
het toestel geproduceerde warmte goed kan worden
afgevoerd.
• Undvik höga temperaturer.
Se till att det nns möjlighet till god värmeavledning vid
montering i ett rack.
• Handle the power cord carefully.
Hold the plug when unplugging the cord.
• Gehen Sie vorsichtig mit dem Netzkabel um.
Halten Sie das Kabel am Stecker, wenn Sie den Stecker
herausziehen.
• Manipuler le cordon d’alimentation avec précaution.
Tenir la prise lors du débranchement du cordon.
• Manneggiate il cavo di alimentazione con attenzione.
Tenete ferma la spina quando scollegate il cavo dalla presa.
• Maneje el cordón de energía con cuidado.
Sostenga el enchufe cuando desconecte el cordón de
energía.
• Hanteer het netsnoer voorzichtig.
Houd het snoer bij de stekker vast wanneer deze moet
worden aan- of losgekoppeld.
• Hantera nätkabeln varsamt.
Håll i kabeln när den kopplas från el-uttaget.
• Keep the unit free from moisture, water, and dust.
• Halten Sie das Gerät von Feuchtigkeit, Wasser und Staub
fern.
• Protéger l’appareil contre l’humidité, l’eau et la poussière.
• Tenete l’unità lontana dall’umidità, dall’acqua e dalla
polvere.
• Mantenga el equipo libre de humedad, agua y polvo.
• Laat geen vochtigheid, water of stof in het apparaat
binnendringen.
• Utsätt inte apparaten för fukt, vatten och damm.
• Unplug the power cord when not using the unit for long
periods of time.
• Wenn das Gerät längere Zeit nicht verwendet werden soll,
trennen Sie das Netzkabel vom Netzstecker.
• Débrancher le cordon d’alimentation lorsque l’appareil
n’est pas utilisé pendant de longues périodes.
• Scollegate il cavo di alimentazione quando prevedete di
non utilizzare l’unità per un lungo periodo di tempo.
• Desconecte el cordón de energía cuando no utilice el
equipo por mucho tiempo.
• Neem altijd het netsnoer uit het stopkontakt wanneer het
apparaat gedurende een lange periode niet wordt gebruikt.
• Koppla loss nätkabeln om apparaten inte kommer att
användas i lång tid.
* (For apparatuses with ventilation holes)
• Do not obstruct the ventilation holes.
• Decken Sie den Lüftungsbereich nicht ab.
• Ne pas obstruer les trous d’aération.
• Non coprite i fori di ventilazione.
• No obstruya los oricios de ventilación.
• De ventilatieopeningen mogen niet worden beblokkeerd.
• Täpp inte till ventilationsöppningarna.
• Do not let foreign objects into the unit.
• Lassen Sie keine fremden Gegenstände in das Gerät kommen.
• Ne pas laisser des objets étrangers dans l’appareil.
• Non inserite corpi estranei all’interno dell’unità.
• No deje objetos extraños dentro del equipo.
• Laat geen vreemde voorwerpen in dit apparaat vallen.
• Se till att främmande föremål inte tränger in i apparaten.
• Do not let insecticides, benzene, and thinner come in
contact with the unit.
• Lassen Sie das Gerät nicht mit Insektiziden, Benzin oder
Verdünnungsmitteln in Berührung kommen.
• Ne pas mettre en contact des insecticides, du benzène et
un diluant avec l’appareil.
• Assicuratevi che l’unità non entri in contatto con insetticidi,
benzolo o solventi.
• No permita el contacto de insecticidas, gasolina y
diluyentes con el equipo.
• Voorkom dat insecticiden, benzeen of verfverdunner met
dit toestel in contact komen.
• Se till att inte insektsmedel på spraybruk, bensen och
thinner kommer i kontakt med apparatens hölje.
• Never disassemble or modify the unit in any way.
• Versuchen Sie niemals das Gerät auseinander zu nehmen
oder zu verändern.
• Ne jamais démonter ou modier l’appareil d’une manière
ou d’une autre.
• Non smontate né modicate l’unità in alcun modo.
• Nunca desarme o modique el equipo de ninguna
manera.
• Dit toestel mag niet gedemonteerd of aangepast worden.
• Ta inte isär apparaten och försök inte bygga om den.
nNOTE ON USE / HINWEISE ZUM GEBRAUCH / OBSERVATIONS RELATIVES A L’UTILISATION / NOTE SULL’USO /
NOTAS SOBRE EL USO / ALVORENS TE GEBRUIKEN / OBSERVERA ANGÅENDE ANVÄNDNINGEN

ENGLISH
A NOTE ABOUT RECYCLING:
This product’s packaging materials are recyclable and can be reused. Please dispose of any
materials in accordance with the local recycling regulations.
When discarding the unit, comply with local rules or regulations.
Batteries should never be thrown away or incinerated but disposed of in accordance with the local
regulations concerning battery disposal.
This product and the supplied accessories, excluding the batteries, constitute the applicable
product according to the WEEE directive.
HINWEIS ZUM RECYCLING:
Das Verpackungsmaterial dieses Produktes ist zum Recyceln geeignet und kann wieder verwendet
werden. Bitte entsorgen Sie alle Materialien entsprechend der örtlichen Recycling-Vorschriften.
Beachten Sie bei der Entsorgung des Gerätes die örtlichen Vorschriften und Bestimmungen.
Die Batterien dürfen nicht in den Hausmüll geworfen oder verbrannt werden; bitte entsorgen Sie
die Batterien gemäß der örtlichen Vorschriften.
Dieses Produkt und das im Lieferumfang enthaltene Zubehör (mit Ausnahme der Batterien!)
entsprechen der WEEE-Direktive.
UNE REMARQUE CONCERNANT LE RECYCLAGE:
Les matériaux d’emballage de ce produit sont recyclables et peuvent être réutilisés. Veuillez
disposer des matériaux conformément aux lois sur le recyclage en vigueur.
Lorsque vous mettez cet appareil au rebut, respectez les lois ou réglementations en vigueur.
Les piles ne doivent jamais être jetées ou incinérées, mais mises au rebut conformément aux lois en vigueur sur la
mise au rebut des piles.
Ce produit et les accessoires inclus, à l’exception des piles, sont des produits conformes à la directive DEEE.
NOTA RELATIVA AL RICICLAGGIO:
I materiali di imballaggio di questo prodotto sono riutilizzabili e riciclabili. Smaltire i materiali conformemente alle
normative locali sul riciclaggio.
Per lo smaltimento dell’unità, osservare le normative o le leggi locali in vigore.
Non gettare le batterie, né incenerirle, ma smaltirle conformemente alla normativa locale sui riuti chimici.
Questo prodotto e gli accessori inclusi nell’imballaggio sono applicabili alla direttiva RAEE, ad eccezione delle
batterie.
ACERCA DEL RECICLAJE:
Los materiales de embalaje de este producto son reciclables y se pueden volver a utilizar. Disponga de estos
materiales siguiendo los reglamentos de reciclaje de su localidad.
Cuando se deshaga de la unidad, cumpla con las reglas o reglamentos locales.
Las pilas nunca deberán tirarse ni incinerarse. Deberá disponer de ellas siguiendo los reglamentos de su localidad
relacionados con los desperdicios químicos.
Este producto junto con los accesorios empaquetados es el producto aplicable a la directiva RAEE excepto pilas.
EEN AANTEKENING MET BETREKKING TOT DE RECYCLING:
Het inpakmateriaal van dit product is recycleerbaar en kan opnieuw gebruikt worden. Er wordt verzocht om zich van
elk afvalmateriaal te ontdoen volgens de plaatselijke voorschriften.
Volg voor het wegdoen van de speler de voorschriften voor de verwijdering van wit- en bruingoed op.
Batterijen mogen nooit worden weggegooid of verbrand, maar moeten volgens de plaatselijke voorschriften
betreffende chemisch afval worden verwijderd.
Op dit product en de meegeleverde accessoires, m.u.v. de batterijen is de richtlijn voor afgedankte elektrische en
elektronische apparaten (WEEE) van toepassing.
OBSERVERA ANGÅENDE ÅTERVINNING:
Produktens emballage är återvinningsbart och kan återanvändas. Kassera det enligt lokala
återvinningsbestämmelser.
När du kasserar enheten ska du göra det i överensstämmelse med lokala regler och bestämmelser.
Batterier får absolut inte kastas i soporna eller brännas. Kassera dem enligt lokala bestämmelser för kemiskt avfall.
Denna apparat och de tillbehör som levereras med den uppfyller gällande WEEE-direktiv, med undantag av
batterierna.
ITALIANO ESPAÑOL NEDERLANDS SVENSKADEUTSCH FRANCAISENGLISH
III

ENGLISH

Connections Operation Troubleshooting Specications
Main Features ················································································· 1
Accessories······················································································ 1
Cautions on Installation································································· 1
Cautions on Handling····································································· 2
About the Remote Control Unit ···················································· 2
Inserting the Batteries ··································································· 2
Operating Range of the Remote Control Unit······························· 2
Part Names and Functions····························································· 3
Front Panel····················································································· 3
Rear Panel······················································································ 3
Remote Control Unit······································································ 4
Getting Started
nContents
Troubleshooting ································································9
Specications····································································10
Connections
Operation
Thank you for purchasing this DENON product. To ensure proper
operation, please read this owner’s manual carefully before using the
product.
After reading them, be sure to keep them for future reference.
Getting Started
Check that the following parts are supplied with the product.
q Owner’s manual ...................................................................... 1
w Service station list ................................................................... 1
e Remote control unit (RC-1131) ............................................... 1
r R03/AAA batteries ................................................................... 2
Accessories
Note:
For heat dispersal, do not install this unit in a conned space such
as a bookcase or similar enclosure.
bNote
Wall
b
b
Cautions on Installation
Getting Started
Preparations···················································································· 5
Cables Used for Connections························································ 5
Connecting the Audio Equipment················································· 5
Connecting the Speakers······························································· 5
Connecting the Speaker Cables···················································· 5
Speaker Connections····································································· 6
Connecting Players········································································· 6
Connecting Recorders···································································· 7
Connecting the Power Cord··························································· 7
Preparations Prior to Playing························································· 8
Starting Playback············································································ 8
Starting Recording ········································································· 8
Copying Recorders········································································ 8
b
e
Main Features
1. HC (High-Current) single push-pull circuit installed to
simultaneously achieve both “subtlety” and “powerfulness”
Employs HC transistors that pass 2 ~ 3 times the peak current of
conventional audio power transistors, to acquire a stable, expressive
quality of music from extremely low-levels to high volume.
2. High-speed, large current capacity power circuit
To draw out the full potential of the HC single push-pull circuit,
the power circuit uses DENON custom-specification block type
electrolytic capacitors, as well as SBD (Schottky-Barrier Diode) with
short reverse recovery time and minimal current noise.
3. Source Direct function, for pure audio playback
Achieves pure audio playback, protecting the purity of the sound
by by-passing TONE (BASS, TREBLE), LOUDNESS and BALANCE
controls.
4. Reduced power consumption during standby
In consideration of the environment, power consumption during
standby has been reduced to 0.3 W or better.
Index ························································································10


ENGLISH
Connections Operation Troubleshooting Specications
Cautions on Handling
•Before turning the power switch on
Check once again that all connections are correct and that there are
no problems with the connection cables.
•Power is supplied to some of the circuitry even when the unit is
set to the standby mode. When traveling or leaving home for long
periods of time, be sure to unplug the power cord from the power
outlet.
•About condensation
If there is a major difference in temperature between the inside of
the unit and the surroundings, condensation (dew) may form on
the operating parts inside the unit, causing the unit not to operate
properly.
If this happens, let the unit sit for an hour or two with the power
turned off and wait until there is little difference in temperature
before using the unit.
•Cautions on using mobile phones
Using a mobile phone near this unit may result in noise. If so, move
the mobile phone away from this unit when it is in use.
•Moving the unit
Turn off the power and unplug the power cord from the power
outlet.
Next, disconnect the connection cables to other system units
before moving the unit.
•Note that the illustrations in these instructions may differ from the
actual unit for explanation purposes.
Inserting the Batteries
q Remove the remote control unit’s rear
cover.
w Set two R03/AAA batteries in the battery
compartment in the indicated direction.
e Put the rear cover back on.
NOTE
• Replace the batteries with new ones if the set does not operate
even when the remote control unit is operated close to the unit.
• The supplied batteries are only for verifying operation.
• When inserting the batteries, be sure to do so in the proper direction,
following the “q” and “w” marks in the battery compartment.
• To prevent damage or leakage of battery uid:
• Do not use a new battery together with an old one.
• Do not use two different types of batteries.
• Do not attempt to charge dry batteries.
• Do not short-circuit, disassemble, heat or dispose of batteries in
ames.
• If the battery uid should leak, carefully wipe the uid off the inside
of the battery compartment and insert new batteries.
• Remove the batteries from the remote control unit if it will not be in
use for long periods.
• Used batteries should be disposed of in accordance with the local
regulations regarding battery disposal.
30°
30°
Approx. 8 m
Operating Range of the Remote Control
Unit
Point the remote control unit at the remote sensor when operating
it.
NOTE
The set may function improperly or the remote control unit may not
operate if the remote control sensor is exposed to direct sunlight,
strong articial light from an inverter type uorescent lamp or infrared
light.
About the Remote Control Unit
The included remote control unit can be used to control DENON CD
players and tuners.
b Some products may not be operable.
R03/AAA
Getting Started

Connections Operation Troubleshooting
ENGLISH
Specications

For buttons not explained here, see the page indicated in parentheses ( ).
qPower indicator
Changes as shown below according to PMA-
710AE’s status.
• For several seconds after the power is turned
on··············································· Red (blinking)
• Power “ON” ············································Green
• Muting ······································· Red (blinking)
• Standby······················································ Red
• Power “OFF”··············································· Off
wPower switch
(hON/STANDBY jOFF )
When set to “hON/STANDBY”, the power turns
on, and when set to “jOFF”, the power turns
off.
eHeadphones jack (PHONES)
rBASS control knob
tTREBLE control knob
yBALANCE control knob
uVOLUME control knob
iREC OUT SELECTOR knob
oINPUT SELECTOR knob
Use this to select the source that you wish to
listen to.
Q0 Input indicator
The selected input is shown with an orange
indicator.
Front Panel
q w e r t y iu o
Q0Q1Q2Q4 Q3
Part Names and Functions
Q1 SOURCE DIRECT switch
When set to “hON”, the signals do not pass
through the tone adjustment circuitry (bass,
treble, balance and loudness), resulting in
playback with higher sound quality.
When set to “jOFF”, the sound can be
adjusted to your tastes.
Q2 LOUDNESS switch
When listening with the volume turned low, set
this to “hON” to amplify the bass and treble
sound that is hard to hear when the volume is
low and achieve a more natural sound.
Q3 SPEAKERS A/B switches
• When A (or B) is set to “hON”, sound is
produced from the speakers connected to the
A (or B) speaker output terminals.
• When both A and B are set to “hON”, sound is
produced from the speakers connected to both
the A and B speaker output terminals.
• When both A and B are set to “jOFF”, no
sound is produced from the speakers. Use this
when listening over headphones.
Q4 Remote control sensor
Rear Panel
q w e r t
yu
qInput terminals (INPUTS)
Connect your source equipment here.
wRecording input/output terminals
(RECORDER-1 and RECORDER-2)
Connect your recording equipment here.
ePRE OUT terminals
Use this to add such equipment as a power
amplier or subwoofer.
rSpeaker system terminals
(SPEAKER SYSTEMS)
Connect your speakers here.
tAC OUTLETS
Use this as the power outlets for other audio
devices. Check equipment power requirement
ratings before use (see the ratings as marked
on the rear panel). If in doubt consult with your
dealer or DENON distributor.
y Power cord
uSIGNAL GND (ground) terminal
Connect the ground wire from your turntable
here.
NOTE
• This terminal is not a safety ground.
• NEVER insert the short-circuiting pin plug into
the recording output or PRE OUT terminals.
Doing so could result in damage.
NOTE
Functions r, t, y and Q2 are only available when
the SOURCE DIRECT switch is set to “jOFF”.
• When the VOLUME control knob is set just
beyond the “12 o’clock” position (over halfway),
the adjustments that can be made with the BASS
and TREBLE controls is decreased.
• When the VOLUME control knob is set to
maximum or turned fully clockwise, the base and
treble can no longer be adjusted.
Getting Started


Connections Operation Troubleshooting
ENGLISH
Specications
Remote Control Unit
• The included remote control unit can be used to
operate DENON CD players and tuners.
• When using it, also refer to the operating
instructions of the other devices.
• Some products may not be operable.
CD player block
OPEN/CLOSE
DISK SKIP
0 ~ 9, +10
PROGRAM/
DIRECT
RANDOM
1/ 3
REPEAT
8
2
9
DISC/USB
FOLDER MODE
REMOTE/
BROWSE
ENTER
FOLDER +/–
uio p
Press this button to open and close
the disc tray.
This button selects the disc, when
using a DENON multi-disc CD
player.
Number buttons
Press this button to switch between
PROGRAM and DIRECT play.
Random playback
Play / Pause
Repeat playback
Reverse-skip
Stop
Forward-skip
Press this button to select “DISC” or
“USB”.
Press this button to select “Folder
Mode” or “Disc Mode”.
Press this button to select the
display mode.
Enter button
Press this button to select the le to
be played.
Cursor buttons
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
TUNER block
TUNER PRESET d, f
These switch the preset channel.
POWER button
This operates the main unit’s power.
Input source selector buttons
These switch the input source.
MUTING button
Press this to mute the sound.
The power indicator on the main unit
blinks red.
Press again to produce sound.
Volume adjust buttons
These adjust the volume.
Amplier operating buttons DENON product operating buttons
Getting Started

ENGLISH

Getting Started Operation Troubleshooting Specications
NOTE
• Do not plug in the power cord until all connections have been
completed.
• When making connections, also refer to the operating instructions
of the other components.
• Be sure to connect the left and right channels properly (left with left,
right with right).
• Do not bundle power cords together with connection cables. Doing
so can result in humming or noise.
• Do not turn up the volume when no turntable is connected to the
PHONO input terminals. Doing so will cause humming or noise.
Connections for all compatible audio signal format is described in
this operating instructions. Please select the types of connections
suited for the equipment you are connecting.
Connections
Cables Used for Connections
Select the cables according to the equipment being connected.
Preparations
Audio cables
Analog connections (stereo)
(White)
(Red)
R
L
R
L
Stereo pin-plug cable
Speaker connections
Speaker cables
Connecting the Audio Equipment
Carefully check the left (L) and right (R) channels and + (red) and –
(black) polarities on the speakers being connected to the PMA-710AE,
and be sure to interconnect the channels and polarities correctly.
1Peel off about 10 mm of sheathing from the tip of the speaker cable, then either
twist the core wire tightly or terminate
it.
2Turn the speaker terminal counterclockwise to loosen it.
3Insert the speaker cable’s core wire to the hilt into the speaker terminal.
4Turn the speaker terminal clockwise to tighten it.
NOTE
• Connect the speaker cables in such a way that they do not stick out
of the speaker terminals. The protection circuit may be activated if
the core wires touch the rear panel or if the + and – sides touch each
other (v “Protection circuit”).
• Never touch the speaker terminals while the power supply is
connected. Doing so could result in electric shock.
Protection circuit
The protection circuit will be activated in the following cases:
• When the speaker cable’s core wires are touching the rear
panel or screws or when the speaker cable’s + and – sides are
touching
• When the surrounding temperature is extremely high
• When the internal temperature rises due to extended use with
a high output
If this happens, unplug the power cord, then check the connections
of the speaker cables and input cables. If the set’s temperature
is extremely high, wait for it to cool off and improve surrounding
ventilation. After doing this, plug the power cord back in.
If the protection circuit is activated though there are no problems
in ventilation around the set or in connections, the set could be
damaged. Turn off the power, then contact a DENON servicing and
inquiry outlet.
Connecting the Speaker Cables
Connecting the Speakers
nSpeaker impedanceSpeaker impedance
Use speakers with impedances within the ranges shown below
according to their usage conditions.
Speakers used Impedance
A or B 4 ~ 16 Ω/ohms
A and B 8 ~ 16 Ω/ohms
Cautions on playing SA sources:
When regular speakers not compatible with SA sources (DVD Audio discs, Super Audio CDs and other sources including treble components
above the audible range), set the properties of the player (DVD Audio player, Super Audio CD player, etc.) for use with regular speakers (or
ampliers).
The speakers may be damaged if the volume is set too high when playing SA sources. For instructions on setting the player, refer to the
operating instructions included with the player.
Connections


Getting Started Operation Troubleshooting
ENGLISH
Specications
w qw q
(R)(L)
w qw q
(R)(L)
Speakers A
Connecting Players
"6%*0065
3
-
"6%*0
"6%*0065
3
-
"6%*0
"6%*0065
3
-
"6%*0
*/
3
-
"6%*0
(/%
"6%*0
065
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
• Only Turntables tted with a MM (Moving Magnet) cartridge can be used with this unit. If you have
an MC (Moving Coil) cartridge you will need to use a commercially available head amplier or step-up
transformer.
• If humming or other noise is generated when the ground wire is connected, disconnect it.
CD player
Tuner
DVD player
Turntable
(MM cartridge)
Speakers B
Speaker Connections
Connections
w q
w q
HIGH
LOW
w q
w q
HIGH
LOW
Bi-wiring Connection
• When bi-wiring with bi-wireable speakers connect the mid and high range terminals to SYSTEM (A)When bi-wiring with bi-wireable speakers connect the mid and high range terminals to SYSTEM (A)
(or SYSTEM (B)), the low range terminals to SYSTEM (B) (or SYSTEM (A)). This enables playback with
minimized interference between high-range speaker unit and low-range speaker unit.
• Set both theSet both the SPEAKER A/B switches to “hON”.
Speaker (L) Speaker (R)
Power Amplier /
Subwoofer

Getting Started Operation Troubleshooting
ENGLISH
Specications

NOTE
• Only use the AC OUTLET for audio equipment. Never use it for hair driers, TVs or other electrical
appliances.
• Insert the plugs securely. Incomplete connections will result in the generation of noise.
Wait until all connections have been completed before connecting the power cord.
To household
power outlet
(AC 230 V, 50 Hz)
Power cord
Connecting the Power Cord
Connecting to the AC OUTLET
SWITCHED (Total capacity: 100 W (0.43 A):
The power supply to the outlet turns ON and
OFF with the main unit’s POWER switch.
Make sure the total power consumption
of the connected devices does not exceed
100 W (0.43 A).
Connections
Connecting Recorders
3
-
"6%*0*/
3
-
"6%*0
"6%*0*/
3
-
"6%*0065
3
-
"6%*0
"6%*0065
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
CD recorder /
Tape deck 1 CD recorder / Tape deck 2

8
ENGLISH
Getting Started Connections Troubleshooting Speci cations
• The sound to be recorded can be heard by selecting the playback
source with INPUT SELECTOR, while the recorded sound can be
heard by selecting the recorder.
• When performing these operations, also refer to the operating
instructions of the other devices.
Copying Recorders
POWER
INPUT SELECTOR
VOLUME
VOLUME
POWER <BASS>
<TREBLE>
<BALANCE> INPUT SELECTOR
<LOUDNESS>
<SPEAKERS>
<SOURCE DIRECT>
<REC OUT SELECTOR>
Operation
Preparations Prior to Playing
1Set the volume to the minimum by using VOLUME.
2Set <SOURCE DIRECT> and <LOUDNESS> to “OFF”.
3Set <BASS>, <TREBLE> and <BALANCE> to the center position.
4Press <SPEAKERS> Aor Bdepending on the terminals to which speakers are connected.
5Turn on the power by pressing POWER.
The power indicator blinks red for several seconds, then lights
green.
Starting Playback
1Use INPUT SELECTOR to select the source to be played.
The input indicator for the selected source lights.
[Selectable source]
RECORDER-2 RECORDER-1 PHONO CD TUNER
LINE
2Play the selected source.
3Adjust the volume by using VOLUME.
4Adjust the tone with <BASS>, <TREBLE>, <BALANCE> and <LOUDNESS>.
b If there is no need to adjust the tone, press <SOURCE DIRECT>.
Starting Recording
1Turn <REC OUT SELECTOR> to select the source to be recorded.
[Selectable source]
PHONO CD TUNER LINE
2Set the recorder to the record mode.
3Start playing the source to be recorded.
1Turn <REC OUT SELECTOR> and select “RECORDER- 1 12” (or “RECORDER-2 11”).
[Selectable source]
RECORDER-1 12 RECORDER-2 11
b When copying from a device connected to the “RECORDER-1”
terminal to a device connected to the “RECORDER-2” terminal,
select “RECORDER-1 1 2”.
b When copying from a device connected to the “RECORDER-2”
terminal to a device connected to the “RECORDER-1” terminal,
select “RECORDER-2 1 1”.
2Set the device connected to the RECORDER-1 (or RECORDER-2) terminal to the record mode.
3Start playback on the device connected to the RECORDER-2 (or RECORDER-1) terminal.
Operation
Button located on both the main unit and
the remote control unit BUTTON
Button only on the main unit <BUTTON>
Button only on the remote control unit [BUTTON]
Symbols used to indicate buttons in this manual
NOTE
The sound may be interrupted or noise may be recorded if INPUT
SELECTOR is operated during recording.

Getting Started Connections Operation
ENGLISH
Specications

If a problem should arise, rst check the following:
1. Are the connections correct?
2. Is the set being operated as described in the owner’s manual?
3. Are the other components operating properly?
If this unit does not operate properly, check the items listed in the table below. Should the problem
persist, there may be a malfunction.
In this case, disconnect the power immediately and contact your store of purchase.
Symptom Cause Countermeasure Page
When the power
is turned on, the
power indicator
does not light
and no sound is
produced.
• The power cord’s plug is not
fully plugged in.
• Make sure the unit is correctly
plugged in and switched on at
the mains socket.
7
The power
indicator ashes,
and no sound is
produced.
• A short circuit has occurred,
either due to contact between
the speaker cable cores, or
because ｃ core has come loose
from a terminal and is contacting
the rear panel of the PMA-
710AE.
• The device’s internal temperature
has increased because sufcient
space has not been assured
around the device.
• Unplug the power cord, then
after twisting the core wires
together tightly again, or
effecting termination treatments
etc, please reconnect once
again.
• Turn off the power and ensure
sufcient space around the
device. And turn on the power
again after the body temperature
has fallen sufciently.
5, 6
1, 5
The power
indicator lights
but no sound is
produced.
• The speaker cables are not fully
connected.
• The device you want to listen to
has not been selected.
• The volume control is set to
minimum.
• The input cable is not fully
connected.
• The speaker selector button is
set to “OFF”.
• Connect securely.
• Insure the correct input is
selected.
• Set to an appropriate level.
• Connect securely.
• Ensure the SPEAKER A or B
buttons are set to “ON” as
appropriate.
5, 6
8
3, 4, 8
6, 7
3
Sound is only
produced from
the left or right
speaker (s).
• The speaker cables are not fully
connected.
• The input cable is not fully
connected.
• The left/right balance is off.
• Connect securely.
• Connect securely.
• Adjust to a proper balance using
the balance control knob.
5, 6
6, 7
3, 8
Troubleshooting
Symptom Cause Countermeasure Page
For stereo sound,
the positions of
the instruments
are inverted left/
right.
• The connections of the speakers
or input cables are inverted.
• Check the connections to be
sure that left is connected to
left, right to right.
6, 7
Humming sound is
heard in the music
when playing
records.
• The player’s ground wire is not
connected.
• The cables are not fully
connected to the PHONO
terminals.
• Inuence from a TV or VCR near
the player.
• Connect securely.
• Connect securely.
• Try changing the positions in
which the devices are installed.
6
6
–
Howling is
produced along
with the music if
the volume is too
high when playing
records.
• The player and speakers are too
close together.
• The vibrations from the speakers
are being transmitted to the
player through the oor.
• Install the player and speakers as
far from each other as possible.
• Use cushions, etc., to absorb
the speakers’ vibrations.
–
–
When playing a
record, the sound
is distorted.
• The needle pressure is not
proper.
• There is dirt on the tip of the
needle.
• The cartridge is defective.
• Adjust to a proper needle
pressure.
• Check the tip of the needle.
• Replace the cartridge.
–
–
–
Troubleshooting

0
Getting Started Connections Operation Troubleshooting
ENGLISH
n Power amplier section
Rated Output Power: 2-channel driving (CD → SP OUT)
50 W + 50 W (8 Ω/ohms, 20 Hz ~ 20 kHz, T.H.D. 0.07 %)
Dynamic power: 85 W + 85 W (4 Ω/ohms, DIN, 1 kHz, T.H.D. 0.7 %)
High frequency distortion: 0.01 % (Rated output: –3 dB), 8 Ω/ohms, 1 kHz
Output terminals: Speaker A or B: 4 ~ 16 Ω/ohms
A + B: 8 ~ 16 Ω/ohms
Suited for headphones/stereo headphones
n Pre amplier section
Equalizer amplier output: 150 mV
(REC OUT terminals)
Input Sensitivity/Input Impedance: PHONO (MM): 2.5 mV/47 kΩ/kohms
CD, TUNER, LINE, RECORDER-1, RECORDER-2:
105 mV/47 kΩ/kohms (SOURCE DIRECT OFF)
105 mV/13 kΩ/kohms (SOURCE DIRECT ON)
RIAA Deviation: PHONO (MM): 20 Hz ~ 20 kHz ±0.5 dB
nOverall performance
SN Ratio (A network): PHONO (MM): 86 dB
(With input terminals short-circuited, 5 mV input signal)
CD, TUNER, LINE, RECORDER-1, RECORDER-2:
107 dB (input terminals short-circuited)
Tone control (bass): BASS: 100 Hz ±8 dB
TREBLE: 10 kHz ±8 dB
LOUDNESS: 100 Hz: +6 dB, 10 kHz: +6 dB
nGeneral
Power supply: AC 230 V, 50 Hz
Power consumption: 200 W
0.3 W (Standby)
Power outlets: 3 switched outlets, total capacity 100W (0.43A)
Maximum external dimensions: 434 (W) x 121 (H) x 307 (D) mm
Weight: 6.7 kg
nRemote control unit (RC-1131)
Batteries: R03/AAA Type (two batteries)
Maximum external dimensions: 49 (W) x 220 (H) x 21 (D) mm
Weight: 120 g (including batteries)
z: For purposes of improvement, specications and design are subject to change without notice.
