Denon ASD-1RBK User manual

Control Dock for iPod®
ASD-1R
OPERATING INSTRUCTIONS
iPod is a trademark of Apple Computer, Inc.,
registered in the U.S. and other countries.

I
FCC INFORMATION (For US customers)
1. PRODUCT
This product complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this product may not cause harmful
interference, and (2) this product must accept any interference received,
including interference that may cause undesired operation.
2. IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT
This product, when installed as indicated in the instructions contained in this
manual, meets FCC requirements. Modification not expressly approved by
DENON may void your authority, granted by the FCC, to use the product.
3. NOTE
This product has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This product generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
product does cause harmful interference to radio or television reception,
which can be determined by turning the product OFF and ON, the user is
encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the product into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the local retailer authorized to distribute this type of product or
an experienced radio/TV technician for help.
This Class B apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
CAUTION:
To completely disconnect this product from the mains, disconnect the plug
from the wall socket outlet.
When setting up this product, make sure that the AC outlet you are using is
easily accessible.
ENGLISH

II
ENGLISH
CAUTION:
•Minimum distances around the apparatus for sufficient
ventilation.
•The ventilation should not be impeded by covering the
ventilation openings with items, such as newspapers,
table-cloths, curtains, etc..
•No naked flame sources, such as lighted candles, should
be placed on the apparatus.
•Attention should be drawn to the environmental aspects
of battery disposal.
•The use of apparatus in tropical and/or moderate climates.
NOTE ON USE:
•Avoid high temperatures.
Allow for sufficient heat dispersion when installed in a rack.
•Handle the power cord carefully.
Hold the plug when unplugging the cord.
•Keep the apparatus free from moisture, water, and dust.
•Unplug the power cord when not using the apparatus for
long periods of time.
•Do not obstruct the ventilation holes.
•Do not let foreign objects into the apparatus.
•Do not let insecticides, benzene, and thinner come in
contact with the apparatus.
•Never disassemble or modify the apparatus in any way.

III
ENGLISH
•DECLARATION OF CONFORMITY
We declare under our sole responsibility that
this product, to which this declaration relates,
is in conformity with the following standards:
EN60065, EN55022, EN55024, EN61000-3-2
and EN61000-3-3.
Following the provisions of 73/23/EEC,
2004/108/EC and 93/68/EEC Directive.

IV
A NOTE ABOUT RECYCLING:
This product’s packaging materials are recyclable and can be
reused. Please dispose of any materials in accordance with the
local recycling regulations.
When discarding the unit, comply with local rules or regulations.
Batteries should never be thrown away or incinerated but
disposed of in accordance with the local regulations concerning
chemical waste.
This product and the accessories packed together constitute the applicable
product according to the WEEE directive except batteries.
ENGLISH

ENGLISH
1
ENGLISH
Getting Started
Contents
Accessories·······················································································1
Before using······················································································2
Part names and functions ·······························································2
Top panel/Rear panel ·······································································2
Bottom panel···················································································2
Getting Started
Accessories
Check that the following parts are attached in addition to the main
unit:
qOperating Instruction ................................................................1
wService Station List ...................................................................1
eAC Adapter (KSAFD1200120W1UV).........................................1
rUniversal Adapter (5 types) ..............................................1 each
tAV/Control Cable (Cable length: Approx. 6 ft/2 m) ....................1
ySystem Connector Cable
(Cable length: Approx. 3 ft/1 m)................................................1
rt y
e
Mounting the universal adapter on the control dock···················3
Connection to devices equipped with
DOCK CONTROL terminals ·····························································4
Connecting the ASD-1R and a device equipped with
a system control (SYSTEM CONNECTOR) terminal·····················5
Connecting Other Sources
When the ASD-1R and a device equipped with a
DOCK CONTROL terminal are connected······································6
When the ASD-1R and a device equipped with a system
control (SYSTEM CONNECTOR) terminal are connected ···········6
Remote control buttons and operations··········································7
Functions and operation
Troubleshooting ···············································································8 NOTE:
•Do not use any AC adapter other than the specified one. Doing
so could result in fires or electric shock.
•The included AC adapter is exclusively for use with this unit.
Never use it with other equipment.
Specifications ···················································································9
(For U.S.A. &
Canada model) (For China model)(For Europe model)

ENGLISH
2
ENGLISH
Getting Started Getting Started

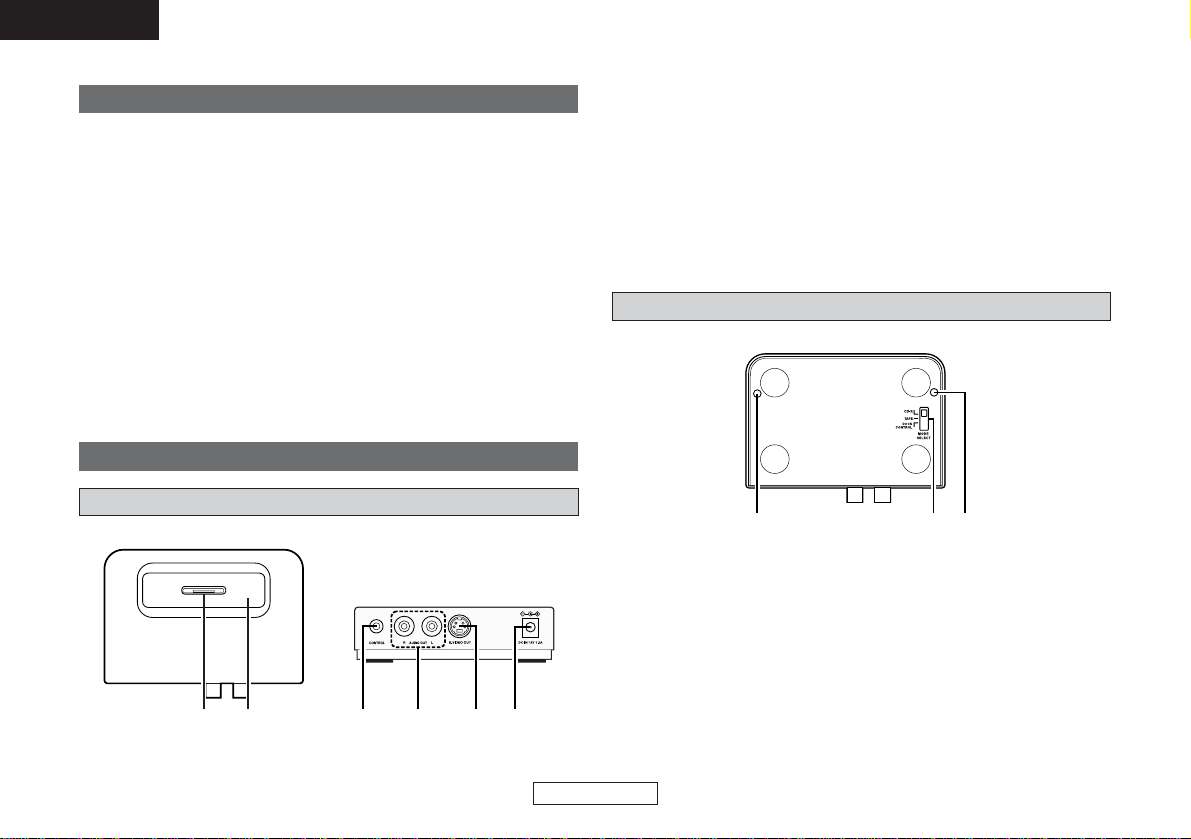

Part names and functions
Top panel/Rear panel
wq re yt
qDock connector
wUniversal adapter slot
eCONTROL terminal (stereo mini plug)
rAUDIO OUT terminals
tS-VIDEO OUT terminal
yDC IN terminal
Bottom panel
u ui
uFixing screw holes
Use the fixing screw holes (two) to fix the control dock by screw.
(Usable screws: M3, max. 15 mm in length)
iCommunication mode selector (MODE SELECT)
Before using
Pay attention to the following before using this unit:
•Moving the unit
To prevent short-circuits or damaged wires in the connection cables,
always unplug the power supply cord and disconnect the connection
cables between all other audio components when moving the unit.
•Cautions on using mobile phones
Using a mobile phone near this unit may result in noise. If so, move
the mobile phone away from this unit when using it.
•Store these instructions in a safe place.
After reading, store this instructions along with the warranty card in
a safe place.
•Note that the illustrations in these instructions may differ from
the actual unit for explanation purposes.

ENGLISH
3
ENGLISH
Connecting Other Sources
Mounting the universal adapter on the control dock
Mount the included universal adapter suited for your iPod®to the
control dock’s universal adapter slot.
iPod is a trademark of Apple Computer, Inc.,
registered in the U.S. and other countries.
Bottom surface of universal adapter
Stamped indication
iPod connectable to the ASD-1RStamped indication
mini
Photo 20, 30GB
Photo 60GB
4th generation iPod 20GB
iPod 20GB
4th generation iPod 40GB
iPod 40GB
iPod mini
iPod Photo 30GB/iPod 20GB
with color display
iPod Photo 60GB/iPod 40GB
with color display
•Agenuine iPod dock adapter can be mounted on this ASD-1R.
•To connect an “iPod nano” or 5th generation iPod, use the dock
adapter included with the iPod.
•The 3rd generation iPod (with Dock Connector) requires the Apple
iPod Universal Dock Adapter 3-Pack that fits your iPod model
(separately available from Apple Computer, Inc.) in order to be
connected to the ASD-1R.
Main unit
Adapter

ENGLISH
4
ENGLISH
Connecting Other Sources Connecting Other Sources

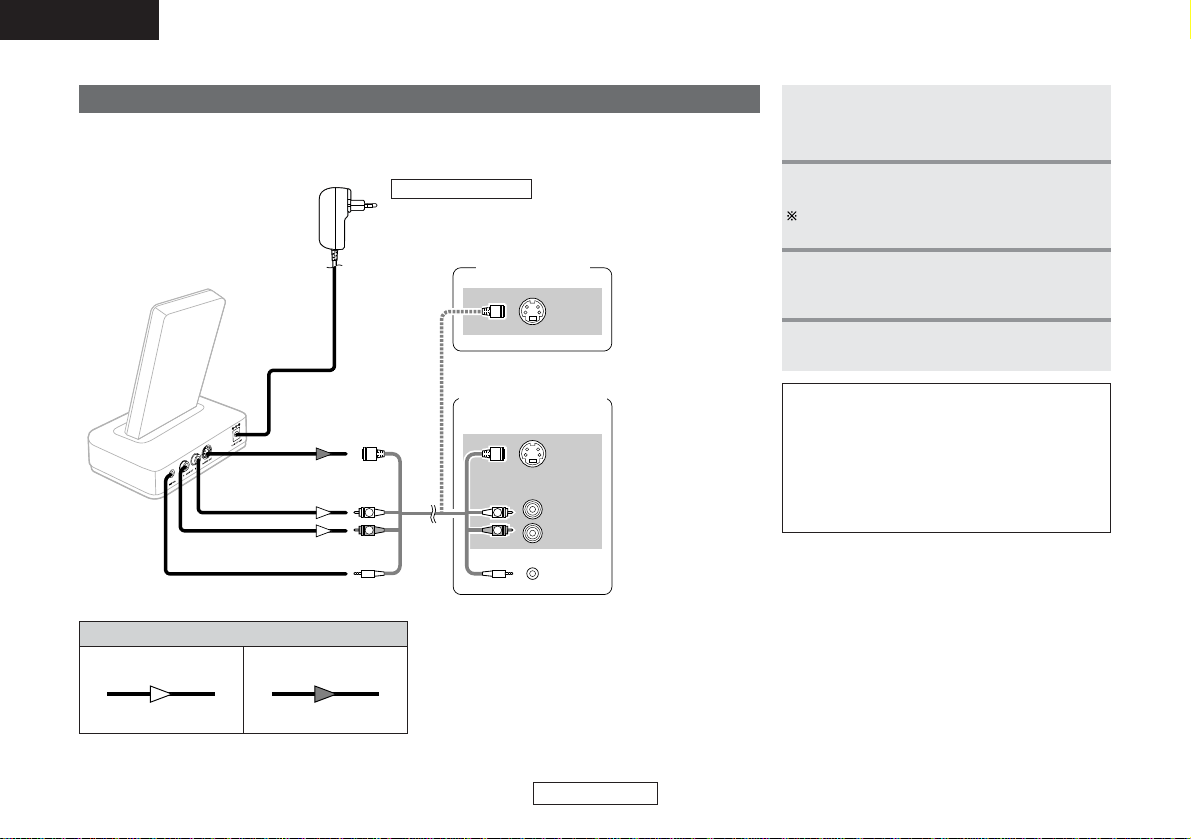

Connection to devices equipped with DOCK CONTROL terminals
The iPod can be operated from an amplifier or system device equipped with a DOCK CONTROL
terminal connected to the ASD-1R.
S VIDEO
IN
AUDIO IN
R
L
DOCK
CONTROL
S VIDEO
IN
R
L
R
L
AC Adapter (Included)
(Viewing iPod images)
AV/Control cable (Included)
Set the MODE SELECT switch on the
ASD-1R’s bottom panel to “DOCK
CONTROL”.
1
Connect the included AC adapter to the
ASD-1R’s DC IN terminal and plug the
AC adapter into a power outlet.
3
Connect as shown at the left.
Also refer to the operating instructions of
the device being connected.
2
Load the iPod onto the ASD-1R.
4
Monitor
NOTE:
Be sure to switch the communications
mode before turning on the ASD-1R’s
power.
The communications mode will not switch
if the MODE SELECT switch is operated
while the power is on.
AC 120 V, 60 Hz (For U.S.A. & Canada model)
AC 230 V, 50 Hz (For Europe model)
AC 220 V, 50 Hz (For China model)
AC outlet (wall)
Device equipped with
dock control terminal
or
Signal direction
Audio signal Video signal
OUT INOUT IN

ENGLISH
5
ENGLISH
Connecting Other Sources Connecting Other Sources
Connecting the ASD-1R and a device equipped with a system control
(SYSTEM CONNECTOR) terminal
The iPod can be operated using the system remote control unit equipped with system control
(SYSTEM CONNECTOR) terminal connected to the ASD-1R.
Use the system remote control unit’s cassette deck or CD recorder buttons to operate the
iPod. For details, see “Remote control buttons and operations” ( Page 7).
S VIDEO
IN
R
L
SYSTEM
CONNECTOR
R
L
R
L
AC Adapter (Included)
(Viewing iPod
images)
Switch the MODE SELECT switch on the
ASD-1R’s bottom panel.
1
Connect the included AC adapter to the
ASD-1R’s DC IN terminal and plug the
AC adapter into a power outlet.
3
Connect as shown at the left.
Be sure the MODE SELECT switch is set to
the same position in step 1 as the input
terminal used for connection.
Also refer to the operating instructions of
the device being connected.
2
Load the iPod onto the ASD-1R.
4
TAPE PB or CD-R PB
System connector cable (Included)
Monitor
Device equipped with
system control
(SYSTEM
CONNECTOR) terminal
NOTE:
Be sure to switch the communications
mode before turning on the ASD-1R’s
power.
The communications mode will not switch
if the MODE SELECT switch is operated
while the power is on.
TAPE, CD-R:
Set the MODE SELECT switch to “TAPE”
when connected to a cassette deck, to “CD-
R” when connected to a CD recorder.
AC 120 V, 60 Hz (For U.S.A. & Canada mode)
AC 230 V, 50 Hz (For Europe model)
AC 220 V, 50 Hz (For China model)
AC outlet (wall)
Pin-plug cable
S-Video cable
Be sure to use the included system cable.
The equipment may not operate if a cable
other than the included one is used.
The names of the terminals given here are
generally used names and may differ from
set to set. Check in the operating
instructions of the set to be connected.

Communications mode
selector (MODE SELECT)
switch
System remote
control unit function
System device
connection
Remote control unit
operating mode
ENGLISH
6
ENGLISH
Functions and operation
When the ASD-1R and a device
equipped with a DOCK CONTROL
terminal are connected
•By connecting the ASD-1R and a DENON
audio device equipped with a DOCK
CONTROL terminal, it is possible to display
the iPod’s status on the connected audio
device’s on-screen display or regular display
section and operate the iPod.
•For instructions on operations, see the
operating instructions of the connected
audio device.
When the ASD-1R and a device equipped with a system control
(SYSTEM CONNECTOR) terminal are connected
•When the ASD-1R and a system device equipped with a system control (SYSTEM
CONNECTOR) terminal are connected, the iPod can be operated with the cassette deck or
CD recorder remote control buttons.
•Operate according to the setting of the MODE SELECT switch on the ASD-1R’s bottom panel.
To operate the iPod
in the cassette deck
remote control
mode
TAPE
PB
L
R
Set to “TAPE”. Set to “TAPE”.
To operate the iPod
in the CD recorder
remote control
mode
CD-R
PB
L
R
Set to “CD-R”. Set to “CD-R”.
Button names may differ from set to set. Check in the operating instructions of the set to
be connected.
NOTE:
•On some devices it is possible to adjust
the iPod’s volume, but the volume output
from the ASD-1R cannot be adjusted.
•Be careful with the volume when
adjusting the iPod’s volume while
listening through headphones.
•Depending on the iPod’s software version, it
may not be possible to operate the iPod
with the ASD-1R. Use the latest software
version. Check the Apple Computer website
for information on the latest software
version.
NOTE:
•Note that DENON will accept no
responsibility whatsoever for loss of or
damage to iPod data when using an iPod
connected to the ASD-1R.

When in the playlist search mode or album search mode, skips to the previous
playlist or album.
ENGLISH
7
ENGLISH
Functions and operation Functions and operation
Play
Pause
Stop
Cue to next track
Cue to previous track
Repeat
Shuffle
Playlist search/
Album search
Cue to next playlist/album
Operation
Cue to previous
playlist/album
Remote control buttons and operations
Name of remote control button
iPod function TAPE
Starts playback.
CD-R
1 PLAY 1 PLAY
1 PLAY 1 PLAY or 1/3
2 STOP 2 STOP
79
68
–REPEAT
(1/ALL)
–RANDOM
–PROG./DIRECT
–7
Pauses playback.
Stops playback.
Skips playback to next track.
Skips playback to previous track.
Switches the repeat mode.
OFF →Single track repeat →All track repeat →OFF
Switches the shuffle mode.
OFF →Shuffle by track →Shuffle by album →OFF
–6
Switches the search mode.
When in the playlist search mode or album search mode, skips to the next playlist
or album.
NOTE:
•Depending on the iPod model, some functions may not operate.
•Some system devices may not be equipped with the above buttons.
•With some system components, functions may not be operable even if there are corresponding buttons on the remote control unit.
Button names may differ from set to set. Check in the operating instructions of the set to be connected.
Operate the iPod image functions on the iPod itself.

ENGLISH
8
ENGLISH
Troubleshooting
If a problem should arise, first check the following.
1. Are the connections correct?
2. Have you operated the receiver according to the Operating Instructions?
If this unit is not operating properly, check the items listed in the table below. Should the problem persist, there may be a malfunction.
Disconnect the power immediately and contact your store of purchase.
Measures PageCauseSymptom
No sound is produced.
No image appears on
the monitor.
•The iPod is not playing.
•The iPod is not properly connected to the ASD-1R.
•The AC adapter is not connected to the ASD-1R or a
power outlet.
•The AV/Control cable is not properly connected.
•The monitor’s input selection is not properly set.
•Check that the iPod is playing.
•Check that the iPod is properly connected to the ASD-1R’s
dock connector.
•Check the connections.
•Check the connections.
•Set the monitor’s input selector to the proper position for
the connected video input terminal.
–
4, 5
4, 5
4, 5
–
Does not operate
properly when a device
equipped with a dock
control terminal is
connected
•The ASD-1R’s communications mode is not properly set. • Check that the communications mode is set to “DOCK
CONTROL”. (Turn the power off when changing the
setting.)
4
Remote control unit
does not operate
properly when a device
equipped with a
SYSTEM CONNECTOR
terminal is connected.
•The ASD-1R’s communications mode is not properly set.
•The communications mode is not suited for the AV/Control
cable connection.
•The system remote control unit’s function selector is not
properly set.
•You are using a cable other than the included system
cable.
•Check that the communications mode is set to “TAPE” or
“CD-R”. (Turn the power off when changing the setting.)
•Set the communications mode to match the AV/Control
cable setting.
•Match the communications mode and system remote
control unit function.
•Use the included system cable.
5
5, 6
6
6

ENGLISH
9
ENGLISH
2iPod control dock (ASD-1R)
Power supply: DC IN 12V
(Dedicated AC adapter)
Power consumption: 1.5 W (When iPod is disconnected)
Maximum external dimensions: 104 (W) x 28.5 (H) x 76.5 (D) mm
Mass: 220 g
Terminal: Analog audio output terminals x
1, S-Video output terminal x 1,
Control terminal x 1
2AC Adapter (KSAFD1200120W1UV)
Rated current: 100 – 240 V, 50/60 Hz
Rated voltage: 0.4 A
* For purposes of improvement, specifications and design are subject to
change without notice.
Specifications

Denon Brand Company, D&M Holdings Inc.
Printed in China 00D 511 4514 209
TOKYO, JAPAN
www.denon.com
