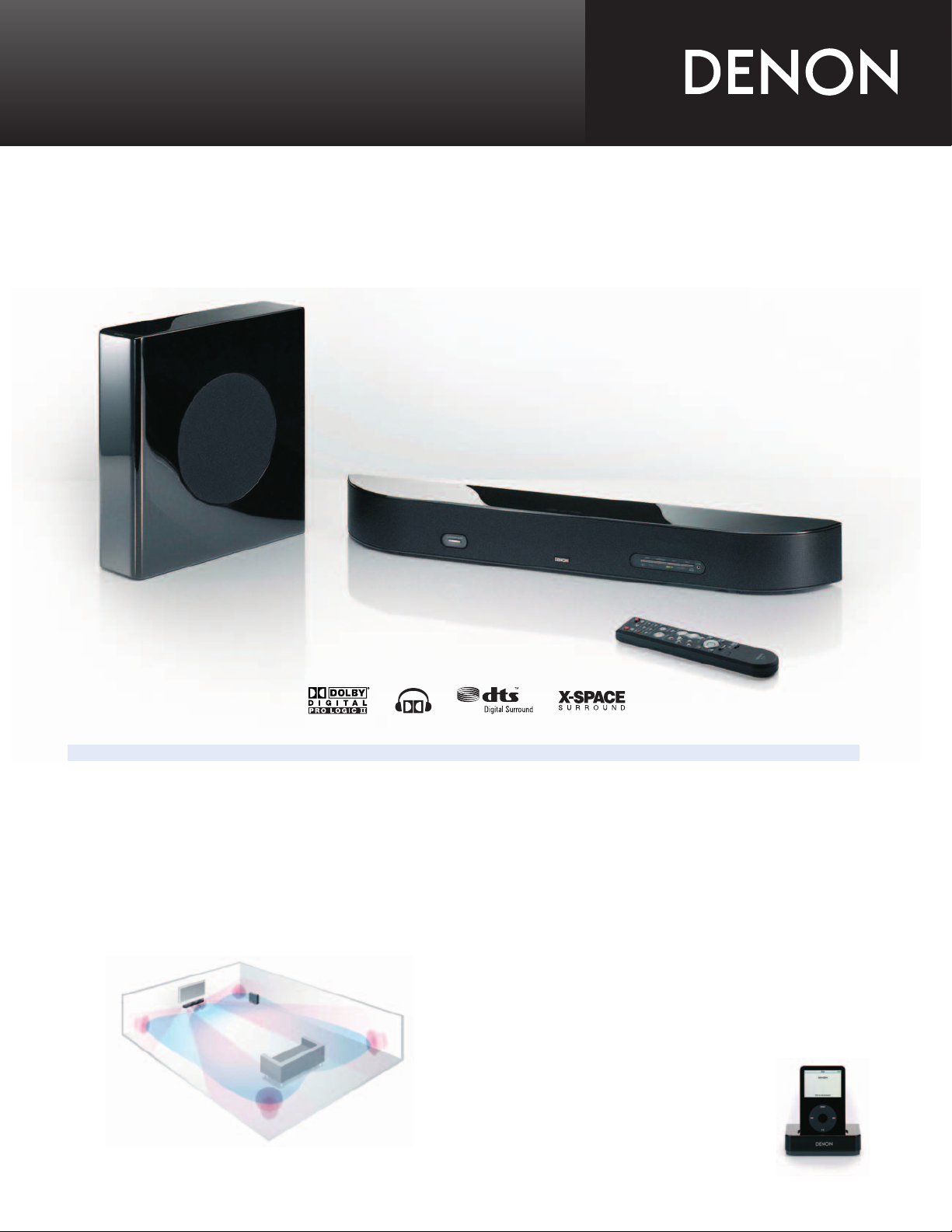

Denon DHT-FS3 User manual

DHT-FS3
Home Theatre System
New model information
Home Theatre Sound Quality
• Surround sound with dynamic ambiance is reproduced with just a front speaker
unit and a subwoofer unit.
• X-SPACE SURROUND masterfully reproduces the surround sound and
expands the listening area.
The cabinet of the front unit contains 6 speakers. X-SPACE SURROUND is tech-
nology that uses those speakers to generate surround algorithms. The sound
waves released from the speakers irradiate throughout the room, so that listeners
hear the sound from the front left and right, the center, and the rear left and right.
Since X-SPACE SURROUND sends the sound waves out over a wide area, lis-
teners can enjoy surround sound at any location in the room.
• Comes with a subwoofer that reproduces deep, dynamic bass sounds.
• Supports all audio formats (Dolby Digital, DTS, Dolby Pro Logic II).
• Includes Dolby Headphone so that you can even enjoy surround entertainment
late at night through your headphones.
Easy Setup, Easy Connection, Easy Operation
• No need for complicated settings.
• Slim design enables easy placement in front of the TV monitor (*1).
(Wall mounting is also possible with supplied accessories.)
• Includes feet that can be used to adjust the height of the front speaker unit
(25mm or 35mm).
• Designed to match flat-panel TV monitors of 30 inches or larger.
• Subwoofer features one-touch connection.
• Includes simple preset remote controller for performing basic operations such
as changing TV channels or switching inputs.
• Convenient Auto Power Standby / On function
*1) Placement may not be possible with some TV models. Please check the dimensions of your TV and TV stand.
Connectivity & Expandability
• Supports the Denon Control Dock for iPod®
• Includes a Quick Setup Guide that makes connection and
operation very easy.
Bullet points
Dynamic surround sound in a simple way.
The DHT-FS3 is a family-friendly home theatre solution for music and movie lovers.
With X-SPACE SURROUND, letting you sit anywhere you like. With the DENON DHT-FS3 home
theatre system, everyone can enjoy surround ambiance wherever they are sitting in the room. With
just a slim front speaker unit and a supplied subwoofer unit, the DHT-FS3 home theatre system
reproduces highly ambient surround sound. No confusing sound space settings required!
Since the DHT-FS3 comes preset with the dimensions and acoustic characteristics of your room, all
you need to do to enjoy your new home theatre is to connect your DVD player and TV monitor.

Denon Brand Company
D&M Building, 2-1 Nisshin-cho, Kawasaki-ku, Kawasaki-shi,
Kanagawa, 210-8569, apan
www.denon.com
Specifications
Front speaker unit
Type
Rated output 22 W x 5 (6 ohms)
Input sensitivity 500 mV/47 kohms / 250 mV/47kohms
(selectable)
Frequency response Front: 150 Hz - 20 kHz
DSW: 45 Hz - 150 Hz
S/N ratio 100 dB
Power supply AC 120 V, 60 Hz
Power consumption When power is on: 32 W
In standby: 1 W or less
Speaker units 8 cm cone type x 6
Maximum external dimensions (W x H x D)
Without feet: 850 x 96 x125 mm
33-15/32” x 3-25/32” x 4-59/64”
With 25 mm feet: 850 x 111 x 125 mm
33-15/32” x 4-3/8” x 4-59/64”
With 35 mm feet: 850 x 121 x 125 mm
33-15/32” x 4-49/64” x 4-59/64”
Weight 4.6 kg
Subwoofer
Type 1-way 1-speaker, bass reflex type
Playback frequency range
45 Hz - 150 Hz
Max. output 40W (IEC), 80W (PEAK)
Input impedance 3ohms
Speaker units 16 cm cone type x 1
Maximum external dimensions (W x H x D)
106 x 380 x 360 mm
4.17” x 15.0” x 14.2”
Weight 5.6 kg, 12.35 lbs
Remote control unit RC-1074
• Design and specifications are subject to change without notice.
• “Dolby”, “Dolby Digital-EX”, “Pro Logic IIx”, and the double-D device are registered
trademarks of Dolby Laboratories Licensing Corporation.
• "DTS" is a registered trademark of DTS, Inc. and "DTS-HD Master Audio" is a
trademark of DTS, Inc.
• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
00000000 A
Denon Electronics (USA), LLC
100 Corporate Drive
Mahwah, N 07430, U.S.A.
www.usa.denon.com
