Thank you for choosing a Denon stereo
receiver. This guide provides step-by-step
instructions for setting up your stereo
receiver.
Please do not return this unit to the
store – call for assistance.
If you need help… :
If you need additional help in solving
problems, contact Denon customer service
in your area.
www.denon.com
Welcome Before You Begin
Required for Setup
Speaker systems Speaker cables
Optional
Subwoofer Subwoofer cable
TV HDMI cable LAN cable Wi-Fi router
• When connecting this unit to a device that is compatible with the Deep Color, 4K and ARC
functions, use a “High Speed HDMI cable with Ethernet” that displays the HDMI logo.
• These drawings are for illustrative purposes only and may not represent the actual product(s).
or
1. DRA-800HE2_QSG_ENG_00A_190411.indd 1 2019/04/19 9:35:14
PrintingColor:Black

2
What’s In the Box
Quick Start Guide
Power cord
Safety Instructions DAB/FM indoor
antenna
Cautions on Using
Batteries
Remote control unit
(RC-1235)
Notes on radio R03/AAA batteries
Receiver
1. DRA-800HE2_QSG_ENG_00A_190411.indd 2 2019/04/19 9:35:15
PrintingColor:Black

3
1Installing batteries in
the remote control unit
Batteries
Setup
Setup by connecting to TV
Setup without connecting to TV
Page4
Page9
2-1
2-2
1. DRA-800HE2_QSG_ENG_00A_190411.indd 3 2019/04/19 9:35:15
PrintingColor:Black

4

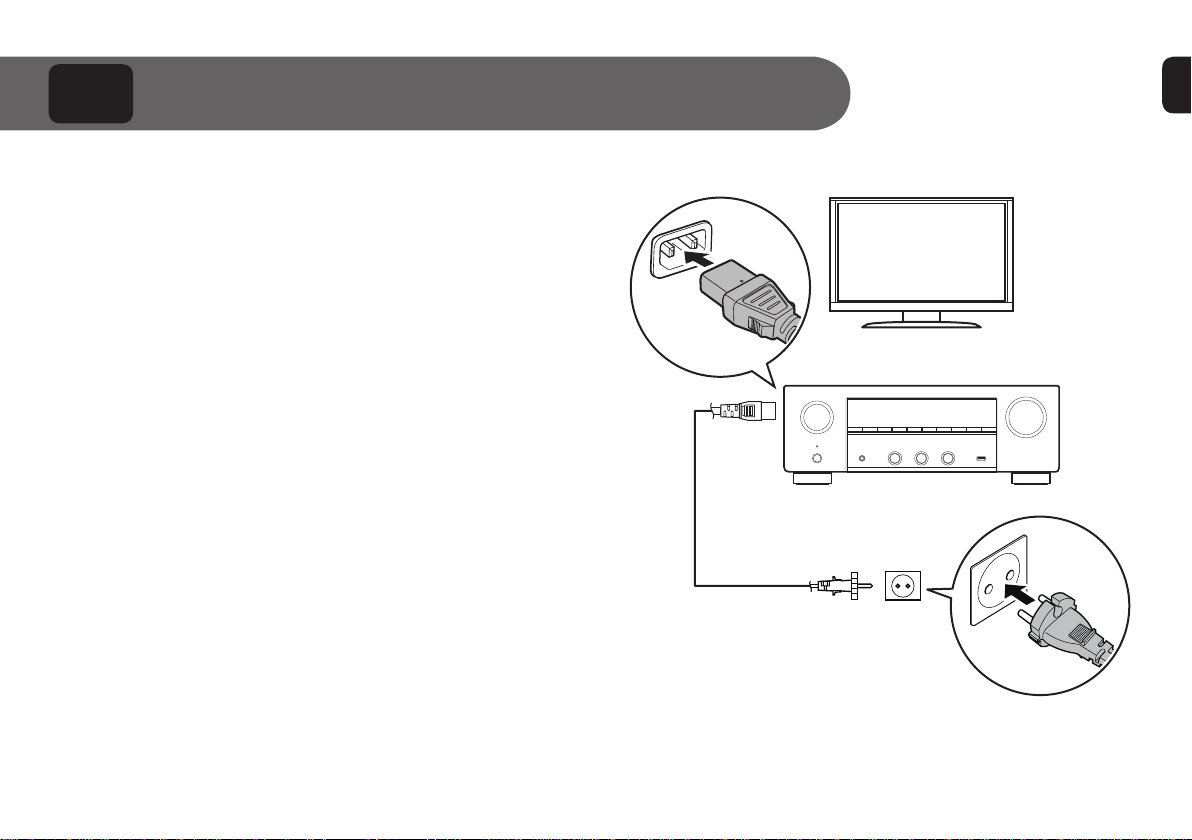

2-1 Setup by connecting to TV
1) Place the receiver near your TV and
connect the power cord
TV
Receiver
Power cord (supplied)
Connect to household
power outlet
(AC 230 V, 50/60 Hz)
1. DRA-800HE2_QSG_ENG_00A_190411.indd 4 2019/04/19 9:35:15
PrintingColor:Black

5
2) Connect the receiver to your home network
Wired LAN
Connect an Ethernet cable (not included) between your
receiver and your network router.
Router
To LAN port
Wireless LAN
Rotate the two antennas located on the back of the receiver
upwards for maximum performance.
2-1 Setup by connecting to TV
1. DRA-800HE2_QSG_ENG_00A_190411.indd 5 2019/04/19 9:35:16
PrintingColor:Black

6

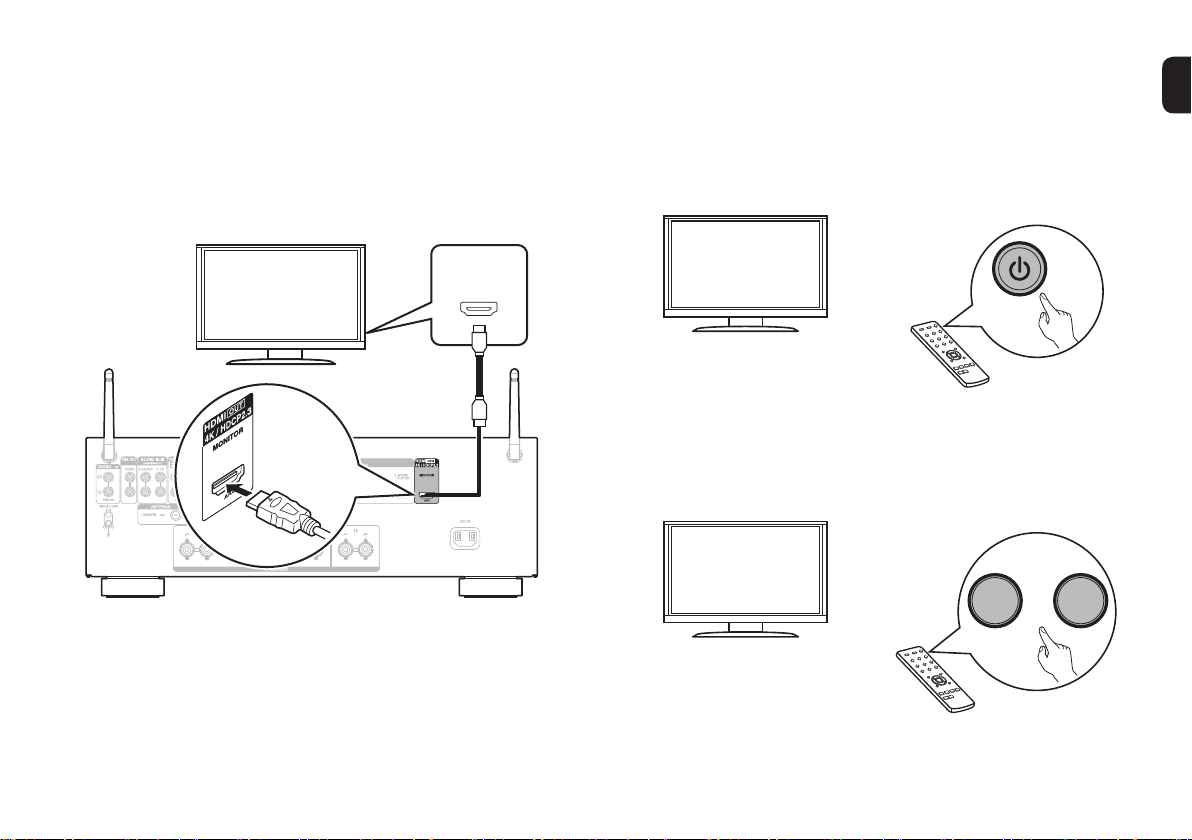

3) Connect the receiver to your TV with
an HDMI cable
(ARC)
HDMI IN
HDMI OUT
MONITOR
(ARC)
HDMI cable
Receiver (Rear panel)
ARC (Audio Return Channel):
If your TV supports ARC, your TV can send audio back to the stereo
receiver when you are using your TV’s built-in video sources (TV tuner,
Smart TV streaming services, etc.) ARC requires that you enable HDMI
CEC on your TV. Please refer to your TV’s Owner’s Manual for instructions
on how to setup HDMI CEC. Note that some TV Manufacturers use other
names for the HDMI CEC function.
4) Turn on the TV
TV remote control unit
5) Select the appropriate HDMI input on
your TV
HDMI
or TV/
VIDEO
INPUT
TV remote control unit
1. DRA-800HE2_QSG_ENG_00A_190411.indd 6 2019/04/19 9:35:16
PrintingColor:Black

7
6) Turn on the receiver
• Press Xto turn on the receiver.
7) Verify the connection
• Verify that you can see this screen on your TV.
Setup Assistant
Please select a language...
English
Français
Deutsch
Italiano
Español
Nederlands
Svenska
Pусский
Polski
If this screen is not displayed, please go back and retry
the steps again in the recommended sequence.
2-1 Setup by connecting to TV
1. DRA-800HE2_QSG_ENG_00A_190411.indd 7 2019/04/19 9:35:16
PrintingColor:Black

8
8) Now TV is connected to the receiver,
please follow the on-screen setup
assistant
The Setup Assistant will walk you through connecting
and configuring your speakers and components to your
Denon receiver. Please use the remote control and
follow the on-screen instructions.
Setup Assistant
Please select a language...
English
Français
Deutsch
Italiano
Español
Nederlands
Svenska
Pусский
Polski
After completing the On-Screen
Setup Assistant Page21
1. DRA-800HE2_QSG_ENG_00A_190411.indd 8 2019/04/19 9:35:16
PrintingColor:Black

9
2-2 Setup without connecting to TV
1) Connecting to speakers
10 mm
wq e r
Subwoofer R L
2) Connecting to the playback
equipment in accordance with
instruction on the rear panel
Ex.) Connecting to CD player
L
R
L
R
CD player
1. DRA-800HE2_QSG_ENG_00A_190411.indd 9 2019/04/19 9:35:16
