S-5BD
Blu-ray Disc/DVD Surround Receiver
New model information
Key Concept
• Audio and video engineering design of high-end components,
premium HD audio & video quality
• Speaker system flexibility
• Digital content friendliness
• Smart & simple concept
Audio and video engineering design of high-end components,
premium HD audio & video quality
• Support for HD audio formats:
Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio
Support for latest surround formats:
Dolby Virtual Speaker and Dolby Pro Logic IIz
• Denon’s original high-end Blu-ray disc drive mechanism,
for faithful reading and accurate playback of high-denition A/V signals from Blu-
ray discs, DVDs and music CDs
• Denon craftsmanship, in pursuit of ideal performance
in A/V playback devices
- Direct Mechanical Ground Construction, providing high-quality HD sound and
video by suppressing vibration
- Independent Block Construction, to faithfully reproduce video and audio signals by
guarding against electromagnetic noise
- Simple & Straight Signal Path and Minimum Signal Path,
for clean and pure A/V signas transfer
- Independent power supplies for each stage (Digital, Power amplier, and Pre-amplier
stages) to achieve clean, stable performance and lower standby power draw.
- Independent high-density circuit boards, to preserve signal purity during transfer
• Denon’s pure audio technologies
- Amplier stage that achieves playback with uniform response and quality across all
channels, amply meeting expectations for high-quality sound from Blu-ray disc
- Amplier circuit that reproduces music with superior sense of speed and rich ambience
- Newly-developed power stage with outstanding traceability for sudden bursts of sound
• Video technologies inherited from Denon’s high-end components
- 1080p/24 video output, for realistic reproduction of tactility in lms
- Support for Deep Color and “x.v.Color”, to amply reproduce the colors
of HD quality from Blu-ray disc and other high denition sources such as HD camcorder
• Advanced Denon technologies
- AL24 Processing: Analog waveform reproduction technology
AL24 Processing interpolates signals that have been lost when the source was
recorded as digital data and reproduces the original analog waveform. By producing an
analog waveform that is as close as possible to the one that existed when the digital re-
cording was made, it is possible to enjoy the realism of a concert hall, for instance, where
the music contains reverberations and other delicate details.
- Compressed Audio Restorer, to enhance digital music les
During playback of compressed audio sources such as WMA and MP3, Compressed
Audio Restorer interpolates data that has been lost during compression in order to restore
the original condition as closely as possible and correct the sense of volume in the low
range. When these audio les are played through the S-5BD, it is possible to enjoy a quality
of sound that is very close to the original prior to compression.
Features
The desire of audiophiles, movie enthusiasts and custom integrators. . .
Pristine HD audio and video reproduction.
Combining Denon's renowned A/V receiver technologies and our reference-class Blu-ray disc playback expertise, the S-5BD integrated AVR/BD combo sets
the standard for user convenience, quick and easy setup, and superb high denition picture and sound quality. Featuring the latest high resolution audio
decoders, including Dolby TrueHD and DTS-HD Master Audio, the S-5BD also includes Dolby Pro Logic IIz, which features Music and Cinema modes to pro-
vide thrilling surround sound from conventional two channel audio sources. As well, the S-5BD features Dolby Virtual Speaker, which provides enveloping
surround sound eects using only two front speakers. For quick and easy setup, the S-5BD features Audyssey's renowned MultEQ automatic room acoustic
measurement and correction system. Using the supplied calibration microphone, the system automatically measures and adjusts key audio parameters,
including number of speakers, speaker size and speaker distance, for truly balanced matched system performance. The integrated Blu-ray disc player features
BD-Live connectivity, along with DVD and music CD playback, and the S-5BD includes top notch video processing, upconverting SD programs to high deni-
tion, up to 1080p. iPod and USB media playback is also supported, and the S-5BD automatically sets the appropriate surround mode for each input.

Denon Brand Company
D&M Building, 2-1 Nisshin-cho, Kawasaki-ku, Kawasaki-shi,
Kanagawa, 210-8569, Japan
www.denon.com
Denon Electronics (USA), LLC.
100 Corporate Drive, Mahwah, New Jersey 07430 USA
TEL: [phone] usa.denon.com
Denon Canada Inc.
505 Apple Creek Blvd, Unit 5, Markham, Ontario, Canada L3R 5B1
TEL: [phone] ca.denon.com
11741109 A
Speaker Flexibility
• Drivability of full-bandwidth speakers
from 4 to 16 ohms
• Audyssey MultEQ®, to optimize speaker
characteristics and room acoustics
Audyssey MultEQ counts the number of speakers you have
connected and analyzes the characteristics of both the
speakers and the room’s acoustics to automatically make the
optimal acoustic settings for your listening environment. High-
quality sound can be enjoyed from all types of speakers.
• 2.0/2.1-channel Dynamic Play Mode,
to automatically assign surround channel
amplifiers to the front channel amplifiers and
achieve a more dynamic, full-bodied sound for
the sound source being played
Digital Content Friendliness
• Supports HDMI 1.4
v.1.4 with Audio Return Channel/ Deep Color, “x.v.Color”
/ Auto Lipsync - repeater
• Front inputs for iPod, USB memory player, digital cam-
corder via HDMI, and SD memory card
• HDMI inputs for STB and game console on back panel
• BD-Live support (Prole 2.0)
• Network music ready
Network music can be enjoyed via the Denon Networked Control
Dock. (Requires separately-sold ASD-51W or ASD-51N.)
Smart & Simple Concept
• Plug ‘n’ Play, that immediately starts playback when an
iPod or USB memory player is connected
• First Setup function
The "First Setup" function becomes active when power to the
S-5BD is turned on for the first time. At this time, the S-5BD
makes careful measurements and analyzes of your room’s
acoustics and speakers’ characteristics to make optimum acous-
tic settings. The S-5BD not only saves you from the complicated
process of making settings manually, it also performs them more
easily and with greater accuracy.
• Automatic Sound Mode, that automatically
switches to stereo sound when you’re listening to
music sources, or to surround sound when you’re
enjoying video programs. Compressed Audio
Restorer automatically operates when you play
compressed music sources.
• Advanced GUI (Graphical User Interface),
for easy, intuitive operation
• Audyssey Dynamic VolumeTM & Dynamic EQTM
Dynamic Volume solves the problem of large variations in
volume level between television programs, commercials, and
between the soft and loud passages of movies.
Dynamic EQ solves the problem of deteriorating sound quality as vol-
ume is decreased by taking into account human perception and
room acoustics for a natural tonal balance at any volume level.
• Unique Hidden Input Doors on both front sides
Open the door when connecting an iPod for example, and close
it again to hide the cable for an uncluttered appearance.
• Remote Control Unit with buttons designed
for easy operation
Frequently-used buttons are arranged on the front, while buttons
used less frequently are placed on the rear. Frequently-used buttons
are also larger and given dierent colors for easy identication.
• One Touch Play function (*1) (*2)
The remote control unit includes a One Touch Play button
that automatically turns on power to the TV, switches the TV’s
input line, and immediately starts the movie.
*1) Requires a TV that supports HDMI CEC (Consumer Electronics Control).
*2) This function may not work with some settings on other devices.
• Remote Setup Guidance
The S-5BD’s remote control unit can be preset while viewing
the TV screen so that it also operates the A/V devices of other
manufacturers. It does not require the trouble of entering each
code one by one based on instructions in the manual.
Others
• Custom Install features
- 2 Source 2 Zone audio and video
- iPod/USB for Zone2
- IR Remote in/out ports
- AMX, Crestron third party IP control support with RS-232C port
- 150mA Trigger output
ClosedOpen
*Design and specications are subject to change without notice.
*“BD-LIVE” logo is trademark of Blu-ray Disc Association
*“AVCHD” and the "AVCHD" logo are trademark of Panasonic Corporation and Sony Corporation.
*“x.v.Color” and the “x.v.Color” logo are trademarks of Sony Corporation.
*“Dolby” and the double-D device are registered trademarks of Dolby Laboratories Licens-
ing Corporation.
*DTS and DTS Digital Surround are registered trademarks of DTS Technology.
*HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
*Java and all other trademarks and logos are trademarks or registered trademarks of Sun Microsys-
tems, Inc. in the United States and/or other countries.
*Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Cor-
poration in the United States and/or other countries.
*“BONUSVIEW” is trademark of Blu-ray Disc Association.
*Audyssey MultEQ
®
is a registered trademark of Audyssey Laboratories.
Audyssey Dynamic EQ™ is a trademark of Audyssey Laboratories.
Audyssey Dynamic Volume™ is a trademark of Audyssey Laboratories.
*“Made for iPod” means that an electronic accessory has been designed to connect specifically to
iPod and has been certified by the developer to meet Apple performance standards.
*Apple is not responsible for the operation of this device or its compliance with safety and
regulatory standards.
*iPod®is a trademark of Apple Inc., registered in the U.S. and other countries.

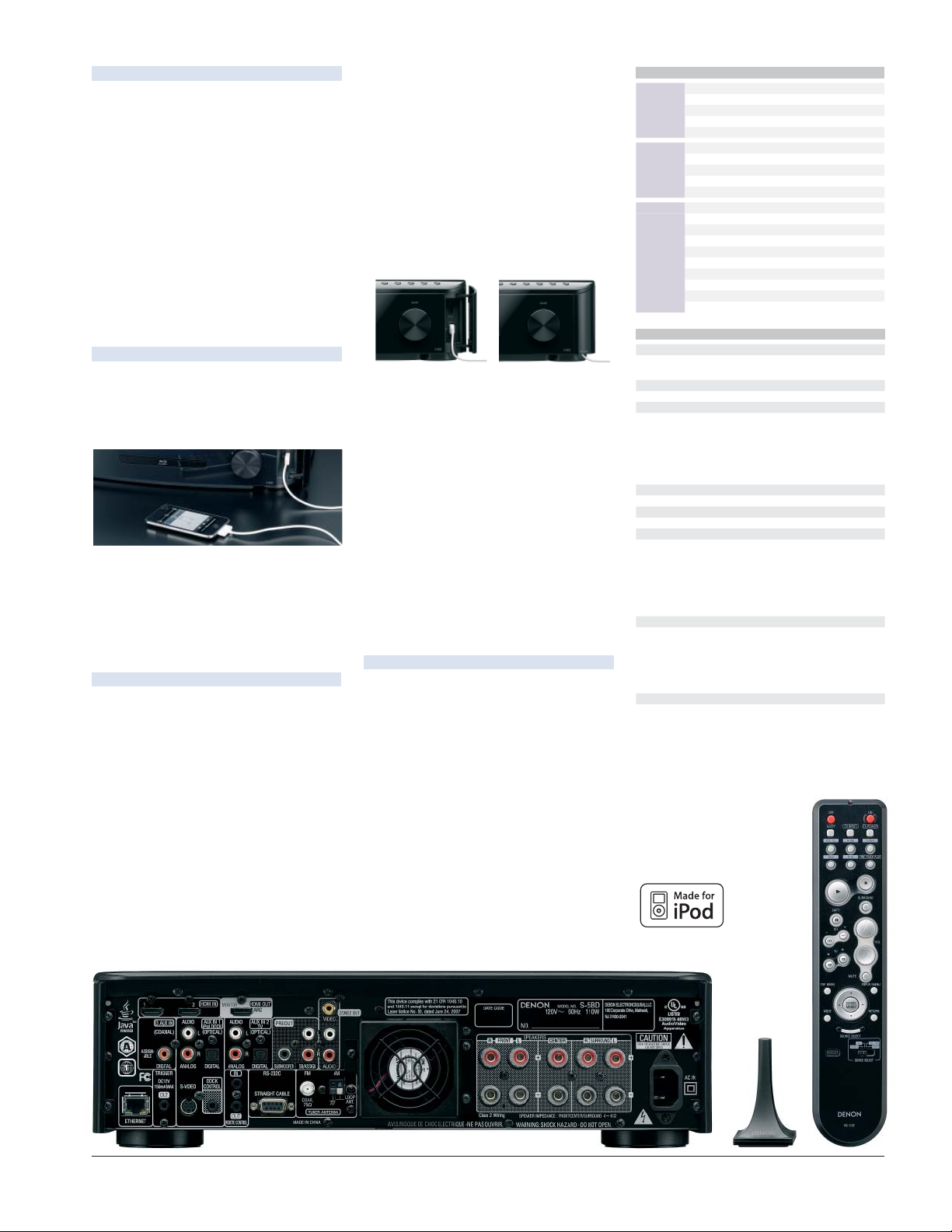

Ports
IN HDMI x 3 (incl. 1 on front panel)
S-Video x 1 (for iPod)
Analog audio x 2
Digital optical x 2
Digital coaxial x 1
OUT HDMI (repeater) x 1
Composite x 1 (for Zone2)
Analog audio x 1 (for Zone2)
Analog Preout x 1 (2.1ch, SBL/SBR/SW)
Phones x 1 (on front panel)
Others FM tuner antenna x 1
AM tuner antenna x 1
USB x 1 (on front panel)
SD card x 1 (on front panel)
Dock control x 1
Setup microphone x 1 (on front panel)
Ethernet x 1
Trigger x 1 (DC12V 150mA MAX.)
RS-232C x 1
Remote In/Out x 1 / x 1
Specications
Playable discs
BD-Video, DVD-Video, DVD-R, DVD-RW, DVD+R, DVD+RW, CD,
CD-R, CD-RW
Playable discs for PC le
CD-R, CD-RW, DVD-R, DVD-RW
Playable le
AVCHD DVD-R/ DVD-RW
MP3, WMA, JPEG DVD-R/ DVD-RW/ CD-R/ CD-RW/
SD Memory Card (including SDHC)/
miniSD Card/ microSD Card (*3)
*3) Requires separately-sold miniSD Card
and microSD Card adapter.
Applicable memory cards
SD memory card, SDHC memory card
Player section
Signal system NTSC
Amplier section
Rated output *THD gures are power amp stage values.
Front L/R 75 W + 75 W
(4 ohms, 1 kHz, THD 0.7%)
Center 75 W (4 ohms, 1 kHz, THD 0.7%)
Surround L/R 75 W + 75 W
(4 ohms, 1 kHz, THD 0.7%)
Speaker impedance 4 - 16 ohms (Front / Center / Surround)
Input sensitivity/Input
impedance 150 mV/47 kΩ (Analog audio)
Tuner section
FM
Frequency range 87.5 – 107.9 MHz
Eective sensitivity 1.5 μV/75 ohm (14.7 dBf)
AM
Frequency range 520 – 1710 kHz
Eective sensitivity 20 μV
General
Power supply AC 120 V, 60 Hz
Power consumption 110 W (Standby: 0.3 W)
Dimensions
(W x H x D) 17-3/32" x 4-11/16" x 14-3/8",
434 x 119 x 365 mm
Weight 17 lbs 3 oz,
7.8 kg
