Denon AVR-3808CI User manual

AVR-3808CI
AV Surround Receiver
New model information
HD A/V Surround Receiver featuring Advanced Connectivity,
Network Audio Streaming and an interface that enhances your
level of entertainment enjoyment.
The Latest HD Audio and Video Support
• Dolby TrueHD and dts-HD Master Audio decoders
• Deep Color up to 36-bit and xvYCC broader color space support
• HDMI1.3a inputs/outputs that handle HD audio and video signals
Dyna ic Discrete Surround Circuit, D.D.S.C.-HD
• Discrete Devices for ultimate performance in each block
• Dual New 32-bit floating point DSP
• Master clock design for more accurate processing and less jitter noise
• AL24 Plus processing provides more dynamic range
Latest version MultEQ XT
• New tower type microphone for more accurate measuring
• Up to eight measurement points
• New filtering ALFC (Adaptive Low Frequency Correction) for higher
resolution processing in low frequency band.
HD Video Circuit
• Discrete devices for ultimate HD video performance in each block
• Faroudja DCDi Video Processing
• Analog video to HDMI scaling up to 1080p
• HDMI to HDMI scaling up to 1080p
• 1080p video pass through
• 12-bit/216-MHz video encoder and decoder with NSV
Digital Media Connectivity
• Network
-Playback music file from PC or DLNA server
-AAC, WMA , MP3, FLAC, WAV file support
-Playback over 7,000 internet radio stations
-Ethernet
-WEB system control via network
• iPod audio, photo and video playback (optional ASD-1R/3N/3W)
• Mass storage support USB for audio playback
• XM Ready
Co pressed Audio Restorer
Denon's new audio technology for MP3/WMA/AAC compressed audio
formats to reproduce higher frequency range and deeper bass sound.
Ease-of-Use
• New Graphical User Interface
Newly developed user interface for easy operation, setup and digital media
browsing.
-Title text
(iPod/Network/USB/XM)
- Multi language support
- Available for 1080p HDMI
signal
• Zone 2 OSD with text, Album art is also available
• Auto set-up and Room EQ, featuring MultEQ XT from Audyssey
• Includes dedicated zone remote control unit
• Auto Lip Sync (HDMI 1.3a)
• New back panel layout
Multi-Zone Capability
• Three Zone multi-source capability
• Digital to analog conversion for multi-zone output
• Dual component outputs
• Remote in/out
• RS-232C control
• IP control
• Optional RC-7000CI/7001RCI 2way control ready
Bullet points
*Sample image of new GUI
*Optional RC-7000CI and RC-7001RCI

16940707 A
Denon Brand Company
D&M Building, 2-1 Nisshin-cho, awasaki-ku, awasaki-shi,
anagawa, 210-8569, Japan
www.denon.com
HDMI
Component
S-Video
Composite
Analog audio (Tuner included)
Analog EXT. Input
Digital OPTICAL
Digital COAXIAL
Denon Link
Ethernet
USB
Dock control for iPod
4
3
7
7
10
7.1ch
4
3
1
1
2
1
HDMI Monitor
Component Monitor
S-Video REC
Monitor
Composite REC
Main Monitor
Zone 2 Monitor
Analog audio REC
Zone 2
Zone 3
Analog Preout
Digital OPTICAL
Trigger +12V, 150mA
RS-232C
Remote In/Out
1
2
2
1
2
1
1
2
1
1
7.1ch
2
2
1
1/1
IN OUT
Others

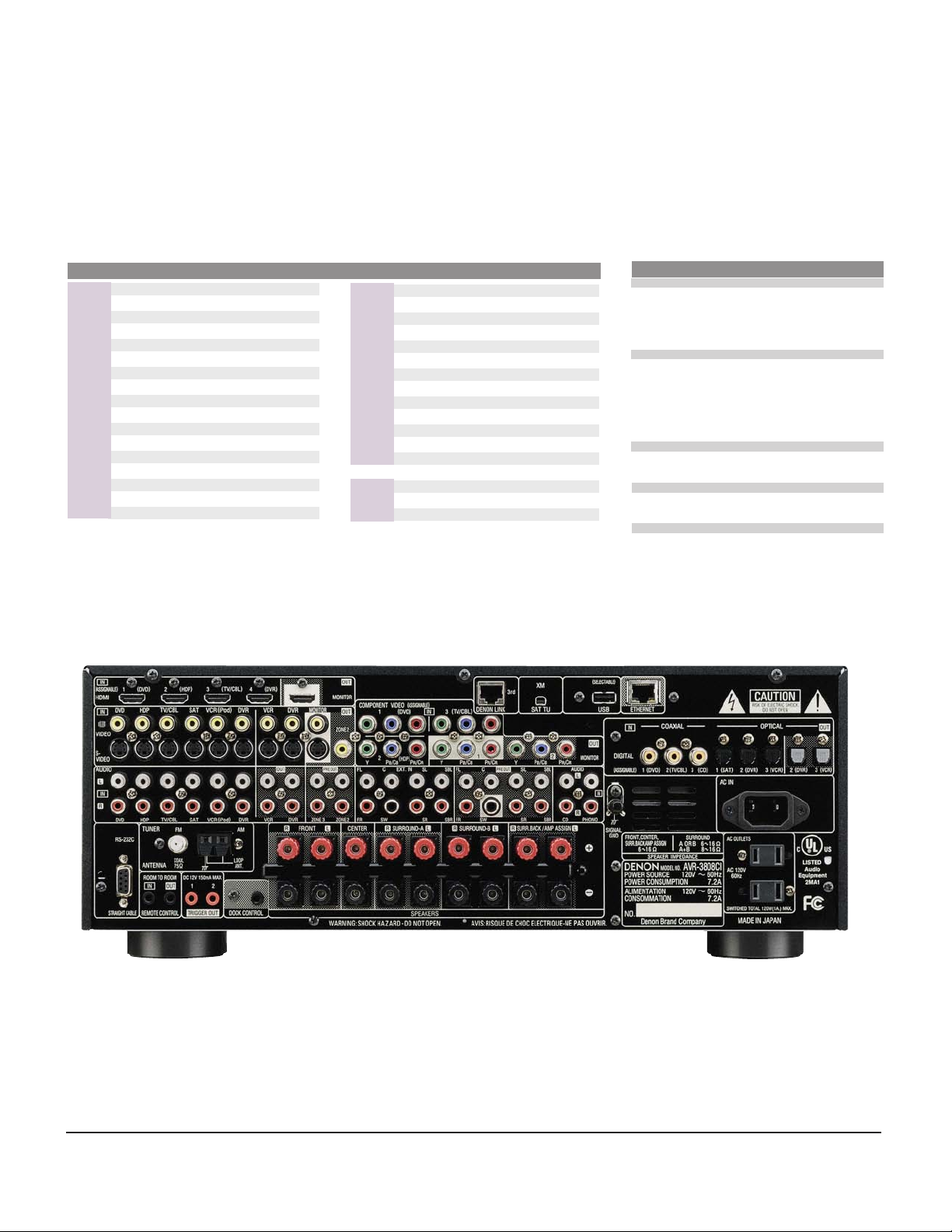

Input / Output terminals Specifications
Power Amplifier Section
Rated output *THD figures are power amp stage values.
Front 130 W + 130 W (8 ohms, 20Hz - 20kHz)
Center 130 W (8 ohms, 20Hz - 20kHz)
Surround 130 W + 130 W (8 ohms, 20Hz - 20kHz)
Surround back 130 W + 130 W (8 ohms, 20Hz - 20kHz)
Preamplifier Section
Input sensitivity/impedance
PHONO(MM) 2.5 mV/47 kohms
Audio inputs 200 mV/47 kohms
Output level/Load impedance
Audio outputs 1.2 V/10 kohms
Rec. Audio outputs 200 mV/47 kohms
FM Section
Tuning frequency range 87.5 - 107.9 MHz
Usable sensitivity 1.0 µV (11.2 dBf)
AM Section
Tuning frequency range 520 - 1710 kHz
Usable sensitivity 18 µV
General
Power supply AC 120 V, 60 Hz
Dimensions (WxHxD) 434 x 171 x 420 mm
17-3/32” x 6-47/64” x 16-17/32”
Weight 17.8 kg, 39.2 lbs
• Design and specifications are subject to change without notice.
• Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.
• DTS is a registered trademark & the DTS logos and symbol are trademarks of DTS, Inc.
• HDCD®,High Definition Compatible Digital® and Microsoft® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• ”DCDi™” is a trademark of Faroudja, a division of Genesis Microchip Inc.
• Audyssey MultEQ is a trademark of Audyssey Laboratories. MultEQ and the Audyssey MultEQ logo are trademarks of Audyssey Laboratories, Inc.
• NSV and Sub Alias Filter are registered trademarks of Analog Devices, Inc.
• ©2007 XM Satellite Radio Inc. All rights reserved.
State-of-the-art Denon Solutions for Maxi izing Content Quality
• Indentical quality and power for all 7 channels, 130W x 7ch
• Digital / Analog separate windings
• Large-output power amp section and power supply configuration
for stable high-power output
• Stable power supply for high-quality sound and picture playback
• 24-bit/192-kHz D/A converter for all channels
• DENON Link (3rd), for high-speed, high-grade digital signal transmission
• Pure Direct mode, for the enjoyment of music in high-quality sound
• Variable subwoofer crossover switching
• Pre-amp with Variable Gain Volume
Other Features
• 3 Quick Select Buttons
• Auto Surround Back Channels ON function, for auto-detection of
supporting sources
• Auto Surround mode
• Audio Delay function (max. 6 frames or 200 msec)
• Night Mode for neighbor friendly listening
• Muting level settings (Full/-40dB/-20dB)
• Audio Level Memory, capable of correcting different signal levels for each
input device
• Volume Level Limiter, for setting maximum volume levels
• Power-ON Volume Level Memory
• EL programmable remote control unit
Denon Electronics (USA), LLC
100 Corporate Drive
Mahwah, NJ 07430, U.S.A.
www.usa.denon.com
