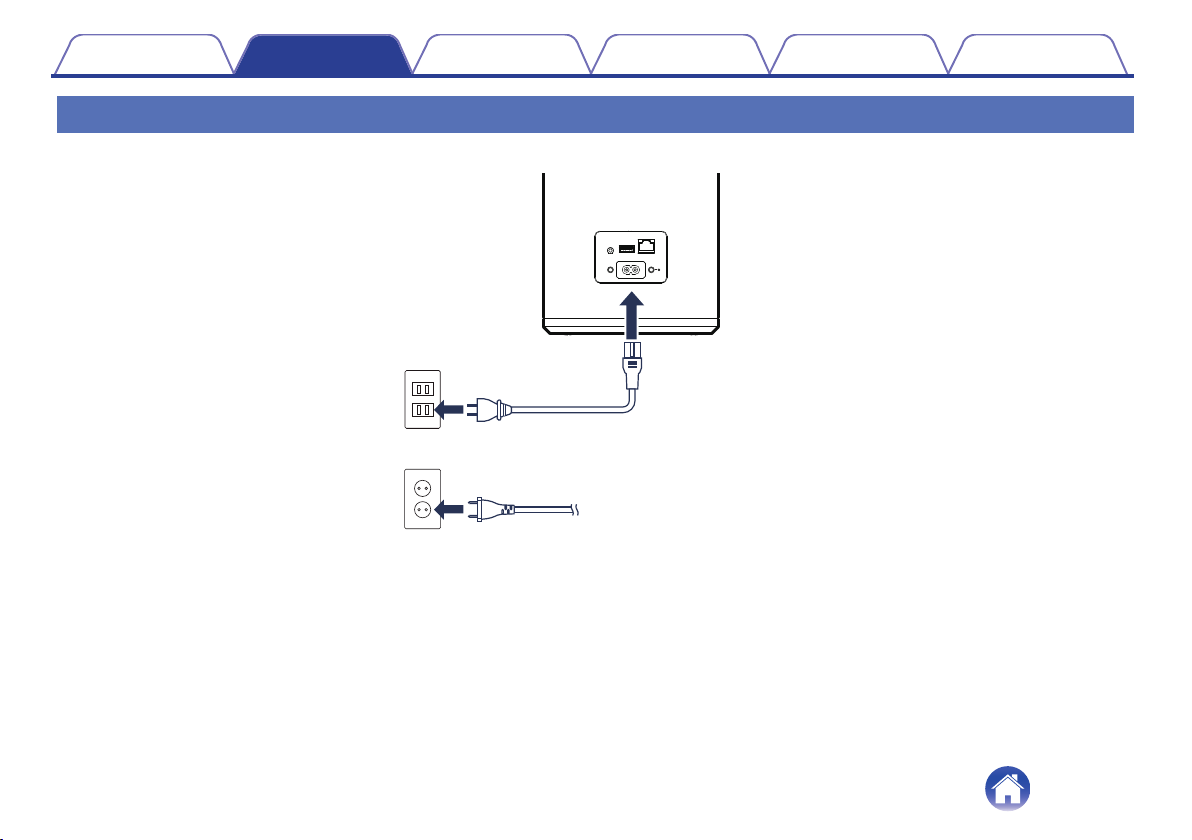

Powering your DSW-1H 13
Getting the HEOS app 14
Setting up your first DSW-1H 15
Adding more HEOS devices 16
Adding wired HEOS devices 16
Adding wireless HEOS devices 16
Connecting devices 17
Pairing a DSW-1H to a HEOS device 17
Pairing DSW-1H to DHT-S716H 17
Pairing DSW-1H to other HEOS device 18
Unpairing the DSW-1H 19
Making adjustments 20
Adjusting the Level 20
Adjusting the Low Pass Filter 20
Adjusting the Phase 21
Adjusting the status light brightness 21
Contents Setup Use Troubleshooting Status LED Appendix
Contents
2

Updating your system 22
Advanced features 23
Wireless performance 23
Power management 24
Power modes 24
Quick Start Mode 24
Deep Standby 24
Off 24
Basic troubleshooting 25
My HEOS device won’t connect to my network using the audio
cable 25
My HEOS device turns off and the status LED flashes in red 25
Connecting to a WPS network 26
Resetting your HEOS device 26
Status LED table 27
Supported file types and codecs 33
Specifications 34
Information 36
Trademarks 36
Contents Setup Use Troubleshooting Status LED Appendix
3

Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product.
NOTE
0THIS DOCUMENT CONTAINS INFORMATION THAT IS SUBJECT TO CHANGE WITHOUT NOTICE.
Introduction
The DSW-1H is part of the HEOS wireless multi-room sound system that enables you to enjoy your favorite music anywhere and everywhere around your
home. By utilizing your existing home network and the HEOS app on your iOS or Android™ device, you can explore, browse, and play music from your
own music library or from many online streaming music services.
0True multi-room audio - play different songs in different rooms or the same song in every room
0Utilizes your existing home wireless network for quick and easy setup
0Industry leading microsecond audio synchronization between HEOS device
0Legendary Denon audio quality
0If you are in a hurry, you can be enjoying great sounding music in no time by following the steps outlined in the Quick Start Guide (supplied).
.
DSW-1H
Wireless Subwoofer
Quick Start Guide
Please continue reading this Owner’s Manual for more detailed information about the features and benefits of your DSW-1H.
Contents Setup Use Troubleshooting Status LED Appendix
4

Before your begin
NOTE
0If you have already installed at least one HEOS device, please skip to the section “Adding more HEOS devices” (v p. 16).
System requirements
Before you begin installing your first HEOS device, please make sure you understand and meet a few basic requirements.
oNetwork requirements
Wireless Router - In order to use your HEOS music system, you must have a working wireless (Wi-Fi) or ethernet network in your home. Even when
connected to an Ethernet network, a Wi-Fi connection to the router is required to control the system using the HEOS Control app. If you do not have a
wireless network, please contact your local Denon dealer or electronics retailer to assist you with purchasing and installing a wireless network in your
home.
High Speed Internet Connection - HEOS accesses the Internet to stream music to your home from many popular online music services. HEOS is
also designed to provide you with software updates, which are delivered via your home Internet connection. DSL, Cable, and Fiber services will
provide the best experience and reliability. You may experience performance issues with slower Internet connections like satellite based services.
Contents Setup Use Troubleshooting Status LED Appendix
5

oHardware Requirements
Use the DSW-1H together with existing HEOS devices.
[Example]
.

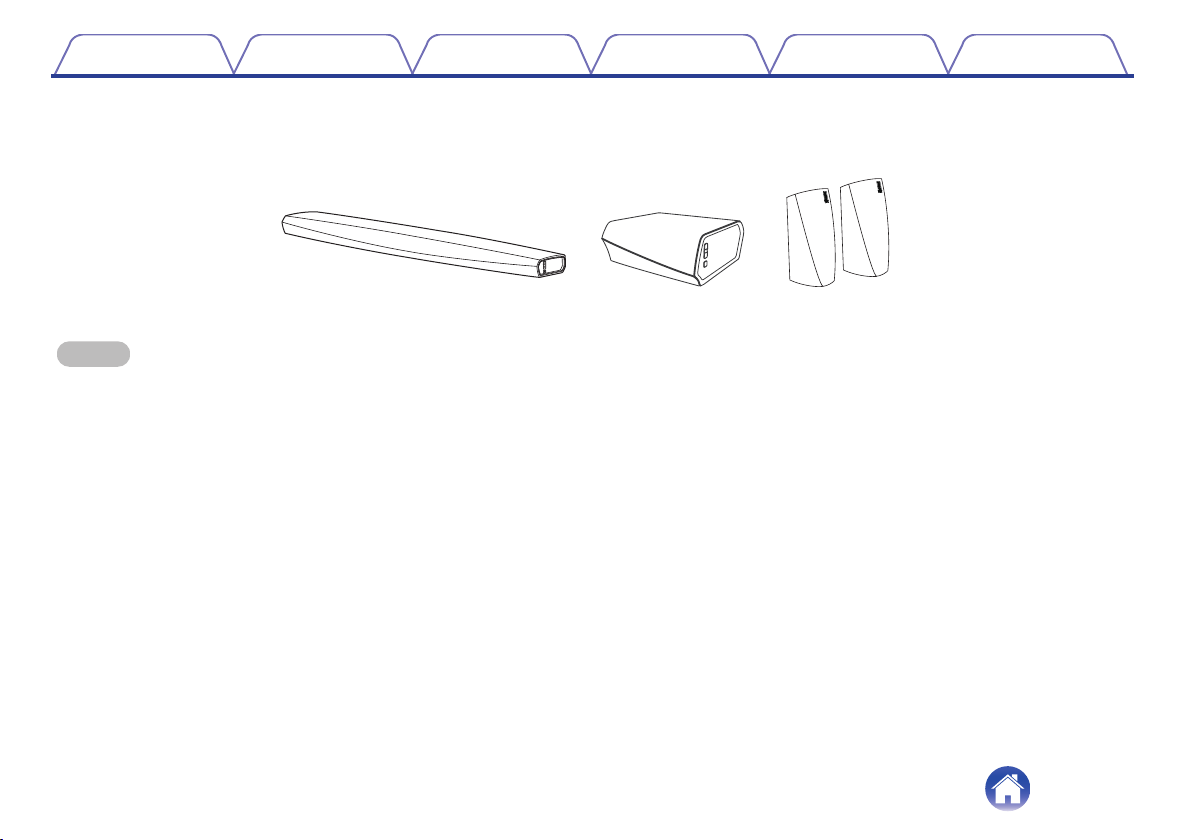

DHT-S716H HEOS Amp HEOS speaker
NOTE
0DSW-1H can not be used by itself.
Contents Setup Use Troubleshooting Status LED Appendix
6

oController requirements
You can control your HEOS wireless multi-room sound system using the free HEOS app on any iOS or Android mobile device that meets these
minimum requirements:
.
iOS Minimum Requirements
0iOS version 8.0 or later
0iPhone® 4S or newer
0iPad® 2 or newer
0iPod touch® (5th generation) or newer
.
Android Minimum Requirements
0Android OS version 4.0 or later
0All resolutions
Contents Setup Use Troubleshooting Status LED Appendix
7

Getting to know your DSW-1H
Unpack your DSW-1H from the box and verify that the following items are included:
.
DSW-1H Quick Start Guide Warranty
(North America model only)
Power cord
Safety instructions 1/8 inch (3.5 mm) setup cable
Ethernet cable Feet
NOTE
0Please use the power cord included in the box for your device.
Contents Setup Use Troubleshooting Status LED Appendix
8

oFront panel
.
q
AStatus LED
Please refer to the “Status LED table” for LED color and state meaning. (v p. 27)
Contents Setup Use Troubleshooting Status LED Appendix
9

oControls
.
wq
AVolume up/down buttons (+, –)
Adjusts the HEOS device’s volume level up or down.
BMute button (:)
Mutes or unmutes the HEOS device’s volume.
Contents Setup Use Troubleshooting Status LED Appendix
10
