Denso BHT-1400QWB-CE User manual

BHT-1400-CE Series
BHT-1400BWB-CE
BHT-1400QWB-CE
Windows Embedded Compact 7 model (WEC7)
Barcode/2D code
Handy Terminal
Barcode/2D code Handy Terminal
Software User's Manual

2015 © DENSO WAVE INCORPORATED
All rights reserved.
The copyright of this Reference Manual belongs to DENSO WAVE INCORPORATED.
BHT, QR Code, iQR Code, SQRC, and QBdirect are trademarks of DENSO WAVE INCORPORATED.
Microsoft, ActiveSync, Windows Mobile Device Center, Windows and Window logo are either registered
trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such
marks by DENSO WAVE INCORPORATED is under license.
Other trademarks and trade names are those of their respective owners.
Some trademarks ™ and registered trademarks ® are omitted in this manual.

- i -
Introduction
This manual provides information and instructions for using software unique to BHT-1400CE (hereinafter referred
to as BHT) such as the System menu.
Refer to the BHT-1400CE Series User’s Manual for basic usage of the BHT, the API Reference Manual and the
Class Library Reference Manual for software development.
This manual covers the following OS versions.
Edition
Description
OS Version
1400B
1400Q
1st
First issue
1.00
1.01
2nd
Added the feature that backs up OS settings automatically at power-off to
StartupConfig.
Added the description of the OS/Application deployment client (Version Manager)
1.04
1.03
3rd
Added HVGA screen mode
Changed the default of the feature that backs up OS setting
s automatically at
power-off to StartupConfig.
Added the feature description. "l
aunch the checked application(s) when application
launcher starts",
1.05
1.04
4th
Added the battery charging mode.
1.06
1.06
Added the manual locations in "Related Manuals".
Added the changing the key function assignment using registry.
5th
Modified the BHT backup menu and the Startup Config menu.
1.08
1.08
Notes
Use the same SDK version as OS version for application development.
Abbreviations
BHT: Bar code Handy Terminal
CU: Communication Unit
WEC7: Windows Embedded Compact 7
Related Manuals
- BHT-1400CE Hardware User’s Manual
- BHT API Reference Manual
- BHT Class Library Reference Manual
- BHT Bluetooth Library Reference Manual
- kbifCE User’s Guide
- SQRC Setting User’s Manual
- RDP Plug-in Reference Manual
- Web Browser plug-in Reference Manual
- Application/OS Automatic Update Tool (Version Manager) Reference Manual
Please download the BHT-1400CE Hardware User's Manual separately.
The Application/OS Automatic Update Tool (Version Manager) Reference Manual is in the VM folder of OS /
SDK package.
Other manuals are in the SDK \ Manual folder of the OS / SDK package.

- ii -
For inquiry and latest information
For the latest information on this manual and DENSO WAVE products, visit the DENSO WAVE website at:
http://www.denso-wave.com/
More information is available from our special website “QBdirect” for the registered users at:
http://www.qbdirect.net/.
Visit the link above to learn more about this site including user registration.

- iii -
Customer Registration and Inquiries
Customer Registration
To allow us to provide our customers with comprehensive service and support, we request that all customers
complete a Member Registration Form. Registered members will be offered the following privileges.
•The latest upgrade information
•Free information for exhibitions, events and new products
•Free Web-information service "QBdirect".
QBdirect Service Contents
Information search service (FAQ)
Offers detailed information on each product.
Download service
Offers downloads of update modules with the latest BHT Series
systems or software, and sample programs
E-mail inquiries Product related queries can be sent in by e-mail.
*Please note that these privileges may be subject to change without prior notice.
How to Register
Access the URL below and follow the instructions provided.
http://www.qbdirect.net/
Inquiries
For technical Inquiries (QBdirect)
- BHT product programming method
- Product setup method and usage
- Other technical questions
For inquires relating to the above, visit our exclusive web site “QBdirect” for registered users.
Access the link below to log on or register.
http://www.qbdirect.net/

- iv -
Table of Contents
1. Outline.......................................................................................................................................1
1.1. Application Implementation Steps.................................................................................1
1.2. System Components.....................................................................................................2
1.2.1. Hardware Components .................................................................................................2
1.2.2. Software Components...................................................................................................2
1.3. Usage Precaution..........................................................................................................3
2. Setup.........................................................................................................................................4
2.1. BHT operations that lead to data loss........................................................................... 4
2.2. Support functions for setup ...........................................................................................5
2.3. Restoring the registry....................................................................................................8
3. Basic Operation........................................................................................................................9
3.1. Power ON......................................................................................................................9
3.2. Power OFF..................................................................................................................10
3.3. Reset and Full Reset................................................................................................... 11
3.3.1. Reset........................................................................................................................... 11
3.3.2. Full Reset .................................................................................................................... 11

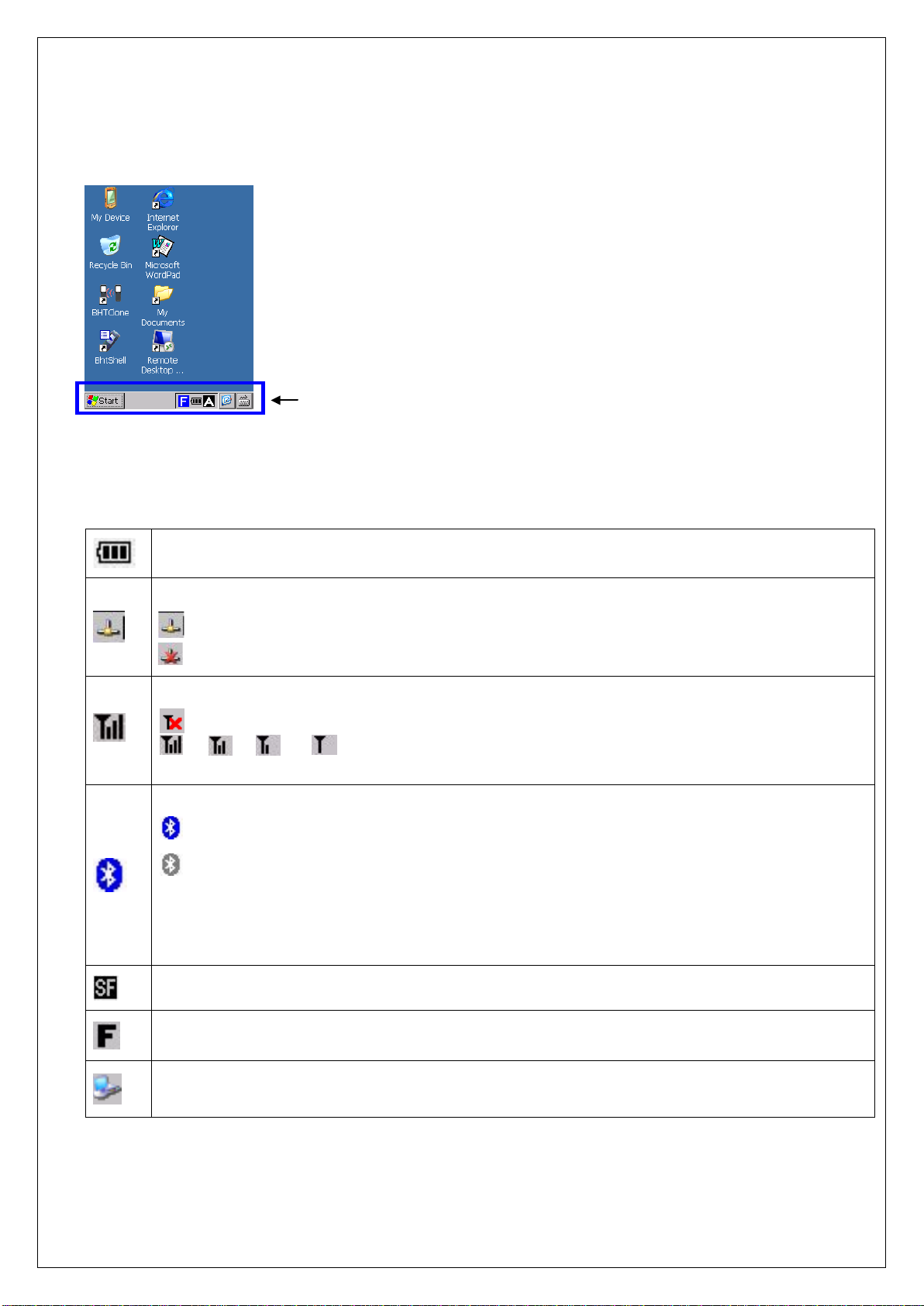

3.4. Screen image..............................................................................................................12
3.4.1. Taskbar icons ..............................................................................................................12
3.5. Battery Power Level Indicator .....................................................................................14
3.6. Using backlight............................................................................................................15
3.7. Using the MENU key...................................................................................................16
3.8. Using the Keypad........................................................................................................17
3.8.1. Entering Numerical Data.............................................................................................17
3.8.2. Entering Alphabet Data ...............................................................................................17
3.8.3. Using the shift key.......................................................................................................18
3.8.4. Using the FN key.........................................................................................................18
3.8.5. Using the Software Keyboard .....................................................................................19
3.8.6. Using the BS/C key.....................................................................................................19
3.9. ActiveSync/Windows Mobile Device Center ...............................................................20
3.9.1. Installing ActiveSync or WMDC...................................................................................20
3.9.2. Using ActiveSync or WMDC........................................................................................20
4. Desktop and Start menu.........................................................................................................23
4.1. Desktop.......................................................................................................................23
4.2. Start Menu...................................................................................................................24
4.2.1. Recycle Bin .................................................................................................................25
4.2.2. Internet Explorer..........................................................................................................25
4.2.3. Remote Desktop Connection ......................................................................................27
4.2.4. Reset...........................................................................................................................27
4.2.5. Remote Display...........................................................................................................28
4.2.6. Screen Capture tool [captbht.exe]...............................................................................29
5. Control Panel..........................................................................................................................30
5.1. Backlight settings ........................................................................................................32
5.2. Error Reporting............................................................................................................33
5.3. System ........................................................................................................................34
5.4. Stylus...........................................................................................................................35
5.5. Network and Dial-up Connection ...............................................................................36
5.6. Power ..........................................................................................................................37
5.7. Volume and Sounds Properties...................................................................................37
5.8. Regional Settings ......................................................................................................39
5.9. Owner..........................................................................................................................39
5.10. Display.........................................................................................................................40
6. System Menu (BhtShell).........................................................................................................41
6.1. System Menu list.........................................................................................................41
6.2. Execute Program.........................................................................................................42
6.3. Communication ...........................................................................................................43
6.3.1. Ymodem Menu............................................................................................................43
6.3.2. ActiveSync(USB).........................................................................................................47
6.3.3. FTP ............................................................................................................................48
6.4. System Properties.......................................................................................................52
6.4.1. Scanner settings ........................................................................................................52

- v -
6.4.2. File System..................................................................................................................56
6.4.3. Power Management....................................................................................................57
6.4.4. Reset Menu.................................................................................................................58
6.4.5. Key .............................................................................................................................59
6.4.6. Input Panel..................................................................................................................64
6.4.7. Status Display..............................................................................................................65
6.4.8. Taskbar........................................................................................................................65
6.4.9. USB Setting.................................................................................................................66
6.4.10.BHT Backup ................................................................................................................67
6.4.11.Startup Config..............................................................................................................71
6.4.12.Registry Editor (RegEdit) ............................................................................................77
6.4.13.OS Update...................................................................................................................84
6.4.14.Wireless LAN...............................................................................................................87
6.4.15.Bluetooth Manager......................................................................................................87
6.4.16.Network Settings .........................................................................................................88
6.4.17.Internet Explorer Options ............................................................................................89
6.4.18.Remote Desktop..........................................................................................................90
6.4.19.Log Manager ...............................................................................................................90
6.4.20.BHTClone....................................................................................................................91
6.4.21.SQRC (Only for BHT-1400Q)......................................................................................91
6.4.22.Resetting the Backup Battery Discharge Counter ......................................................91
6.4.23.ActiveSync/WMDC Automatic Connection..................................................................92
6.4.24.Power key....................................................................................................................92
6.4.25.Battery charging mode................................................................................................92
6.5. Test..............................................................................................................................93
6.6. Explorer.......................................................................................................................93
6.7. Version ........................................................................................................................93
6.8. Wlan Manager.............................................................................................................94
6.8.1. Information menu ........................................................................................................95
6.8.2. Network menu .............................................................................................................96
6.8.3. Settings menu .............................................................................................................97
6.8.4. Profiles menu ............................................................................................................100
6.8.5. Ping test ....................................................................................................................109
6.8.6. Version ...................................................................................................................... 112
6.9. Bluetooth Manager.................................................................................................... 113
6.9.1. Device Inquiry............................................................................................................ 114
6.9.2. Device pairing............................................................................................................ 115
6.9.3. Properties and configuration ..................................................................................... 116
6.9.4. Local device properties and configuration................................................................. 118
6.9.5. Remote device services............................................................................................ 119
6.9.6. Version information....................................................................................................125
6.9.7. Exit the Bluetooth Manager.......................................................................................125
6.10. Scanner Reading Parameters...................................................................................126
6.10.1.Read Mode................................................................................................................126
6.10.2.Read Code ................................................................................................................128
6.10.3.Data Edit....................................................................................................................132
6.11. Test Menu..................................................................................................................134
6.11.1.Code Scanning Test..................................................................................................134
6.11.2.Beeper Scale Test.....................................................................................................138
6.11.3.Aging Test..................................................................................................................138
6.11.4.Communication Test..................................................................................................139
6.11.5.LCD and LED Indicator Test......................................................................................140
6.11.6.Key Entry and Vibrator test .......................................................................................141
6.12. Application Launcher.................................................................................................142
6.12.1.Main menu.................................................................................................................142
6.12.2.Initial setup................................................................................................................143
6.12.3.User mode.................................................................................................................144
6.12.4.Administrator mode...................................................................................................145
6.12.5.Tracing (Start/Stop Trace) .........................................................................................146
6.12.6.Adding applications (Add to List)...............................................................................148
6.12.7.Settings .....................................................................................................................149
6.12.8.Configuration file (CeAdmin.ini) ................................................................................150
6.13. Cloning ......................................................................................................................153
6.13.1.Feature......................................................................................................................153

- vi -
6.13.2.Clone menu...............................................................................................................154
6.13.3.Master BHT setup .....................................................................................................155
6.13.4.Slave BHT setup .......................................................................................................157
6.13.5.Cloning flowchart.......................................................................................................158
6.13.6.Discontinuing cloning ................................................................................................160
6.13.7.Configuration file（BHTClone.ini）...........................................................................161
6.13.8.Cloning log ................................................................................................................162
6.13.9.Clone Error Messages...............................................................................................163
7. Error Messages ....................................................................................................................164

- 1 -
1. Outline
1.1. Application Implementation Steps
The following steps illustrate a typical process from purchase to implementation of a business application using
the BHT.
Step 1 Confirm that the BHT works properly.
Refer to the Operator’s Guide or Hardware User’s Manual.
Step 2Determine a setup procedure considering the application environment then create the application
program for the BHT.
Refer to “2 Setup” for how to set up the BHT.
Refer to the API Reference Manual or the Class Library Reference Manual for details of application
development.
Step 3 Prepare a manual that explains how to setup the BHT and how to use the application created.
Step 4 Set up the BHT basic configuration (common settings) by following instructions described in this
manual.
Step 5 Set up the environment-dependent configuration such as an IP address.
Step 6 Start operations.

- 2 -
1.2. System Components
This section illustrates the hardware and software components required for the BHT code data collection
system.
1.2.1.Hardware Components
The following figure shows the required hardware for the BHT code data collection system.
The required hardware varies depending on the communication used.
1.2.2.Software Components
BHT Operating System (OS)
Microsoft Windows Embedded Compact7
Application Program Development Environment
Refer to the BHT API Reference Manual and BHT Class Library Reference Manual.
CU-1321
Host computer
BHT
Wireless LAN access
point (option)
Ethernet
Ethernet
Bluetooth® enabled
devices (option)
Bluetooth®
communication
CU-AL1-14
USB / RS-232C
communication
Wireless communication
CU-AU1-14 / CU-AR1-14

- 3 -
1.3. Usage Precaution
Data backup
Non-volatile memory (flash memory) is used to store user data for the BHT. Flash memory has a finite number
of program-erase cycles, therefore frequent access concentrated on the specific memory area may lead to data
loss.
To optimize the Flash memory usage, the wear leveling function, which automatically distributes data evenly
over the flash memory, is implemented for the BHT.
Nevertheless, backing up important data is strongly recommended in order to prepare for unexpected data
loss.
Flash memory
Flash memory reaches the end of its lifetime as the number of writes increase. Application development must
follow the restrictions listed below in order to prolong the flash memory lifetime.
- Limit the data size written in the flash memory to maximum 100 M bytes per day.
- Limit the write cycles to maximum 5,000 times per day for data smaller than 8 k bytes.
RAM memory
All data including files and settings stored in the RAM will be lost and the RAM will revert to the factory default;
- If the BHT is left for a long period with the battery removed,
- If the BHT is left with the dead battery,
- If the battery is incorrectly replaced,
- When Performing full reset. (Refer to "3.3 Reset and Full Reset")
Back up any important data to the "Flash" folder or to the computer before full reset. The BHT performs a full
reset when the BHT turns ON after the data in the RAM is deleted.
Using the backup and auto-setup tools provided by the BHT are recommended in order to reduce the risk of
data loss. Refer to “2 Setup” for details of these tools.
Ensuring stable operations
Windows CE may cause memory leaks when used over long periods.
Resetting the BHT regularly utilizing the application created (once a day etc.) or as daily routine is
recommended for ensuring stable BHT operation.
For example, call a reset task utilizing the application at the end of daily work or at scheduled update.
Refer to the BHT API Reference Manual or the BHT Class Library Reference Manual for how to program a
reset task.
SD card
The microSD card will not be accessible for short periods of time when the BHT is turned OFF and back ON
again (or suspend and resumed) while the application is running.
The application deployed in the microSD card may not continue the process correctly if the application
accesses the microSD card during these periods. Reset the BHT if the application freezes or the LED indicator
stays blue.
To prevent the problem, copy the application to the built-in Flash memory before executing the application if the
application is deployed in the microSD card,
Application debugging using Windows Error Reporting
Enable Error Reporting function in the Control panel when developing applications (recommended).
Using Windows CE Dump Viewer in a host computer is also recommended in order to detect and solve
application problems as early as possible.
Refer to “5.2 Error Reporting” for details.

- 4 -
2. Setup
This section explains how to set up the BHT efficiently and effectively.
2.1. BHT operations that lead to data loss
The data stored in the BHT is deleted after the following operations.
In order to ensure stable operations, the BHT must be set up to restore or recover the deleted data.
Operation
Description
Reset Data in process will be deleted. Perform a Reset if there are any problems such
as no response for input or incorrect program behaviors.
Full reset All data except for data stored in the Flash and the SD card will be deleted.
Perform a Full reset if a problem still exists after reset.
Backup battery discharge
(when the BHT battery is
disconnected.)
The BHT without the battery connected leads the backup battery to discharge
resulting in data corruption in the RAM.
The BHT performs a full reset at the next startup if data corruption is detected.
OS Update
The stored registry will be deleted in addition to the RAM data at OS update,
due to incompatibility with the registry between OS versions.
Data existence in memories after the above operations is listed below.
Reset
Full reset/Backup
battery discharge
OS Update
Data in the built-in Flash memory
(Folder name : “FLASH")
√√√
Data in the microSD card
(default folder name: "Storage
Card")
√√√
Data in other folders
√
X
X
Contents of the Registry
√
X*
X**
Data being edited
X
X
X
√: Data retained
X: Data erased
−
Note
−
* If the registry has been backed up, the backed up registry will be used.
**The registry files for a different OS version cannot be restored.

- 5 -
2.2. Support functions for setup
The BHT provides the following functions to easily accomplish the setup.
Functions or tools for backup*
1
Backup and restore tool
(BHTBackup.exe)
The “BHTBackup.exe” is a backup and restore tool for data in the RAM
and the registry. Refer to”6.4.10 BHT Backup”.
2
Registry backup at
shutdown

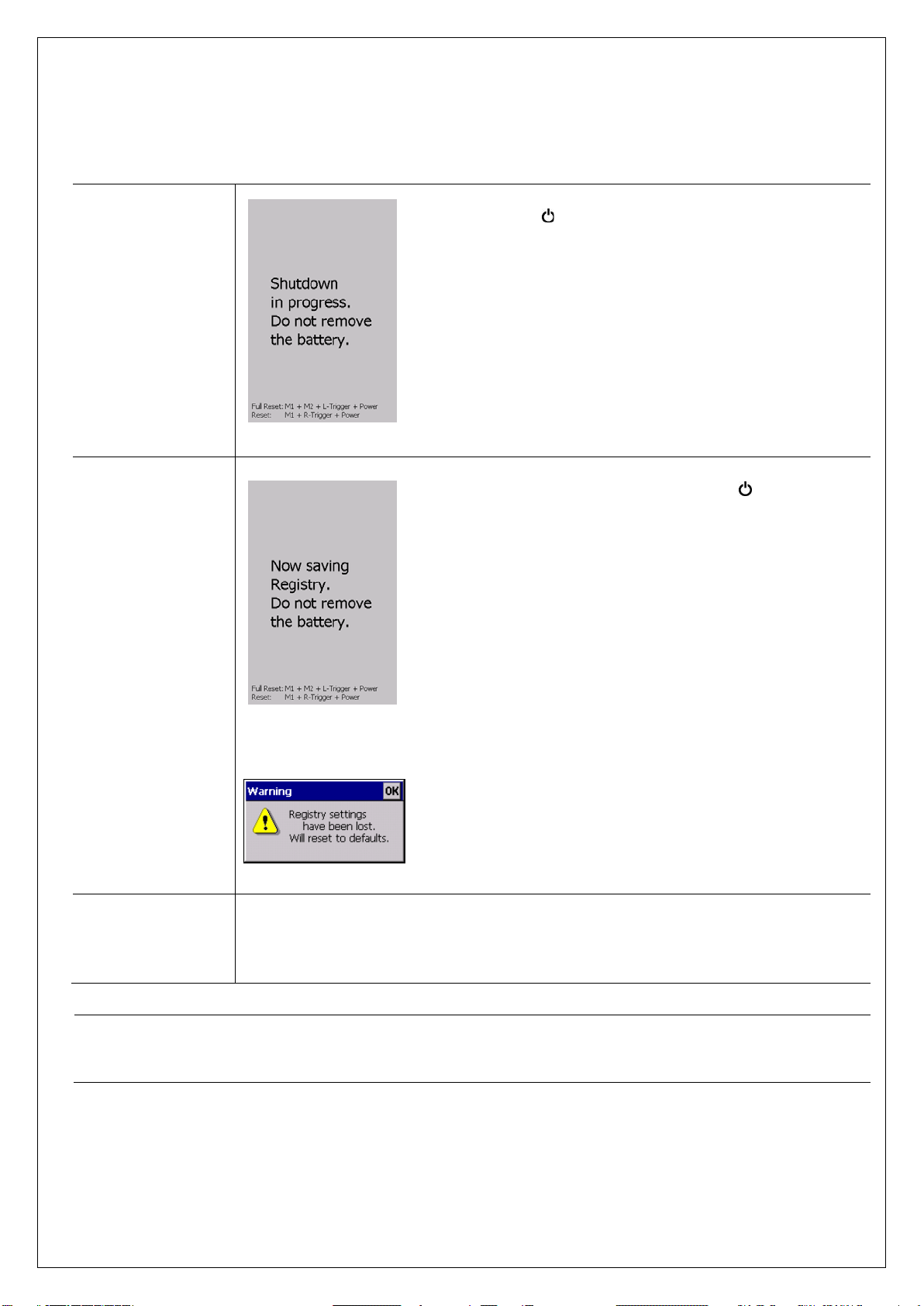

The “Registry backup at shutdown” function is used to save the registry
while shutting down the BHT using the power ( ) key and the SF key.
Only the latest registry is saved if shutting down the BHT multiple times.
Refer to “3.2 Power OFF” for details.
3
Registry Editor
The “Registry Editor” is a tool that modifies, imports or exports the
registry by using the GUI, the registry file (*reg) or the command line.
Refer to “6.4.12 Registry Editor (RegEdit)” for details.
Function activated at full reset **
4 Backup file auto restore
(BHTRestore.exe)
The “Backup file auto restore” function is used to automatically restore
data (RAM data and registry) from the backup data saved by “
1 the
backup tool (BHTBackup.exe)”.

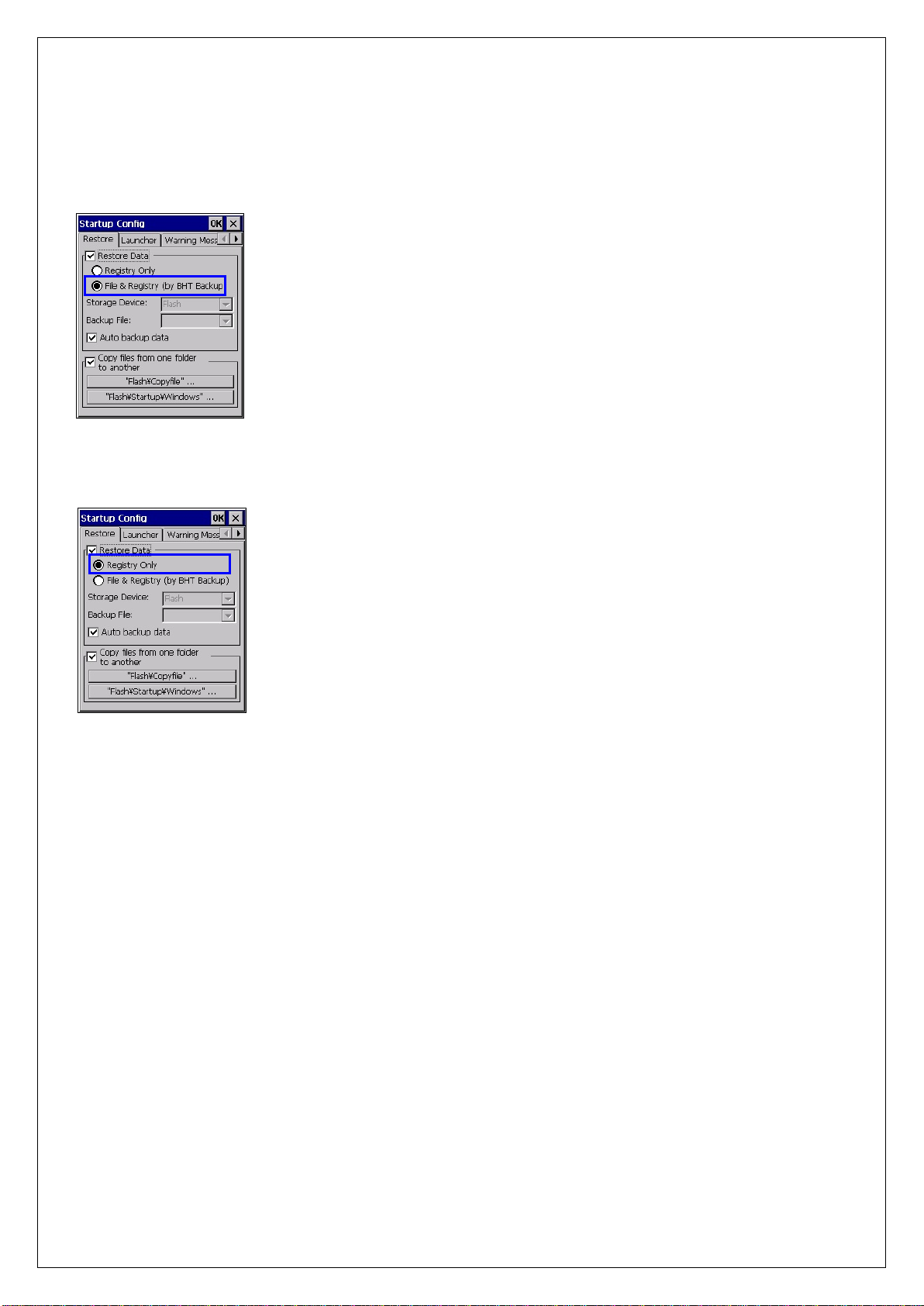

Specify files to restore in the Startup Config menu.
Refer to “6.4.11 Startup Config” for details.
5 Registry auto restore
The “Registry auto restore” function is used to restore the registry
automatically from the registry saved by performing the “2 Registry
backup at shutdown”.
Note: This function will not be activated when the “Restore data” function
is enabled in the Startup Config.
6
Auto file copy
(Regload.exe)
The “Auto file copy” function copies files (data) in a specific folder in the
built-in Flash memory to the RAM in the order shown below.
Files (data) in the RAM will be deleted at full reset.
Use this function to redeploy the deleted files (data) to the RAM.
Source folder
Destination folder
Remarks
\Flash\Startup\Windows
\Windows
Files under sub folders will
not be copied.
\Flash\Copyfile
\ (root folder)
Files under sub folders will
be copied.
Note: The "\Flash\Startup\Windows" folder is for backward compatibility.
Using the "\Flash\Copyfile" folder is recommended to copy more folders.
Example :
Copy source folder
Copy destination folder
\Flash\Copyfile\Windows
\Flash\Copyfile\Program Files
Windows
Program Files
(Internal warm boot)

- 6 -
7 Program auto execution
"\Flash\Setup" ***
The "Program auto execution" function is used to automatically execute
programs such as setup applications or the CAB files, which are deployed
in the auto execution folder "\Flash\Setup".
Note: To control the program execution order, create a bat file as shown
below.
[*.bat file example]
wceload /noui /delete 0
\Flash\SetUp\dnwa.cab
call apl1setup.bat
call apl1setup.bat
regedit /H /I
\Flash\Setup\Regfile\setup.reg
' Install the CAB
' Setup application 1
' Setup application 2
' Setup registry
Function activated at full reset/reset **
8 Program auto execution
"\Windows\Startup" ***
The "Program auto execution" function is used to automatically execute
applications deployed in the "\Windows\Startup" folder.
The "\Windows\Startup" folder is deployed in the RAM, as a result, data in
this folder will be deleted at full reset.
Using this function together with the function “6 Auto file copy” is
recommended.
9 Program auto execution
"\Flash\Startup" ***
The "Program auto execution" function is used to automatically execute
applications deployed in the "\Flash\Startup" folder after reset or full-reset.
Functions activated at reset or full reset with option keys.
10 Setup application auto
execution at full reset
"Storage Card\Setup"
The “Setup application auto execution at full reset” function is used to
automatically execute programs deployed in the "Storage Card\Setup"
folder.
To activate the function:
Perform a full reset key combination (the M1 +M2 + Left Trigger
+
Power
keys) + the ENT key.
Release the ENT key when Windows CE starts up.
11 Cancellation of the auto
restore at full reset.
The “Cancellation of the auto restore at full reset” function is used to
cancel all auto restore functions (auto restore, auto registry restore, auto
file copy, setup application auto execution, program auto execution).
The BHT will revert to the factory-
default configuration after the
cancellation. (Files in the FLASH memory and the microSD card will be
retained.)
To activate the function:
Perform a full reset key combination + SCAN keys. Then release all keys
except for the SCAN key. Release the SCAN key when the BHT is turned
ON (the message “Working” is displayed).

- 7 -
12 Cancellation of the
application auto execution
at reset.
The” Cancellation of the application auto execution at reset” function is
used to cancel the application auto execution at reset.
To activate the function:
Perform a reset key combination + SCAN keys. Then release all keys
except for the SCANkey. Release the SCAN key when the BHT is turned
ON (the message “Working” is displayed).
−Point −
*Backing up data regularly is recommended.
** The GUI is available to control these functions. Refer to “6.4.11 Startup Config” for details.
*** The bat files deployed in the following folders will run invisibly for the function 7, 8 and 9
if
the bat file name starts with ‘_’ (underline).
7: "\Flash\Setup"
8: "\Windows\Startup"
9: "\Flash\Startup

- 8 -
2.3. Restoring the registry
Setup procedures for the registry restore varies depending on the backup method as explained below.
Using the backup and restore tool (BHTBackup.exe)
Step 1Back up data after the initial setup.
Step 2 Select the “File & Registry (BHT Backup)” in the Startup Config
menu. (Refer to “6.4.11 Startup Config” for details.)
Step 3 Perform a full reset (delete the registry).
Step 4 The registry will be restored using the “Backup file auto restore”
(BHTRestore.exe) at full reset.
Using the “Registry backup at shutdown” function
Step 1 Perform the “Registry backup at shutdown” function after the
initial setup.
Step 2 Select the “Registry Only” (default) in the Startup Config menu.
(refer to “6.4.11 Startup Config” for details.)
Step 3 Perform a full reset to delete the registry.
Step 4 The registry will be restored using the “Backup file auto restore”
function at full reset.
Using the Registry Editor
Step 1 Export a registry file to be replaced after the initial setup.
Step 2 Add ‘_’ (under line) in front of the registry file name.
(The registry file will run invisibly if the file name starts with ‘_’ (under line).
The popup confirmation message will not be displayed when executing the registry file.)
Step 3 Deploy the registry file exported to the "\Flash\Setup" folder.
Step 4 Perform a full reset to delete the registry.
Step 5 The registry will be restored using the “Setup application auto execution at full reset” function.
Startup Config menu
Startup Config menu

- 9 -
3. Basic Operation

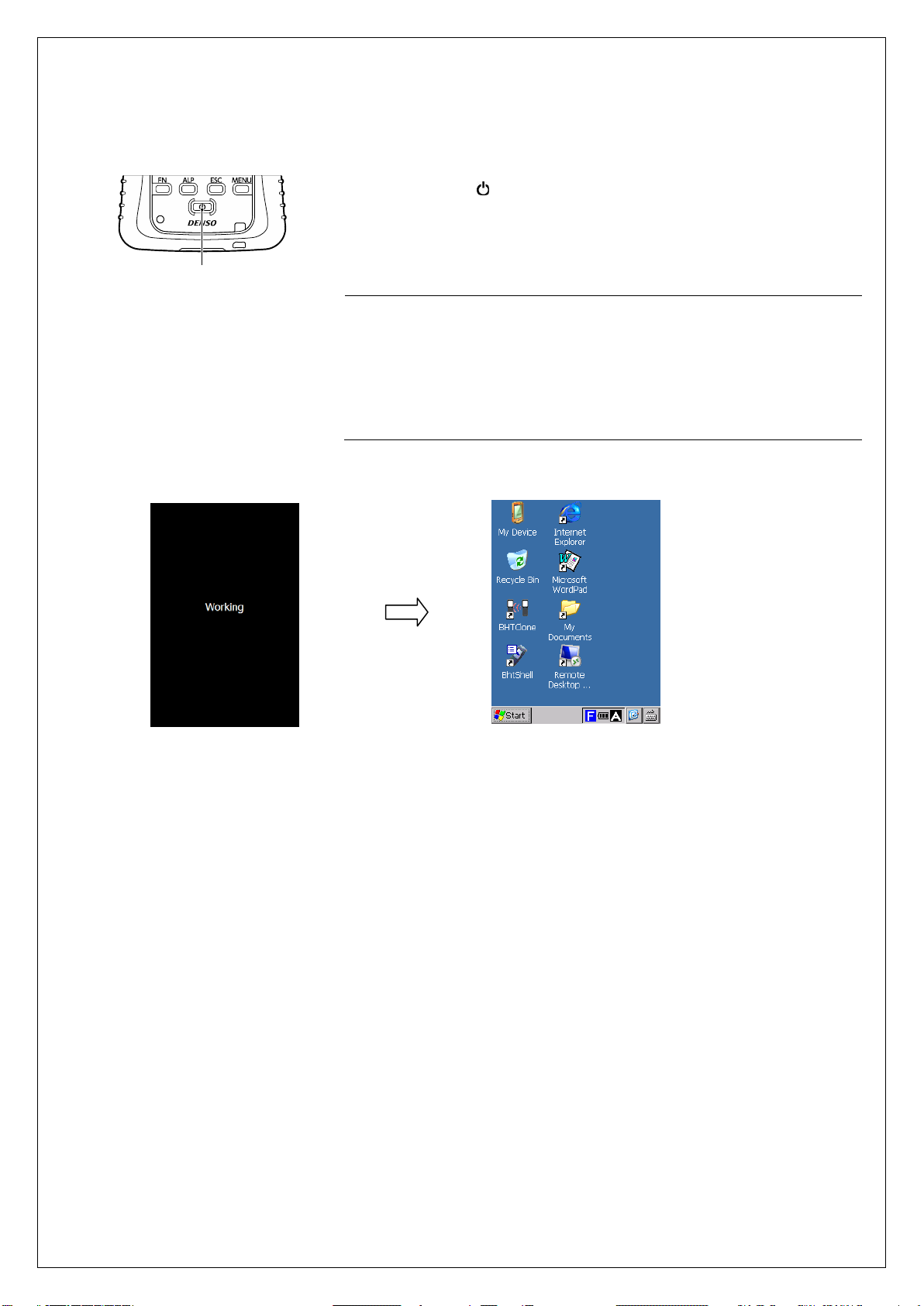

3.1. Power ON
Press the power ( ) key to turn ON the BHT.
When turning ON the BHT for the first time or after a long period of time,
if any dialog box is not displayed, first perform a “full reset”.
Refer to “3.3.2 Full Reset”
−Point −Displaying the screen may take time after pressing the
power key, although this is not a malfunction of the BHT.
Therefore, do not keep pressing the power key more than
needed or press it too hard.
Failure to follow instruction may cause breakage or
malfunction of the power key.
The following screens are sequentially displayed when turning ON the BHT.
Power key
Power key
Startup screen
(After Power ON / Reset / Full
-Reset)
OS startup is completed
(Desktop)
Power key

- 10 -
3.2. Power OFF
Use one of the following three methods to turn OFF the BHT.
Normal power OFF
Press the power () key.
The BHT turns OFF after the message on the left is displayed.
Power OFF with
registry backup
Hold down the SF key and press the power () key for 3
seconds or more.
The message on the left is displayed and registry backup
begins.
The power turns OFF automatically when the backup is
completed. The Registry is an area in which settings
information required for BHT operation is recorded. The OS
restores the registry automatically if it is lost.
The error message on the left is displayed if the OS fails to
restore the registry (the registry has not been backed up).
Refer to “6.4.2 File System” for details of how to restore the
registry default.
Auto Power OFF
The power turns OFF automatically when the BHT is not used for specified periods.
The factory default time is set for 3 minutes.
Refer to “3.7 Using the MENU key” or “6.4.3 Power Management” for details of auto
power OFF.
−Point −Do not remove the battery while the Power OFF process message is displayed.
Failure to follow instruction may result in data stored in the BHT being lost.

- 11 -

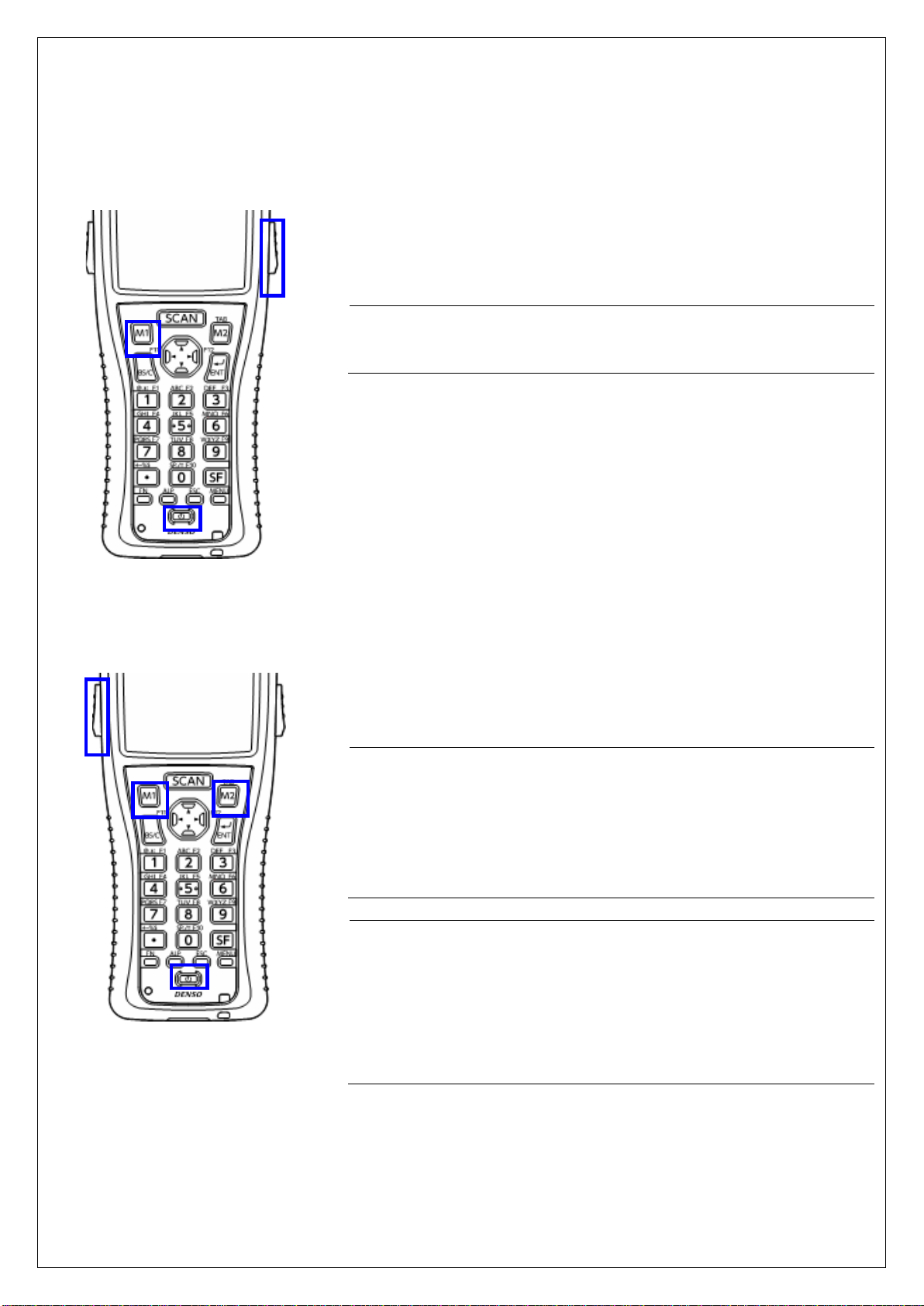

3.3. Reset and Full Reset
3.3.1.Reset
Reset the BHT when the BHT does not respond to any entry from the touch screen or keys.
With the BHT power ON, press the M1 key +Right Trigger + Power key
at the same time. Then release all the keys.
- Point - Data stored in files will not be lost by resetting.
However, unsaved data currently being edited will be lost.
3.3.2.Full Reset
Full reset is required if the problem persists even after resetting.
With the BHT power ON, press the M1 key + M2 key + Left Trigger +
Power key for more than 1 sec. Then release all the keys.
Then release all keys.
- Point - All data including
files and settings stored in the RAM will
be lost and the RAM will revert to the factory default when
performing full reset. Back up any important data
to the
"Flash" folder or to the computer before full reset.
The BHT starts from the “Initial Setup” when the BHT turns
ON after the data in the RAM is deleted.
- Point - The Reset and full reset can be performed using,
- The “Reset” menu in the Star menu (Start > Reset).
Refer to “4.2.4 Reset”.
- The Reset or Full reset menu in the basic configuration
MENU (MENU > Reset tab or Full reset tab).
Refer to “3.7 Using the MENU key”
1
2
3
4
5
6
7
8
9
.
0
1
2
3
4
5
6
7
8
9
.
0

- 12 -
3.4. Screen image
All screen images in this Manual are simulated.
Actual screens may differ depending on user settings and other factors.
3.4.1.Taskbar icons
The following icons are displayed in the taskbar to show the program status, operation modes and notifications.
Shows a battery power level in four levels.
Shows a wired LAN connection status when using a CU.
: BHT is connected to a wired network.
: BHT is disconnected to a wired network.
Shows a wireless network connection status and radio field strength.
: Wireless LAN is disconnected or failed to authenticate.
→ → → : Vertical bars indicate radio field strength.
Strong
→
Weak
Shows a Bluetooth® device power status.
: The Bluetooth® device is ON. (Blue)
: The Bluetooth® device is OFF. (Grey)
Note :
This icon is not displayed in taskbar at default.
To show this icon, change the settings in the System Menu or with user programs.
Shows that the shift mode is ON.
Shows that the function mode is ON.
Shows that the BHT is connected to a computer via Microsoft ActiveSync or
Windows Mobile
Device Center (WMDC).
The taskbar in this manual varies from the actual BHT screen.
