Denver 12809S User manual

PORTABLE DVD
Before connecting, operating or adjusting this product,
please read this user's manual carefully and completely.
USER'S MANUAL
PDVT-12809S
PDVT-12809 SUNPLUS方案 标准说明书

Table of Contents
1
P3
Safety Precautions
P1
Table of Contents
P4-P6
Identification of Controls
P7-P8
SETUP Menu Setting
P10
Parameters and specifications Battery Parameters P10
Important Safety Instructions P2
SETUP Menu Introduction P9

Warning: To reduce the risk of electric shock, do not remove
the cover or back. There are no user-serviceable parts
inside. Refer servicing to qualified personnel.
Warning: To prevent fire or electric shock hazard, do not
expose the unit to rain or moisture.
Do not expose the Adaptor and portable DVD to water
(dripping or splashing) and no objects filled with liquids,
such as vases, should be placed on the unit.
Keep the portable DVD away from direct sunlight and heat
source such as radiators or stoves.
Do not block the ventilation openings. Slots and openings on
the unit are provided for ventilation. The openings should
never be blocked by placing your portable DVD on a cushion,
sofa or other similar surface.
Do not place the portable DVD on unstable cart, stand,
tripod, bracket or table. The unit may fall, resulting in
possible damage or injury.
Never place heavy or sharp objects on the LCD panel or
frame.
Only use the AC adapter included with portable DVD. Using
any other adapter will void your warranty.
The plug of AC adaptor is used as the disconnect device, the
disconnect device shall remain readily operable.
Unplug the power from the outlet when the unit is not in use.
Attention should be drawn to the environmental aspects of
battery disposal.
This marking indicates that this product should not
be disposed with other household wastes
throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To
return your used device, please use the return and
collection systems or contact the retailer where
the product was purchased. They can take this
product for environmental safe recycling.
2
Important Safety Instructions
CAUTION: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type.
WARNNING: The battery (battery or batteries or battery
pack) shall not be exposed to excessive heat such as
sunshine, fire or the like.
WARNNING: Excessive sound pressure from earphones or
headphones can cause hearing loss.
WARNNING: Only use attachments/accessories specified
provided by the manufacturer, the portable DVD is supplied
by AC adapter, the AC adapter is used as disconnect device,
the disconnect device shall remain readily operable.
Caution: Danger of explosion if battery is incorrectly
replaced, replaced only with the same or equivalent type
(Lithium battery)

NNotes on Copyrights:
It is forbidden by law to copy, broadcast, show,broadcast via
cable, play in public, or rent copyrighted material without
permission.
This product features the copy protection function developed by Macrovision.Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture
noise will appear.This product incorporates copyright protection
technology that is protected by method claims of certain U.S.
Patents and other intellectual property rights owned by Macrovision
Corporation and other rights owners.Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless
otherwise authorized by macrovision Corporation. Reverse
engineering or disassembly is prohibited.
SERIAL NUMBER: You can find the serial number on the back of the unit.This number
is unique to this unit and not available to others.You should record
requested information here and retain this guide as a permanent
record of your purchase.
Model No. ______________________________
Serial No. ______________________________
Date of Purchase_________________________
3

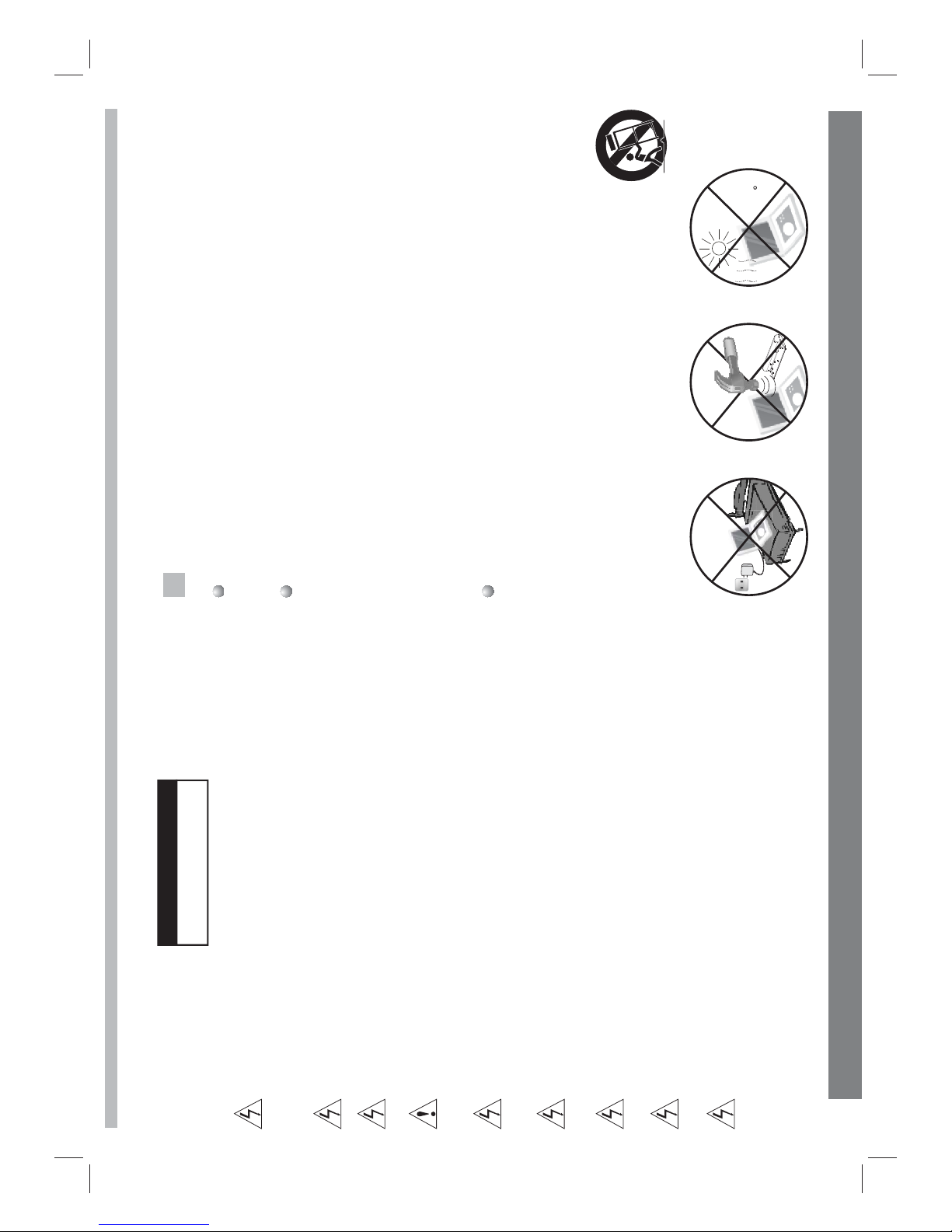

Safety Precautions
N
Warning: when the unit using by child, parents must make sure
to let the child understand all contents in Instruction book how
battery using to guarantee using battery correctly all the time.
Warning: when find battery overheat, swell or dour, please
stop using battery and contact service centre for getting
replacement.
Warning: do not charging battery on the place of insufficient
ventilation such as: mattress, sofa, cushion , soft mat......
Warning: we will not take any responsibility if user incorrectly
use battery, not following our warning instruction label on the
battery case.
Warning: more than 250mm USB extension cord is prohibited
to use for USB port
Warning: This digital video disc player employs a laser system.
Use of controls,adjustments, or the performance of procedures
other than those specified herein may result in hazardous
radiation Exposure.
Warning: To prevent direct exposure to laser beam,do not open
the enclosure.Visible laser radiation when open.
Warning: Never stare directly into the laser beam. Caution: Do not install this product in a confined space such
as a book case or similar unit.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
charge
over
heat
40 C
strong
impact

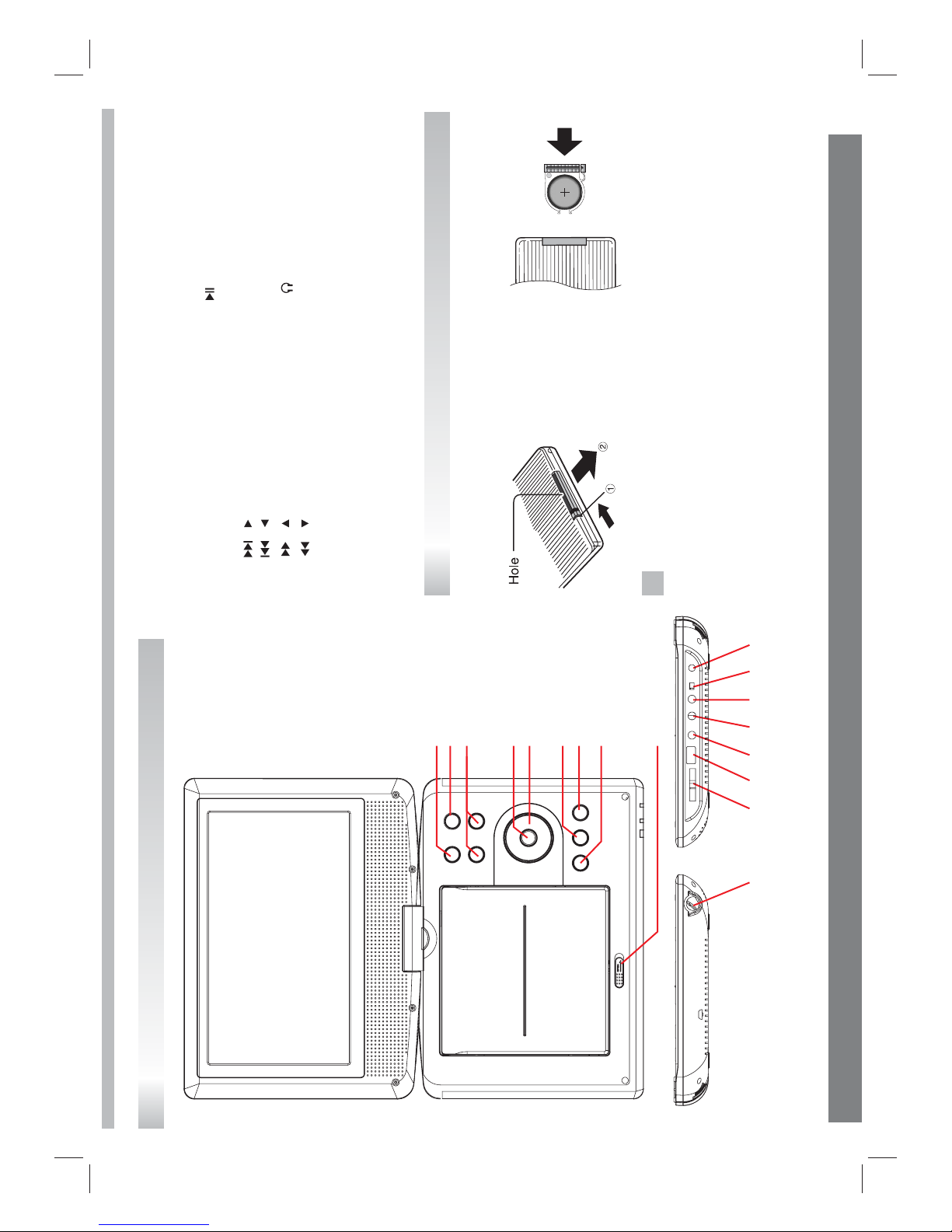

Identification of Controls
Main Unit
Insert the battery
Remove battery during storage or when you are not using the DVD
player for a long time.
2.Insert battery.
NNOTES:
1.Open the battery door.
4
6.■ STOP
7.SETUP
8. PLAY/PAUSE
9.OPEN 10. SD/MMC/MS
11. USB 12. Earphone Socket
13. AV OUT
14. COAXIAL
15. ON/OFF
16. DC IN 9-12V
17. ANT.
1.DVD/DVB
2.SOURCE
3.VOL- / VOL+
4.ENTER
5. / next / right
/ prev / left
/ forward / up
/ backward / down
short press is up/right/down/left;
long press is forward/next/
backward/prev.
10 11 12 13 14 15 16
1 2 3 4 9 7 5 6 8
17

1234
5678
9 0 10+
ENTER
MUTE
SLOW
DVD/DVB
A-B SOURCE

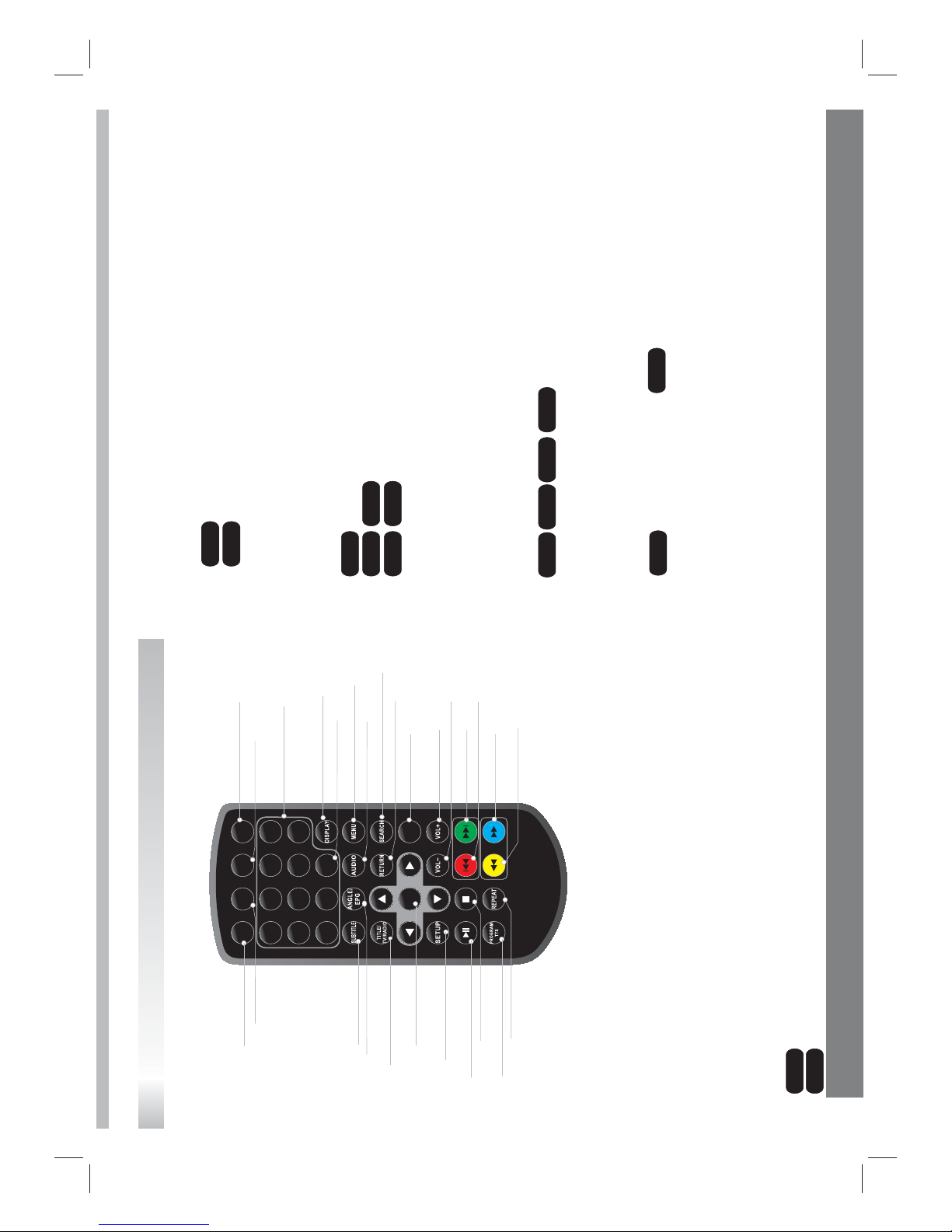

Remote control unit
79
16
18
8
15
26
21
12
22
23
12
19
13
14
25
6
17
10
24
Identification of Controls
1.PLAY/PAUSE
Press PLAY/PAUSE once to pause playback, pressing PLAY/
PAUSE second time will resume the playback.
2.STOP When this buttom is pressed once, the unit records the stopped
point,from where playback will resume if ENTER is pressed after
wards. But if STOP button is pressd again instead of ENTER
button, there will be no resume function.
3.Reverse Skip
: Go to previous chapter/ track to the beginning.
: Red key in Teletext.
4.Forward Skip
: Go to next chapter/ track.
: Green key in Teletwxt.
5.VOL -
Adjust VOLUME.
6.REPEAT
Press REPEAT during playback to select a desired repeat mode.
: you can play a chapter/title/all on a disc.
VCD CD DVD
: you can play a track/all on a disc. : you can select Repeat one/Repeat folder
play mode on a disc.
7.A B
To repeat a segment: press AB once to set the starting point for
repeat segment, press it again to set an end point, and the player
will repeat the segment from the start to the end point.
8.PROGRAM
:The program function enables you to
store your favourite tracks from the disc. Press PROGRAM button ,
then PROGRAM MENU will appear on screen, now you can use the
number key to direct input the titles,chapters or tracks number and
select PLAY option. TO resume normal playback, press PROGRAM
and select CLEAR option on the program menu.
: Teletext function .
Mp3 WMA
DVD VCD CD Mp3
5
20
5
43
11
27
DVB DVD
DVB DVD
TTX DVB

18.ANGLE Press ANGLE will change the view angle, on DVDs that support this
feature.
19.SETUP
Accesses or removes setup menu.
20.10+ BUTTON
In order to select a track 10 or greater, first press 10+, For example;
select track 12, first press 10+, and then press number 2 button.
21.RETURN
Return to upper menu or close menu.
22. BUTTON
Press BUTTON allow skipping back at 5-level speed
(X2->X4->X8->X20), press ENTER button return to normal
playback.
YELLOW Key in Teletext.
23. BUTTON
Press BUTTON allow skipping ahead at 5-level speed
(X2->X4->X8->X20), press ENTER button return to normal
playback.
BLUE key in Teletext.
24. SLOW Slow play. 25.MENU
Accesses menu on a DVD disc.
26.SEARCH
Goto time point , title or chapter you want in DVD Mode.
27. MUTE
Disable Audio output.
Identification of Controls
Remote control unit
:You can press PROGRAM repeatly to select the slide show
mode, the are 16 types slide show.
9. SOURCE
DVD/CARD/USB.
10.TITLE : Return to DVD title menu.
: Switch to TV or Radio program.
11.DVD/DVB
Switch to DVD or DVB mode.
12.0-9 NUMBER BUTTON
Selects numbered items in a menu.
13.ENTER Confirms menu selection.
14. VOL + Adjust VOLUME.
15.DISPLAY To display the playtime and status information.
16.AUDIO Press AUDIO repeatedly during playback to hear a different
audio language or audio track, if avilable.
Press AUDIO repeatedly during playback to hear a
different audio channel (Stereo, Left, or Right).
17.SUBTITLE
Press SUBTITLE repeatedly during playback to hear a different
subtitle languages.
JPEG
DVD
VCDCD
Mp3
6
DVB DVD
DVB
DVD
DVB
DVD DVB

SETUP Menu Setting
System Setup Page
Language Setup Page
Language setup
--
OSD LANGUAGE ENGLISH
GERMAN SPANISH FRENCH PROTUGUESE ITALIAN
AUDIO LANGUAGE
SUBTITLE LANGUAGE MENU LANGUAGE
Press SETUP button to get the setup menu. Use direction buttons
to select the preferred item. After finishing settings, press
SETUP again to normal display.
LANGUAGE SETUP
System Setup
SYSTEM SETUP
TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING DEFAULT
ON OFF
1 KID SAFE 2 G 3 PG 4 PG13 5 PG-R 6 R 7 NC-17 8 ADULT
TV System
Selecting the color system that corresponds to your TV when AV
output. This DVD Player is compatible with both NTSC and PAL.
PAL - Select this if the connected TV is PAL system. It will change
the video signal of a NTSC disc and output in PAL format.
NTSC - Select this if the connected TV is NTSC system. It will
change the video signal of a PAL disc and output in NTSC format.
Auto: Chang the video signal output automatic according to the
playing disk format.
Screen Saver This function is used to turn the screen saver on or off.
NTSC PAL AUTO
4:3 PS 4:3 LB 16:9
RESTORE
ENGLISH GERMAN SPANISH FRENCH PROTUGUESE ITALIAN
ENGLISH GERMAN SPANISH FRENCH PROTUGUESE ITALIAN
ENGLISH GERMAN SPANISH FRENCH PROTUGUESE ITALIAN
TV Type
Selects the aspect ratio of the playback picture.
4:3 PS: if you have a normal TV and want both sides of the picture
to be trimmed or formatted to fit your TV screen.
4:3 LB: if you have a normal TV. In this case, a wide picture with
black bands on the upper and lower portions of the TV screen will
be displayed.
16:9: wide screen display.
Password Input user password. Default password is 0000.
Rating
After input correct password, you can change parental level.
Default Restore the factory setting of setup menu.
You can select OSD language, and select audio/subtitle/menu
language of DVD discs if available. Also you can select font type for
mpeg4 subtitle.
FONT SETUP
CENTRAL EU
CYRILLIC WESTERN EU GREEK TURKISH
7

SETUP Menu Setting
Video Setup Page
You can change the video setting: brightness, contrast, hue,
saturation.
Downmix: LT/RT: When playing a 5.1ch DVD disc, the LS/RS/Center channel
audio will output through both L and R channel.
STEREO: When playing a 5.1ch DVD disc, the LS channel audio
will output only through L channel, RS channel audio will output
only through R channel, Center channel audio will output through
both L and R channel.
Speaker Setup
8
BRIGHTNESS CONTRAST HUE SATURATION
12 10 8 6 4 2 0
--
VIDEO SETUP
--
SPEAKER SETUP
DOWNMIX
LT/RT
STEREO
--
AUDIO SETUP
AUDIO OUTPUT
SPDIF/OFF SPDIF/RAW SPDIF/PCM
The function is usel to select the SPDIF output: SPDIF off,
SPDIF/RAW,SPDIF/PCM.
Audio Setup Page

TV Setting Video Setting Audio Setting Language Parent Control Time Setting System Info
System Config
DVB SETUP MENU
Channel Guide
TV Channels: Enter TV channels list.
In TV channels list, press DISPLAY key can sort programs.
Radio Channels: Enter radio channels list.
In radio channels list, press DISPLAY key can sort programs.
Channels Class: Set channels class: Favor, Movie, News, Show.
Channels Edit: Edit channels: rename, move, delete.
System Config
TV Channels Radio Channels Channels Class Channels Edit
Channel Guide
SETUP Menu Introduction
Installalion
Auto Scan Manual scan Language Default Setup
Installation
Auto Scan: Auto search all available channels.
Manual Scan: Manual search channels.
Default Setup: Reset DVB factory setting.
10
TV Setting: Selects TV system and TV type.
Video Setting: Change the video setting: brightness, contrast, hue,
saturation. Audio Setting: Selects coaxial digital out mode: OFF, RAW, PCM.
Language: Selects OSD language.
Parent Control: Change password and set channel lock.Default
password is 0000.
Time Setting: Set time zone.
System Info: Informations about the update data,tuner,F/W version and model version.
Game
BoxMan Burning Tetris Hit Rat
Game
There are three games:BoxMan,Burning Tetris and Hit
Rat.Select "ENTER" to play.

Parameters and specifications
Item Standard requirement
Output
Electronical parameters
VIDEO OUT
AUDIO OUT :1.4 Vrms (1 KHz, 0 dB)
Power requirements Power consumption Dimensions (Approx.) Weight (Approx.) Operating humidity
: AC 100-240 V , 50/60 Hz : 250(L)X191(W)X42(H)MM : <12W
: 1.3 kg
: 5 % to 90 %
System
Laser :Semiconductor laser, wavelength 650 nm Signal system : NTSC / PAL Frequency response Signal-to-noise ratio :More than 80 dB (ANALOG OUT connectors only) Dynamic range :More than 85 dB (DVD/CD)
Note: Design and specifications are subject to change prior notice.
N
: 20Hz to 20 kHz(1dB)
Battery Parameters
Battery Specifications：
Output：7.4V
Charge / Discharge Time：
Standard charge time：3h ~ 4h
Storage and work circumstances：
1. Storage circumstances Temperature Humidity
2.Work circumstances Temperature Humidity
6 months -20 C +45 C~
-20 C +65 C~
65+20% 65+20%
Standard charge
Standard discharge
0 C +45 C~
-20 C +65 C~
65+20%
65+20%
1 week
9
