Denver TDB-10 User manual

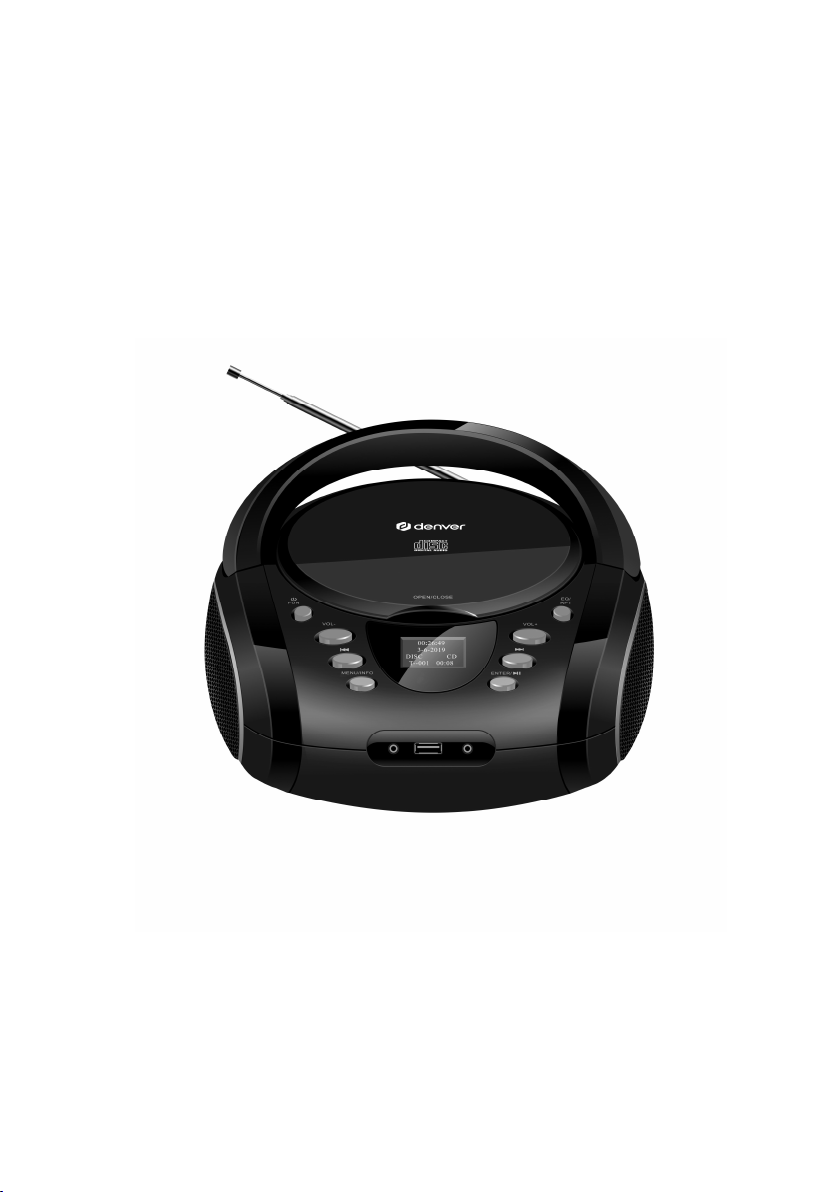

CD Boombox
TDB-10
INSTRUCTION MANUAL
EN

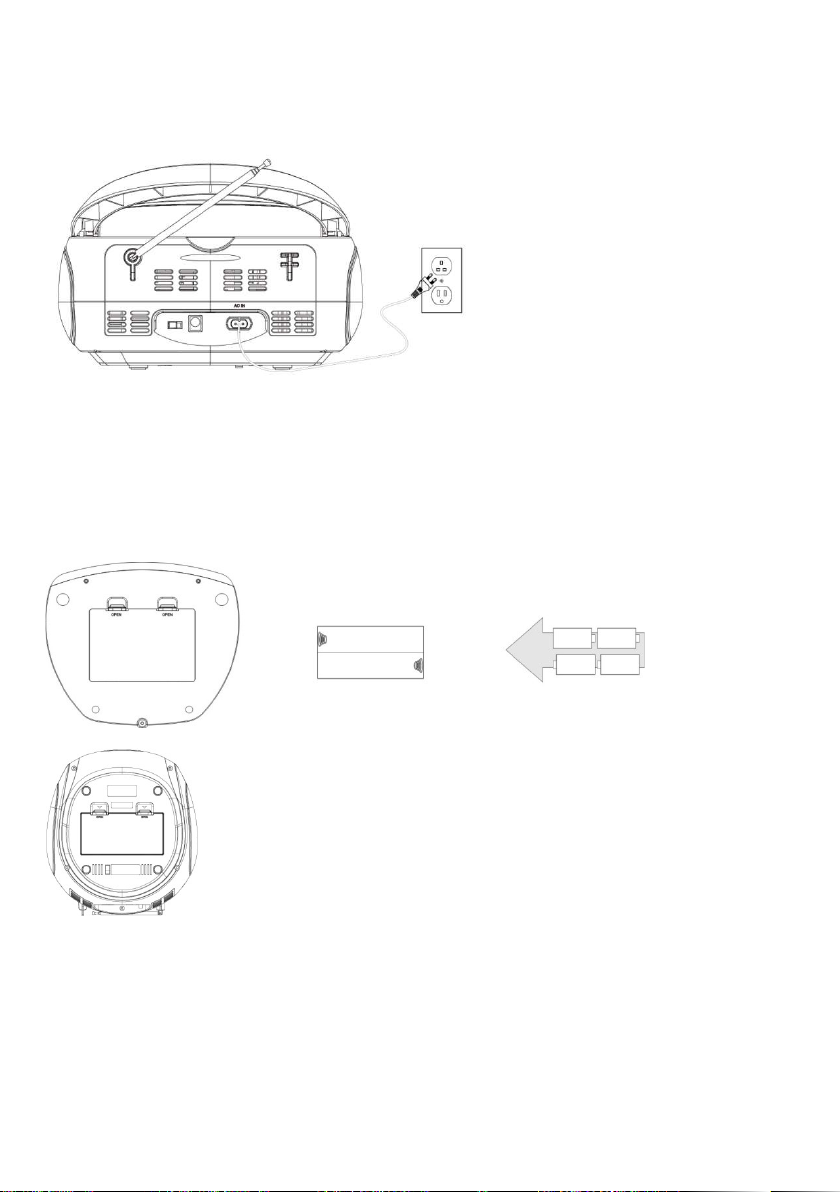

AC Power
Plug the detachable AC cord into a standard AC outlet (100-240V~ 50/60Hz)
Battery Power
Requires 4 C batteries, not included.

Listening to FM Radio
1. Adjust the function to FM mode by pressing the FUN button.
 Extend the FM antenna to improve FM radio reception.
2. Short press the PREV or NEXT button to tune into the previous or next available
station.
3. Press and hold the PREV or NEXT button to auto search the previous or next radio
station.
4. Press and hold the PLAY/PAUSE button to automatically search and save radio
stations automatically. Up to 30 radio stations can be saved.
DAB Radio
1. Adjust the function to DAB mode by pressing the FUN button.
2. Press and hold the PLAY/PAUSE button to automatically search and save DAB
radio stations.
3. Short press the PREV/NEXT button to highlight a sub-station and press the
ENTER button to select.
4. Short press the INFO button to display station details.
BT Function
1. Press the FUN button to select BT mode ;
2. Access your devices bluetooth setting and pair your device to the unit
.BT name :TDB-10 ;
3. Then you can operate the unit by keys on the front panel .

Location of Controls

1. OPEN/CLOSE
2. POWER/FUN
 Standby mode: Short press to turn the radio on; press and hold to turn the
radio off. By default the radio turns on in DAB mode.
 Operating mode: Short press to cycle through DAB/FM/CD/USB/AUX /BT
modes.
3. PREV/NEXT
 In FM mode: Short press to scan up or down through the radio frequencies.
Press and hold to scan up or down through FM frequencies.
 CD/USB Mode: Short press to skip to previous or next title; press and hold for
fast rewind and fast forward through the current title.
 BT mode: press the PREV/NEXT key to select music.
 AUX Mode: This keys have no function.
4. MENU/INFO
 Short press to display information; press and hold to display the menu.
5. Aux-in
 Use the Aux input to connect an external audio source (MP3 player) to the
unit.
6. VOL+/VOL-
 Short press to increase or decrease the volume step by step; press and hold to
increase or decrease the volume continuously. The max. volume level is 32.
7. EQ/RPT
 Short press to cycle through EQ modes FLAT/CLASS/JAZZ/ROCK/POP.
 USB Mode: Press and hold to cycle through the repeat functions
REP-1/REP-DIR/REP-ALL/RANDOM.
 CD Mode: Press and hold to cycle through the repeat functions REP-1
/REP-ALL/RANDOM.
8. PLAY/PAUSE/ENTER
 FM mode: Press and hold for 2 seconds to automatically scan the FM
frequencies.

 CD/USB/BT mode: First short press to pause playback, then short press again
to continue playback.
 AUX mode: The key has no function.
9. EARPHONES JACK
10. USB PORT
 Press the Mode button to select USB mode and connect a USB storage
medium.
11. AC Power Input
 Use the AC Power input to connect the unit to an AC power source.

Please notice - All products are subject to change without any notice. We take
reservations for errors and omissions in the manual.
ALL RIGHTS RESERVED, COPYRIGHT DENVER A/S
Electric and electronic equipment contains materials, components and
substances that can be hazardous to your health and the environment, if the
waste material (discarded electric and electronic equipment) is not handled
correctly.
Electric and electronic equipment is marked with the crossed out trash can
symbol, seen above. This symbol signifies that electric and electronic equipment
should not be disposed of with other household waste, but should be disposed of
separately.
All cities have established collection points, where electric and electronic
equipment can either be submitted free of charge at recycling stations and other
collection sites, or be collected from the households. Additional information is

available at the technical department of your city.
Hereby, Inter Sales A/S declares that the radio equipment type TDB-10 is in
compliance with Directive 2014/53/EU. The full text of the EU declaration of
conformity is available at the following internet address: denver.eu and then click
the search ICON on topline of website. Write model number: TDB-10 Now enter
product page, and RED directive is found under downloads/other downloads.
Operating Frequency Range: FM:87.5-108MHz DAB: 174.928-239.200MHz
Max Output Power:8W
Denver A/S
Omega 5A, Soeften
DK-8382 Hinnerup
Denmark
facebook.com/denver.eu

CD-Boombox
TDB-10
BEDIENUNGSANLEITUNG
DE

Netzbetrieb
Stecken Sie den Netzstecker das abnehmbaren Netzkabels in eine Netzsteckdose (100 –
240 V~ / 50/60 Hz).
Batteriebetrieb
Sie benötigen 4 Batterien der Größe C (nicht im Lieferumfang enthalten).
