Denver TFD-2201 User manual

22″TFT LCD TV & DVD COMBO
TFD-2201
Instruction Manual

1
Dear Customers
Thanks for purchasing this TFT-LCD TV/Monitor. We strongly recommend
that you carefully read the safety and operation instructions before
operating your TV/Monitor. FOLLOW INSTRUCTIONS AND HEED ALL
WARNINGS on your TFT-LCD TV/Monitor and in this manual.
Safety information
__________________________________________________
Note:
Before connecting the AC power cord to the DC adapter outlet, make sure
that the voltage designation of the DC adapter corresponds to the local
electrical supply. If you are unsure about your power supply, please ask
the local power company.
Caution:
To avoid electric shock, never touch the inside of the LCD TV/Monitor. Only
qualified technicians should open the case of the LCD TV/Monitor.
Warning:
Do not defeat the safety purpose of grounding-type. A grounding type plug
has two blades and a third grounding pin. The third pin is provided for your
safety. If the plug does not fit, ask the electrician to replace the obsolete
outlet. Do not modify the plug!
To reduce the risk of fire or electric shock, and annoying interference, use
the recommended accessories only.

2
Precautions
________________________________________________________
Please read the below precautions carefully before operating the unit.
Power cord protection:
1. Never use your LCD TV/Monitor if the power cord has been damaged.
Do not put anything on the power cord, and keep the power cord away
from where people can easily trip over it.
2. Be sure to hold the plug , do not pull the cord when disconnecting the
LCD TV/Monitor from an electric socket.
3. Locate your LCD TV/Monitor near an easy accessible AC outlet.
4. The power cable/disconnect device shall remain easy
to operate/disconnect.
Placement:
1. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus.
2. An appliance and a cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the
appliance and cart combination to overturn.
3. Never placing the LCD TV/Monitor in areas under direct sun-light, with
high temperature or with high humidity or high level of dust which may
cause damages on the internal parts of the LCD TV/Monitor.
4. Place the LCD TV/Monitor on a solid surface and treat it carefully. The
screen is made of thin glass with a plastic front surface and can be
damaged by dropping, hitting or scratching.
Non-use periods:
Unplug the LCD TV/Monitor when it will no be used for a long period.
Foreign objects:
Never insert anything metallic into the cabinet openings of the TV/Monitor.
Doing so may cause the danger of electric shock.

3
Keep away from water/magnetic fields:
1. Do not expose the LCD TV/Monitor to rain or use it near water source.
If the LCD TV/Monitor got wet, unplug it and contact an authorized
dealer immediately.
2. Do not clean the front panel with Ketone-type materials, ethyl alcohol,
toluene, acid, methyl, or chloride since they may cause damage on
panel.
3. Keep the unit away from flower vases, tubs, sinks etc. if liquids spill
into the unit, serious damage will occur.
4. Do not place magnetic objects close to the LCD TV/Monitor.
Stacking:
Opening in the LCD TV/monitor cabinet are provided for ventilation. To
prevent overheating, these openings should not be blocked or covered.
Never use the unit on a bed, sofa, rug, or other uneven surfaces. Doing so
may block the ventilation openings in the bottom of the unit. If you place the
LCD TV/Monitor in a bookcase or some other enclosed place, please make
sure to provide adequate space for ventilation.
Servicing:
1. If the LCD TV/Monitor does not operate normally – In particular, if there
are any unusual sounds or smells coming from the unit – just unplug it
immediately and contact an authorized dealer or service center.
2. Unplug the LCD TV/Monitor from the AC outlet before any service.
3. Make sure the service technician uses authorized replacement parts or
their equivalents. Unauthorized parts any cause fire, electrical shock,
or other hazard.
4. Following any service or repair, be sure the service technician
performs safety checks to certify that the TFT LCD TV/Monitor is in
safe operating order.

4
Unpacking
____________________________________________

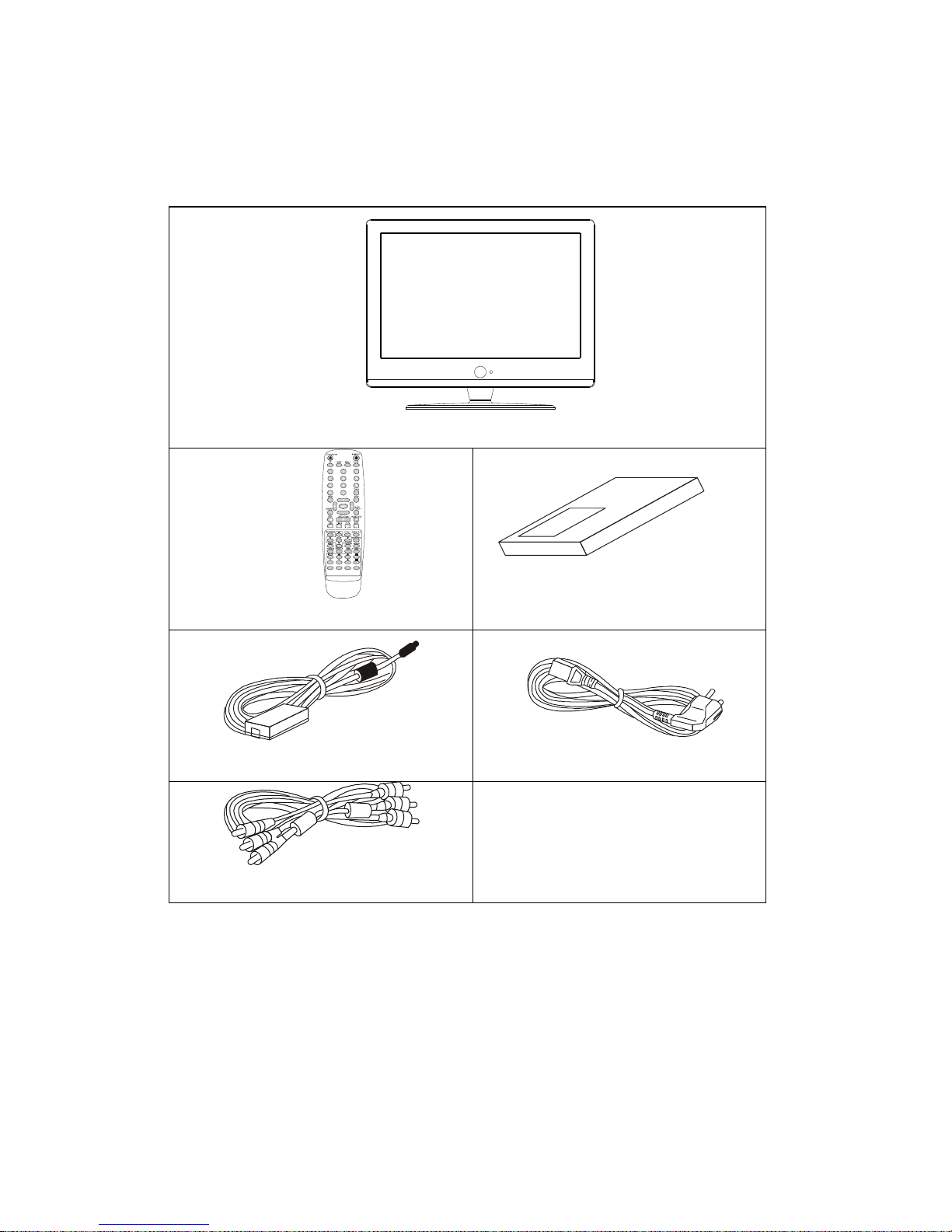

Please make sure that the following items are included with your LCD
TV/Monitor. If any item is missing, please contact your dealer.
TFT LCD TV/ Monitor
Remote control Operation manual
DC adapter Power cord
RCA cable

5

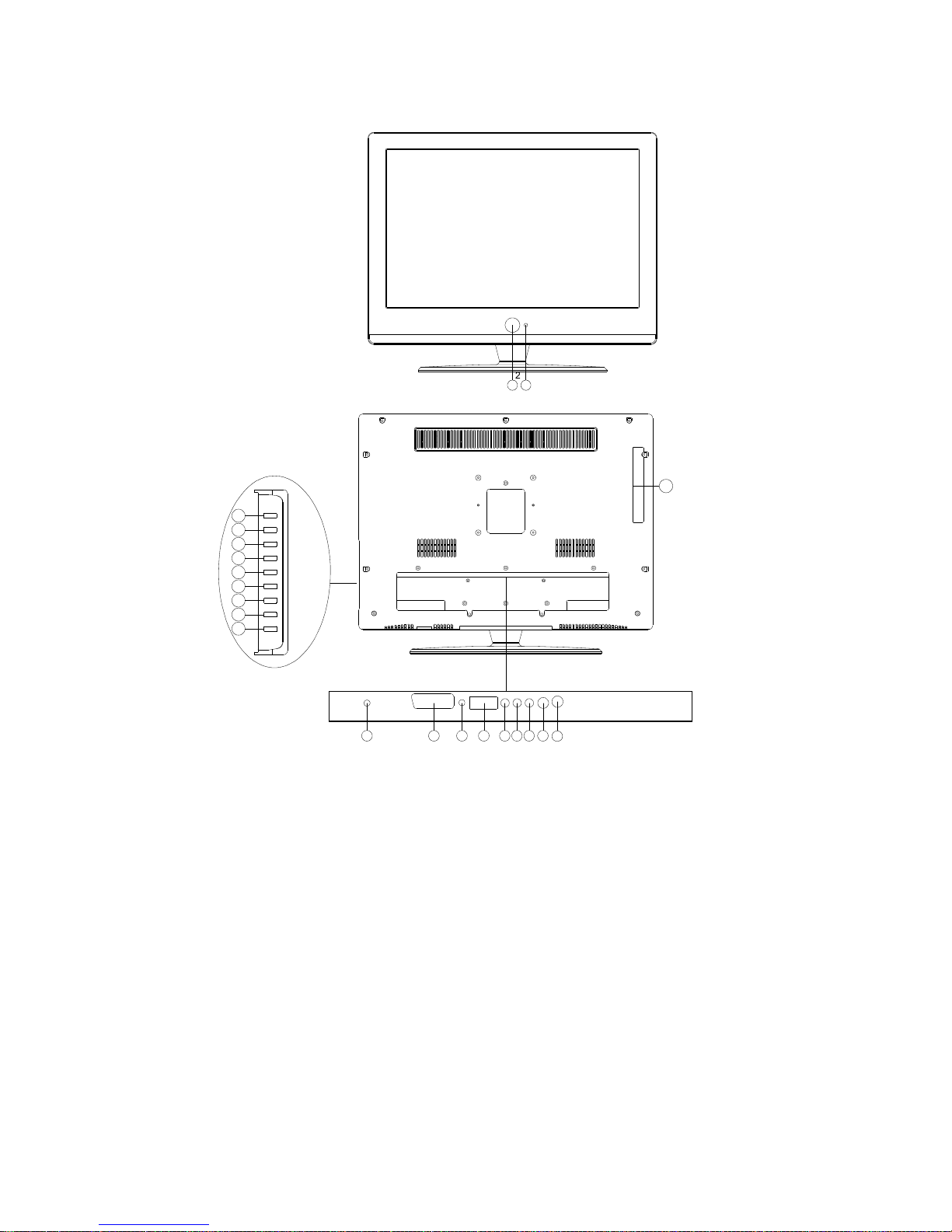

I. View of the TV/Monitor
Front view
Back view
1. Remote sensor
2. Power button & indication light
3. DVD play/pause button
4. DVD stop playing button
5. DVD open/close button
6. P+/Up direction button
7. P-/Down direction button
8. VOL+/Right direction button
9. VOL-/Left direction button
10. Menu button
11. TV /AV function switch button
12. DVD disc slot in
13. DC input jack/Car cord input jack
14. SCART jack
15. PC audio in jack
16. VGA jack
17. Audio in (Right) jack
18. Audio in (Left) jack
19. Video jack
20. S-video jack
21. TVRF antenna jack
21
17 18 19 20 21 16151413
12
3
4
5
6
7
8
9
10
11

6

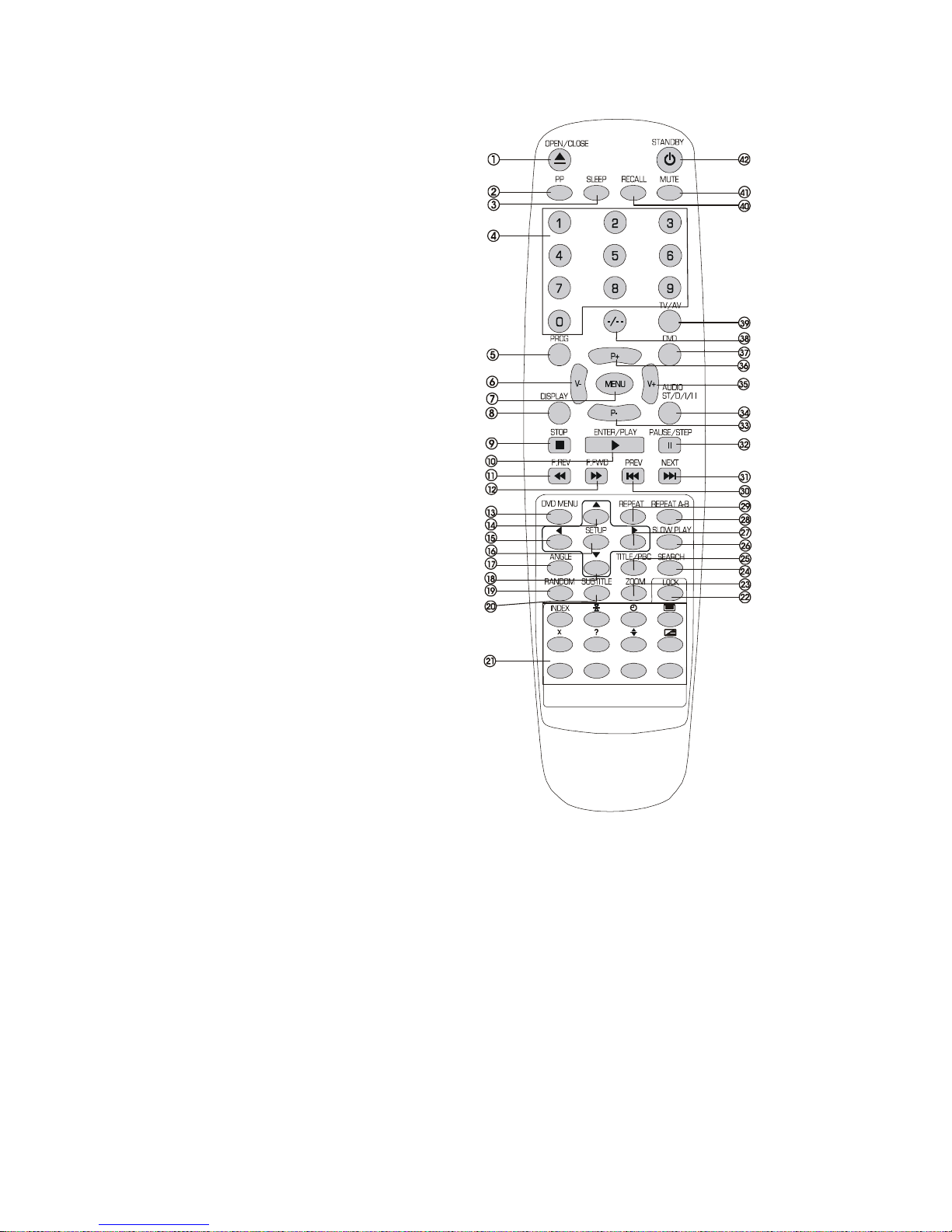

II. Remote control reference guide
(1) Remote control function
1. DVD open/close
2. Video out mode button
3. SLEEP button
4. 0-9 Numerical button
5. Program play button
6. Volume down button
7. Unit system menu button
8. Display status message button
9. DVD stop button
10. DVD ENTER/PLAY button
11. DVD fast rewind button
12. DVD fast forward button
13. DVD MENU display button
14. Direction button (Up)
15. Direction button (Left)
16. DVD system setup button
17. ANGLE button
18. Direction button (Down)
19. RANDOM play button
20. SUBTITLE function button
21. TELETEXT buttons
22. Key lock button
23. ZOOM function button
24. Search disc play mode
25. TITLE/PBC button
26. SLOW PLAY button
27. Direction button (Right)
28. REPEAT A-B button
29. REPEAT button
30. DVD skip backward
31. DVD skip forward
32. DVD PAUSE/STEP button
33. CH- button
34. Audio effect button
35. Volume up button
36. CH+ button
37. DVD function button
38. -/- - button
39. TV/AV function switch button
40. RECALL button
41. MUTE button
42. STANDBY button

7
●TELETEXT BUTTONS
(If TV has teletext function. You may enjoy it by using these buttons)
Name Function Name Function
To select TXT/TV mode To show the sub page
Enter into TXT list mode Keep the page display
Display the hidden
information INDEX Menu display
Screen zooming Page display or cancel
RED Display red screen GREEN Display green screen
YELLOW Display yellow screen BLUE Display blue screen
(2) Remote control battery installation and cautions
Replace battery by following the below steps:
Requires one pair of AAA batteries.

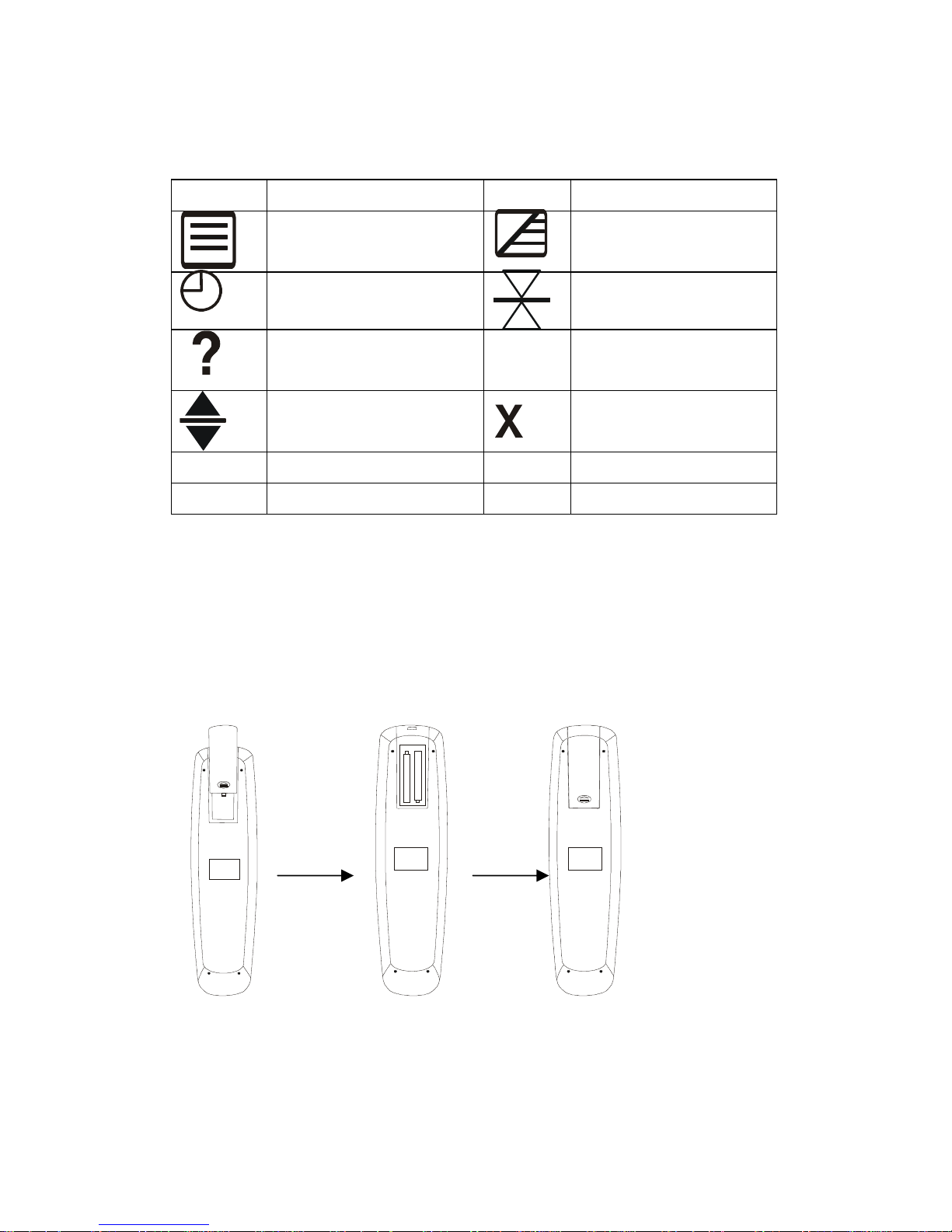

1. Open the battery cover as shown below:
2. Install the battery into the battery tray.
3. Close the battery cover
Caution:
1. Keep the battery out of children’s reach.
2. Don’t attempt to recharge, short-circuit, disassemble, heat or throw the

8
batteries into the fire.
3. Always replace both batteries at the same time. Never mix new and old
batteries or batteries of a different type.
4. If you don’t intend to use the remote controller for an extended period,
remove the batteries to prevent possible leakage and corrosion.
Notes:
1. Do not drop, apply shock or step on the remote control.
2. Do not spill water on the remote control.
3. Do not use the remote control for other equipments at the same time
4. If the TV does not operate even when operating the remote control
from a close range, you need to replace the batteries.
Refer to the label on the back of the remote control for directions for
replacing batteries.
III. Installation and connection
Connect the LCD TV/monitor

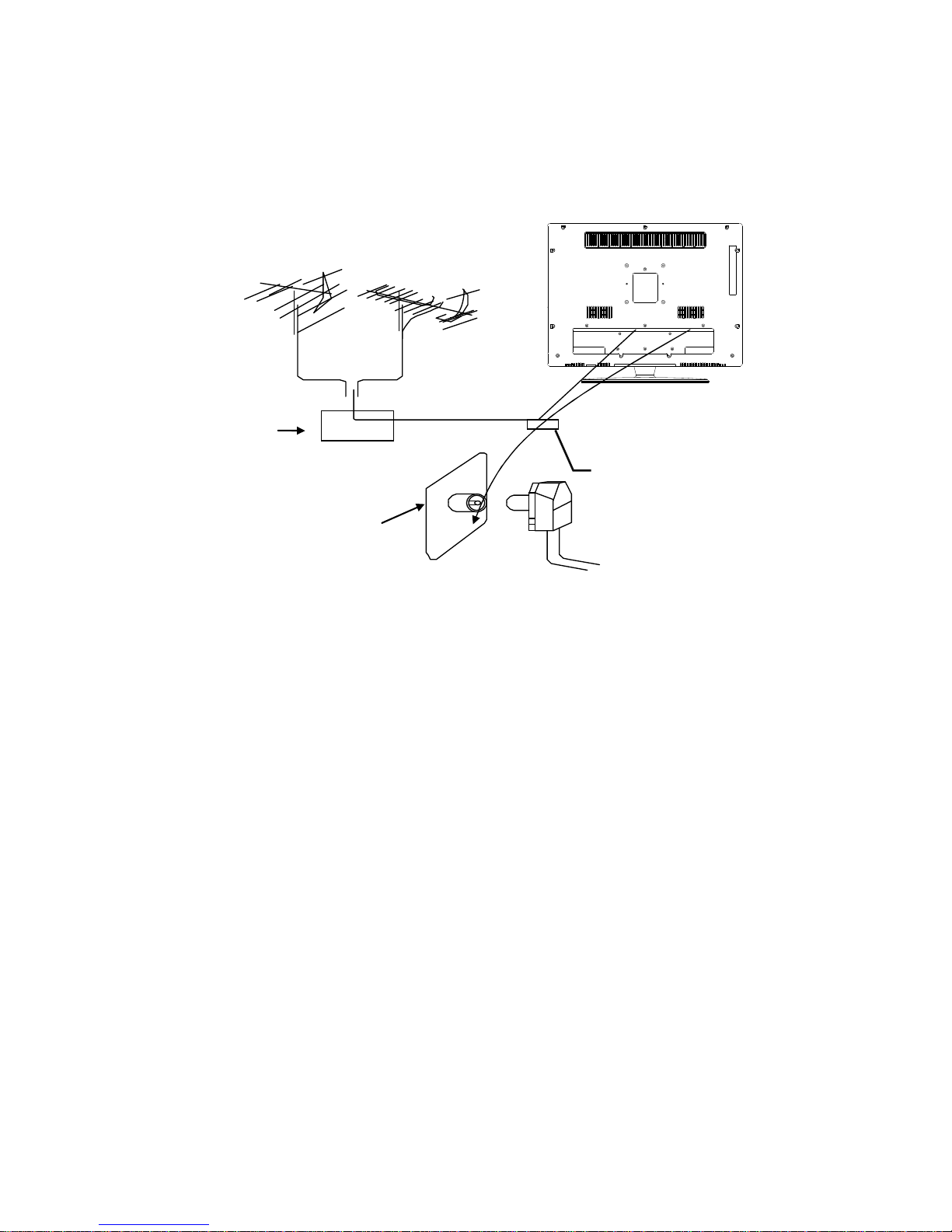

1. Connect the TVRF source with the antenna port. TVRF signal
including: Receiving antenna /satellite TV/CATV net. You can use 75
Ωcoaxial cable to connect the outdoor antenna.
Outdoor Antenna Connection:
DVD or VCR

9
Use 75Ωcoaxial cable plug or 300-75Ωimpedance converter to plug
in antenna input terminal on the rear of the cabinet.
2. Connect the audio sources (Including DVD, VCDR, CAMCORDER
and PC) to the proper AUDIO input jacks ‘L’ and ‘R’.
3. Connect the video source to the VIDEO jack by RCA cable.
4. If the video source has a SCART output jack, you can connect the
signal to the monitor by the SCART cable.
5. Connect the video source to the S-VIDEO input jack of the monitor by
the S-video cable (Pretended the video source has S-video output
jack).
6. Insert the AC power to the DC adapter, then connect 12V input jack of
the monitor to it’s DC output jack.

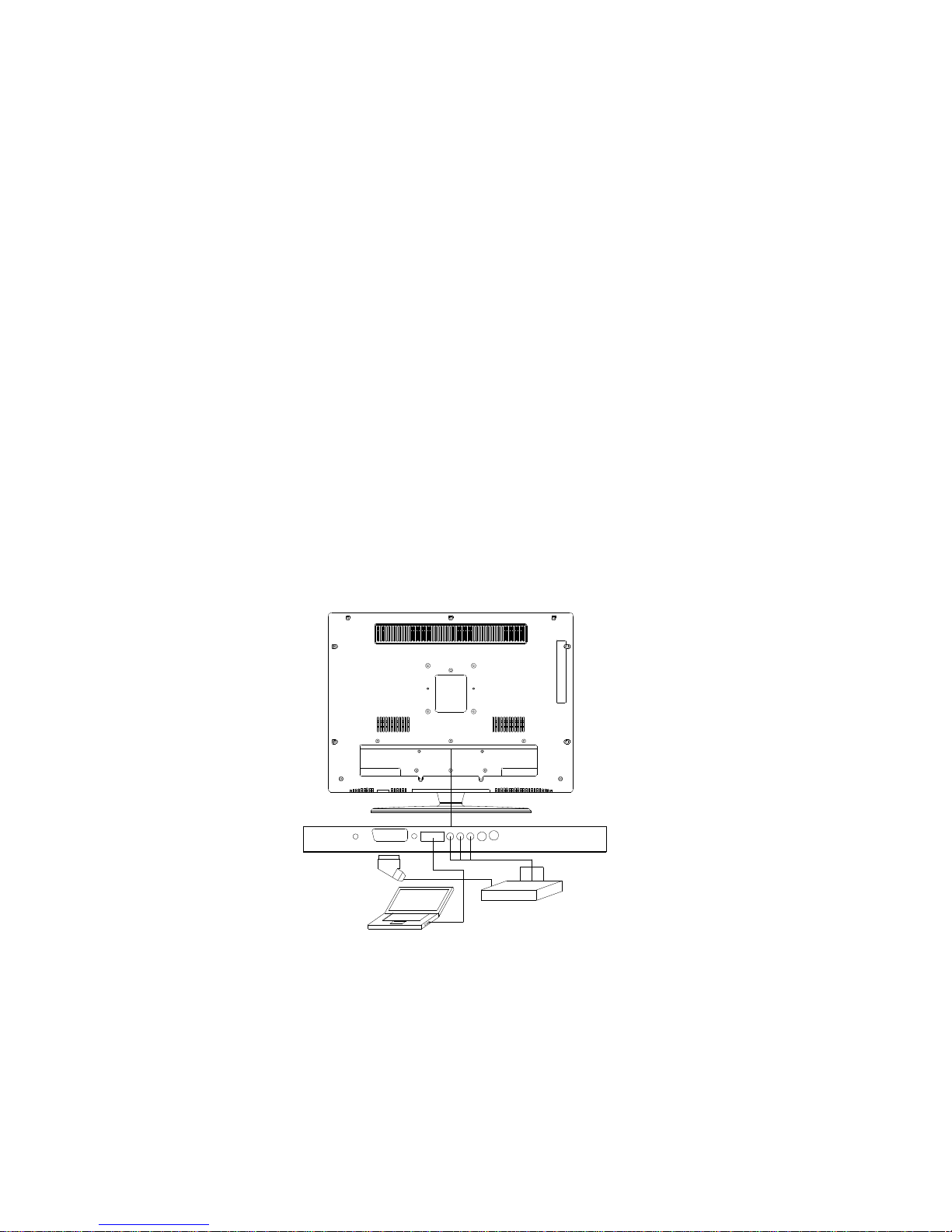

7. When use as computer screen, connect the PC to the VGA jack of the
monitor by the relevant cable.
IV. TV/Monitor screen operation
(1) Basic operation
1. Press the POWER button on the unit or the STANDBY button on the
remote control to switch on the power, the indication light will be in blue
75
Ω
Co
-
axis cable
Antenna in jack
75ΩCo-axis cable
VHF antenna
Mixer
UHF antenna
Input terminal of
antenna
Co-axis antenna
plug

10
color . Press the POWER or STANDBY button again to switch off the
power, and the light will be in red color.
2. The Picture setup, Sound setup, Previous channel can be memorized
before you switch off the TV/Monitor. The TV/Monitor will re-start under
the previous state when you switch on it again.
3. Press the V - or V + button to adjust the volume output. Press the V -
button repeatedly to decrease the volume; press the V + button
repeatedly to increase the volume from 0 to 100.
4. Press the SLEEP button to set the sleep time as 15,30, 45,60, 90, 120
minutes or off.
(2) View the TV plays.
1. Press the TV/AV button on the unit or the remote control to select the
TV function mode. The TV will appear the initial channel ‘1’ on the top
right corner when the function is on. Press the P- or P+ button to select
the previous or next channels; or press the 0-9 buttons to enter a
channel number directly, or press the -/-- button until the screen
display ‘--’ or ‘---’, then use the 0-9 numerical buttons to enter a
channel number from 10 to 200.
2. Press the RECALL button on the remote control to select from the
present channel and the previous channel.
3. Press the PP button to select picture mode from the below 4 types
4. Press the MUTE button to cut off the sound output, then the screen will
show “ “ mark , press this button again to resume sound output..
5. Press the DISPLAY button to display the preset channel mode.
(3) View the AV signal sources (DVD/VCR/CAMCORDER)
Press the TV/AV button on the remote control, there will be a menu
displayed on the screen as followed:
User Normal Soft Vivid

11
Select the suitable input to pickup the AV signal.
Press P+ or P- button to select source, then press
V + button to confirm your selection. Or press DVD
Button on the remote control to select DVD source
directly.
Note:
When no disc in the DVD mechanism, if you want to change the mode
from DVD to TV, please wait several seconds until the LCD screen
shows "No Disc".
(4) View the TELETEXT program
(Optional. If TV has this function.)
1. Press the TV/AV button to select the TV mode. Then press the P- or
P+ button on the remote control to select TV channel in order to pick
up the picture signal of TELETEXT. (Firstly you must view the second
part of chapter Vto complete the TV channel searching).
2. Press button to enter into picture showing mode. The button
can allow you:
3. Press the P- or P+ button to select the previous page or the next page;
use the 0-9 numerical buttons and the -/- - button to enter into a
numerous page.
4. Refer to the chapter of ‘Remote control reference guide’ to grasp other
functions of the TELETEXT buttons.
(5) PC screen
Press the TV/AV button to select the VGAinput (TV into PC) mode. The will
be a ‘PC’ mark appears on the right of the top corner of the monitor.
Enter into the
picture showing Exit
TV
AV
SVideo
DVD
SCART
PC

12
The unit has a VGA jack for a normal computer. Connect the monitor with a
PC by this jack and the unit can be used as the monitor of the PC.
V. Menu setting and adjustment
1. PICTURE SETTING

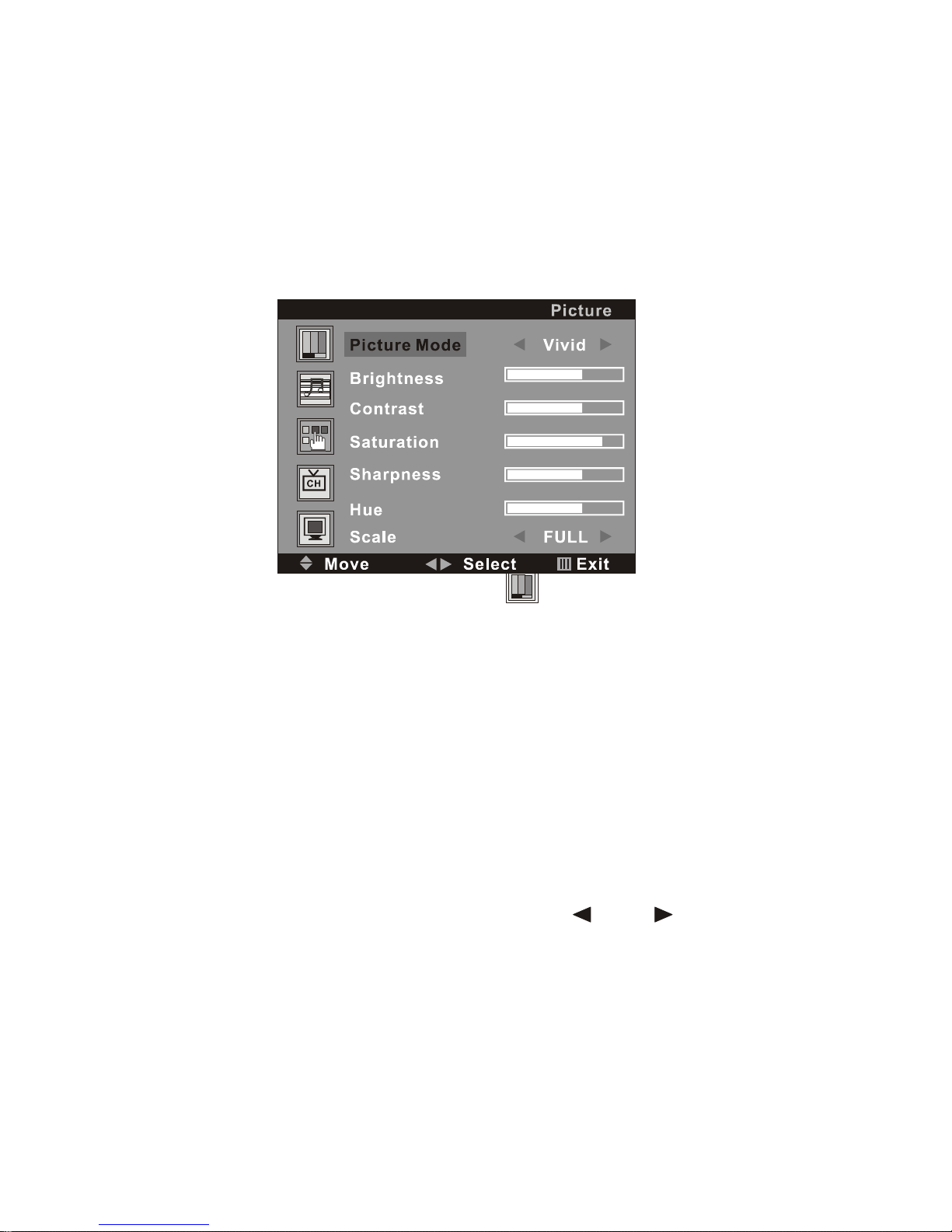

Press the MENU button on the remote control, there will be a menu
displayed on the screen as below:
On this menu, the Picture setting icon of is in red frame.
(1). Use the V+ button firstly, the cursor will be on the line of “Picture
Mode: Vivid”. And then, press the V+ or V - button repeatedly to select
the picture mode from Vivid, Soft,Normal or User.
(2). After select the Picture Mode, you can use the P- or P+ button to select
the item of Brightness, Contrast, Saturation, Sharpness and Hue. And
then use the V- or V+ button to adjust the value of each item
respectively from 0~100.
Note:
Only the item of Brightness and Contrast could be operated in the
PC signal source.
(3) To move the cursor on the line of “Scale FULL ”. And then,
press the V+ or V - button repeatedly to select the picture screen
display mode between FULL and 4:3
After setting, press the MENU button to return to the root menu or exit the
setting

13
2. SOUND SETTING
Press the MENU button on the remote control, and then press the P- button
to select the Sound setting, the Menu will be shown as below:
On this menu, the Sound setting icon of is in red frame.
(1). Use the V+ button firstly, the cursor will be on the line of “Sound Mode:
Normal”. And then, press the V+ or V - button repeatedly to select the
picture mode from Normal, News, Movie or User.
(2). After select the Sound Mode, you can use the P- or P+ button to select
the item of Volume, Bass, Treble and Balance. And then use the V- or
V+ button to adjust the value of each item respectively from 0~100.
After setting, press the MENU button to return to the root menu or exit the
setting menu.
3. CHANNEL SETTING( FOR TV SIGNAL SOURCE ONLY)
Press the MENU button on the remote control, and then press the P- button
to select the Channel setting, the Menu will be shown as below:

14
On this menu, the Channel setting icon of is in red frame.

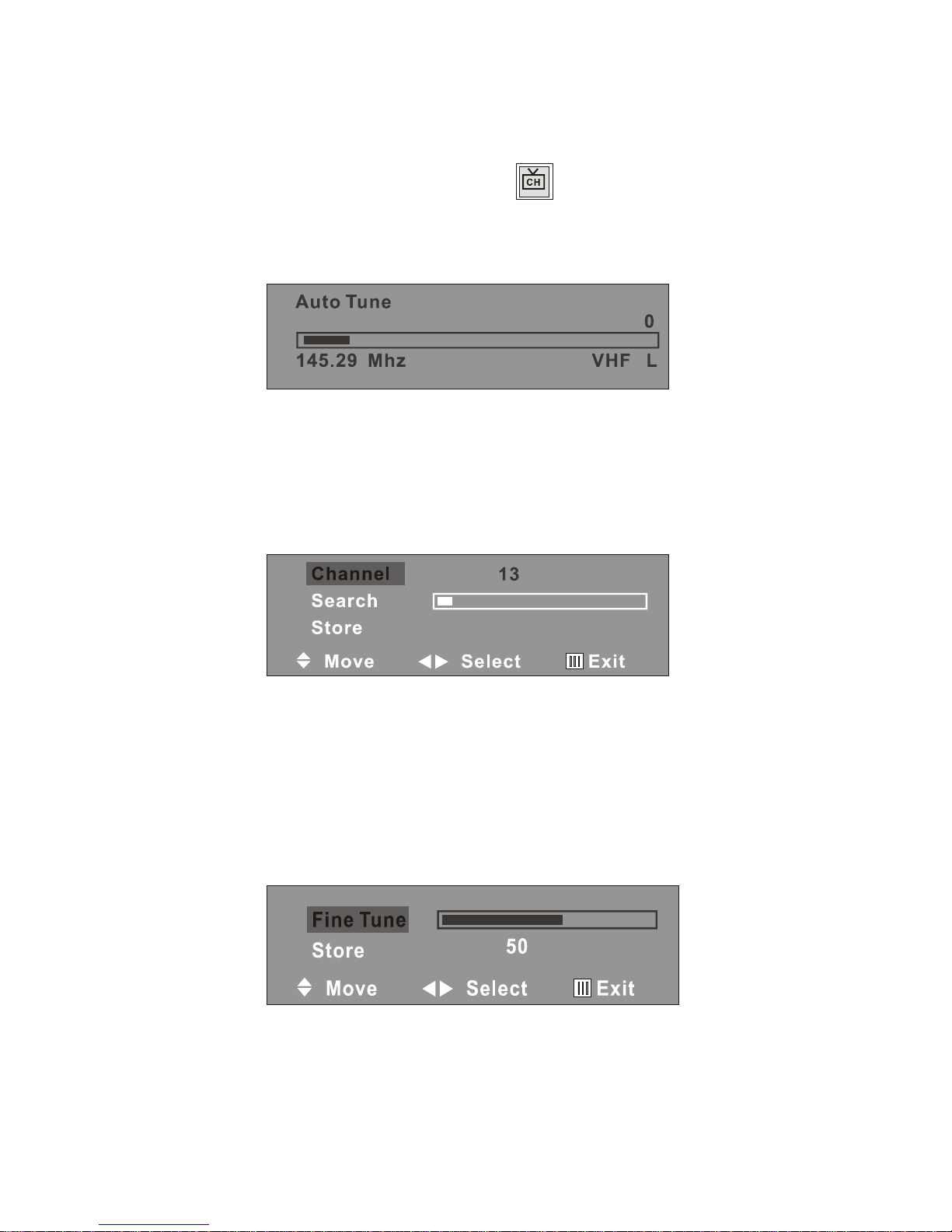

(1). Auto Tune
Use the V+ button firstly, the cursor will be on the line of “Auto Tune  ”.
And then, press the V+ button again, a menu will be displayed as followed:
As shown on the menu, the TV will automatically search stations. When
searching, press the MENU button to cancel searching. After the searching,
the TV will begin to play the station 1.
(2). Manu Tune
Select the ‘Manu Tune’ first, and then press the V+ button:
As shown on the menu, the channel number will displayed on the screen.
Press the V- or V+ button repeatedly until you search a required station.
Press the P+ or P- button to move cursor to Search, and press V- or V+
button to search TV signal .At last press the P+ or P- button to move cursor
to store, and press MENU button to save your selected channel.
(3) .Fine Tune
Select the ‘Fine Tune’ first, and then press the V+ or V- button:
As shown on the menu, the TV signal could be fine tuned by V- or V+
button repeatedly until you get the best playing effect. Press the P +or P-
button to move cursor to Store, and press MENU button to save

15
(4).Skip
Press the P- or P+ button to select the skip setting, and press the V- or V+
button repeatedly to select On or Off.
Setting to “On”, the channel will not be selected by Channel Up/Down keys.
(5).Sound SYS.
Press the P- or P+ button to select the Sound SYS. setting, and press the
V- or V+ button repeatedly to select .You could choose D/K,L,LL ,B/G or I
according to your local TV sound system.
(6).Swap

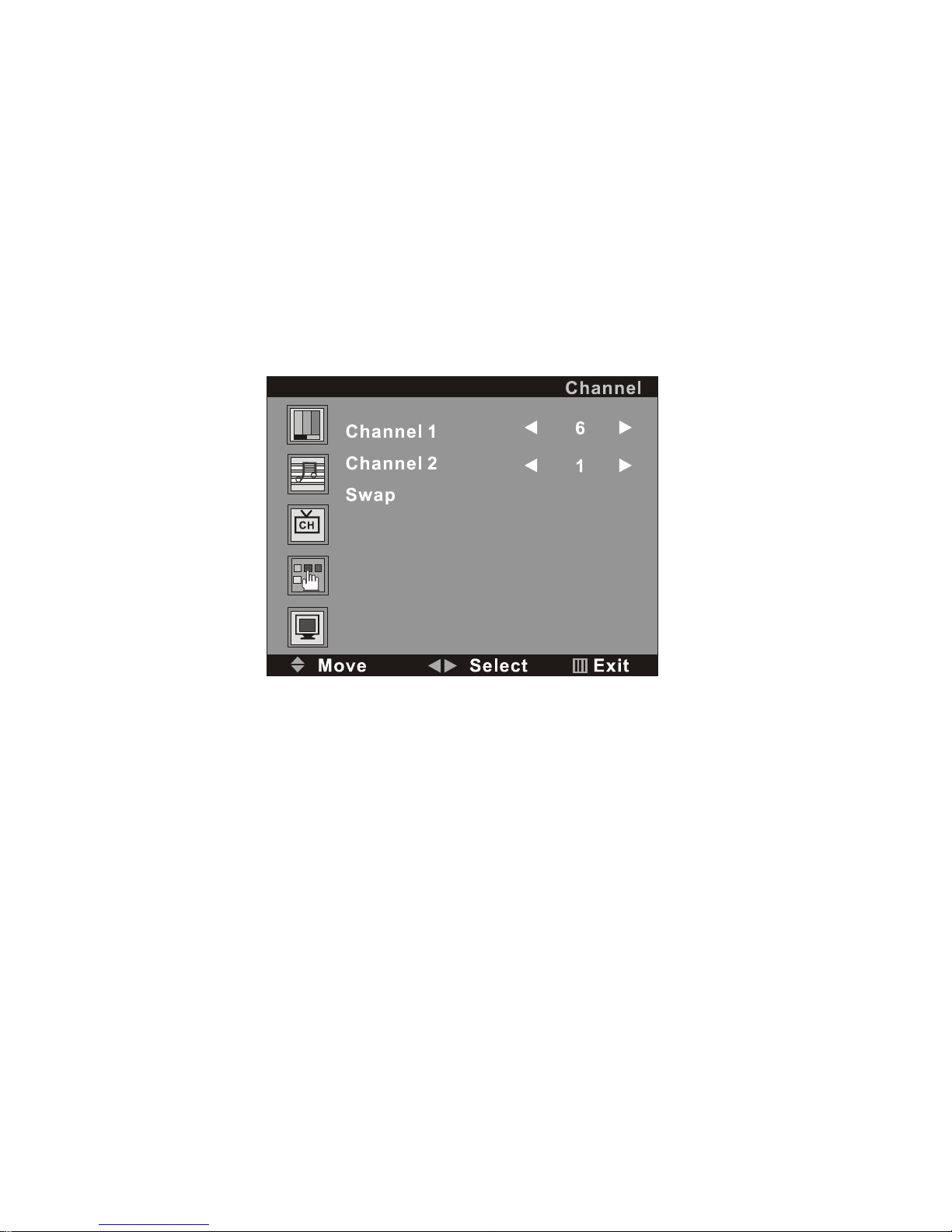

Select the “Channel Swap”, and then press the V+ button, the screen will
display:
On the menu, the words “Channel 1” indicate the current station and 6 is
the station number; “Channel 2 ” means the destination station and 1 is the
station number. The TV is playing the current station (6). Press P- button
to keep the cursor on the line of “Channel 2”, you can enter into a station
number from 1-200 by the digit buttons 0-9 and the -/-- button as the
appointed station number (***) for replacing the current station number.
After entered into the number, press P- button again to move the cursor
will on the line of “ Swap”, then press V+ button, the TV will play the
programs of the appointed station (***).
After setting, press the MENU button to return to the root menu or exit the
setting menu.
4. FUNCTION SETTING

16
Press the MENU button on the remote control, and then press the P- button
to select the Function setting, the Menu will be shown as below:
On this menu, the Function setting icon of is in red frame.

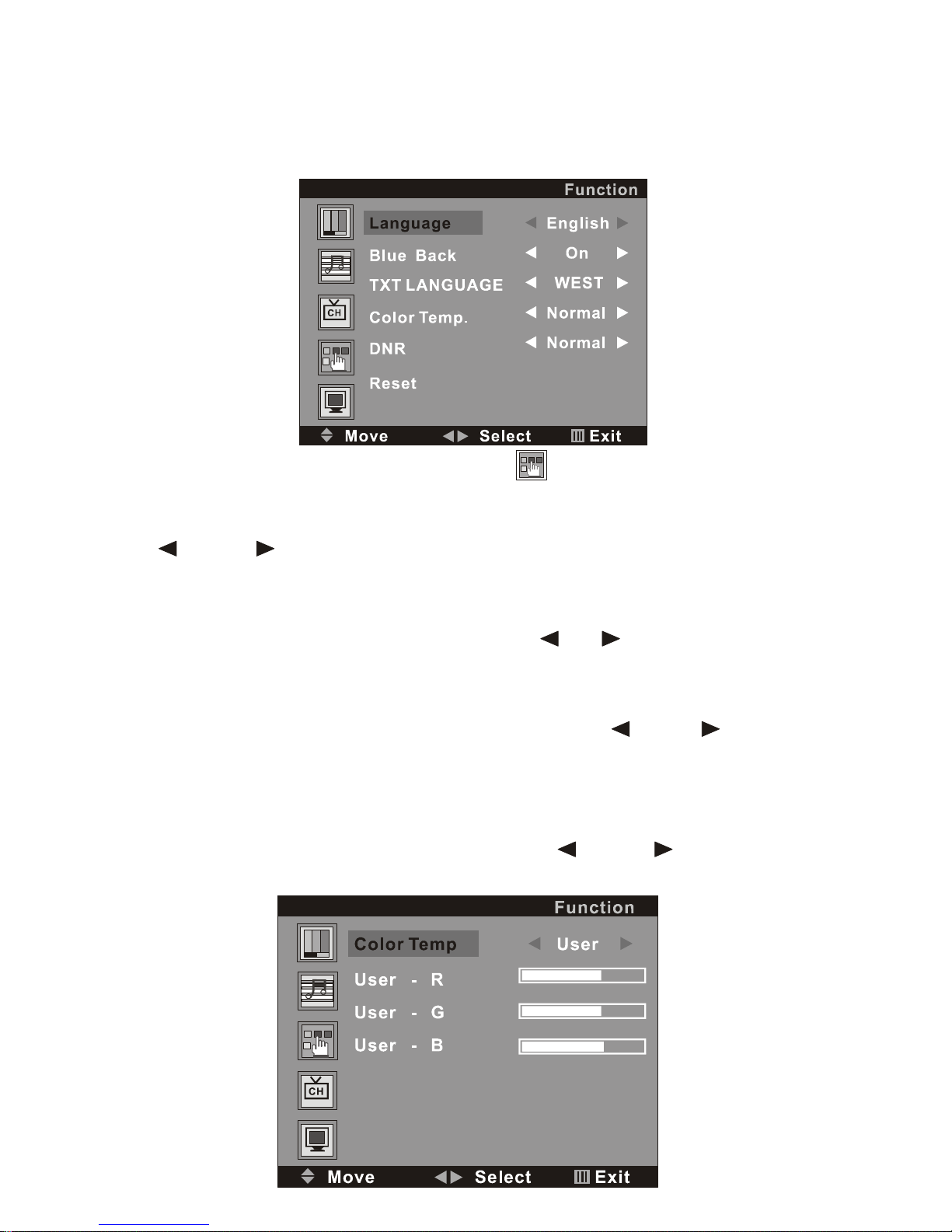

(1).Language
Use the V+ button firstly, the cursor will be on the line of “Language
English ”. And then, press the V+ or V - button repeatedly to select
the language you need
(2).Blue Back
Move the cursor to the line of “Blue Back On ”. And then, press
the V+ or V - button repeatedly to select the On or Off
(3).TXT LANGUAGE
Move the cursor to the line of “TXT LANGUAGE WEST ”. And
then, press the V+ or V - button repeatedly to select the
WEST,RUSSIAN,ARABIC,FARSI or EAST according to your meaning.
(4).Color Temp.
Move the cursor to the line of “Color Temp. Normal ”. And then,
press the V+ or V - button , a menu will be displayed as followed:

17
Press the V+ or V - button repeatedly, you could select User, Normal, Warm
or Cool according to your request.
Note:
Only the item of User-R , User-G or User-B could be adjusted from 0
~100 in the Color Temp User .
(5).DNR
Press the V+ or V - button repeatedly, you could select Strong, Normal or
Weak
(6)Reset
Press the V+ or V -button to reset
After setting, press the MENU button to return to the root menu or exit the
setting menu.
Note:
a. Only the item of Language , Color Temp. and Reset could be
operated in the PC signal source.
b. The item of Blue Back could not be operated in AV, Svideo, DVD
and SCART signal source.
5. PC SETTING ( FOR PC SIGNAL SOURCE ONLY)
Press the MENU button on the remote control to display the menu, and
then press the P- button to select the PC setting, and the menu will be
shown on the screen as below:

18

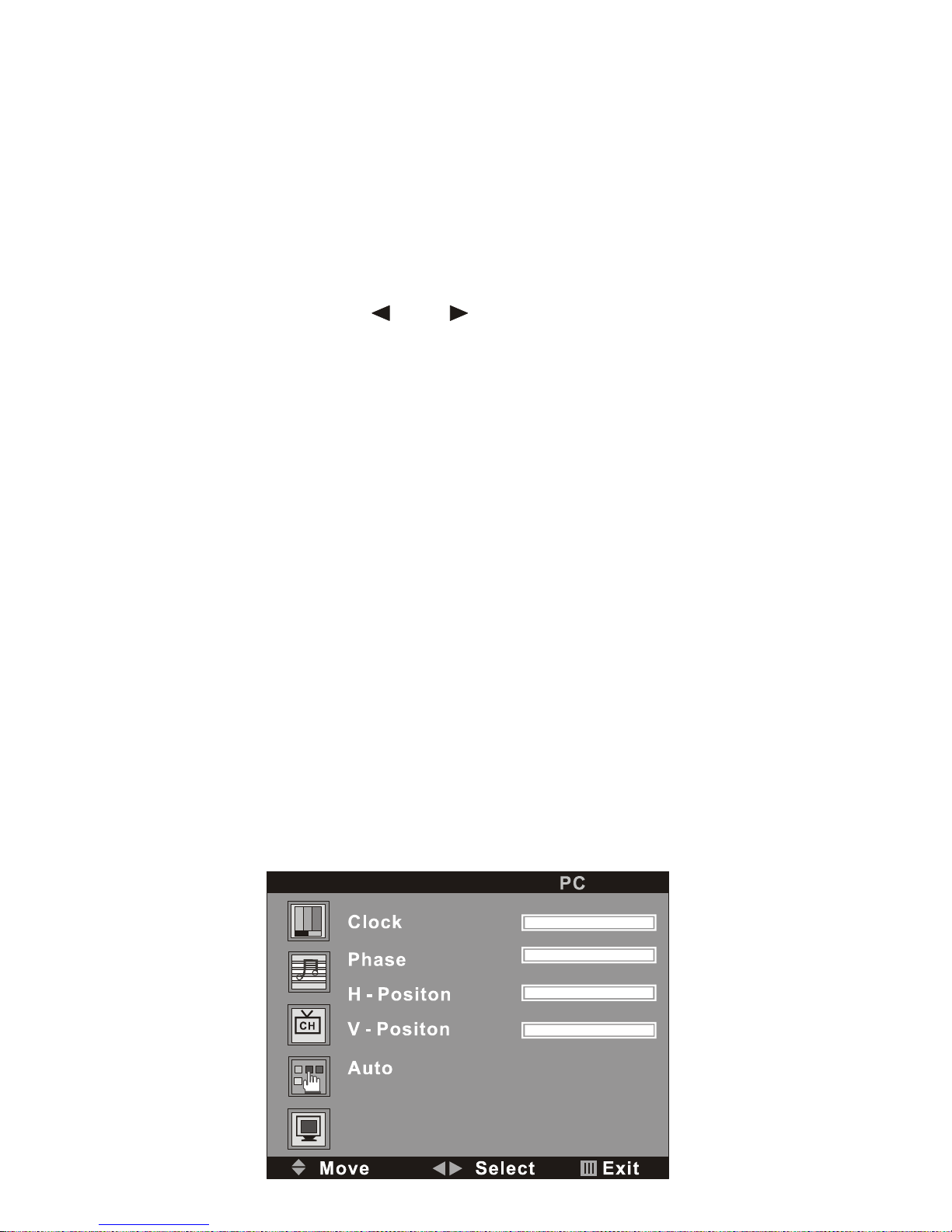

On this menu, the PC setting icon of is in red frame. You can use the
P- or P+ button to select the item of Clock, Phase, H-Position or V-Position.
And then use the V- or V+ button to adjust the value of each item
respectively from 0~100.
VI. DVD PLAYER OPERATION
a. Basic play
1. Press the TV/AV button on the unit or the remote control to select the
DVD function mode. Or press DVD button of the remote control
directly.
2. Insert a disc into the slot of DVD player and it will be read
automatically.
3. Press ”OPEN/CLOSE” button of remote control or the button on
the unit ,the disc will be ejected automatically
Note: Insert disc with reflective data side facing the front of the TV.
Some slight picture noise and some sounds are produced
when the disc is loading, unloading and during playback, this is
normal and can be ignored.
HOW TO SELECT THE TRACK
If you want to play the second track or chapter, please press the number
button “2” directly. And press ENTER/PLAY button to play.
HOW TO PAUSE PLAYBACK (STILL PLAYBACK)
Press the PAUSE/STEP button one time only during playback .
Press the ENTER/PLAY button to resume normal playback.
HOW TO REMOVE THE DISC
Press the OPEN/CLOSE button on the remote control.
Wait until the disc is completely ejected before removing any discs.
HOW TO STOP PLAYBACK

19
If press the STOP button once, the DVD video player is stopped. At this
point, press the ENTER/PLAY button to re-start the disc from the same
point. If press the STOP button twice, the disc will stop completely.
FAST FORWARD/ REWIND
Press the 

 or 

 button once, the disc will be played forward or backward.
With each subsequent press, the disc will be played back at 2x, 4x, 8x, 16x
or 32X speed. Press ENTER/PLAY button to return to normal play.
SKIP NEXT/ PREVIOUS
Press the  or  / button to select the next track or the previous track.
b. SLOW PLAY
Press SLOW PLAY button when playing, you can play the disc at 1/2, 1/4,
1/8, 1/16 of the normal speed. If you want to stop it, you can press
ENTER/PLAY button to play normally again.
c. ZOOM PICTURE
This DVD video player allows you to zoom in/ out a picture as well as shift
the zoom point. Press ZOOM during normal play or slow motion, the DVD
video player magnifies in the center or the picture at 2x, 3x, 4x, 1/2, 1/3, 1/4
of the normal picture. In the ZOOM mode, you can use // / buttons
to move the picture for optimum viewing.
d. REPEAT PLAY
You can use the REPEAT button to repeat the playing under normal
situation.
Press the REPEAT button the first time to repeat playing the present
chapter.
Press the REPEAT button again to repeat playing the present title.
Press the REPEAT button third time to repeat playing the disc.
Press the REPEAT button for the forth time to cancel repeating playing and
return to normal playing.
Note: For different discs, REPEAT button may be have different functions.
