Denver LED-2451DVBT User manual

Instruction Manual
24”LCD TV WITH DVB
Model NO.: LED-2451DVBT

Contents
Contents
Caution
Safety Information
Introduction
1. Front View
2. Rear View
3. Remote Control
Basic Operation
OSD Menu
1. PICTURE menu
2. SOUND menu
3. FUNCTION menu
4. TV menu
5. DTV menu
Media operation
Simple Troubleshooting
2
3
4-7
4
5
6-7
8
9-17
9
10
11-12
11-14
15-17
18-19
20
1

Caution
Caution
is intended to alert the user to the presence of un-insulated "dangerous
to constitute a risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling centre.
In the European Union there are separate collection systems for used
electrical and electronic products. Please help us to conserve the
environment we live in!
This unit complies with European safety and electrical interference
directives.
2

Safety Information
Safety Information
To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below.
Electrical safety
• The TV set should only be connected to a mains supply which matches that stated on
the label on the mains adaptor
• To prevent overload, don't share the same mains supply socket with too many other
items of equipment.
-Do not place any connecting wires where they may be stepped on or tripped over.
-Do not place heavy items on the leads, which may damage them.
-Hold the Mains plug, not the wires, when removing from a socket.
-During a thunderstorm or while leaving the TV for long periods, disconnect the aerial (if
outdoor) and mains adaptor from the supply.
-Do not allow water or moisture to enter the TV or mains adaptor. Do NOT use in wet
or moist areas such as Bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if:
-the mains plug or cable is damaged
-liquid is spilt onto the set, or if it is accidentally exposed to water or moisture
-anything accidentally penetrates the ventilation slots
-the set does not work normally.
-Do NOT remove the safety covers. There are no user serviceable parts inside.
You may invalidate the warranty. Qualied personnel only are permitted to service this
apparatus.
-To avoid battery leakage, remove exhausted batteries from the remote control
handset, or when not using for along period.
-Do NOT break open or throw exhausted batteries on a re.
Physical safety
• Do NOT block ventilation slots in the back cover. You may place the TV in a cabinet, but
ensure at least 5cm (2") clearance all around the unit.
• Do NOT tap or shake the TV screen, you may damage the internal circuitry. Take good
care of the remote control, do not drop it or allow it to come into contact with liquids.
• To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based uids. For
stubborn stains, you may use a damp soft cloth with diluted detergent.
3

Introduction
Introduction

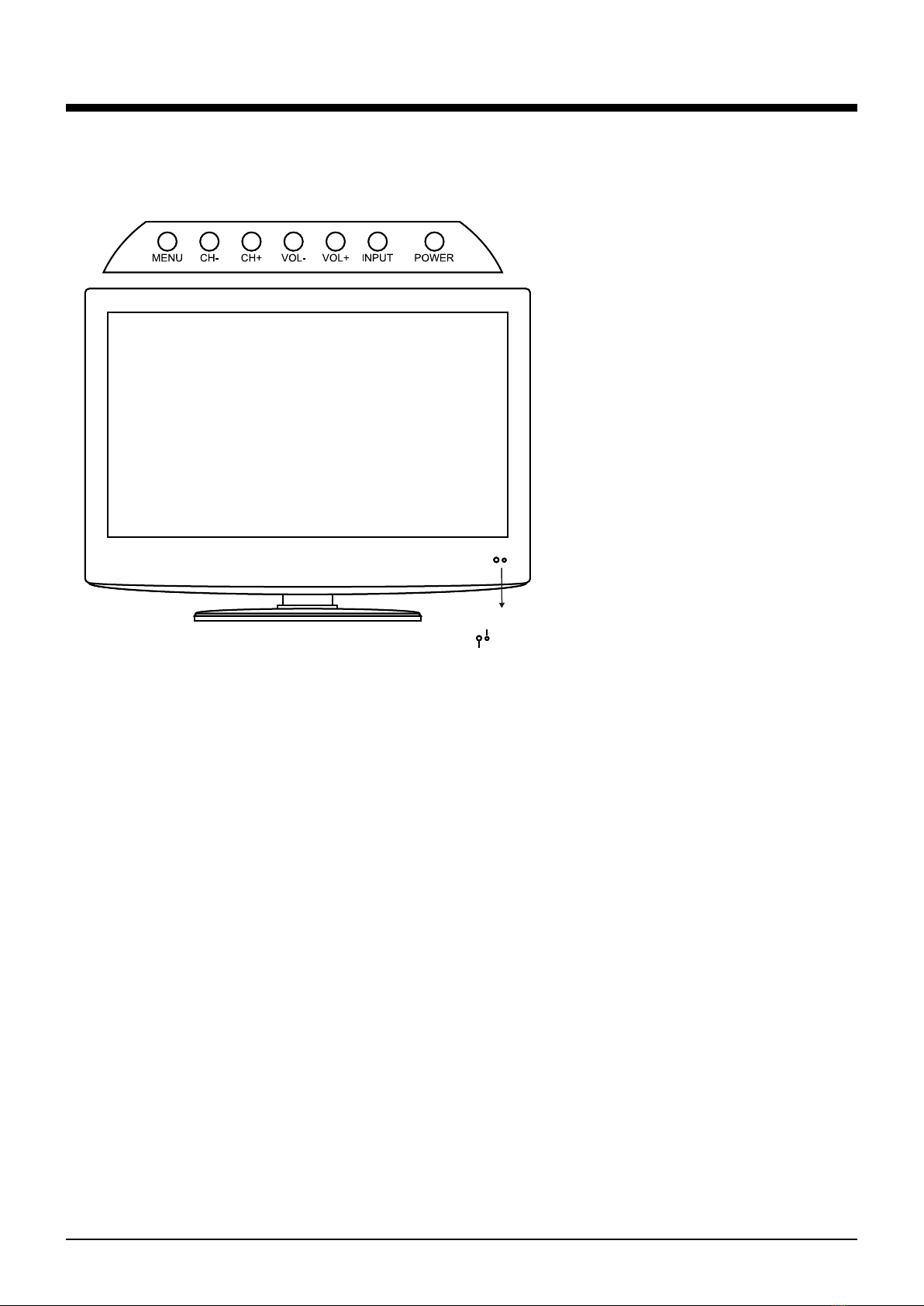

1. Front View
1. (IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby)LED Indicator: Press POWER to turn on and off.
Indicator on(Red) Standby mode
Indicator on(Null) Power on mode
2. The functions of the buttons:
MENU : Press to display the OSD menu, press again to exit the menu.
CH+/- : Press to scan through channels.
VOL+/- : Press to adjust the volume.
INPUT : Press to display the input source menu.
POWER : Turn on/standby the TV set.
The effective receiving range for the signal is 5-8 metres from the front of the remote
control window, and 300to the left or right side and 200above or below the remote control
window.
Led Indicator
Remote Control window(Keep clear)
4

Introduction

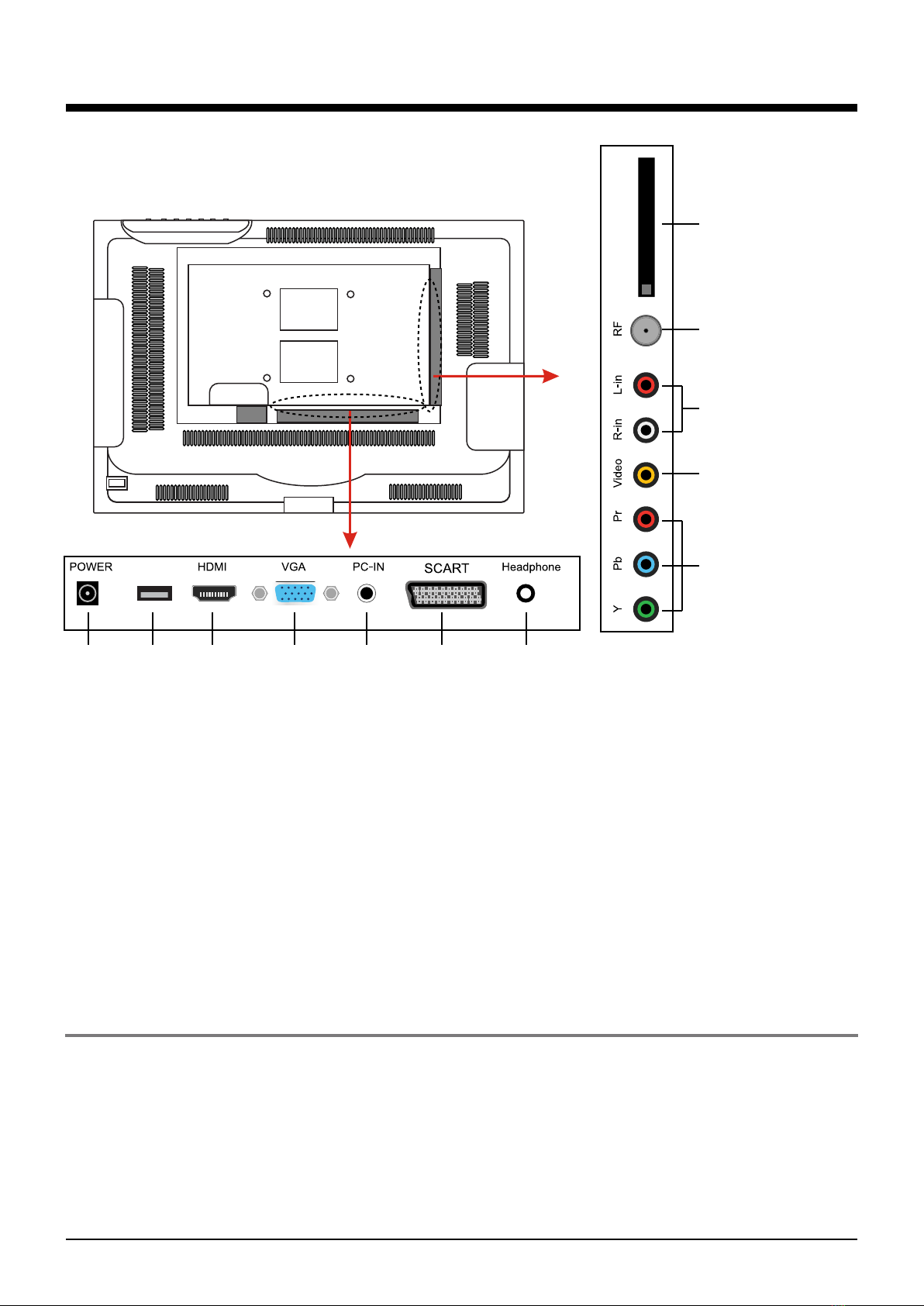

2. Rear View
Wall Mounting
The TV is provided with mounting holes for a VESA approved wall mounting bracket(NOT
SUPPLIED). Remove the Posi screws holding the base to the base bracket and lift the
base away (do not remove the base mounting bracket). Mount the VESA bracket using
4 x M4 x10 Iso metric threaded screws (not supplied). Do not use screws longer than 10 mm,
damage will occur to the internal parts. Fit the wall bracket securely following the manufacturers
instructions.
12.Common interface: CI solt.
Common interface
USB
1 2 3 4 5 6 7
8
9
10
11
12
1. POWER: Connect to the mains adaptor.
2. USB: For software update only.
3. HDMI: Connect it to the HDMI of DVD or other equipment.
4. VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.
5. PC-IN: Connect it to the audio output terminal of PC.
6. SCART: Connect them to the SCART video output terminal of DVD.(used in component source)
7. Headphone: Connect it to your headphone or other audio equipment.
8. YPbPr: Connect them to the YPbPr video output terminal of DVD.(used in component source)
9. VIDEO: Connect it to video output terminal of DVD.
10. R/L in: Connect them to the audio output terminal of DVD.(shared with YPbPr)
11. RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
5

Introduction

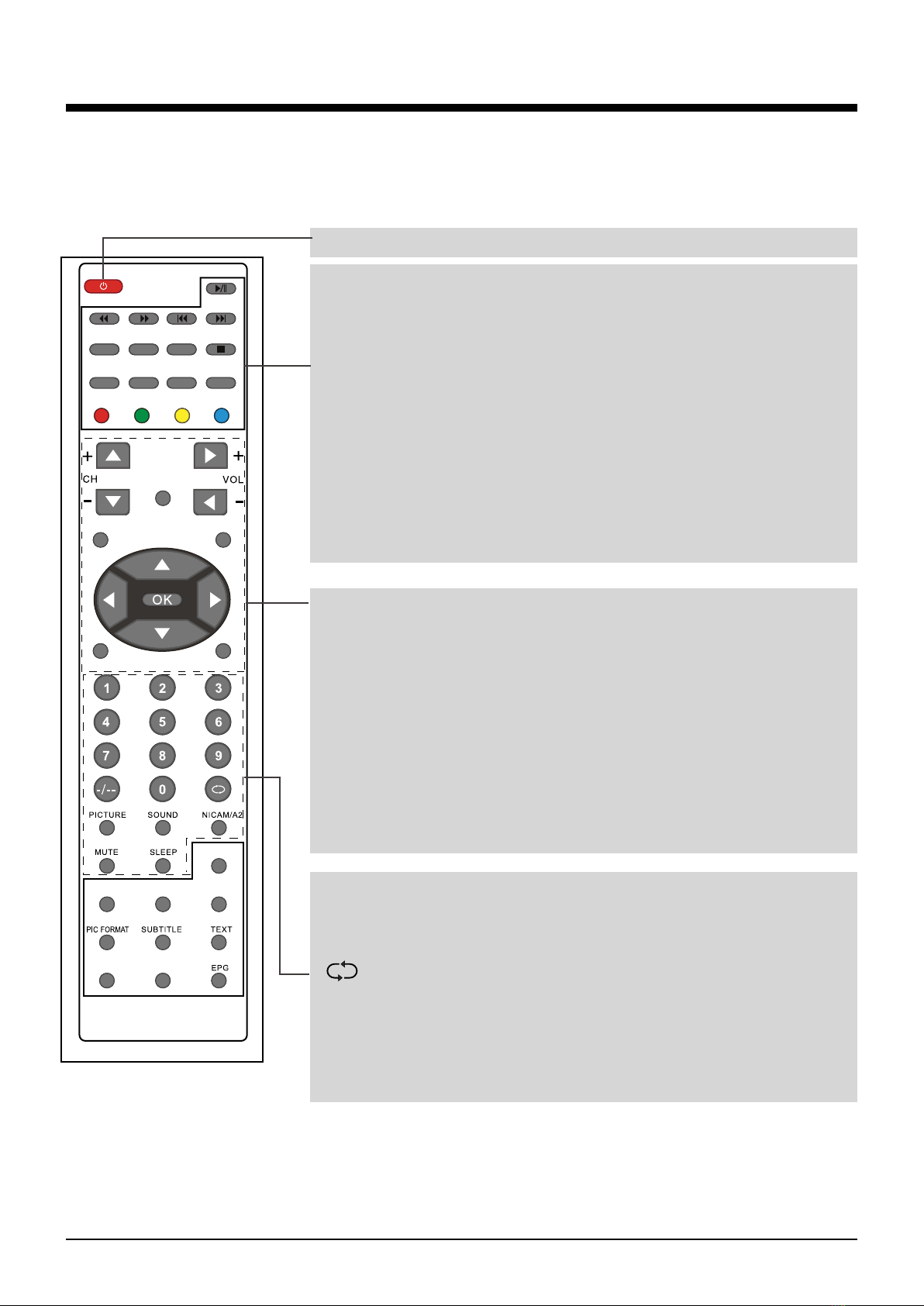

3. Remote Control
The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote
control may not work correctly if it is operated out of range or out of angle.
POWER(red button): Turn the TV on/standby.
Buttons for TELETEXT operating
You could use the buttons only in TELETEXT .
TV/TXT: Turn off/on the Teletext display.
CANCEL: Cancel the Teletext display.
REVEAL: Reveal any hidden text.
HOLD: Hold or carry on the current subpage.
SIZE: Press to see top half of page double size, Press again
to see the bottom half of page double size. Press again for
normal size.
SUBPAGE: Press to subpage, again to cancel.
INDEX: Go to index.
Colour buttons: Short cuts-follow the coloured links in the
text.
Buttons for Basic operating
MENU: Press to display the OSD menu.
INPUT: Display the input source menu.
CH+/-: Channel/Program +/-.
VOL+/-: Volume +/-.
REC: Press to start record the program in DTV mode.
DVB: Switch to DVB source.
EXIT: Press to exit the OSD menu.
THUMBSTICK( < / > / ∧ / ∨ OK): Allows you to navigate
the on-screen menus and adjust the system settings to your
preference.
Buttons for Basic function
NUMBER BUTTONS: Choose channel directly. Press number
buttons and press OK button to play the channel.
: Return to the previous channel viewed.
PICTURE: Select the picture mode.
SOUND: Select the sound mode.
NICAM/A2: Selects Nicam or Mono sound.
MUTE: Mutes the Audio.
SLEEP: StandbyTimer
INPUT
MENU
EXIT
DVB
TV/RADIO
FAV FAV+ FAV-
DISPLAY LANGUAGE
REC
TV/TXT CANCEL REVEAL
HOLD SIZE SUBPAGE INDEX
6

Introduction

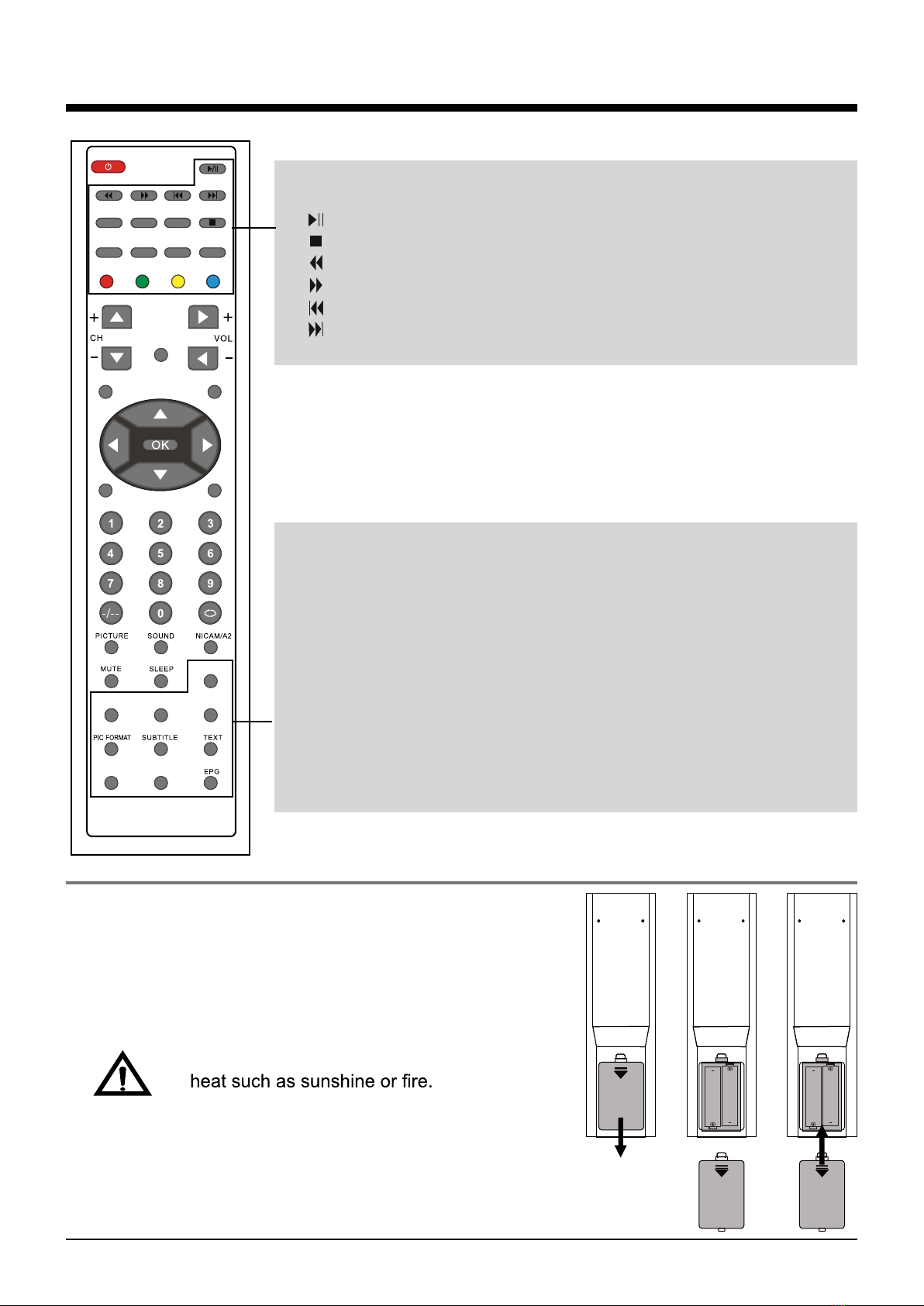

Installing Batteries
1. Open the battery compartment cover on the back of the
remote control.
2. Insert two 1.5V AA size batteries observing the polarity
markings inside the battery compartment. Don’t mix
different types or used batteries with new ones.
3. Close the cover.
Batteries shall not be exposed to excessive
- The remote control should be operated within 30 feet(7m)
and 300to the left and right of the
IR receive at the front of the LCD TV.
- Used batteries should be disposed properly.
Buttons for DTV operating
TV/RADIO: Disc menu change between DTV and Radio.
FAV: Display the favorite program list.
FAV+/-: Favorite program up/down.
PIC FORMAT: Press to change the display mode of the screen: 4:3,
16:9.etc
SUBTITLE: To switch the dialogue at the bottom of the screen.
TEXT: To view the teletext broadcasting program.
DISPLAY: Display current mode information.
LANGUAGE: To select audio language.
EPG: To show the Electronic Program Guide during no-menu state
only.
INPUT
MENU
EXIT
DVB
TV/RADIO
FAV FAV+ FAV-
DISPLAY LANGUAGE
REC
TV/TXT CANCEL REVEAL
HOLD SIZE SUBPAGE INDEX
: Play/pause.
: Stop .
: Fast reverse.
: Fast forward.
: Previous chapter.
: Next chapter.
Buttons for Media functions
7

Basic Operation
Basic Operation
Input Source select
Press INPUT button on the TV set or remote control to display the input
source menu, and use CH+/- button on the TV set or ∧/∨button on
remote control to select the input source, press OK button on the
remote control to enter.
Note: Before you select the input source, make sure the connections
are prepared.
Power on/off
1. Connect to the power supply with a power code and an adaptor(page 9).
2.-To turn on the TV
Press POWER button on the TV or remote control.
-To turn off the TV
Press POWER button on the TV or remote control.
SOURCE
DTV
TV
AV
SCART
YPbPr
HDMI
PC
MEDIA

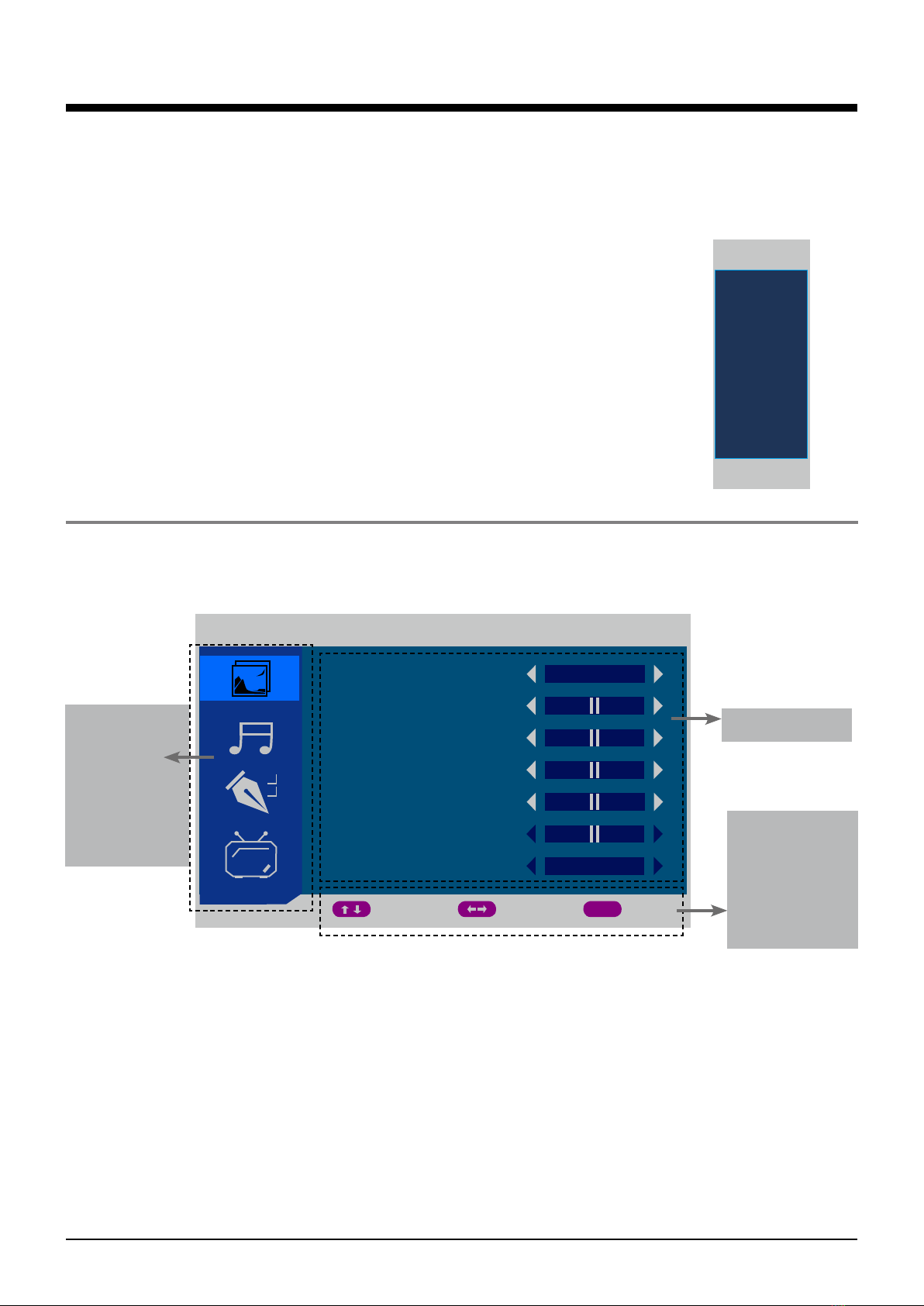

Basic OSD Menu operation
Main menu
SOUND
FUNCTION
TV/DTV/PC
/HDMI/YPBPR Hint
you should
operate the
OSD menu
according to
the hint.
submenu
Press MENU button to display the OSD menu as below:
Use ∧/∨button to select the main menu, and press >button to enter the submenu.
In the submenu, use ∧/∨button to select the function item, and you could:
adjust ("CONTRAST" item in Picture menu for example) with < / >button;
select ("PICTURE MODE" item in Picture menu for example) with < / >button;
enter the submenu ("CHILD LOCK" item in FUNCTION menu for example) with > /OK button.
* (Press MENU button to return to the upper menu.)
* (Press EXIT button to exit the menu display.)
Note1: Only when you input the suitable signal, the relevant items can be activated
Note2: Please operating the OSD menu according to hint on the bottom of the banner.
PICTURE MODE
BRIGHTNESS
CONTRAST
COLOUR
SHARPNESS
TINT
COLOUR TEMPERRATURE
MOVE ADJUST EXIT
MENU
PERSONAL
NORMAL
50
50
50
50
5
8

OSD Menu
OSD Menu

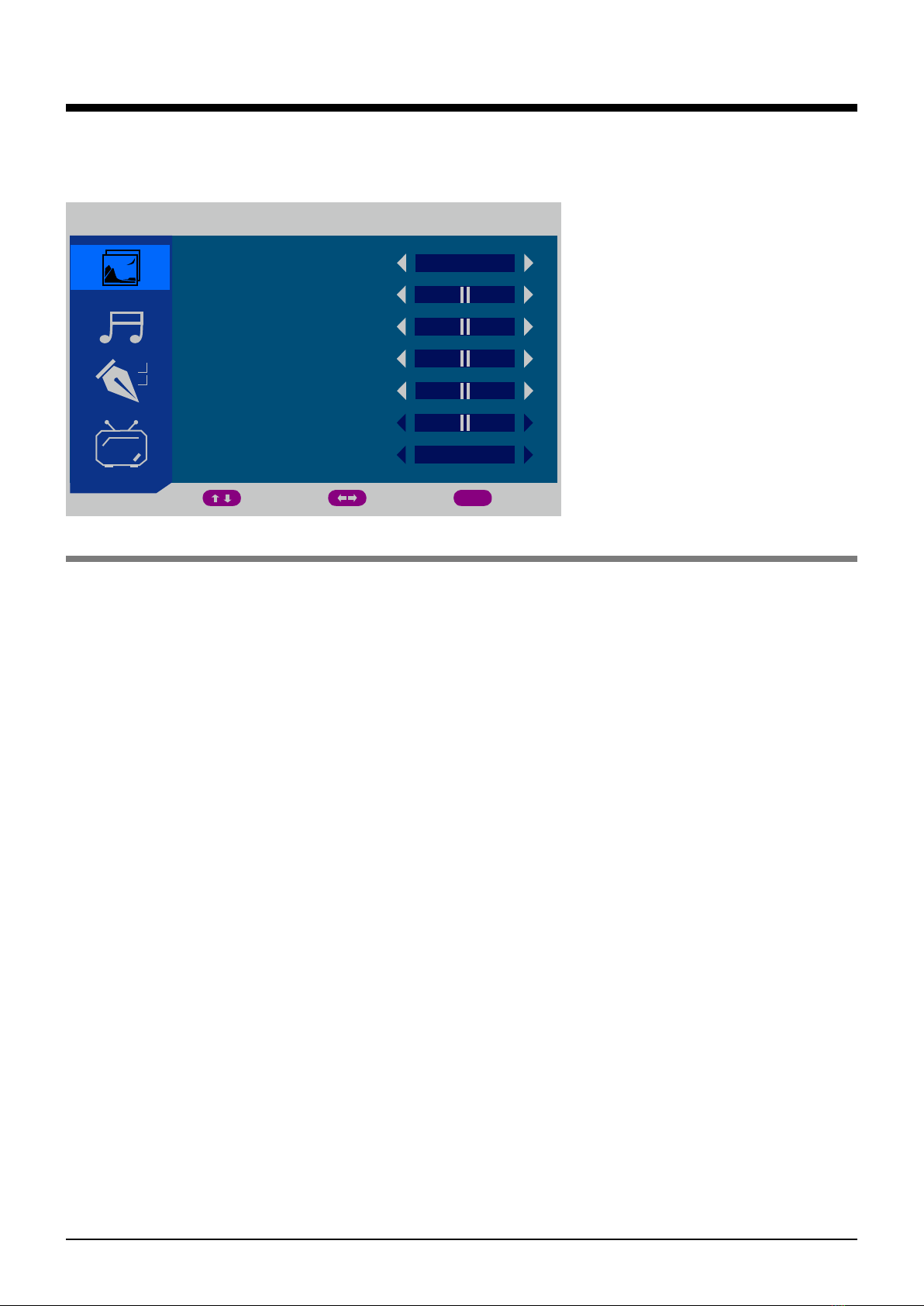

1. PICTURE menu(TV mode for example)
PICTURE MODE
BRIGHTNESS
CONTRAST
COLOUR
SHARPNESS
TINT
COLOUR TEMPERRATURE
MOVE ADJUST EXIT
MENU
PERSONAL
NORMAL
PICTURE MODE: Select between STANDARD, MOVIE, MILD, GAME, PERSONAL.
You may select the picture mode directly by pressing the PICTURE button on the remote
control.
Personal: You can adjust the Brightness ,Contrast, Colour, Sharpness to your own taste.
Standard: A normal use mode which usually used in a unchangeable light environment.
Movie: This mode is better used in a dark environment. The brightness is higher than other
modes.
Mild:This mode is better used in a place which is bright ,the brightness ,colour and sharpness
are lower than those of other modes .
Game:Usually used when you play games ,the brightness is just lower than that of MOVIE
mode.
Note: If you change the value of Contrast, Brightness, Colour, Tint , Sharpness or
Colour temperature on the picture menu, the picture mode will be changed to
"Personal" automatically.
BRIGHTNESS: Adjust brightness of the picture.
CONTRAST: Control the difference between the bright and dark regions of the screen picture.
COLOUR: Adjust color of the picture(Could not used in PC mode).
SHARPNESS: Set the amount of ne detail in the picture(Could not used in PC mode).
TINE: Control the fresh tones to make them appear natural(Used in NTSC mode only).
COLOUR TEMPERATURE: select between Normal, Cool and Warm(Used in PC mode only).
Description
50
50
50
50
5
9

OSD Menu

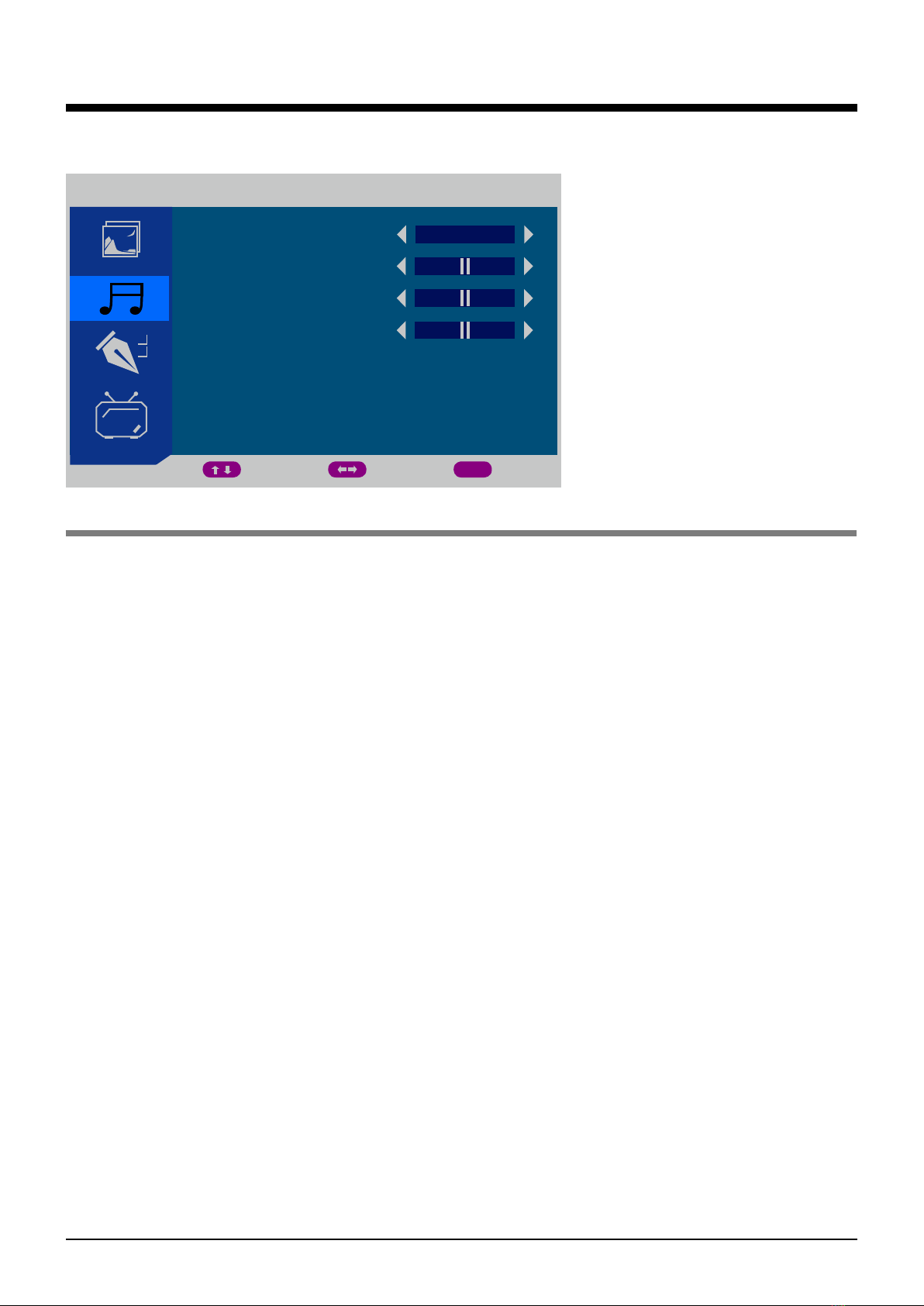

2. SOUND menu(TV mode for example)
Description
SOUND MODE: Select between: STANDARD, MUSIC, VOICE, THEATRE, PERSONAL.
You may select the sound mode directly by pressing the SOUND button on the remote
control.
BASS: Low frequencies intensity.
TREBLE: High frequencies intensity.
BALANCE: Left and right stereo audio channels balance.
SOUND
SOUND MODE
BASS 50
50
0
TREBLE
BALANCE
MOVE ADJUST EXIT
MENU
PERSONAL
10

OSD Menu
Description
LANGUAGE: Select the OSD language.
VIDEO SIZE: Select screen size between FULL, 4:3,or AUTO(Auto could be select only in
SCART mode).
TT LANGUAGE: Select TEXT language(Used in TV mode only).
SLEEP TIME: Select the time for auto shutting down the TV, or turn off the function.
OSD TIME: Select time for OSD displaying on the screen.
BLUE SCREEN: Turn on/off the blue screen function when there's no signal.
RESET: Reset all the settings above by pressing >button on the item.
CHILD LOCK: Enter the CHILD LOCK menu by pressing >button on the item.
CHILD LOCK: Turn on/off the function.
KEY LOCKED: Lock the buttons' function on the TV by turning on the function.
CHANGE CODE: Enter the CHANGE CODE menu by pressing >button on the
item, and change the password(the original code is 0000).
3. FUNCTION menu(TV mode for example)
CHILD LOCK
INSTALLATION
FUNCTION
LANGUAGE
VIDEO SIZE
OSD TIME
TT LANGUAGE
BLUE SCREEN
SLEEP TIME
RESET
MOVE ADJUST EXIT
MENU
ENGLISH
WEST EURO
OFF
30 SECONDS
ON
FULL
FUNCTION
MOVE ADJUST EXIT
MENU
CHILD LOCK
KEY LOCKED
CHANGE CODE
OFF
OFF
CHILD LOCK
Press ∧/∨ button to display
the items hidden.
11

OSD Menu
INSTALLATION: Enter the FIRST TIME INSTALLATION menu by pressing >button on the item.
Change the settings according to your actual conditions, and select "YES" item to start auto
tuning, or select "NO" to cancel.
FIRST TIME INSTALLATION
MOVE ADJUST EXIT
MENU
COUNTRY
DELETE PROGRAM
LANGUAGE
SEARCH PROGRAM
OTHER
YES
ENGLISH
YES
YES NO
12

OSD Menu
Description
4. TV menu(TV mode)
TV
COUNTRY
AUTO TUNING
MANUAL TUNING
CHANNEL EDIT
MOVE ADJUST EXIT
MENU
OTHER
COUNTRY: Select Country for tuning.
AUTO TUNING: Pressing >button on the item, then select "YES" and press OK button to start
auto tuning, or select "NO" to cancel.
MANUAL TUNING: Enter the MANUAL TUNING menu by pressing >button on the item.
CHANNEL EDIT: Enter the CHANNEL EDIT menu by pressing >button on the item.
State of the channel
GREEN: favorite
YELLOW: skip
BLUE: lock
Channel and
channel name
Operating channel
Hints for operation
CHANNEL: Select the channel you want to manual tuning.
SOUND SYSTEM: Select the sound system of the channel you select.
COLOUR SYSTEM: Select the colour system of the channel you select.
AFT:
MANUAL TUNING: Manual tuning the Frequency of the channel you select by pressing <
/ > button.
CHANNEL
SOUND SYSTEM
COLOUR SYSTEM
AFT
MANUAL TUNING
001
BG
PAL
OFF
800.25 MHz
MANUAL TUNING
- - - - - - -
- - - - - - -
- - - - - - -
GH
- - - - - - -
CHANNEL EDIT
OPTION TV
001
004
002
005
003
006
FAV SKIP LOCK
AB
MOVE BACK
MENU ENTER
13

OSD Menu
FAV,SKIP,LOCK: Select the desired channel with ∧ / ∨ button, and operate with GREEN,
YELLOW, BLUE buttons, press the color button again to cancel the operation.
FAV: Press GREEN button on the remote control to set the channel as favorite channel.
SKIP: Press YELLOW button on the remote control to skip the channel.
The channel that is skipped can not be programed when you scan channels with CH+/-
button.
LOCK: Press BLUE button on the remote control to lock the channel.
You have to enter the password to program the channel that is locked.
MOVE: Exchange the position of the channel.
Select the channel, and press > button to move,(there will be an arrow after the channel
name, you could cancel the operation by pressing OK button or select another channel and
press > button)
Then select the channel you want to be change to, and press OK button to exchange.
NAME: Name the channel.
Select the channel, and press OK button to enter the EDIT NAME menu.
Channel name
Select character 's
area by number
button on the remote
control
Select the character by
∧ ∨ < > buttons
on the remote control
and press OK button
to conrm
Empty the
channel name
Select the previous
position of the
channel name
Cancal the name
Conrm the name
EDIT NAME
AB_ _ _ _ _
EMPTY BAK SPC OK CANCEL
0
1 2 3 4 5 6 7 8 9
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
a b c d e f g h i j k l m n o p q r s t u v w x y z
1 2 3 4 5 6 7 8 9 0 _ [ ]
MOVESHORTCUT KEY BACK
MENU
ENTER0～9Hints for operation
Name the channel acorrding to the hints of picture above, and select "OK" item, press OK
button to complete.
14

Description
5. DTV menu(DTV mode)
CH. MANAGE: Enter the CH.MANAGE menu by pressing > button on the item.
CH. ORGN: Enter the Channel Organizer menu by pressing
> button on the item.
Fav: Set the favorite channel by RED button.
Del: Delete the channel by GREEN button.
Move: Press YELLOW button to start moving, and press
OK button to comrm.
Lock: Lock the channel by BLUE button, the locked
channel could not be program untill you enter the
password.
Press < / > button to set the channel's name
- Press RED button to set the input out of number or Capital letters
- Press YELLOW button to set the input out of Lowercase letters or
Capital letters
- Press BLUE button to the next position for your position.
- Press YELLOW button to delete the input if you want to delete it.
CH.SORT: Enter the Channel Sorting menu by
pressing > button on the item.
You could sorting the channels by selecting options.
Note: Press RED button to the above page or
GREEN button to the bottom page.The bottom page
is the list of the channels you have set on the above
page.
DTV
CH. MANAGE
AREA
AUTO TUNING
MANUAL TUNING
ADVANCED SETTING
TIMER
NATIVE GAME
MOVE ADJUST EXIT
MENU
OTHER
OSD Menu
CH. ORGN.
CH. SORT
CH. GROUP
DEL TV CH.
DEL RADIO CH
DTV\CHANNEL MANAGE
15

OSD Menu
ADVANCED SETTING: Enter the ADVANCED SETTING menu by pressing > button on the
item.
TIMER: Enter the TIMER menu by pressing > button on the item.
You could select the time display mode in the menu.
NATIVE GAME: Enter the NATIVE GAME menu by pressing > button on the item.
Press OK button on the item to enter the game.
AUDIO: Select the audio language.
SUBTITLE: Select the subtitle language.
RATING: Press > button on the item and enter the password to enter the RATING menu.
You could select Parental Rating or turn off the function.
CI: Press OK button to enter common interface information.
AUDIO
SUBTITLE
RATING
CI
DTV\ADVANCED SETTING
DEFAULT
OFF
BOX MAN
TETRIS
HITRAT
DTV\NATIVE GAME
AREA: Select the suitable area.
AUTO TUNING: Pressing > button on the item, then select "YES" and press OK button to start
auto tuning, or select "NO" to cancel.
MANUAL TUNING: Pressing > button on the item, then select "YES" and press OK button to
enter the Manual Search menu.
In the menu, you can select the channel and press OK button to search.
CH.GROUP: Enter the Channel Grouping menu by
pressing > button on the item.
You could grouping the channels by selecting the
group number (1-8) you can see on the right.
DEL TV CH.: Press OK button and select YES to delete all TV channels, or select NO to
cancel.
DEL RADIO CH.: Press OK button and select YES to delete all radio channels, or select NO
to cancel.
16

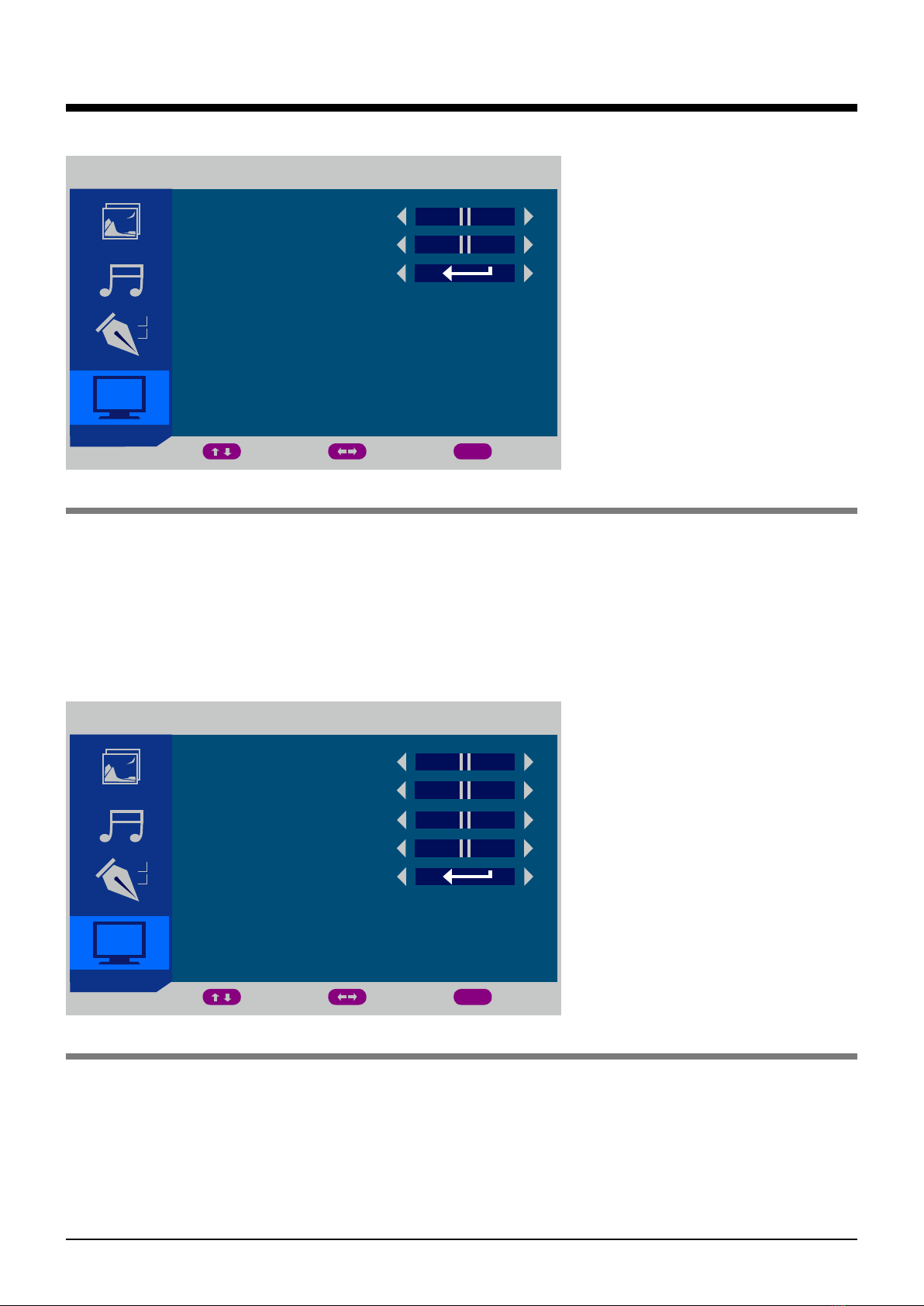

6. HDMI/YPbPr menu(HDMI/YPBPR mode)
7. PC menu(PC mode)
OSD Menu
HDMI/YPBPR
H POCITION
V POSITION
POSITION RESET
MOVE ADJUST EXIT
MENU
PC
H POCITION
PHASE
V POSITION
CLOCK
AUTO SYNC
MOVE ADJUST EXIT
MENU
Description
Description
H POSITION: Adust the horizon position of the picture.
V POSITION: Adust the vertical position of the picture.
POSITION RESET: Press > button to reset the setings above.
H POSITION: Adust the horizon position of the picture.
V POSITION: Adust the vertical position of the picture.
PHASE: Adjust the picture apply to the LCD(The picture will shake if the PHASE sets
unsuitable).
CLOCK: Adjust the signal’s transfer speed to make the picture looks well.
POSITION RESET: Press > button to reset the setings above.
17

Media operation
Media operation
1. Connect the USB device to the USB jact on the back of the TV(page 6),
2. Press INPUT button on the TV set or remote control to display the input source
menu, and use CH+/- button on the TV set or ∧/∨button on remote control to
select "MEDIA", press OK button on the remote control to enter, and the screen
will display as the picture below.
Use < / > button
to select between
MOVIE,
MUSIC,
PHOTO.
and press OK button to enter.
Use ∧/∨button to select and press OK
button to program.
Press EXIT button to back to the previous
page.
Press REC button on the remote control in DTV mode to enter the
RECORD menu.
RECORD START: Press OK button on the item to start recording the current playing program.
There will be a photo on the left.
If you want to stop RECORDING, press (STOP) button on the remote control, and it will hint
you on the screen, you can select "YES" to stop, or select "NO" to cancel.
MOVIE/MUSIC/PHOTO menu(MOVIE menu for example)
RECORDER operation
Note: you could record only in the DTV mode.
SOURCE
DTV
TV
AV
SCART
YPbPr
HDMI
PC
MEDIA
RECORDING
18
