Information
section
In case of doubt do not interpret!
Immediately telephone your retaile r .
1

1.1 Identification of the main par ts
4
2
3
5
1
L
K
8
6
9
J
7
01)
Handle
02) Vacuum
gauge
03) Motor protection
cover
04) Push rod for shaking filter
05) Filter
chamber
06) Vacuumed waste
container
07)
Locking/releasing lever for waste container
08) Mouthpiece for suction tube
inser tion
09)
Wheels
10) Accessory
compar tment
11) Venturi unit
container
12) Pneumatic supply valve
DEPURECO INDUSTRIAL VACUUM
S
2 DEPURECOsrl forbids reproduction or distribution
to third parties

DEPURECO S.r.l.
1.2 Manufacturer's identification data
Depureco Industrial Vacuums
S. r .l.
Via Lorenzo Perosi 3
10040 Gerbole di Volvera (Italy)
Internet: http://www .depureco.com
E-mail: [e-mail]
1.3 Identification plate
It is necessary to give the identification plate data of the vacuum cleaner for any
communication with the manufacturer or retailer .
Via Perosi 3 – 10040 VOLVERA
T el. 011 9859117 - Fax [phone]
MADE IN IT ALY
Mod.
V.
Serial No.
Hz.
Year
Kg.
DEPURECO INDUSTRIAL VACUUMS
DEPURECOsrl forbids reproduction or distribution to third parties
3

1.4 Areas of use
This particular vacuum cleaner model has been designed, built and projected to
be used exclusively with non-inflammable, non-toxic dry dust.
It may be utilized for suction of non-inflammable and non-corrosive liquids if it has
the appropriate filter and floatation device.
Any other use is considered incorrect.
The vacuum cleaner is designed for professional industrial use.
1.5 Approved
environmental conditions
To ensure correct operation of the vacuum cleaner it must be kept away from
atmospheric agents (rain, hail, snow, fog, dust in suspension, etc.) and operated
in an area with a temperature range between 5° C and 45° C and with a relative
humidity no higher than 70 %.
The work area must be clean, with sufficient lighting and have a non-explosive
atmosphere.
1.6 Noise
level
The sound power tests performed on this particular vacuum cleaner model show
an acoustic pressure of:
AC 65/100 db(A) 70
DEPURECO INDUSTRIAL VACUUM
S
4 DEPURECOsrl forbids reproduction or distribution
to third parties

1.7 T echnical data
AC 65 AC 100
Weight (•) Kg 65 Kg
68
Size
(•) cm 82x65x139 cm 82x65x164
Maximum Depression mm/H20 5000 mm/H20 5000
Air consumption l/min
1200 l/min 1200
Filter
su
r
face
c
m
2
24000
cm
2
24000
Noise level
db(A) 70 db(A) 70
Container capacity liters 65 liters 100
Suction mouthpiece
diameter mm 80 Ø mm 80 Ø
Pressure required bar 6 ÷ 8 bar 6 ÷8
(•) = Without packing materials
1.8 Storage
Remove the filter and clean it. Empty the waste collection container and store
the
vacuum cleaner in a place free from atmospheric agents and with a temperature
range of 0° C to 40° C. Cover it with a plastic bag to prevent dust from collecting.
1.9
Demolition
In case of demolition, all vacuum cleaner's components must be deposited in
appropriate waste disposal sites in accordance with current legislation.
Before proceeding with disposal the plastic and rubber parts must be separated.
The parts made entirely from plastic, aluminum and steel may be recycled if
accepted by the appropriate centers.
DEPURECO INDUSTRIAL VACUUM S
DEPURECOsrl forbids reproduction or distribution to third parties
5

1.10 Guarantee
Depureco
guarantees this vacuum cleaner model for a period of 12 months from
the date of purchase as indicated on the sales document at the time of vacuum
cleaner delivery by the retailer .
The guarantee is void if, during the guarantee period, the vacuum cleaner is
repaired by unauthorized persons, if it is used with tools or accessories not
furnished by Depureco (or which they have not recommended or approved) or if
the serial number is found to have been removed or altered.
Depureco willbe responsible for repairing or substituting free of charge any parts
found, during the guarantee period, to be manufacturing defects.
Repairs must be performed only at the Depureco site or in a Depureco- approved
center for technical assistance and must arrive in free port (with transportation at
the user's expense unless agreed other wise).
The guarantee does not cover eventual cleaning of the functioning parts.
Imperfections not clearly the result of faulty materials or manufacturing defects will
be examined only at one of Depureco's sites or in a Depureco-approved technical
assistance center. If the claim proves to be unjustified, all of the repair expenses
and/or part replacements will be charged to the customer .
The sales receipt must be shown to the technician who performs the repair, or must
accompany the vacuum cleaner if it has been sent for r epai r .
The following items are excluded from the guarantee: accidental damage due to
transport, negligence or inadequate treatment, incorrect use or failure to adhere
to the cautions found in the instruction booklet and events independent of normal
vacuum cleaner operation.
Depureco declines any responsibility for damage to persons or things caused by
improper or incorrect usage or the vacuum cleane r .
In the event of any contoversy the Court of T urin shall have exclusive jurisdiction.
T o claim under the terms of the warranty,a photocopy of the form on the
last page of this manual should made, filled in completely, preferably in
printed lettering, and sent by fax to the manufacturer
at the number 011.9859326
DEPURECO INDUSTRIAL VACUUM S
6 DEPURECOsrl forbids reproduction or distribution
to third parties

2
2
Safety
section
In case of doubt do not
interpret!
Immediately telephone your r etaile r .
7

2.1 Safety infor mation
According to the law
626/94, the safety supervisor must inform workers of the
risks involved with using the vacuum cleane r .
There is also the obligation to provide the workers with sufficient training so that
they may be able to avoid injury to themselves and others.
Failure to comply with the norms or basic safety precautions may cause accidents
during operation, maintenance and repair of the vacuum cleaner. Often an
accident may be prevented by recognizing a potentially dangerous situation
before it happens. The worker must be alert to potential hazards and have the
necessary training, competence and tools in order to perform these tasks correctly .
Depureco may in no way be held responsible for accidents or damage as a result
of vacuum cleaner use by insufficiently trained personnel, incorrect use or failure
to obser ve, even partially, the safety norms and adjustment procedures outlined in
this manual.
Thesafety precautions and warnings are shown in this manual and on the product
itself.
if the worker does not pay attention to these hazard warnings, there could be
accidents with serious consequences for both himself and others.
The safety messages are denoted by the following symbols:
W ar ning!
These messages, if unheeded, may cause injury to the worker .
W ar ning!
These messages, if unheeded, may cause damage to the vacuum cleaner .
Depureco can not foresee every conceivable situation in which there may be
a
potential hazard.
The warnings in this publication and on the product are not all inclusive.
In the event that instruments, procedures, work methods or technicians not
specifi-cally recommended by Depureco are employed, it is necessary to ensure
that there is no danger for oneself or others.
Use only original DEPURECO replacement par ts
Depureco declines all responsibility for
the use of non-original spare par ts.
DEPURECO INDUSTRIAL VACUUM
S
8 DEPURECOsrl forbids reproduction or distribution
to third parties

2.2 Safety measures

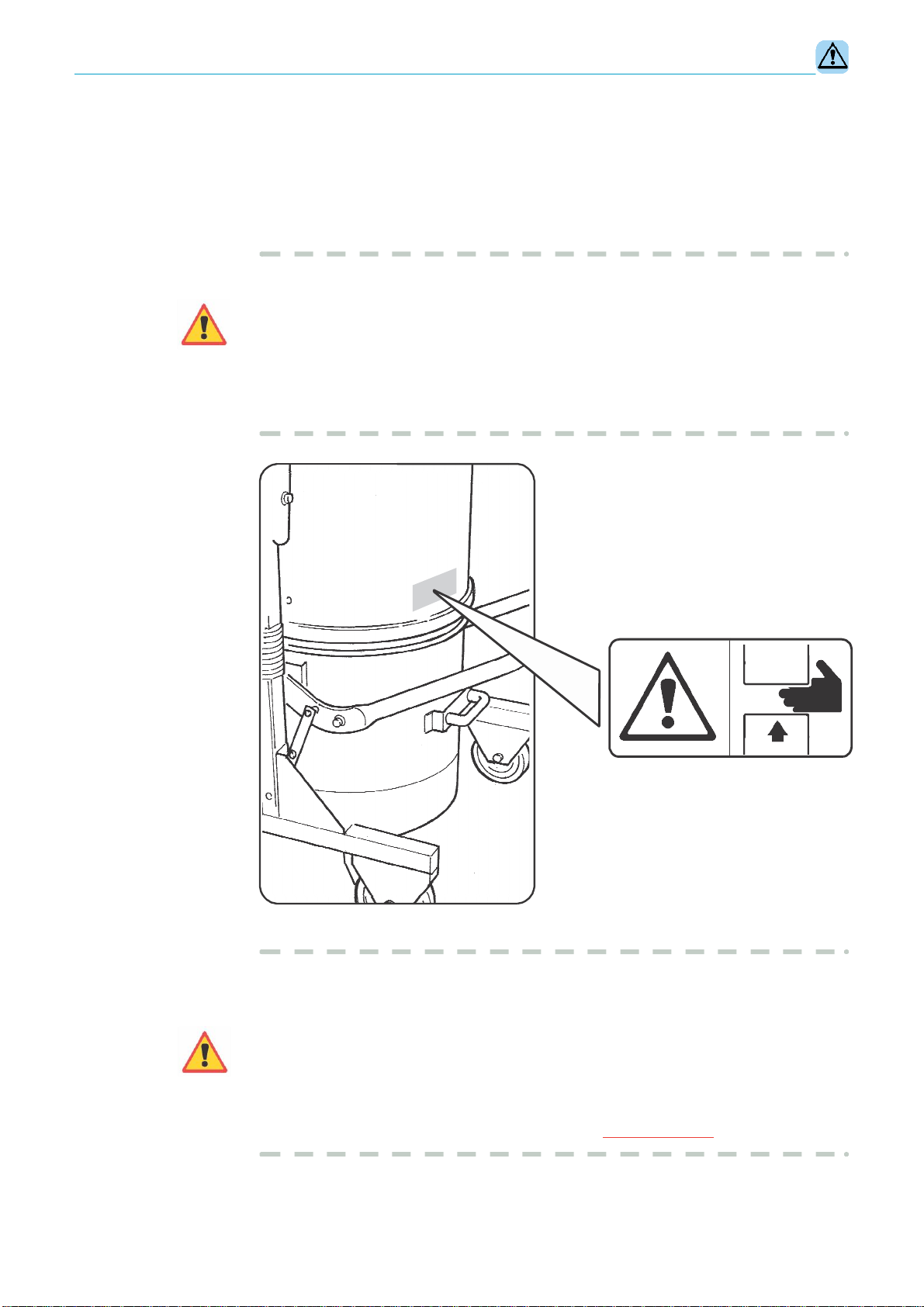

W ar ning!
The following information cannot completely cover all possible hazards incurred
during vacuum cleaner operation; common sense and the worker's experience
(indispensable ingredients for accident prevention) must be integrated as well.
Each section lists ulterior safety measures specific for the various functions.
W ar ning!
Any maintenance work must be carried out with the pneumatic supply
disconnected.
• The employer must ensure the workers skill, experience and training in
accordance with current legal requirements.
• If an adjustment or unforeseen intervention is necessary, following a procedure
dif ferent from that outlined in the manual, consult Depureco prior to beginning.
• In the event that the client installs an accessory not furnished by Depureco to the
vacuum cleaner, it is necessary to check that the 98/37 EEC machine safety
directive is observed. In any case, Depureco will not assume responsibility for
any negative consequences due to use of such par ts.
• The vacuum cleaner must not be used in a corrosive or explosive environment.
• Keep the vacuum cleaner free from external elements such as wastes, oil, tools
and other objects that could damage its function and cause personal injur y.
• Avoid use of toxic or inflammable solvents such as gasoline, benzene, ether and
alcohol for cleaning.
• Avoid prolonged contact or inhalation with solvents and their vapors.
Avoid using near open flames or heat sources; ensure adequate ventilation.
• Never use the vacuum cleaner without the filter.
• Do not vacuum lit cigarette butts. It could ignite the filter.
• Do not breathe petroleum products or inflammable liquids in general.
• Ensure that all protection equipment and guards are in place and that all safety
devices are present and operating.
• Do not use the vacuum cleaner on non-level or inclined surfaces.
• Do not wear loose or flowing apparel such as ties, scarves or torn clothing that
could become hung or caught up by the vacuum cleane r .
DEPURECO INDUSTRIAL VACUUM S
DEPURECOsrl forbids reproduction or distribution to third parties
9

• Do not open the waste collection container while the vacuum cleaner is in use.
• Never move the vacuum extractor by pulling the pneumatic supply hose.
• The manual must always be nearby, so that it may be consulted to check correct
cycle use anytime there is a doubt.
If this manual is lost or damaged, a substitute copy must be requested from
Depureco.
• Structural damage, modifications, alterations or unauthorized repairs may
compromise the protection capability of the vacuum cleaner thereby rendering
this certification null and void.
Modifications must be performed only by Depureco technicians.
MACHINE
IN
MAINTENANCE.
DO NOT USE
• During maintenance interventions a sign must be placed on the vacuum cleaner
stating "Machine in maintenance. Do not use".
• It is forbidden to climb on the vacuum cleane r .
• During clean-up after use the employees in charge must check that the vacuum
cleaner has been returned to its usual safe working condition, particularly with
regard to the safety devices and protection guards pertinent to use.
• Use of the vacuum cleaner is restricted to adults.
• Never insert hands between the waste container and the vacuum cleaner during
the locking phase.
Perform the locking procedure using the special lever and BOTH HANDS.
• During use, always stabilize the vacuum cleaner using the special brake located
on the turning wheel.
DEPURECO INDUSTRIAL VACUUM
S
10 DEPURECOsrl forbids reproduction or distribution
to third parties

2.3 Safety plates and symbols
Plates showing safety symbols and warnings are applied to both the
vacuum
cleaner and packaging materials.
These pages show their exact attachment location and the type of hazard involved.
W ar ning!
Ensure that all safety plates are legible. Clean them using a cloth, water and
soap.
Do not use solvents, naphtha or gasoline.
Replace damaged plates, requesting them from Depureco.
If a plate is located on a part that is to be replaced, ensure that a new plate is
attached to the new par t.
W ar ning!
Crushing hazard to the upper limbs during insertion and locking phase of the
waste container into the vacuum cleaner .
Never put hands between the waste container and the vacuum cleaner during
the locking phase.
Never put hands in the sides of the container near the guide pins during the
locking phase.
Lock the container using the special lever with BOTH HANDS!
DEPURECO INDUSTRIAL VACUUM S
DEPURECOsrl forbids reproduction or distribution to third parties
11

W ar ning!
Carefully read the operation and maintenance manual before using or repairing
the vacuum cleaner .
W ar ning!
Carefully read the instructions found on the packaging material before removing
and unpacking the vacuum cleaner .
DEPURECO INDUSTRIAL VACUUM
S
12 DEPURECOsrl forbids reproduction or distribution
to third parties

2.4 Residual risks
A careful analysis of risks, performed by the manufacturer and filed in the
technical section, has made it possible to eliminate most of the risks involved in
using the vacuum cleane r .
The manufacturer recommends scrupulous adherence to the instructions,
procedures and recommendations contained in this manual as well as to current
safety norms, including use of protection devices for both the vacuum cleaner and
the worker .
The residual risks present on the vacuum cleaner may be:
Risks
associated with incorrect use in the presence of inflammable substances.
The vacuum cleaner must never be used in an environment containing liquids that
might vaporize at room temperature or inflammable dust and gas.
Risks associated with operation in a humid environment.
Respect the limits listed in section 1.5 of this manual regarding approved
environmental conditions.
Crushing hazard to the upper limbs during the insertion and locking phase of
the vacuum cleaner's waste container .
A safety illustration showing this risk is on the vacuum cleane r .
This risk may be avoided by locking the container using the special lever with both
hands.
Refer to "section 2.3" for the exact meaning of the safety plates.
Risk of incorrect
interpretation of the safety illustrations
In the course of identifying risks, the manufacturing company has installed safety
plates (in accordance with relative norms) beside the graphic symbols.
The user is responsible for immediately replacing the safety plates should they
become illegible or damaged.
W ar ning!
It is absolutely forbidden to remove the safety plates present on the vacuum
cleaner and on the packaging material.
The manufacturing company declines all responsibility for vacuum cleaner safety
in the event this prohibition is unheeded.
2.5 Applied
dir ectives
The following directives apply to the vacuum cleaner described in this
manual:
- for the applied directives, please refer to the CE compliance declaration.
DEPURECO INDUSTRIAL VACUUM S
DEPURECOsrl forbids reproduction or distribution to third parties
13

14

3
3
Removal, unpacking and
installing
section
The instructions for correctly removing and unpacking the vacuum cleaner are
also found on the packing materials themselves.
These same instructions are repeated in the manual in case the vacuum cleaner
must be repacked or disassembled for later transportation.
In case of doubt do not interpret!
Immediately telephone your retaile r .
15

3.1 Removal

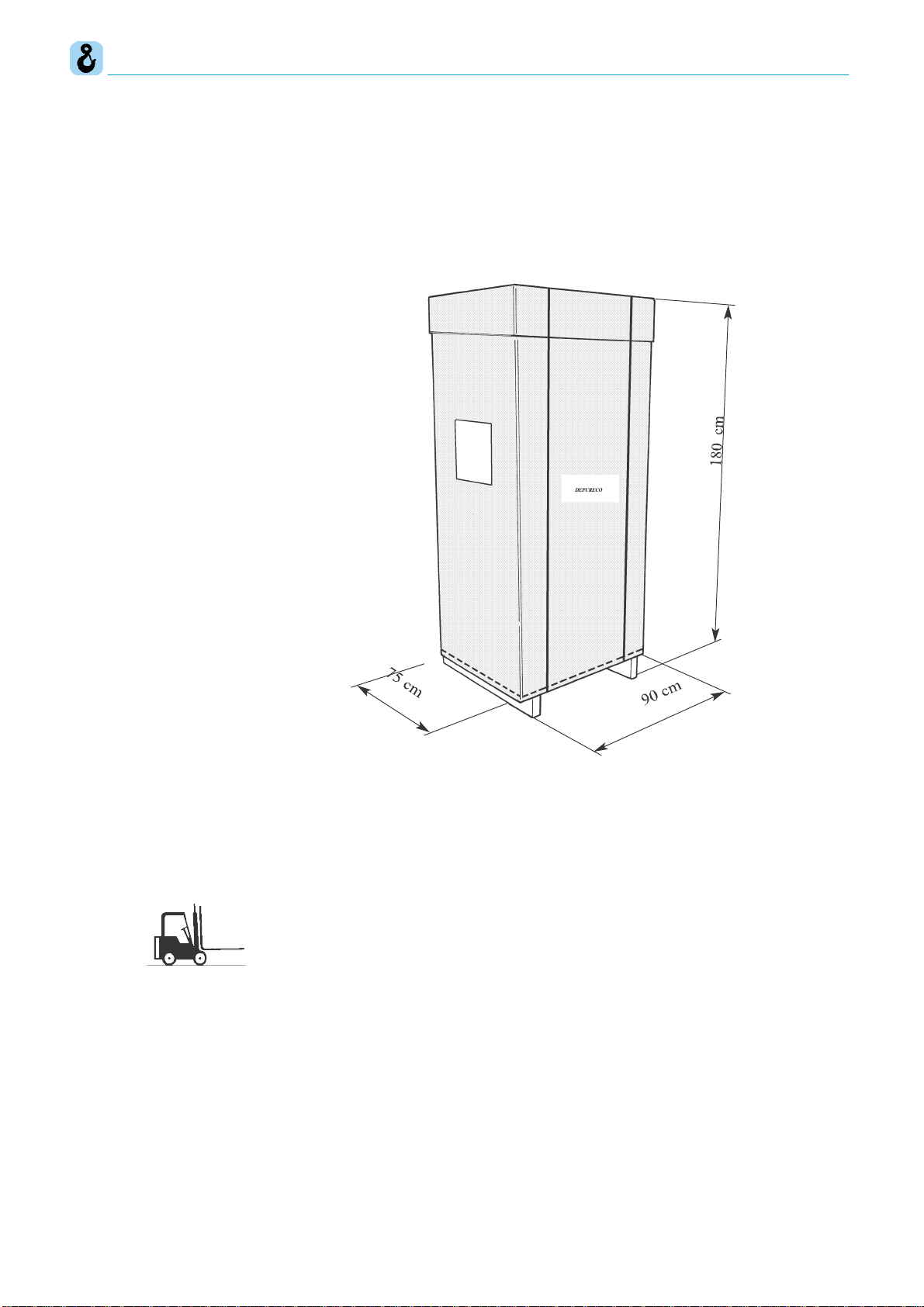

Weight and size of the
packaged vacuum cleaner
AC 65 Kg
AC 100 Kg
Lifting and subsequent removal of the vacuum cleaner must be performed using a
fork-lift with sufficient load capacity .
When transporting with the fork-lift, raise the load 200 mm from the ground and
go in reverse.
When raising the load, be aware of the ceiling height of the work area.
Before moving make sure the pathway is free from obstructions and no mobile
objects are on the package.
DEPURECO INDUSTRIAL VACUUM
S
16 DEPURECOsrl forbids reproduction or distribution
to third parties

3.2 Unpacking

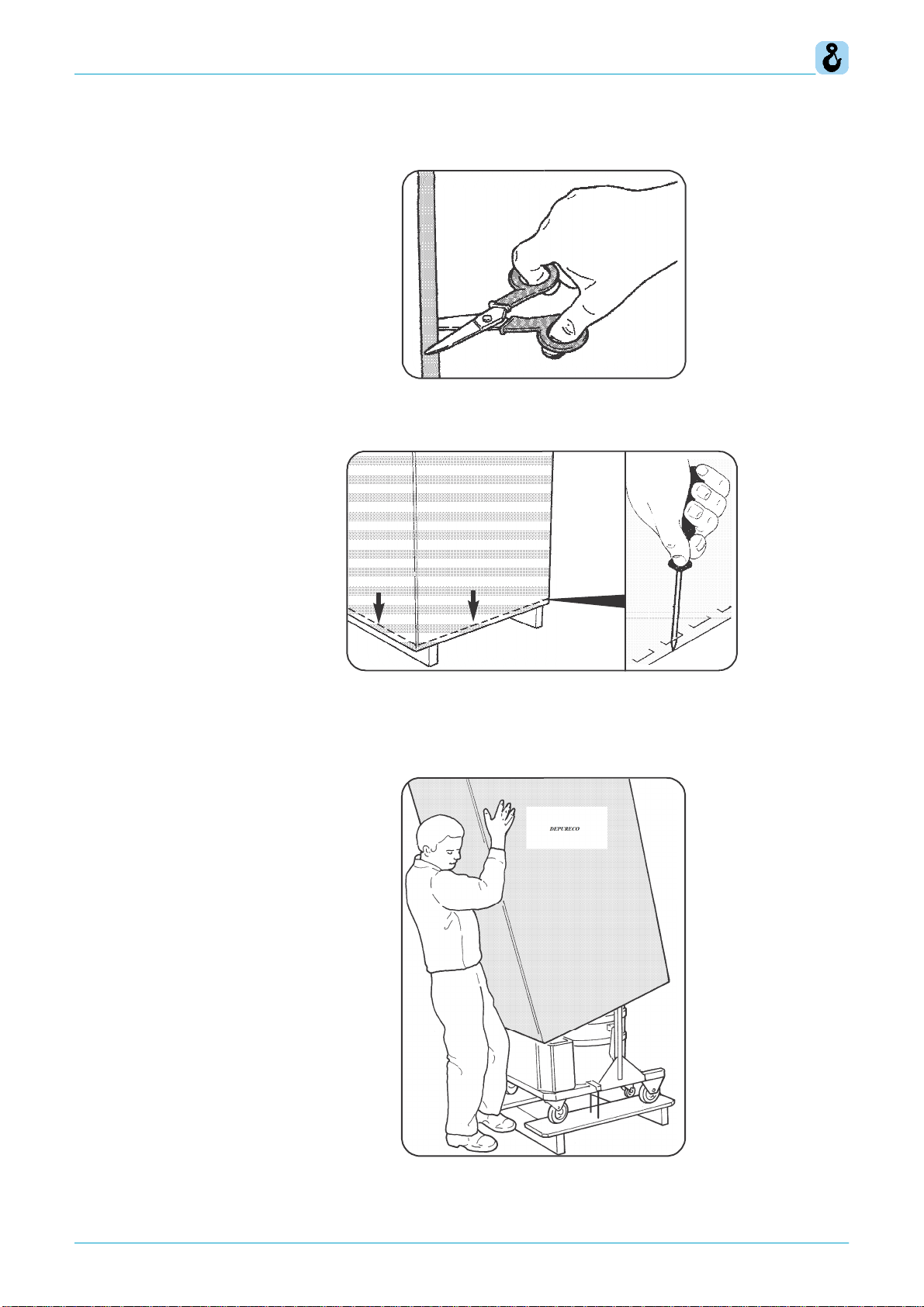

- Cut and remove the two
packaging bands.
- Remove, with the aid of a screw-driver, the staples holding the cardboard to the
platform.
- Completely remove the
cardboard.
DEPURECO INDUSTRIAL VACUUM S
DEPURECOsrl forbids reproduction or distribution to third parties
17

- Unscrew and remove the screws and fixing posts from both sides.
W ar ning!
Save the platform and fixing posts.
Should the vacuum cleaner necessitate future transport it must be anchored to
the platform using the same fixing system.
3.3
Installation
W ar ning!
Before proceeding to installation of the vacuum cleaner it is necessary to
carefully make a preliminary visual check for possible transport damage.
Should one or more of the components appear damaged do not proceed with the
installation procedure but report the defect to the manufacturing company and
discuss appropriate action with them.
A suction filter (exclusively for vacuuming non-liquid, dust wastes) is already
installed on the vacuum cleane r .
The vacuum cleaner requires a floatation valve (for blocking suction when
the
container is half full) to remove liquids. Contact product assistance for fur ther
infor mation.
DEPURECO INDUSTRIAL VACUUM
S
18 DEPURECOsrl forbids reproduction or distribution
to third parties

- Raise the knob (A)and insert the flexible tube (the ringed end) into the suction
mouthpiece. Release the knob.
A
- Attach the
appropriate accessory onto the other end of the flexible tube.
Note: the flexible tube with its various endings and the vacuum accessories are
not
included in the standard equipment.
Contact your retailer for information regarding the variety of optional accessories
available for use with this particular model of vacuum cleane r .
Check that the pneumatic supply line is that same as that required by the
vacuum
extractor .
DEPURECO INDUSTRIAL VACUUM
S
DEPURECOsrl forbids reproduction or distribution to third parties
19
