DEPURECO ECOBULL AM Series Instructions for use

!
!
Via Venezia, 32
INSTRUCTION AND
MAINTENANCE MANUAL
ECOBULL AM
T
ATEX Z22 II3D
A1086
GENERAL'INSTRUCTIONS'

!
!
INDEX:
1. INFORMATIVE SECTION ............................................................................................................................................3
1.1 Foreword ........................................................................................................ 3
1.2 Main components A1086 SUCTION UNIT ..................................................... 6
1.3 Optional parts ................................................................................................. 7
1.4 Manufacturer's identification data ................................................................... 7
1.5 Identification plate .......................................................................................... 8
1.6 Atex marking .................................................................................................. 8
1.7 Permitted Uses .............................................................................................. 9
1.8 Authorised environmental conditions ............................................................ 9
1.9 Noise level ..................................................................................................... 9
1.10 Technical data ............................................................................................. 10
1.11 Warranty ...................................................................................................... 11
!
2 SAFETY SECTION ...................................................................................................................................................... 12
2.1 Safety informations ...................................................................................... 12
2.2 Safety recommendations ............................................................................. 13
2.3 Safety plates and symbols .......................................................................... 16
2.4 Residual risks .............................................................................................. 17
2.5 Applied Directives ........................................................................................ 18
2.6 ATEX safety instructions ............................................................................. 18
!
3. HANDLING, UNPACKING AND INSTALLATION SECTION ........................................................................ 24

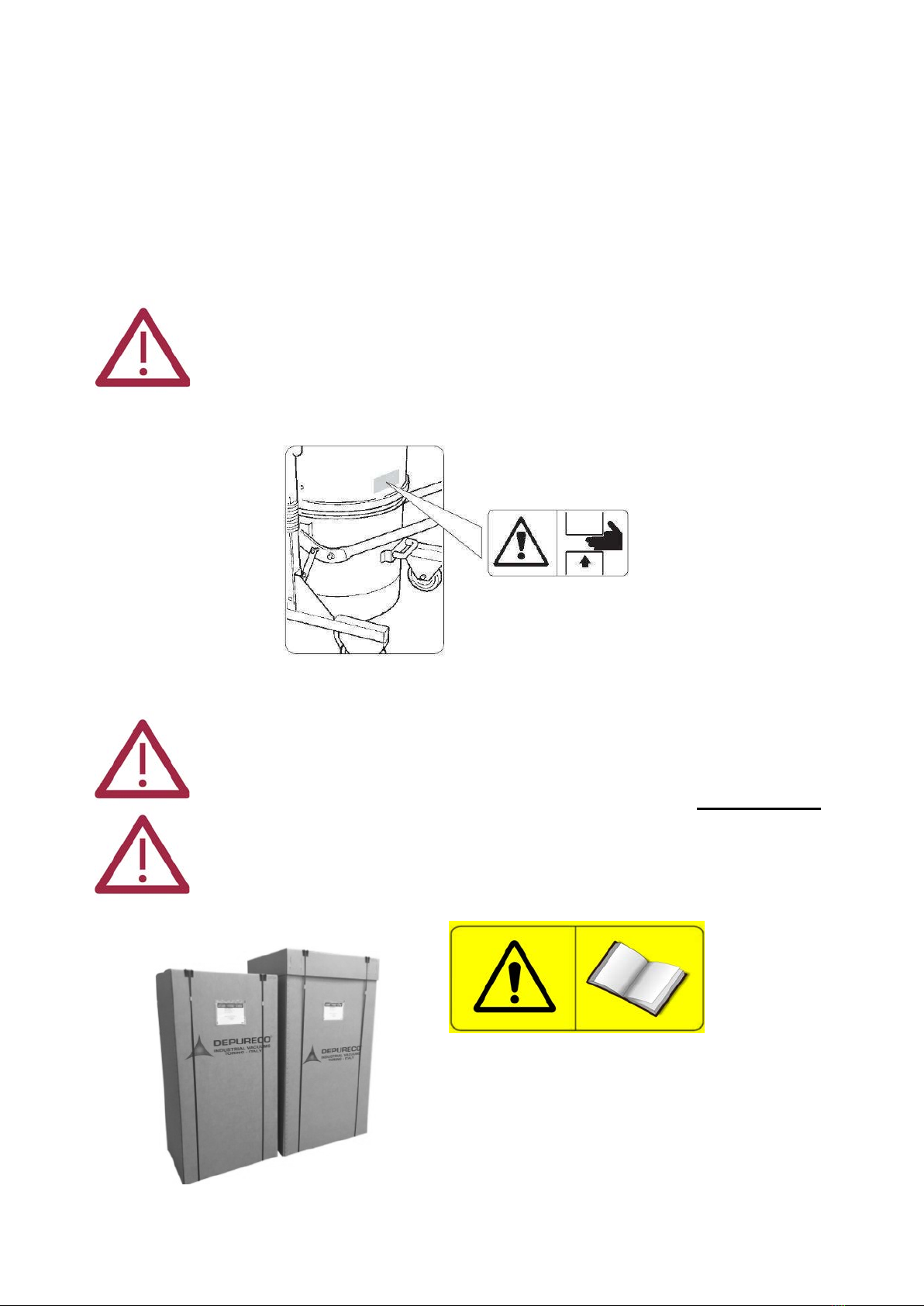

3.1 Handling ...................................................................................................... 24
3.2 Unpacking ................................................................................................... 25
3.3 Installation ................................................................................................... 26
!
4. OPERATION SECTION ............................................................................................................................................. 27
4.1 Description of the controls ........................................................................... 27
4.2 Operating cycle ........................................................................................... 28
4.3 Emptying the bin .......................................................................................... 28
4.4 Inserting and locking the bin ........................................................................ 30
4.5 Storage – Decommissioning ....................................................................... 31
!
5. MAINTENANCE SECTION....................................................................................................................................... 31
5.1 Informative notes ......................................................................................... 31
5.2 General safety regulations .......................................................................... 32
5.3 Replacing the filter ....................................................................................... 34
5.4 Troubleshooting ........................................................................................... 37
5.5 Scrapping .................................................................................................... 37

!
!
1. INFORMATIVE SECTION
IMPORTANT - The DEPURECO term and logo in this document refer to and are
the property of DEPURECO INDUSTRIAL VACUUMS S.r.l.
This document remains the exclusive property of DEPURECO S.r.l. Full or partial
reproduction by any means (graphical, electronic, etc.) is prohibited without prior
authorisation from the Company Management.
1.1 Foreword
Dear Customer
Thank you for having chosen DEPURECO; we hope you will enjoy using your new
DEPURECO ECOBULL series vacuum cleaner This manual has been drafted in order
for our customer to fully appreciate the quality of this machine. Please read all sections
before using the machine for the first time.
It includes information, recommendations and important warnings concerning the use of
the vacuum, which will help fully exploit the technical properties of your machine.
Read messages, warnings and indications preceded by the following symbols carefully:
For the safety of people
For the integrity of the vacuum cleaner
For the safeguard of the environment
This manual describes the following models:
La parte di immagine con ID relazione rId12 non è stata trovata
nel file.
This manual forms an integral part of the vacuum cleaner.
Read this manual and the other attachments supplied
carefully. Knowledge of the instructions here contained is
indispensable for the safe use and maintenance of the
vacuum cleaner

!
!
Conductive dust extractor
The aspirator is equipped with the following filter:
q CONICAL FILTER CARTRIDGE CLASS H ANTISTATIC (P12720))
The vacuums are classified according to the following dust classes:
L
Low risk – suitable to separate dust with an exposure limit value of
> 1 mg/m3 on the basis of the occupied volume
M
Medium risk - suitable to separate dust with an exposure limit value
of > 0,1 mg/m3 on the basis of the occupied volume
H
High risk – suitable to separate all dusts with all exposure limit
values on the basis of the occupied volume, including
cancerogenic and pathogenic dusts.
This manual provides all the necessary information for the use and maintenance of the
vacuum cleaner.
This specific model has undergone strict testing to ensure maximum reliability. Its
operation and durability will depend on proper use and maintenance.
This manual is an integral part of the vacuum cleaner and must accompany it at all times,
until its demolition.
In the event it is lost or damaged, you can request another copy from DEPURECO
INDUSTRIAL VACUUMS S.r.l. (henceforth shortened to DEPURECO).
The technical information contained in this manual is exclusive property of DEPURECO
and must be considered confidential.
Reproduction, even partial, of graphics, text and illustrations is prohibited by law.
Some details shown in the figures in this manual may differ from those on your vacuum;
this is because some components may have been removed to ensure maximum
illustration clarity.
This manual has been divided into sections for easy consultation and each section has
been identified by a specific graphical symbol.

!
!
The topics covered in this manual are those expressly required by Machinery Directive
2006/42/EC and the technical data are taken from the technical file archived at
DEPURECO.
With reference to Regulation 1907/2006/EC (REACH), DEPURECO hereby declares
that no Substances of Very High Concern - (SVHC) included in the Candidate List, are
contained in its products.
This manual should be kept in a place accessible to all personnel in charge with
operating and performing maintenance on the vacuum cleaner.
In the event of any dispute arising, the Court of Turin (Italy) shall have jurisdiction
This manual forms an integral part of the vacuum cleaner.
Read this manual and the other attachments supplied
carefully. Knowledge of the instructions here contained is
indispensable for the safe use and maintenance of the
vacuum cleaner

!
!

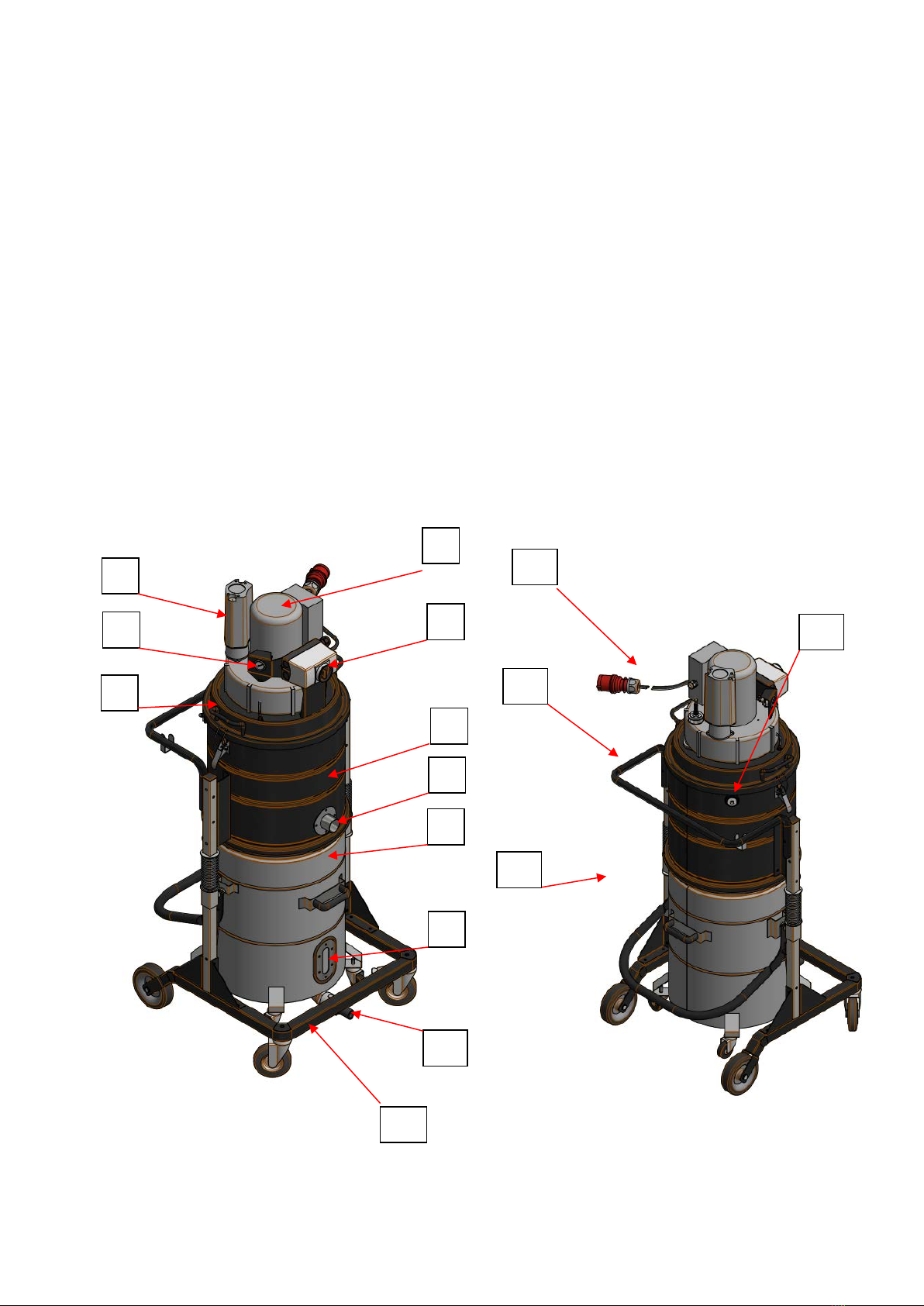

1.2 Main components A1086 SUCTION UNIT
1) Motor base
2) Vacuum gauge
3) Silencer
4) Pump
5) On / off selector
6) Filter chamber
7) Suction mouth
8) Dust / debris collection container
9) Porthole of maximum level
10) Drain cock
11) Fixed frame
12) Safety valve
13) Handle for handling
14) Handle for container extraction and transport
15) Extractor power supply
"!
""!
#!
$!
%!
&!
'!
(!
)!
*!
"+!
"#!
"$!
"&!
"%!

!
!
ATTENTION!
There are two adhesive labels on the
container.
The sticker near the inspection window [A]
indicates the maximum level of inerting
liquid admissible inside the container.
The stickers depicting an arrow [B] have the
function of indicating to the operator the
correct positioning of the filter unit for oils
with respect to the container.
NOTE Use only inerting liquid compatible
with the use for which the vacuum cleaner
was manufactured.
DEPURECO declines all responsibility for
the use of non-compliant and unsuitable inerting liquid for the purpose for which the
vacuum cleaner was designed.
It is possible to lift the container only when the filter unit is correctly positioned.
SAFETY VALVE
In the machine chamber there is a safety valve [12] that allows gas to escape if it
accumulates inside the machine.
CONTAINER
Inside the container there are the
following components:
- A grilled basket
- A washable bag filter
The filter has the function of separating
the solid parts from the inerting oil
!
1.3 Optional parts
Depending on the application of the vacuum cleaner, a wide range of other optional
accessories is available from DEPURECO.
1.4 Manufacturer's identification data
DEPURECO INDUSTRIAL VACUUMS S.r.l.
Via Venezia 32 - 10088 Volpiano (TO) - ITALY
tel. [phone] - fax [phone] | P.I. 02258610357
e-mail: [email protected] - website: www.depureco.com

!
!
1.5 Identification plate
The data on the vacuum identification plate must be referred to in any
correspondence with the manufacturer or the dealer.
1.6 Atex marking
Marking for luminaire suitable for use in an outdoor area classified as ZONE 22:
Manufacturer ......
Street address ……….
Device …
Serial n. ..............
CE II 3 D Ex htc IIIC T140 ° C Dc
-15 ° C ≤ Tamb ≤ + 40 ° C
Year: 2021
Other data (flow rate etc.)
Via Venezia 32

!
!
1.7 Permitted Uses
These vacuum cleaners are built and designed in accordance with Directive 2006/42 /
EC (Machinery Directive) for an exclusive professional industrial use; however, for
purposes other than normal domestic purposes.
This vacuum cleaner is designed to collect combustible dust and / or
dry particles in atmospheres classified as Zone 22 (valid for atex
vacuum cleaners), with the following limitations:
Minimum ignition energy (MIE) of the dust> 3mJ
The vacuum cleaner was conceived to be used by only one operator.
In accordance with the Directive 1999/92/EC, whenever in the presence of combustible
dust and/or flammable gas, it’s the responsibility of the employer to carry out the
classification of the Zone and to choose a device in the appropriate category (According
to the definition given in the 2014/34/EU Directive.
Any other use is considered IMPROPER.
1.8 Authorised environmental conditions
To ensure the correct operation, the vacuum cleaner must be kept away from
atmospheric agents (rain, hail, snow, fog, dust in suspension, etc.) in an area with a
room temperature range between 5° and 45°C and a relative humidity no higher than
70%.
The work environment must be clean and suitably lit.
1.9 Noise level
The phonometric tests performed on this specific vacuum cleaner model demonstrate
a sound pressure level of
72 dB(A)
WARNING!
Workers exposed to sound pressure levels higher than 85 dB(A) must
be protected by suitable personal protection device (PPE) such as
certified ear muffs.
Under these conditions, workers must be provided with adequate
training and information on risks arising from noise exposure.

!
!
1.10 Technical data
U.M.
A1086
Weight*
[Kg]
120
Dimensions**
[mm]
665x738x1612
Voltage/
Frequency
[V]- [Hz]
400 I 50
Power
[kW -HP]
3
Depression in
continuous run
[mBar]
270
Max. Air flow
[m³/h]
350
H Filter surface
[m²]
2,8
Noise level
[dB-A]
72
Bin capacity
[L]
100
(*) weight without packaging - packaging weight = 20 Kg
(**) machine dimensions without packaging

!
!
1.11 Warranty
DEPURECO guarantees this model of vacuum cleaner for a period of 24 months from
the date of purchase, indicated on the receipt at the time of delivery of the product.
The guarantee is null and void in the event that the vacuum is repaired by unauthorised
third parties or by using equipment, accessories or components not supplied or not
authorised by DEPURECO, or if the serial number is removed (during the guarantee
period).
For the duration of the guarantee, DEPURECO undertakes to repair or replace free of
charge parts and components which prove to have manufacturing defects.
Repairs will be exclusively executed at a DEPURECO site or in a DEPURECO approved
Assistance Centre and the machine must be sent free of charge (freight cost at user’s
charge unless otherwise agreed).
The guarantee does not cover cleaning of working parts.
The purchase invoice must be shown to the authorised technical personnel carrying out
the repair and must accompany the vacuum during its shipment.
Defects that are not evidently due to materials or manufacturing will be examined solely
at our premises or at a Technical Service Centre of our choosing.
Should the complaint be unjustified, all repair and/or replacement expenses shall be
charged to the purchaser.
In any case, the following items are not covered by the guarantee: accidental damage
due to transport, negligence, abnormal use, improper use, non-compliance with the
instructions contained in this booklet or arising from phenomena that do not depend on
normal use/operation of the vacuum.
DEPURECO shall not be held liable for any injuries to persons or damage to objects
caused by misuse or improper use of the vacuum.
In the event of any dispute arising, the Court of Turin (Italy) shall have jurisdiction.
To use the warranty, visit www.depureco.com or photocopy the
form available on the last page of this manual, fill it in all its parts (in
capital letters would be recommended), and send it via fax to
Depureco at the number + 39 011 98 59 117
In the event of doubts, avoid interpreting the information! Call
your reseller immediately!

!
!
2 SAFETY SECTION
2.1 Safety informations
As per Italian Legislative Decree 81/08 and subsequent modifications,
the Safety Manager must train and inform workers about the risks
involved with using the vacuum cleaner so that they may be able to avoid
injury to themselves and others.
The use of device by people (including children) with limited physical and mental
capacities or lacking in experience and knowledge is strictly forbidden, unless they are
supervised by a person who is experienced in the use and safe handling of the device.
Children must be supervised to make sure they will not play with the device.
Failure to comply norms, laws or basic safety precautions, may cause accidents during
operation, maintenance and repair of the vacuum cleaner. Accidents can frequently be
avoided by recognising potentially hazardous situations before they occur. Adequate
training is crucial to this end.
DEPURECO shall not be held liable for accidents or damage due to the improper use
of the vacuum by untrained personnel or to failure to comply, even partially, with the
occupational safety standards and intervention procedures contained in this manual.
Safety warnings and precautions are indicated in this manual as well as on the product
itself.
Operators must pay special attention to these hazard warnings to prevent accidents with
serious consequences for themselves and other people.
The safety warnings are indicated by the following symbols:
DEPURECO designs and manufactures its equipment and accessories with care,
identifying and compensating possible risks related to their use. In the event of
equipment, procedures, work methods or techniques not expressly provided for by
DEPURECO being used, it is crucial to ensure beforehand that there are no dangers for
oneself and the others. Nevertheless, DEPURECO shall not be held liable.
Use exclusively Depureco original spare parts.
Depureco disclaims any liability in case spare parts other
than original have been used.

!
!
2.2 Safety recommendations
WARNING!
The following information is essential in view of preventing all
hazards that may occur while the vacuum cleaner is running.
However, they cannot replace the expertise and common sense of
operators as an overall framework for the prevention of accidents.
Structural damage, alterations or improper repairs can modify the
protective capacity of the vacuum, thereby nullifying this
certification and releasing DEPURECO from any liability.
Each section lists further safety measures specific to the various
functions.
ATTENZIONE!
WARNING!
Setting to work – connection to the power supply
• Make sure there is no evident sign of damage to the vacuum cleaner before
starting work.
• Before plugging the vacuum cleaner into the electrical mains, make sure the
voltage rating
indicated on the data plate corresponds to that of the electrical mains.
• Plug the vacuum cleaner into a socket with a correctly installed ground
contact/connection.
Make sure that the vacuum cleaner is turned off.
• The plugs and connectors of the connection cables must be protected against
splashes of
water.
• There are antitastic wheels
• Check that the vacuum cleaner is properly connected to the electrical mains.
• Use the vacuum cleaner only when the cables that connect to the electrical mains
are in perfect condition (damaged cables could lead to electric shocks!).
• Regularly check there are no signs of damage, excessive wear, cracks or ageing
on the electric cable.
WARNING!
When the vacuum cleaner is operating, do not:
• Crush, pull, damage or tread on the cable that connects to the electrical
mains.
• Only disconnect the cable from the electrical mains by removing the plug (do
not pull the
cable).
• Only replace the electric power cable with one of the same type as the original:
H07 RN - F. The same rule applies if an extension is used.
• The cable must be replaced by the manufacturer’s Service Centre staff or by
equivalent qualified personnel.
The manual must accompany the vacuum cleaner in case of resale.

!
!
CAUTION!
It is absolutely forbidden;
• For underage and non-trained people to use this vacuum cleaner.
• To connect the vacuum cleaner to mains without suitable earthing.
• To operate the vacuum cleaner outdoors in the presence of atmospheric
precipitations.
• To operate the vacuum cleaner without locking the swivelling wheel through the
special brake located on it.
• To operate the vacuum cleaner on uneven ground or in non-horizontal positions.
• To operate the vacuum cleaner in corrosive environments.
• To use flexible hoses which are not wholly antistatic (superficial antistatic properties
are not accepted). The use of original DEPURECO accessories is recommended.
Verify electric continuity with an ohmmeter:
1. Between the inlet and the ending part of the vacuum’s accessories: The resistance
measured must be inferior to 100MΩ (108 Ω)
2. Between the bin and the plug (ground pin) with an electric device, or between the
bin and the earthing cable (supplied) with compressed air powered devices. The
resistance measured must be less than 10 Ω
• To operate the vacuum cleaner in working environments not classified according to
the directions given on the device’s plate.
• To vacuum the following materials:
1. Flaming materials (embers, hot ashes, lit cigarettes etc…)
2. Open flames
3. Combustible gases
4. Flammable, combustible or aggressive liquids (gasoline,
solvents, acids, alkaline solutions etc…)
5. Dusts/Substances and/or spontaneously combusting
explosive mixtures of them (magnesium or aluminium dusts
etc…)
• To tamper with or modify the return valve set up by the manufacturer
• The use of the JETCLEAN system in the presence of potentially explosive clouds in
the atmosphere.
• To carry out maintenance on the vacuum cleaner in ATEX classified areas
• To carry out maintenance on the vacuum cleaner without first having switched the
device off and disconnected the plug from the socket.
• To keep foreign materials such as debris, oil, tools or other objects in the bin which
could disrupt the functioning and cause harm to people.
• To use flammable or toxic solvents such as gasoline, benzene, ether or alcohol for
cleaning.

!
!
• To operate the vacuum cleaner without the filtering unit provided for by the
manufacturer.
• To operate the vacuum cleaner without safety devices.
• To wear loose or flowing apparel such as ties, scarves, or torn clothing that could get
caught on the vacuum cleaner or vacuumed by the device.
• To open the waste bin while the vacuum cleaner is working.
• To open the waste bin in an area which has been classified potentially explosive.
• To use extension leads, plug-in connection devices and adapters.
• To climb on the vacuum cleaner.
• To touch electrical wires, switches, buttons, etc. with wet hands.
• To touch some components which could reach high temperatures (such as the
motor’s terminal box and the motor housing in particular) while operating the vacuum
cleaner.
WARNING!
This vacuum cleaner could contain dust that may be hazardous to your
health.
The emptying out and maintenance procedures, including removing the dust
containers, must be carried out exclusively by specialized personnel
wearing suitable safety clothing.
This manual must always be available for consultation on the expected
operating cycle and whenever there are doubts.
If it is lost or damaged, a replacement copy must be requested from
DEPURECO.

!
!
2.3 Safety plates and symbols
Plates with safety symbols and/or messages are applied to the vacuum and its
packaging.
These pages show their precise location and the nature of the hazard.
Warning!
Ensure that all safety messages are perfectly legible.
Clean them using a cloth with water and soap. Do not use solvents, naphtha
or petrol.
Request replacements for damaged plates from DEPURECO.
If a plate is located on a component that is being replaced, make sure to fit
the old plate to the new component.
Warning!
Crushing hazard for the upper limbs during insertion and locking of the dirt
container under the vacuum cleaner.
Never place your hands between the vacuum and the dirt container while
inserting and locking the later under the vacuum cleaner.
Lock the container by means of the special lever, using BOTH HANDS
Warning!
Read carefully this use and maintenance manual before using the vacuum
cleaner or carrying out maintenance operations on it
Read carefully the
instructions on the
packaging before handling
the vacuum cleaner

!
!
2.4 Residual risks
DEPURECO recommends complying with the instructions, procedures and
recommendations in this manual and with the safety standards in force. DEPURECO
also recommends using suitable personal protective equipment as well as the protection
devices integrated in the vacuum.
The residual risks analysed on the vacuum and/or its components could be:
Electrical risks during maintenance due to the requirement to work on live parts
Pursuant to Italian Legislative Decree 81/08 – articles 80 to 87 – it is prohibited to
operate on live parts, notwithstanding the exceptions set forth by said Legislative
Decree.
Risks associated with incorrect use in presence of explosive and inflammable
liquid substances
The vacuum must not be used in environments containing liquid substances or liquids
that can evaporate at room temperature, inflammable powders and gas.
Risks related to operation in humid environments
Respect the limitations indicated in this manual, in section 1.5 “Authorised
environmental conditions”.
Risk of incorrect interpretation of the safety pictograms
With reference to risk analysis and identification, DEPURECO has installed hazard
labels on the vacuum, in compliance with the standards concerning graphical symbols.
The user must immediately replace any safety plate rendered illegible due to wear or
damage.
Warning!
The removal of safety plates from the vacuum and/or its components
and packaging is strictly prohibited.
DEPURECO shall not be held liable for the vacuum's safety in the
event of failure to comply with this prohibition.

!
!
2.5 Applied Directives
The following directives apply to the vacuum cleaner described in this manual:
- 2006/42/EC Machinery Directive
- 2014/30/EU Electromagnetic compatibility directive
- 2011/65/EU - ROHS - Directive on the restriction of the use of certain hazardous
substances in electrical and electronic equipment
- 2014/35/UE – Low tension directive
- 2014/34/UE – ATEX Directive
Attention!
It is absolutely forbidden to remove the safety labels on the vacuum
cleaner and / or on its components and on the packaging.
DEPURECO declines any responsibility for the safety of the vacuum
cleaner in the event of non-compliance with this prohibition.
The regulatory references, including mandatory requirements, are managed in the
Quality Management System and filed at DEPURECO
2.6 ATEX safety instructions
!
Hexagon Ex - ATEX Directive 2014/34 / EU
In this manual, the Ex-hexagon is placed next to the main safety
instructions relating to the risk of explosion.
!
!
All personnel involved in installation, use and maintenance of the
appliance and its components should receive technical training
corresponding to the tasks to be performed, in particular for
operating in areas with a potentially explosive atmosphere.
Any modification made to this equipment may invalidate its safety
requirements. Always follow the manufacturer's instructions.
!

!
!
!
The equipment with II 1/3 D Ex htc IIIC T140 ° C Da / Dc marking
can contain a ZONE 20 inside and can be used in ZONE 22
The equipment with II 1/2 D Ex h tb IIIC T140 ° C Da / Db marking
can contain a ZONE 20 inside and can be used in ZONE 21 and
ZONE 22
The zones are defined as follows.
ZONE 20: area in which an explosive atmosphere in the form of a
cloud of combustible dust in the air is present permanently or for
long periods or often.
ZONE 21: area in which occasionally during normal activities the
formation of an explosive atmosphere in the form of a cloud of
combustible dust in the air is likely.
ZONE 22: area in which during normal activities the formation of
an explosive atmosphere in the form of a cloud of combustible
dust is not likely and, if it occurs, it is only of short duration.
It is forbidden to use the appliance where there are areas
classified for the presence of gas as ZONE 0, 1 or 2.
!
The equipment is suitable for operating only with powders
without ignition sources.
Combustible dusts with the following characteristics can be
treated:
Auto - flammability in MIT cloud
°C
> 215
Auto - flammability in LIT layer
°C
> 215
Minimum Ignition Energy (MIE)
at all operating temperatures
mJ
≥ 3
It is forbidden to use the device with hybrid mixtures, explosives
and class St2 and St3 powders, chemically unstable powders.
!
It is the user's responsibility to ensure that the equipment is used
in accordance with its intended use, in particular that it is used in
areas classified as compatible with those for which the
equipment itself is declared suitable by the manufacturer.
The device is designed to work in standard environmental
conditions:
• Temperature -20 ° C ≤ Tamb ≤ + 40 ° C.
• Atmospheric pressure + 0.8 / 1.1 bar
The treated product must have a temperature not exceeding
40 ° C.
!

!
!
Any electrical or mechanical components to be installed on the
equipment must be certified in the category suitable for use:
- category 3D (ZONE 22)
- category 2D (ZONE 21)
- category 1D (ZONE 20)
For maintenance or cleaning operations, the user must ensure
that the equipment used (aspirators, portable lamps, etc.) are of
a suitable category for the environment:
- 3D category (ZONE 22)
- category 2D (ZONE 21)
- category 1D (ZONE 20)
!
INSTALLATION - START-UP
Before proceeding with installation and start-up, provide a visual
check for any transport damage.
The tools used for installation must comply with the EN 1127-1
standard in relation to the area of use.
As a preliminary operation, carry out the earthing and check its
correct operation. The earthing is equipped with a visual indication
by means of a European standard symbol.
During start-up, carry out the following checks:
- check the correct earthing of the equipment and the condition of
equipotentiality between the various parts of the equipment, in
particular the moving parts;
- carry out a blank test with acoustic check (abnormal noise): in
the event of problems, stop the equipment and check the
assembly of the moving parts;
- the electrical wiring must be carried out by qualified personnel
and according to the indications in the wiring diagram.
During the testing and delivery of the equipment, adequate
training must be given to the operator who carries out installation,
start-up and normal use of the equipment.
!
!
The user must ensure that the system in which the equipment
will be installed has been adequately secured, from an explosion
risk point of view, before starting and that the "Document on
protection against explosions "as required by the ATEX Directive
1999/92 / EC (DM 81-2008).
!
THE INTRODUCTION (ASPIRATION) OF IGNITION SOURCES
FROM THE OUTSIDE, including those due to self-ignition of
dust or by embers, is FORBIDDEN.
!
