DEPURECO TB Series Instructions for use

INSTRUCTION AND
MAINTENANCE MANUAL
TB SERIES
ATEX Z22 II3D
TB M Z22
TB T Z22
TB PLUS Z22

TABLE OF CONTENTS:
1. INFORMATIVE SECTION
1.1 Foreword.................................................................................................................3
1.2 Main parts............................................................................................................5
1.3 Optional parts ..................................................................................................6
1.4 Manufacturer's identification data ..................................................6
1.5 Identification plate....................................................................................6
1.6 Permitted Uses ..................................................................................................6
1.7 Authorised environmental conditions................................................7
1.8 Noise level..........................................................................................................7
1.9 Technical data ..................................................................................................8
1.10 Warranty.................................................................................................................9
2. SAFETY SECTION
2.1 Safety Information...........................................................................10
2.2 Safety recommendations .............................................................................11
2.3 Safety plates and symbols......................................................................13
2.4 Residual risks ................................................................................................14
2.5 Applied Directives.......................................................................................15
3. HANDLING, UNPACKING AND INSTALLATION SECTION
3.1 Handling...............................................................................................................15
3.2 Unpacking ............................................................................................................16
3.3 Installation .....................................................................................................18
4. OPERATION SECTION
4.1 Description of the controls .................................................................20
4.2 Operating cycle..............................................................................................20
4.3 Emptying the bin............................................................................................23
4.4 Inserting and locking the bin ............................................................25
4.5 Storage –Decommissioning......................................................................26
5. MAINTENANCE SECTION
5.1 Informative notes .........................................................................................27
5.2 General safety regulations....................................................................27
5.3 Replacing the filter..................................................................................29
5.4 Replacing the HEPA filter (if provided) ....................................31
5.5 Troubleshooting..............................................................................................32
5.6 Scrapping ............................................................................................................33

Page 3 of 38
1. INFORMATIVE SECTION
IMPORTANT - The DEPURECO term and logo in this document refer to and are the
property of DEPURECO INDUSTRIAL VACUUMS S.r.l.
This document remains the exclusive property of DEPURECO S.r.l. Full or
partial reproduction by any means (graphical, electronic, etc.) is
prohibited without prior authorisation from the Company Management.
1.1 Foreword
Dear Customer
Thank you for having chosen DEPURECO; we hope you will enjoy using your new
DEPURECO TB Z22 series vacuum cleaner
This manual has been drafted in order for our customer to fully appreciate
the quality of this machine.
Please read all sections before using the machine for the first time.
It includes information, recommendations and important warnings concerning
the use of the vacuum, which will help fully exploit the technical
properties of your machine.
Read messages, warnings and indications preceded by the following symbols
carefully:
For the safety of people
For the integrity of the vacuum cleaner
For the safeguard of the environment
This manual describes the following models:
TB M Z22
TB T Z22
This manual forms an integral part of the vacuum
cleaner. Read this manual and the other attachments
supplied carefully. Knowledge of the instructions
here contained is indispensable for the safe use
and maintenance of the vacuum cleaner

Page 4 of 38
TB PLUS Z22
The vacuum cleaner is equipped with the following filters:
ANTISTATIC M FILTER (P11837)
PTFE ANTISTATIC M FILTER (P12339)
HEPA FILTER CARTRIDGE (if provided) (P11640)
The vacuums are classified according to the following dust classes:
L
Low risk –suitable to separate dust with an exposure limit value
of > 1 mg/m3 on the basis of the occupied volume
M
Medium risk - suitable to separate dust with an exposure limit
value of > 0,1 mg/m3 on the basis of the occupied volume
H
High risk –suitable to separate all dusts with all exposure
limit values on the basis of the occupied volume, including
cancerogenic and pathogenic dusts.
This manual provides all the necessary information for the use and
maintenance of the vacuum cleaner.
This specific model has undergone strict testing to ensure maximum
reliability. Its operation and durability will depend on proper use and
maintenance.
This manual is an integral part of the vacuum cleaner and must accompany it
at all times, until its demolition.
In the event it is lost or damaged, you can request another copy from
DEPURECO INDUSTRIAL VACUUMS S.r.l. (henceforth shortened to DEPURECO).
The technical information contained in this manual is exclusive property of
DEPURECO and must be considered confidential.
Reproduction, even partial, of graphics, text and illustrations is
prohibited by law.
Some details shown in the figures in this manual may differ from those on
your vacuum; this is because some components may have been removed to ensure
maximum illustration clarity.
This manual has been divided into sections for easy consultation and each
section has been identified by a specific graphical symbol.
The topics covered in this manual are those expressly required by Machinery
Directive 2006/42/EC and the technical data are taken from the technical
file archived at DEPURECO.

Page 5 of 38
With reference to Regulation 1907/2006/EC (REACH), DEPURECO hereby declares
that no Substances of Very High Concern - (SVHC) included in the Candidate
List, are contained in its products.
This manual should be kept in a place accessible to all personnel in charge
with operating and performing maintenance on the vacuum cleaner.
In the event of any dispute arising, the Court of Turin (Italy) shall have
jurisdiction

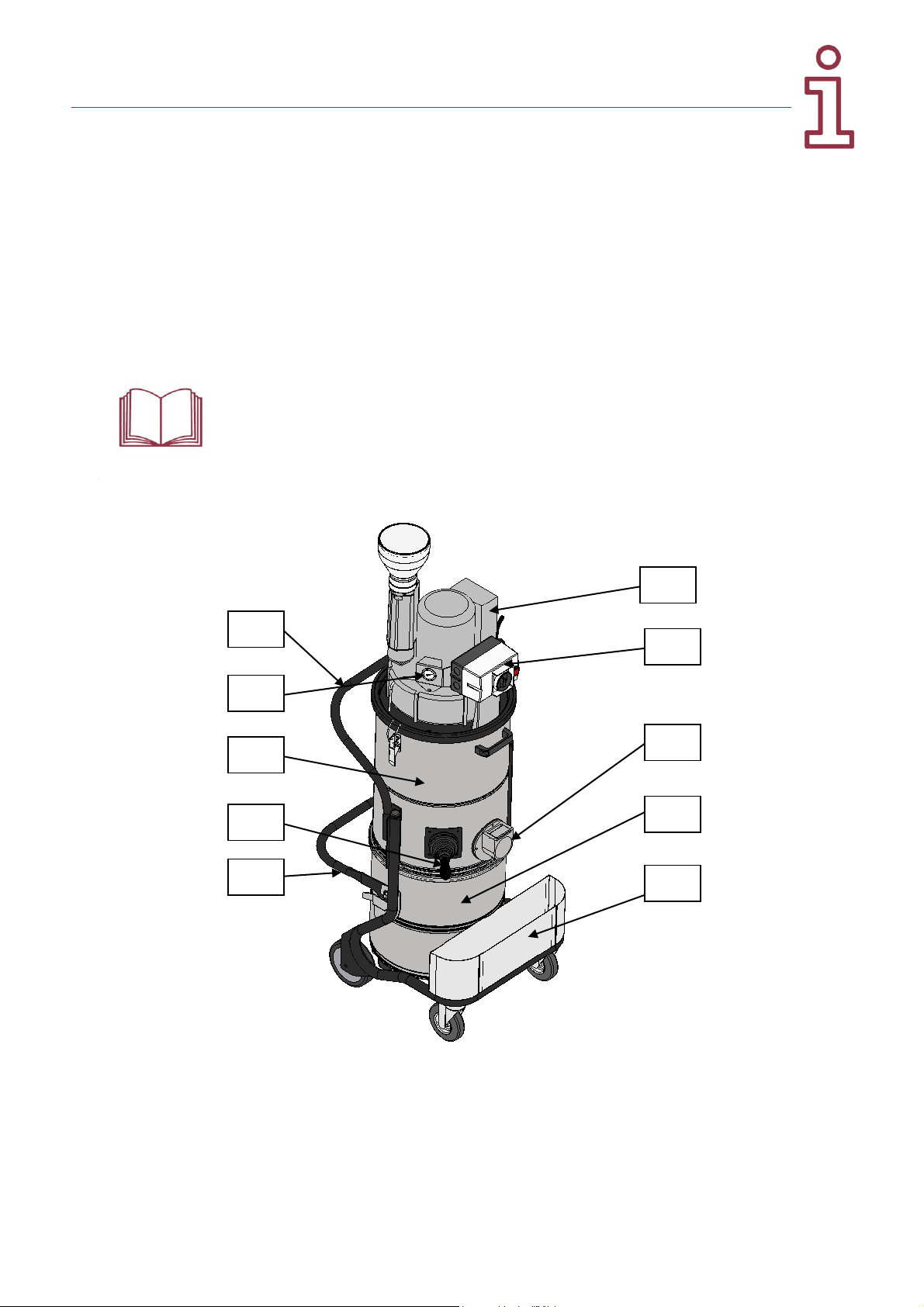

1.2 Main parts
1. On/Off commands
2. Vacuum handle
3. Filter chamber
4. Filter shaker
This manual forms an integral part of the vacuum
cleaner. Read this manual and the other attachments
supplied carefully. Knowledge of the instructions
here contained is indispensable for the safe use
and maintenance of the vacuum cleaner
1
2
3
4
5
6
7
8
9
1

Page 6 of 38
5. Suction inlet
6. Dust/ Debris Bin
7. Bin handle
8. Accessories basket
9. Blower
10. Vacuum meter
1.3 Optional parts
A wide range of optional accessories is available from DEPURECO depending on
the intended use of the vacuum.
1.4 Manufacturer's identification data
DEPURECO INDUSTRIAL VACUUMS S.r.l.
Corso Europa 609 - 10088 Volpiano (TO) - ITALY
phone [phone] - fax [phone] | VAT NO. 02258610357
e-mail: [email protected] - website: www.depureco.com
1.5 Identification plate
The data on the vacuum identification plate must be referred to in any
correspondence with the manufacturer or the dealer.
1.6 Permitted Uses
These vacuum cleaners are designed and built according to the 2014/34/EU
(ATEX) Directive for an exclusive professional industrial use; either way,
for any non-domestic use,
This vacuum cleaner is suitable for the cleaning and the collection of solid
materials, only in covered areas. This vacuum cleaner is designed to collect
combustible dust and/or dry particles in Zone 222 classified atmospheres
with the following limitations:
Minimum Ignition Energy (MIE) of the dust >3mJ
Kst-Value of the dust <300 bas m/s (St1, St2)
The vacuum cleaner was conceived to be used by only one operator.
In accordance with the Directive 1999/92/EC, whenever in the presence of
combustible dust and/or flammable gas, it’s the responsibility of the

Page 7 of 38
employer to carry out the classification of the Zone and to choose a device
in the appropriate category (According to the definition given in the
2014/34/EU Directive.
Any other use is considered IMPROPER.
1.7 Authorised environmental conditions
To ensure the correct operation, the vacuum cleaner must be kept away from
atmospheric agents (rain, hail, snow, fog, dust in suspension, etc.) in an
area with a room temperature range between 5° and 45°C and a relative
humidity no higher than 70%.
The work environment must be clean and suitably lit.
1.8 Noise level
The phonometric tests performed on this specific vacuum cleaner model
demonstrate a sound pressure level of
TB M Z22
TB T Z22
TB PLUS Z22
72 dB(A)
Exposure to noise
WARNING!
Workers exposed to sound pressure levels higher than 85
dB(A) must be protected by suitable personal protection
device (PPE) such as certified ear muffs.
Under these conditions, workers must be provided with
adequate training and information on risks arising from
noise exposure.

Page 8 of 38
1.9 Technical data
U.M.
TB M Z22
TB T Z22
TB PLUS Z22
Weight*
[Kg]
48
50
50
Overall
dimensions**
[mm]
550x620x1400
Voltage /
Frequency
[V]-
[Hz]
230 I 50/60
400 - 50/60
Power
[kW -
HP]
1,8 –2,4
2,2 - 3
Maximum vacuum
[mBar]
230
250
Air flow rate
[m³/h]
280
270
M filter surface
[m²]
1,5
H filter surface
(if provided)
[m²]
2.2
Noise level
[dB-A]
72
Bin capacity
[L]
45
(*) weight without packaging - packaging weight = 13 Kg
(**) machine dimensions without packaging

Page 9 of 38
1.10 Warranty
DEPURECO guarantees this model of vacuum cleaner for a period of 24 months
from the date of purchase, indicated on the receipt at the time of delivery
of the product.
The guarantee is null and void in the event that the vacuum is repaired by
unauthorised third parties or by using equipment, accessories or components
not supplied or not authorised by DEPURECO, or if the serial number is
removed (during the guarantee period).
For the duration of the guarantee, DEPURECO undertakes to repair or replace
free of charge parts and components which prove to have manufacturing
defects.
Repairs will be exclusively executed at a DEPURECO site or in a DEPURECO
approved Assistance Centre and the machine must be sent free of charge
(freight cost at user’s charge unless otherwise agreed).
The guarantee does not cover cleaning of working parts.
The purchase invoice must be shown to the authorised technical personnel
carrying out the repair and must accompany the vacuum during its shipment.
Defects that are not evidently due to materials or manufacturing will be
examined solely at our premises or at a Technical Service Centre of our
choosing.
Should the complaint be unjustified, all repair and/or replacement expenses
shall be charged to the purchaser.
In any case, the following items are not covered by the guarantee:
accidental damage due to transport, negligence, abnormal use, improper use,
non-compliance with the instructions contained in this booklet or arising
from phenomena that do not depend on normal use/operation of the vacuum.
DEPURECO shall not be held liable for any injuries to persons or damage to
objects caused by misuse or improper use of the vacuum.
In the event of any dispute arising, the Court of Turin (Italy) shall have
jurisdiction.
To use the warranty visit www.depureco.com or photocopy
the form available on the last page of this manual, fill
it in all its parts (in capital letters would be
recommended), and send it via fax to Depureco at the
number + 39 011 98 59 117
In the event of doubts, avoid interpreting the
information!
Call your reseller immediately!

Page 10 of 38
2. SAFETY SECTION
2.1 Safety Information
As per Italian Legislative Decree 81/08 and subsequent
modifications, the Safety Manager must train and inform workers
about the risks involved with using the vacuum cleaner so that
they may be able to avoid injury to themselves and others.
The use of device by people (including children) with limited physical and
mental capacities or lacking in experience and knowledge is strictly
forbidden, unless they are supervised by a person who is experienced in the
use and safe handling of the device.
Children must be supervised to make sure they will not play with the device.
Failure to comply norms, laws or basic safety precautions, may cause
accidents during operation, maintenance and repair of the vacuum cleaner.
Accidents can frequently be avoided by recognising potentially hazardous
situations before they occur. Adequate training is crucial to this end.
DEPURECO shall not be held liable for accidents or damage due to the
improper use of the vacuum by untrained personnel or to failure to comply,
even partially, with the occupational safety standards and intervention
procedures contained in this manual.
Safety warnings and precautions are indicated in this manual as well as on
the product itself.
Operators must pay special attention to these hazard warnings to prevent
accidents with serious consequences for themselves and other people.
DEPURECO designs and manufactures its equipment and accessories with care,
identifying and compensating possible risks related to their use. In the
event of equipment, procedures, work methods or techniques not expressly
provided for by DEPURECO being used, it is crucial to ensure beforehand that
there are no dangers for oneself and the others. Nevertheless, DEPURECO
shall not be held liable.
Use exclusively Depureco original spare
parts.
Depureco disclaims any liability in case
spare parts other than original have been
used.

Page 11 of 38
2.2 Safety recommendations
WARNING!
The following information is essential in view of preventing all
hazards that may occur while the vacuum cleaner is running.
However, they cannot replace the expertise and common sense of
operators as an overall framework for the prevention of accidents.
Structural damage, alterations or improper repairs can modify the
protective capacity of the vacuum, thereby nullifying this
certification and releasing DEPURECO from any liability.
Each section lists further safety measures specific to the various
functions.
WARNING!
Setting to work –connection to the power supply
Make sure there is no evident sign of damage to the vacuum cleaner
before starting work.
Before plugging the vacuum cleaner into the electrical mains, make
sure the voltage rating
indicated on the data plate corresponds to that of the electrical
mains.
Plug the vacuum cleaner into a socket with a correctly installed
ground contact/connection.
Make sure that the vacuum cleaner is turned off.
The plugs and connectors of the connection cables must be protected
against splashes of
water.
Check that the vacuum cleaner is properly connected to the
electrical mains.
Use the vacuum cleaner only when the cables that connect to the
electrical mains are in perfect condition (damaged cables could
lead to electric shocks!).
Regularly check there are no signs of damage, excessive wear,
cracks or ageing on the electric cable.
WARNING!
When the vacuum cleaner is operating, do not:
Crush, pull, damage or tread on the cable that connects to the
electrical mains.
Only disconnect the cable from the electrical mains by removing the
plug (do not pull the
cable).
Only replace the electric power cable with one of the same type as
the original: H07 RN - F. The same rule applies if an extension is
used.
The cable must be replaced by the manufacturer’s Service Centre
staff or by equivalent qualified personnel.

Page 12 of 38
CAUTION!
It is absolutely forbidden;
•For underage and non-trained people to use this vacuum cleaner.
•To connect the vacuum cleaner to mains without suitable earthing.
•To operate the vacuum cleaner outdoors in the presence of atmospheric
precipitations.
•To operate the vacuum cleaner without locking the swivelling wheel through
the special brake located on it.
•To operate the vacuum cleaner on uneven ground or in non-horizontal
positions.
•To operate the vacuum cleaner in corrosive environments.
•To use flexible hoses which are not wholly antistatic (superficial
antistatic properties are not accepted). The use of original DEPURECO
accessories is recommended. Verify electric continuity with an ohmmeter:
1. Between the inlet and the ending part of the vacuum’s
accessories: The resistance measured must be inferior
to 100MΩ (108 Ω)
2. Between the bin and the plug (ground pin) with an
electric device, or between the bin and the earthing
cable (supplied) with compressed air powered devices.
The resistance measured must be less than 10 Ω
•To operate the vacuum cleaner in working environments not classified
according to the directions given on the device’s plate.
•To vacuum the following materials:
1. Flaming materials (embers, hot ashes, lit cigarettes
etc…)
2. Open flames
3. Combustible gases
4. Flammable, combustible or aggressive liquids
(gasoline, solvents, acids, alkaline solutions etc…)
5. Dusts/Substances and/or spontaneously combusting
explosive mixtures of them (magnesium or aluminium
dusts etc…)
•To tamper with or modify the return valve set up by the manufacturer
•The use of the JETCLEAN system in the presence of potentially explosive
clouds in the atmosphere.
•To carry out maintenance on the vacuum cleaner in ATEX classified areas
•To carry out maintenance on the vacuum cleaner without first having
switched the device off and disconnected the plug from the socket.
•To keep foreign materials such as debris, oil, tools or other objects in
the bin which could disrupt the functioning and cause harm to people.
•To use flammable or toxic solvents such as gasoline, benzene, ether or
alcohol for cleaning.

Page 13 of 38
•To operate the vacuum cleaner without the filtering unit provided for by
the manufacturer.
•To operate the vacuum cleaner without safety devices.
•To wear loose or flowing apparel such as ties, scarves, or torn clothing
that could get caught on the vacuum cleaner or vacuumed by the device.
•To open the waste bin while the vacuum cleaner is working.
•To open the waste bin in an area which has been classified potentially
explosive.
•To use extension leads, plug-in connection devices and adapters.
•To climb on the vacuum cleaner.
•To touch electrical wires, switches, buttons, etc. with wet hands.
•To touch some components which could reach high temperatures (such as the
motor’s terminal box and the motor housing in particular) while operating
the vacuum cleaner.
WARNING!
This vacuum cleaner could contain dust that may be hazardous to your
health.
The emptying out and maintenance procedures, including removing the
dust containers, must be carried out exclusively by specialized
personnel wearing suitable safety clothing.
Never switch the machine on in the absence of a complete filtering
system.
2.3 Safety plates and symbols

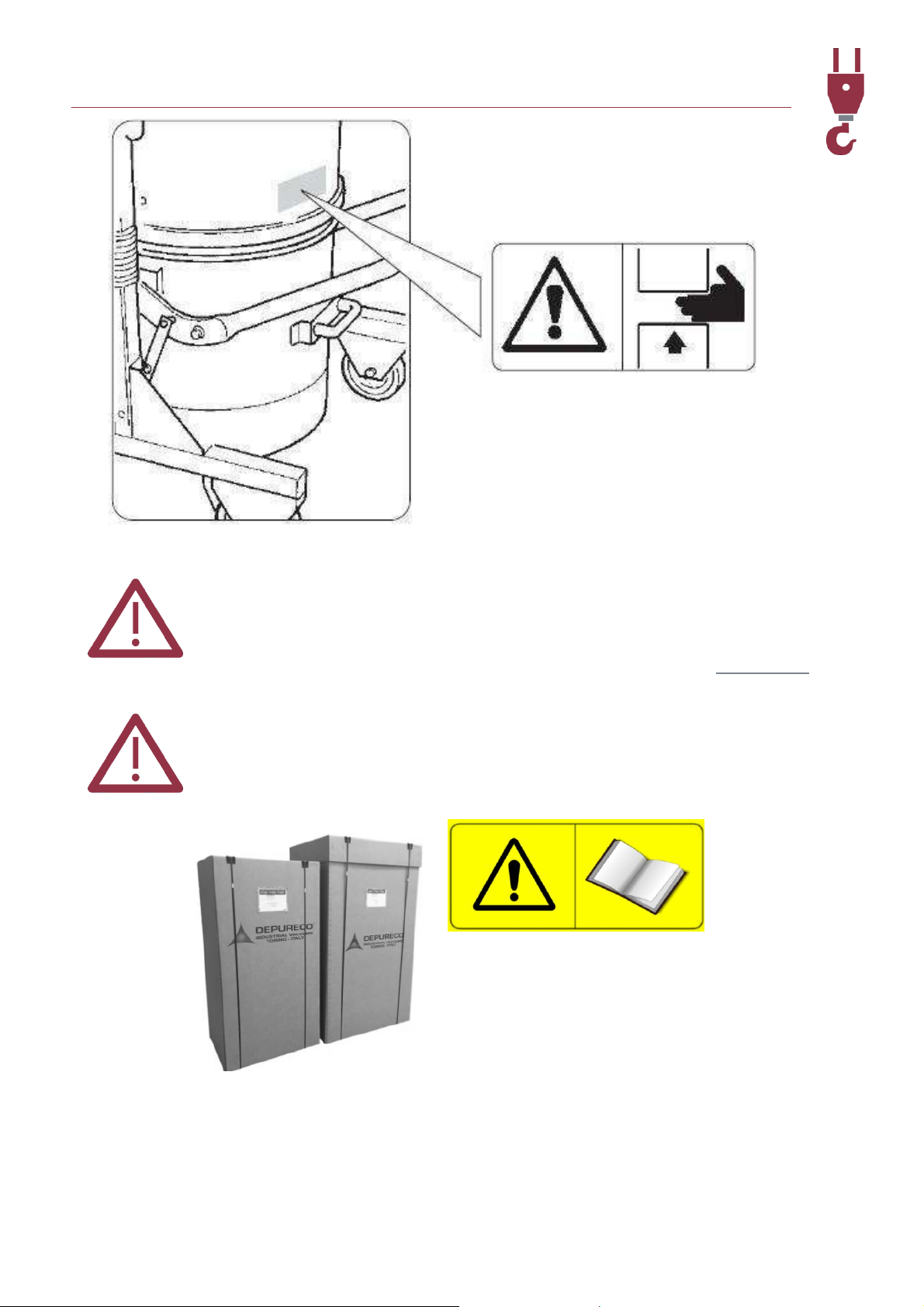

Plates with safety symbols and/or messages are applied to the vacuum and its
packaging.
These pages show their precise location and the nature of the hazard.
Warning!
Ensure that all safety messages are perfectly legible.
Clean them using a cloth with water and soap. Do not use solvents,
naphtha or petrol.
Request replacements for damaged plates from DEPURECO.
If a plate is located on a component that is being replaced, make sure
to fit the old plate to the new component.

Page 14 of 38
Warning!
Crushing hazard for the upper limbs during insertion and locking of the
dirt container under the vacuum cleaner.
Never place your hands between the vacuum and the dirt container while
inserting and locking the latter under the vacuum cleaner.
Lock the container by means of the special lever, using BOTH HANDS
Warning!
Read carefully this use and maintenance manual before using the vacuum
cleaner or carrying out maintenance operations on it
2.4 Residual risks
DEPURECO recommends complying with the instructions, procedures and
recommendations in this manual and with the safety standards in force.
Read carefully the
instructions on the
packaging before
handling the vacuum
cleaner

Page 15 of 38
DEPURECO also recommends using suitable personal protective equipment as
well as the protection devices integrated in the vacuum.
The residual risks analysed on the vacuum and/or its components could be:
Electrical risks during maintenance due to the requirement to work on live
parts
Pursuant to Italian Legislative Decree 81/08 –articles 80 to 87 –it is
prohibited to operate on live parts, notwithstanding the exceptions set
forth by said Legislative Decree.
Risks associated with incorrect use in presence of explosive and inflammable
liquid substances
The vacuum must not be used in environments containing liquid substances or
liquids that can evaporate at room temperature, inflammable powders and gas.
Risks related to operation in humid environments
Respect the limitations indicated in this manual, in section 1.5 “Authorised
environmental conditions”.
Risk of incorrect interpretation of the safety pictograms
With reference to risk analysis and identification, DEPURECO has installed
hazard labels on the vacuum, in compliance with the standards concerning
graphical symbols.
The user must immediately replace any safety plate rendered illegible due to
wear or damage.
Warning!
The removal of safety plates from the vacuum and/or its components
and packaging is strictly prohibited.
DEPURECO shall not be held liable for the vacuum's safety in the
event of failure to comply with this prohibition.
2.5 Applied Directives
The following directives apply to the vacuum cleaner described in this
manual:
- 2006/42/EC Machinery Directive
- 2014/30/EU Electromagnetic compatibility directive
- 2011/65/EU - ROHS - Directive on the restriction of the use of certain
hazardous substances in electrical and electronic equipment
- 2014/35/UE –Low tension directive
- 2014/34/UE –ATEX Directive
The reference standards, including their binding requirements, are managed
within the DEPURECO Quality Management System and archived by DEPURECO.
3. HANDLING, UNPACKING AND INSTALLATION SECTION
3.1 Handling
Warning!

Page 16 of 38
The instructions for transporting and unpacking the vacuum
correctly are shown
on the packaging as well.
The following instructions also indicate the operations to be undertaken
should the vacuum need to be re-packed or unpacked after subsequent
transportation.
Dimensions of packed vacuum cleaner:
When using a forklift, lift the load 200 mm off the ground and swing
backwards.
Always keep the height of the working environment in mind when lifting
loads.
Before starting any movement, ensure that the area is cleared and that there
are no moving objects on the packaging. For lifting and handling, apply
operating safety laws and normal instructions for fork-lift truck driving.
3.2 Unpacking
- Cut and unwind the two packaging fixing belts
The vacuum cleaner must be lifted and handled exclusively
using a forklift having suitable load bearing capacity.
The vacuum cleaner must be lifted and handled exclusively
using a forklift having suitable load bearing capacity.
170 cm

Page 17 of 38

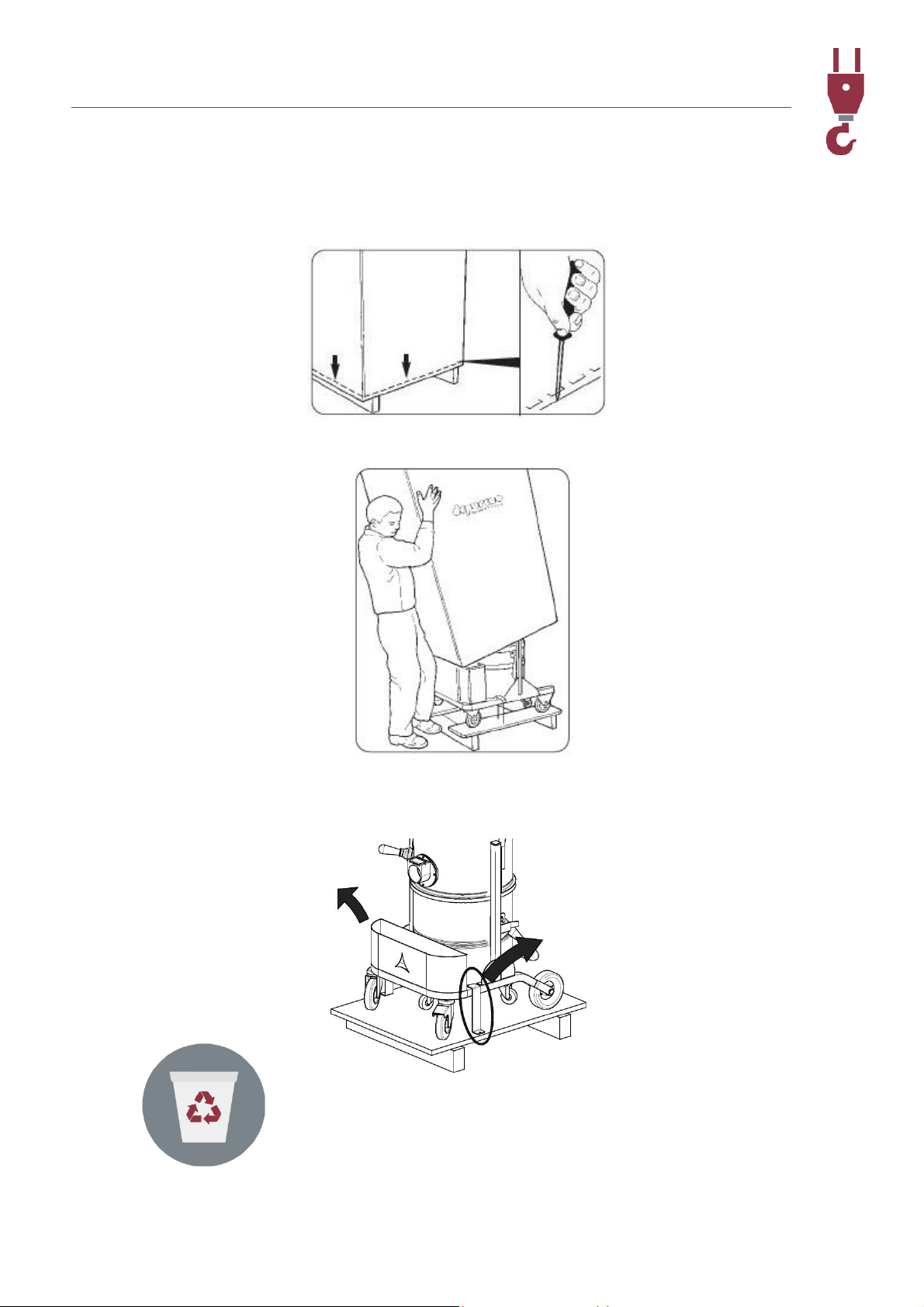

- remove the staples that fix the carton packaging to the pallet with the
aid of a screwdriver
- remove the carton completely
- loosen and remove the fastening screws and brackets from both sides
The cardboard packaging can be recycled. To protect
the environment, make sure to dispose it off in
specialised collection centres.

Page 18 of 38
3.3 Installation
Caution!
Before installing the vacuum, it is important to carry out a
thorough
preventive visual inspection to identify any damage which may
have occurred during transport.
In the event of one or more components being damaged, do not continue with
installation, inform DEPURECO about the anomaly and agree upon action to be
taken.
The vacuum cleaner is already fitted with an appropriate filter intended
exclusively to vacuum dry dust or debris

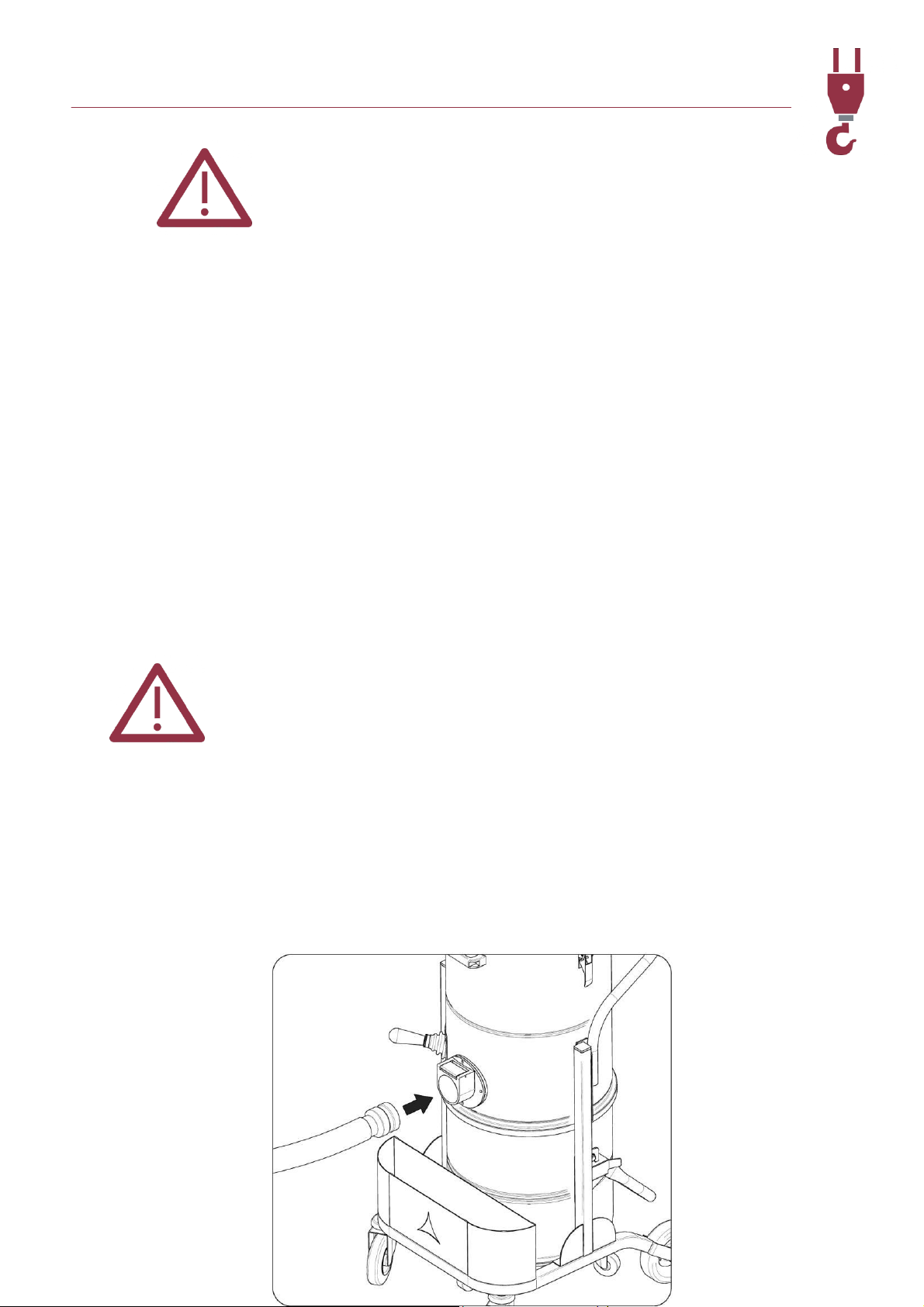

-Insert the hose equipped with a sleeve in the special suction inlet
and make sure it has been securely attached to it
Warning!
Keep the pallet.
In the event of subsequent transport, the vacuum
must be secured to the pallet using the same
fastening system.

Page 19 of 38

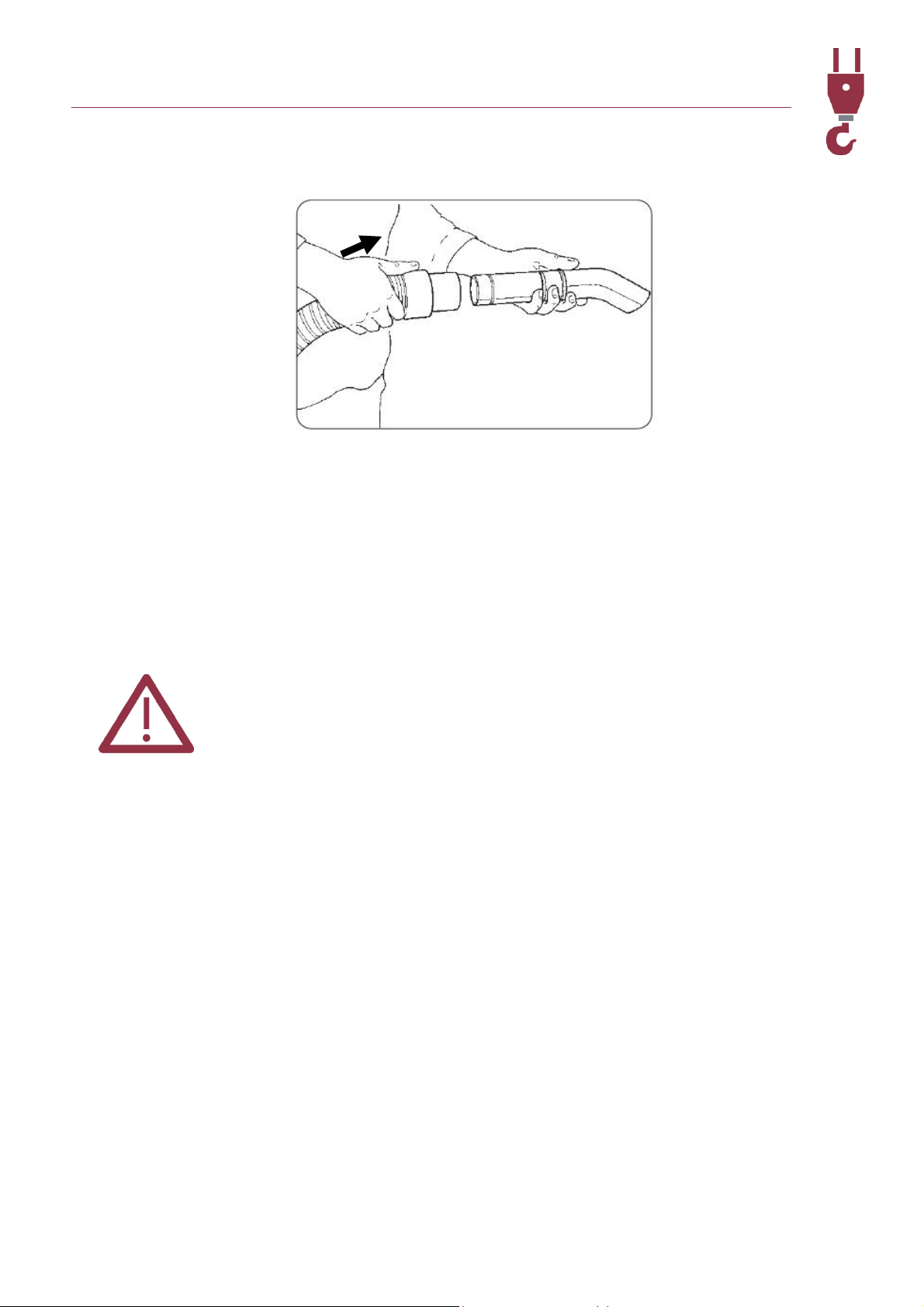

-insert the desired accessory according to the type of extraction on
the opposite side of the hose
Note: the flexible tube and the relevant end-pieces and accessories are not
included with the STANDARD model. Contact your dealer (or DEPURECO) for
information regarding the various types of OPTIONALS that can be used on
this specific model.
The following operation must be carried out by a qualified electrician.
Ensure that the power supply line corresponds to the voltage and frequency
indicated on the identification plate and that it is efficiently earthed.
The vacuum cleaner’s electrical current supply socket must be protected by a
CE-marked circuit breaker.
Insert the plug (standard supply) into the socket.
Warning!
Do not insert the plug in the power supply socket with wet
hands.
Do not use extension leads.

Page 20 of 38
4. OPERATION SECTION
4.1 Description of the controls
Warning!
The vacuum can be used solely by authorised personnel after having
read these use and maintenance instructions.
The user of the equipment and the maintenance technician, who carry
out operations
on the vacuum, must be adequately educated, informed and trained,
in compliance with the occupational safety standards in force and,
during the various operations, must wear personal protective
equipment (PPE), such as safety footwear, gloves, protective
goggles, mask, etc. The user must comply with the provisions in
force concerning extracted materials and their disposal.
1. Vacuum gauge: indicates filter clogging
2. I/O switch: VACUUM CLEANER START/STOP
4.2 Operating cycle
Ensure that the power cord is intact and in perfect state.
