INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 2 of 46
CE DECLARATION OF CONFORMITY
(for machines not included in Annex IV)
The Manufacturer
DEPURECO INDUSTRIAL VACUUMS S.r.l. - Via Perosi, 3 - 10040 Volvera (TO) - ITALY
tel. [phone] - fax [phone] - e-mail [e-mail]
www.depureco.com - Tax Code and VAT No. 02258610357
declares
under its own responsibility that the vacuum model
described in this manual
Year of manufacture:
Year of manufacture:
to which this declaration refers, complies with the essential safety requirements of Machinery Directive
2006/42/EC, Directive 2004/108/EC concerning electromagnetic compatibility and Directive 2006/95/EC
concerning low voltage.
The Standards taken as reference to design, manufacture and test the vacuum are listed in the technical file
available at DEPURECO S.r.l.
This declaration shall no longer be valid in the event of changes to the vacuum made without the
Manufacturer's authorisation.
Turin,15 March 2012 The Legal Representative
(Marco DEVINCENTIS)
[original signed document]
2
0
Space for the application of the identification data label
2
0

INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 3 of 46
CONTENTS
1.
INFORMATIVE SECTION
……………………………………………………………...
4
1.0 Preface ………………………………………………………………………………....... 4
1.1 Identification of the main parts ……………………………………………………....... 6
1.2 Options …………………………………………………………………………………... 7
1.3 Manufacturer's identification data …………………………………………………...... 7
1.4 Identification plate ………………………………………………………………………. 8
1.5 Intended use …………………………………………………………………………...... 8
1.6 Allowed environmental conditions …………………………………………………….. 8
1.7 Noise level ……………………………………………………………………............... 8
1.8 Technical data …………………………………………………………………………... 9
1.9 Warranty …………………………………………………………………………………. 10
2.
SAFETY SECTION
……………………………………………………………...
..........
11
2.1 Information on safety ……………………………………………………………........... 11
2.2 Safety requirements……………………………………………………………............. 12
2.3 Safety plates and symbols..................................................................................... 13
2.4 Residual risks ……………………………………………………………………………. 16
2.5 Applied Directives ………………………………………………………………………. 16
3.
HANDLING, UNPACK
ING AND INSTALLATION SECTION
……....
..................
17
3.1 Handling ….…………………………………………………………………….............. 17
3.2 Unpacking ……………………………………………………………………………...... 18
3.3 Installation .……………………………………………………………………………..... 19
4.
OPERATION SECTIO
N
……………………………………………………………..
...
.
22
4.1 Description of the controls ……………………………………………………………... 22
4.2 Operating cycle ………………………………………………………………………….. 23
4.3 Emptying the refuse container ........…………………………………………………… 28
4.4 Inserting and locking the refuse container ........……………………………………… 30
4.5 Storage - decommissioning ………......................………………………………….... 30
5.
MAINTENANCE SECTION
…………………………………………………………...
..
31
5.1 Information notes ……………………………………………………………………….. 31
5.2 General safety regulations …………………………………………………………….. 32
5.3 Replacing the filter ……………………………………………………………………... 33
5.4 Replacing the filter cartridge - (optional CCA)……..........…………………………... 36
5.5 Positioning the thermal relay and fuses (FOX 10) ………….........…………………. 40
5.6 Troubleshooting ………...............……………………………………………………… 42
5.7 Wear materials ……...…………………………………………………………………... 43
5.8 Scrapping ….....………………………………………………………………………….. 43
IMPORTANT - The DEPURECO name and logo used in this document refer to and are property of
DEPURECO INDUSTRIAL VACUUMS S.r.l.
This document is exclusive property of DEPURECO S.r.l. Full or partial reproduction by any means (graphic,
electronic, etc.) is prohibited without prior authorisation by the Company Management.

INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 4 of 46
1. INFORMATION SECTION
1.0 Preface
Dear Customer
Congratulations on purchasing a FOX series DEPURECO vacuum. Thank you for choosing us.
We have prepared this manual to allow you to fully appreciate the qualities of this machine.
We recommend reading it carefully before using it for the first time.
It includes information, recommendations and important warnings concerning the use of the vacuum, which
will help fully exploiting the technical properties of your machine.
We recommend reading carefully the messages, warnings and indications preceded by the following
symbols:
for personal safety;
for vacuum integrity;
for environmental protection.
This vacuum has been designed for extracting dust and processing residues. The vacuum is installed on
sturdy casters, one of which is equipped with a brake to hold it in place.
It is equipped with a vacuum meter to indicate the conditions of the filter: an increase in negative pressure
indicates increased filter clogging, with a reduction of the suction power as a result.
The materials extracted through cyclone effect tend to settle on the bottom of the container; the finer dust
particles contained in the mixture will settle on the filtering surface inside the chamber.
This manual describes the following models:
FOX 3
FOX 5,5 P
FOX 5,5 S
FOX 7.5 P
FOX 7.5 S
FOX 10
The vacuum can be equipped with the following filters:

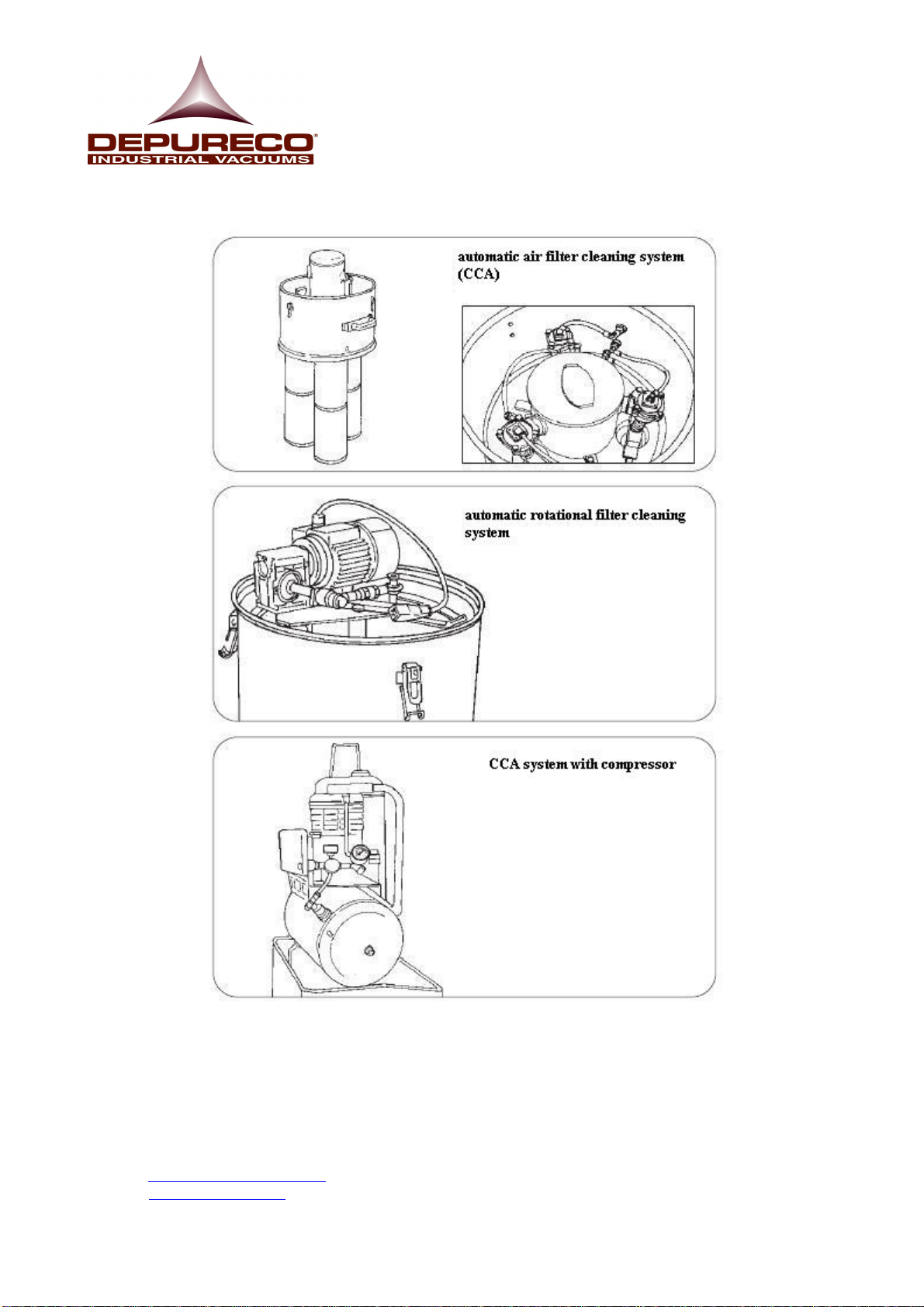

qM FILTER
For greater filtering capacity,the M filter can be integrated with an H FILTER (or absolute filter).

INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 5 of 46
These vacuums are classified according to the following dust classes:
M
medium risk - suitable for separating dust with an exposure limit value of > 0.1 mg/m
3
depending on the occupied volume.
H
high risk - suitable for separating all dusts with any exposure limit value, depending on the
occupied volume, including carcinogenic and pathogenic dusts.
This manual provides all the necessary information for the use and maintenance of your vacuum.
This specific model has undergone strict testing to ensure maximum reliability. Its operation and durability
will depend on proper use and maintenance.
This manual is integral part of the vacuum and must accompany it at all times, until its demolition.
In the event it is lost or damaged, you can request another copy from DEPURECO INDUSTRIAL VACUUMS
S.r.l. (hereafter simply called DEPURECO).
The technical information contained in this manual is exclusive property of DEPURECO and must be
considered confidential.
Reproduction, even partial, of graphics, text and illustrations is prohibited by law.
Some details shown in the figures in this manual can differ from those on your vacuum; this is because some
components can be removed to ensure maximum clarity.
For easier consultation, this manual is divided into sections that are identified by a specific graphic symbol.
The topics covered in this manual are those expressly required by Machinery Directive 2006/42/EC and the
technical data are taken from the technical file archived at DEPURECO.
In compliance with Regulation 1907/2006/EC (REACH), DEPURECO declares that its products do not
contain any Substances of Very High Concern (SVHC) included in the Candidate List.
This manual must be kept in a place that can be easily accessed by the personnel in charge of running and
maintaining the machine.
Any dispute will be heard by the Court of Turin (Italy).
This manual must accompany the vacuum even in the event it is sold !

INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 6 of 46
1.1 Identification of the main parts
2) On/off control
3) Cover
4) Filter shaker knob
5) Filter chamber
6) Extracted refuse container
7) Refuse container locking/release lever
8) Suction hose inlet
9) Fixed casters
9) carry handles
10) Swivel casters with brake
11) Accessory container
12) Electrical / control panel (FOX 10)

INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 7 of 46
1.2 Options
DEPURECO provides a wide range of optional accessories, according to the application of the vacuum.
1.3 Manufacturer's identification data
DEPURECO INDUSTRIAL VACUUMS S.r.l.
Via Perosi, 3 - 10040 Volvera (TO) - ITALY
tel. [phone]
fax [phone]
e-mail: [e-mail]
website: www.depureco.com

INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 8 of 46
1.4 Identification plate
The data on the vacuum identification plate must be referred to in any communication with the manufacturer
or the dealer.
1.5 Intended use
This model has been designed, manufactured and protected solely for professional industrial extraction of
non-flammable and non-toxic dry dust.
For hazardous Zone 22 dusts, request the B1 version from DEPURECO.
If equipped with a special filter and float, the vacuum can also be used to extract non-flammable and non-
corrosive liquids.
Any other use is considered IMPROPER.
1.6 Allowed environmental conditions
To ensure proper operation, the vacuum must be protected from weather agents (Rain, hail, snow, fog,
suspended powders, etc.) at a room temperature ranging between 5 and 45 °C and a humidity below 70%.
The work environment must be clean, suitably lit and must not give rise to explosive atmosphere.
1.7 Noise level
Photometric tests carried out on these specific models have shown a sound pressure level of
FOX 3
74 dB(A)
FOX 5,5 P
FOX 5,5 S
76 dB(A)
FOX 7.5 P
FOX 7.5 S
76 dB(A)
FOX 10 70 dB(A)

INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 9 of 46
Attention!
For sound pressure levels above 85 dB(A), exposed workers must wear suitable
personal protective equipment (PPE), such as type-approved individual hearing
protection.
Under these conditions, workers must be provided with adequate training and
information on risks arising from noise exposure.
1.8 Technical data
U.M. FOX 3 FOX 5,5 P
FOX 5,5 S
FOX 7.5 P
FOX 7.5 S
FOX 10
Weight*
Kg/Lb 140/309 155/342 175/386
172/379
240/529
Overall dimensions*
Cm/Ft 121x65x152
3,96x2,13x4,99
121x65x152
3,96x2,13x4,99
121x65x152
3,96x2,13x4,99
128x65x183
4,20x2,13x6
Supply voltage
V 400/500* 400/500* 400/500* 400/500*
Power
KW - Hp 2,2 - 3 4 - 5,5 5,5 - 7,5 7,5 - 10
Maximum negative
pressure
mmH
2
O/Inc. 3.300/10 3.000/10
5.100/15
3.200/9,50
5.300/15,7
4.600/14
Air flow rate
l/min/Cfm 5.200/184 8.000/283
5.300/188
8.000/283
5.300/188
8.800/311
M filter surface
m
2
/Ft
2
2,4/25 2,4/25 2,4/25 4,5/49
H filter surface
m
2
/Ft
2
2,1/22,6 2,1/22,6 2,1/22,6 /
Noise level
dB-A 74 76 76 70
Container capacity
l/Gal 100/27 100/27 100/27 100/27
Vacuum inlet diameter
mm/Inc 80/3,15 80/3,15 80/3,15 80/3,15
* 500 V upon request
(*) without packaging - packaging weight = 18 Kg

INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 10 of 46
1.9 Warranty
DEPURECO guarantees this model for 12 months from the date of purchase indicated in the receipt upon
delivery of the product from the dealer.
The warranty is null and void in the event that the vacuum is repaired by unauthorised third parties,
equipment, accessories or components not supplied or not authorised by DEPURECO are used or the serial
number is removed (during the warranty period).
During the warranty period, DEPURECO undertakes to repair or replace free of charge parts and
components, which prove to have manufacturing defects.
Repairs are made solely at our premises or in specific Service centres and must be delivered ex works
(transport costs are charged to the purchaser, unless otherwise agreed upon).
The warranty does not cover cleaning of operating elements.
The purchase receipt must be shown to the authorised technical personnel carrying out the repair and must
accompany the vacuum during its shipment.
Defects that are not evidently due to materials or manufacturing will be examined solely at our premises or at
a specific Technical Service Centre.
Should the complaint be unjustified, all repair and/or replacement expenses shall be charged to the
purchaser.
In any event, the following are not covered by warrantee: accidental damage due to transport, negligence,
abnormal use, improper use, non-compliance with the instructions contained in this booklet or arising from
phenomena that do not depend on normal use/operation of the vacuum.
DEPURECO shall not be held liable for any injuries to persons or damage to objects caused by misuse or
improper use of the vacuum.
Any dispute will be heard by the Court of Turin (Italy).
To benefit from the warranty, photocopy the form in the last page of this manual, fill it in
(possibly in block capital letters) and fax it to DEPURECO at [phone]

INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 11 of 46
2. SAFETY SECTION
2.1 Information on safety
In compliance with Italian Legislative Decree 81/08 and subsequent additions and
amendments, the Safety Manager is obliged to educate, inform and train workers on the
risks related to the use of the vacuum, in order for them to be able to protect their own and
others' safety.
Failure to comply with basic safety standards and precautions can cause accidents during use, maintenance
and repairs of the vacuum. Accidents can frequently be avoided by recognising potentially hazardous
situations before they occur. Adequate training is crucial to this end.
DEPURECO shall not be held liable for accidents or damage due to the improper use of the vacuum by
untrained personnel or to failure to comply, even partially, with the occupational safety standards and
intervention procedures contained in this manual.
Safety warnings and precautions are indicated in this manual as well as on the product itself.
Operators must pay special attention to these hazard warnings to prevent accidents with serious
consequences for themselves and other people.
Safety messages are emphasised by the following symbol:
Attention!
Failure to comply with these messages can cause injuries to the operator.
Attention!
Failure to comply with these messages can cause damage to the vacuum.
Attention!
Failure to comply with these messages can cause damage to the environment.
DEPURECO designs and manufactures its equipment and accessories with care, identifying and
compensating possible risks related to their use. In the event that equipment, procedures, work methods or
techniques not expressly provided for by DEPURECO are used, it is crucial to ensure beforehand that there
are no dangers for oneself and the others, notwithstanding that DEPURECO shall not be held liable.

INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 12 of 46
2.2 Safety requirements
Attention!
The indications below are important to prevent hazards that can occur while operating
the vacuum. However, they cannot replace the expertise and common sense of the
operators as an overall framework for accident prevention.
Every section lists further safety requirements specific for
the various operations.
CAUTION!
•This vacuum can only be used by adequately trained adults.
•This vacuum is suitable for industrial use, such as: factories, warehouses, workshops.
•The equipment must be electrically connected to a mains equipped with efficient earthing.
•Always lock the vacuum by means of the lock located on the swivel caster during vacuum operation.
•This vacuum is not intended to be used in corrosive or explosive environments.
•Keep the vacuum clear from foreign bodies, such as debris, oil, tools and other objects that could damage
its operation and cause injuries.
•Avoid using flammable or toxic solvents, such as petrol, benzene, ether and alcohol for cleaning
operations.
•Avoid prolonged contact with solvents and inhaling their vapours.
•Avoid using it in the proximity of naked flames or heat sources; ensure suitable ventilation.
•Do not, under any circumstance, use the vacuum without filter.
•Do not vacuum lighted cigarette butts: they could burn the filter.
•Do not vacuum petrol or flammable liquids in general.
•Ensure that all the guards and protection devices are in place and that all the safety devices are properly
installed and efficient.
•Do not use the vacuum on sloping or uneven floors.

INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 13 of 46
•Do not wear loose or baggy clothing, such as ties, scarves, ripped clothes that could get easily caught or
trapped in the vacuum.
•Do not open the refuse collection container while the vacuum is operating.
•Do not, under any circumstance, place your hands between the refuse container and the vacuum while
locking it.
Lock the container in place by means of the dedicated lever, using BOTH HANDS.
•Do not move the vacuum by pulling the power cord.
•Extensions, press-fit plugs and adapters are prohibited.
•It is prohibited to use the vacuum on operating machines.
•Do not climb on the vacuum.
•Do not touch electric wires, switches, buttons, etc., with wet hands.
•Periodically verify the integrity of the power cord.
•While using the industrial vacuum, some components can reach 116 °C, e.g.: motor terminal block, motor
body.
•During the operations to restore original work conditions, the personnel in charge must ensure at the end of
the procedure, normal operating and safety conditions of the vacuum and, in particular, of the safety devices
and protective guards involved in the operation.
•In the event that the Customer installs a tool not supplied by DEPURECO on the vacuum, is is essential to
verify that the safety requirements of Machinery Directive 2006/42/EC are met, notwithstanding that
DEPURECO shall not be held liable for problems caused by the use of that part.
•Structural damage, alterations or improper repairs can modify the protective capacity of the vacuum,
thereby nullifying this certification and releasing DEPURECO from any liability.
•This manual must always be kept at hand for consultation on the operating cycle and for clarifying any
doubts.
In the event it is lost or damaged, request another copy from DEPURECO.
Attention!
This vacuum can contain harmful dust.
Emptying and maintenance procedures, including the disposal of the dust collection
containers, must be carried out only by specialised personnel wearing suitable
personal protective equipment.
Do not activate without a complete filtering system.
2.3 Safety plates and symbols
Plates with safety symbols and messages are applied to the vacuum and its packaging.
These pages show their precise location and the nature of the hazard.

INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 14 of 46
Attention!
Ensure that all safety messages are perfectly legible.
Clean using them a cloth with water and soap. Do not use solvents, naphtha or petrol.
Replace damaged plates requesting them from DEPURECO.
In the event that a plate is located on a piece that is replaced, ensure that
a new plate is affixed to the new piece.
Attention!
Upper limb crushing hazard while inserting and locking the refuse container in place
under the vacuum.
Never place your hands between the vacuum and the refuse container while inserting
and locking the refuse container in place under the vacuum.
Lock the container in place by means of the dedicated lever, using BOTH HANDS.

INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 15 of 46
Attention!
Carefully read this use and maintenance manual before using the vacuum or carrying
out maintenance interventions.
Attention!
Carefully read the instructions on the
packaging before handling and unpacking the
vacuum.

INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 16 of 46
2.4 Residual risks
The accurate risk analysis carried out by DEPURECO (archived in the technical file) has allowed eliminating
the main risks related to the conditions of use of the vacuum.
DEPURECO recommends complying with the instructions, procedures and recommendations in this manual
and with the safety standards in force. DEPURECO also recommends using suitable personal protective
equipment as well as the protection devices integrated in the vacuum.
The residual risks analysed on the vacuum and/or its components can be:
Electrical risks during maintenance on live parts
Pursuant to Italian Legislative Decree 81/08 –articles from 80 to 87 –it is prohibited to operate on live parts,
notwithstanding the exceptions set forth by said Legislative Decree.
Risk of improper use in presence of liquid, explosive and flammable substances
The vacuum must not be used in environments containing liquid substances or liquids that can evaporate at
room temperature, flammable powders and gas.
Risks related to operation in humid environments
Comply with the limitations indicated in this manual, in section 1.5 “Allowed environmental conditions”.
Upper limb crushing hazard while inserting the refuse container under the vacuum.
A safety pictogram on the vacuum warns about this hazard.
This hazard can be prevented by locking the container under the vacuum by means of the dedicated lever,
using both hands.
See “Chapter 2.3”for the precise meaning of the safety plates.
Risks of misinterpretation of safety pictograms
With reference to risk analysis and identification, DEPURECO has installed hazard labels on the vacuum, in
compliance with the standard concerning graphic symbols.
The user must immediately replace any safety plate made illegible due to wear or damage.
Attention!
It is strictly prohibited to remove the safety plates from the vacuum and/or its
components and packaging.
DEPURECO shall not be held liable for the vacuum's safety in the event of failure to
comply with this prohibition.
2.5 Applied Directives
The following Directives apply to the vacuum described in this manual:
- 2006/42/EC Machinery Directive
- 2004/108/EC Electromagnetic Compatibility Directive
- 2006/95/EC Low Voltage Directive.
Reference standards, including their binding requirements, are managed through the DEPURECO Quality
and Environmental Management System.

INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 17 of 46
3. HANDLING, UNPACKING AND INSTALLATION
SECTION
3.1 Handling
Attention!
The instructions for transporting and unpacking the vacuum correctly are shown
also on the packaging.
The instructions below also include the operations to be carried out in the event that the vacuum
must be packed or unpacked again for subsequent transport.
Dimensions of the packed vacuum.
The vacuum must be lifted and handled only using a forklift whose load bearing
capacity is suited to the weight.

INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 18 of 46
When using a forklift, lift the load 200 mm off the ground and swing backwards.
Always keep the height of the working environment in mind when lifting loads.
Before starting any movement, ensure that the area is cleared and that there are no moving objects on the
packaging. For lifting and handling operations, comply with the occupational safety standards in force and
with the normal forklift driving instructions.
3.2 Unpacking

INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 19 of 46

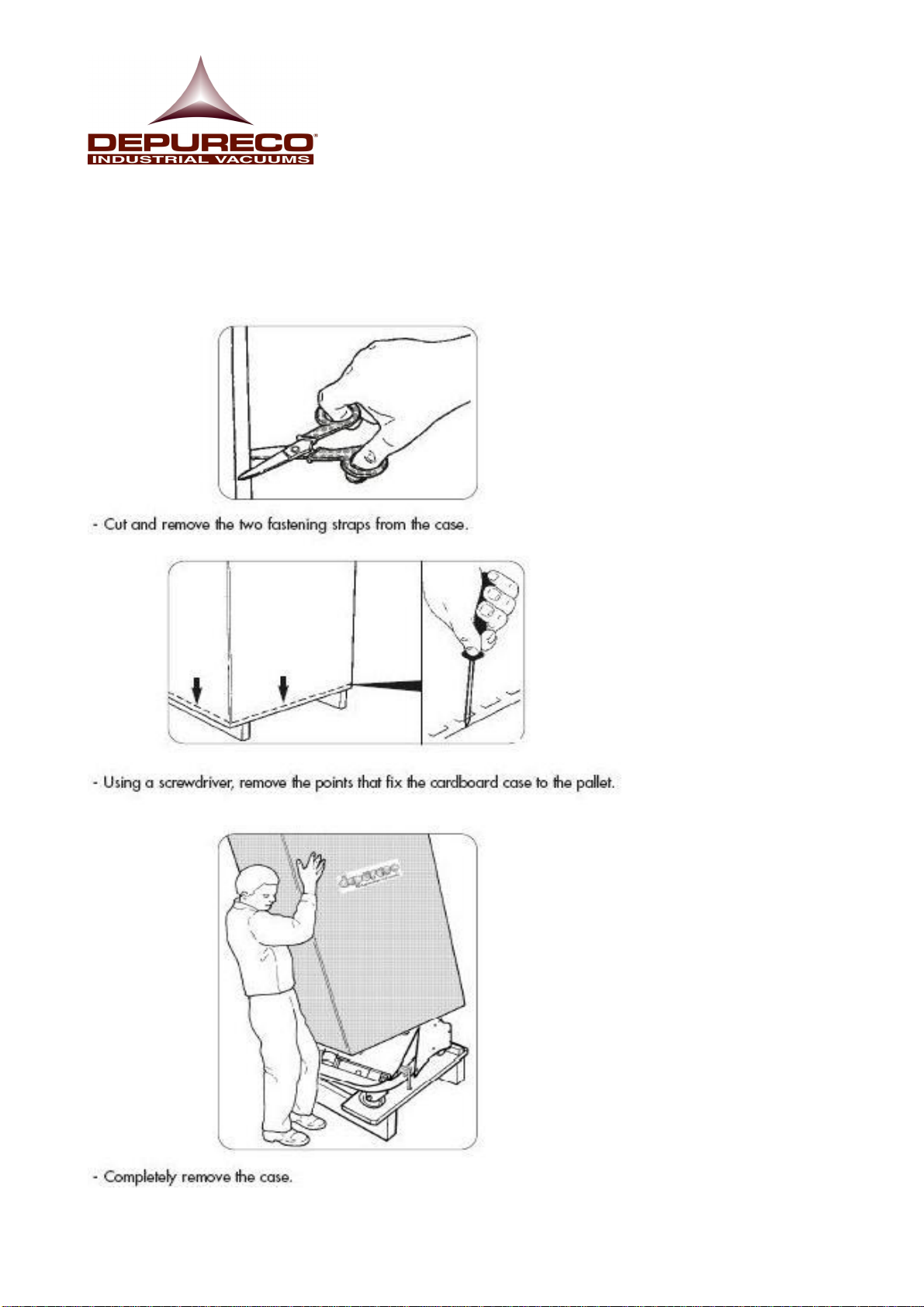

- loosen and remove off both sides the fastening screws and brackets
The cardboard packaging is recyclable and should be collected
separately to prevent environmental impact.

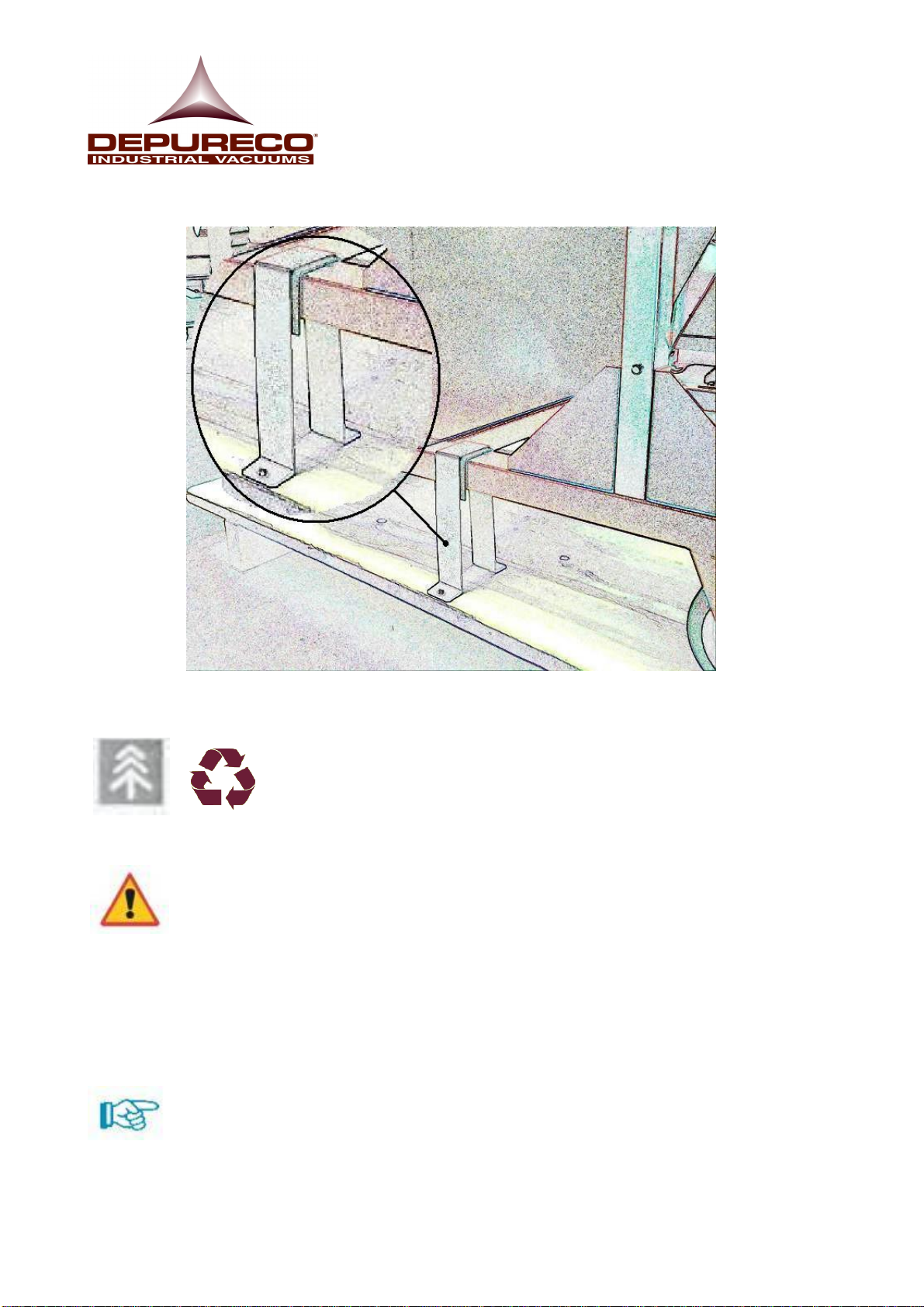

Attention!
Keep the pallet and the fastening brackets.
In the event of subsequent transport, the vacuum must be secured to the pallet
using the same fastening system.
3.3 Installation
Warning!
Before installing the vacuum, it is important to carry out a thorough
preventive visual inspection to identify any damage occurred during
transport.

INDUSTRIAL VACUUMS
FOX Series
USE AND MAINTENANCE MANUAL
FOX series Manual rev. A page 20 of 46
In the event that one or more components are damaged, do not continue with installation and inform
DEPURECO about the anomaly and agree upon the actions to be taken.
The vacuum is already equipped with a suction filter, which allows extracting only dry dust or debris.
- Lift the knob (A) and insert the hose equipped with end fitting in the suction inlet, releasing the knob.
Contact your dealer (or DEPURECO) for information regarding the various types of OPTIONAL that can be
used on this specific model.
