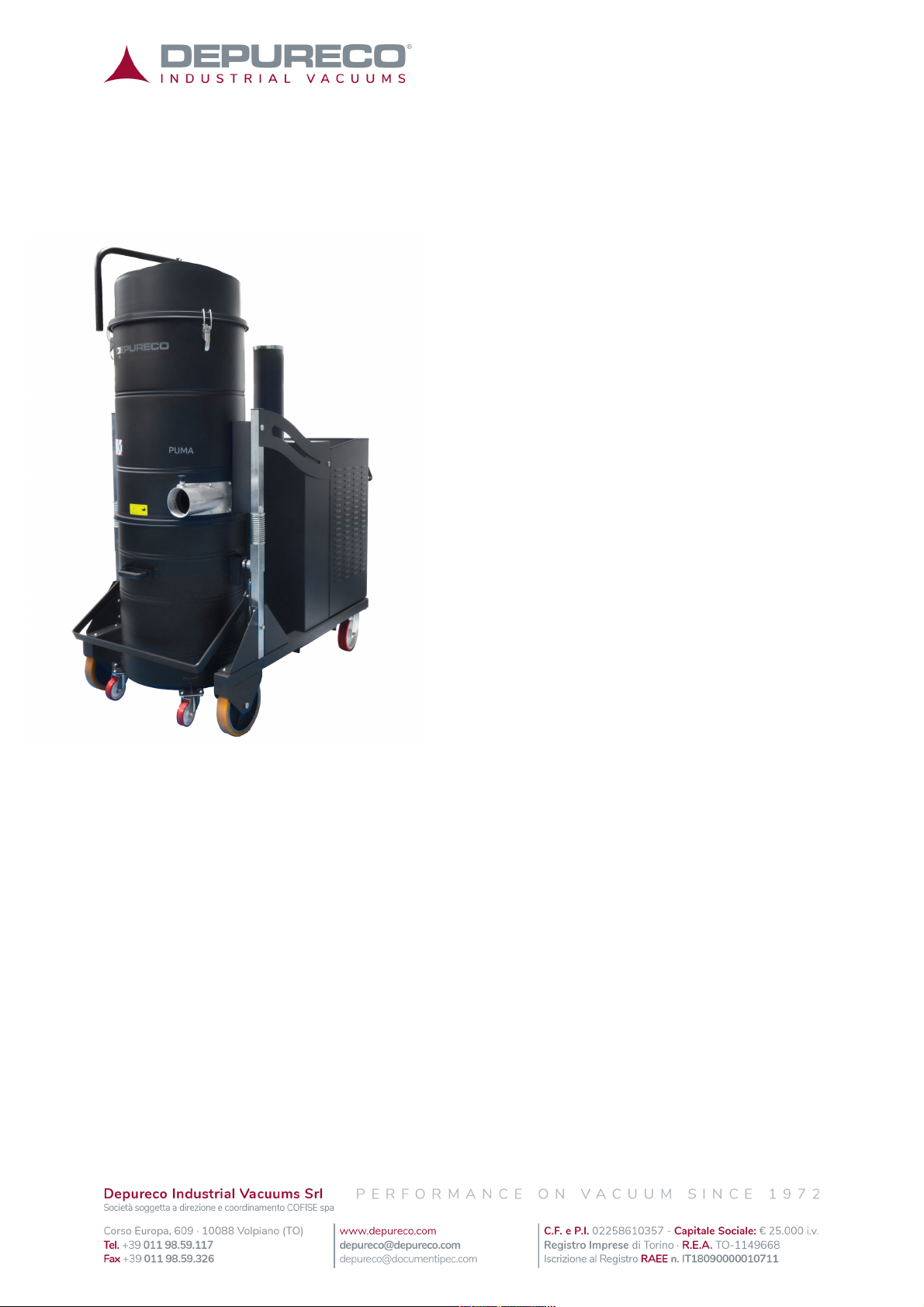

DEPURECO PUMA Series Operating instructions

!
USER AND
MAINTENANCE
MANUAL
SERIES
PUMA

!
TABLE OF CONTENTS:
1. INFORMATIVE SECTION
1.1 Foreword...............................................................................................................5
1.2 Main parts .............................................................................................................8
1.3 Optional parts.......................................................................................................9
1.4 Manufacturer's identification data......................................................................9
1.5 Identification plate................................................................................................9
1.6 Permitted Uses.....................................................................................................9
1.7 Authorised environmental conditions ................................................................9
1.8 Noise level...........................................................................................................10
1.9 Technical data ....................................................................................................11
1.9 Warranty.............................................................................................................13
!
2. SAFETY SECTION
2.1 Safety Information.....................................................................................................14
2.2 Safety recommendations...................................................................................15
2.3 Safety plates and symbols ................................................................................17
2.4 Residual risks......................................................................................................18
2.5 Applied Directives..............................................................................................19
!
3. HANDLING, UNPACKING AND INSTALLATION SECTION
!
3.1 Handling..............................................................................................................20
3.2 Unpacking ...........................................................................................................21
3.3 Installation...........................................................................................................23
!
4. OPERATION SECTION
!
4.1 Description of the controls ................................................................................25
4.2 Operating cycle...................................................................................................27
4.3 Cleaning the filter ...............................................................................................29
4.4 Emptying the refuse container..........................................................................30
4.5 Inserting and locking the dirt container ...........................................................31
4.6 Storage - decommissioning ..............................................................................32
!
!
!

!
!
!
5. MAINTENANCE SECTION
!
5.1 Informative notes ...............................................................................................33
5.2 General safety regulations ................................................................................34
5.3 Replacing the filter .............................................................................................36
5.4 Replacing the filter cartridges on the C.C.A. cleaning system (if provided) . 38
5.5 Replacing the H filter (if provided)....................................................................40
5.6 Troubleshooting .................................................................................................42
5.7 Scrapping............................................................................................................43

!
Page!5!of!45!
!
1. INFORMATIVE SECTION
IMPORTANT - The DEPURECO term and logo in this document refer to and are the property of
DEPURECO INDUSTRIAL VACUUMS S.r.l.
This document remains the exclusive property of DEPURECO S.r.l. Full or partial reproduction by any
means (graphical, electronic, etc.) is prohibited without prior authorisation from the Company
Management.
1.1 Foreword
Dear Customer
Thank you for having chosen DEPURECO; we hope you will enjoy using your new DEPURECO series
TX vacuum cleaner
This manual has been drafted in order for our customer to fully appreciate the quality of this machine.
Please read all sections before using the machine for the first time.
It includes information, recommendations and important warnings concerning the use of the vacuum,
which will help fully exploit the technical properties of your machine.
Read messages, warnings and indications preceded by the following symbols carefully:
For the safety of persons
For the integrity of the vacuum cleaner
For the safeguard of the environment
This vacuum cleaner has been designed for the suction of dust and processing residues.
This manual forms an integral part of the vacuum cleaner. Read this
manual and the other attachments supplied carefully. Knowledge of
the instructions here contained is indispensable for the safe use and
maintenance of the vacuum cleaner

!
Page!6!of!45!
!
The material vacuumed by gravity tends to settle on the container bottom; the finest dust particles
contained in the mixture will settle on the filtering surface, inside the filter chamber.
This manual describes the following models:
PUMA
The vacuum cleaner is equipped with the following filters:
q M FILTER (P11718)
q TEFLON-COATED M FILTER (P11719)
q ANTISTATIC M FILTER (P11847)
q NOMEX FILTER (P11840)
q H FILTER CARTRIDGE (if provided)(P09868)
q CARTRIDGE FOR THE C.C.A. CLEANING SYSTEM (if provided)(P09577)
This manual provides all pieces of information necessary for the use and maintenance of the vacuum
cleaner.
This specific model has undergone strict testing to ensure maximum reliability.Its operation and
durability will depend on proper use and maintenance.
This manual forms an integral part of the vacuum cleaner and must accompany the machine for its
entire life cycle.
In the event it is lost or damaged, you can request another copy from DEPURECO INDUSTRIAL
VACUUMS S.r.l. (henceforth shortened to DEPURECO).
The technical information contained in this manual is exclusive property of DEPURECO and must be
considered confidential.
Reproduction, even partial, of graphics, text and illustrations is prohibited by law.
Some details shown in the figures in this manual may differ from those on your vacuum; this is because
some components can be removed to ensure maximum illustration clarity.
This manual has been divided into sections for easy consultation and each section has been identified
by a specific graphical symbol.
The topics covered in this manual are those expressly required by Machinery Directive 2006/42/EC and
the technical data are taken from the technical file archived at DEPURECO.
With reference to Regulation 1907/2006/EC (REACH), DEPURECO hereby declares that no
Substances of Very High Concern - (SVHC) included in the Candidate List, are contained in its
products.
This manual should be kept in a place accessible to all personnel in charge with operating and
performing maintenance on the vacuum cleaner.
In the event of any dispute arising, the Court of Turin (Italy) shall have jurisdiction

!
Page!7!of!45!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
This manual forms an integral part of the vacuum cleaner. Read this
manual and the other attachments supplied carefully. Knowledge of
the instructions here contained is indispensable for the safe use and
maintenance of the vacuum cleaner

!
Page!8!of!45!
!

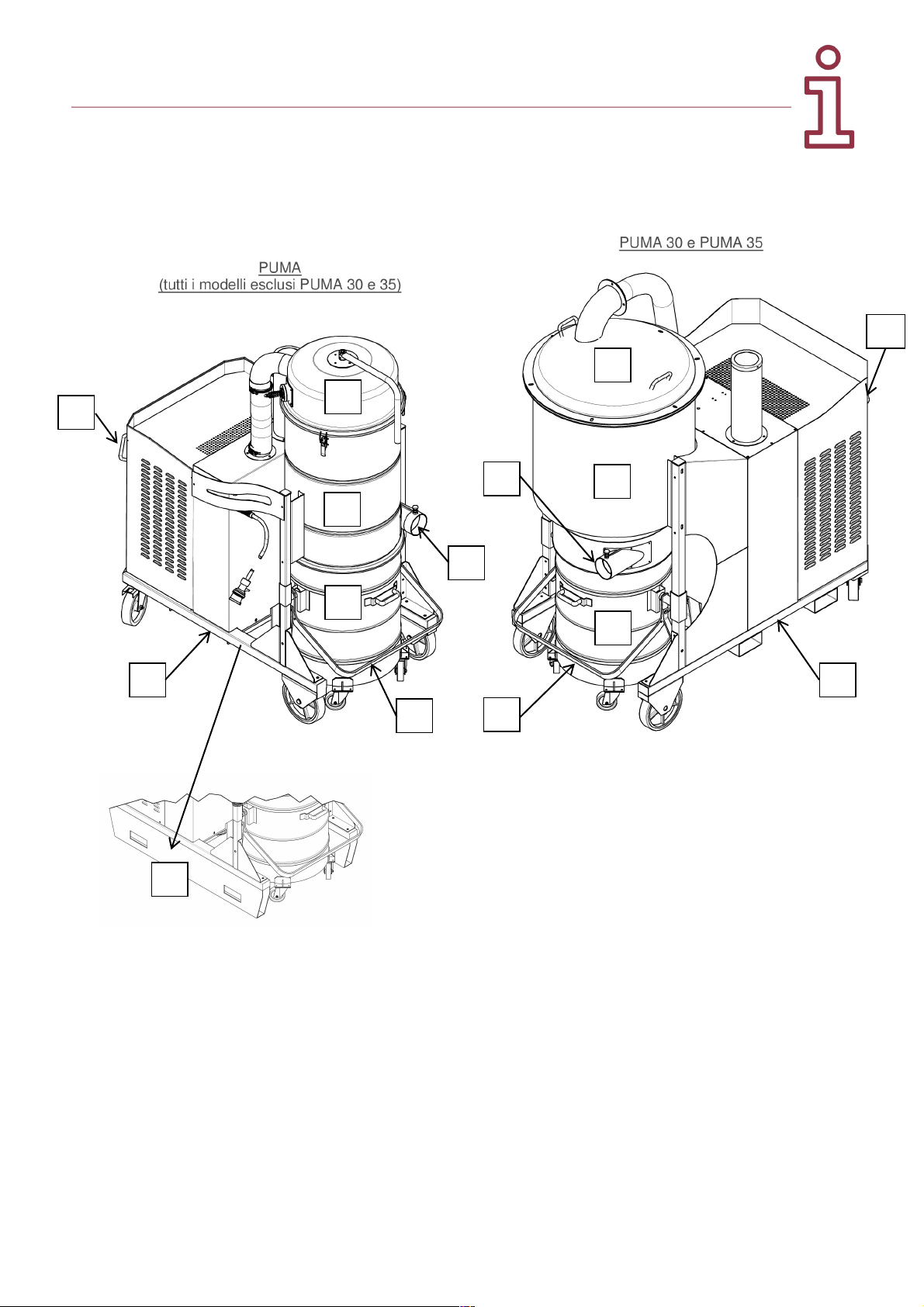

1.2 Main parts
1. Vacuum cleaner head
2. Handles to move the product
3. Filter chamber
4. Suction nozzle
5. Container release handle
6. Dirt collection container
7. Puma frame with wheels
8. Frame with "FIX" base (where applicable)
1
2
5
7
6
4
3
4
2
1
3
5
6
7
8

!
Page!9!of!45!
!
!
1.3 Optional parts
DEPURECO provides a wide range of optional accessories, depending on the application of the vacuum
cleaner.
1.4 Manufacturer's identification data
DEPURECO INDUSTRIAL VACUUMS S.r.l.
Corso Europa 609 - 10088 Volpiano (TO) - ITALY
phone [phone] - fax [phone] | VAT NO. 02258610357
e-mail: [e-mail] - website: www.depureco.com
1.5 Identification plate
The data on the vacuum identification plate must be referred to in any correspondence with the
manufacturer or the dealer.
1.6 Permitted Uses
This model of vacuum cleaner has been designed, built and protected for exclusively for the
professional industrial use of suctioning non-flammable and non-harmful dry and/or wet dust and
shavings.
Any other use is considered IMPROPER.
1.7 Authorised environmental conditions
To ensure correct operation, the vacuum cleaner must be kept away from atmospheric agents (rain,
hail, snow, fog, dust in suspension, etc.) in an area with a room temperature range between 5° and
45°C and a relative humidity no higher than 70%.
The work environment must be clean, suitably lit and must not give rise to potentially explosive
atmosphere.
!

!
Page!10!of!45!
!
1.8 Noise level
The phonometric tests performed on this specific vacuum cleaner model demonstrate a sound pressure
level of
PUMA 10
PUMA 12
PUMA 15 P
PUMA 15 S
PUMA 18
PUMA 20
74 dB(A)
PUMA 30 P
PUMA 30 S
PUMA 35 P
PUMA 35 S
78 dB(A)
!
!
WARNING!
Workers exposed to sound pressure levels higher than 85 dB(A) must be
protected by suitable personal protection device (PPE) such as certified ear
muffs.
Under these conditions, workers must be provided with adequate training
and information on risks arising from noise exposure.

!
Page!11!of!45!
!
!
1.9 Technical data
!
!
U.M.
PUMA 10
PUMA 12
PUMA 15P
PUMA 15S
PUMA 18
Weight*
[Kg]
310
340
350
370
Weight with FIX
base*
[Kg]
340
-
-
390
-
Overall
dimensions**
[mm]
850 x 1550 x 1980
Voltage /
Frequency
[V] -
[Hz]
400 - 50/60
Power
[kW -
HP]
7.5 - 10
8.5 - 12
11 - 15
12.5 - 18
Maximum
negative
pressure
[mBar]
310
420
350
480
420
Continuous
negative
pressure
[mBar]
270
200
250
440
290
Air flow rate
[m³/h]
730
1050
1120
550
1120
M filter surface
[m²]
4.5
SP cartridge
surface (where
applicable)
[m²]
12
H filter surface
(where
applicable)
[m²]
11
Noise level
[dB-A]
74
Container
capacity
[L]
175

!
Page!12!of!45!
!
U.M.
PUMA 20
PUMA 30 P
PUMA 30 S
PUMA 35 P
PUMA 35
P
Weight*
[Kg]
-
600
760
Weight with FIX
base*
[Kg]
420
-
Overall
dimensions**
[mm]
850 x 1590 x
1930
1050 x 1950 x 2300
Voltage /
Frequency
[V] -
[Hz]
400 -50/60
Power
[kW -
HP]
15 - 20
20 - 28
25 - 34
Maximum
negative
pressure
[mBar]
410
320
600
450
550
Continuous
negative
pressure
[mBar]
350
250
460
320
445
Air flow rate
[m³/h]
1050
1980
1100
2100
1130
M filter surface
[m²]
-
11
SP cartridge
surface (where
applicable)
[m²]
12
18
H filter surface
(where
applicable)
[m²]
11
Noise level
[dB-A]
74
78
Container
capacity
[L]
175
(*) weight without packaging, packaging weight = 18 Kg
(**) overall dimensions without packaging

!
Page!13!of!45!
!
!
1.9 Warranty
DEPURECO guarantees this model of vacuum cleaner for a period of 12 months from the date of
purchase, indicated on the receipt at the time of delivery of the product.
The guarantee is null and void in the event that the vacuum is repaired by unauthorised third parties or
by using equipment, accessories or components not supplied or not authorised by DEPURECO, or if the
serial number is removed (during the guarantee period).
For the duration of the guarantee, DEPURECO undertakes to repair or replace free of charge parts and
components which prove to have manufacturing defects.
Repairs will be exclusively executed at a DEPURECO site or in a DEPURECO approved Assistance
Centre and the machine must be sent free of charge (freight cost at user’s charge unless otherwise
agreed).
The guarantee does not cover cleaning of working parts.
The purchase invoice must be shown to the authorised technical personnel carrying out the repair and
must accompany the vacuum during its shipment.
Defects that are not evidently due to materials or manufacturing will be examined solely at our
premises or at a Technical Service Centre of our choosing.
Should the complaint be unjustified, all repair and/or replacement expenses shall be charged to the
purchaser.
In any case, the following items are not covered by the guarantee: accidental damage due to transport,
negligence, abnormal use, improper use, non-compliance with the instructions contained in this booklet
or arising from phenomena that do not depend on normal use/operation of the vacuum.
DEPURECO shall not be held liable for any injuries to persons or damage to objects caused by misuse
or improper use of the vacuum.
In the event of any dispute arising, the Court of Turin (Italy) shall have jurisdiction.
To use the warranty visit www.depureco.com or photocopy the form
available on the last page of this manual, fill it in all its parts (in capital letters
would be recommended), and send it via fax to Depureco at the number + 39
011 98 59 117
In the event of doubts, avoid interpreting the information! Call
immediately your reseller!

!
Page!14!of!45!
!
2. SAFETY SECTION
2.1 Safety Information
As per Italian Legislative Decree 81/08 and subsequent modifications, the Safety
Manager must train and inform workers about risks involved with using the vacuum
cleaner so that they may be able to avoid injury to themselves and others.
Failure to comply norms, laws or basic safety precautions, may cause accidents during operation,
maintenance and repair of the vacuum cleaner. Accidents can frequently be avoided by recognising
potentially hazardous situations before they occur. Adequate training is crucial to this end.
DEPURECO shall not be held liable for accidents or damage due to the improper use of the vacuum by
untrained personnel or to failure to comply, even partially, with the occupational safety standards and
intervention procedures contained in this manual.
Safety warnings and precautions are indicated in this manual as well as on the product itself.
Operators must pay special attention to these hazard warnings to prevent accidents with serious
consequences for themselves and other people.
The safety warnings are indicated by the following symbols:
For the safety of persons
For the integrity of the vacuum cleaner
DEPURECO designs and manufactures its equipment and accessories with care, identifying and
compensating possible risks related to their use. In the event of equipment, procedures, work methods
or techniques not expressly provided for by DEPURECO being used, it is crucial to ensure beforehand
that there are no dangers for oneself and the others. Nevertheless, DEPURECO shall not be held liable.
WARNING!
Failure to comply with these warnings can cause injuries to the operator.
WARNING!
Failure to comply with these warnings can cause damage to the vacuum
cleaner
WARNING! Failure to comply with these warnings can harm the
environment

!
Page!15!of!45!
!
!
2.2 Safety recommendations
WARNING!
The following information is essential in view of preventing all hazards that may occur
while the vacuum cleaner is running. However, they cannot replace the expertise and
common sense of operators as an overall framework for the prevention of accidents.
Each section lists further safety measures specific to
the various functions.
CAUTION!
• This vacuum may only be used by suitably trained adults.
• This vacuum cleaner is intended for industrial use, e.g.:in factories, warehouses, workshops.
• Ensure that mains electrical connects have suitable earthing.
• During use, always block the vacuum cleaner using the special brake located on the swivelling
wheel
• This vacuum cleaner is not intended for corrosive or explosive environment.
• Keep the vacuum cleaner clear of foreign objects such as debris, oil, tools and other objects which
may impede its functioning and cause personal injury.
• ether and alcohol for cleaning.
• Avoid prolonged contact with solvents and inhaling their vapours.
• Avoid using near open flames or heat sources; ensure adequate ventilation.
• Never use the vacuum cleaner without its filter.
• Do not vacuum lit cigarettes: the filter may catch fire.
• Do not vacuum petroleum products or inflammable liquids in general.
Use exclusively Depureco original spare parts.
Depureco disclaims any liability in case spare parts other than
original have been used.

!
Page!16!of!45!
!
• Ensure that all protection equipment and guards are in place and that all safety devices are present
and operating.
• Do not wear loose or flowing apparel such as ties, scarves, or torn clothing that could become hung
or caught up by the vacuum cleaner.
• Never open waste container while the vacuum cleaner is working.
• Never use extension leads, plug-in connection devices and adapters.
• Never use the vacuum cleaner on running machines
• Do not climb on the vacuum cleaner.
• Do not touch electrical wires, switches, buttons, etc. with wet hands.
• Occasionally check the integrity of the power cable.
• When using the industrial vacuum cleaner, some components (motor connector, motor body in
particular) may reach high temperatures.
• During operations to return to original work conditions, the personnel in charge must ensure at the
end of the procedure that normal operating and safety conditions of the vacuum and, in particular, of
the safety devices and protective guards involved in the operation are once again guaranteed.
• Should the Customer install a tool not supplied by DEPURECO on the vacuum, the safety
requirements of Machinery Directive 2006/42/EC must be met. Nevertheless DEPURECO shall not
be held liable for problems caused by the use of such parts.
• Structural damage, alterations or improper repairs can modify the protective capacity of the vacuum,
thereby nullifying this certification and releasing DEPURECO from any liability.
• This manual must be kept near the machine, so it may be consulted to check the correct cycle use at
any time doubts may arise.
• In the event it is lost or damaged, request another copy from DEPURECO.
WARNING!
This vacuum cleaner could contain dust that may be hazardous to your health.
The emptying out and maintenance procedures, including removing the dust containers, must
be carried out exclusively by specialized personnel wearing suitable safety clothing.
Never switch the machine on in the absence of a complete filtering system.

!
Page!17!of!45!
!
2.3 Safety plates and symbols
Plates with safety symbols and/or messages are applied to the vacuum and its packaging.
These pages show their precise location and the nature of the hazard.
Warning!
Ensure that all safety messages are perfectly legible.
Clean them using a cloth with water and soap. Do not use solvents, naphtha or petrol.
Request replacements for damaged plates from DEPURECO.
If a plate is located on a component that is being replaced, make sure to fit the old plate to
the new component.
Warning!
Crushing hazard for the upper limbs during insertion and locking of the dirt container under
the vacuum cleaner.
Never place your hands between the vacuum and the dirt container while inserting and
locking the later under the vacuum cleaner.
Lock the container by means of the special lever, using BOTH HANDS
Warning!
Read carefully this use and maintenance manual before using the vacuum cleaner or carrying
out maintenance operations on it

!
Page!18!of!45!
!
2.4 Residual risks
DEPURECO recommends complying with the instructions, procedures and recommendations in this
manual and with the safety standards in force. DEPURECO also recommends using suitable personal
protective equipment as well as the protection devices integrated in the vacuum.
The residual risks analysed on the vacuum and/or its components could be:
Electrical risks during maintenance due to the requirement to work on live parts
Pursuant to Italian Legislative Decree 81/08 – articles 80 to 87 – it is prohibited to operate on live parts,
notwithstanding the exceptions set forth by said Legislative Decree.
Risks associated with incorrect use in presence of explosive and inflammable liquid substances
The vacuum must not be used in environments containing liquid substances or liquids that can
evaporate at room temperature, inflammable powders and gas.
Risks related to operation in humid environments
Respect the limitations indicated in this manual, in section 1.5 “Authorised environmental conditions”.
Risk of incorrect interpretation of the safety pictograms
With reference to risk analysis and identification, DEPURECO has installed hazard labels on the
vacuum, in compliance with the standards concerning graphical symbols.
The user must immediately replace any safety plate rendered illegible due to wear or damage.
Warning!
The removal of safety plates from the vacuum and/or its components and packaging is
strictly prohibited.
DEPURECO shall not be held liable for the vacuum's safety in the event of failure to
comply with this prohibition.
Read carefully the
instructions on the packaging
before handling the vacuum
cleaner

!
Page!19!of!45!
!
2.5 Applied Directives
The following directives apply to the vacuum cleaner described in this manual:
- 2006/42/EC Machinery Directive
- 2014/30/EU Electromagnetic compatibility directive
- 2011/65/EU - ROHS - Directive on the restriction of the use of certain hazardous substances
in electrical and electronic equipment
The reference standards, including their binding requirements, are managed within the DEPURECO
Quality Management System

!
Page!20!of!45!
!
3 HANDLING, UNPACKING AND INSTALLATION SECTION
3.1 Handling
Warning!
The instructions for transporting and unpacking the vacuum correctly are
shown
on the packaging as well.
The following instructions also indicate the operations to be undertaken should the vacuum need to be
re-packed or unpacked after subsequent transportation.
Dimensions of packed vacuum cleaner:
When using a forklift, lift the load 200 mm off the ground and swing backwards.
Always keep the height of the working environment in mind when lifting loads.
Before starting any movement, ensure that the area is cleared and that there are no moving objects on
the packaging. For lifting and handling, apply operating safety laws and normal instructions for fork-lift
truck driving.
The vacuum cleaner must be lifted and handled exclusively using a forklift having
suitable load bearing capacity.
The vacuum cleaner must be lifted and handled exclusively using a forklift having
suitable load bearing capacity.

!
Page!21!of!45!
!
3.2 Unpacking
- Cut and unwind the two packaging fixing belts
- remove the staples that fix the card packaging to the pallet with the aid of a screwdriver
- remove the cardboard completely
Cut tapes between the platform and base of vacuum cleaner
