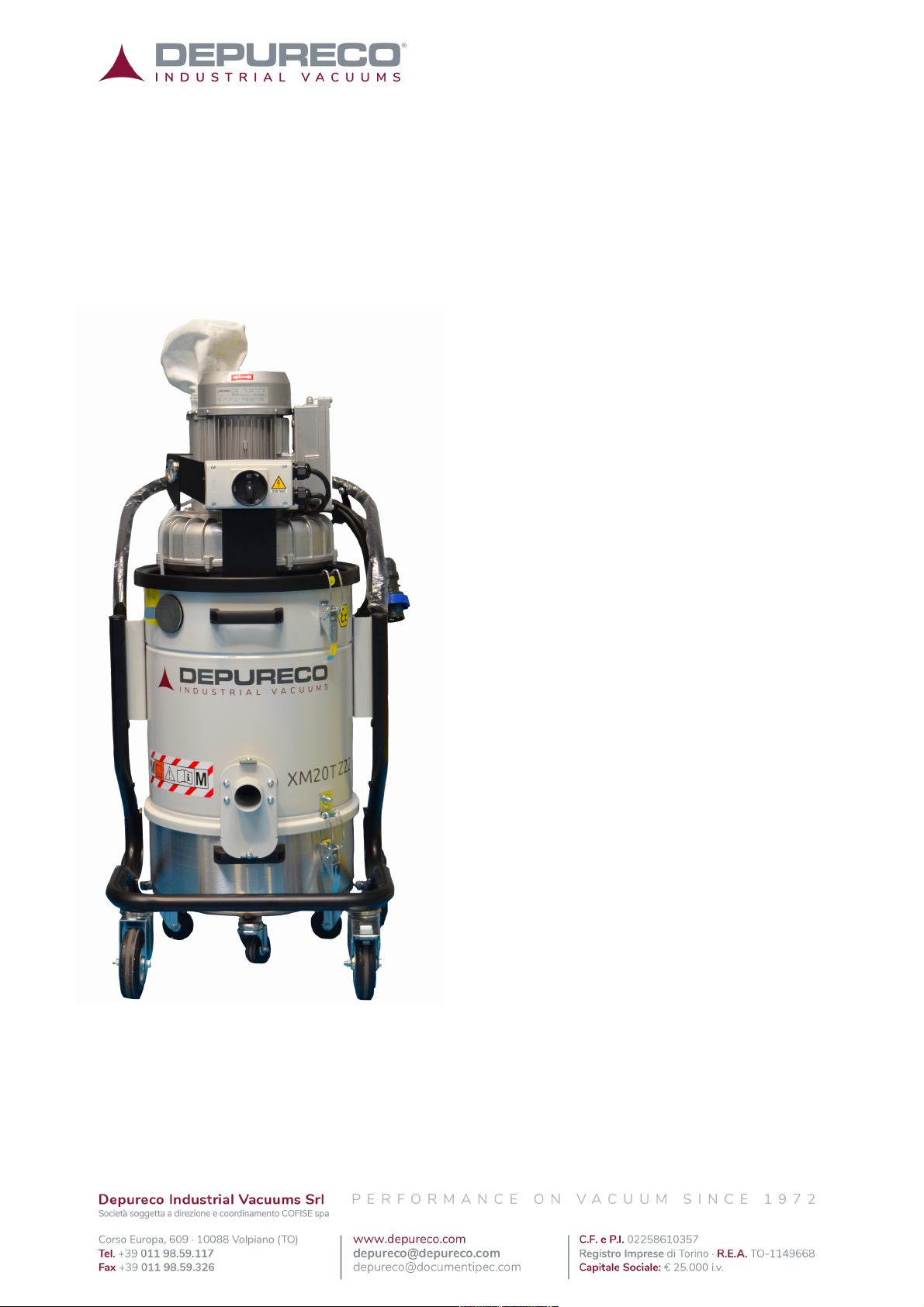

DEPURECO XM 20T Series Instructions for use

!
INSTRUCTION AND
MAINTENANCE MANUAL
XM 20T SERIES
ATEX Z22 II3D
XM 20T M Z22
XM 20T M Z22 JC
XM 20T T Z22 JC

!
TABLE OF CONTENTS:
1. INFORMATIVE SECTION
1.1 Foreword...............................................................................................................4
1.2 Main parts .............................................................................................................7
1.3 Optional parts.......................................................................................................8
1.4 Manufacturer's identification data......................................................................8
1.5 Identification plate................................................................................................8
1.6 Permitted Uses.....................................................................................................8
1.7 Authorised environmental conditions ................................................................9
1.8 Noise level.............................................................................................................9
1.9 Technical Data....................................................................................................10
1.10 Warranty.............................................................................................................11
2. SAFETY SECTION
2.1 Safety Information..............................................................................................12
2.2 Safety recommendations...................................................................................13
2.3 Safety plates and symbols ................................................................................15
2.4 Residual risks......................................................................................................17
2.5 Applied Directives..............................................................................................17
!
3. HANDLING UNPACKING AND INSTALLATION SECTION
3.1 Handling..............................................................................................................18
3.2 Unpacking ...........................................................................................................19
3.3 Installation...........................................................................................................21
!
4. OPERATION SECTION
4.1 Description of the controls ................................................................................23
4.2 Operation cycle...................................................................................................24
4.3 Filter cleaning (only on XM 20T JC) ..................................................................26
4.4 Filter cleaning (only on XM 20T).......................................................................27
4.5 Emptying the container .....................................................................................28
4.6 Inserting and locking the bin.............................................................................29
4.7 Storage - Decomissioning.................................................................................29
!
!
!
!

!
Pag.!3!di!44!
!
!
!
5. MAINTENANCE SECTION
5.1 Informative notes ...............................................................................................30
5.2 General safety regulations ................................................................................31
5.3 Filter cartridge replacement (only on XM 20T JC)...........................................33
5.4 Filter replacement (only on XM 20T) ................................................................35
5.5 HEPA Cartridge replacement (if provided)......................................................37
5.6 Troubleshooting .................................................................................................38
5.7 Scrapping............................................................................................................39

!
Pag.!4!di!44!
!
1. INFORMATIVE SECTION
IMPORTANT - The DEPURECO term and logo in this document refer to and are the property of
DEPURECO INDUSTRIAL VACUUMS S.r.l.
This document remains the exclusive property of DEPURECO S.r.l. Full or partial reproduction by any
means (graphical, electronic, etc.) is prohibited without prior authorisation from the Company
Management.
1.1 Foreword
Dear Customer
Thank you for having chosen DEPURECO; we hope you will enjoy using your new DEPURECO XM 20T
Z22 series vacuum cleaner
This manual has been drafted in order for our customer to fully appreciate the quality of this machine.
Please read all sections before using the machine for the first time.
It includes information, recommendations and important warnings concerning the use of the vacuum,
which will help fully exploit the technical properties of your machine.
Read messages, warnings and indications preceded by the following symbols carefully:
For the safety of people
For the integrity of the vacuum cleaner
For the safeguard of the environment
This manual forms an integral part of the vacuum cleaner. Read this
manual and the other attachments supplied carefully. Knowledge of
the instructions here contained is indispensable for the safe use and
maintenance of the vacuum cleaner

!
Pag.!5!di!44!
!
This manual describes the following models:
XM 20T Z22
XM 20T M Z22 JC
XM 20T M Z22 JC
The vacuum cleaner is equipped with the following filters:
q ANTISTATIC M FILTER CARTRIDGE (Only on XM 20T Z22 JC) (P12256)
q ANTISTATIC M FILTER (only on XM 20T Z22) (P11837)
q ABSOLUTE FILTER CARTRIDGE (if provided) (P11640)
The vacuums are classified according to the following dust classes:
L
Low risk – suitable to separate dust with an exposure limit value of > 1 mg/m3 on the
basis of the occupied volume
M
Medium risk - suitable to separate dust with an exposure limit value of > 0,1 mg/m3
on the basis of the occupied volume
H
High risk – suitable to separate all dusts with all exposure limit values on the basis of
the occupied volume, including cancerogenic and pathogenic dusts.
This manual provides all the necessary information for the use and maintenance of the vacuum cleaner.
This specific model has undergone strict testing to ensure maximum reliability. Its operation and
durability will depend on proper use and maintenance.
This manual is an integral part of the vacuum cleaner and must accompany it at all times, until its
demolition.
In the event it is lost or damaged, you can request another copy from DEPURECO INDUSTRIAL
VACUUMS S.r.l. (henceforth shortened to DEPURECO).
The technical information contained in this manual is exclusive property of DEPURECO and must be
considered confidential.
Reproduction, even partial, of graphics, text and illustrations is prohibited by law.

!
Pag.!6!di!44!
!
Some details shown in the figures in this manual may differ from those on your vacuum; this is because
some components may have been removed to ensure maximum illustration clarity.
This manual has been divided into sections for easy consultation and each section has been identified
by a specific graphical symbol.
The topics covered in this manual are those expressly required by Machinery Directive 2006/42/EC and
the technical data are taken from the technical file archived at DEPURECO.
With reference to Regulation 1907/2006/EC (REACH), DEPURECO hereby declares that no
Substances of Very High Concern - (SVHC) included in the Candidate List, are contained in its
products.
This manual should be kept in a place accessible to all personnel in charge with operating and
performing maintenance on the vacuum cleaner.
In the event of any dispute arising, the Court of Turin (Italy) shall have jurisdiction
This manual forms an integral part of the vacuum cleaner. Read this
manual and the other attachments supplied carefully. Knowledge of
the instructions here contained is indispensable for the safe use and
maintenance of the vacuum cleaner

!
Pag.!7!di!44!
!

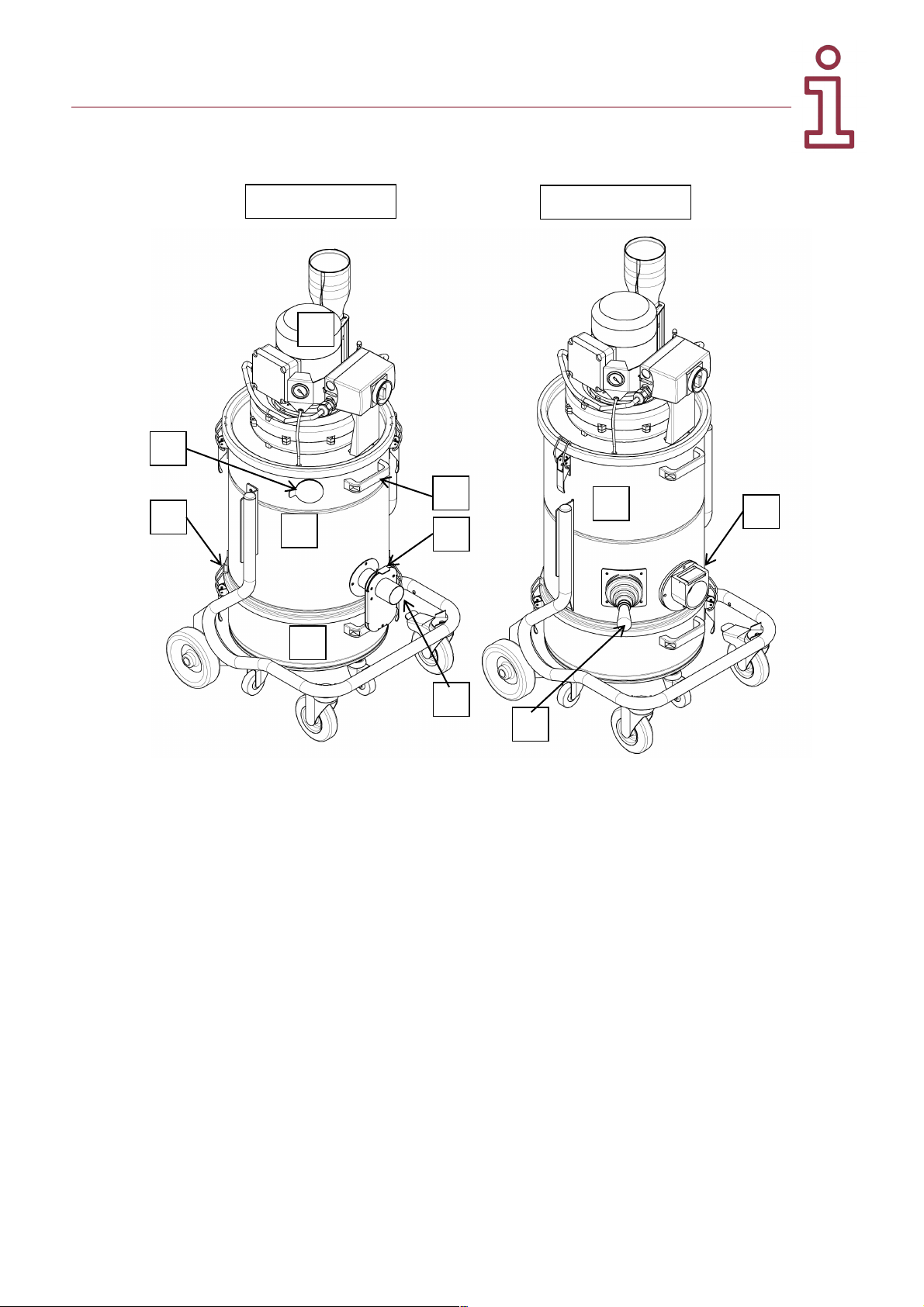

1.2 Main parts
!
!
1. Motor head with on/off commands
2. Handle
3. JetClean® Valve
4. Camera filtrante
5. Inlet
6. Manual filter shaker handle
7. JetClean® sliding damper
8. Dust bin hooks
9. Dust/Debris bin
!
1
2
5
7
4
3
9
4
5
6
8
XM 20T Z22 JC
XM 20T Z22

!
Pag.!8!di!44!
!
!
1.3 Optional parts
A wide range of optional accessories is available from DEPURECO depending on the intended use of
the vacuum.
1.4 Manufacturer's identification data
DEPURECO INDUSTRIAL VACUUMS S.r.l.
Corso Europa 609 - 10088 Volpiano (TO) - ITALY
phone [phone] - fax [phone] | VAT NO. 02258610357
e-mail: [e-mail] - website: www.depureco.com

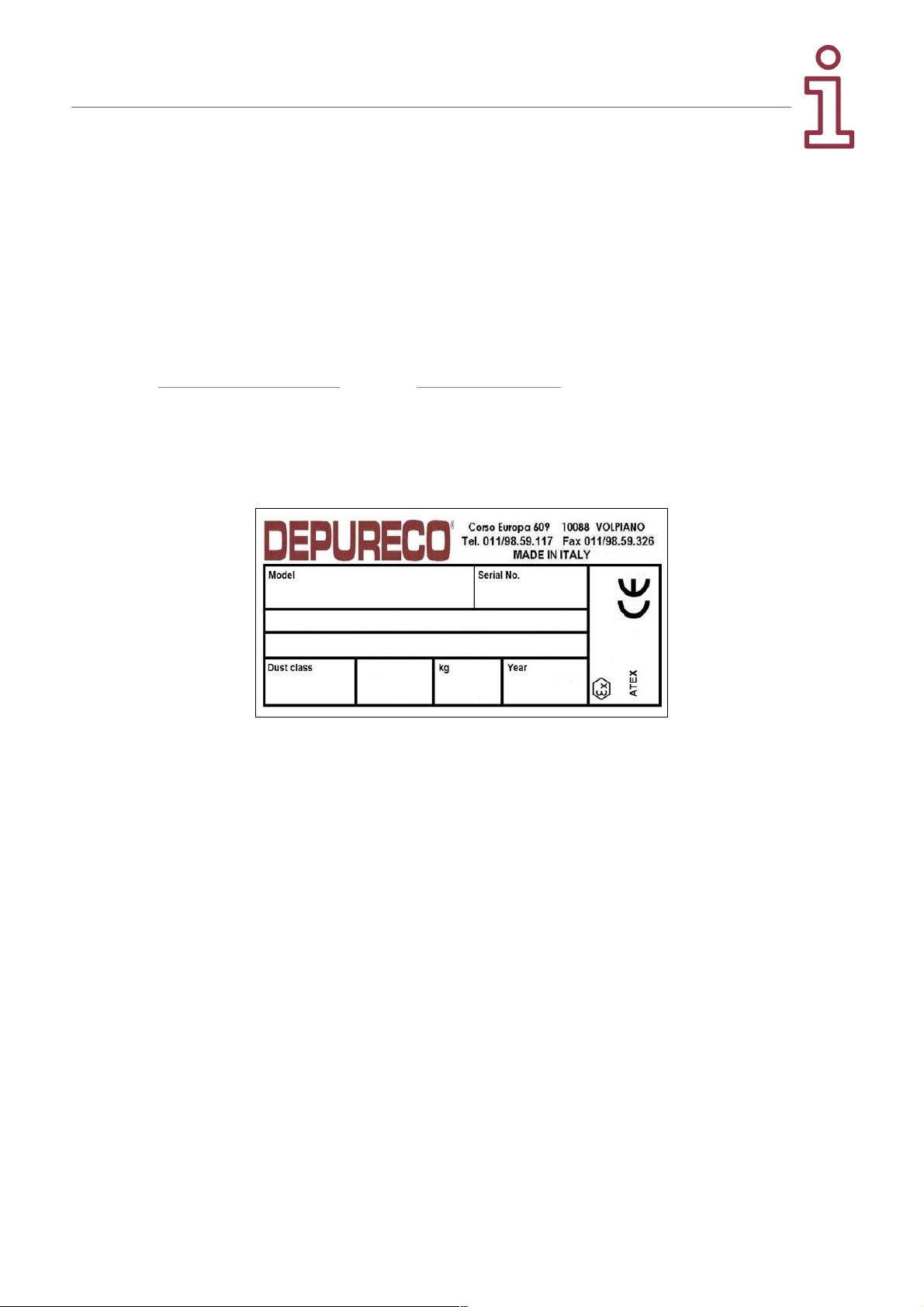

1.5 Identification plate
The data on the vacuum identification plate must be referred to in any correspondence with the
manufacturer or the dealer.
1.6 Permitted Uses
These vacuum cleaners are designed and built according to the 2014/34/EU (ATEX) Directive for an
exclusive professional industrial use; either way, for any non-domestic use,
This vacuum cleaner is suitable for the cleaning and the collection of solid materials, only in covered
areas. This vacuum cleaner is designed to collect combustible dust and/or dry particles in Zone 222
classified atmospheres with the following limitations:
Minimum Ignition Energy (MIE) of the dust >3mJ
Kst-Value of the dust <300 bas m/s (St1, St2)
The vacuum cleaner was conceived to be used by only one operator.
In accordance with the Directive 1999/92/EC, whenever in the presence of combustible dust and/or
flammable gas, it’s the responsibility of the employer to carry out the classification of the Zone and to
choose a device in the appropriate category (According to the definition given in the 2014/34/EU
Directive.
Any other use is considered IMPROPER.

!
Pag.!9!di!44!
!
1.7 Authorised environmental conditions
To ensure the correct operation, the vacuum cleaner must be kept away from atmospheric agents (rain,
hail, snow, fog, dust in suspension, etc.) in an area with a room temperature range between 5° and
45°C and a relative humidity no higher than 70%.
The work environment must be clean and suitably lit.
1.8 Noise level
The phonometric tests performed on this specific vacuum cleaner model demonstrate a sound pressure
level of
XM 20T Z22
XM 20T M Z22JC
XM 20T T Z22JC
72 dB(A)
Exposure to noise
!
!
!
!
!
!
!
!
!
!
!
!
!
WARNING!
Workers exposed to sound pressure levels higher than 85 dB(A) must be
protected by suitable personal protection device (PPE) such as certified ear
muffs.
Under these conditions, workers must be provided with adequate training
and information on risks arising from noise exposure.

!
Pag.!10!di!44!
!
!
1.9 Technical Data
!
!
U.M.
XM 20T Z22
XM 20T M Z22
XM 20T T Z22
Peso*
[Kg]
38
59
Dimensioni di
ingombro**
[mm]
516 x 545 x 1050
550x620x1400
Tensione /
Frequenza
[V]- [Hz]
230 - 50/60
400 – 50/60
Potenza
[kW -HP]
1,8 - 2,4
Depressione
massima
[mBar]
230
Portata aria
[m³/h]
280
Superficie filtro
M
[m²]
1,5
3.4
Superficie filtro
H (dove
previsto)
[m²]
2,2
Rumorosità
[dB-A]
72
Capacità
contenitore
[L]
20
20
45
!
!
(*) weight without packaging - packaging weight = 18 Kg
(**) machine dimensions without packaging

!
Pag.!11!di!44!
!
1.10 Warranty
DEPURECO guarantees this model of vacuum cleaner for a period of 24 months from the date of
purchase, indicated on the receipt at the time of delivery of the product.
The guarantee is null and void in the event that the vacuum is repaired by unauthorised third parties or
by using equipment, accessories or components not supplied or not authorised by DEPURECO, or if the
serial number is removed (during the guarantee period).
For the duration of the guarantee, DEPURECO undertakes to repair or replace free of charge parts and
components which prove to have manufacturing defects.
Repairs will be exclusively executed at a DEPURECO site or in a DEPURECO approved Assistance
Centre and the machine must be sent free of charge (freight cost at user’s charge unless otherwise
agreed).
The guarantee does not cover cleaning of working parts.
The purchase invoice must be shown to the authorised technical personnel carrying out the repair and
must accompany the vacuum during its shipment.
Defects that are not evidently due to materials or manufacturing will be examined solely at our
premises or at a Technical Service Centre of our choosing.
Should the complaint be unjustified, all repair and/or replacement expenses shall be charged to the
purchaser.
In any case, the following items are not covered by the guarantee: accidental damage due to transport,
negligence, abnormal use, improper use, non-compliance with the instructions contained in this booklet
or arising from phenomena that do not depend on normal use/operation of the vacuum.
DEPURECO shall not be held liable for any injuries to persons or damage to objects caused by misuse
or improper use of the vacuum.
In the event of any dispute arising, the Court of Turin (Italy) shall have jurisdiction.
To use the warranty visit www.depureco.com or photocopy the form
available on the last page of this manual, fill it in all its parts (in capital letters
would be recommended), and send it via fax to Depureco at the number + 39
011 98 59 117
In the event of doubts, avoid interpreting the information! Call your
reseller immediately!

!
Pag.!12!di!44!
!
2. SAFETY SECTION
2.1 Safety Information
As per Italian Legislative Decree 81/08 and subsequent modifications, the Safety
Manager must train and inform workers about the risks involved with using the
vacuum cleaner so that they may be able to avoid injury to themselves and others.
The use of device by people (including children) with limited physical and mental capacities or lacking in
experience and knowledge is strictly forbidden, unless they are supervised by a person who is
experienced in the use and safe handling of the device.
Children must be supervised to make sure they will not play with the device.
Failure to comply norms, laws or basic safety precautions, may cause accidents during operation,
maintenance and repair of the vacuum cleaner. Accidents can frequently be avoided by recognising
potentially hazardous situations before they occur. Adequate training is crucial to this end.
DEPURECO shall not be held liable for accidents or damage due to the improper use of the vacuum by
untrained personnel or to failure to comply, even partially, with the occupational safety standards and
intervention procedures contained in this manual.
Safety warnings and precautions are indicated in this manual as well as on the product itself.
Operators must pay special attention to these hazard warnings to prevent accidents with serious
consequences for themselves and other people.
DEPURECO designs and manufactures its equipment and accessories with care, identifying and
compensating possible risks related to their use. In the event of equipment, procedures, work methods
or techniques not expressly provided for by DEPURECO being used, it is crucial to ensure beforehand
that there are no dangers for oneself and the others. Nevertheless, DEPURECO shall not be held liable.
!
Use exclusively Depureco original spare parts.
Depureco disclaims any liability in case spare parts other than
original have been used.

!
Pag.!13!di!44!
!
2.2 Safety recommendations
WARNING!
The following information is essential in view of preventing all hazards that may occur
while the vacuum cleaner is running. However, they cannot replace the expertise and
common sense of operators as an overall framework for the prevention of accidents.
Structural damage, alterations or improper repairs can modify the protective capacity
of the vacuum, thereby nullifying this certification and releasing DEPURECO from any
liability.
Each section lists further safety measures specific to the various functions.
WARNING!
Setting to work – connection to the power supply
• Make sure there is no evident sign of damage to the vacuum cleaner before starting work.
• Before plugging the vacuum cleaner into the electrical mains, make sure the voltage rating
indicated on the data plate corresponds to that of the electrical mains.
• Plug the vacuum cleaner into a socket with a correctly installed ground contact/connection.
Make sure that the vacuum cleaner is turned off.
• The plugs and connectors of the connection cables must be protected against splashes of
water.
• Check that the vacuum cleaner is properly connected to the electrical mains.
• Use the vacuum cleaner only when the cables that connect to the electrical mains are in
perfect condition (damaged cables could lead to electric shocks!).
• Regularly check there are no signs of damage, excessive wear, cracks or ageing on the
electric cable.
WARNING!
When the vacuum cleaner is operating, do not:
• Crush, pull, damage or tread on the cable that connects to the electrical mains.
• Only disconnect the cable from the electrical mains by removing the plug (do not pull the
cable).
• Only replace the electric power cable with one of the same type as the original: H07 RN - F.
The same rule applies if an extension is used.
• The cable must be replaced by the manufacturer’s Service Centre staff or by equivalent
qualified personnel.

!
Pag.!14!di!44!
!
CAUTION!
It is absolutely forbidden;
• For underage and non-trained people to use this vacuum cleaner.
• To connect the vacuum cleaner to mains without suitable earthing.
• To operate the vacuum cleaner outdoors in the presence of atmospheric precipitations.
• To operate the vacuum cleaner without locking the swivelling wheel through the special brake
located on it.
• To operate the vacuum cleaner on uneven ground or in non-horizontal positions.
• To operate the vacuum cleaner in corrosive environments.
• To use flexible hoses which are not wholly antistatic (superficial antistatic properties are not
accepted). The use of original DEPURECO accessories is recommended. Verify electric continuity
with an ohmmeter:
1. Between the inlet and the ending part of the vacuum’s accessories: The
resistance measured must be inferior to 100MΩ(108 Ω)
2. Between the bin and the plug (ground pin) with an electric device, or
between the bin and the earthing cable (supplied) with compressed air
powered devices. The resistance measured must be less than 10 Ω
• To operate the vacuum cleaner in working environments not classified according to the directions
given on the device’s plate.
• To vacuum the following materials:
1. Flaming materials (embers, hot ashes, lit cigarettes etc…)
2. Open flames
3. Combustible gases
4. Flammable, combustible or aggressive liquids (gasoline, solvents, acids,
alkaline solutions etc…)
5. Dusts/Substances and/or spontaneously combusting explosive mixtures
of them (magnesium or aluminium dusts etc…)
• To tamper with or modify the return valve set up by the manufacturer
• The use of the JETCLEAN system in the presence of potentially explosive clouds in the atmosphere.
• To carry out maintenance on the vacuum cleaner in ATEX classified areas
• To carry out maintenance on the vacuum cleaner without first having switched the device off and
disconnected the plug from the socket.
• To keep foreign materials such as debris, oil, tools or other objects in the bin which could disrupt the
functioning and cause harm to people.
• To use flammable or toxic solvents such as gasoline, benzene, ether or alcohol for cleaning.
• To operate the vacuum cleaner without the filtering unit provided for by the manufacturer.

!
Pag.!15!di!44!
!
• To operate the vacuum cleaner without safety devices.
• To wear loose or flowing apparel such as ties, scarves, or torn clothing that could get caught on the
vacuum cleaner or vacuumed by the device.
• To open the waste bin while the vacuum cleaner is working.
• To open the waste bin in an area which has been classified potentially explosive.
• To use extension leads, plug-in connection devices and adapters.
• To climb on the vacuum cleaner.
• To touch electrical wires, switches, buttons, etc. with wet hands.
• To touch some components which could reach high temperatures (such as the motor’s terminal box
and the motor housing in particular) while operating the vacuum cleaner.
WARNING!
This vacuum cleaner could contain dust that may be hazardous to your health.
The emptying out and maintenance procedures, including removing the dust containers, must
be carried out exclusively by specialized personnel wearing suitable safety clothing.
Never switch the machine on in the absence of a complete filtering system.
2.3 Safety plates and symbols
!
Plates with safety symbols and/or messages are applied to the vacuum and its packaging.
These pages show their precise location and the nature of the hazard.
Warning!
Ensure that all safety messages are perfectly legible.
Clean them using a cloth with water and soap. Do not use solvents, naphtha or petrol.
Request replacements for damaged plates from DEPURECO.
If a plate is located on a component that is being replaced, make sure to fit the old plate to
the new component.

!
Pag.!16!di!44!
!
Warning!
Crushing hazard for the upper limbs during insertion and locking of the dirt container under
the vacuum cleaner.
Never place your hands between the vacuum and the dirt container while inserting and
locking the later under the vacuum cleaner.
Lock the container by means of the special lever, using BOTH HANDS
Warning!
Read carefully this use and maintenance manual before using the vacuum cleaner or carrying
out maintenance operations on it
Read carefully the
instructions on the packaging
before handling the vacuum
cleaner

!
Pag.!17!di!44!
!
2.4 Residual risks
DEPURECO recommends complying with the instructions, procedures and recommendations in this
manual and with the safety standards in force. DEPURECO also recommends using suitable personal
protective equipment as well as the protection devices integrated in the vacuum.
The residual risks analysed on the vacuum and/or its components could be:
Electrical risks during maintenance due to the requirement to work on live parts
Pursuant to Italian Legislative Decree 81/08 – articles 80 to 87 – it is prohibited to operate on live parts,
notwithstanding the exceptions set forth by said Legislative Decree.
Risks associated with incorrect use in presence of explosive and inflammable liquid substances
The vacuum must not be used in environments containing liquid substances or liquids that can
evaporate at room temperature, inflammable powders and gas.
Risks related to operation in humid environments
Respect the limitations indicated in this manual, in section 1.5 “Authorised environmental conditions”.
Risk of incorrect interpretation of the safety pictograms
With reference to risk analysis and identification, DEPURECO has installed hazard labels on the
vacuum, in compliance with the standards concerning graphical symbols.
The user must immediately replace any safety plate rendered illegible due to wear or damage.
Warning!
The removal of safety plates from the vacuum and/or its components and packaging is
strictly prohibited.
DEPURECO shall not be held liable for the vacuum's safety in the event of failure to
comply with this prohibition.
2.5 Applied Directives
The following directives apply to the vacuum cleaner described in this manual:
- 2006/42/EC Machinery Directive
- 2014/30/EU Electromagnetic compatibility directive
- 2011/65/EU - ROHS - Directive on the restriction of the use of certain hazardous substances
in electrical and electronic equipment
- 2014/35/UE – Low tension directive
- 2014/34/UE – ATEX Directive
The reference standards, including their binding requirements, are managed within the DEPURECO
Quality Management System and archived by DEPURECO.

!
Pag.!18!di!44!
!
3. HANDLING, UNPACKING AND INSTALLATION SECTION
3.1 Handling
Warning!
The instructions for transporting and unpacking the vacuum correctly are
shown
on the packaging as well.
The following instructions also indicate the operations to be undertaken should the vacuum need to be
re-packed or unpacked after subsequent transportation.
Dimensions of packed vacuum cleaner:
When using a forklift, lift the load 200 mm off the ground and swing backwards.
Always keep the height of the working environment in mind when lifting loads.
Before starting any movement, ensure that the area is cleared and that there are no moving objects on
the packaging. For lifting and handling, apply operating safety laws and normal instructions for fork-lift
truck driving.
The vacuum cleaner must be lifted and handled exclusively using a forklift having
suitable load bearing capacity.
The vacuum cleaner must be lifted and handled exclusively using a forklift having
suitable load bearing capacity.
170$cm$

!
Pag.!19!di!44!
!

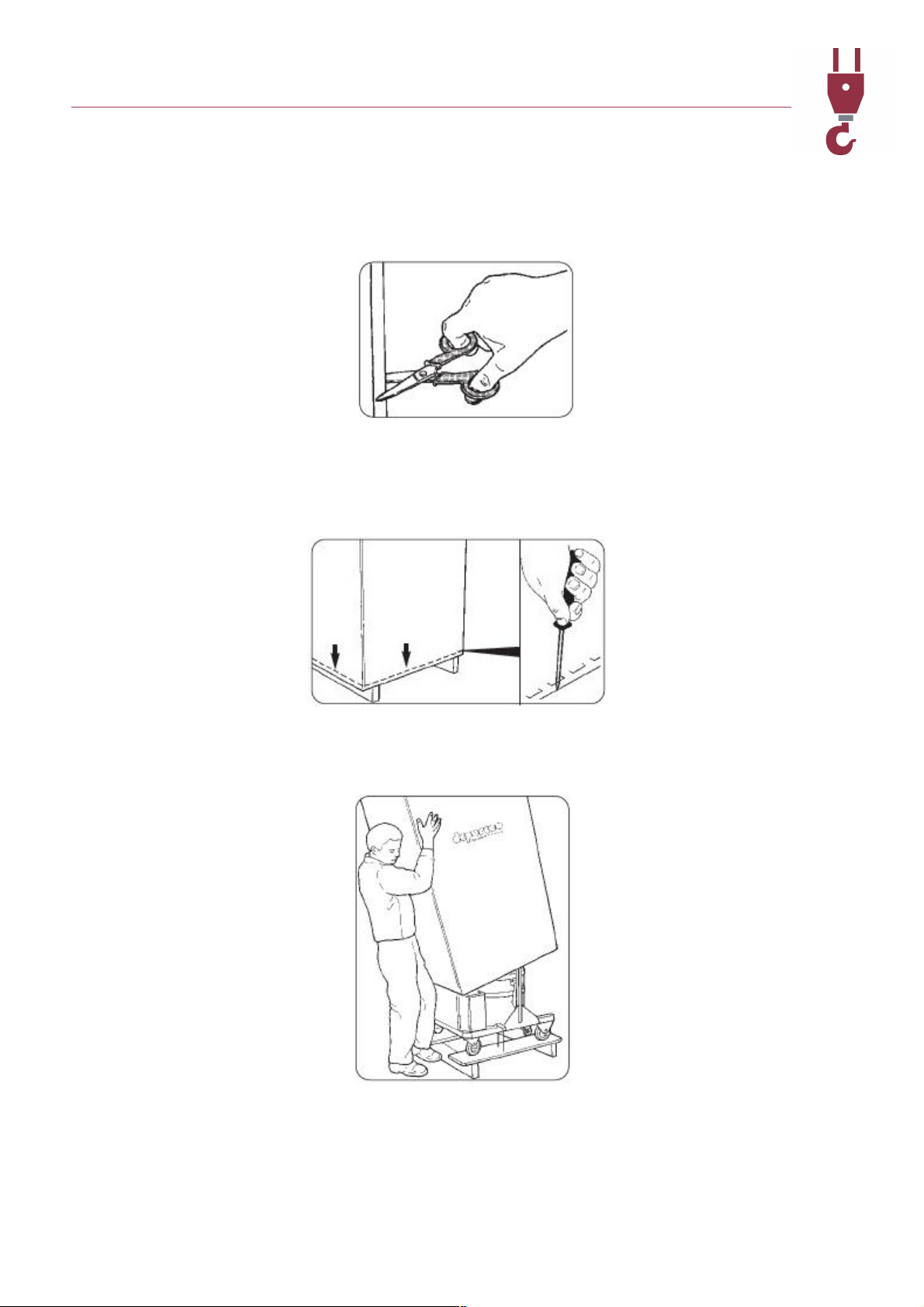

3.2 Unpacking
!
- Cut and unwind the two packaging fixing belts
-
- remove the staples that fix the carton packaging to the pallet with the aid of a screwdriver
-
- remove the carton completely
-

!
Pag.!20!di!44!
!

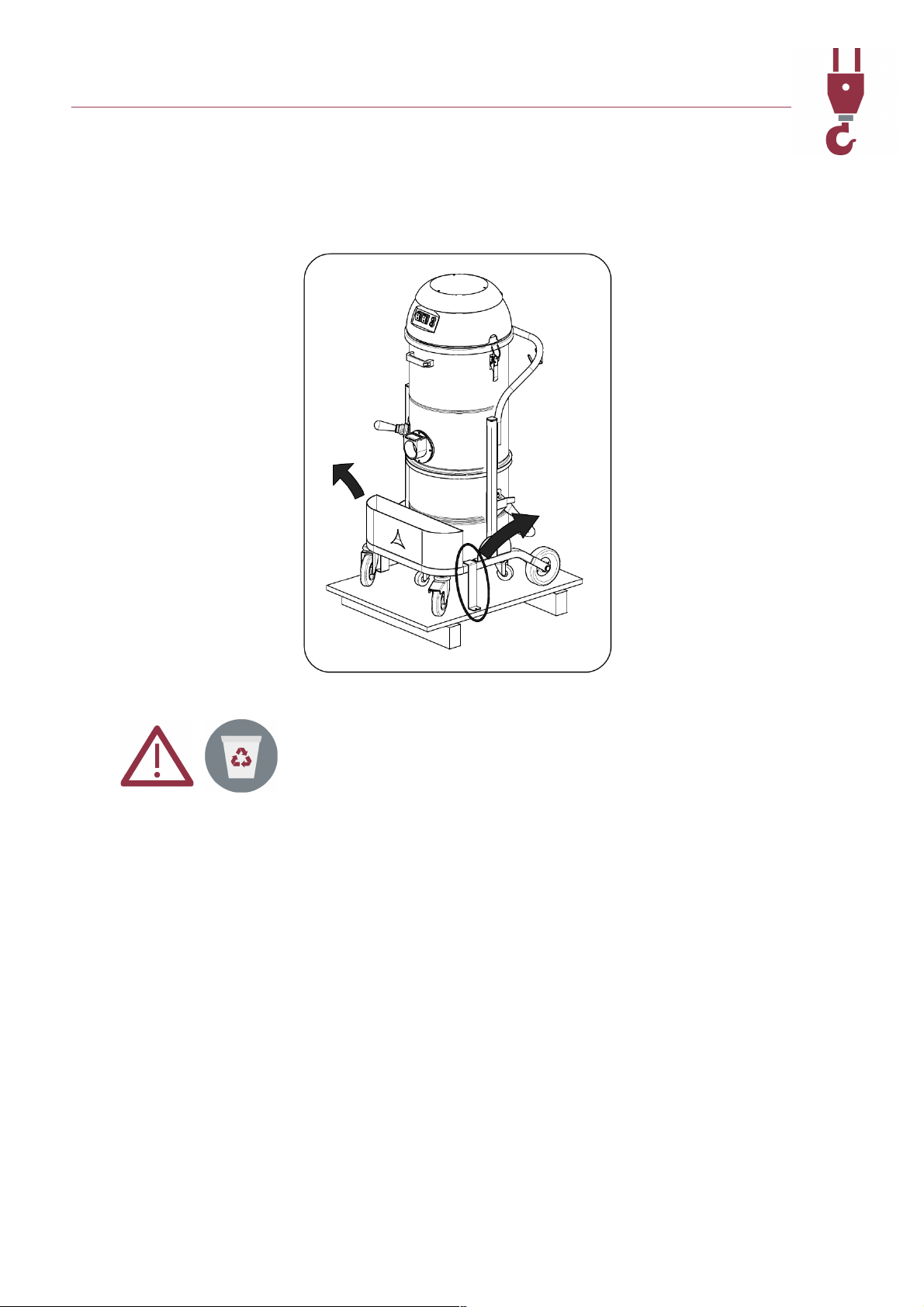

- Loosen and remove the fastening screws and brackets from both sides
The cardboard packaging can be recycled. To protect the
environment, make sure to dispose it off in specialised collection
centres.
Warning!
Keep the pallet.
In the event of subsequent transport, the vacuum must be secured
to the pallet using the same fastening system.
